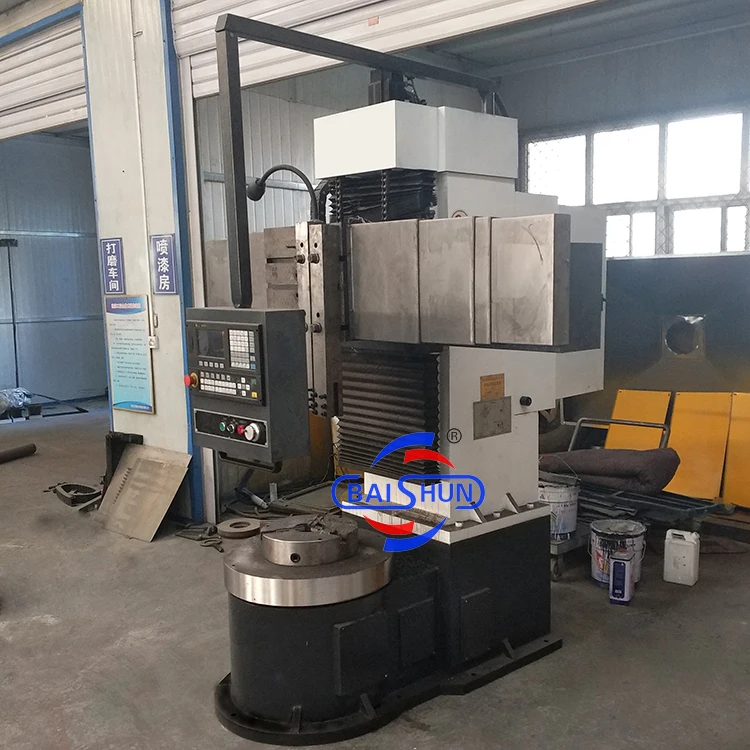

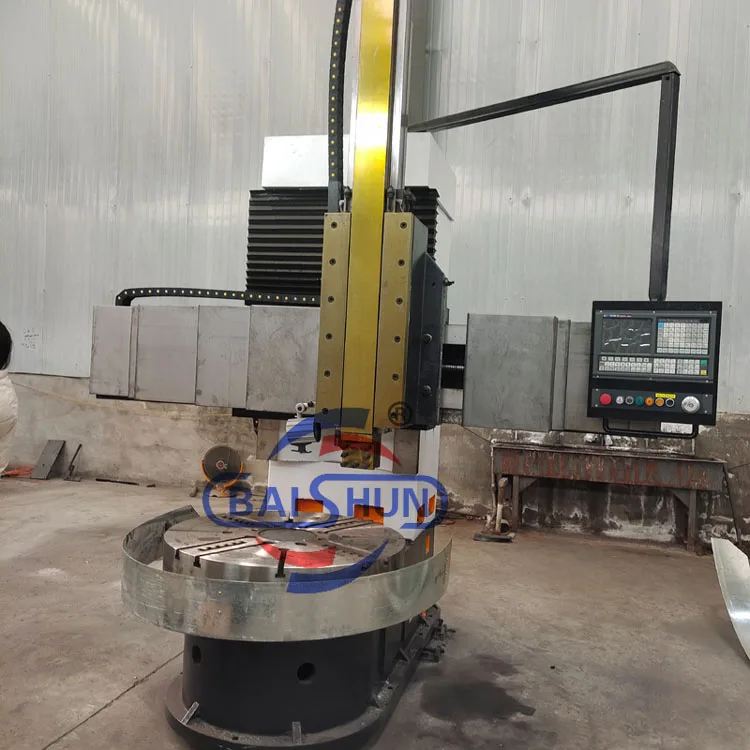

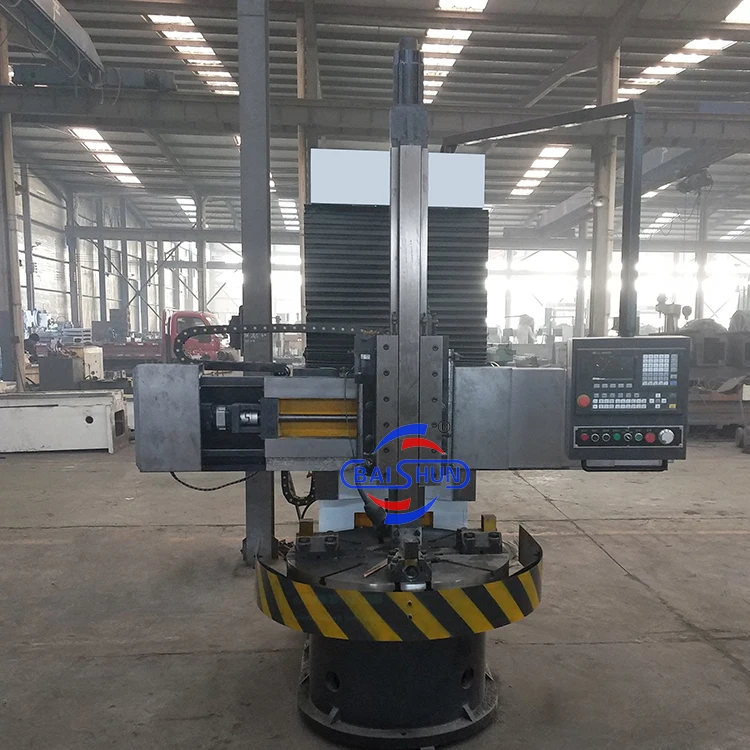

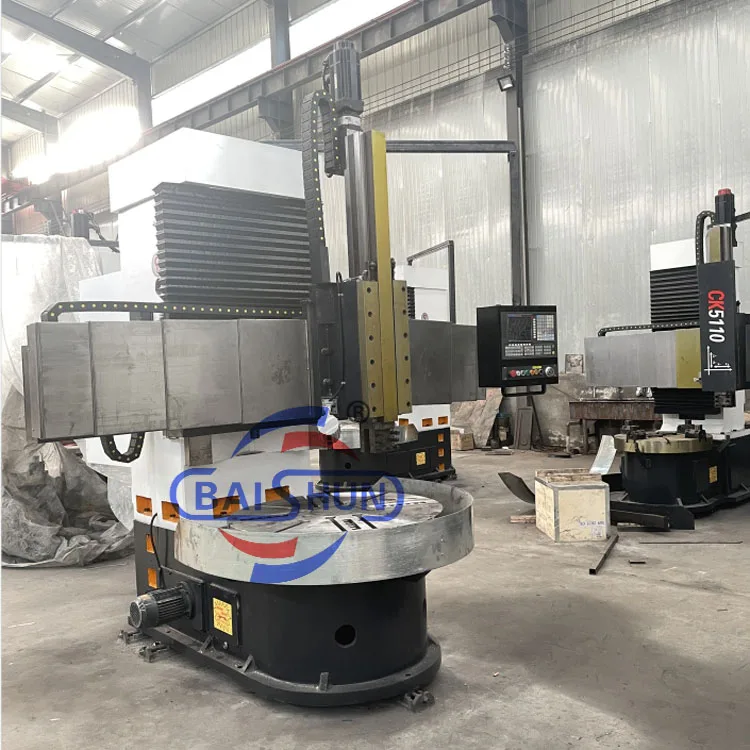

Cheap Price Hot Product Single Column Lathe Machine CNC Vertical Lathe VTL Turning Lathe Machine
- Category: >>>
- Supplier: Henan Baishun Machinery Equipment Co. Ltd.
Share on (1601272394008):
Product Overview
Description
Product Description

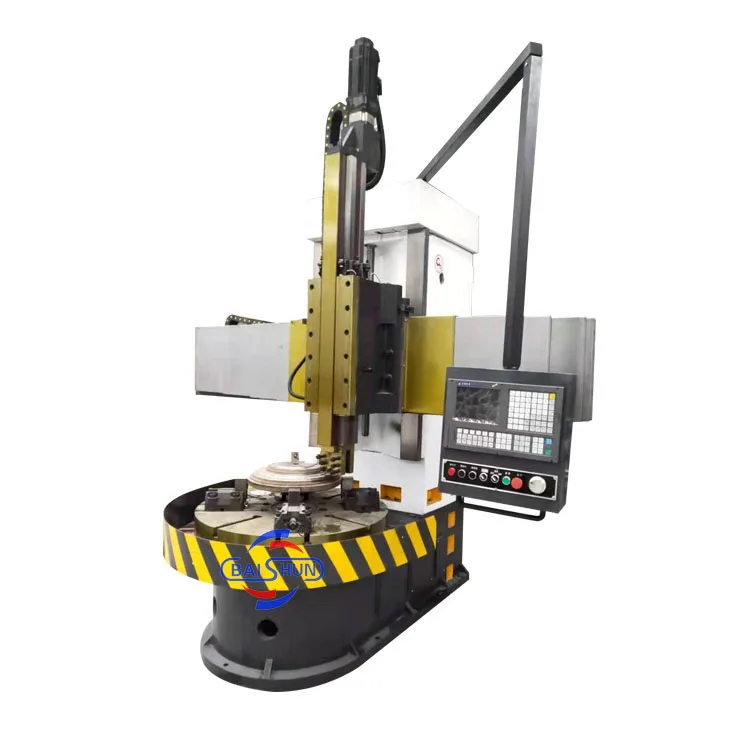

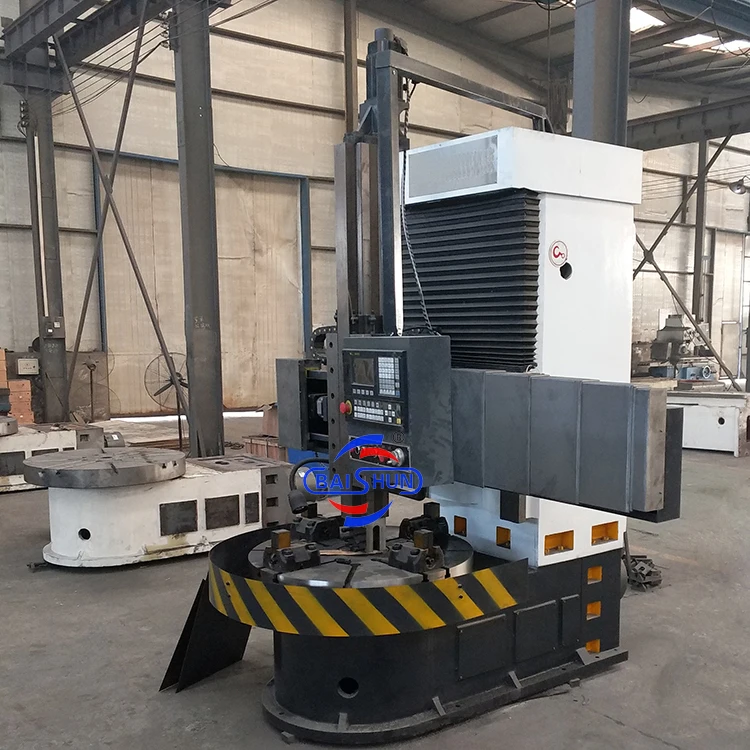

Economic Single Column Universal Vertical Turning Lathe CNC Machine VTL CNC Vertical Lathe Machine
The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.
Specification
Model | CK518 | CK5112Q | CK5116Q | CK5120A | CK5126A |
Max. turning diameter of vertical tool rest (mm) | 800 | 1200 | 1600 | 2000 | 2600 |
Working table diameter (mm) | 700 | 1000 | 1400 | 1800 | 2200 |
Max. height of work-piece (mm) | 800 | 1000 | 1200 | 1250 | 1400 |
Max. weight of work-piece (kg) | 1500 | 1500 | 3200 | 8000 | 8000 |
Range of worktable rotation speed (rpm) | 30-260 | 20-180 | 15-160 | 3.2-100 | 2.2-70 |
Feeding series | Stepless | Stepless | Stepless | Stepless | Stepless |
Range of tool rest feed (mm/min) | 0.25-90 | 0.25-90 | 0.25-90 | 0.8-86 | 0.8-86 |
Cross beam travel (mm) | 500 | 1000 | 1200 | 890 | 1090 |
Horizontal travel of tool rest (mm) | 500 | 700 | 900 | 1115 | 1400 |
Vertical travel of tool rest (mm) | 450 | 500 | 750 | 800 | 800 |
Size of section of cutter bar (mm) | 30*40 | 30*40 | 30*40 | 30*40 | 30*40 |
Main motor power (kw) | 11 | 15 | 15 | 30 | 30 |
Recommend Products

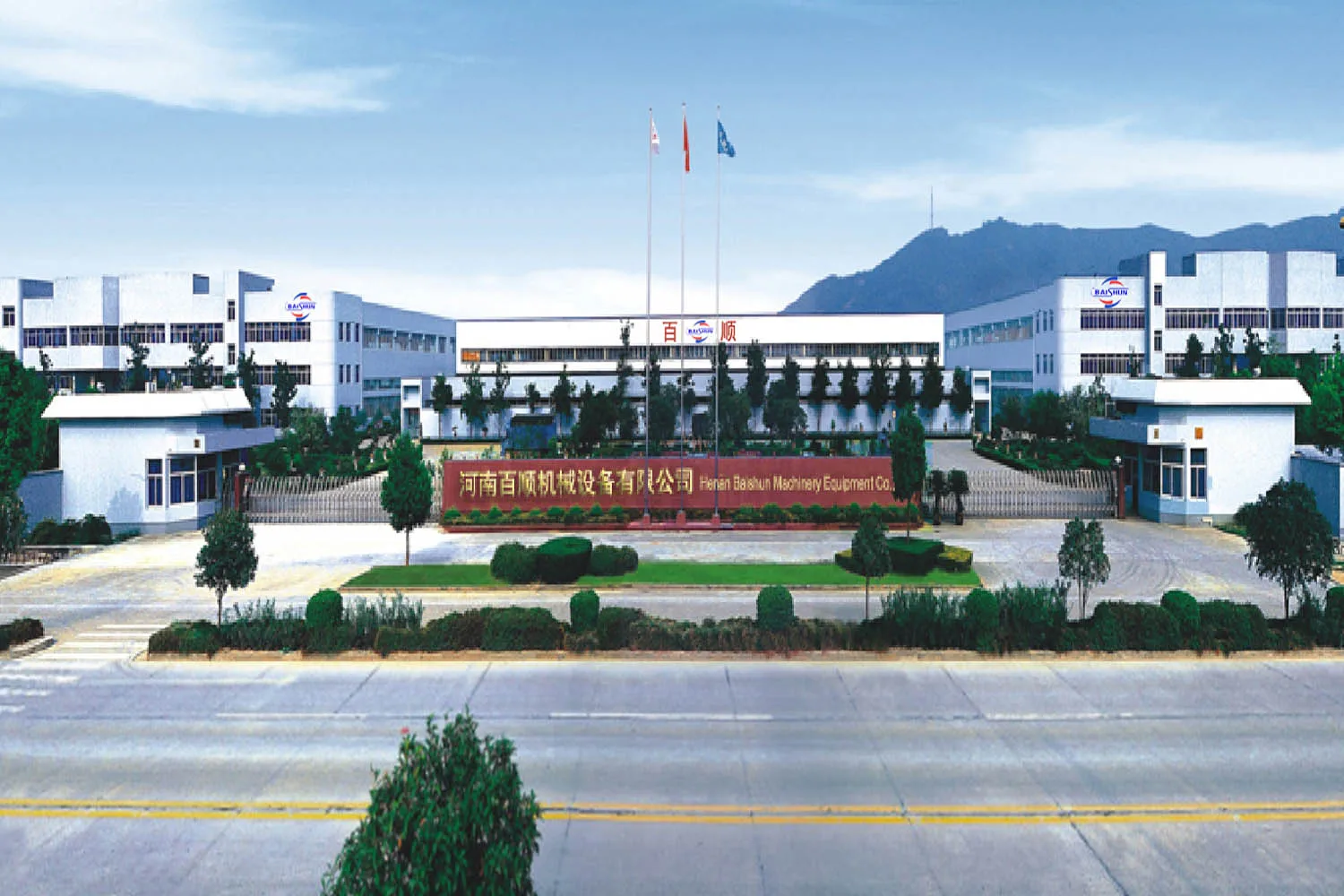

Company Profile
Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer, which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With more than 15 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.

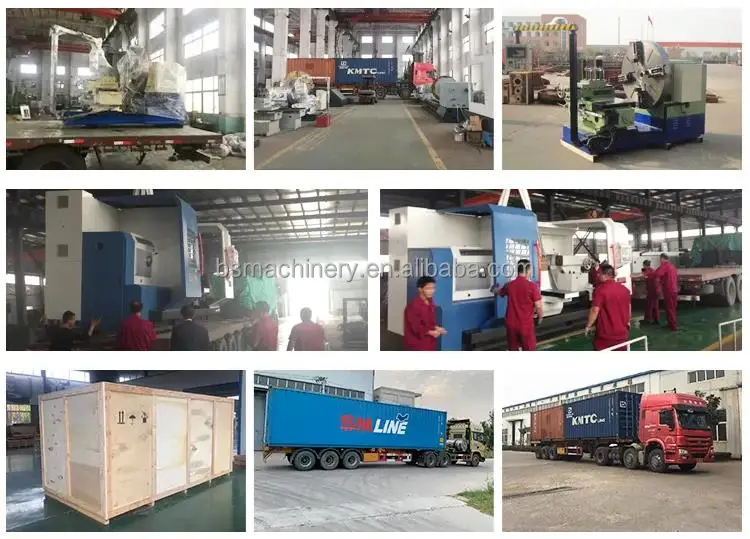

Packing & Delivery
1. Outside we will pack the product with plastic to prevent wet.
2. Outside of the machine will be packed by strong wooden pallet.
2. Outside of the machine will be packed by strong wooden pallet.
3. If there requirement of the package, we can customized based on the detail requirement.
FAQ
1. who are we?
We are based in Henan, China, start from 2017,sell to Southeast Asia,Domestic Market, South Asia,Africa(6.00%),South America, Western Europe, North America, Mid East, Central America, Eastern Asia, Eastern Europe, Northern Europe, Oceania, Southern Europe. There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Manual Vertical Lathe Machine, CNC Vertical lathe, Vertical Machining Center, Horizontal Lathe Machine, Gear Hobbing Lathe, Facing Lathe machine, Drilling Machine, etc.
4. why should you buy from us not from other suppliers?
Henan Baishun Machinery Equipment Co., Ltd. is a professional manufacturer of machinery equipment with a long history. We have rich export experience, and we have our own export license.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2017,sell to Southeast Asia,Domestic Market, South Asia,Africa(6.00%),South America, Western Europe, North America, Mid East, Central America, Eastern Asia, Eastern Europe, Northern Europe, Oceania, Southern Europe. There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Manual Vertical Lathe Machine, CNC Vertical lathe, Vertical Machining Center, Horizontal Lathe Machine, Gear Hobbing Lathe, Facing Lathe machine, Drilling Machine, etc.
4. why should you buy from us not from other suppliers?
Henan Baishun Machinery Equipment Co., Ltd. is a professional manufacturer of machinery equipment with a long history. We have rich export experience, and we have our own export license.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
