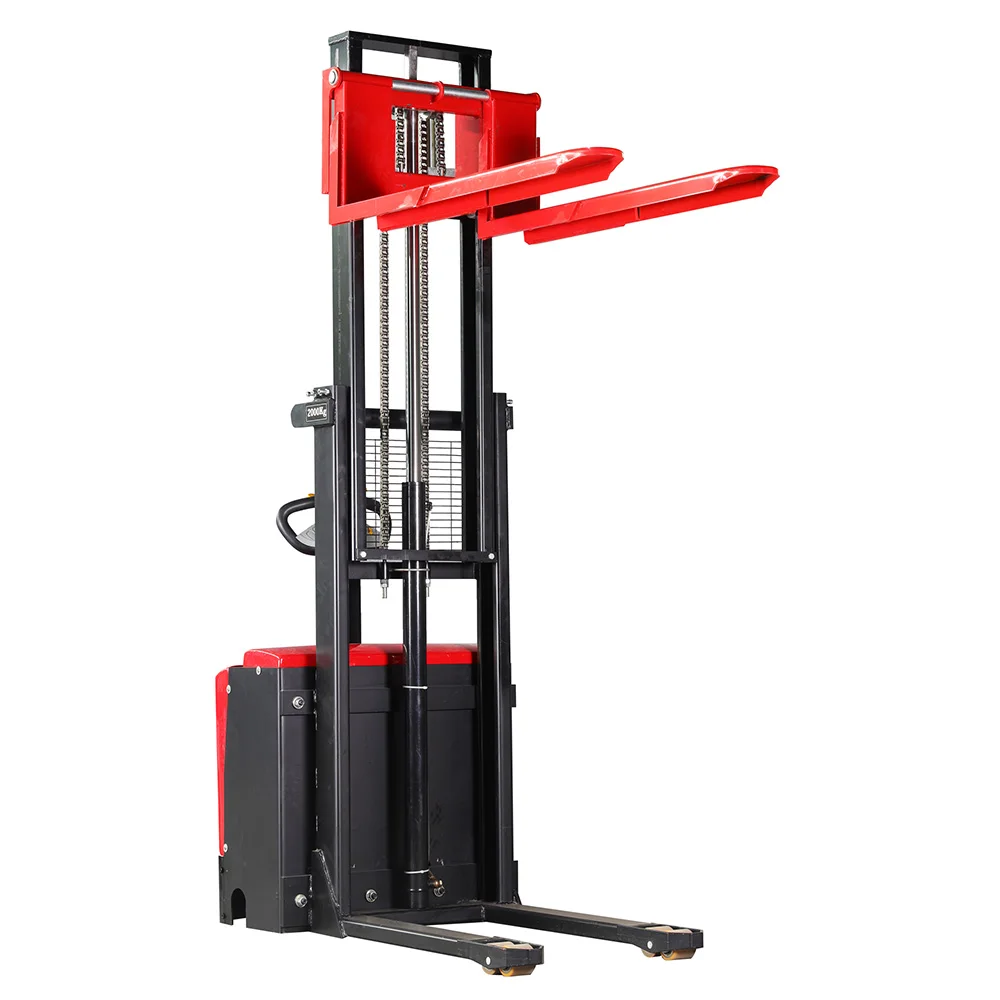

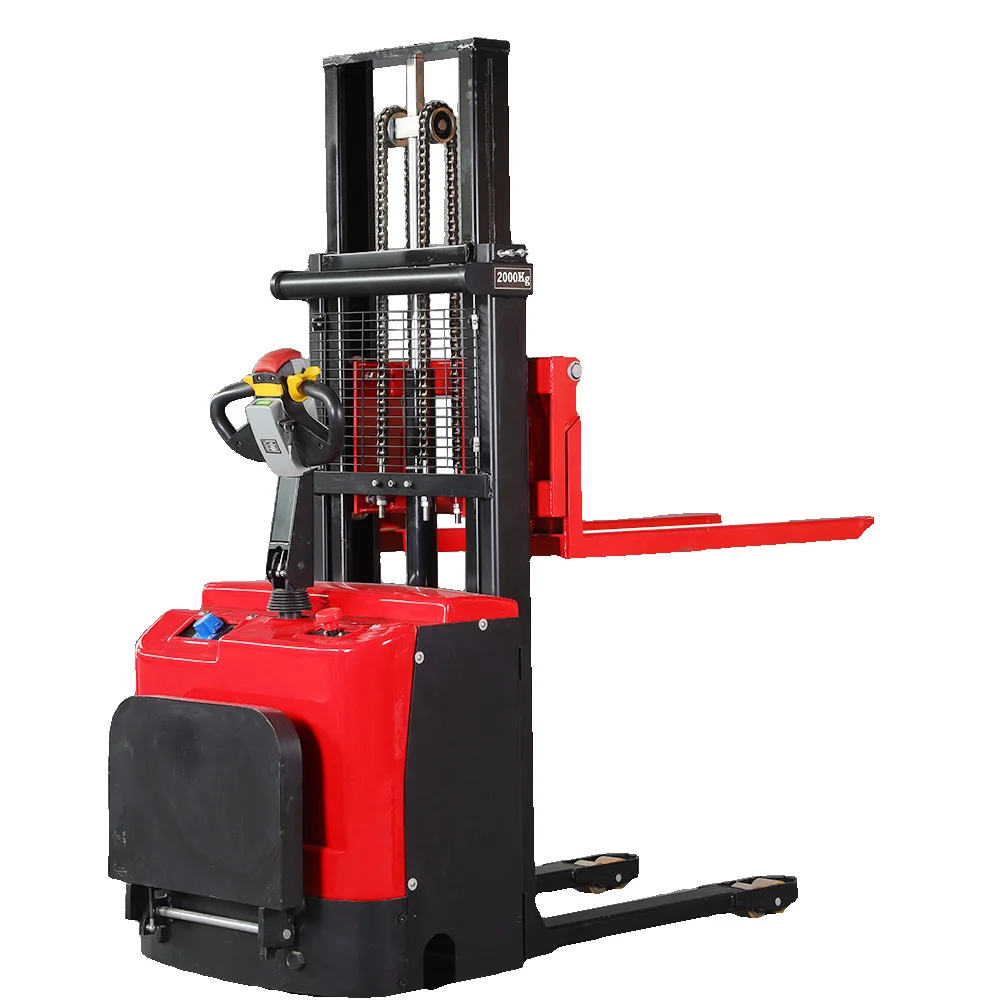

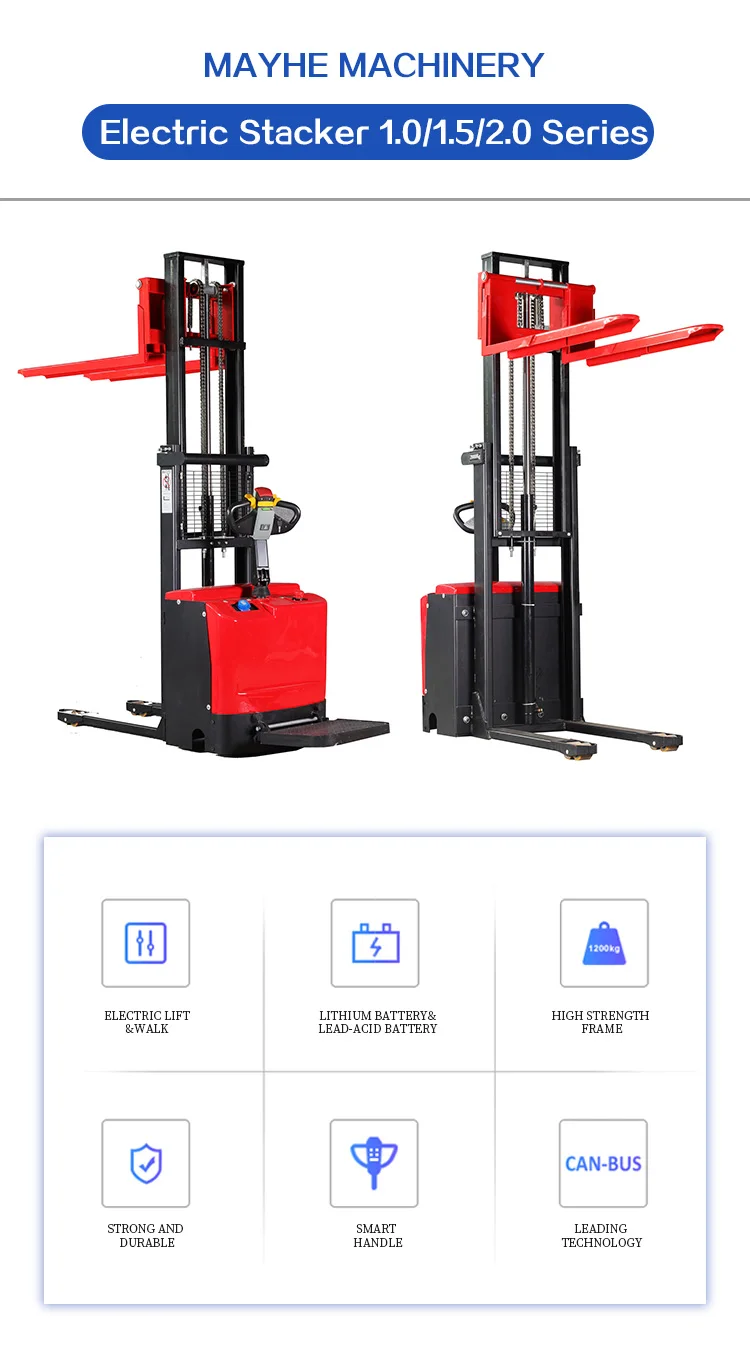

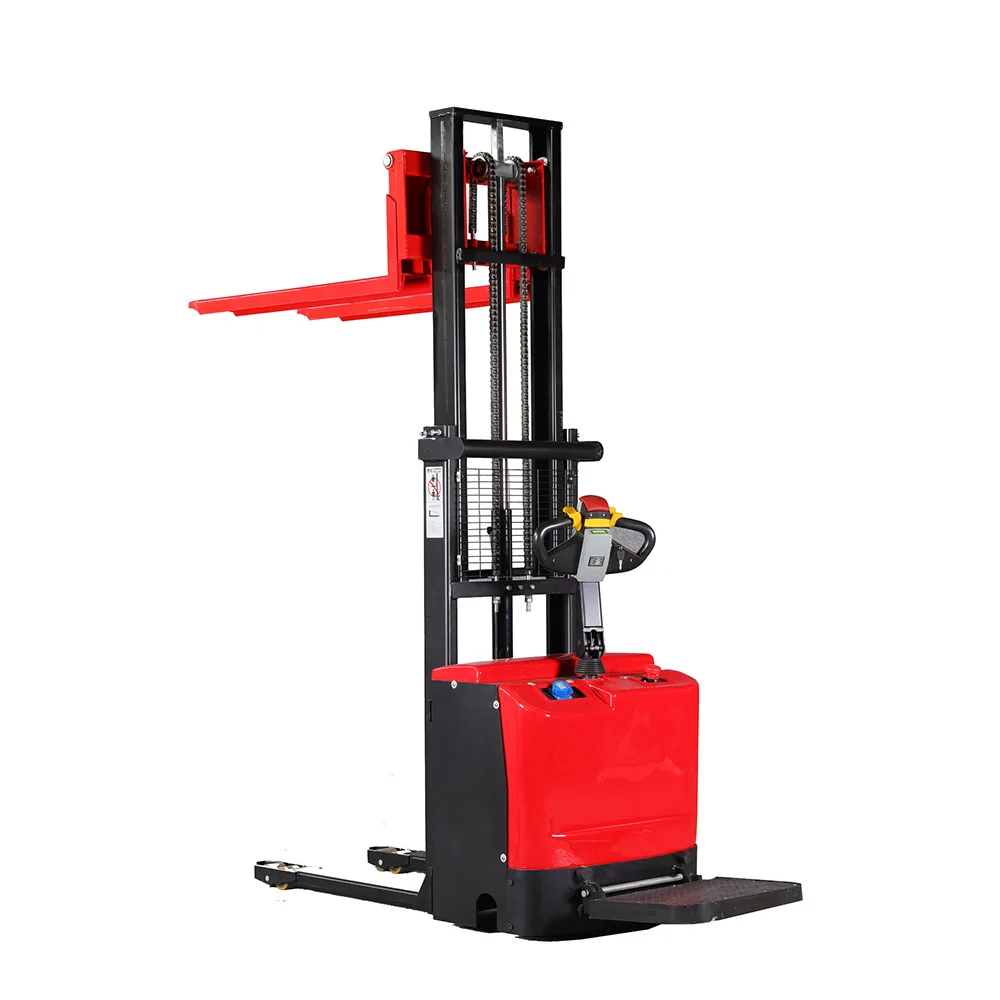

Model | unit | EPS Series 1.0/1.5/2.0 |
Load capacity | kg | 1000/1500/2000 |
Load center | mm | 500 |
Operating type | - | Walkle/Stand on |
Wheel type | - | Nylon/Rubber/Polyurethane |
Standard lift height | mm | 1600/2000/2500/3000/3500 |
Lowered fork height | mm | 85 |
Fork size(length/width/thickness) | mm | 1150/150/60 |
Overall length | mm | 1600 |
Overall width | mm | 850 |
Dimension(L*W*H) | mm | 1600*850*2330 |
Min.turning radius | mm | 1360 |
Min.groud clearance | mm | 100 |
Lift speed | m/s | 0.1-0.15 |
Drop speed | m/s | 0.11-0.12 |
Gradeability,laden/unladen | ° | 5-7 |
Drive motor /Lift motor | kw | DC0.75/DC1.5 |
Battery voltage | V | 24 |
Battery capacity | Ah | 150 |
Brake | - | Electromagnetic |
Battery weight | kg | 235 |
Service weight with battery | kg | 500-800 |
