One-stop Plastic Auxiliary Machines For Injection /Extruder/Blowing Machines







Products Description

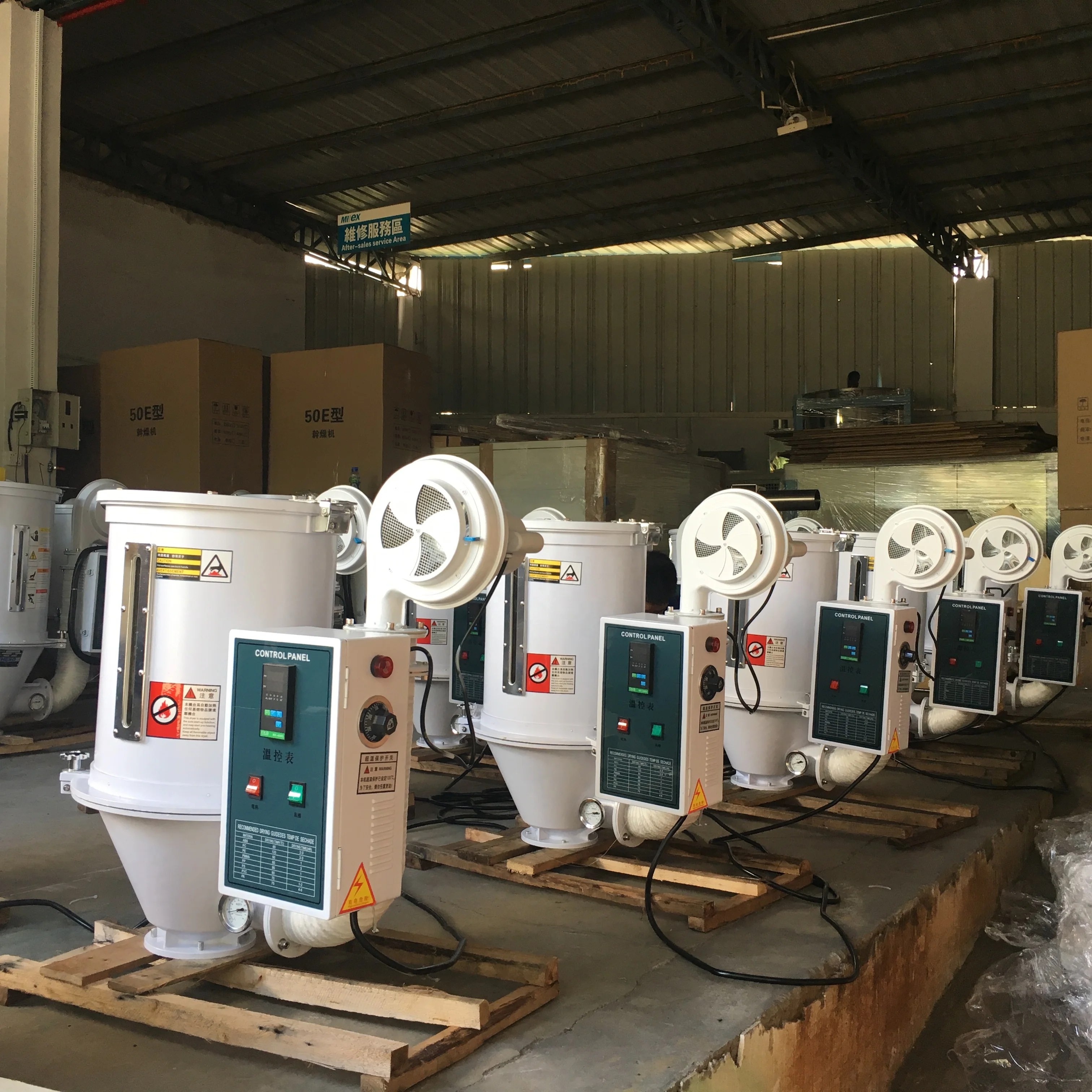

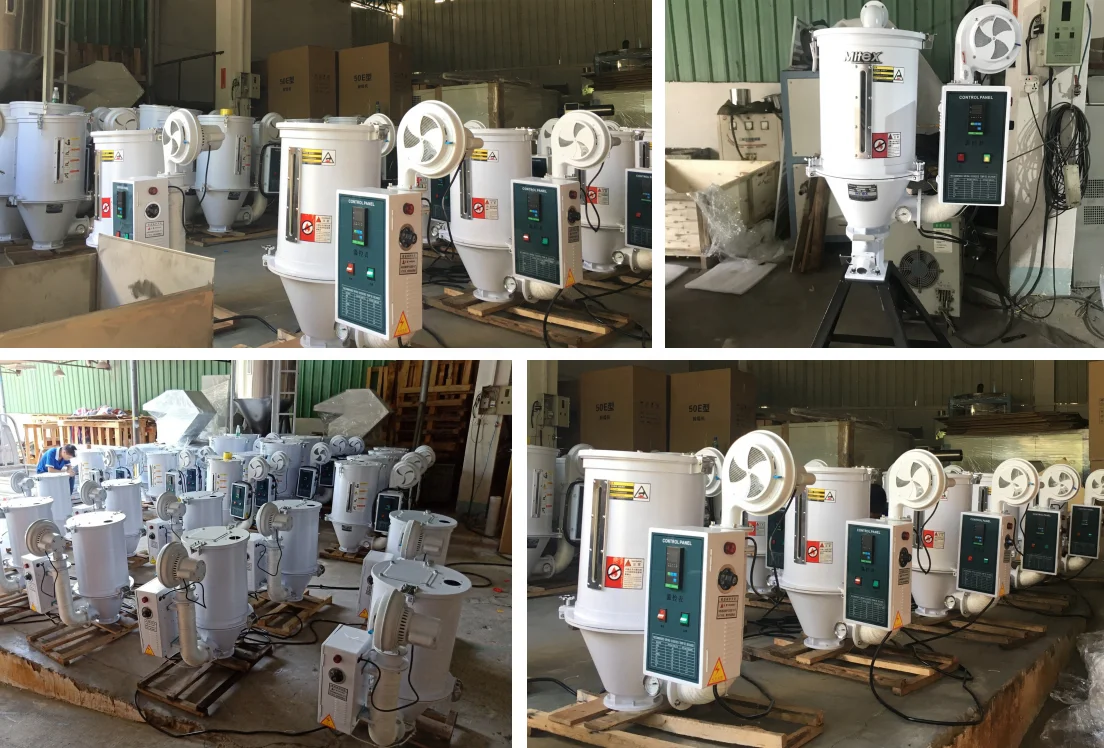

MD-H Series Hopper Dryer
MD-H Series hopper dryer proves to be an efficient and economical model for drying plastic raw materials. It is capable of drying raw materials that get moistened due to packaging, transportation, or recycling. Its uncomplicated design is exceptionally suitable for direct installation on a plastic molding machine for drying purposes. It is not only rapid but also space-efficient. This up-blowing hot air dryer can offer a charging capacity ranging from 12 to 1000 kg. A high-performance hot air diffusion device is employed to evenly distribute the hot air, guaranteeing a uniform drying temperature for the plastic and boosting the drying efficiency. Additionally, you have the option to choose a hot air recovery device to create a closed circulation loop and conserve electricity.




Features


1.All material contact surface are made of stainless steel to eliminate material contamination.
2.Hinged hopper construction for easy cleaning.
3.Quick release clamps for positive locking of hinged parts.
4.Sight-glass fitted to both the bowel and base.
5.Temperature controller for accurate temperature control.
6.Overheat and overload protector are standard equipment.


Product Specifications


Model
Capacity (kg)
Heater (kw)
Blower (W)
Power supply
Installation size
Dimension (MM)
MD-H12
12
1.8
65
AC220V, 1Phase, 50Hz
110*110
630*400*825
MD-H25
25
3.5
135
AC220V, 1Phase, 50Hz
150*150
760*485*1035
MD-H50
50
4.5
155
AC380V, 3Phase, 50Hz
160*160
865*542*1210
MD-H75
75
6.5
155
AC380V, 3Phase, 50Hz
160*160
940*605*1310
MD-H100
100
6.5
250
AC380V, 3Phase, 50Hz
200*200
1012*695*1406
MD-H150
150
9
250
AC380V, 3Phase, 50Hz
200*200
1012*695*1580
MD-H200
200
12
320
AC380V, 3Phase, 50Hz
230*230
1180*838*1755
MD-H300
300
12
320
AC380V, 3Phase, 50Hz
230*230
1230*770*1980
MD-H400
400
22
340
AC380V, 3Phase, 50Hz
275*275
1475*1058*2020

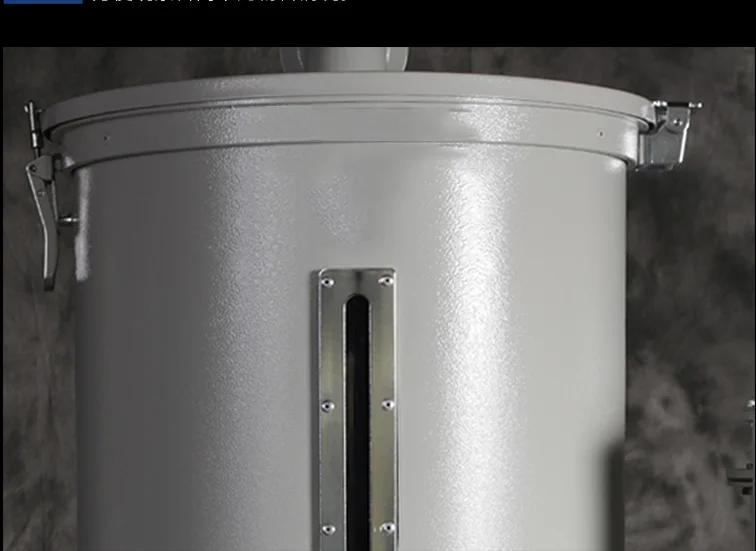

Sight-Glass

The hopper dryer is equipped with a visual window, which can observe the status of each material during the drying process, and timely adjust the operating parameters, temperature and time to help timely detect possible anomalies, such as material clogging, caking, etc.

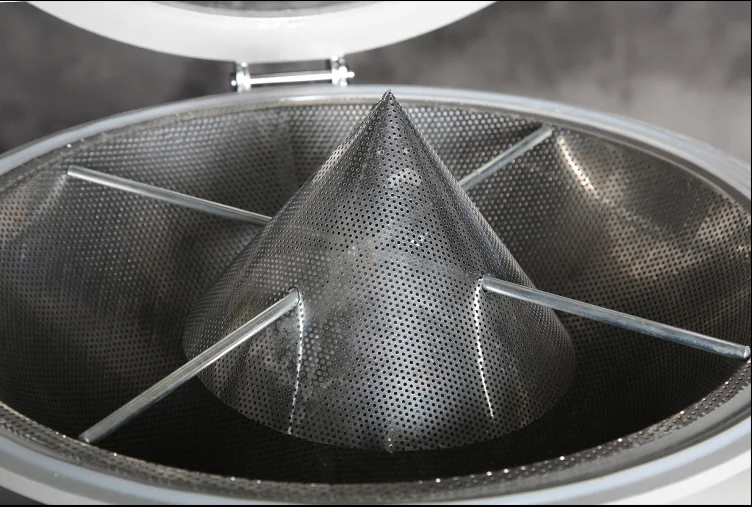

Air Mesh
The hopper dryer is equipped with air mesh, which can facilitate air circulation, allows hot air to pass through evenly, ensuring efficient drying material.It also act as filter to prevent material blockage. Improving the overall ventilation within the hopper dryer to speed up the drying process.

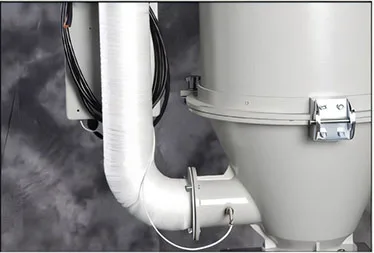

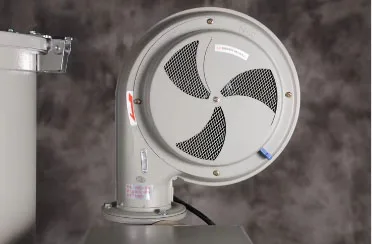

Blower

The MD-H series dryer features a space-saving side fan design with a copper silencing tube to provide even and continuous air to the heating tube.



Electric  Barrel

The compact design of electric drum space helps to save power consumption and improve drying efficiency and effect. Provide stable and consistent heating, which is essential for uniform drying of plastic raw materials.

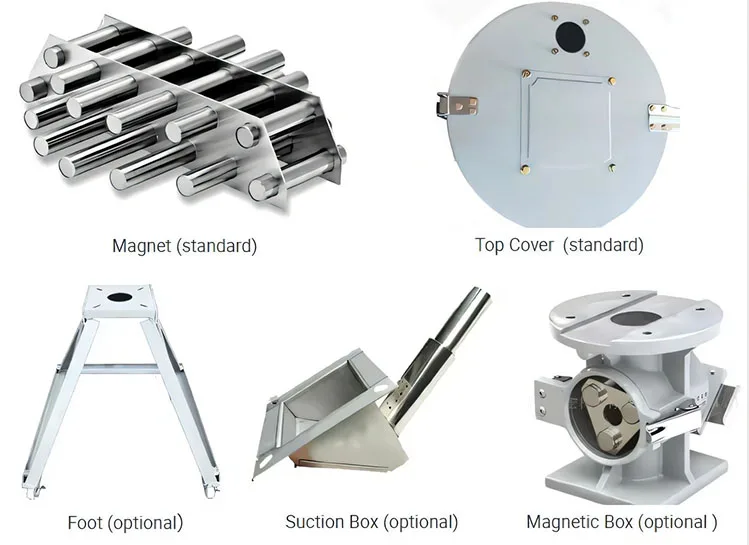

Optional Accessories

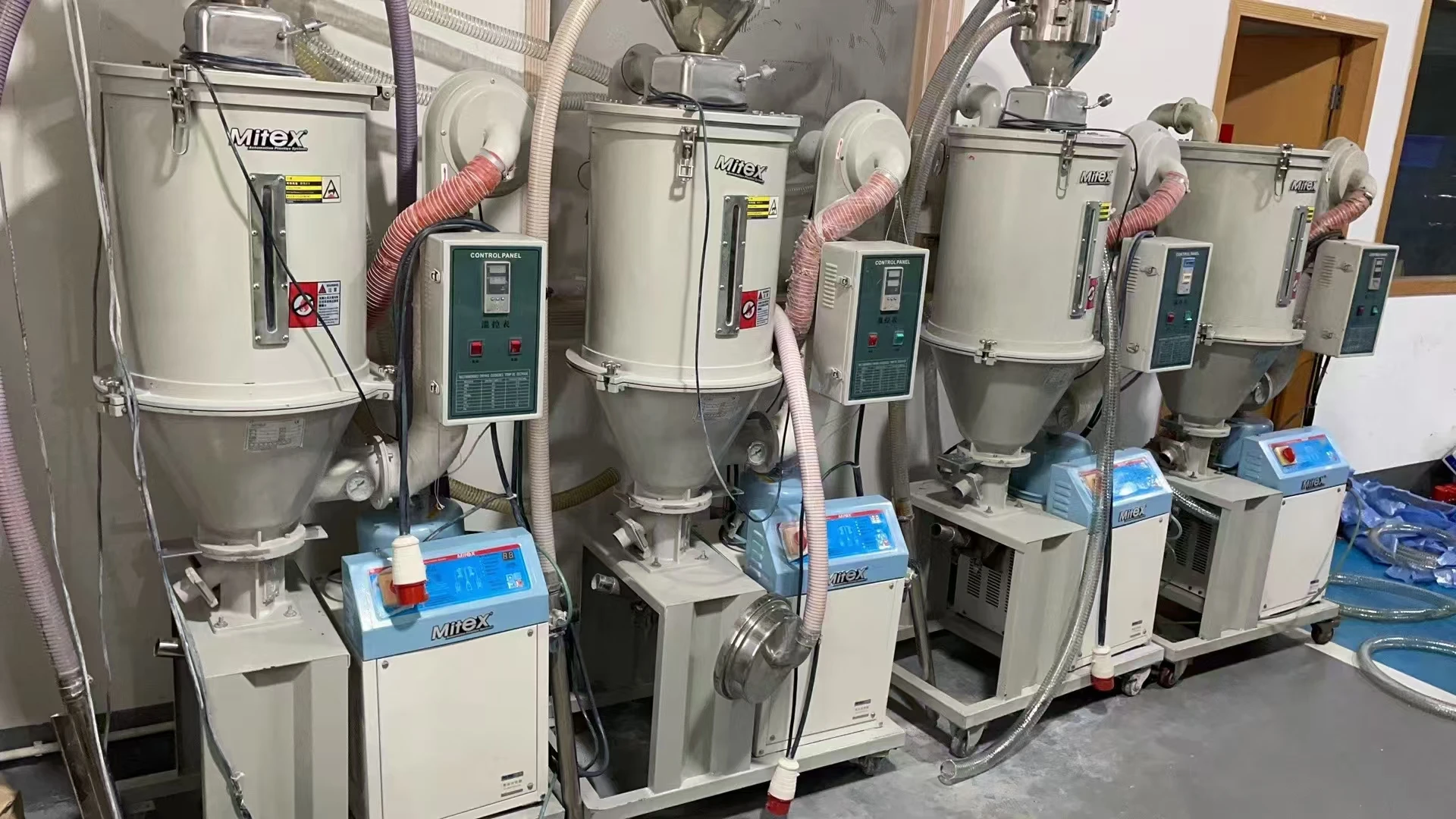

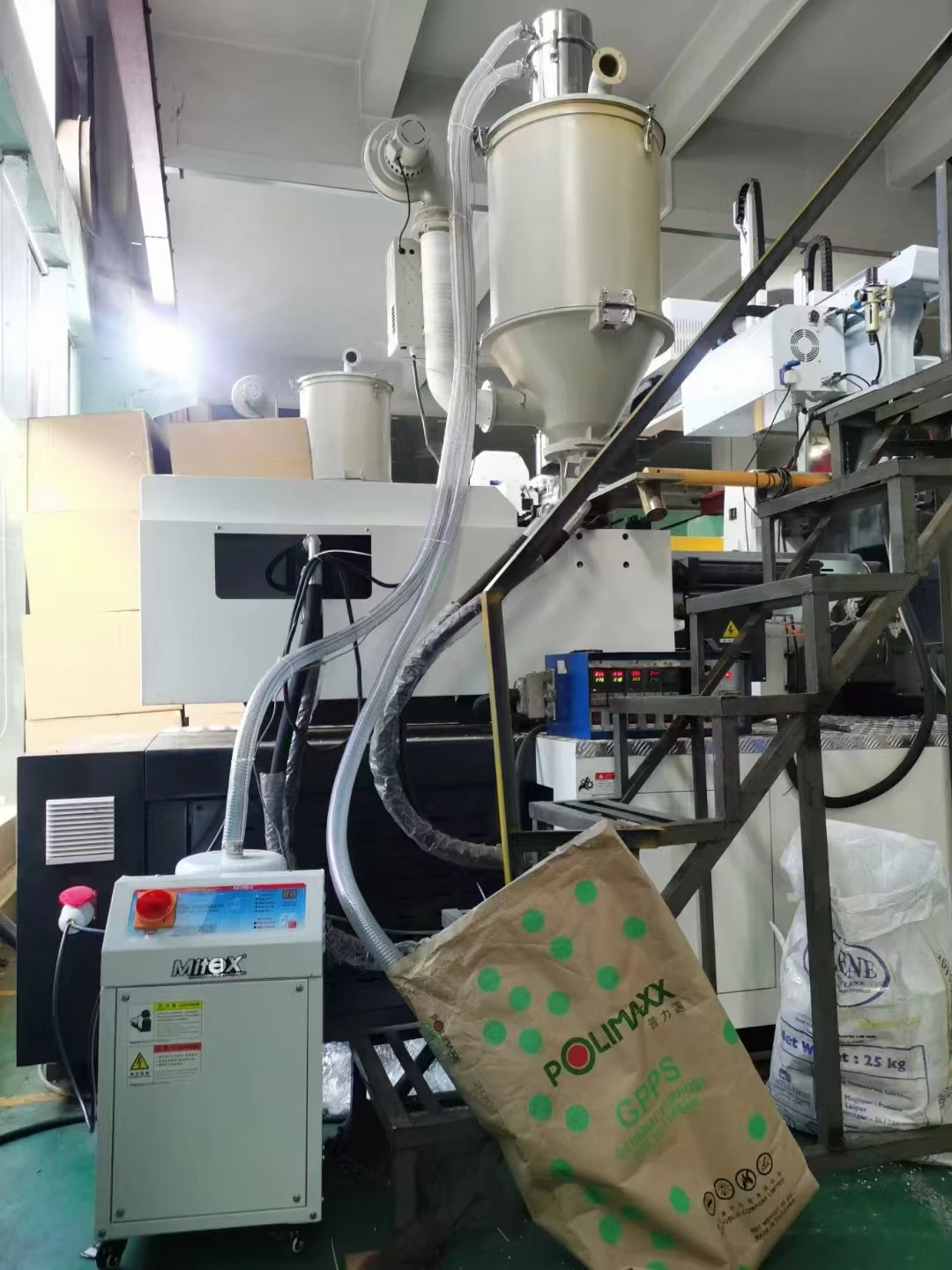

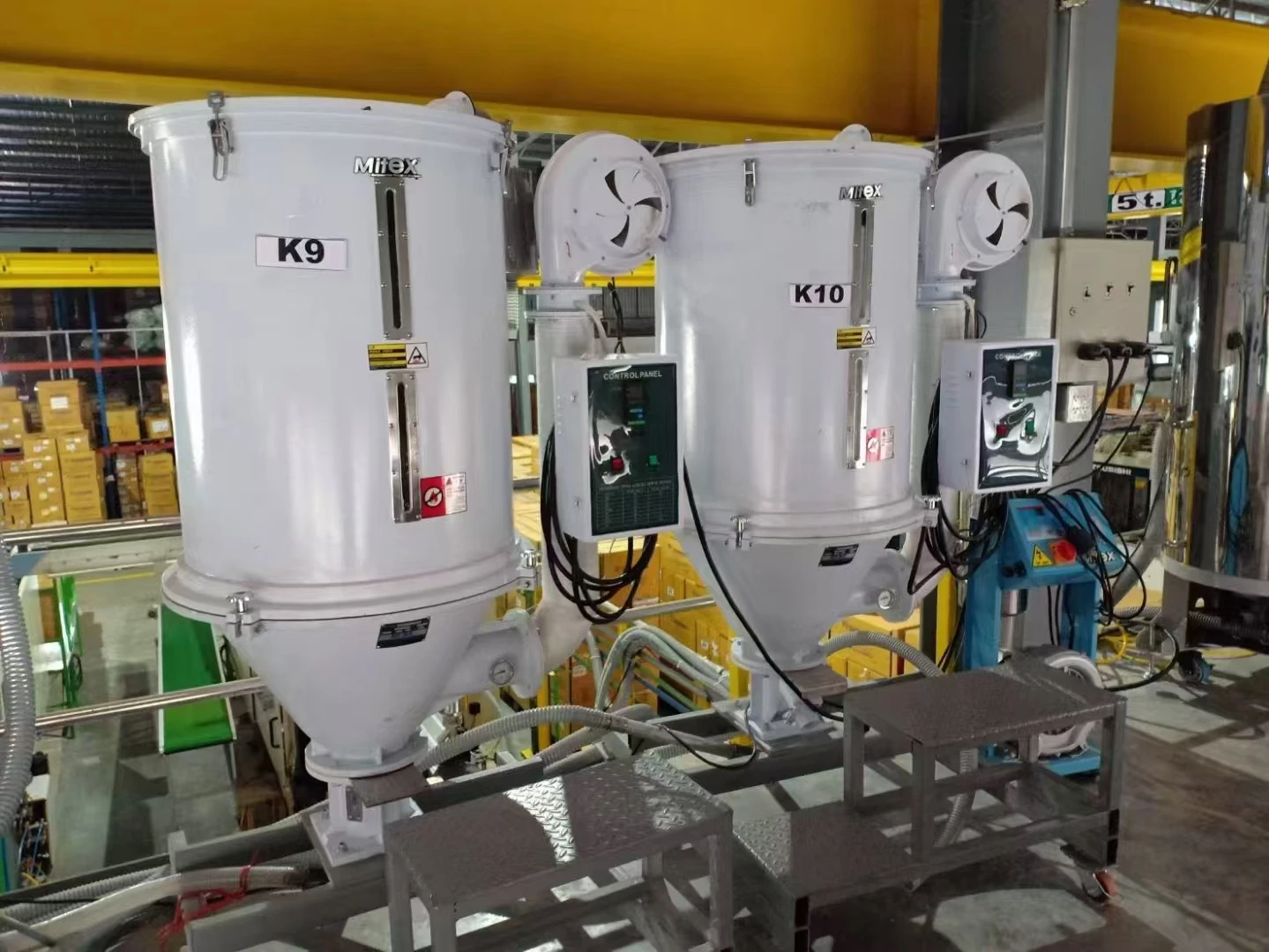

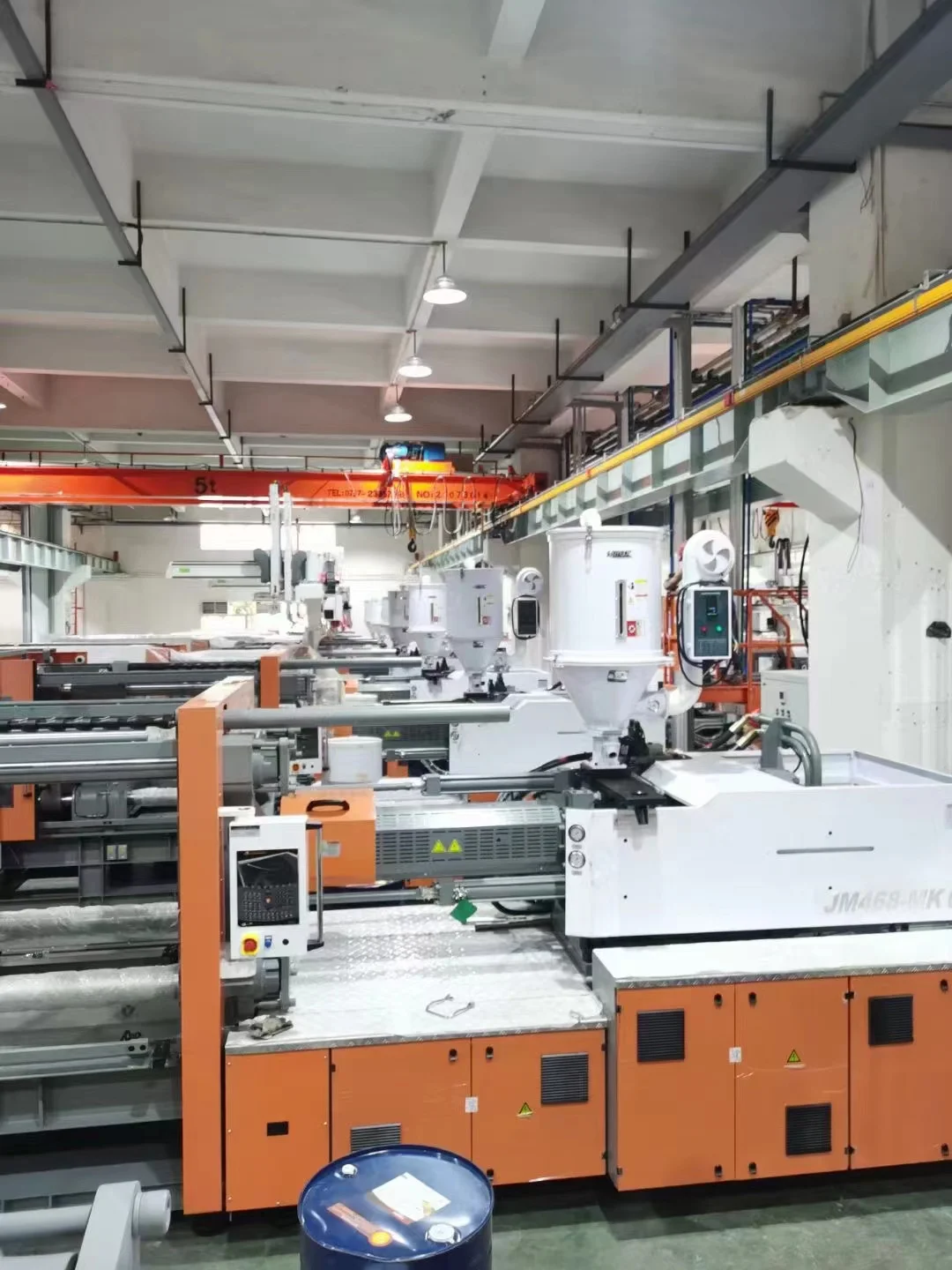

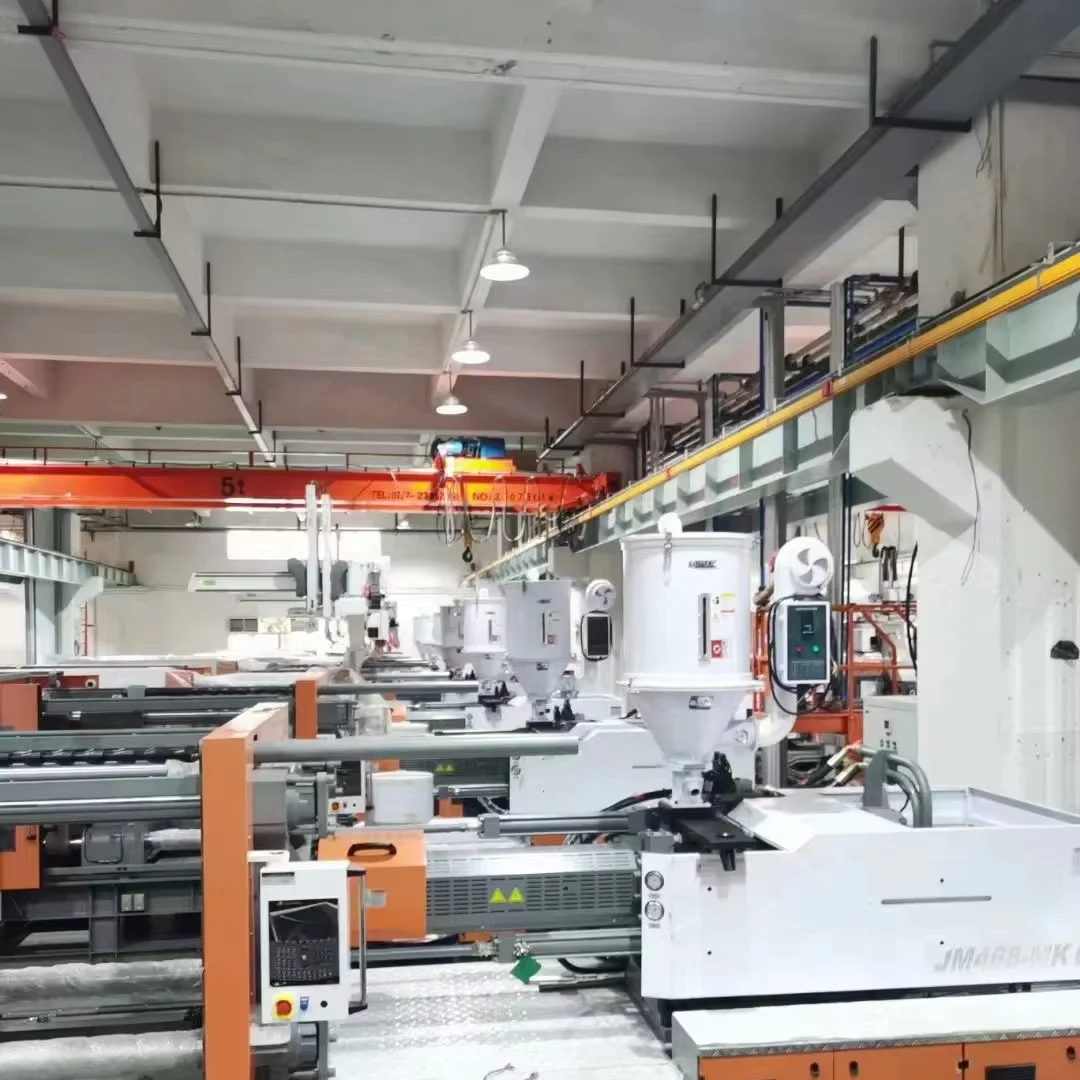

Customer Case

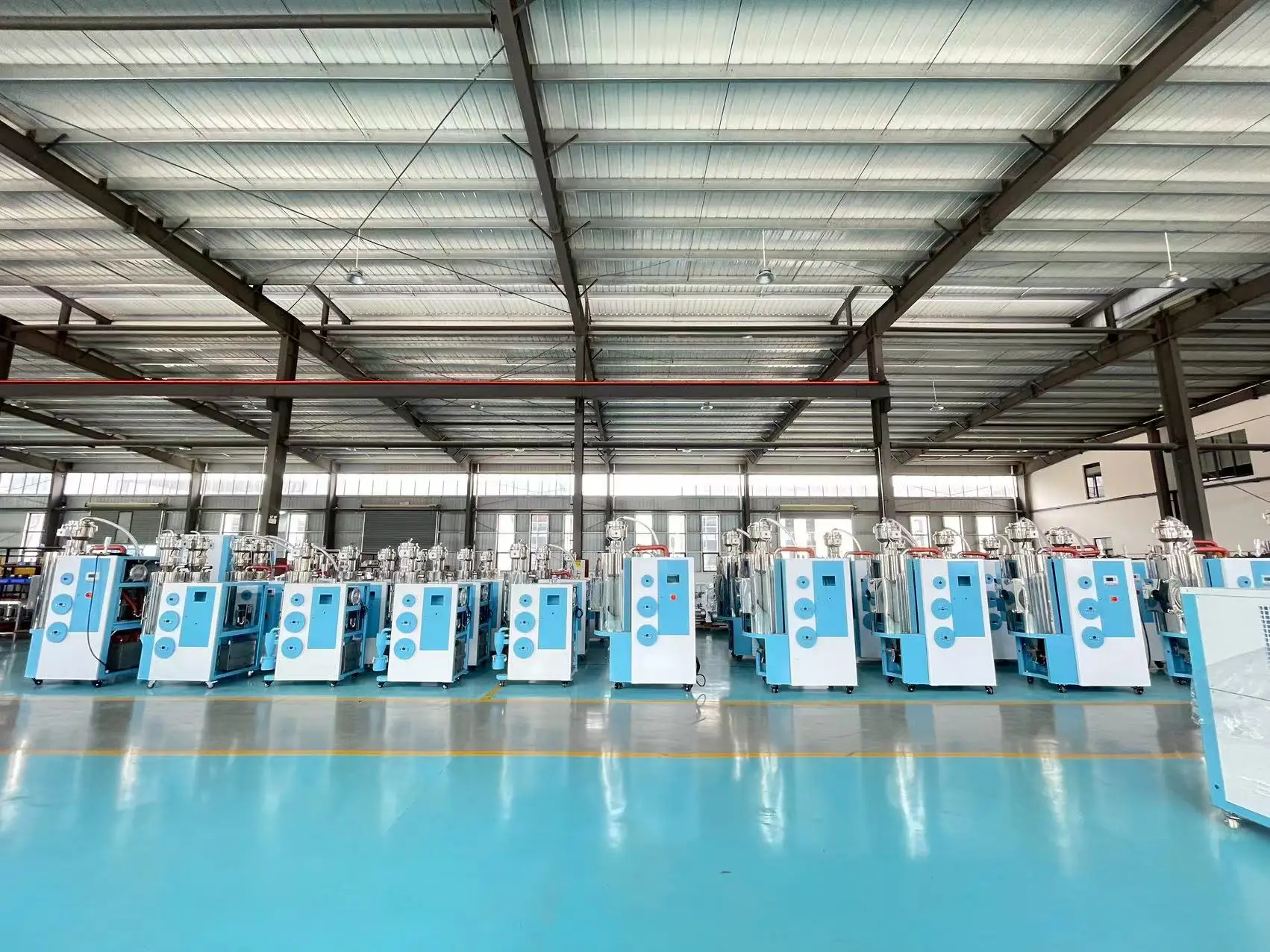

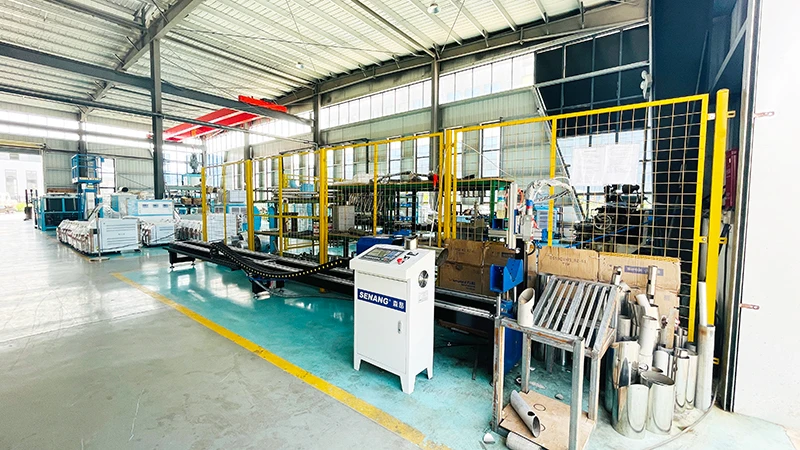

Company Profile

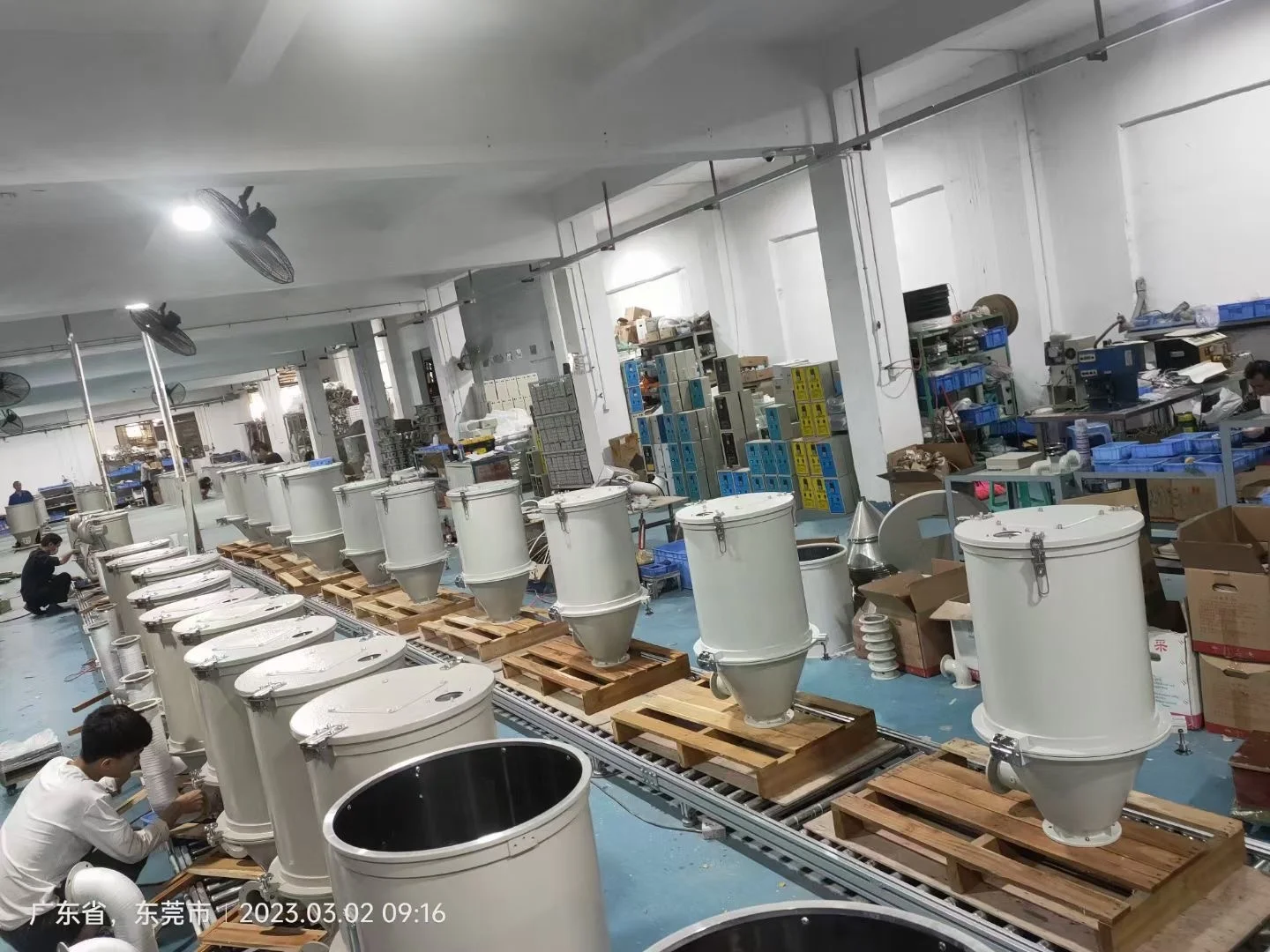

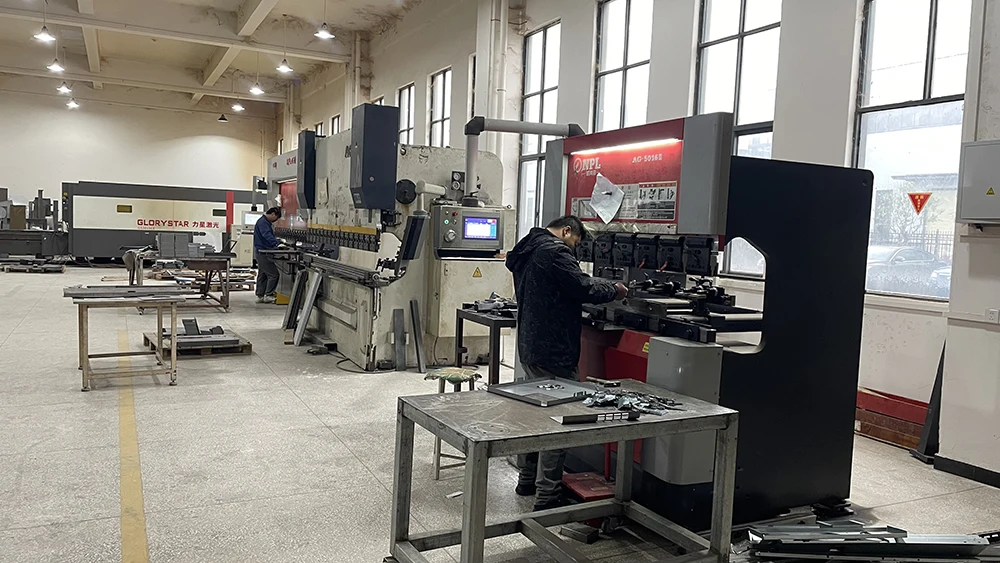

Danlead Machinery Technology Co., Ltd. is a professional manufacturer dedicated to planning peripheral auxiliary systems for whole-plant plastic moulding automation with 16+years experiences.Has own brand -------Mitex, more than 30 patents and certificates, serving more than 60 countries around the world.Located in Ganzhou, Jiangxi Province, the world's tungsten capital and the birthplace of rare metals.Factory covers an area of 20,000 square meters.

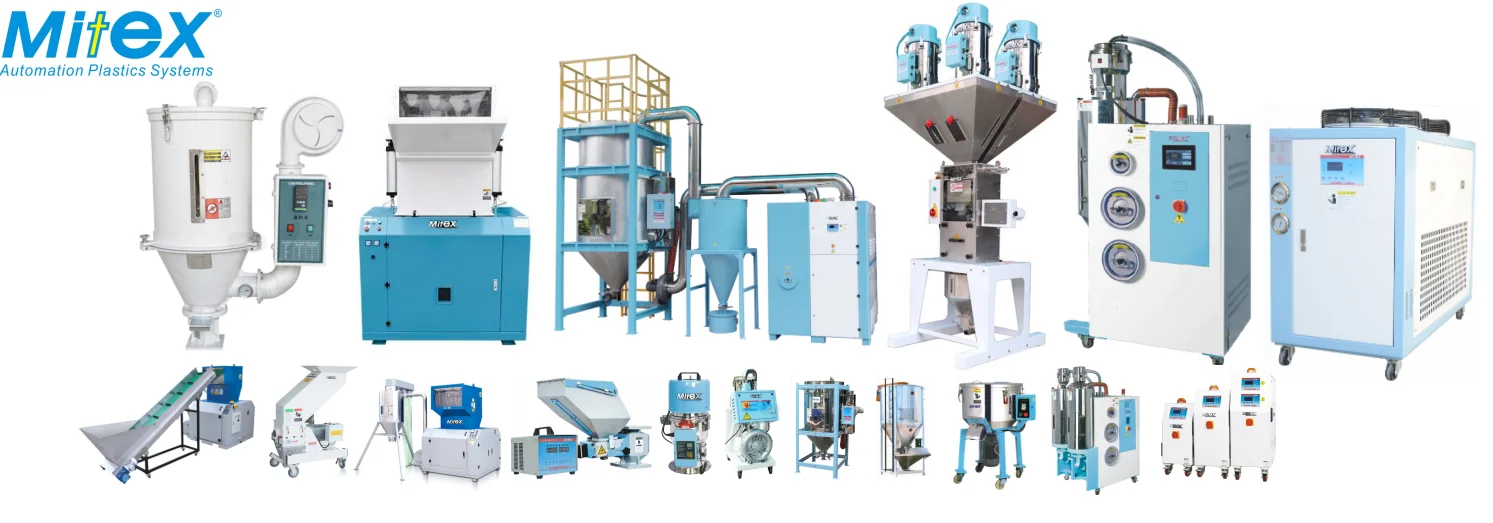

The main products include: centralized feeding system, dehumidifying and drying system, automatic metering and mixing system, crushing and recovery system, mold temperature controlling system and automatic solution etc.
GANZHOU CITY : DANLEAD MACHINERY TECHNOLOGY CO.,LTD
DONGGUAN CITY : DONGGUAN MITEX AUTOMATION MACHINERY CO.,LTD




2007
Established
20000m2
Self-Own Factory

       50+
     Countries&Regions
17
Years R&D and Manufacturing
30+
Patents
20+
Personnel R&D Team

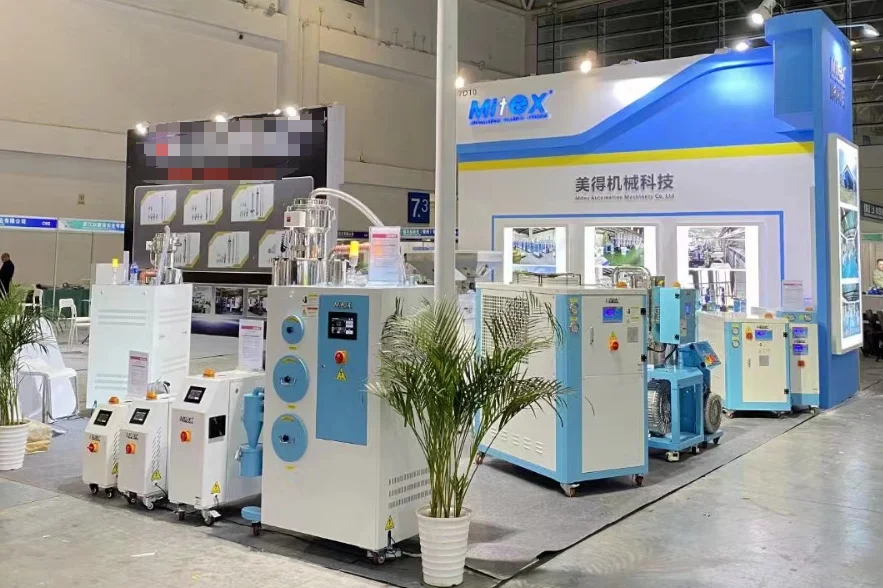

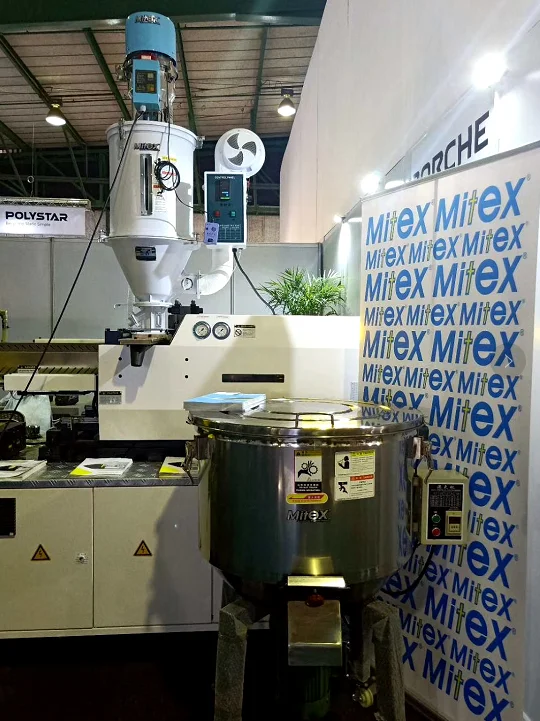

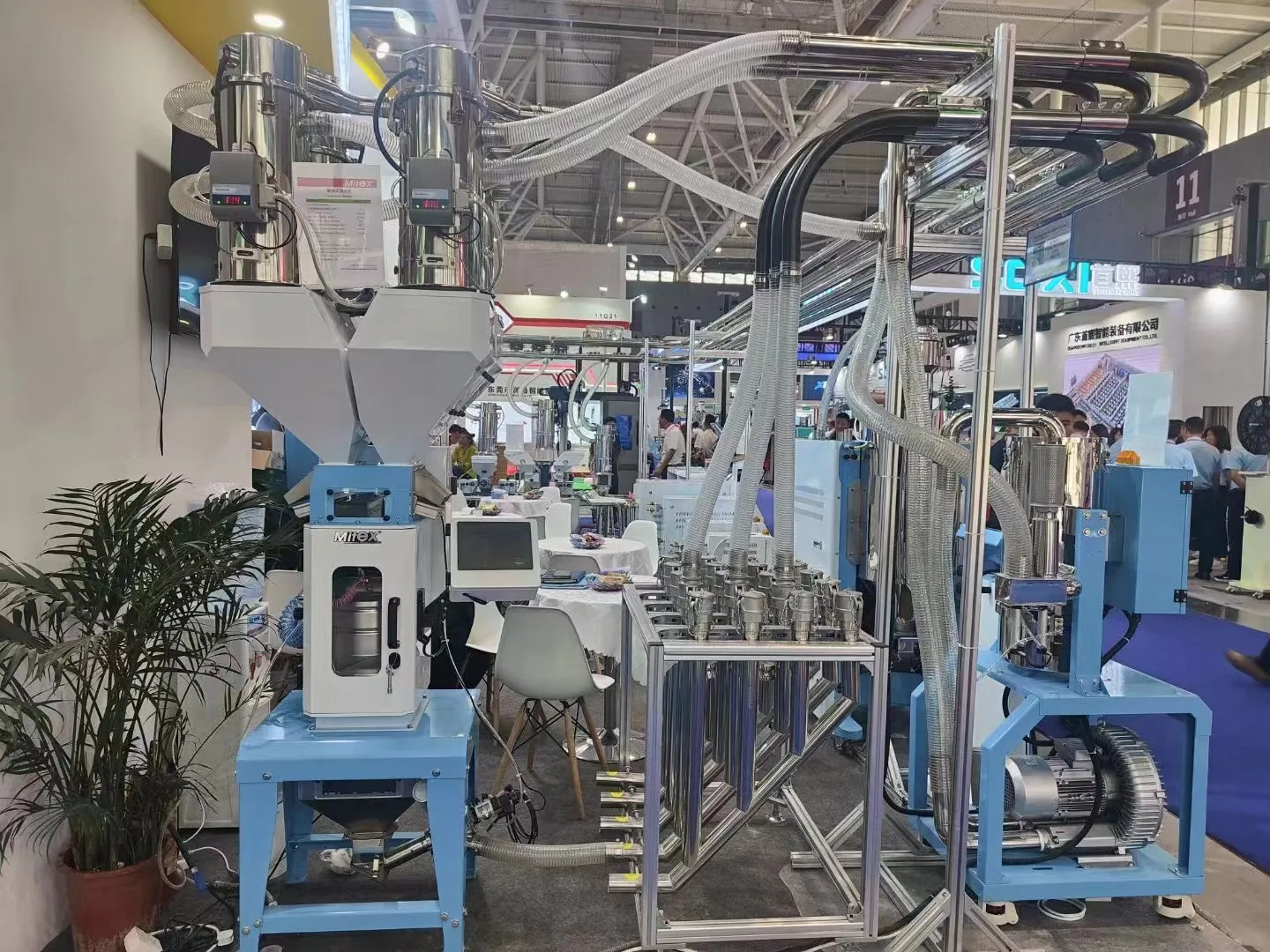

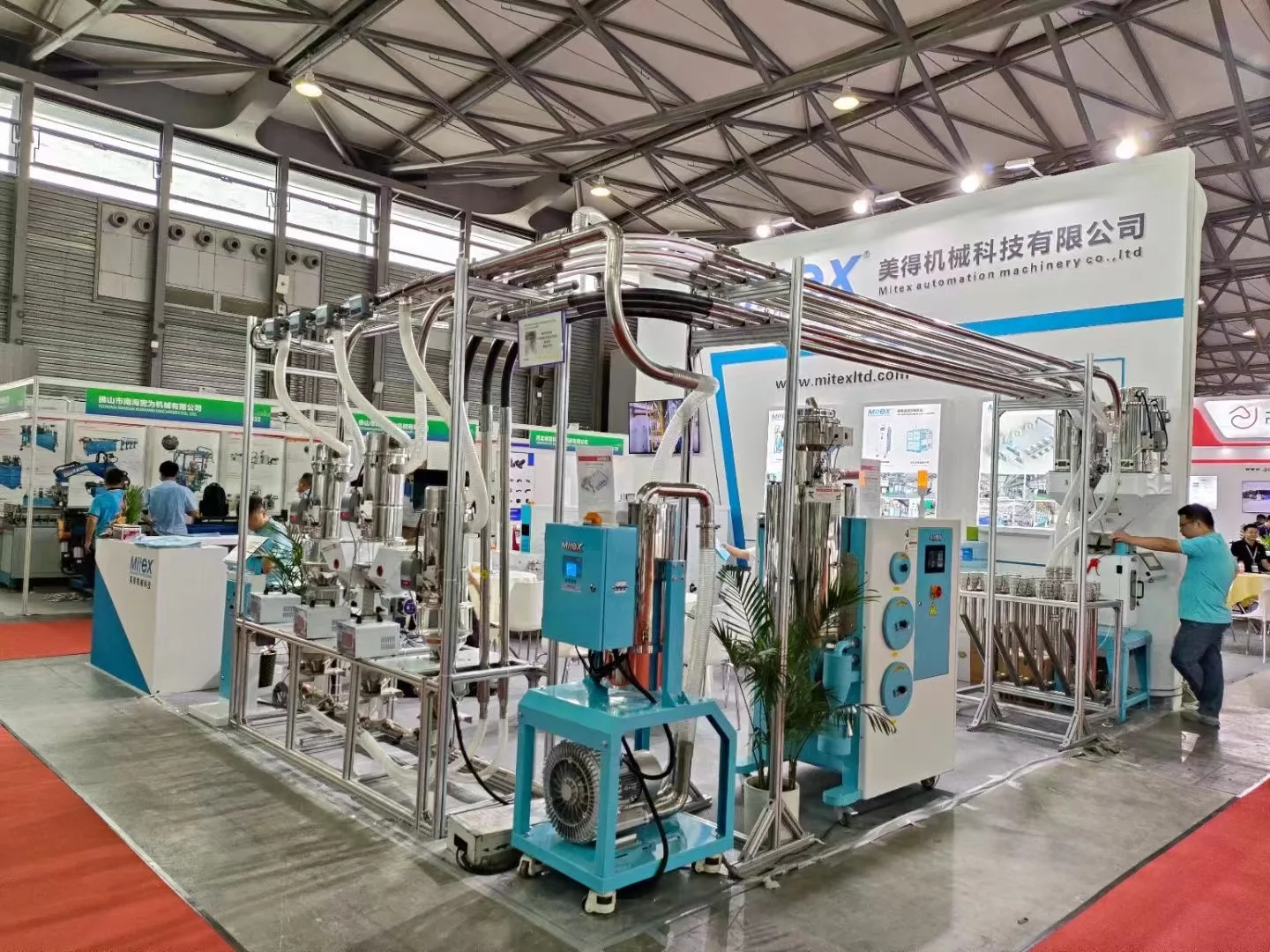

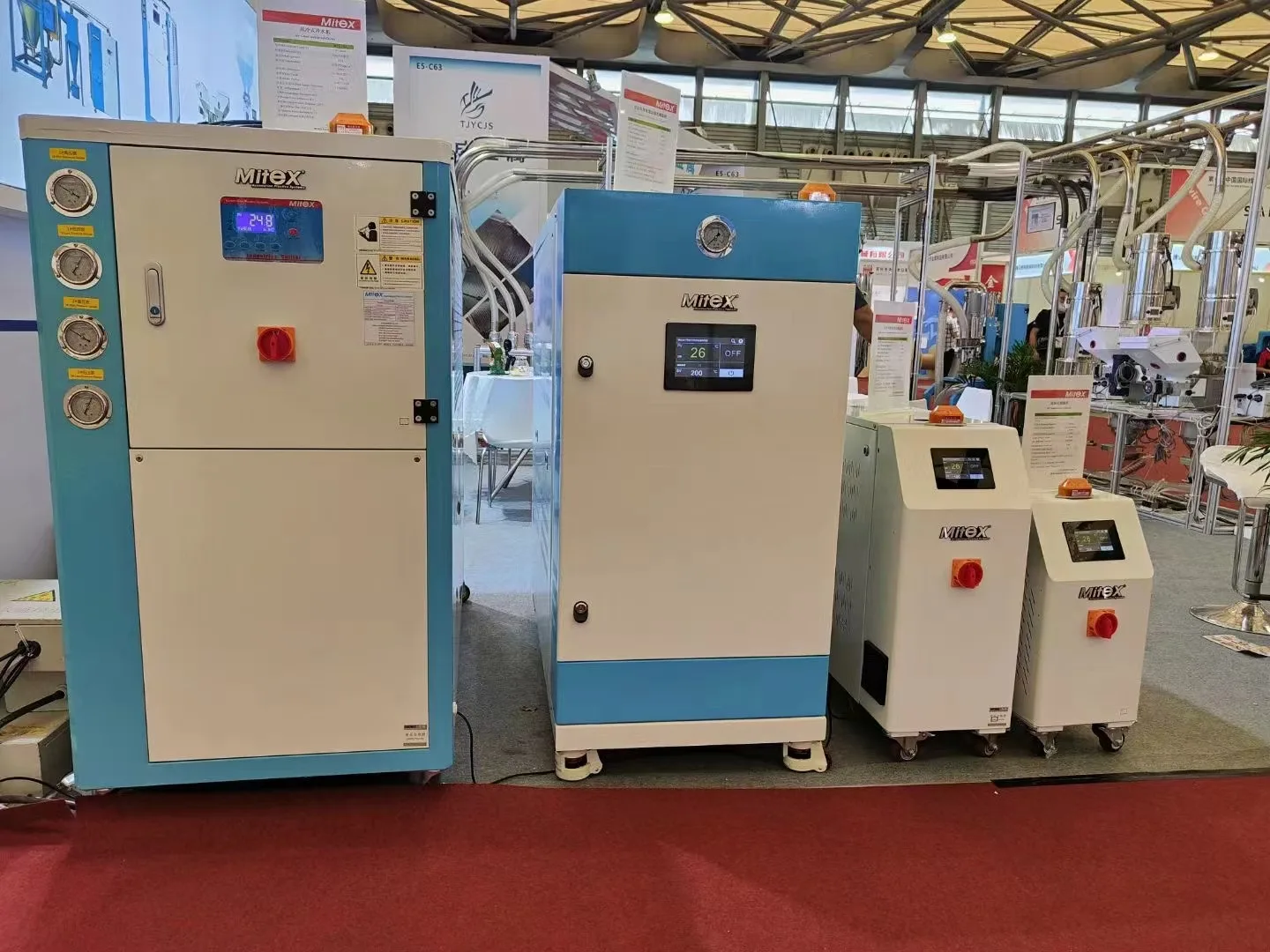

Exhibition
