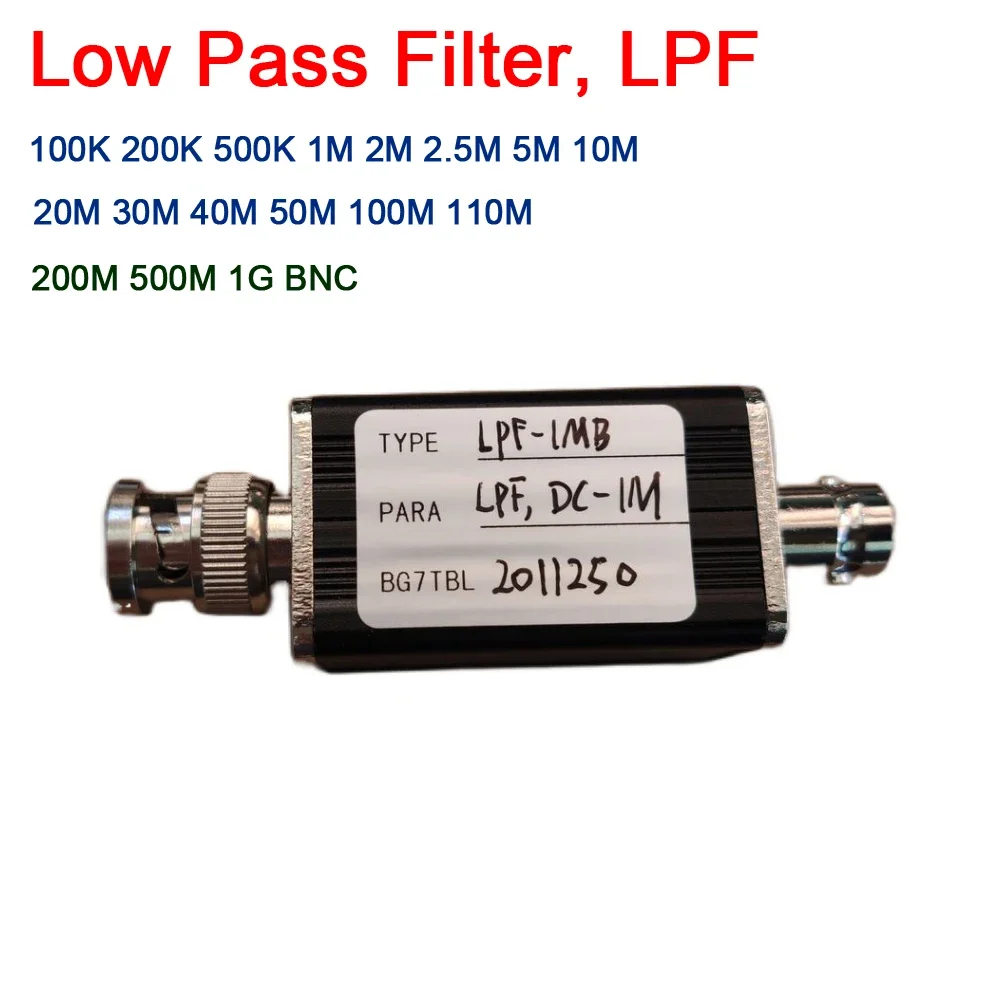

BNC LPF Low Pass Filter 100K 200K 500K 1M 2M 2.5M 5M 10M 20M 30M 40M 50M 100M 500M 1G LC DC FILTER RF Amplifier HAM Radio

Features:




BNC PORT FILTER

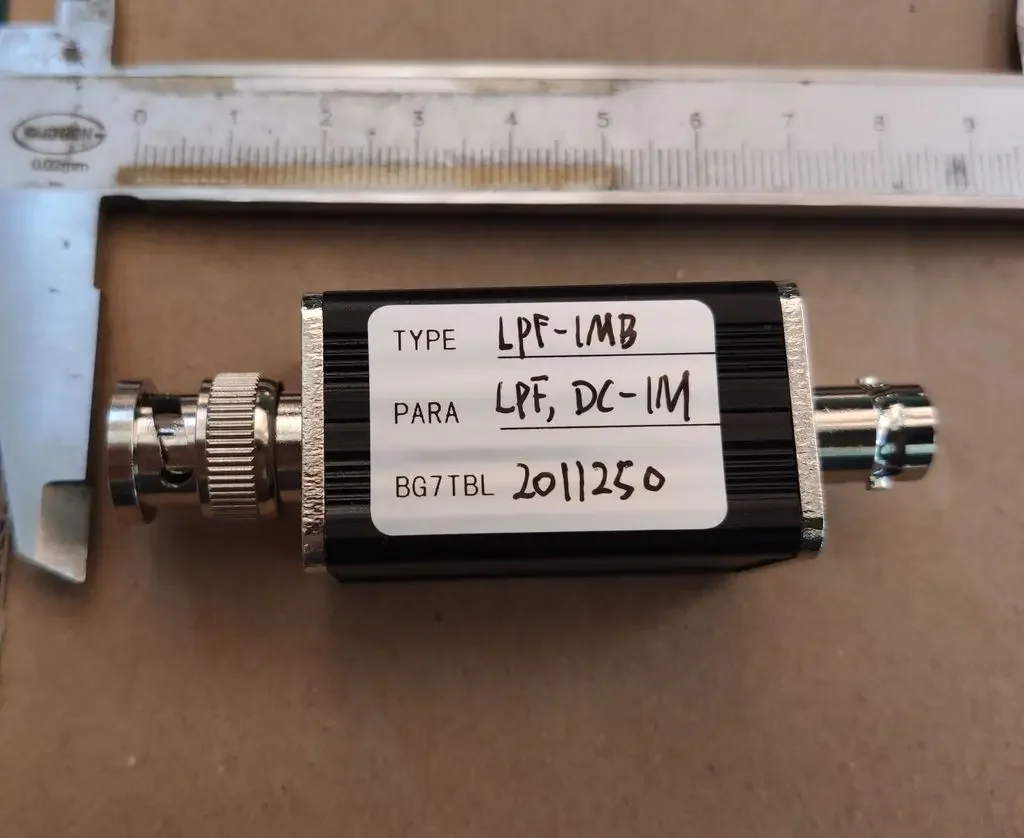

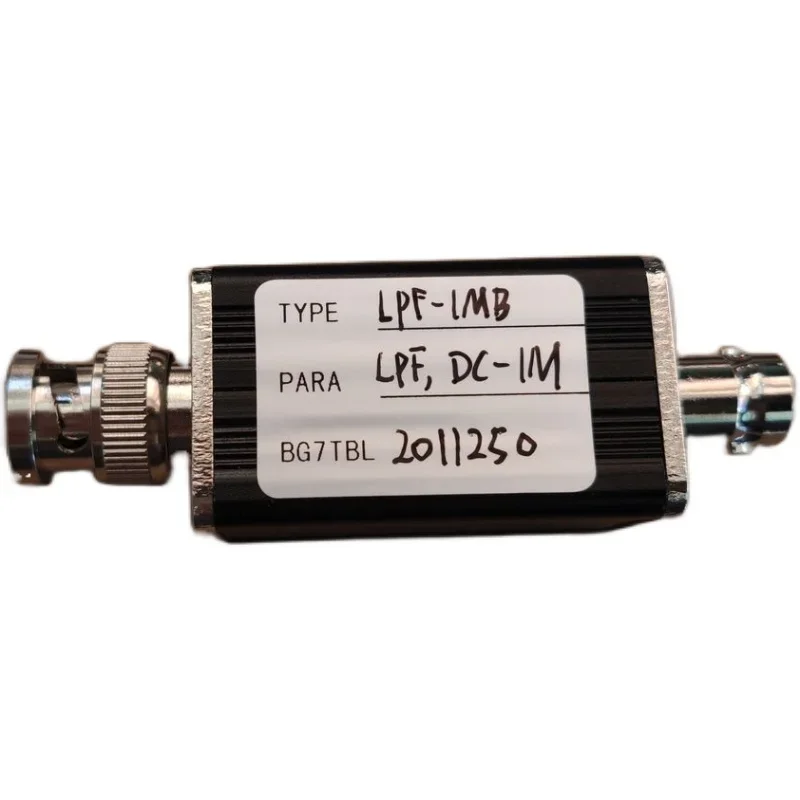

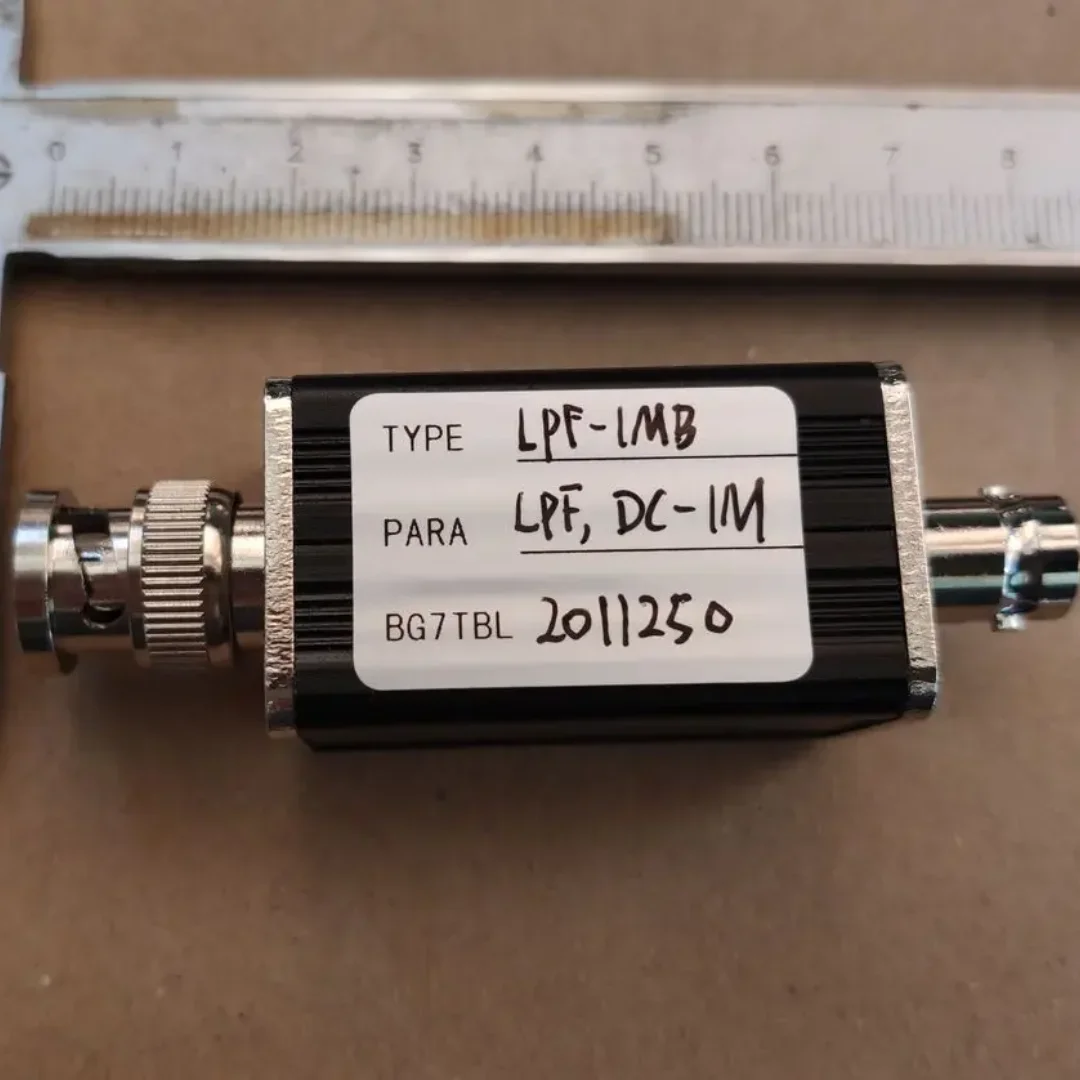

LPF-1MB:1MHz LC LPF,DC-1M,insert lost
1M-1.2dB,2M-48dB,3M-80dB


LPF-5MB:5M LC LPF,DC-5M.insert lost
5M-2.7dB,10M-50dB,15M-78dB


LPF-10MB:10M LC LPF,DC-10M,insert lost
10M-1.8dB,20M-49dB,30M-65dB


LPF-30MB,30M LC LPF,DC-30M,insert lost
30M-1.3dB,60M-50dB,90M-67dB


LPF-40MB,40M LC LPF,DC-40M,insert lost
40M-1.8dB,80M-58dB,120M-65dB


LPF-50MB,50M LC LPF,DC-50M,insert lost
50M-1.4dB,100M-53dB,150M-65dB


LPF-100MB,100M LC LPF,insert lost
100M-1.5dB,200M-55dB,300M-55dB


LPF-500MB,500M LC LPF,insert lost
500M-1.1dB,1G-60dB,1.5G-60DB


LPF-1GB,1G LC LPF,insert lost 1G-1.1dB,2G-49dB,3G-60DB


input/output Impedance:50 OHM

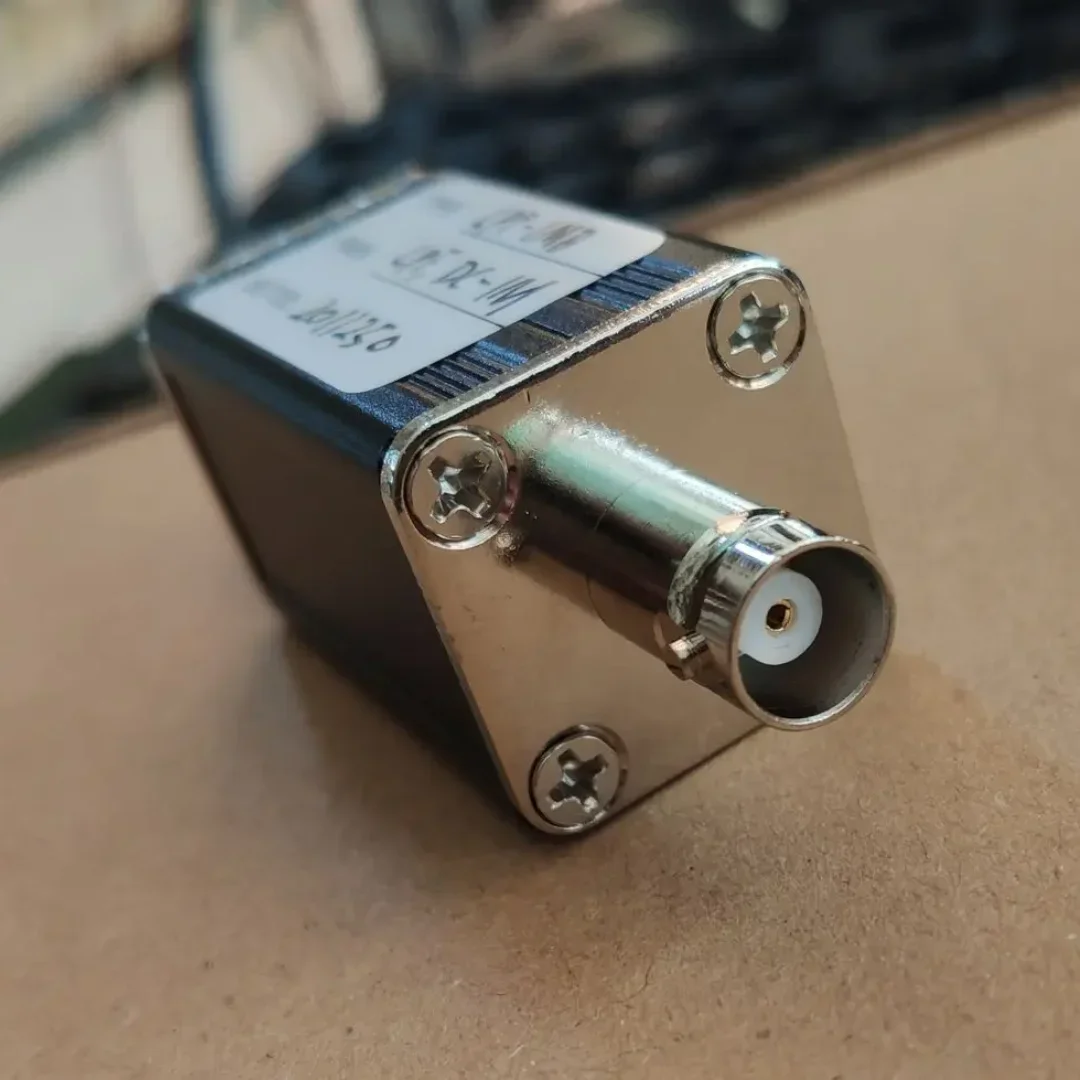

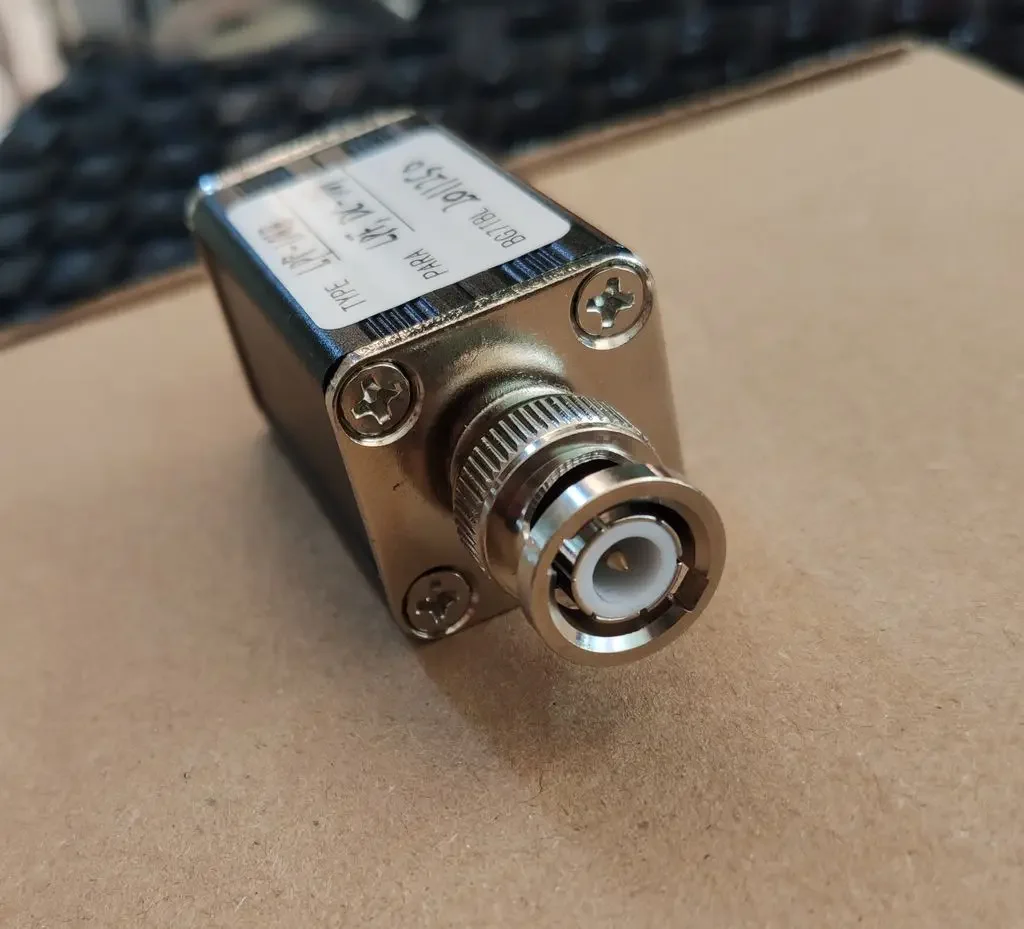

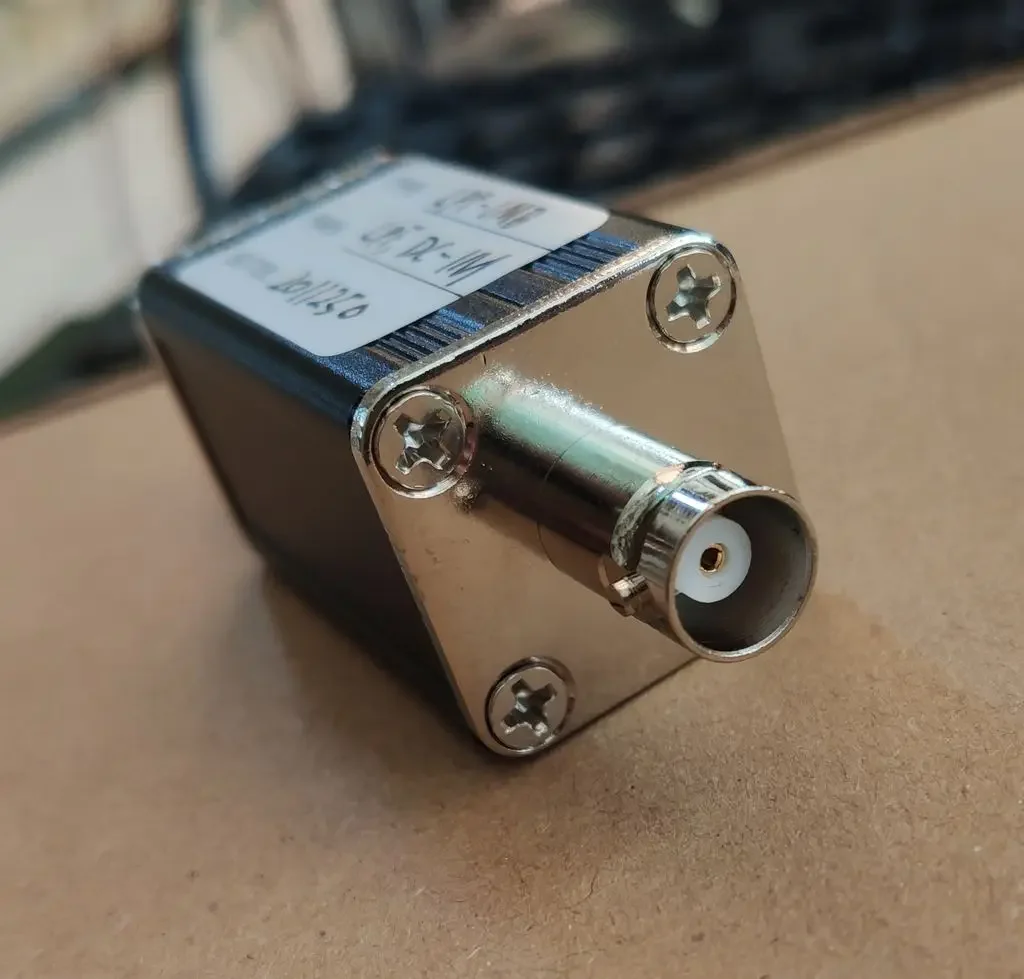

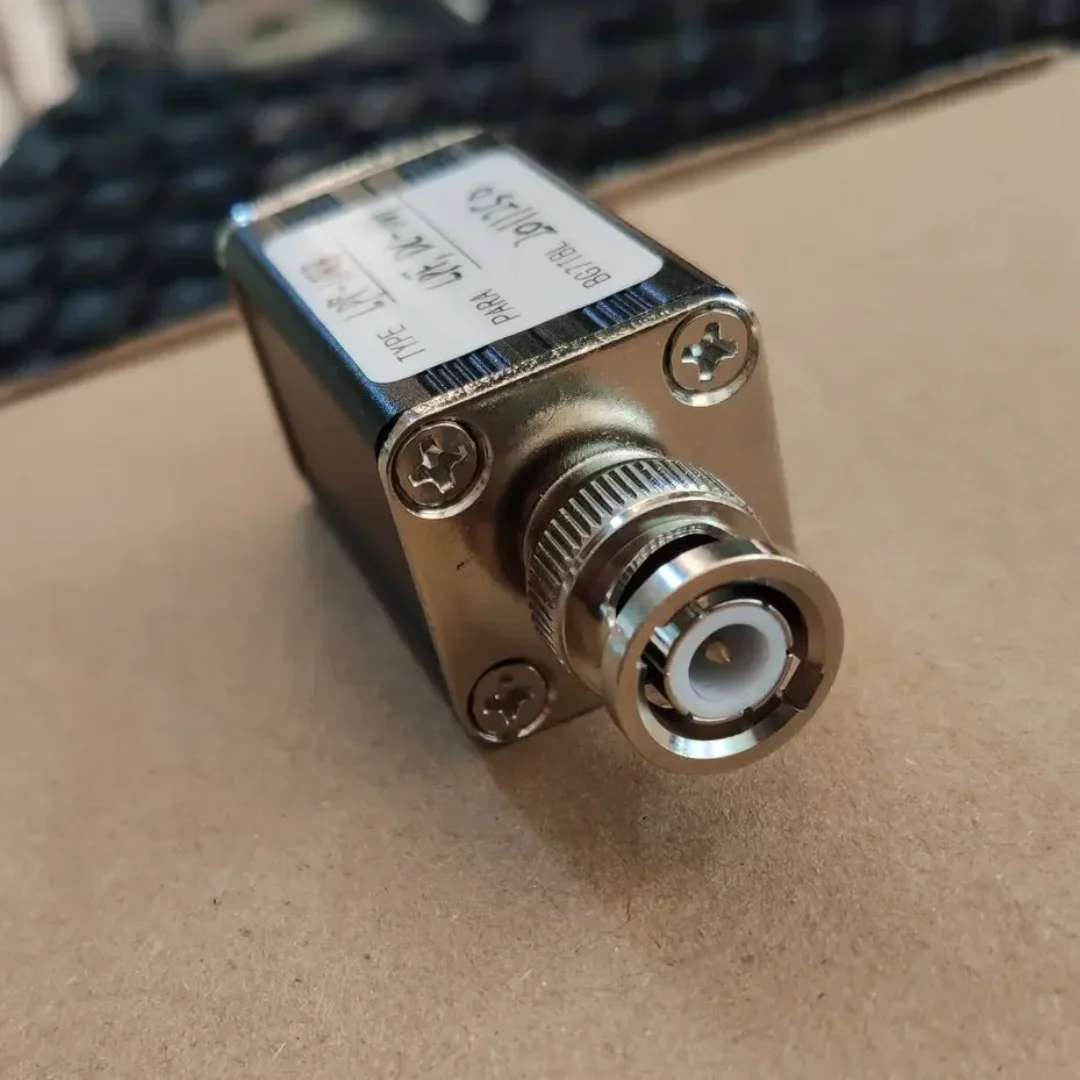

interface: BNC female,BNC male


size:L*W*H=80*25*25mm


weight:60g

not accessory
