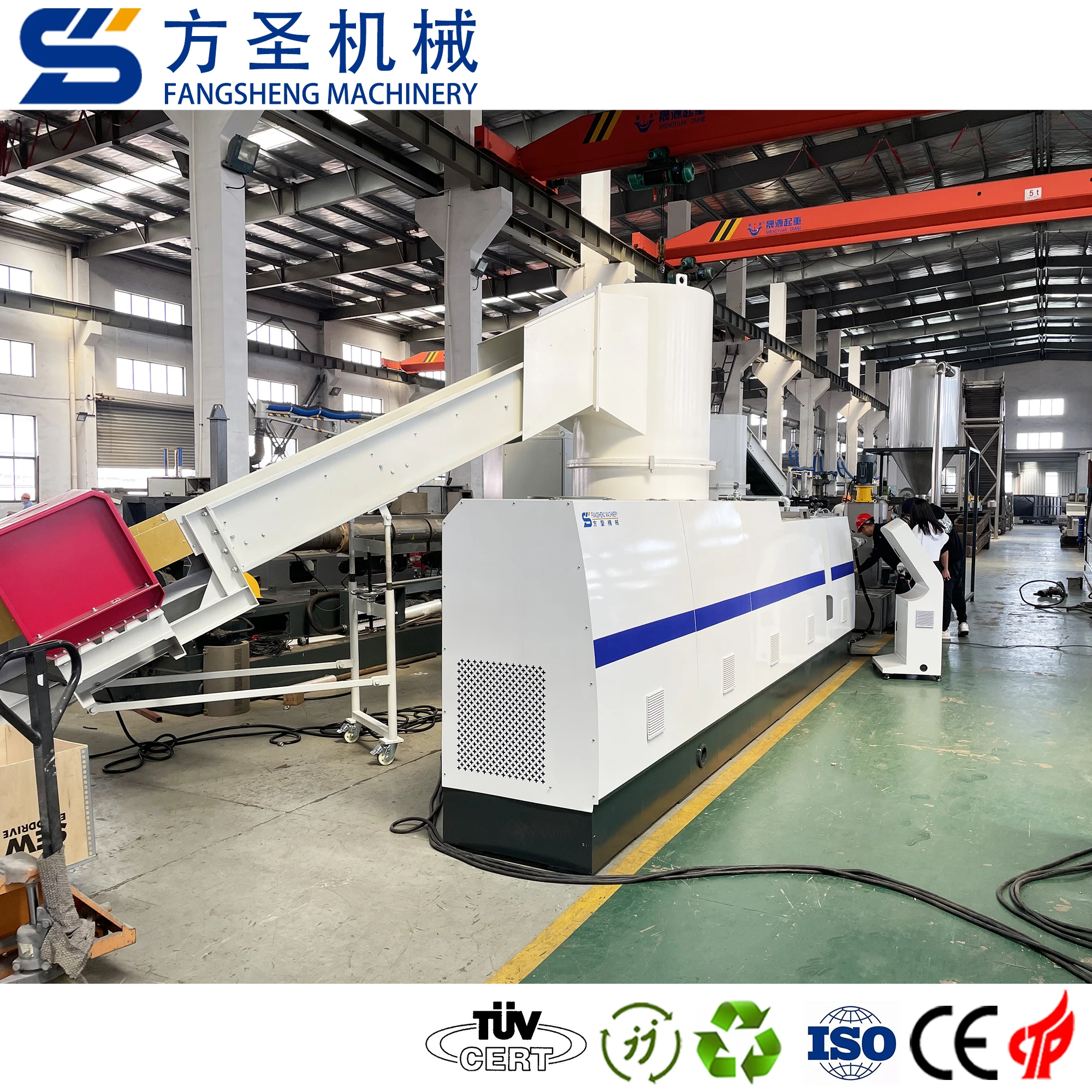

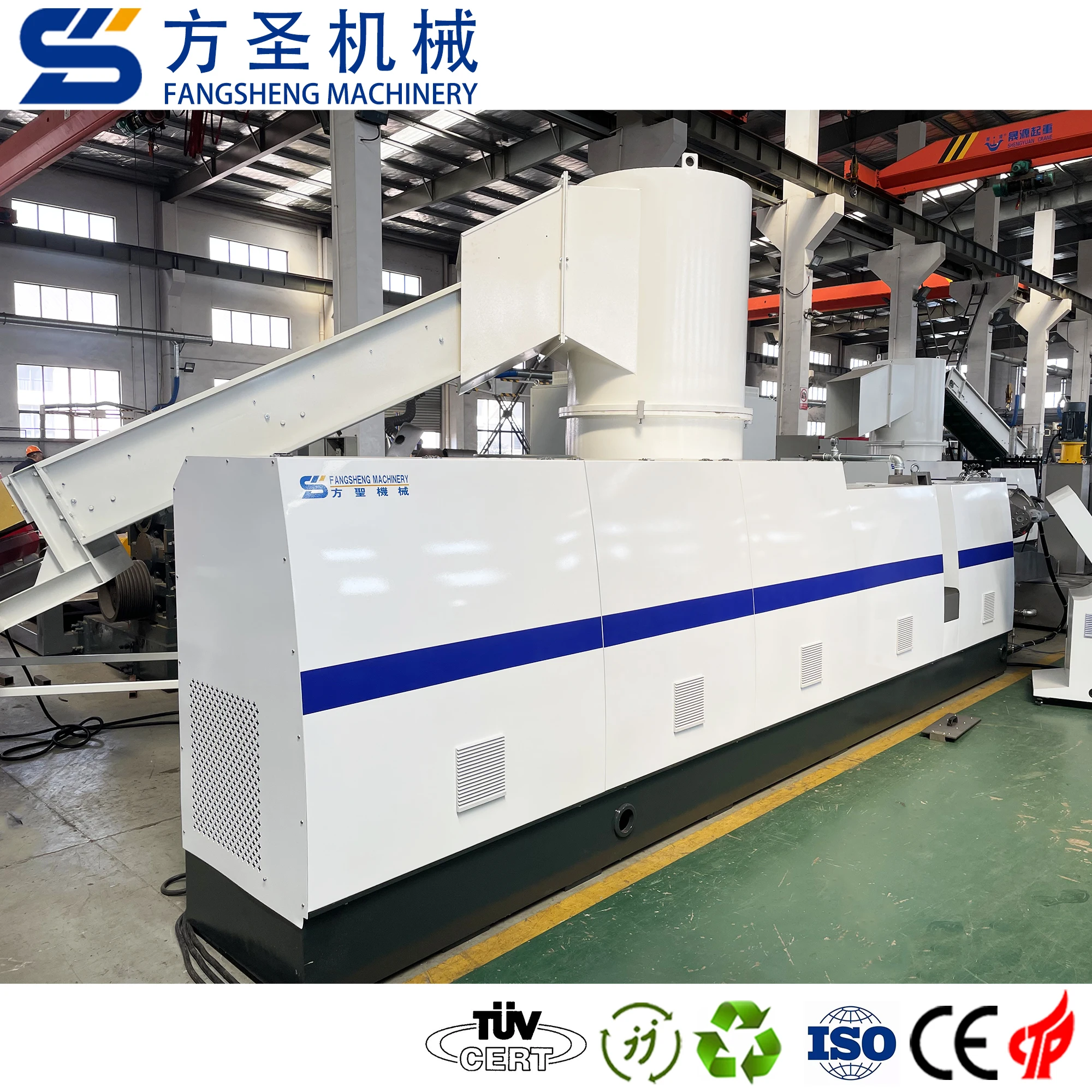

High producing CE approved efficiency waste plastic pp pe film granulator
- Category: >>>
- Supplier: Jiangsu Fangsheng Machinery Co. Ltd.
Share on (1601272436029):
Product Overview
Description
Product Overview

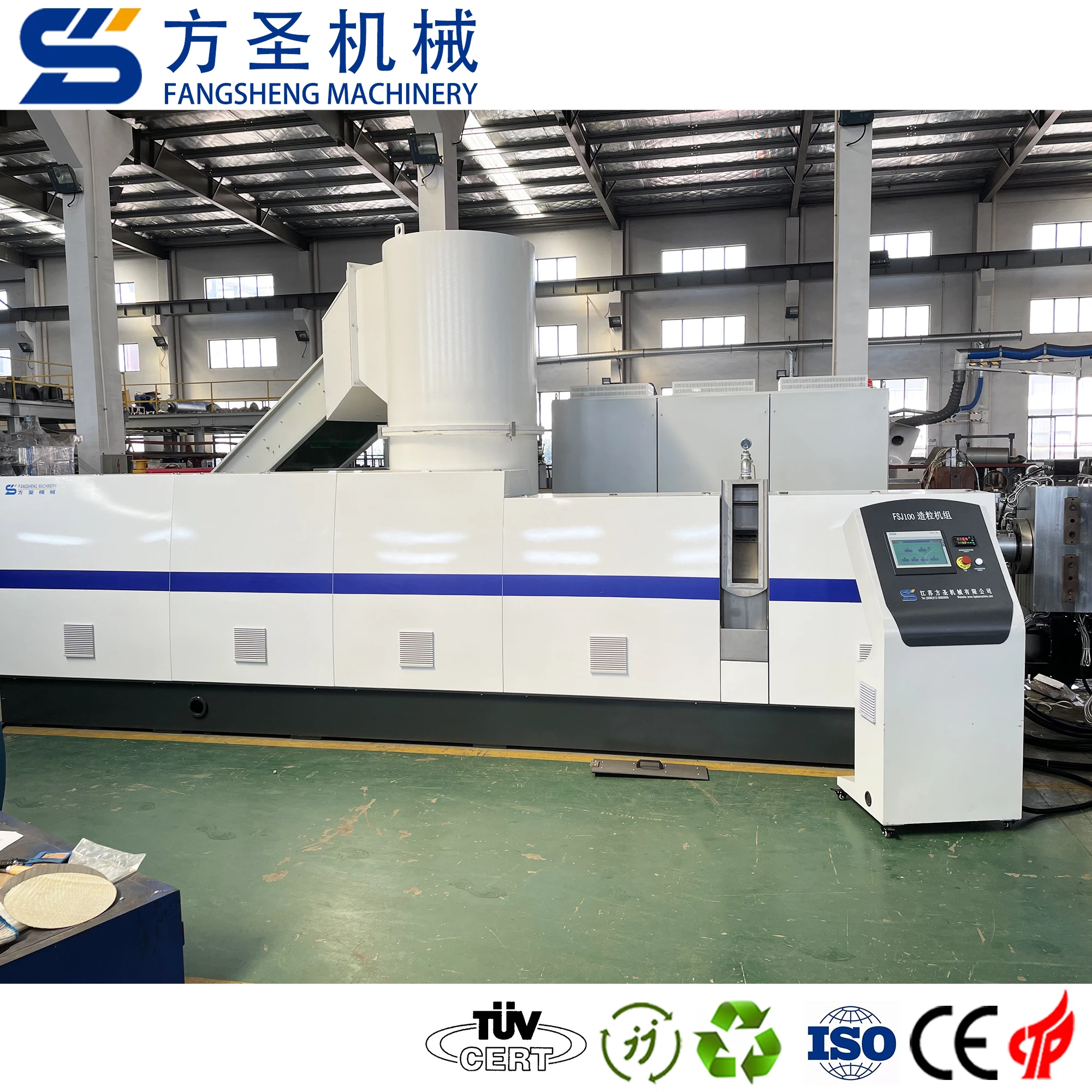

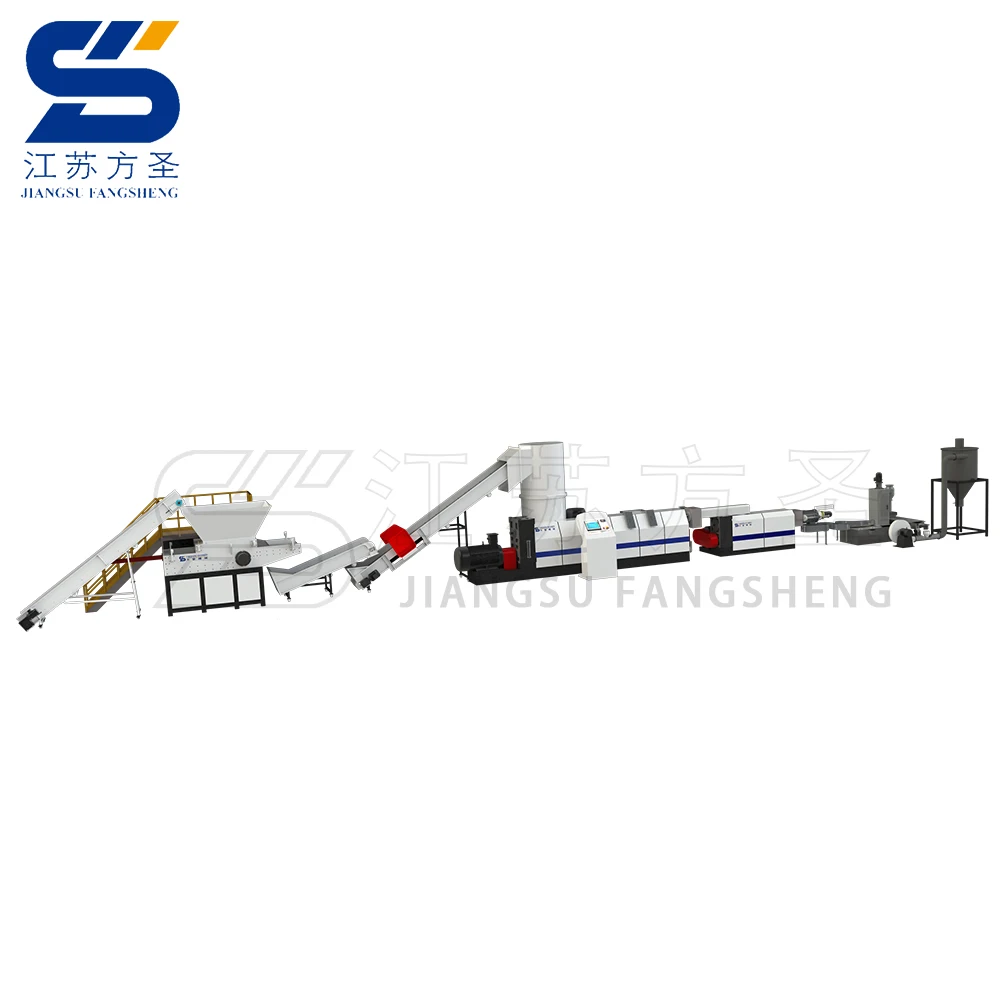

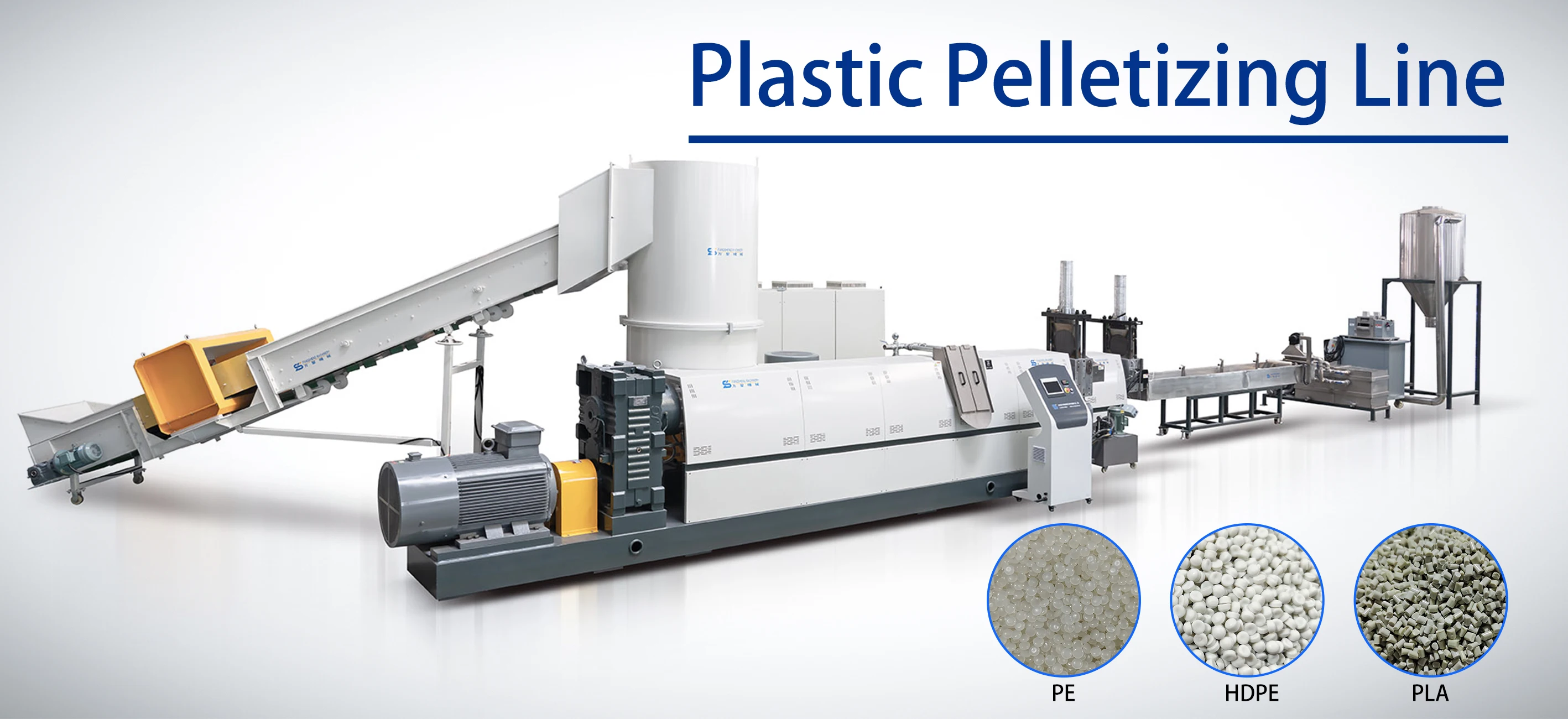

This series compacting pelletizing line, it is a recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric post soft or rigid plastic.
Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.
Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.
Detail Specification

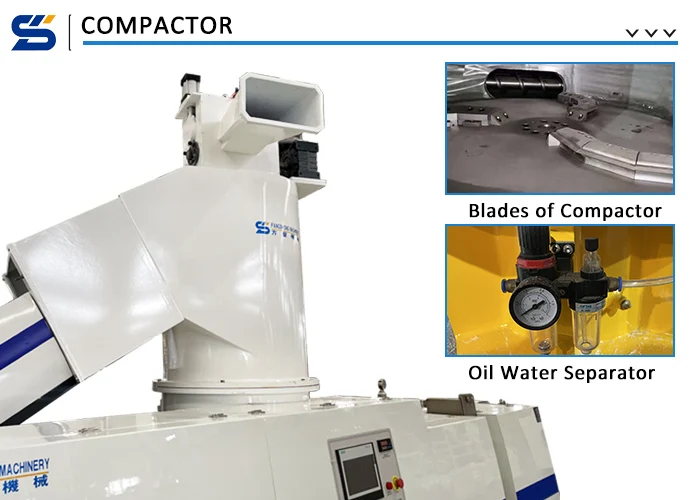

Compactor
●The rotatory blades of compactor will cut up incoming scraps.
● Frictional heating which caused by high speed rotatory blades and stationary blades will heat and let scraps shrinking just below their agglomerating point.
● Optimal designed guide structure compacts the material and directs it into extruder screw.
● Frictional heating which caused by high speed rotatory blades and stationary blades will heat and let scraps shrinking just below their agglomerating point.
● Optimal designed guide structure compacts the material and directs it into extruder screw.

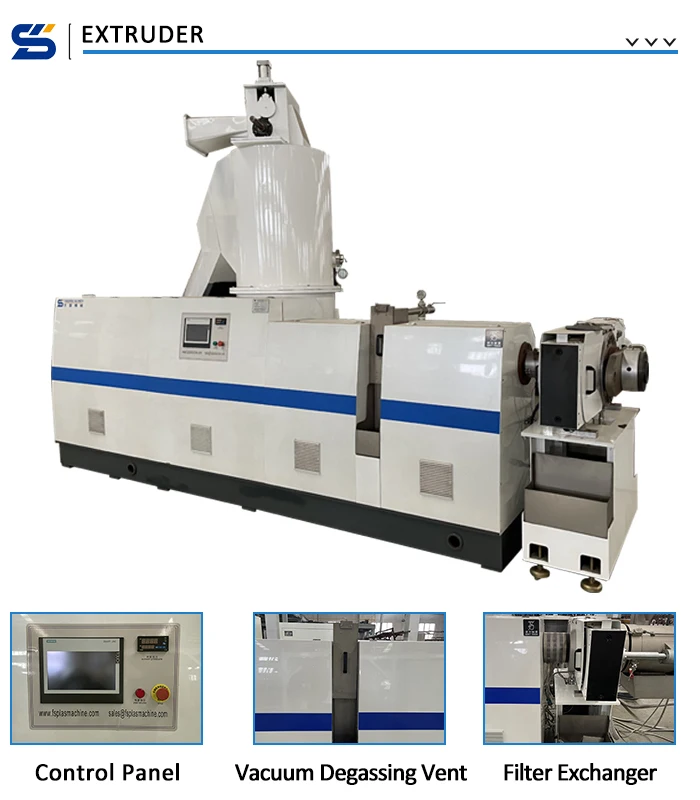

Extruder Machine
●A specialized single screw extruder applied to gently melt the pre-compacted material.
●The plastic scraps will be well melted, plasticized in the extruder.
●With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
●The plastic scraps will be well melted, plasticized in the extruder.
●With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
Technology Parameter
FS series single-stage pe pp film compactor-granulator machine(with agglomerator) | ||||||||||||
Model | Extruder | Screw diameter(mm) | L/D ratio | Power(kw) | Productivity(PE)(kg/h) | Productivity(PP)(kg/h) | ||||||
FSJ70 | 70/33 | φ70 | 33:1 | 110 | 110-150 | 100-130 | ||||||
FSJ85 | 85/33 | φ85 | 33:1 | 155 | 180-250 | 150-200 | ||||||

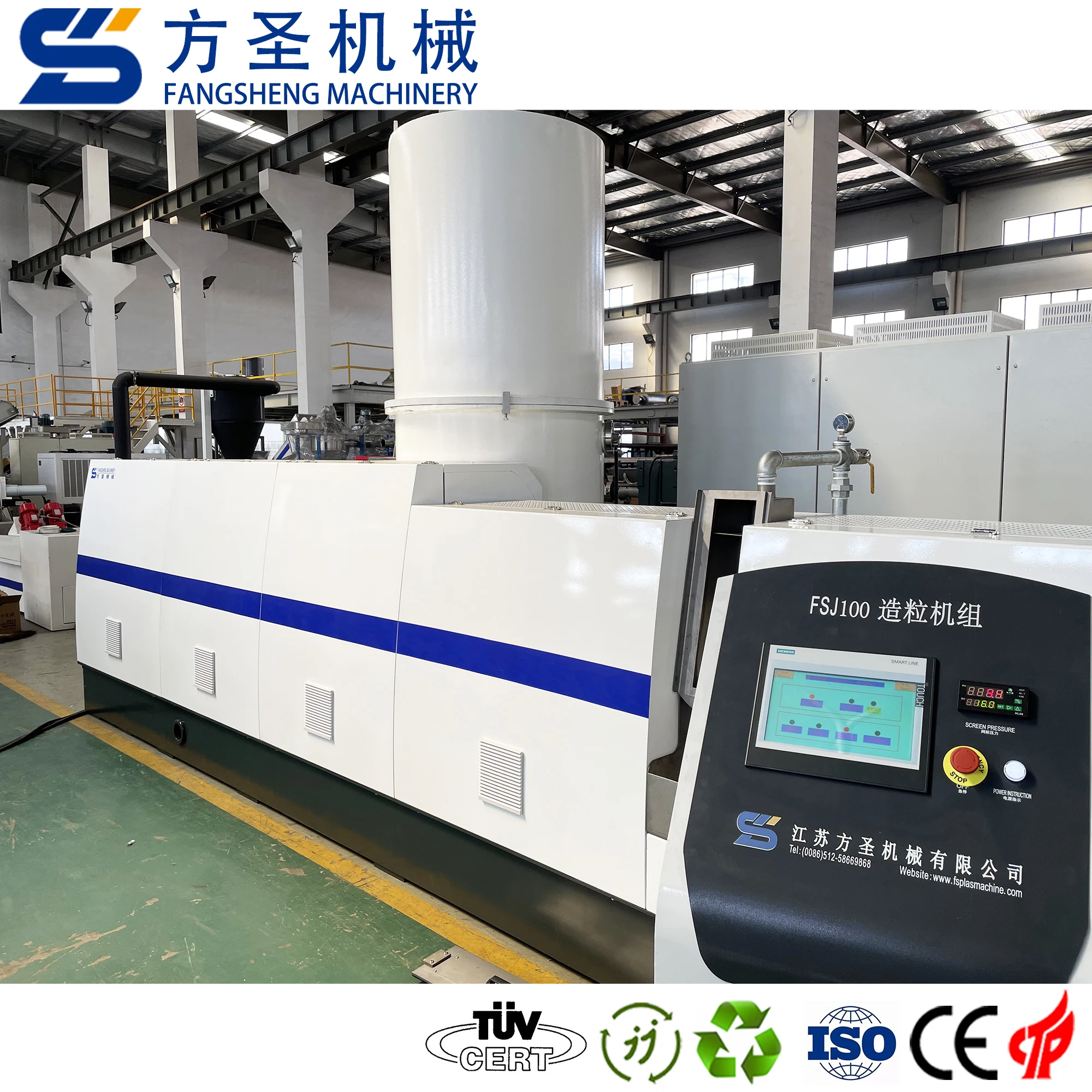

FSJ100 | 100/33 | φ100 | 33:1 | 210 | 280-350 | 250-300 | ||||||
FSJ130 | 130/33 | φ130 | 33:1 | 300 | 480-550 | 400-480 | ||||||
FSJ160 | 160/33 | φ160 | 33:1 | 370 | 650-750 | 550-650 | ||||||
FSJ180 | 180/33 | φ180 | 33:1 | 460 | 800-1000 | 750-850 | ||||||
Main Parameters
Successful Project
We Provide Excellent After-sales Service
● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
OUR COMPANY
FAQ
1.Your company is a transactional company or an industrial manufacture factory?
● Fangsheng Machinery is an industrial manufacture factory which locates in Zhangjiagang city.
● If you interested in our products and we can fulfill your request , you may pay a visit to our company.
2.All of your products are made by your self or compacted via purchasing the others?
● We have independent technical team who focus on making machines, all the products are made by our technical team.
● All the machines are manufactured with high quality, we choose our material very strict,all the material come to our factory must pass the test substandard goods are returned to the supplier.
3.Do you have any other services about your products?
● We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
4.How do you make the quotation for clients?
● The price depends on quality and performance, but the clients should be satisfied first.
5:Do you have any after sales service?
● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
● Fangsheng Machinery is an industrial manufacture factory which locates in Zhangjiagang city.
● If you interested in our products and we can fulfill your request , you may pay a visit to our company.
2.All of your products are made by your self or compacted via purchasing the others?
● We have independent technical team who focus on making machines, all the products are made by our technical team.
● All the machines are manufactured with high quality, we choose our material very strict,all the material come to our factory must pass the test substandard goods are returned to the supplier.
3.Do you have any other services about your products?
● We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
4.How do you make the quotation for clients?
● The price depends on quality and performance, but the clients should be satisfied first.
5:Do you have any after sales service?
● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
