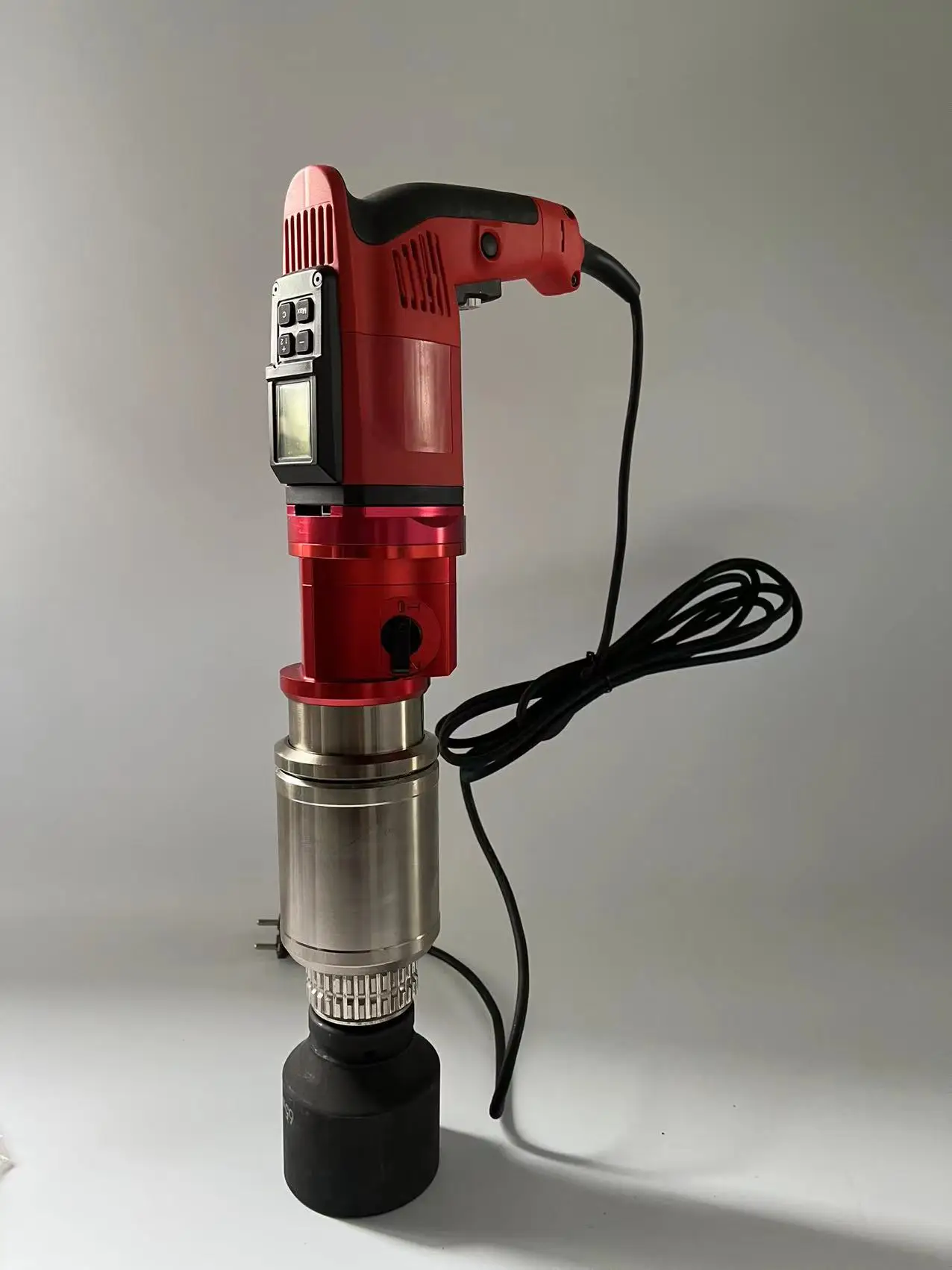

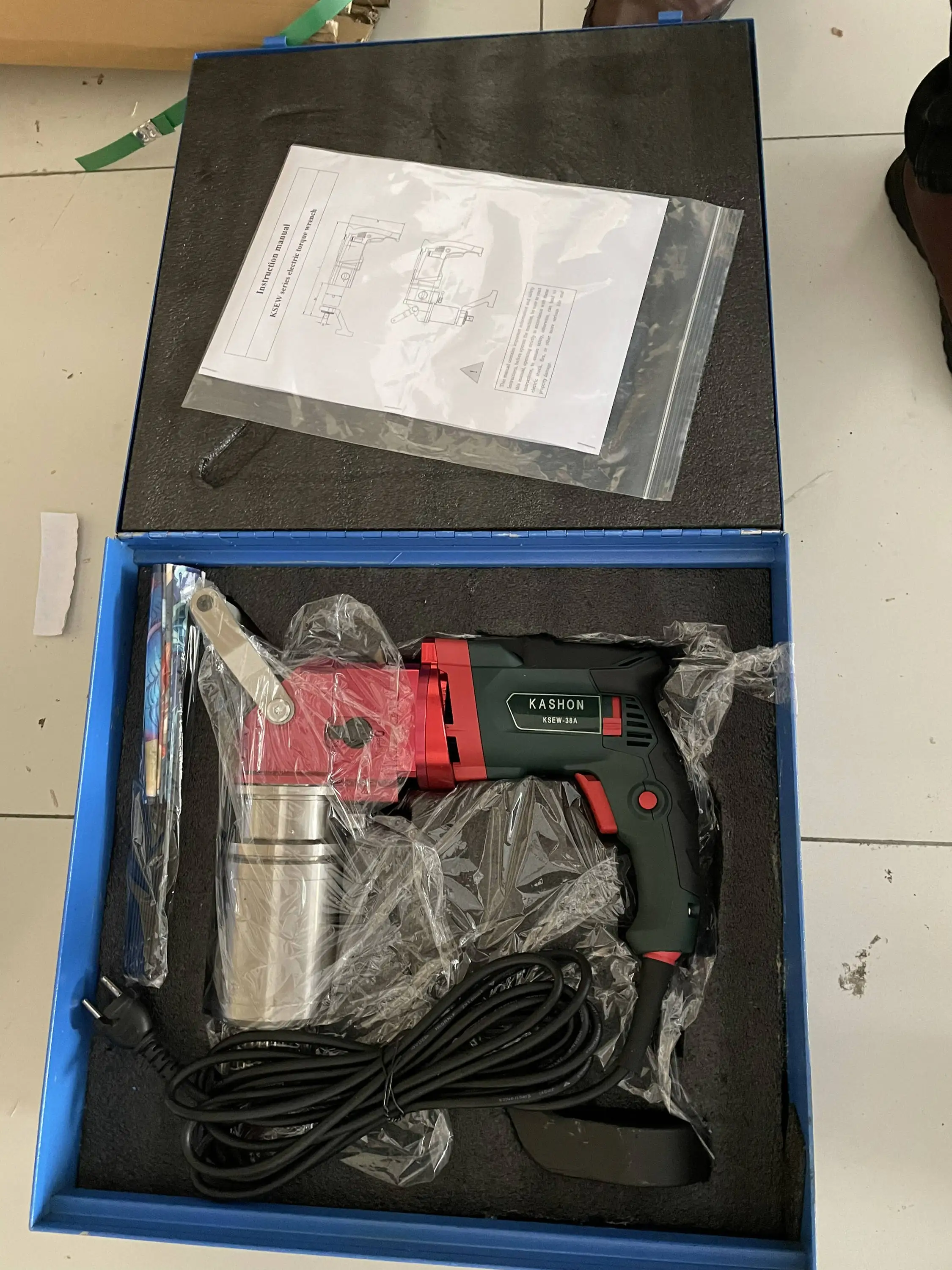

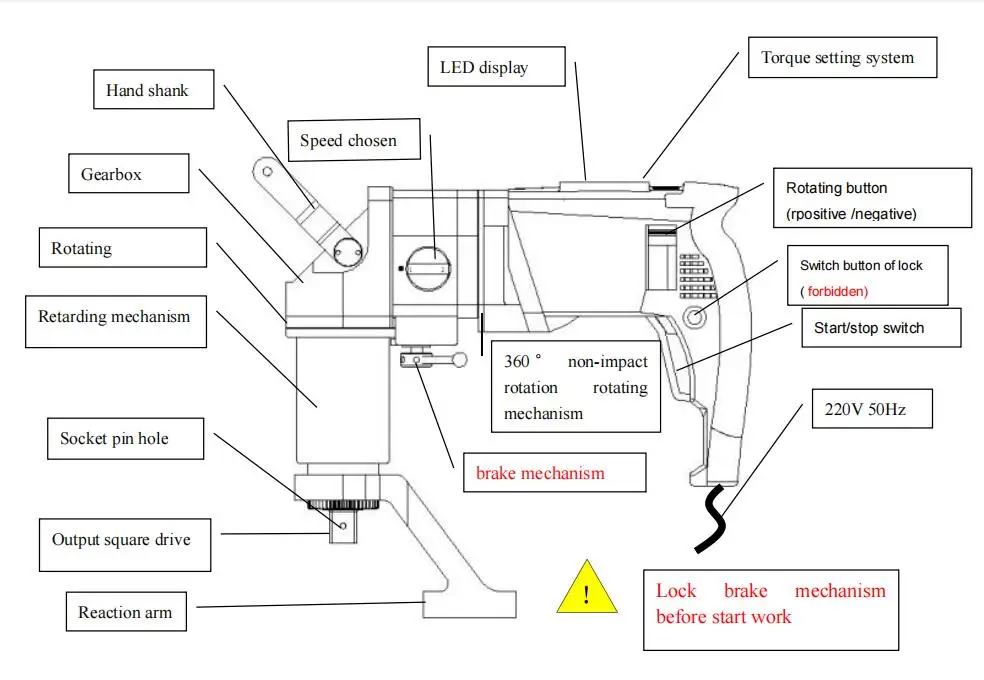

KSEW 12A 1200Nm 1 inch Digital 220V Electric Torque Wrench with LCD Screen and Angled Arm
- Category: >>>
- Supplier: Taizhou Kashon Power Equipment Co. ltd.
Share on (1601272437692):
Product Overview
Description
Features:
1. High output and repeat accuracy: ± 5% and ±3%.2. Preset torque and automatic shutoff when reaching the setted torque.

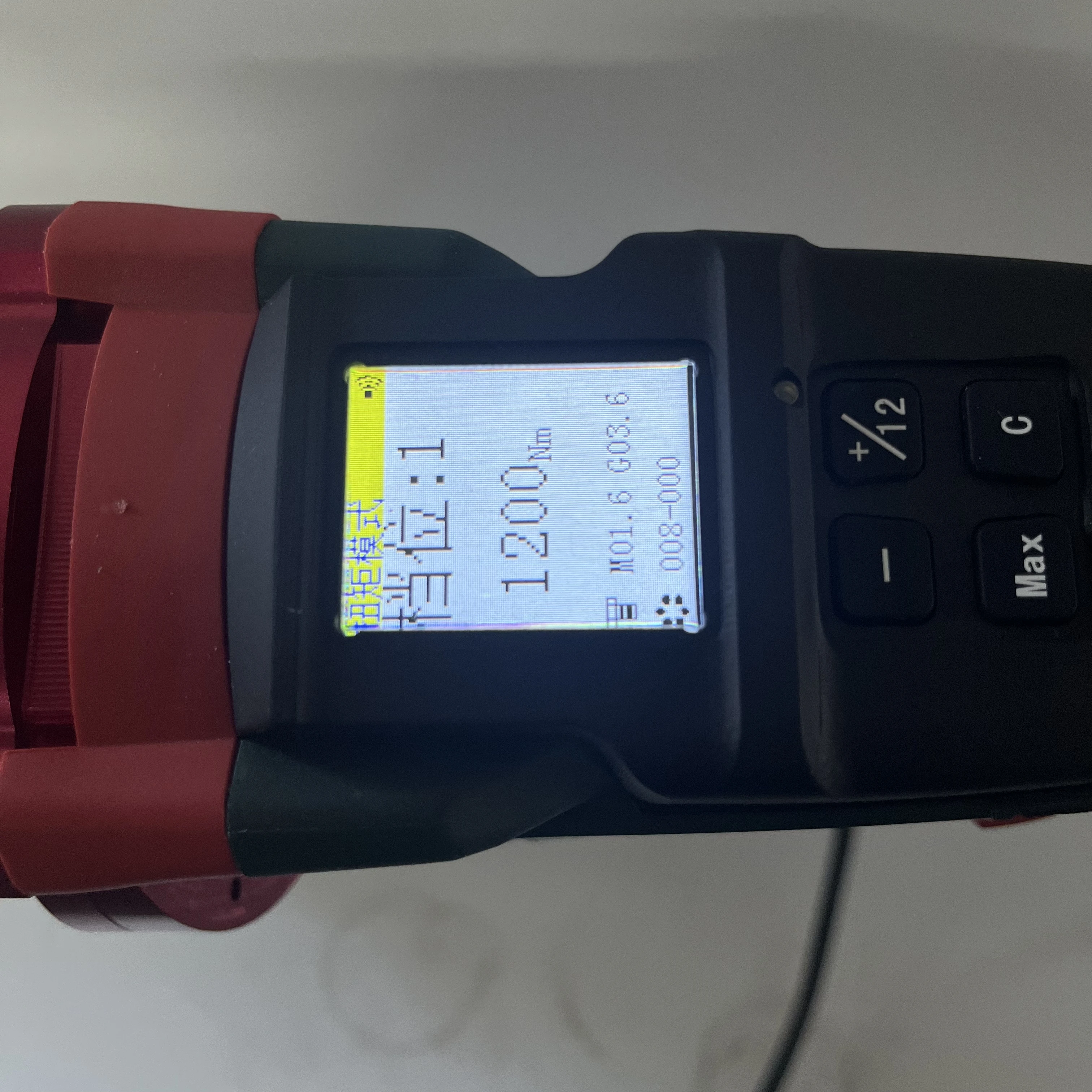

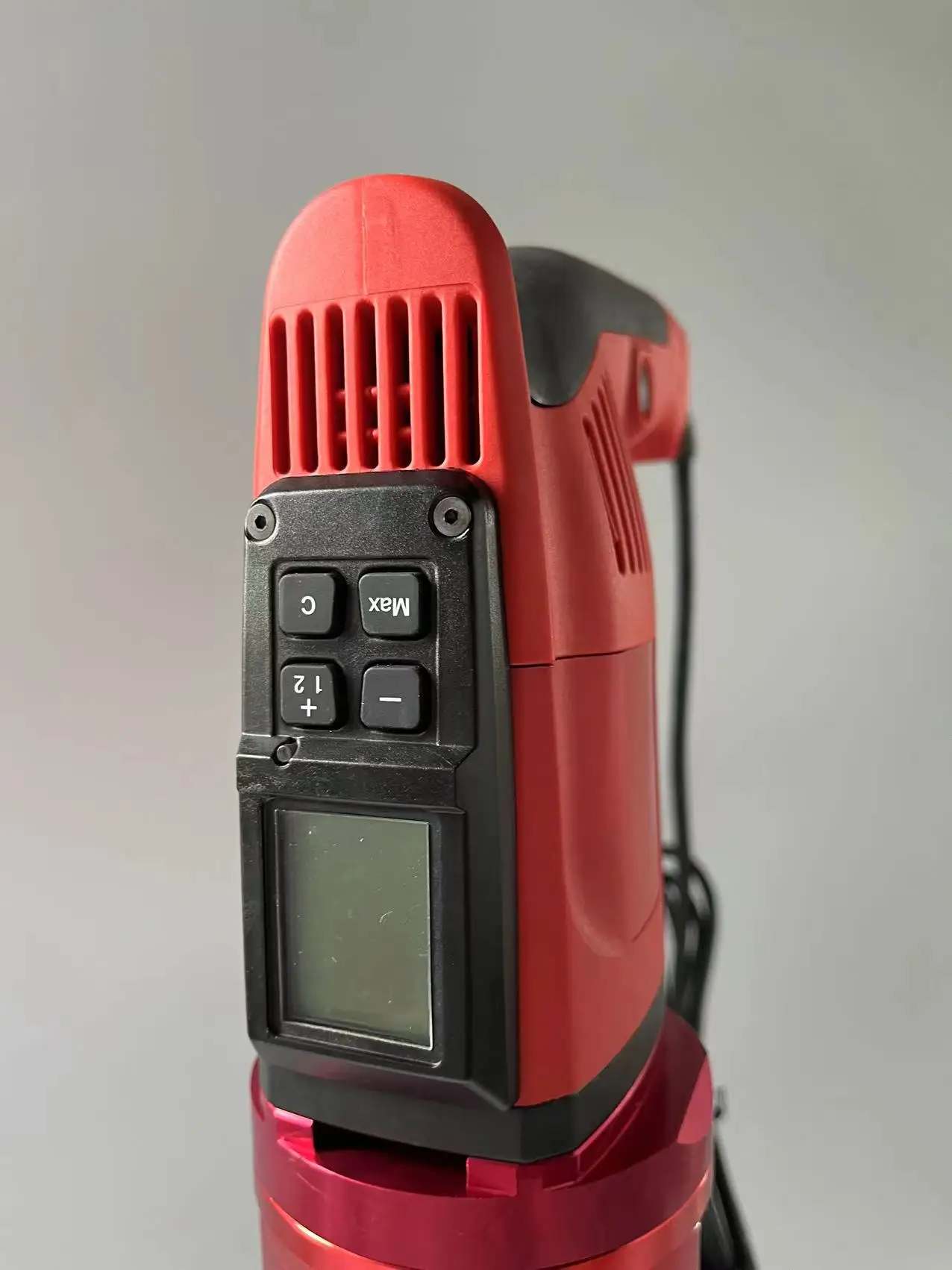

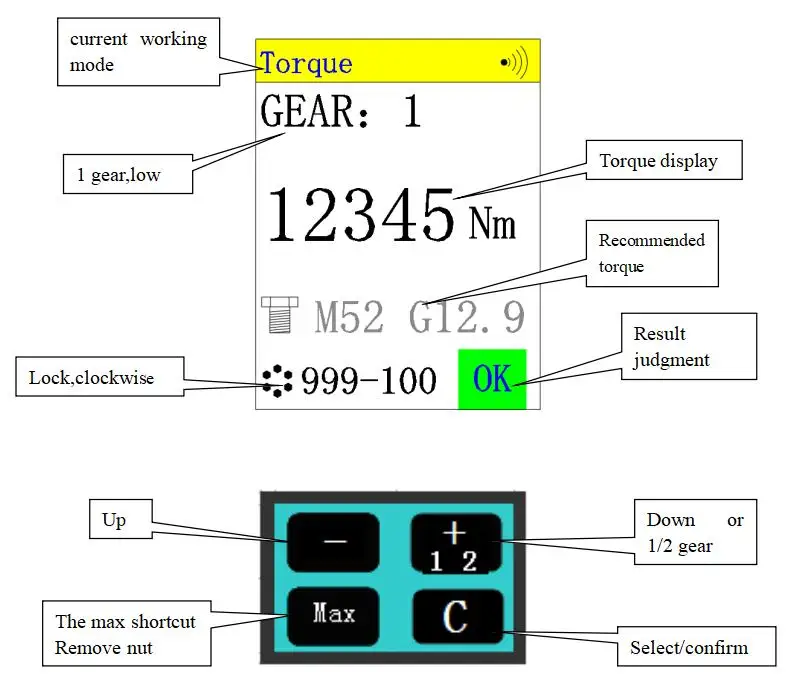

3. Single-chip intelligent torque control system with LCD display.
4. With manual 2-speed gearbox, high/low speed can be shifted freely.
5. Very suitable for continuous operation in production assembly and maintenance.
6. Free connection of power handle and drive unit, could be rotated 360°.
7. Higher efficiency whether tightening or loosenning bolts and nuts than hydraulic torque wrench.
8. Portable and durable design, low noise, with overload protection.
9. After-sales service: 1 year guarantee period, life-long maintenance.

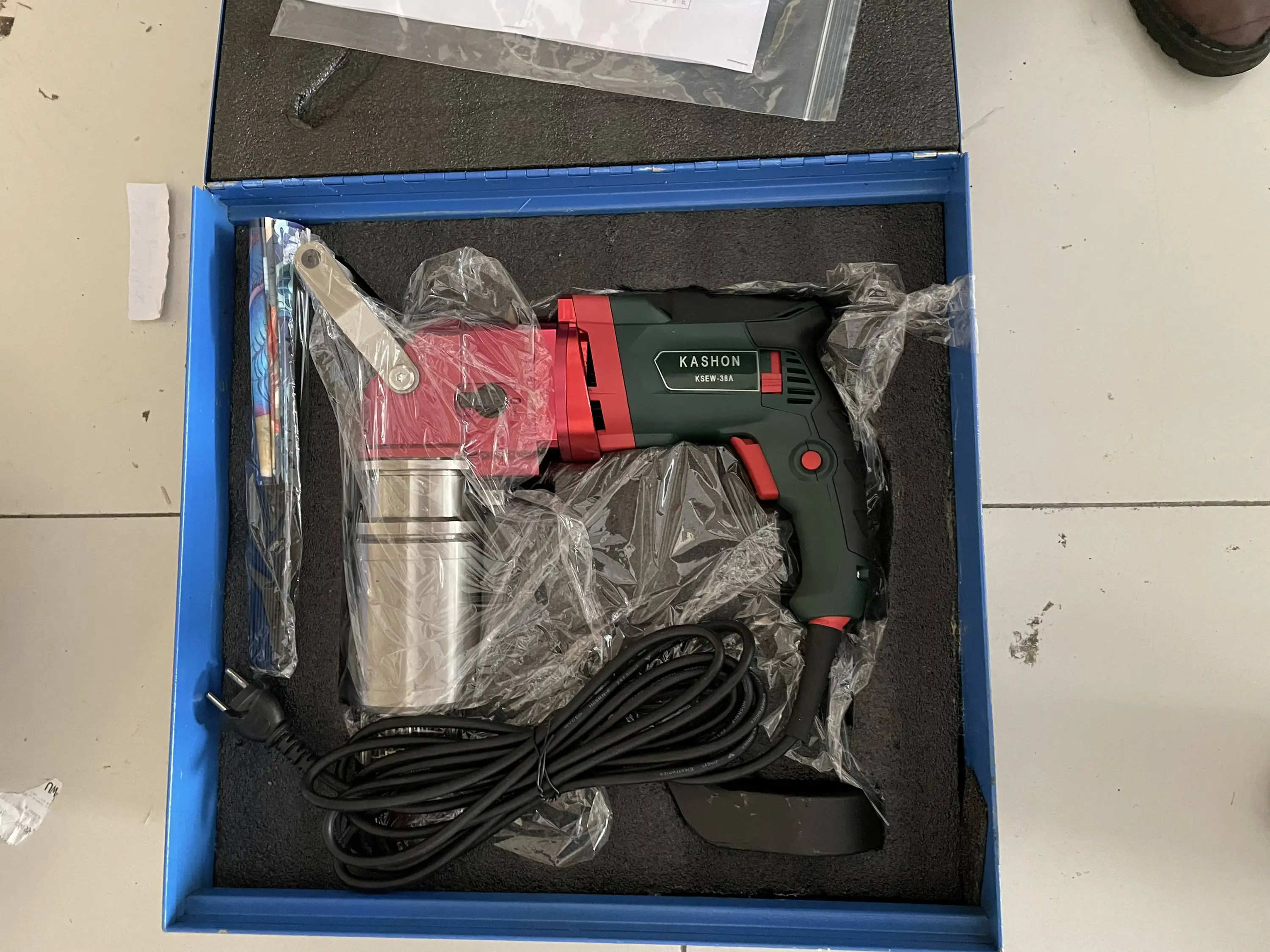

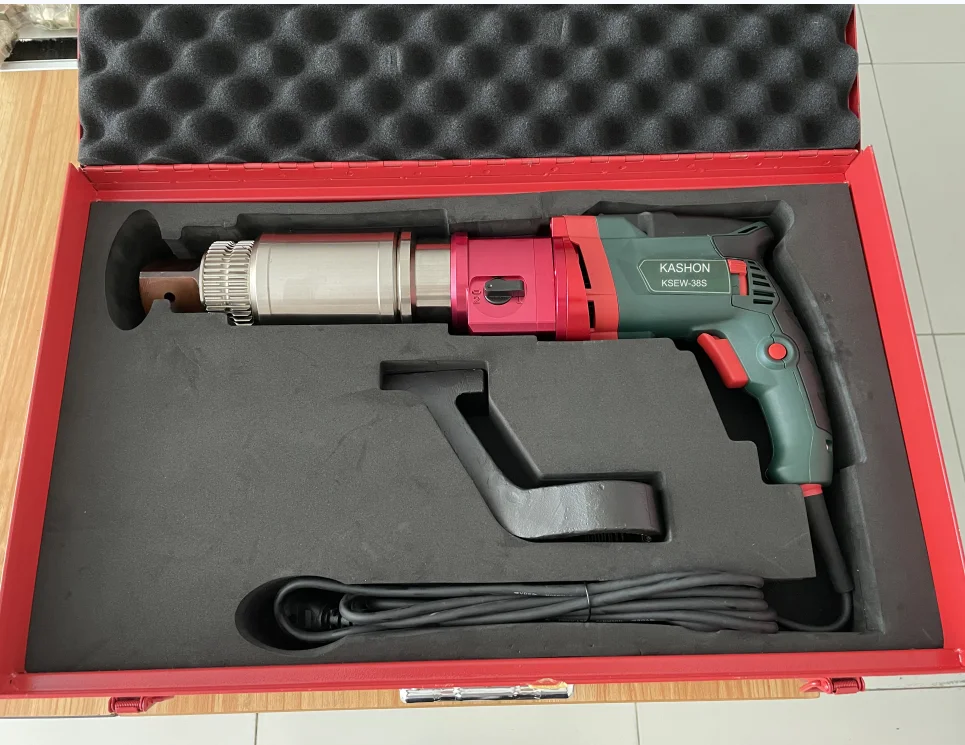

10.Supply scope :1 pcs torque wrench, 1pcs reaction arm, 1 copy operating instructions, 1 copy test report.

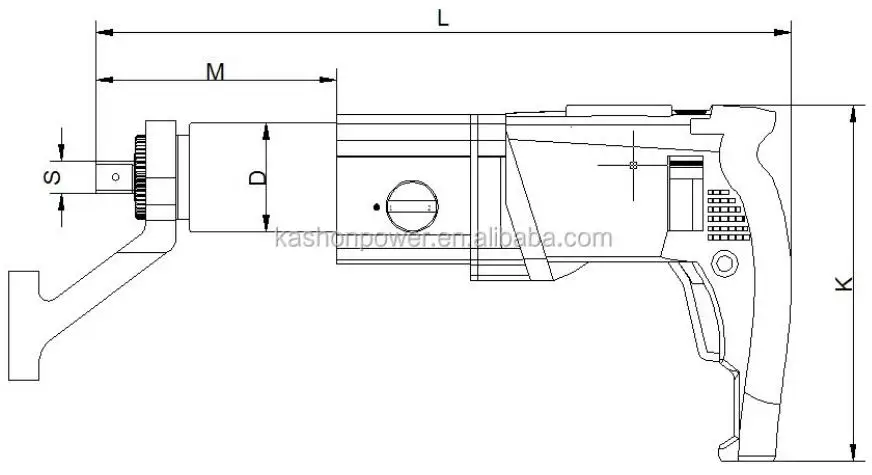

Model | Min. Torque (N.m) | Max. Torque (N.m) | Drive S (mm) | D (mm) | L (mm) | K (mm) | Non-load Speed (rmp) | Weight (kg) |
KSEW-08S | 100 | 800 | 3/4" | 88 | 432 | 208 | 24 | 5 |
KSEW-12S | 200 | 1200 | 1" | 88 | 439 | 20 | 6.5 | |
KSEW-26S | 400 | 2600 | 1" | 88 | 486 | 8 | 8.2 | |
KSEW-38S | 500 | 3800 | 1 1/2" | 88 | 496 | 5 | 9.5 | |
KSEW-60S | 1000 | 6000 | 1 1/2" | 129 | 525 | 4 | 14.9 | |
KSEW-80S | 1200 | 8000 | 1 1/2" | 129 | 558 | 2 | 16.8 | |
KSEW-100S | 1800 | 10000 | 1 1/2" | 129 | 558 | 2 | 18.3 | |
KSEW-120S | 2000 | 12000 | 1 1/2" | 129 | 558 | 1.5 | 18.5 |
Note: All Kashon hydraulic wrenches go with calibration certificates. Large torque can be customized.
Recommended Products

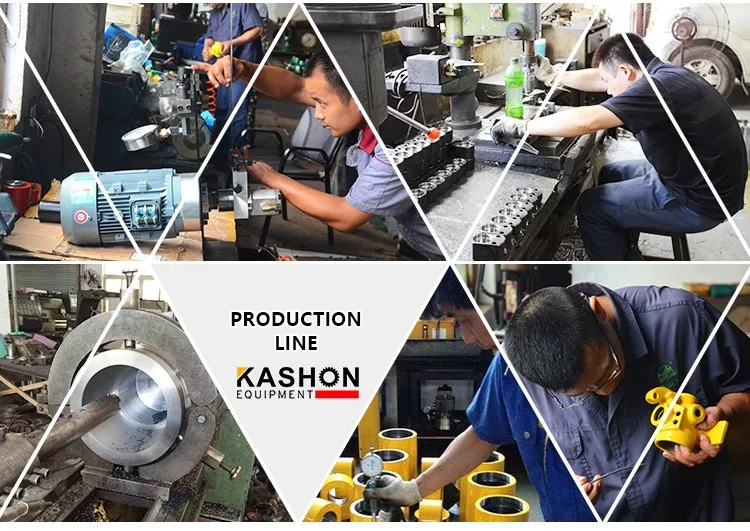

Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
