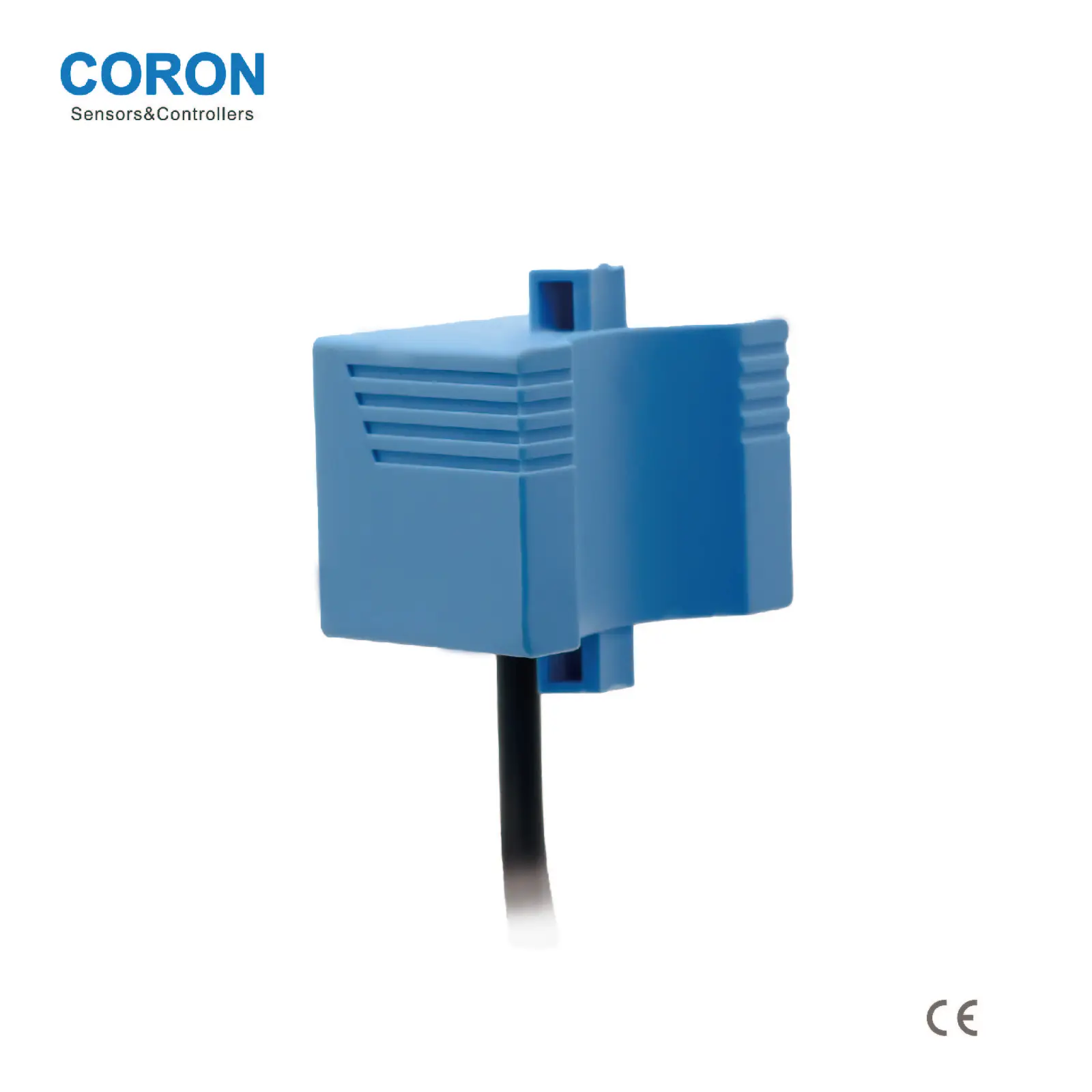

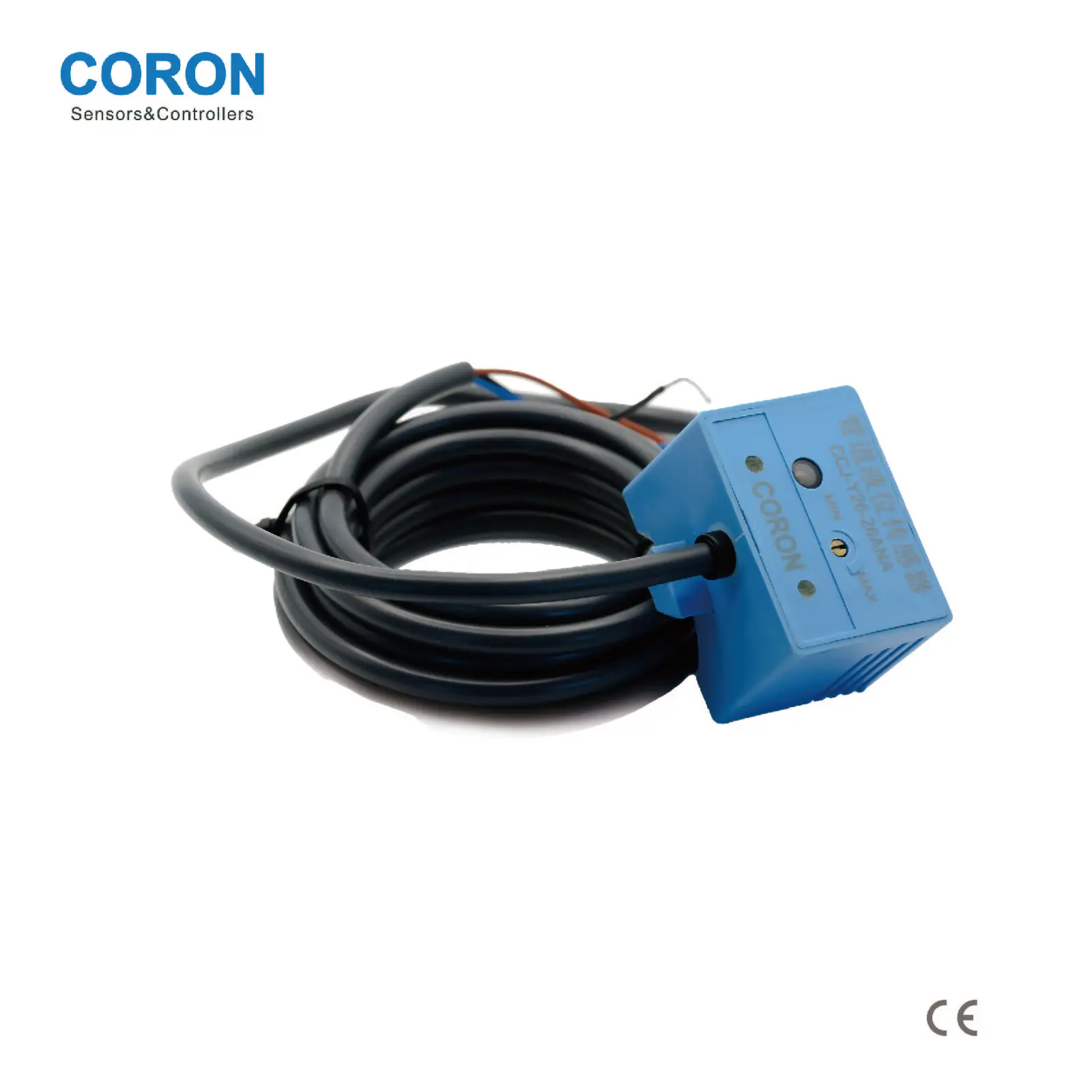

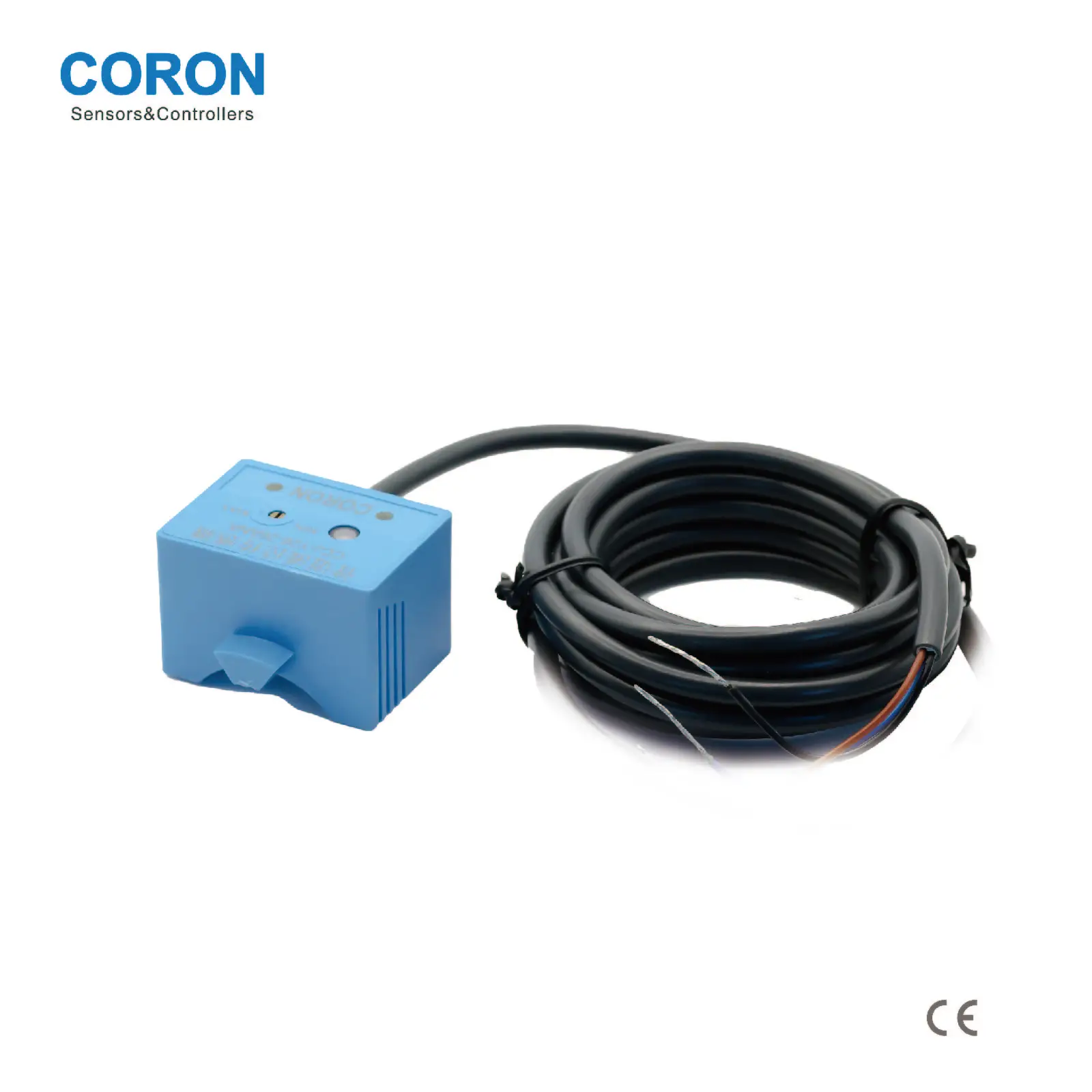

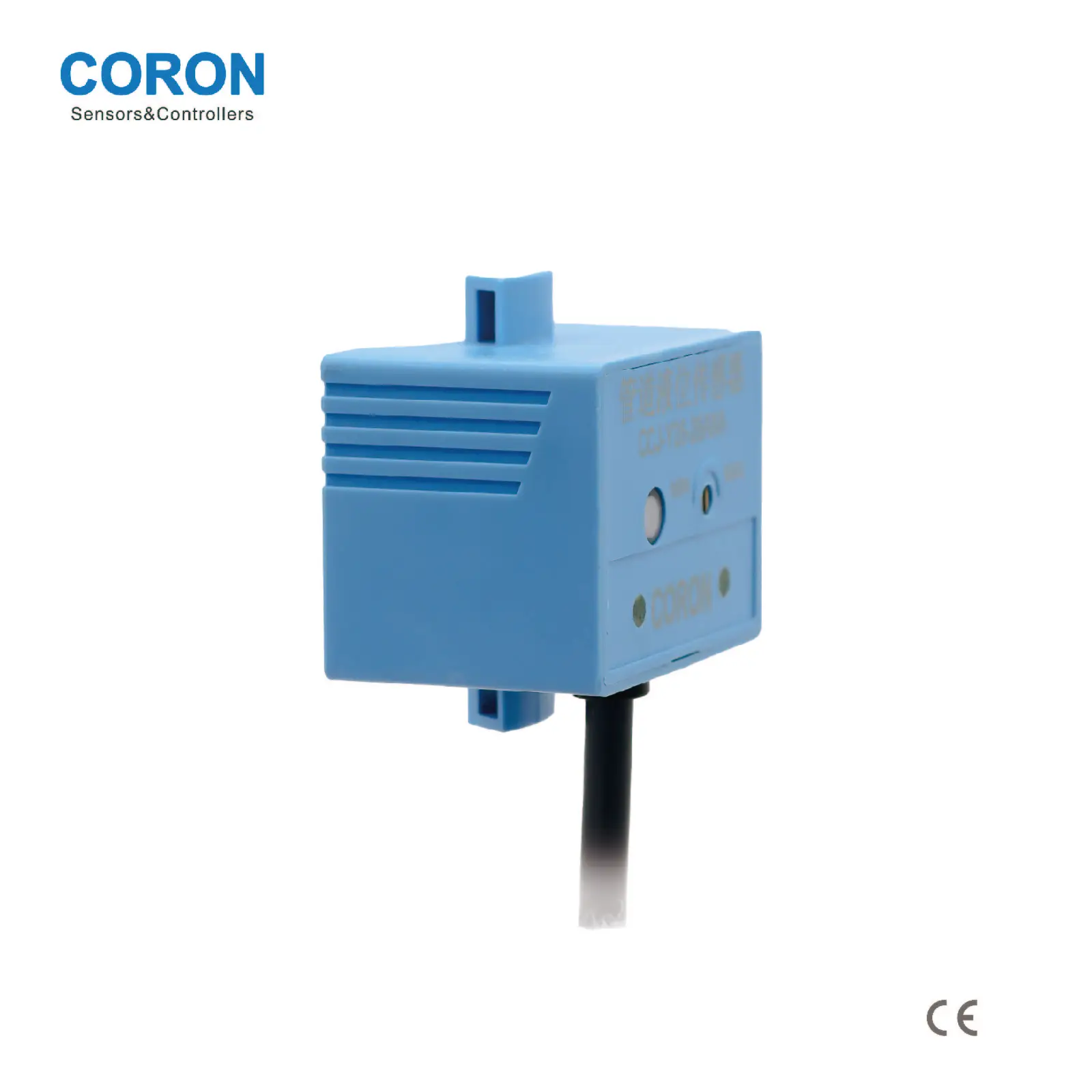

Hot Selling CCJ Y Series Capacitive Proximity Sensor Normal Open Liquid Water Level Detector
- Category: >>>
- Supplier: Chaorong Electronics (wuhan) Co. Ltd.
Share on (1601272460271):
Product Overview
Description
Product Description
Longer detection range
Fast response
Strong anti-jamming performance
Strong anti-jamming performance
High detection accuracy
Inductive proximity sensor can detect metal.
Capacitive proximity sensor can detect different substances, such as metal, non-metal, liquid, solid particles, etc.
The proximity sensor adopts non-contact detection method, which is safe and reliable, without mechanical wear.
Cylindrical, prism-shaped, square and other shapes and dimensions are availableand the installation and adiustment are convenient.
The proximity sensor adopts non-contact detection method, which is safe and reliable, without mechanical wear.
Cylindrical, prism-shaped, square and other shapes and dimensions are availableand the installation and adiustment are convenient.

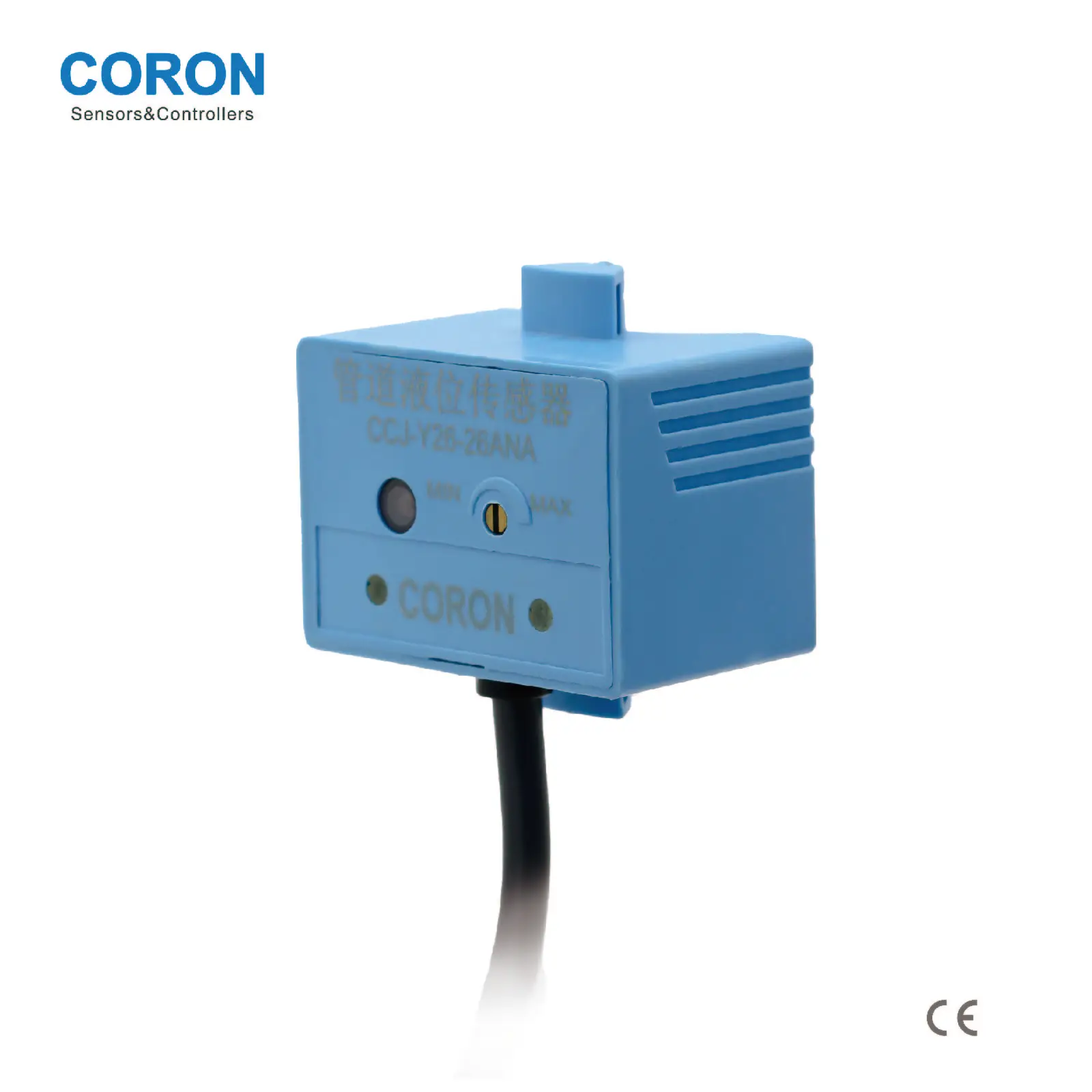

The red LED indicator light can display the working status of the proximity sensor.
lt is designed and manufactured with special IC, with high detection accuracy, highpositioning accuracy, high frequency and fast response speed. lt has a long service life.
Strong anti-jamming performance, enhanced anti-electromagnetic and radio frequency interference, and stable performance.
Strong anti-jamming performance, enhanced anti-electromagnetic and radio frequency interference, and stable performance.
It has the functions of short circuit protection and polarity protection, which can effectively prevent circuit damage.

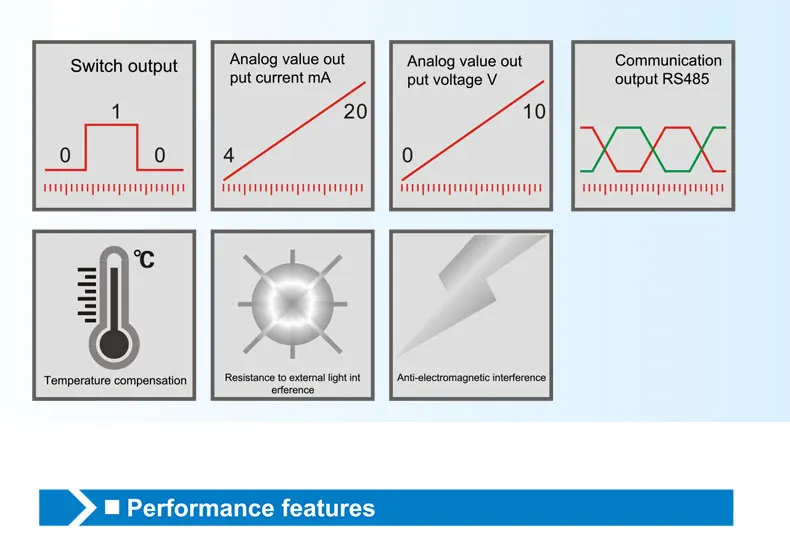

Equipped with NPN, PNP, DC 2-wire, AC 2-wire, and AC/DC 2-wire output.
High lP rating can meet different working environments.

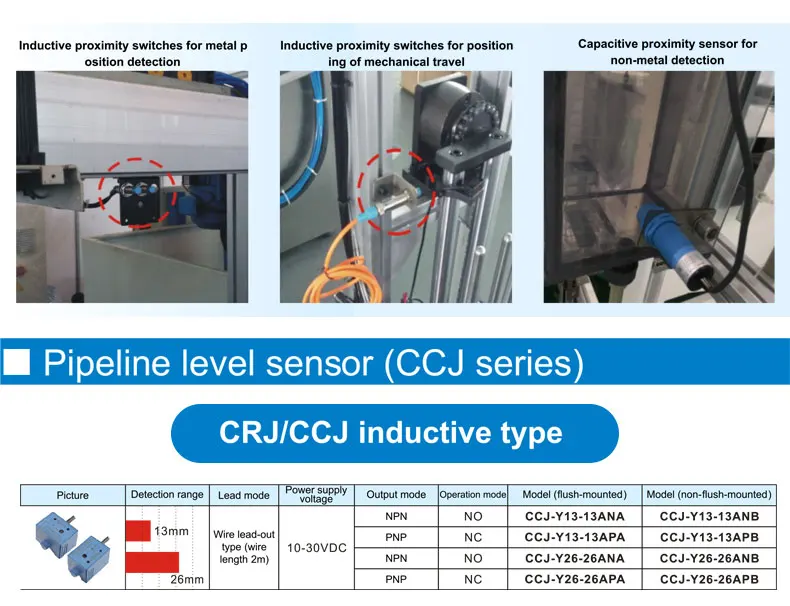

The proximity sensor is widely used in machine tools, machinery, electronics, metallurgy, chemical industry, textile, printing, food, beverage, medicine, packaging, printing, automation equipment and otherindustries. In the automatic control system, it can be used as a limit, counting, positioning, detection, control and automatic protection link.
Tyрe | Capacitance type pipeline liquid level Type sensor | ||

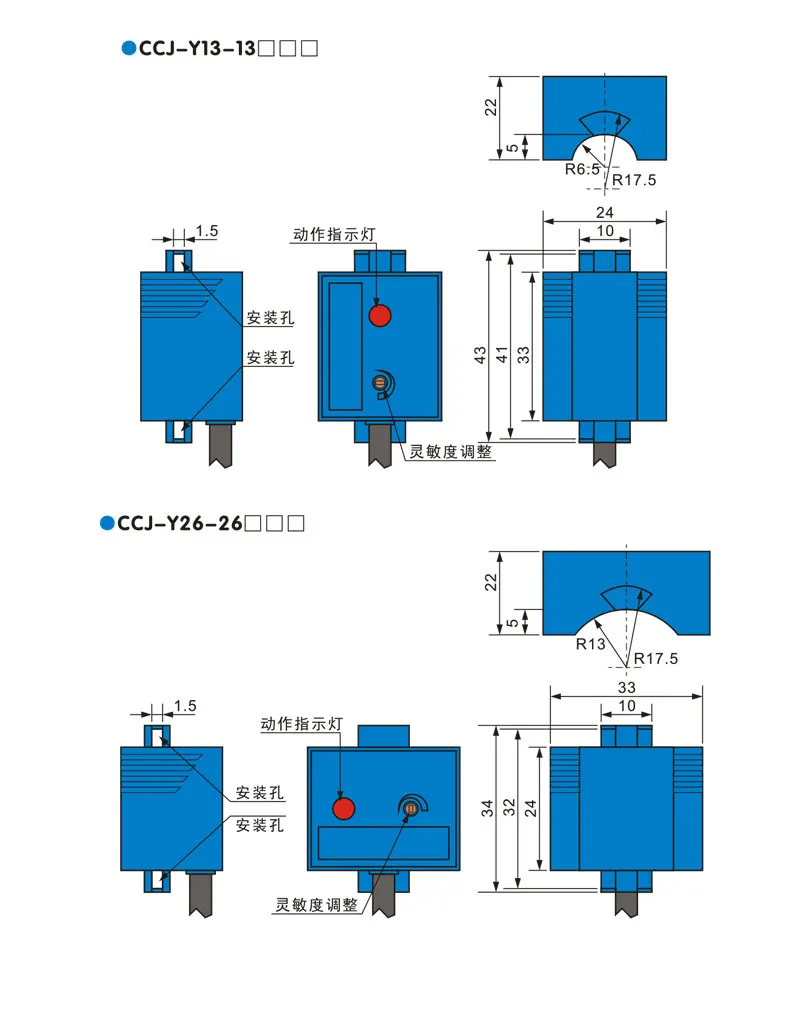

Appearance | Y13 | ||
Mounting type | Non-fush-mounted | ||
Out method | PNP output | ||
Operation mode | NPN Normally open | ||
Model | CCJ-Y13-13APA | ||
Trial pipe | Outer diameter | φ8-11mm | |
Wall thickness | below 1.5mm | ||
Material | Plaslic, glass, ceramic and other nonmetallic pipes | ||
Object | Liquid | ||
Repeatability | Less than ±0.2mm | ||
Tolerance | AC 2-wire | 0.6-5mm | |
Ambient temperature. | Operation:0 to +55°C,storage: -10 to +65°C | ||
Power supply voltage | DC: 10-30VDC | ||
Switch capacity | DC NPN/PNP: ≤200mA, DC 2-wire: ≤50mA. AC 2-wire: ≤300mA | ||
Output voltage drop | DC NPN/PNP: ≤1.5V, DC 2-wire: ≤5V, AC 2-wire: ≤8V | ||
Operation mode | Normally open (NO) or normally closed (NC) | ||
Sensitivity adjustment | Multi-turn potentiometer adjustment | ||
indicator light | Red LED | ||
Ambient humidity | Operation: 35-85% RH, storage: 35-95% RH | ||
Anti-vibration | Frequency 10-55Hz,amplitude 1.5mm, 2 hours in X, Y and Z directions | ||
Anti-impact | Acceleration: 500m/s2, about 50g, 10 times each in X, Y and Z directions | ||
Anti-jamming | ±240V square wave generated by jammer (pulse width: 1us) | ||
Withstand voltage | 1000VAC 50/60Hz 1 minute (0-40℃, 85%RH) Between the charging part and the shell | ||
Insulation resistance | DC500V, above 50MΩ | ||
Connection method | Lead-out type wire length 2m | ||
Shell material | Shell and detection surface: PBT | ||
IP rating | lEC standard IP67 | ||
