High Efficiency Filter spray tan with Heat recovery system
- Category: >>>
- Supplier: Yantai Lide Automotive Equipment Manufacturing Co. Ltd.
Share on (1601272462011):
Product Overview
Description
Product Description
Product Description

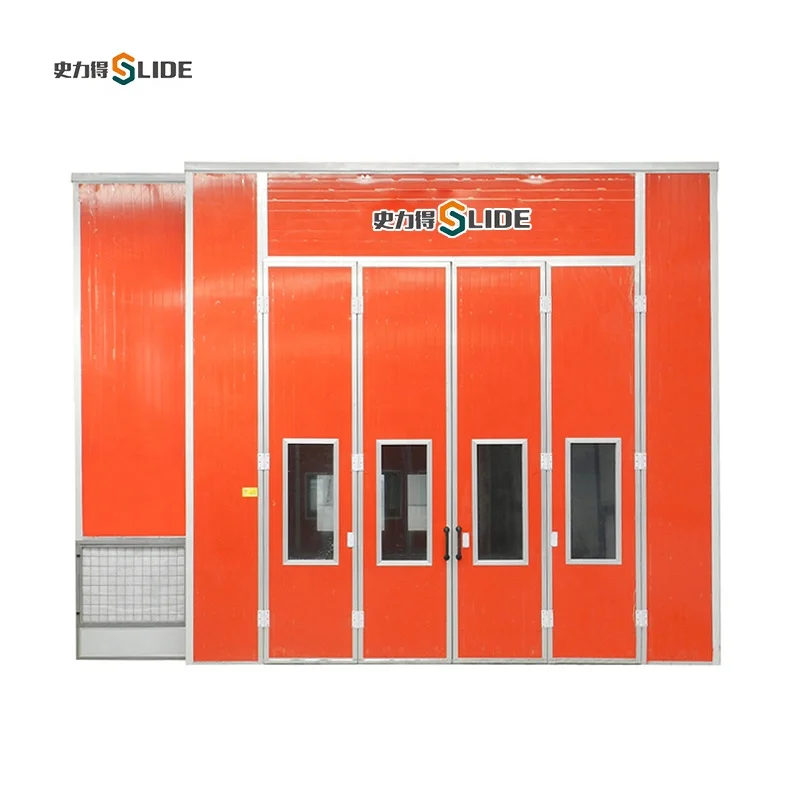

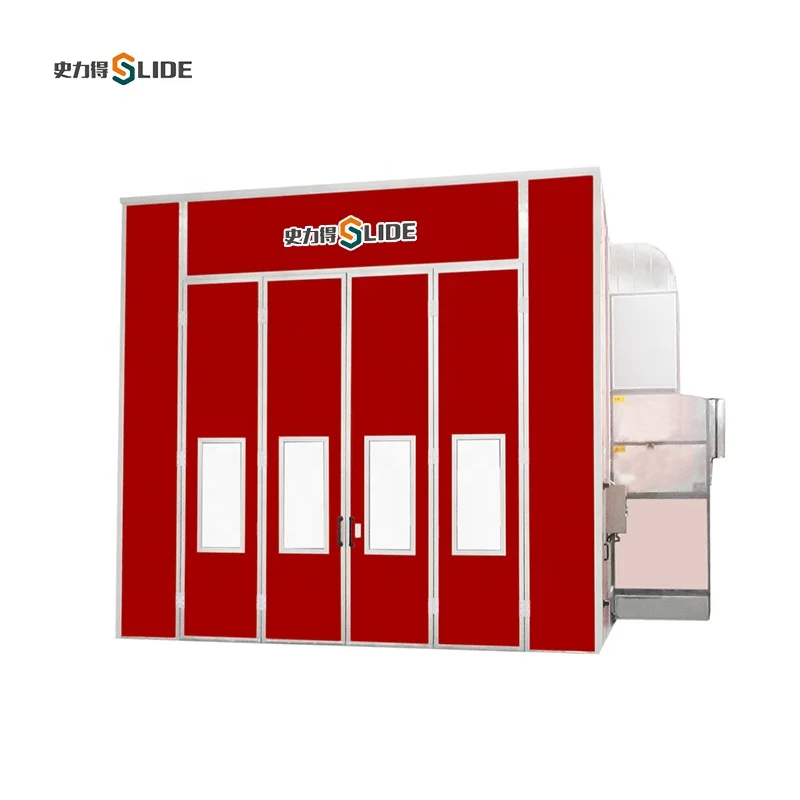

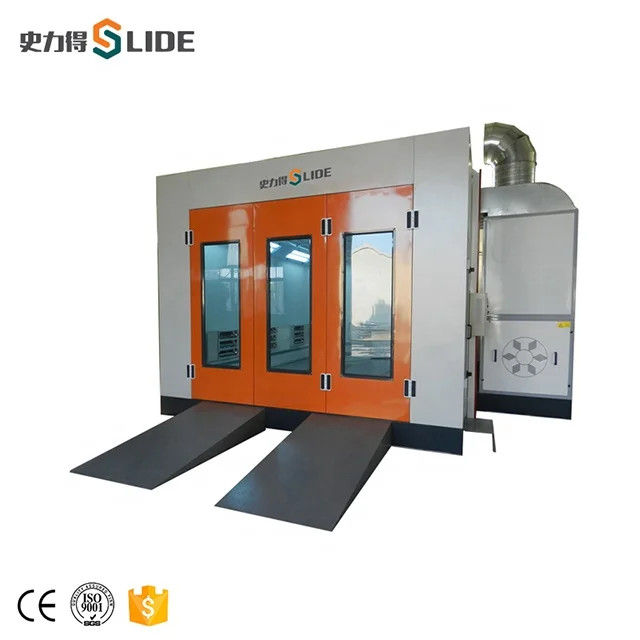

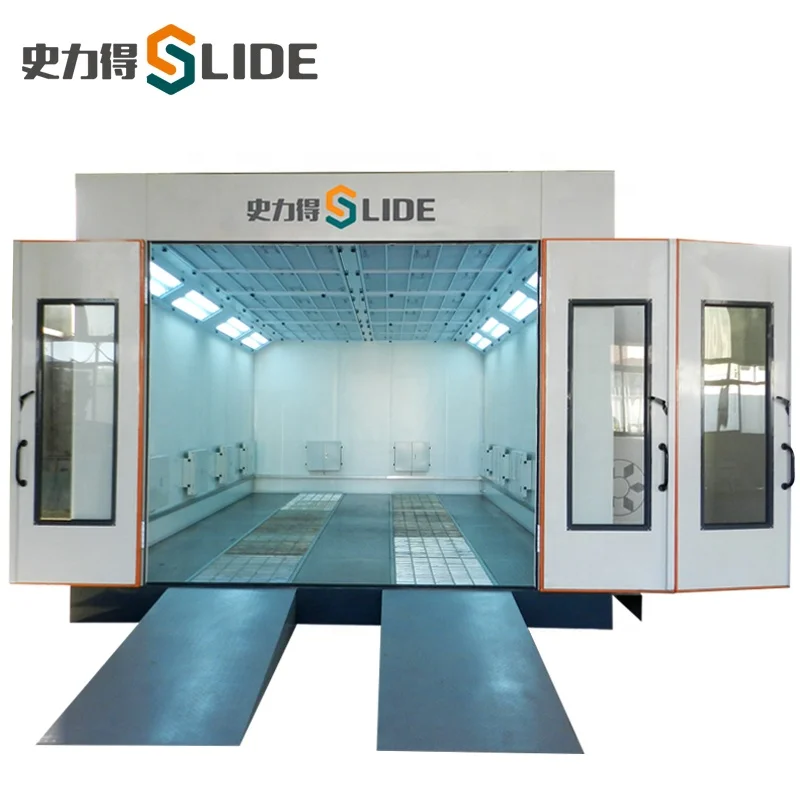

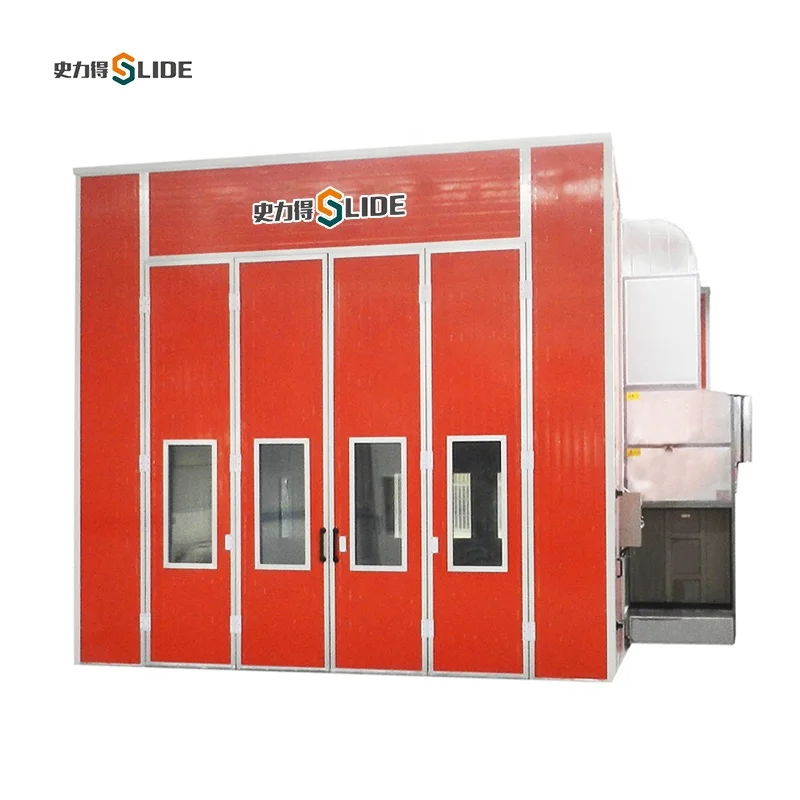

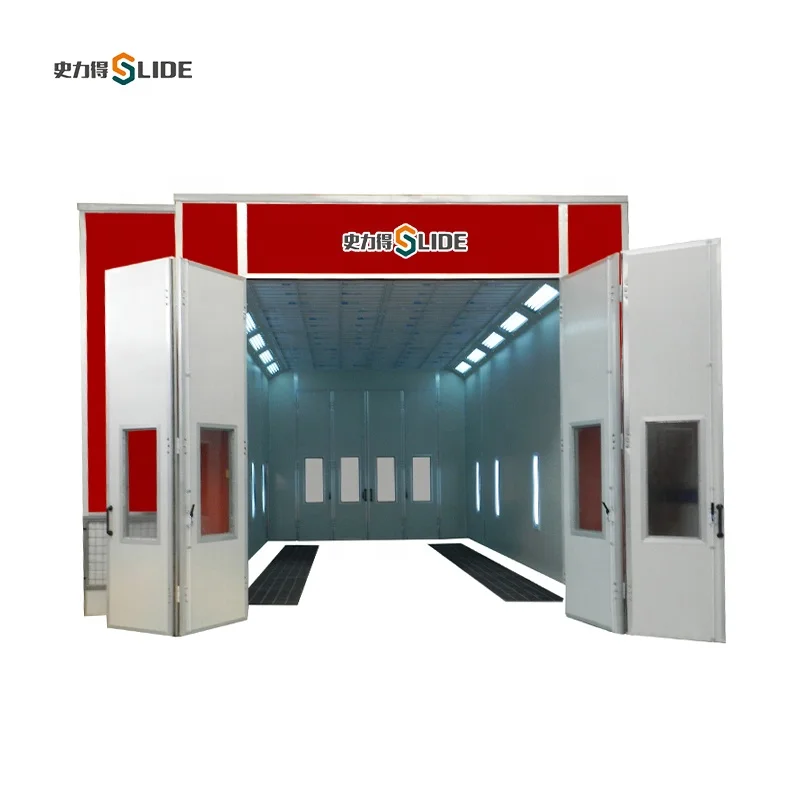

YANTAI Car painting equipment Bake Oven Booth/auto spray booth
Outside size | 7000-10000*5300*3400mm(L×W×H) | ||
Inside size | 6900-9900*3900*2650mm(L×W×H) (except the height of basement and filter) | ||
Entrance door | 3folds,3000*2600mm(W*H),bending steel without covered frame Equipped with Handle & Lock, High temperature resistant glass, | ||
Emergency door | 650*1800mm(W*H),equipped with handle lock | ||

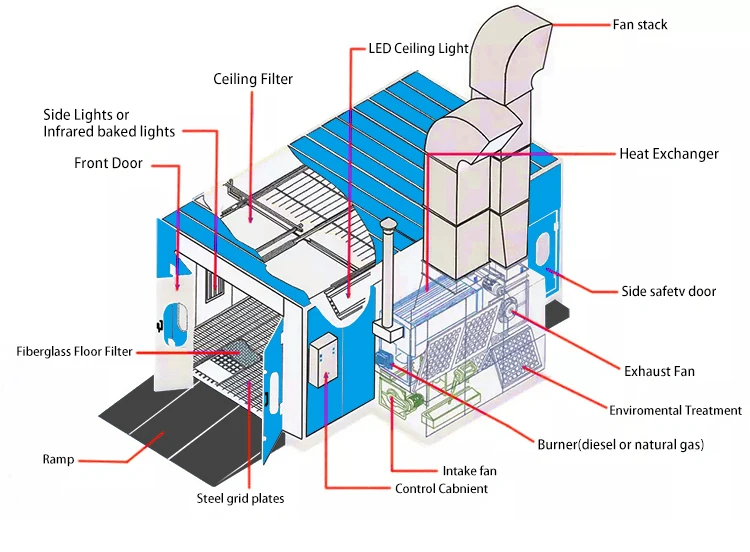

Main System | |||
Cabin System | Wall Panel | -High quality double construction insulation EPS colorful steel skin panel,
-Galvanized steel roof panel,anti-flame and heat-insulation | |
| Basement | - Plate type pressing convex platform,made by high quality galvanized steel sheet and square tubes assembing - 2 rows flat steel grilles(Galvanized) made by flat bar and round steel, - 3 rows metal non-slip Diamond plates (galvanized and painted.) . - 2 pieces full ramps, each size 620*2000mm(W*L), diamond plate construction. (overall structure,not only two pieces of iron.) | |
Ventilation System | Inlet fan | 2*3kw double-intake centrifugal fans,model; | |
| Outlet fan | 1*5.5kw double-intake centrfugal fans,model: | |
| Cabinet Setting type | Exhaust air from back downside, adopt powder quadrate steel frame, exhaust duct made by high quality galvanized steel and flange. (rock wool cabinet) Cabinet for the fan* 1 unit, air duct 1m *2 unit Elbow: 90º *1 unit | |
| Airflow speed | 0.3m/s, ventilation rate: 280times/h | |

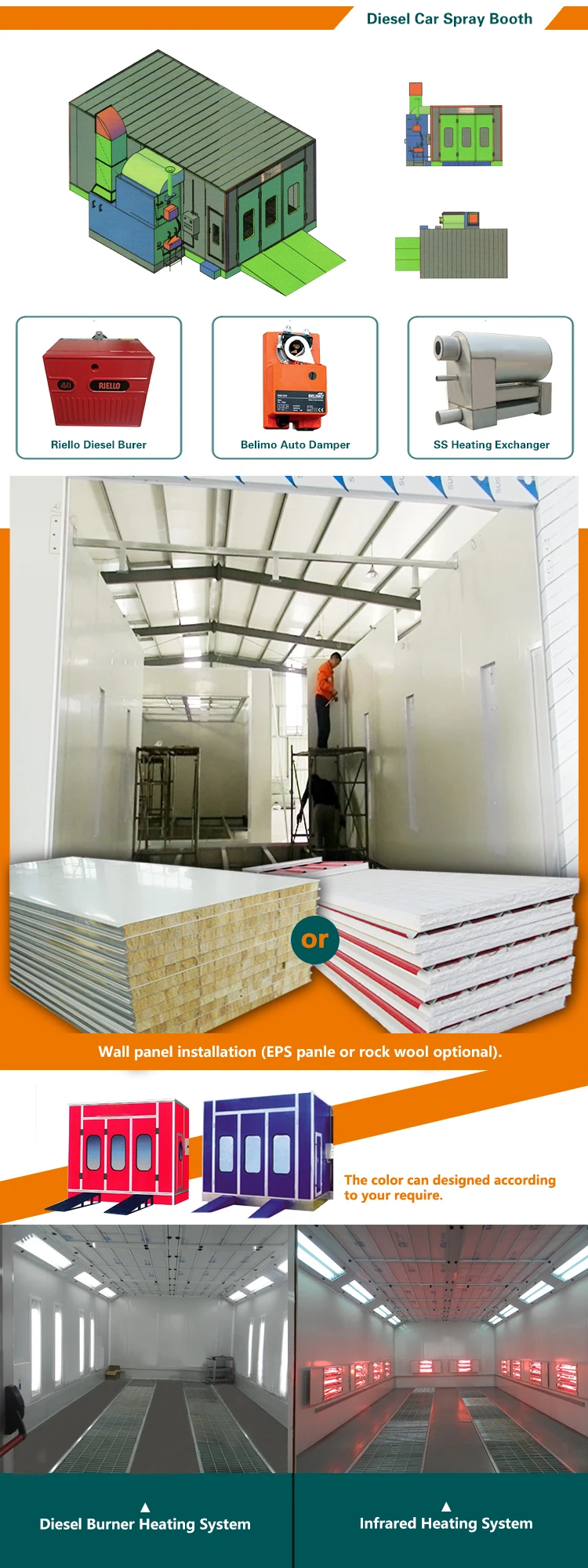

Heating System

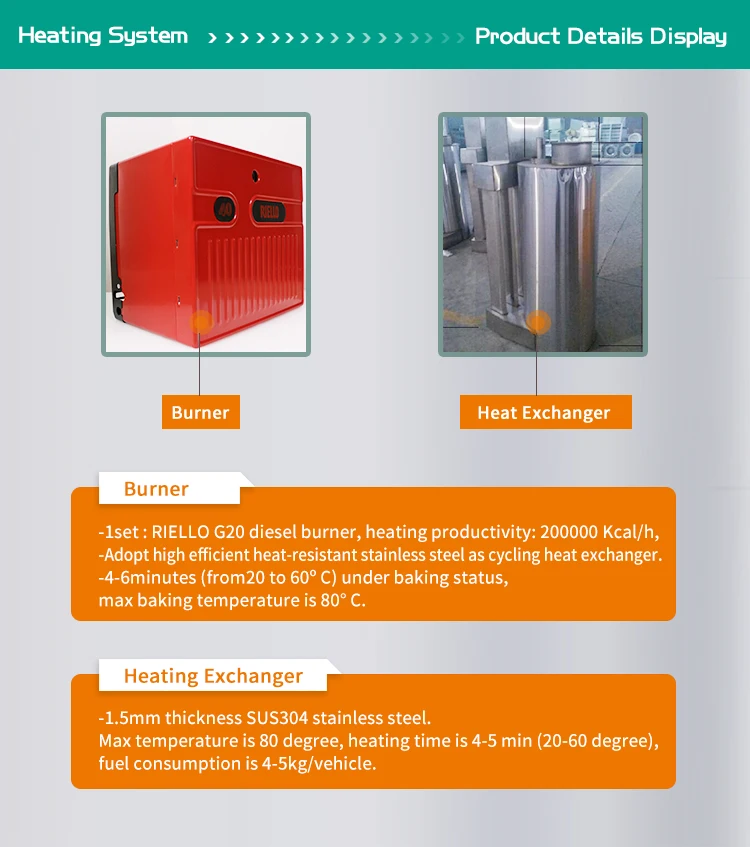

| Diesel heating system: Italy RIELLO G20 oil burner,heating capacity:200000kcal/h, with 10N electric damper Heat Exchanger: SUS304 stainless steel Cabine:Rock-wool filler insulation*1 unit 8-10 minutes (from 20 to 60 ℃) under baking status,max baking temperature is 80 ℃ | ||
Roof system | Beam | Made by galvanized square pipe, with supporting and angle iron connected by screw. | |
| Plenum | The plenum made by galvanized steel, powder-coated on the surface. The roof filter support frame made by galvanized square tubes, powder-coated on the surface. | |

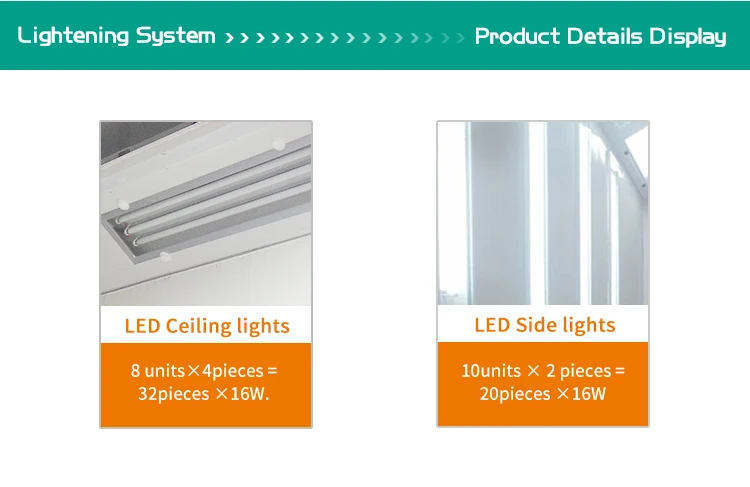

Lighting system | Ceiling lights | 8set*4 pieces=32pcs*16w LED tubes with electronic ballast, powder-coated light box. | |
| Slide lights | 8set*2=16pcs*16w LED tubes with electronic ballast with powder-coated light box. | |

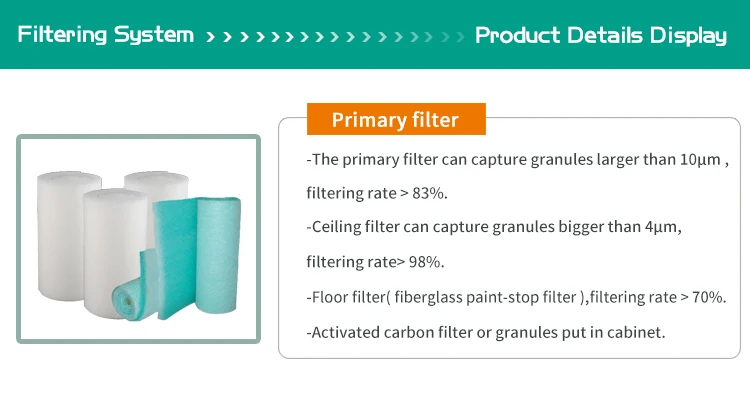

Filtering System | Primary filter | -Grade G2 plate typr, filter rate > 83%. | |
| Ceiling filter | -EU5 grade high efficient filter, filtering rate> 98%. | |
| Floor filter | Muliti-layer fibergkass filtering rate>70% | |
Control System | Function | Intellgent computer controlling system, Lighting,temerature time setting,painting,constant temperature painting,baking,emergency stop,failure indication tine accumulate,etc | |
Voltage/Frequency | 380V, 50Hz, 3PH or customized | ||
Total Power | 16KW | ||
Packaging & Shipping
Our Services
Yantai Lide Automotive Equipment Manufacturing Co,Ltd, which is a combination of production and trade, industry and trade integration business. With our own brand “SLIDE”, we making efforts to supply high quality equipment including types of Auto Car Body Frame Machine, Car lifting machine , and kings of tools.
Since its establishment, specializing in automobile detection and maintenance of equipment R&D, manufacturing, sales and import and export business, is a modern, high-tech enterprises.
Company has strong technical strength, excellent experiments, testing equipment, with more advanced production equipment. Our company has won the honer of “Annual credit enterprise in 2012”, “Excellent enterprise in Yantai City in 2013”, and our company is the one of companies in Yantai who is first have the right to proprietary importing. We got the ISO9001 certification in 2008.
The company has the advanced production technology, and combined with years of domestic sales experiences, the vital understanding of real need of customers, and we provide OEM service.
Our company is based on high-tech, already well- known in China and the world. Our products are export to USA, Canada, New Zealand, Brazil, Australia, Russia, South Africa and other countries, also the whole China.
Our company belief “Credibility is first, quality is root, customer is god.”, we are a great team. We will continue to establish and perfect the service system, so that every touch of every customer can achieve the best cooperation.
FAQ
FAQ
1.Why choose us ?
Yantai LIDE is a very professional car maintenance equipment supplier. We have rich experience in this industry.
2. Can you make the machine size and color as our request?
Yes, we can make the machine size and color according to your request.
3. What’s the Min order to your company?
1 set.
4. OEM is available?
Yes, we can put your logo on the machine if needed.And we can make the machine structure as your design request.
5. What kind of measuring system do you have?
We have the two dimension measuring,three dimension measuring and electric measuring system for your choice.
6.Can you match the requirement that the customer?
Yes, we have the factory and designer.
