Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing
Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing
Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing
Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing
Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing
Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing
Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing

Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing

Share on (1601272462254):


Price:$5,000.00-8,000.00

Quantity:


Product Overview

Description



Products Description




Introduction of Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing
This series of equipment is hard support horizontal dynamic balance machine, with roller bearing, gimbal couplings drive, routine for double-speed motor drive, "A" type for variable frequency speed regulation system, an industrial control computer data processing LCD monitor real-time display imbalance, value, phase Angle and real-time speed, and lathe bed are integrally cast. Widely used in motor, blower, diesel engine, agricultural machinery, textile machinery and other industries, can be in the single side, double side and multiple correction plane balance measurement. Suitable for axle plate type and the barycenter overhanging rotor. With high efficiency and precision accurate, show intuitional, reliable quality, convenient maintenance characteristic.zmwm02






Product Paramenters




Parameters of Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing


Model
YYQ-50A
EThe measuring time
10s (measurement cycle can be arbitrary set).
Software version
Windows XP
display mode
19 inch LCD
power supply
The power of three-phase four-wire type AC 380V, 50/60HZ
Working
continuously
Workpiece quality range (Kg)
50
Beam supporting interval distance (mm)
60-700
Trunnion range (mm)
Φ 5-70
Workpiece diameter (mm)
600
Balance speed (r/min)
300-2500 variable frequency speed regulation
Motor power (KW)
0.75
Unbalance reduction ratio%
≤90
Minimum can reach surplus balabcing (emar)
≤0.5g・mm/kg
Speed range
100 R.P.M. - 5000r/min
Phase error
use a standard signal measurement error < 0.3 DHS
Amplitude error
use a standard signal measurement error < 1,000
Storage rotor number
255 a
Angle decomposition coun
60
The machine maximum power
2million




Details Images

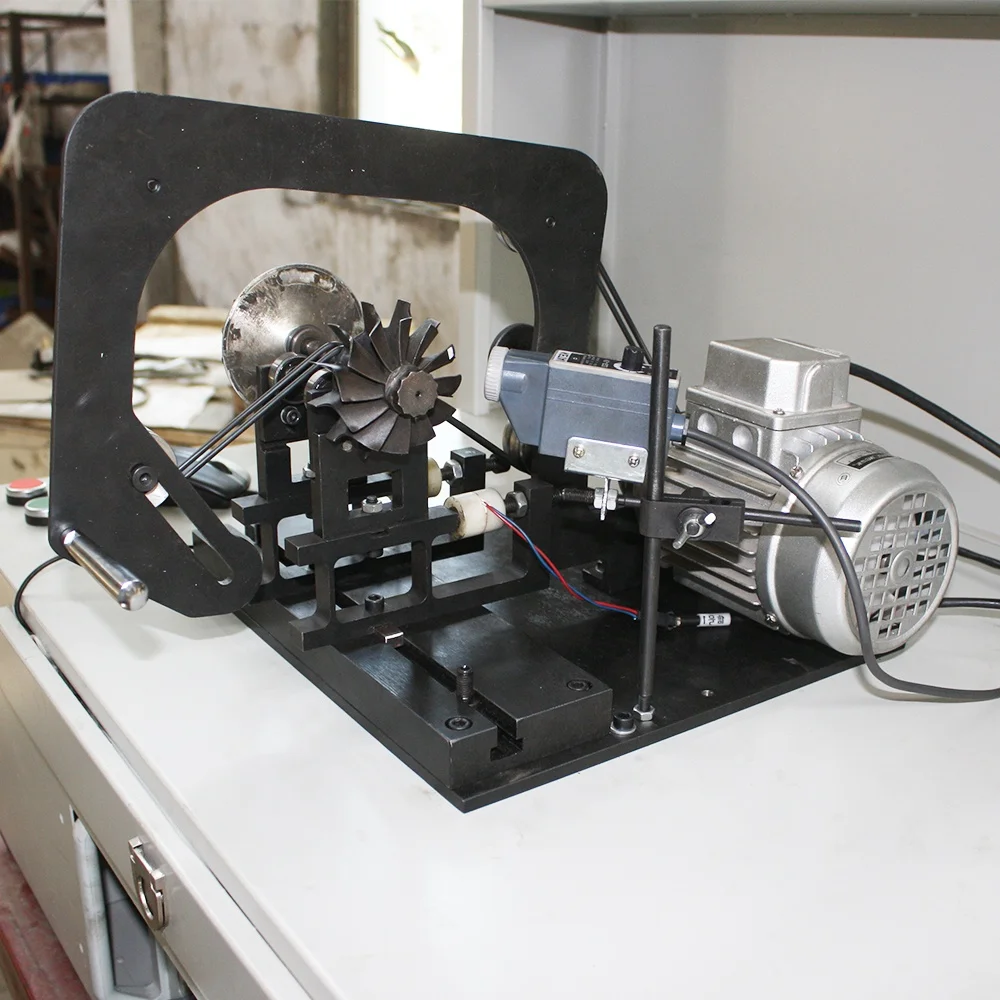

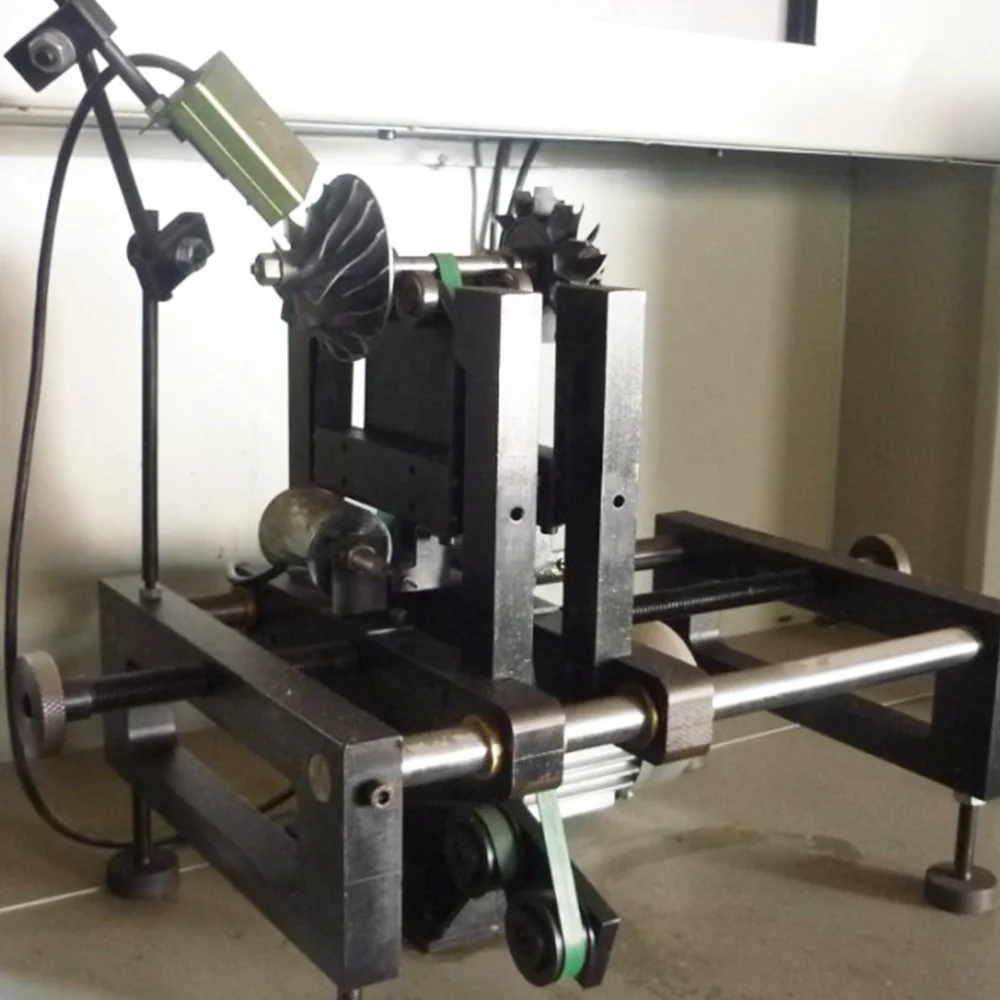

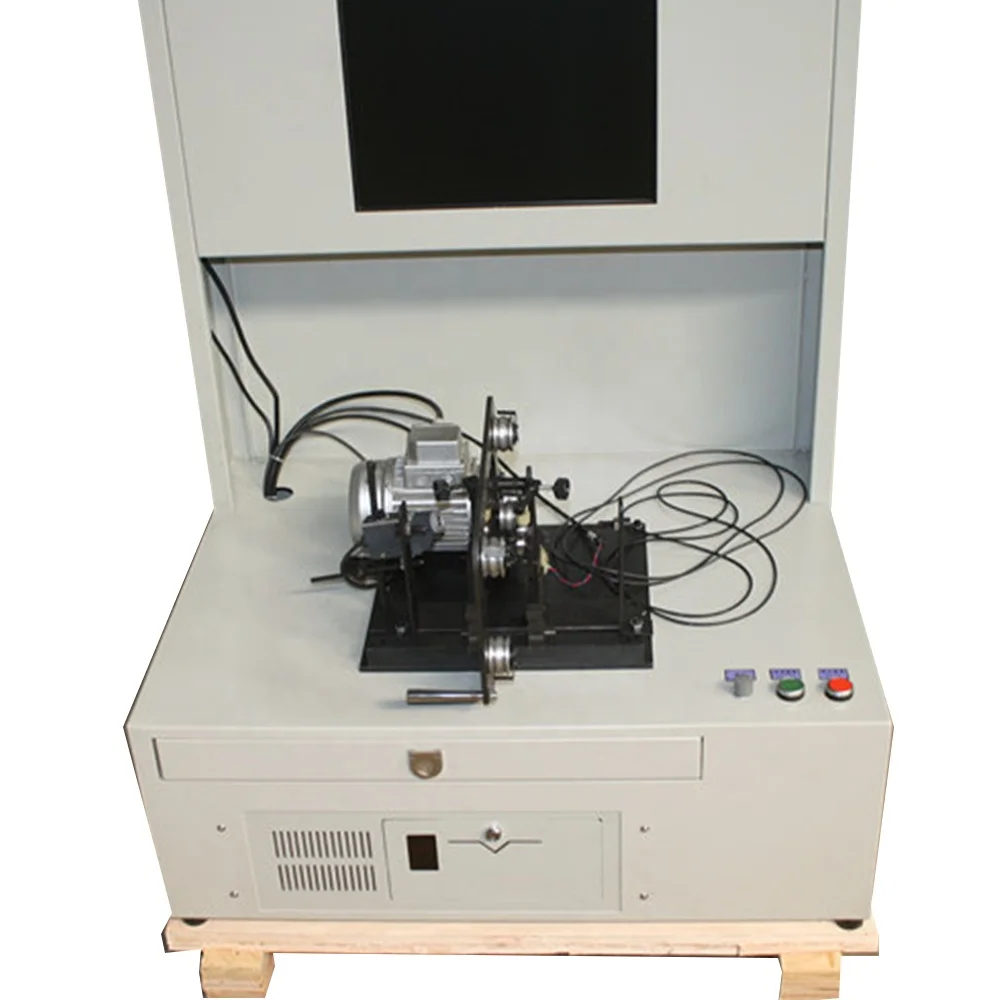

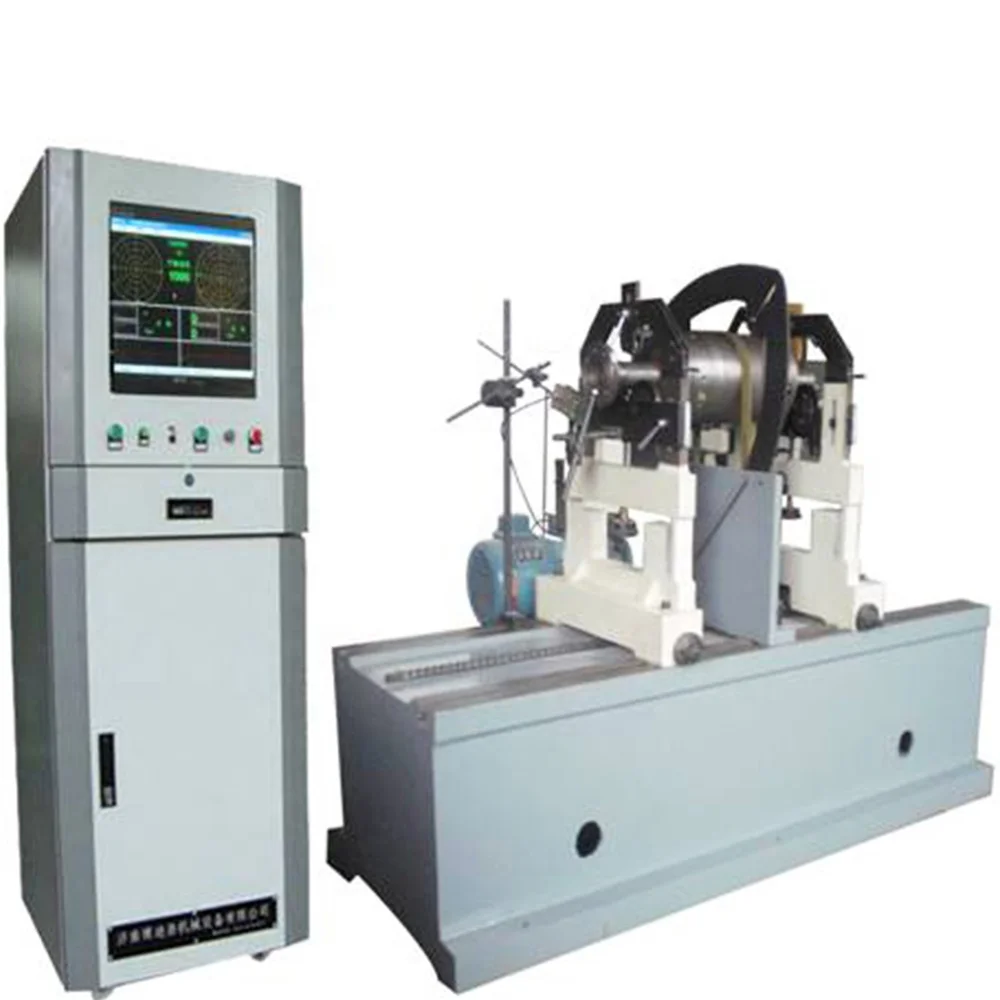

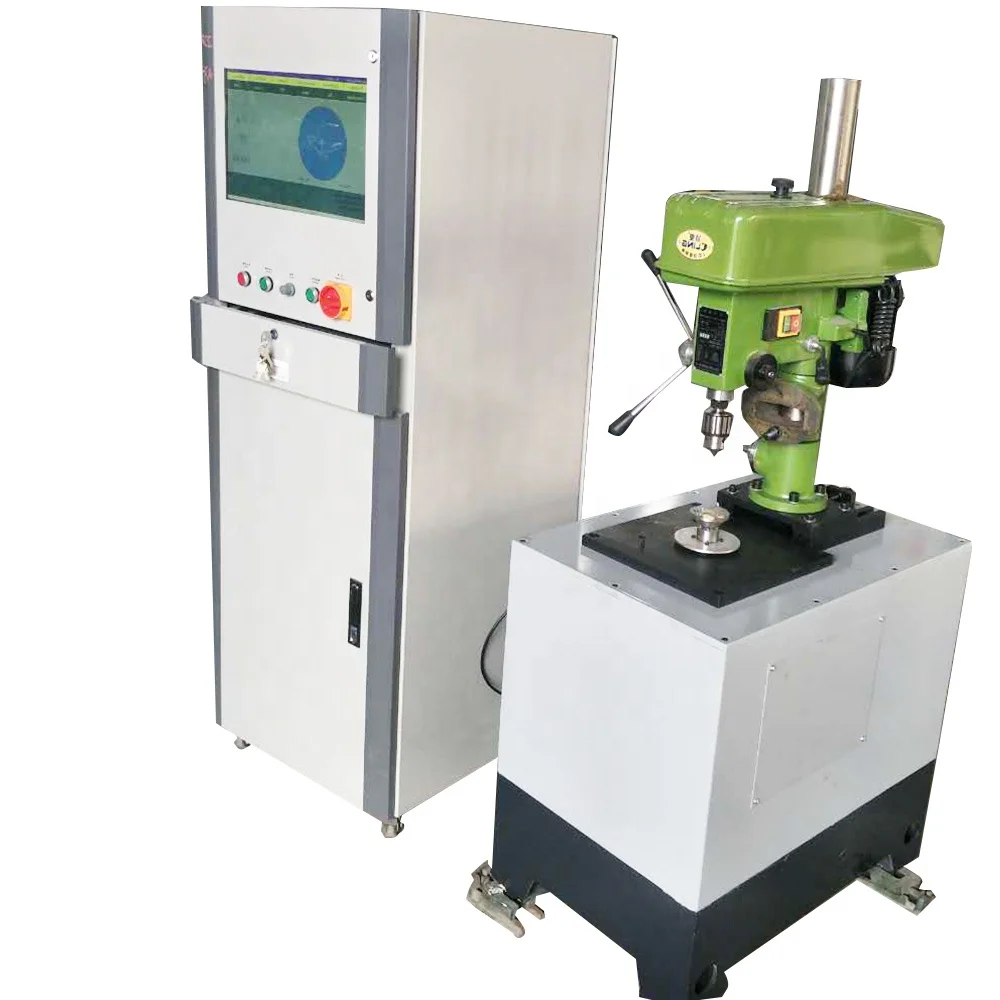

Photos of Single Double Three Axle Transmission Shaft Balancing Machine For Automobile And Industry Dynamic Testing
