Land Armor remote control big driving concrete grinder floor polishing machine JS Floor Systems
- Category: >>>
- Supplier: Shanghai Jiansong Industry And Trade Co. Ltd.
Share on (1601272473798):
Product Overview
Description
Contact us :
Mr. Neal
Email: neal@jiansongsh.com
Tel/Whatsapp: +86 182-0527-4398
Product Description
1.Grinding concrete/epoxy floor/ solidified floor/ terrazzo floor /granite floor /natural marble floor /diamond abrasion resistant floor lf leveling cement,etc.
2. places requiring surface treatment
3. Removal of paint, epoxy, glue and other coatings from concrete.
4. Preparation of concrete for installation of new flooring/coating
5. Elimination of irregularities in concrete.
6. Repair of damaged concrete.
7. Renovation works.
2. places requiring surface treatment
3. Removal of paint, epoxy, glue and other coatings from concrete.
4. Preparation of concrete for installation of new flooring/coating
5. Elimination of irregularities in concrete.
6. Repair of damaged concrete.
7. Renovation works.
Heavy Duty Remote Control Grinder | ||||||||
Model | Land Armor | Legend-S | D1200 | D1400 | ||||
Working width | 1900mm/75" | 1520mm/60" | 1200mm/47" | 1400mm/55" | ||||
Drive | Three motors | Double motors | Double motor | |||||
Voltage | 220V/380V | 220V/380V | 220V/380V | |||||
Motor | 3*20HP | 3*7.5HP | 2*10HP | 2*15HP | ||||
Inverter | 20HP | 7.5HP | 20HP | 30HP | ||||
Current | 36A | 36A | 31A | 44A | ||||
Big disc speech Small disc speech | 0-1800RPM | 0-300RPM 0-1800RPM | 0-1800RPM | 0-300RPM 0-1800RPM | ||||
Weight | 1500KG | 1700KG | 855KG | 1150KG | ||||
Grinding heads | 12 | 12 | 8 | 8 | ||||
Dust port | 76MM | 76MM | 50MM | 50MM | ||||
Dimension(mm) | 2250*1906*1220 | 2560*1550*1570 | 3080*1180*1480 | 3260*1450*1720 | ||||
Customized | Available | |||||||

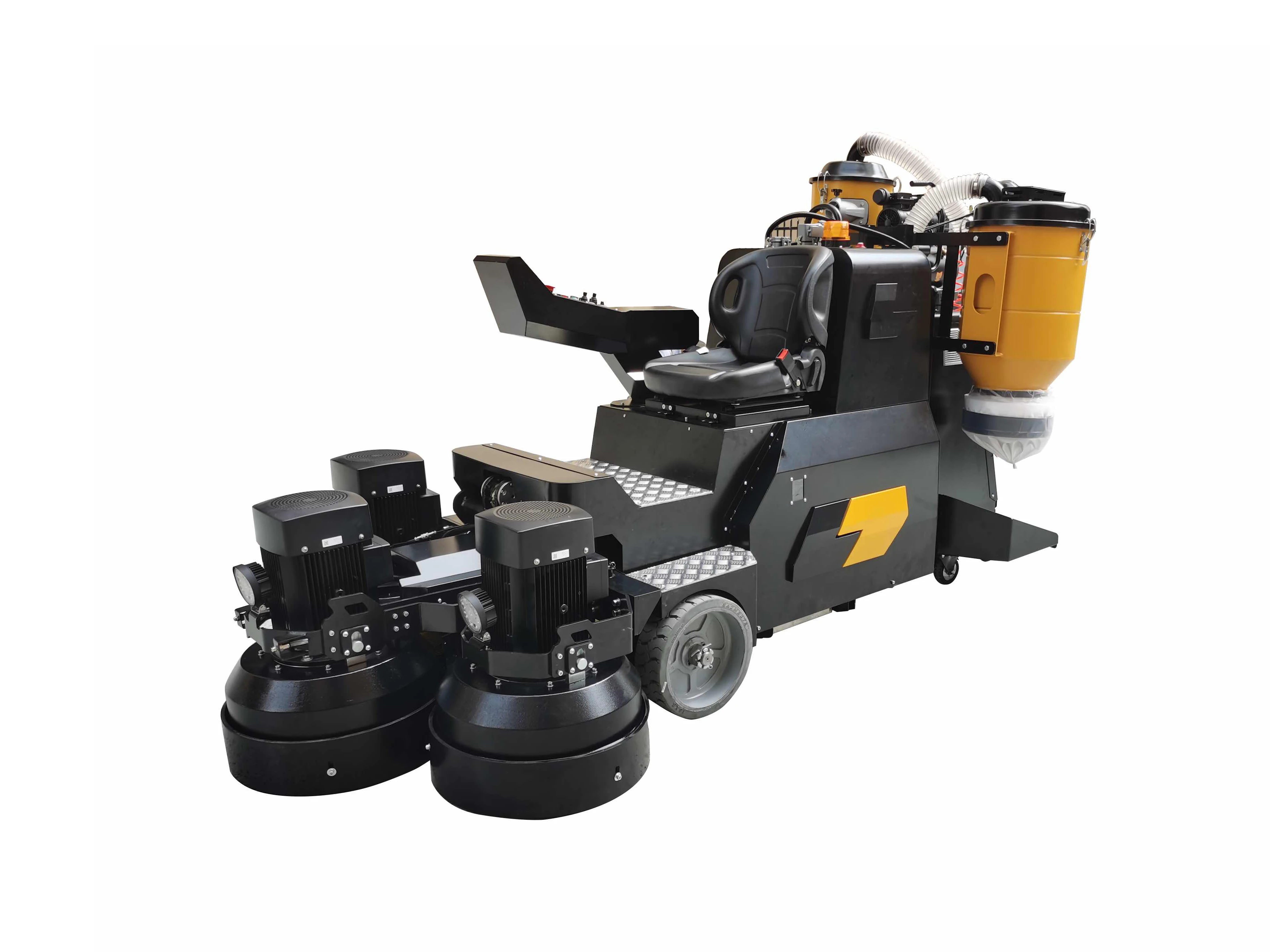

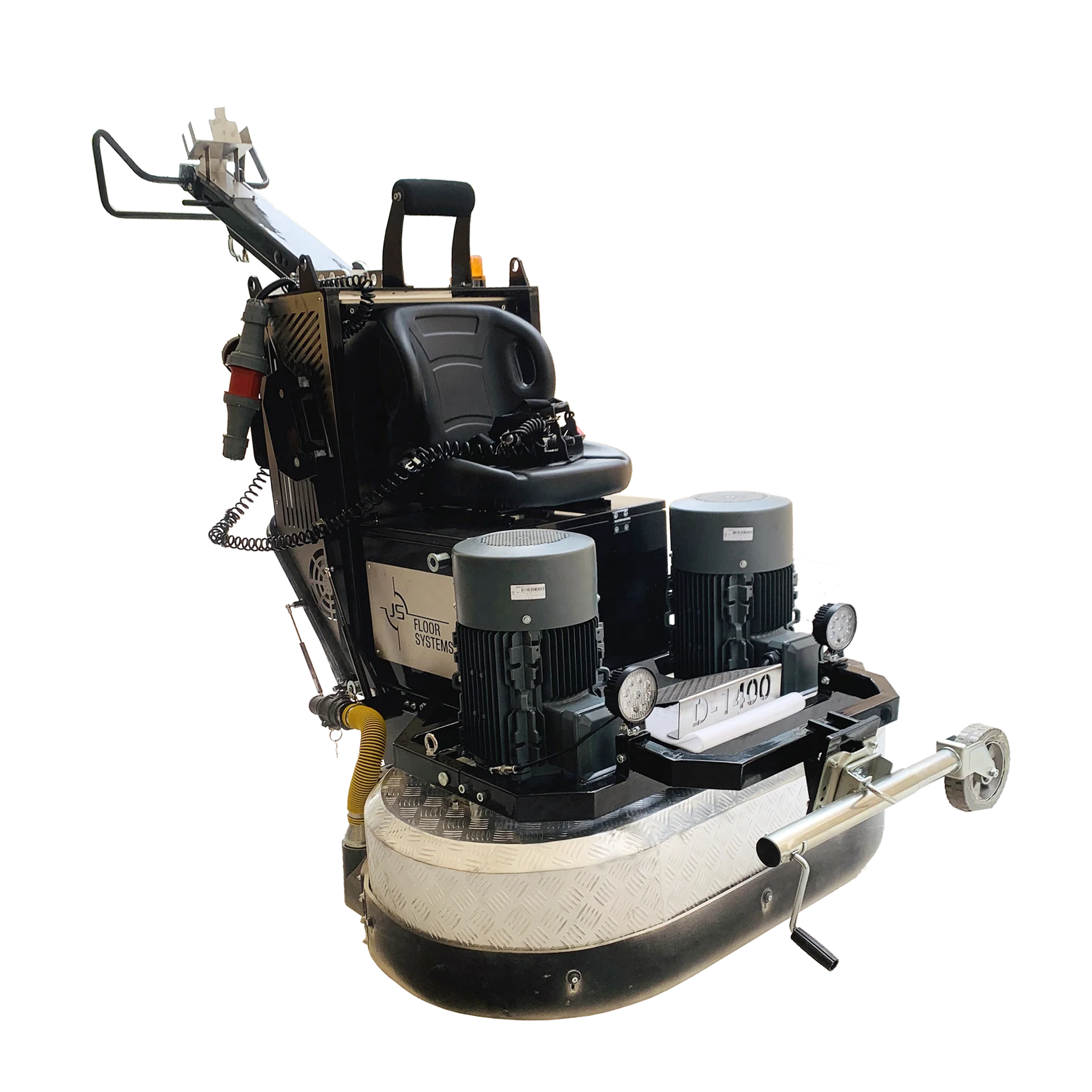

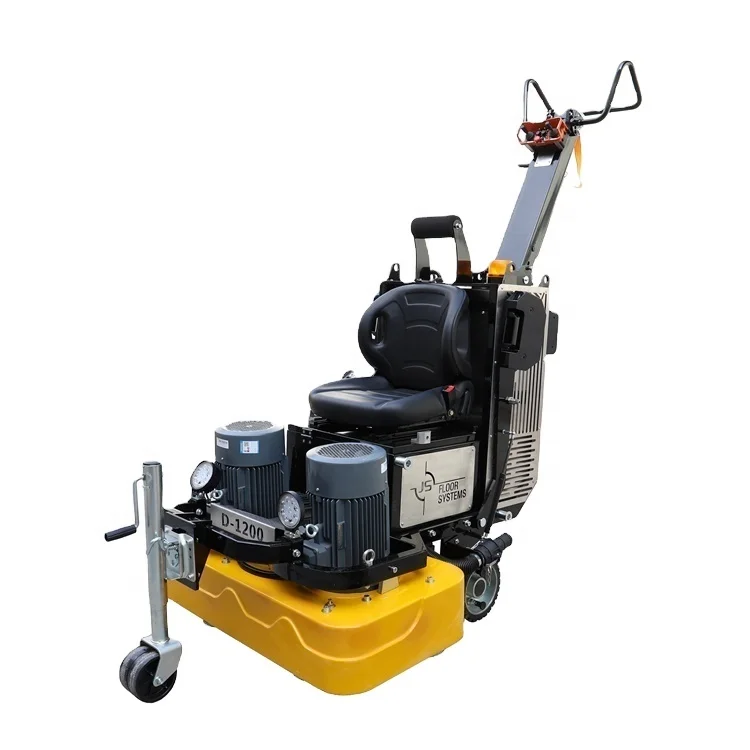

\\ Land Armor / \\ Legend-S / \\ D1200 / \\ D1400 /

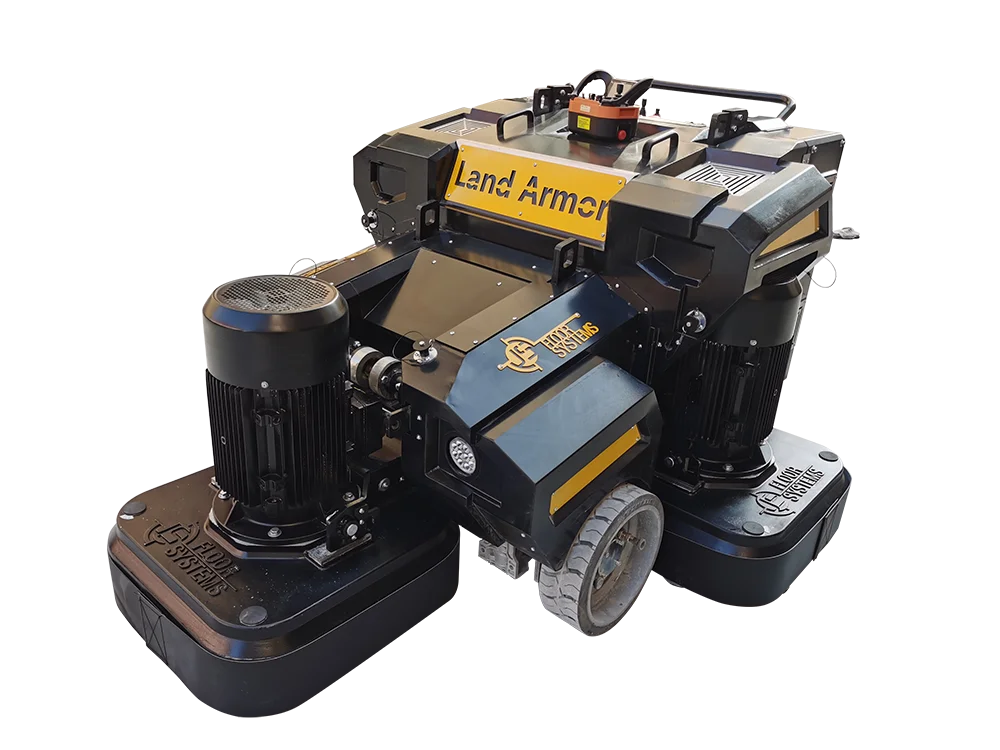

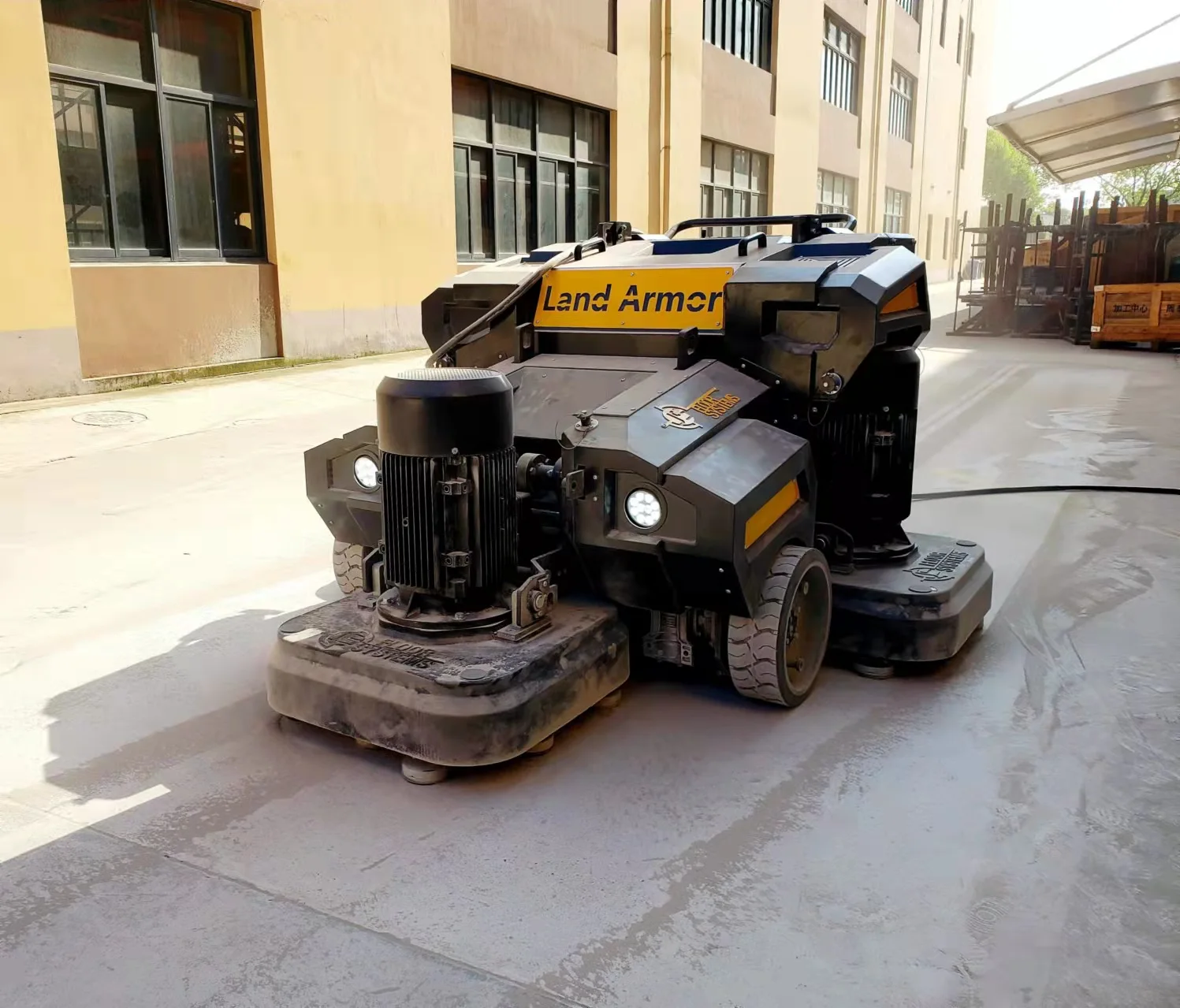

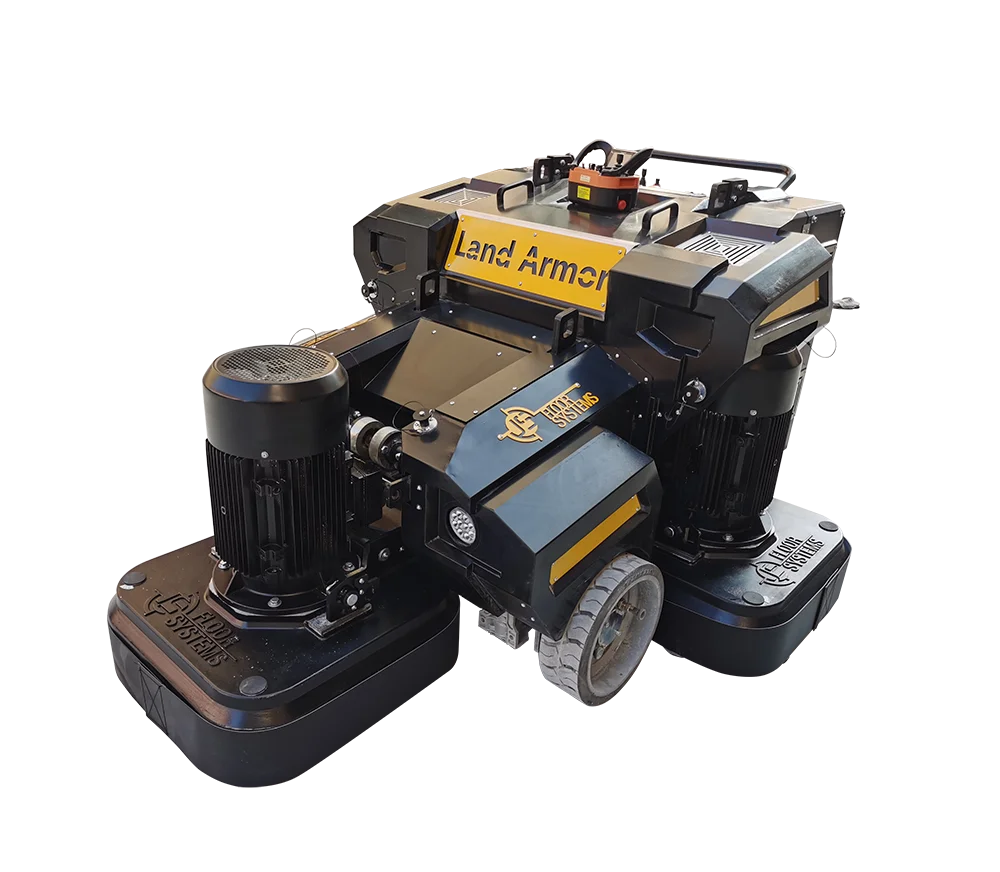

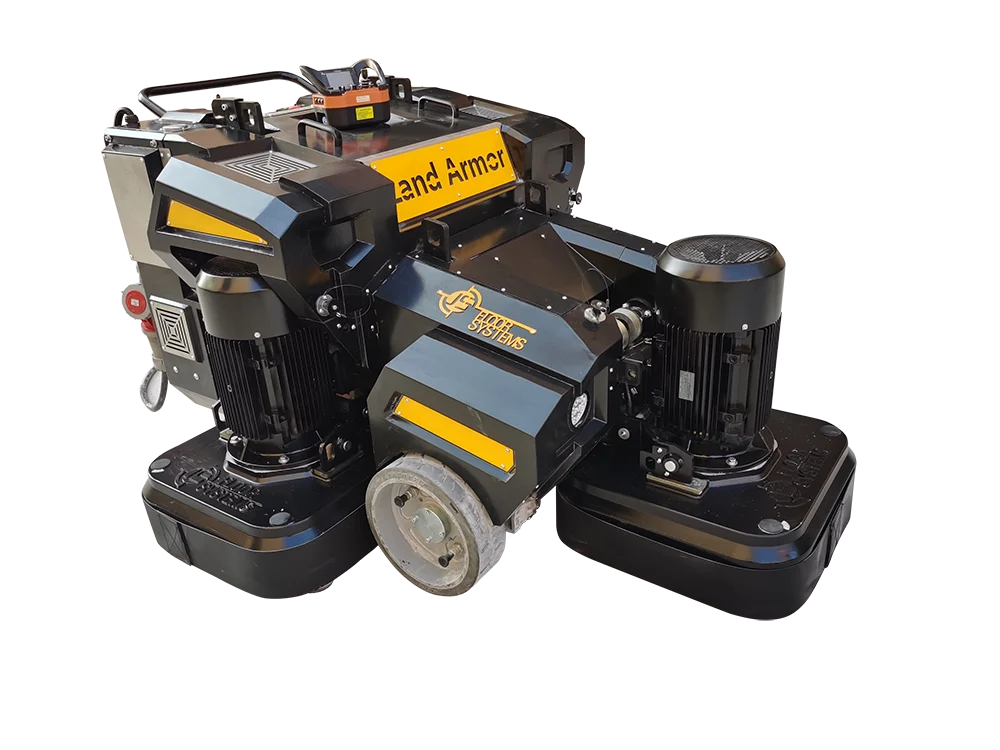

Land Armor - the newest design grinder in JS machine family
The grinders can drive the vacuum cleaner simultaneously, this machine is everything you need it to be. Bigger, heavier and more efficient.
Three grinding heads with hydraulic device for auto head lift.
The three motor driving systems can drive the floor grinder in four directions, turn left and right smoothly. Operator can control the machine on the seat or stand away with the wire control box. Advanced JS Self-propelled wire control technology and remote operating systems make the floor grinding, polishing an easy job, guaranteeing the floor is super flat and smooth.
The grinders can drive the vacuum cleaner simultaneously, this machine is everything you need it to be. Bigger, heavier and more efficient.
Three grinding heads with hydraulic device for auto head lift.
The three motor driving systems can drive the floor grinder in four directions, turn left and right smoothly. Operator can control the machine on the seat or stand away with the wire control box. Advanced JS Self-propelled wire control technology and remote operating systems make the floor grinding, polishing an easy job, guaranteeing the floor is super flat and smooth.
Three or four smaller discs mount to the main disc, and these smaller discs turn at a different speed than the main disc.
The smaller discs all lie along the same plane and make contact with the floor simultaneously, while the larger main disc lies on a different plane and does not make contact with the floor.
What's the advantage of JS planetary floor grinder?
Double layer gear, no belt
Aluminum integral casting gear box
Quick-change magnetic tooling systems
Variable-speed soft start
Both grinding and polishing, both wet and dry
Be good at high gloss and smooth surface polishing
The smaller discs all lie along the same plane and make contact with the floor simultaneously, while the larger main disc lies on a different plane and does not make contact with the floor.
What's the advantage of JS planetary floor grinder?
Double layer gear, no belt
Aluminum integral casting gear box
Quick-change magnetic tooling systems
Variable-speed soft start
Both grinding and polishing, both wet and dry
Be good at high gloss and smooth surface polishing
Detailed Images

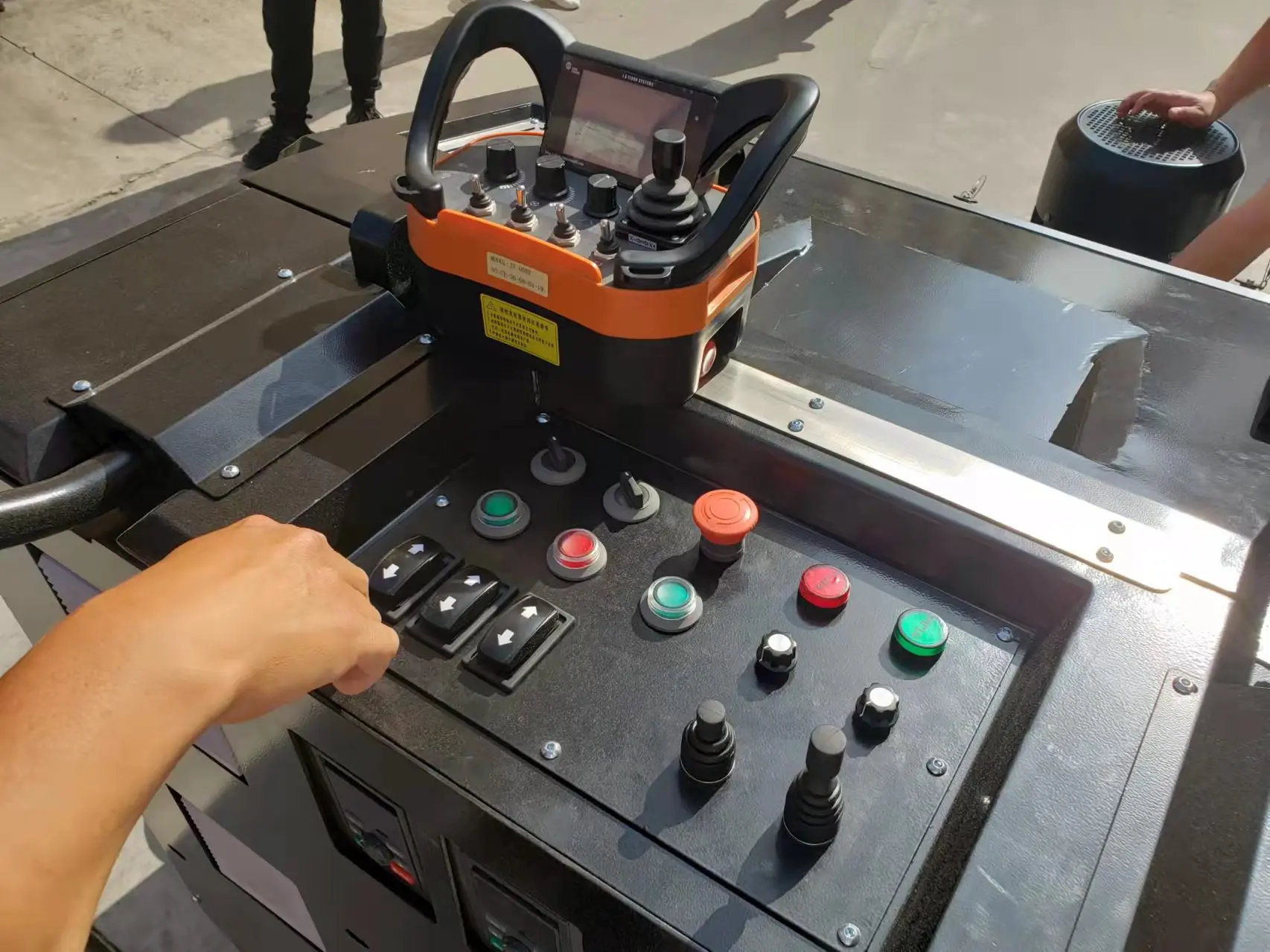

\\ Operation panel /

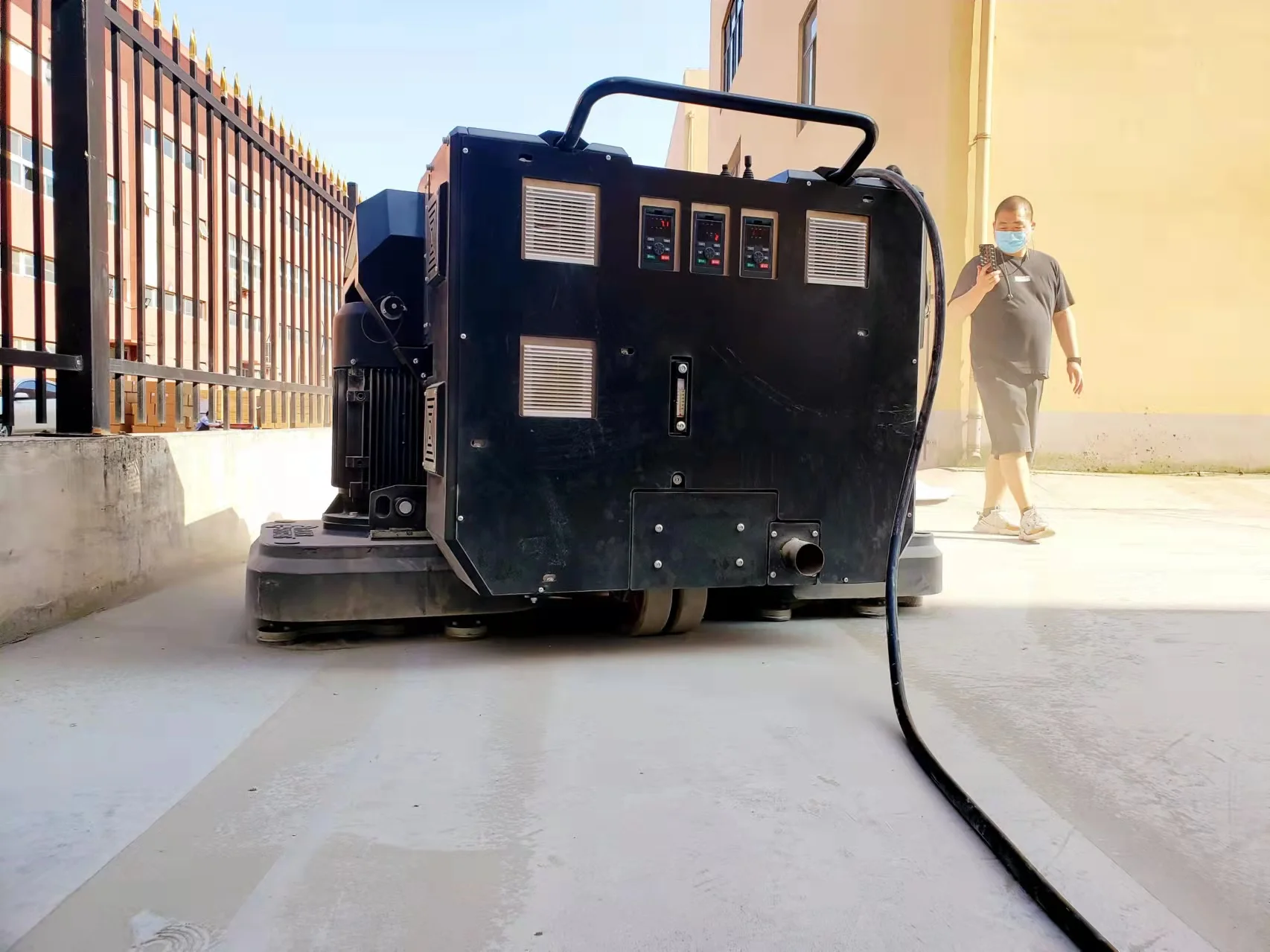

\\ Inverter /

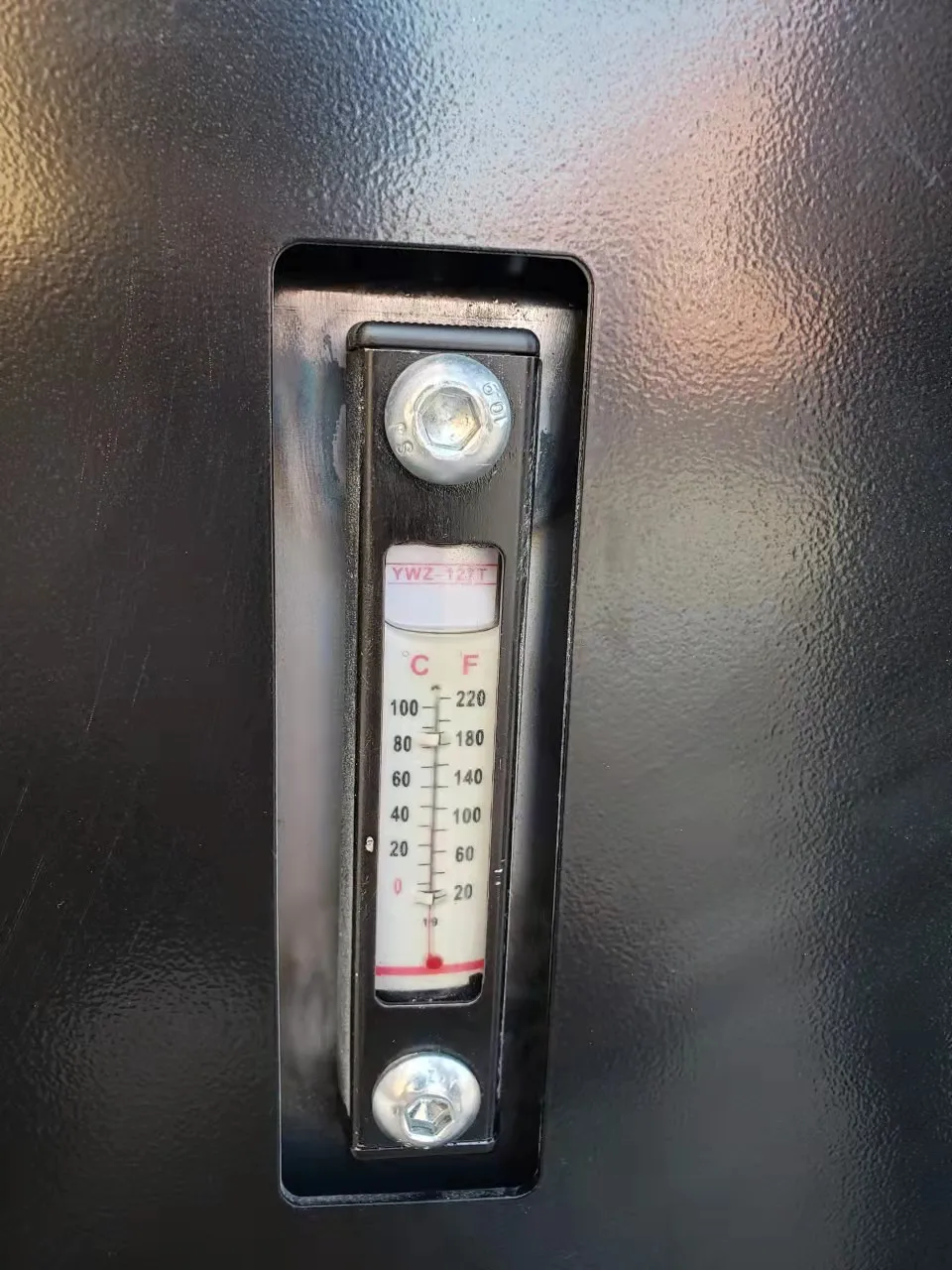

\\ hydraulic oil gauge /

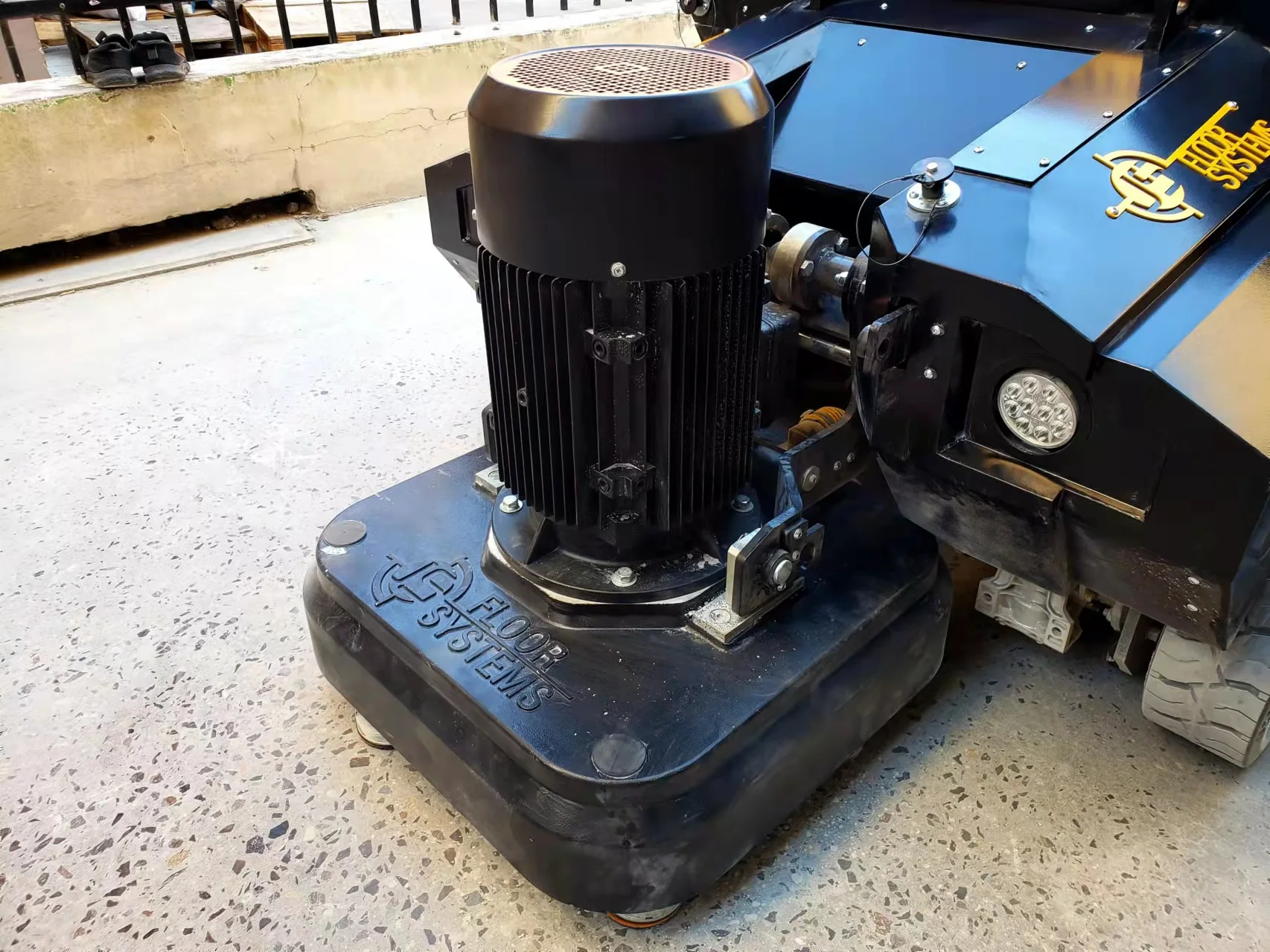

\\ one of 3 heads, 4 plates /
\\ dust port /
\\ lift ports /
Application
Packing&Shipping
Related Products
FAQ
Q1: Do you make the metal and resin pads yourself?
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
Certifications
Company Introduction
JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service
and products are appreciated by customers all over the world.
Exhibition
Our Services & Strength
2. Prefessional and Technical support on line or video;
3. Certificate: CE, SGS, ISO9001;
4. After-sales: 24hours a day, 7days a week.
