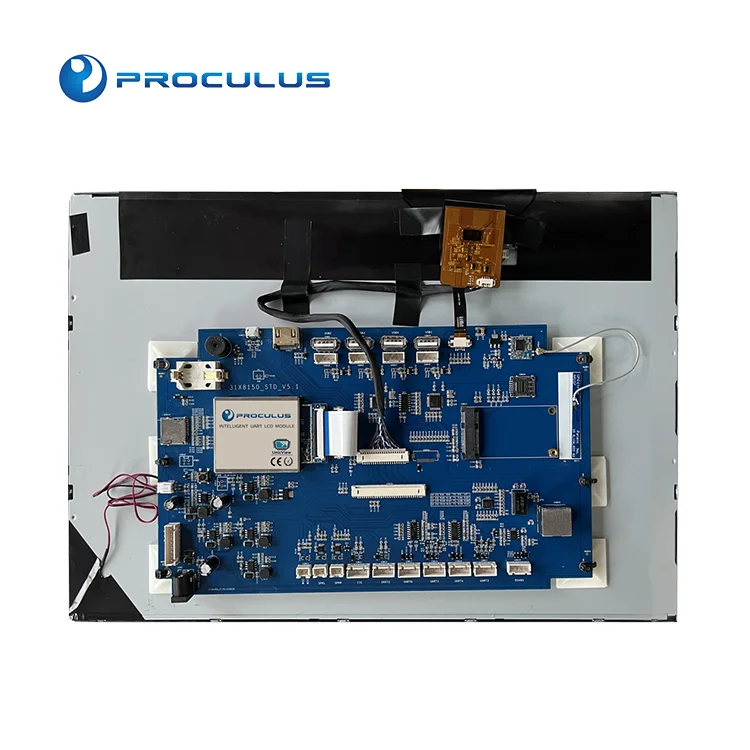

Proculus 15 inch Industrial 1024 *768 android board with touch screen support WIFI touch screen tft LCD Module
- Category: >>>
- Supplier: Suzhou Proculus Technologies Co. Ltd.
Share on (1601272493434):
Product Overview
Description
Product Description
Model Number | P10768HY150C_T01 |
Display Size | 15.0 inch |
Resolution | 1024*768 |
Brightness | 300nit |
RAM | 1GB DDR3 |
System Version | Android 5.1/7.1/Ubuntu 15.04 |

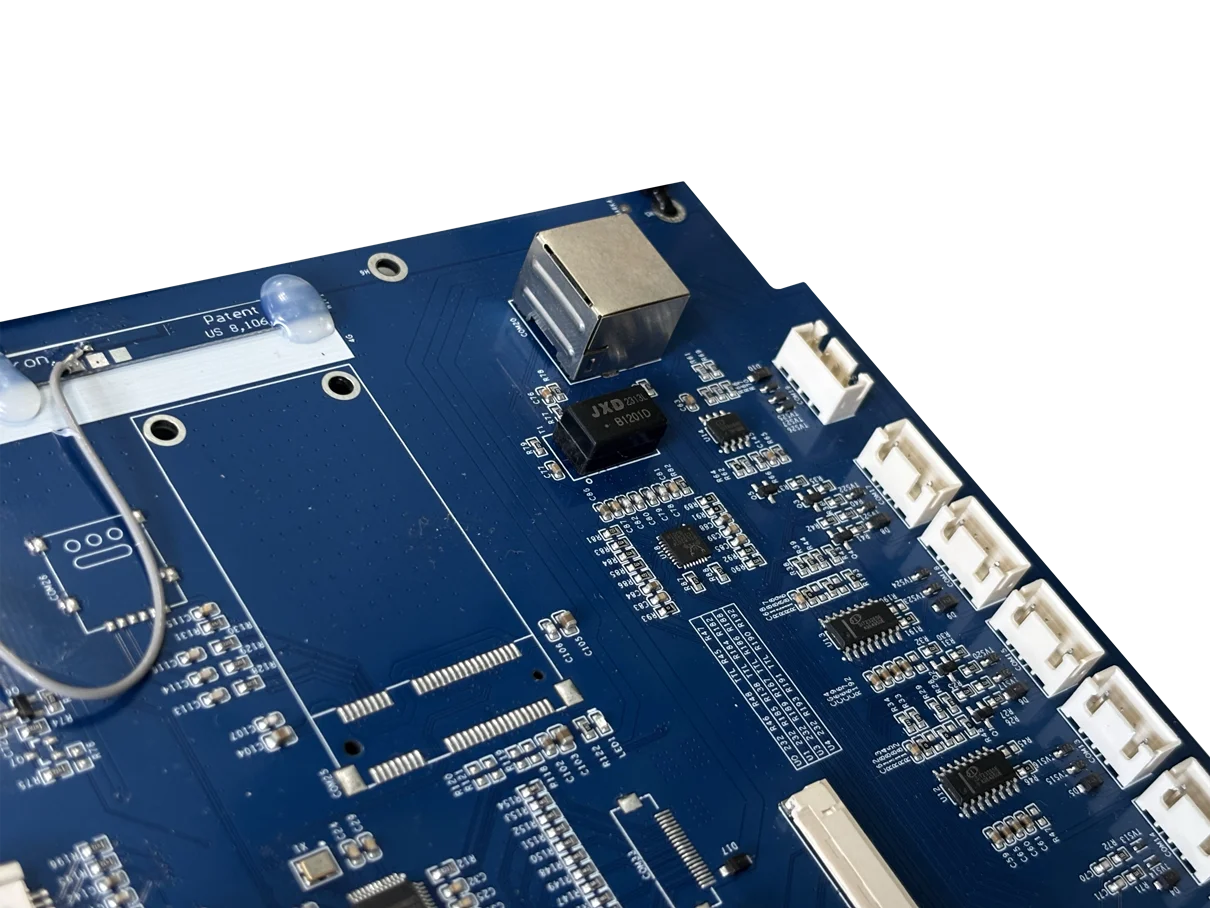

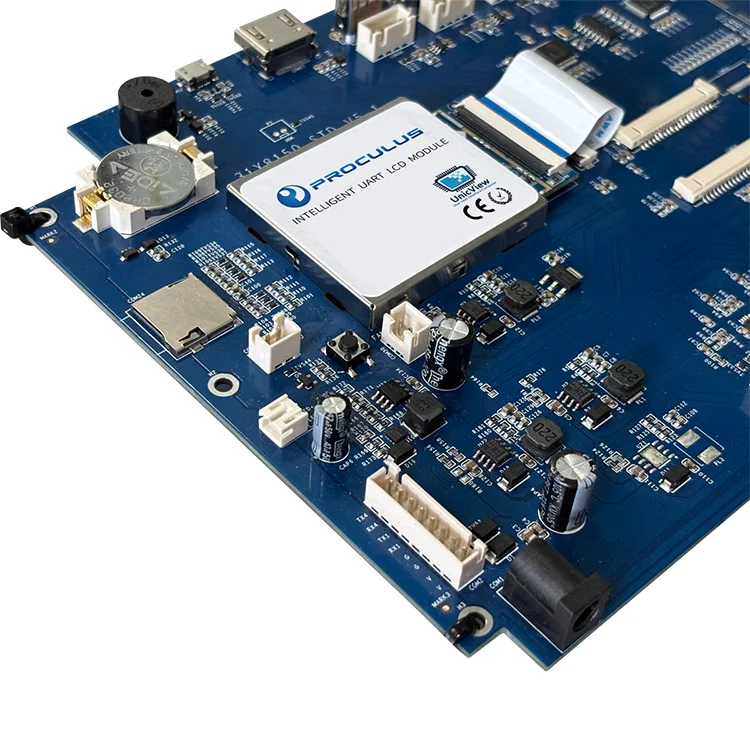

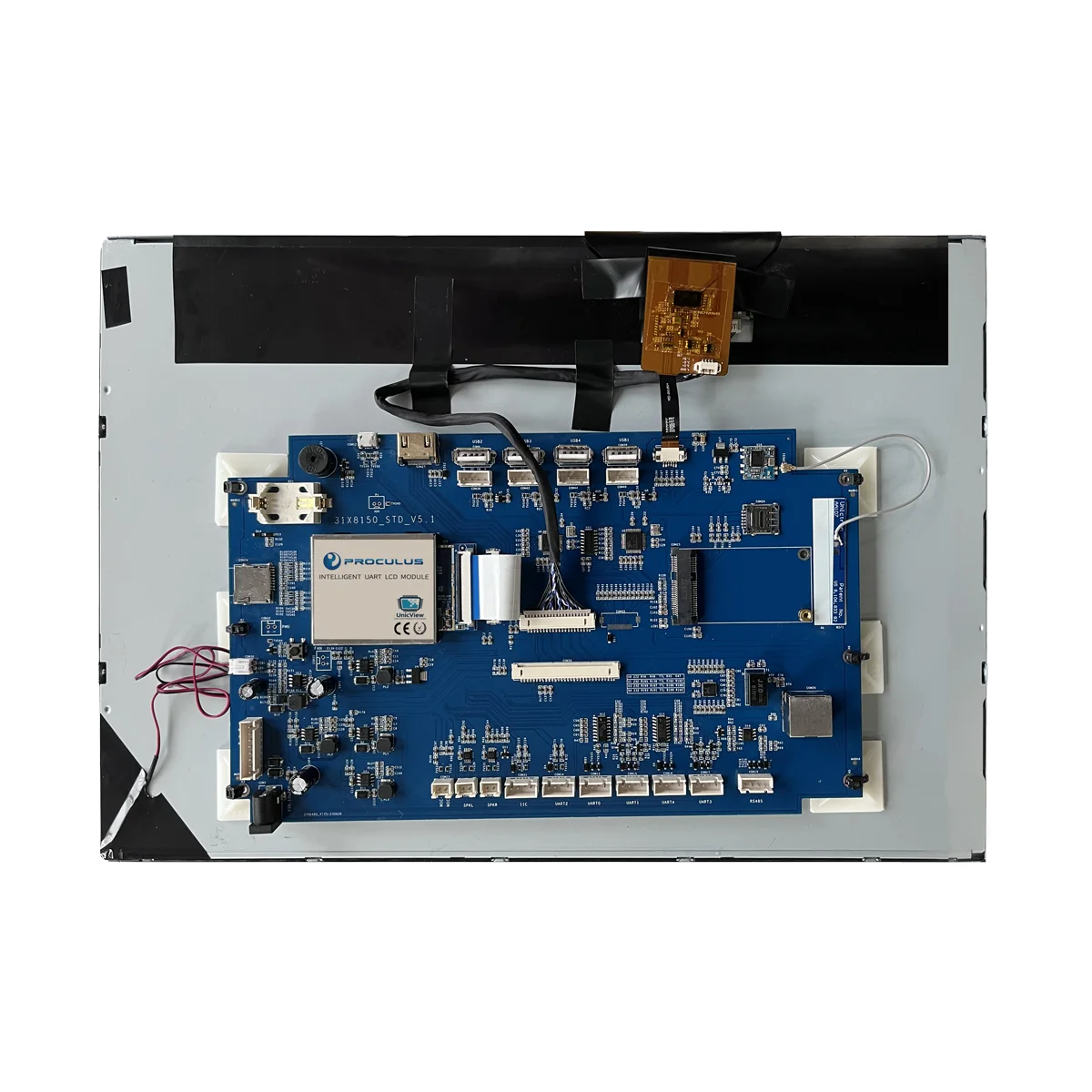

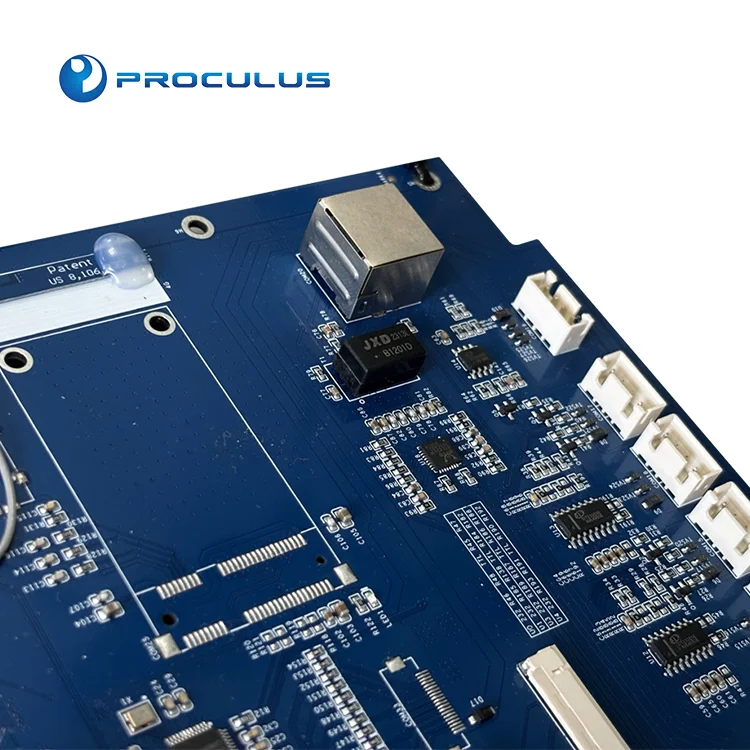

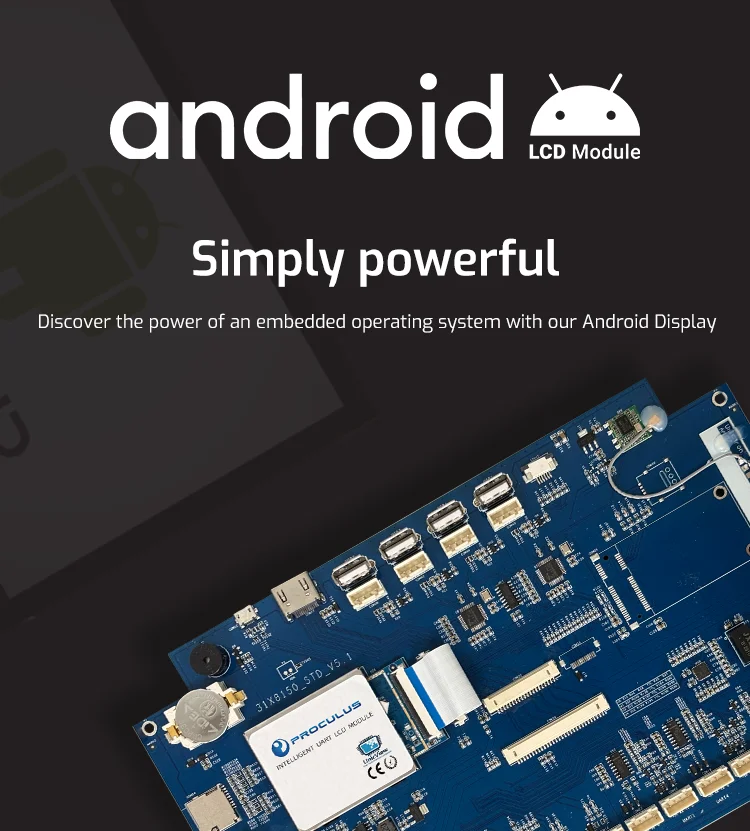

Product Details
Interface
Num. | Interface Name | Description |
J0 | Power | 12V/2A power supply |
J1 | MIC | Audio input interface |
J2 | SPK_L | Left channel audio output interface |
J3 | SPK_R | Right channel audio output interface |
J4 | IIC | IC Interface. Pin definition: 5V,SCL,SDA,GND |
J5 | Debug interface | not open temporarily |
J6 | UART0 | Device name: ttyS0 Pin definition: 5V, RX, TX, GND |
J7 | UART1 | Device name: ttyS1. Pin definition: 5V, RX, TX, GND |
J8 | UART4 | Device name: ttyS4. Pin definition: 5V, RX, TX, GND |
J9 | UART3 | Device name: ttyS3. Pin definition: 5V, RX, TX, GND |
J10 | RS485 | Device name: ttyS3 Pin definition: GND, A,B,5V |
J11 | RJ45 interface | Support 10M/100M network |
J12 | LCD interface | — |
J13 | LCD interface | — |
J14 | MINI PCIE 4G | 4G LTE Module/GPS (Optional) |
J15 | SIM card | Nano-SIM supported (Optional) |
J16 | USB_HOST1 | Horizontal USB2.0 (Vertical 4P2.54mm). Support USB Peripherals |
J17 | USB_HOST2 | Horizontal USB2.0 (Vertical 4P2.54mm). Support USB Peripherals |
J18 | USB_HOST3 | Horizontal USB2.0 (Vertical 4P2.54mm). Support USB Peripherals |
J19 | USB_HOST4 | Horizontal USB2.0 (Vertical 4P2.54mm). Support USB Peripherals |
J20 | HDMI | — |
J21 | USB_Micro | OTG /App debugging/ Firmware upgrade interface |
J22 | Buzzer | Buzzer |
J23 | RTC | Supply system RTC |
J24 | TF card | Can do memory expansion |
J25 | User interface | Pin Definition: TX4,RX4,TX1,RX1,GND,GND,VIN,VIN |
Due to differences in version batches and raw material suppliers, the product is constantly optimized and iterated. There may be differences in the color of the base plate/interface position between the pictures and the actual product while ensuring the same functionality. We suggest that you contact our staff to obtain the latest product information before placing an order.

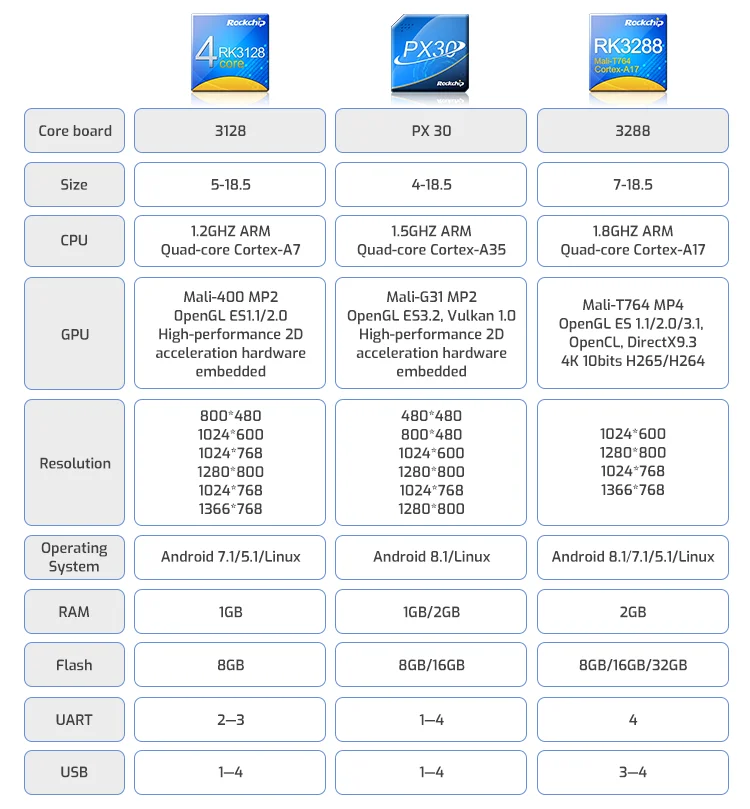

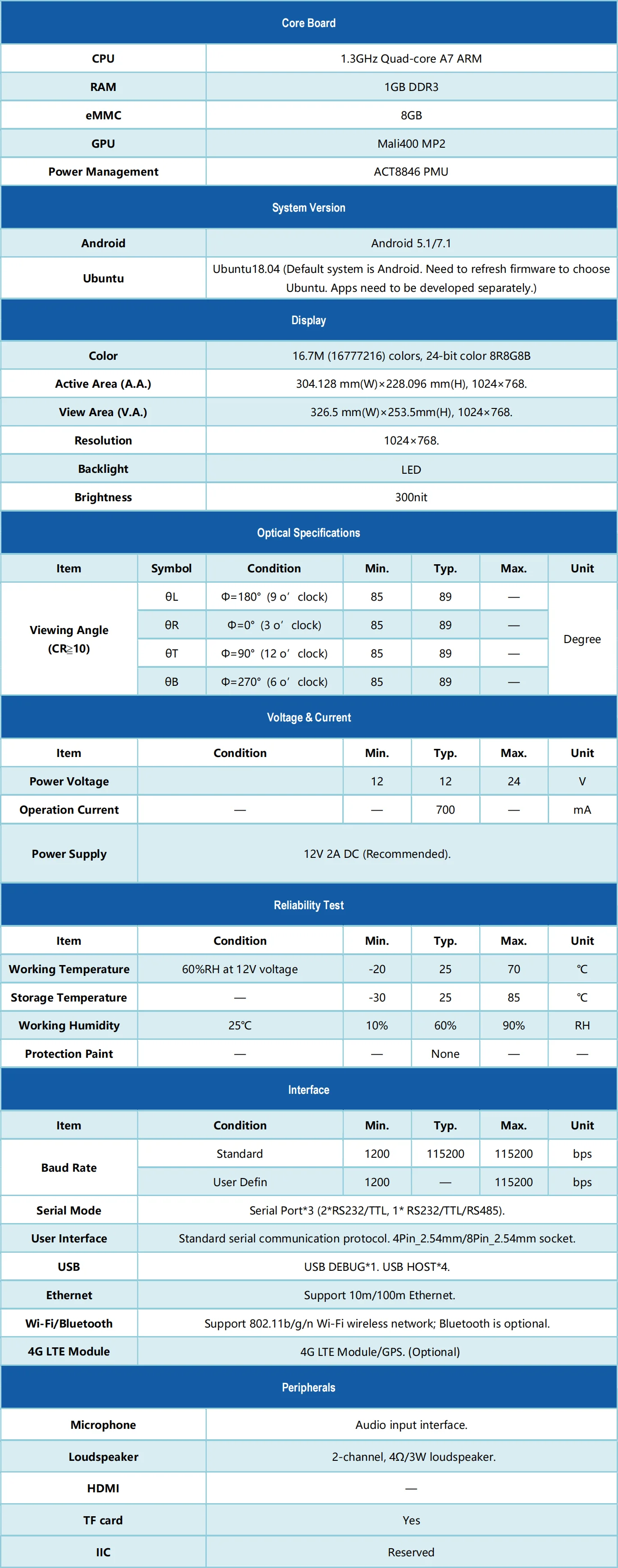

Specification
Application scenarios
Why Choose Us
Proculus Technologies is the leading innovative company in the industry of embedded devices, focusing on All-in-one TFT LCDs including UARTs and Android Solutions. Its intelligent displays, integrated LCD, touch panel, and graphical interface, greatly reduce the development complexity and time requirements for products which request rich and beautiful GUIs, by moving the hard work of graphical processing out from the microcontrollers to the LCM itself. Software UnicView, the tool of GUI development designed by Proculus, transforms your artist's imagination into reality quickly and at low costs. There is much less to learn and that much more to accomplish. With the smart display and touch screen interface, you will win customers with technology and innovation.
Production Inspection
Materials are processed to tested in all sections including inbound inspection, PCBA manufacturing as well as
unit-quality-control.
unit-quality-control.
Aging Test
Aging test up to 72 hours at 55℃ is mandatory before delivery, in order to ensure the annual RMA getting lower than 0.5%
Line Production
Reliability test applied including high/ low temp. test, vibration-simulation test to ensure no failed units in use. This test are in use at SMT, Assembly Section and QC separately
Packaging & Shipping
FAQ
Q1. What company are you ?
Proculus Technologies, is the leading innovative company in the industry of embedded devices, focusing on All-in-one TFT LCDs including UARTs and Android Solutions.
Proculus Technologies provides a completed solution on Intelligent Display, including intuitive visual interface software,
high-quality display module, accessories as well as dedicated technical support.
Q2. What kind of interface does the display have?
The display set is using UART serial port (USB/RS232/TTL) to communicate with any kind of MCU unit by HEX command sets.
Q3. What products line/category do you have ?
Android Tablets and UART LCMs.
Android Tablets designed for user who run the App on device which involved with remote control, Internet connection, as well as multiple I/O ports. It is more complex than UARTs and highly customized.
UARTs is mostly used in industrial level products including medical device, engineering etc. It has 5 commands only communicating with microcontroller and visualized software UnicView AD® enhanced the efficiency of development in GUIs.
Q4. What kind of display size you can supply?
UARTs: From 2.8’’ to 18.5’’; Android Tablets: 5’’ to 18.5’’.
Both solution accepts customizations of board with MOQ 300pcs.
Q5. How can we start to use your products?
Sample are welcome to purchased from alibaba.com with 1-2pcs in the beginning to test if product valid to your use. For those of customers who bought UARTs, please contact customer service to enable your serial key for using of UnicView AD®
Q6. Is Software UniView AD® free of charge?
For first-time user, we offer a valid-15days free serial key since the packs arrival to evaluate. If you need more time to test,
$100 usd would be charged however it going to be refunded in premise that product step to production.
Q7. How to test the sample of UARTs ?
Please go to web //www.proculustech.com/support/downloadflow to understand more.
Q8. Do you have local support in my country?
We have branch or distributors in United Sates, Italy, Spain, Brazil. If your feel local communication is preferable or
Spain/Portuguese speaking is must, please let us know to get local support.
Q9. How about lead time?
Sample: 1-2weeks.
Production:3-4weeks.
Q10. Why does P.BOX are priority to purchase?
No matter what size are you targeted in, we highly recommend customer to put 2.8’’ Pbox Starter kits in cart at lowest cost to perform with your controller including all accessories that you need. Please read following link for starter kit:
//www.proculustech.com/product/starterkit
Q11. What kind of software assistance do you have for Android development?
Completed SDK of Android are available to customer for Android O.S. customizations including Android 5.1/7.1/ 8.1 and Linux. Our business stay away from App design but underlying system are fully offered without charge.
Proculus Technologies, is the leading innovative company in the industry of embedded devices, focusing on All-in-one TFT LCDs including UARTs and Android Solutions.
Proculus Technologies provides a completed solution on Intelligent Display, including intuitive visual interface software,
high-quality display module, accessories as well as dedicated technical support.
Q2. What kind of interface does the display have?
The display set is using UART serial port (USB/RS232/TTL) to communicate with any kind of MCU unit by HEX command sets.
Q3. What products line/category do you have ?
Android Tablets and UART LCMs.
Android Tablets designed for user who run the App on device which involved with remote control, Internet connection, as well as multiple I/O ports. It is more complex than UARTs and highly customized.
UARTs is mostly used in industrial level products including medical device, engineering etc. It has 5 commands only communicating with microcontroller and visualized software UnicView AD® enhanced the efficiency of development in GUIs.
Q4. What kind of display size you can supply?
UARTs: From 2.8’’ to 18.5’’; Android Tablets: 5’’ to 18.5’’.
Both solution accepts customizations of board with MOQ 300pcs.
Q5. How can we start to use your products?
Sample are welcome to purchased from alibaba.com with 1-2pcs in the beginning to test if product valid to your use. For those of customers who bought UARTs, please contact customer service to enable your serial key for using of UnicView AD®
Q6. Is Software UniView AD® free of charge?
For first-time user, we offer a valid-15days free serial key since the packs arrival to evaluate. If you need more time to test,
$100 usd would be charged however it going to be refunded in premise that product step to production.
Q7. How to test the sample of UARTs ?
Please go to web //www.proculustech.com/support/downloadflow to understand more.
Q8. Do you have local support in my country?
We have branch or distributors in United Sates, Italy, Spain, Brazil. If your feel local communication is preferable or
Spain/Portuguese speaking is must, please let us know to get local support.
Q9. How about lead time?
Sample: 1-2weeks.
Production:3-4weeks.
Q10. Why does P.BOX are priority to purchase?
No matter what size are you targeted in, we highly recommend customer to put 2.8’’ Pbox Starter kits in cart at lowest cost to perform with your controller including all accessories that you need. Please read following link for starter kit:
//www.proculustech.com/product/starterkit
Q11. What kind of software assistance do you have for Android development?
Completed SDK of Android are available to customer for Android O.S. customizations including Android 5.1/7.1/ 8.1 and Linux. Our business stay away from App design but underlying system are fully offered without charge.
