Ultimheat Electric heaters for clean energy appliances With insulation foam, thermostat Customised 9SU heater
- Category: >>>
- Supplier: Jpci Controls (foshan Gaoming) Co. Ltd.
Share on (1601272533253):

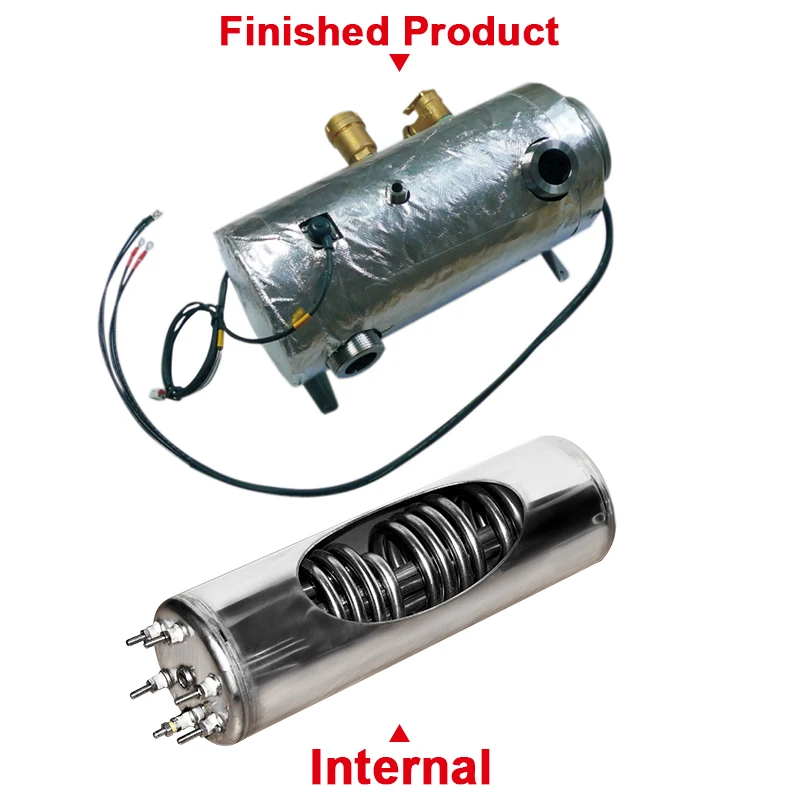

Product Overview
Description
Diameter of the heater: 10mm
Tubular heater material: 316L (lncolloy 800 optional)
Quantity of tubular heaters: 3
Body material: 304L stainless steel (316L optional)
Material fittings: 304L stainless steel (316L optional)
ln let connection: Male 1 "1 /2 BSPP cylindrical (1 "1/4 optional)
Out let diameter: Male 1 "1 /2 BSPP cylindrical (1 "1/4 optional)
Air vent thread: 3/8 BSPP (on models where it exists)
Tubular heat exchanger: dia. 10 x 8.6mm 316L stainless steel tube, heat exchange surface 4000 cm2
Thermowell (1 ): 304L stainless steel dia. 1 0x8.5 mm, length 260 mm for thermal eut-out (See thermal eut-out sub assembly models at the end of this catalog). Copper thermowell is available on request. This thermowell can also be used for a thermostat bulb or a temperature sensor.
Dise thermostat mounting bracket (2): 1 bracket for thermostat with extended cup (see thermostat models at the end of this catalog).
Wall mounting brackets (3): 3 x 2 MS feet, 170mm center line distance, for wall mounting on 3 different sides. MS brackets that are not used for wall mounting can be used for grounding.
Accessories: see end of this catalog
Tubular heater material: 316L (lncolloy 800 optional)
Quantity of tubular heaters: 3
Body material: 304L stainless steel (316L optional)
Material fittings: 304L stainless steel (316L optional)
ln let connection: Male 1 "1 /2 BSPP cylindrical (1 "1/4 optional)
Out let diameter: Male 1 "1 /2 BSPP cylindrical (1 "1/4 optional)
Air vent thread: 3/8 BSPP (on models where it exists)
Tubular heat exchanger: dia. 10 x 8.6mm 316L stainless steel tube, heat exchange surface 4000 cm2
Thermowell (1 ): 304L stainless steel dia. 1 0x8.5 mm, length 260 mm for thermal eut-out (See thermal eut-out sub assembly models at the end of this catalog). Copper thermowell is available on request. This thermowell can also be used for a thermostat bulb or a temperature sensor.
Dise thermostat mounting bracket (2): 1 bracket for thermostat with extended cup (see thermostat models at the end of this catalog).
Wall mounting brackets (3): 3 x 2 MS feet, 170mm center line distance, for wall mounting on 3 different sides. MS brackets that are not used for wall mounting can be used for grounding.
Accessories: see end of this catalog

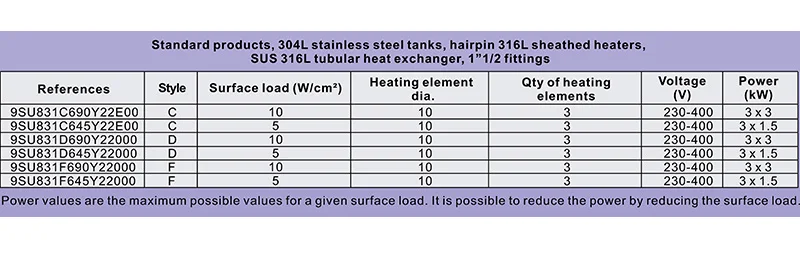

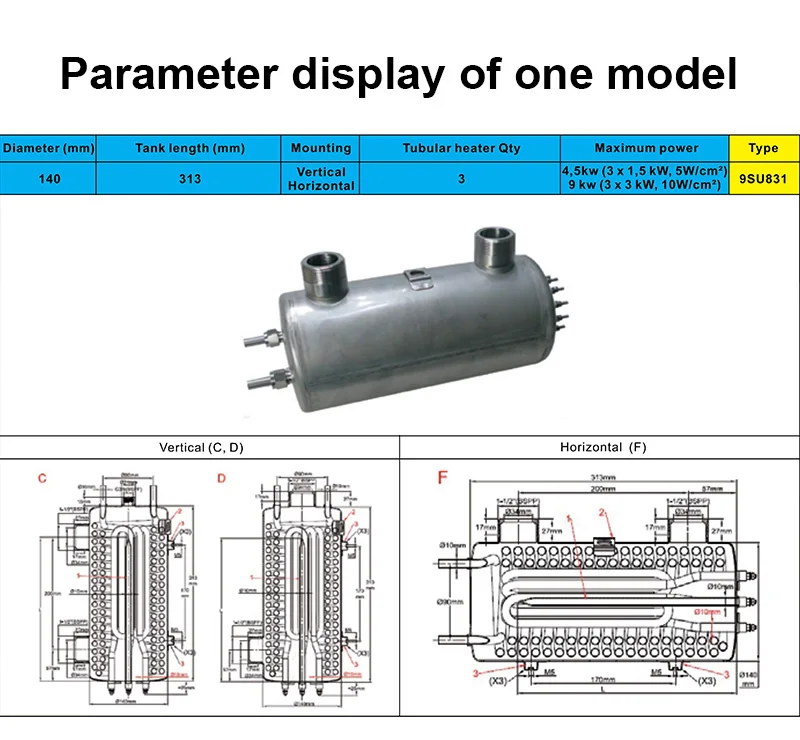

References | Style | Surface load (W/cm2 ) | Heating element dia. | Qty of heating elements |
9SU831C690Y22E00 | C | 10 | 10 | 3 |
Voltage | Power | |||
230-400 | 3x3 |
Exhibitions
Certifications
Company Profile
JPCI Controls originated from the French family-owned company founded in 1972, our company was founded in 2000, headquartered in Gaoming District, Foshan City, Guangdong Province, China, which is specialized in the design and production of mechanical thermostats, safety devices and electric heating systems for domestic and industrial use. JPCI owns an internationally renowned brand, ULTIMHEAT, and has a subsidiary in Lyon, France.After more than 50 years of development, JPCI has become a research and development enterprise which is deeply exploring the international market.

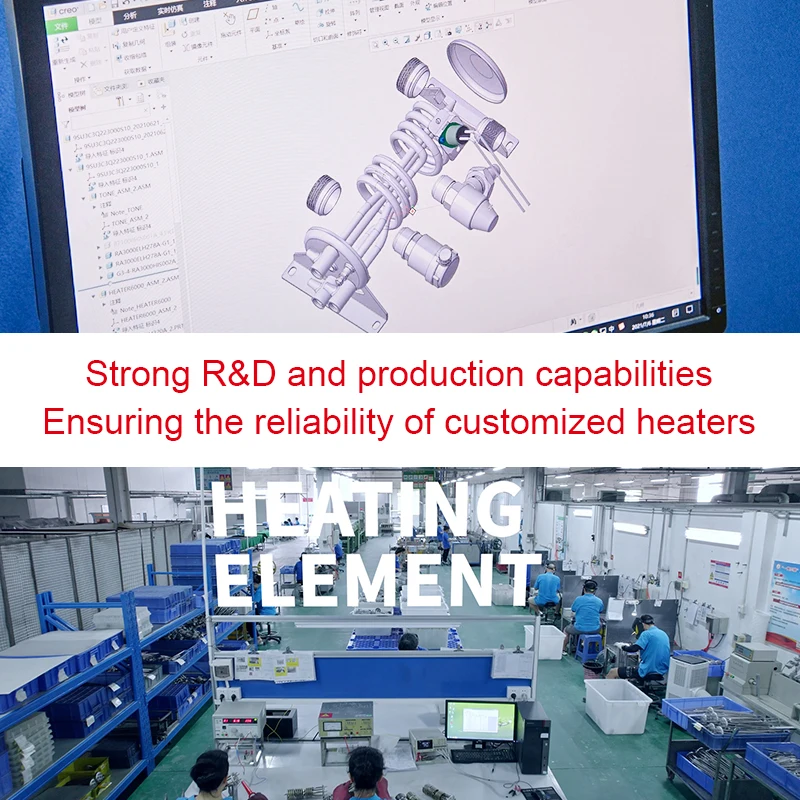

JPCI Controls covers an area of 30,000 square meters, has more than 300 employees, including 30 professional R & D and laboratory employees, and produces more than 6 million products per year, with more than 10,000 product models. Our production has achieved full vertical integration to ensure quality control at each stage, our company has more than 1000 sets of testing equipment such as ultraviolet aging testing machine, motor loading machine, hydraulic hi-pot bursting testing machine to strictly monitor product quality.
JPCI Controls has always adhered to the values of innovation, listening, responding and continuous improvement to ensure that products can achieve the best quality. JPCI holds 250 patents and applies for an average of 20 patents per year. Won the national high-tech enterprises and passed the system certification ISO9001, ISO14001, ISO45001; It has a 750㎡ self-built laboratory and has passed the ISO17025 laboratory certification of TUV&UL.
JPCI Controls is driven by innovation, guaranteed by quality, and takes environmental protection as its responsibility，looking forward to working with you to create a better future.
