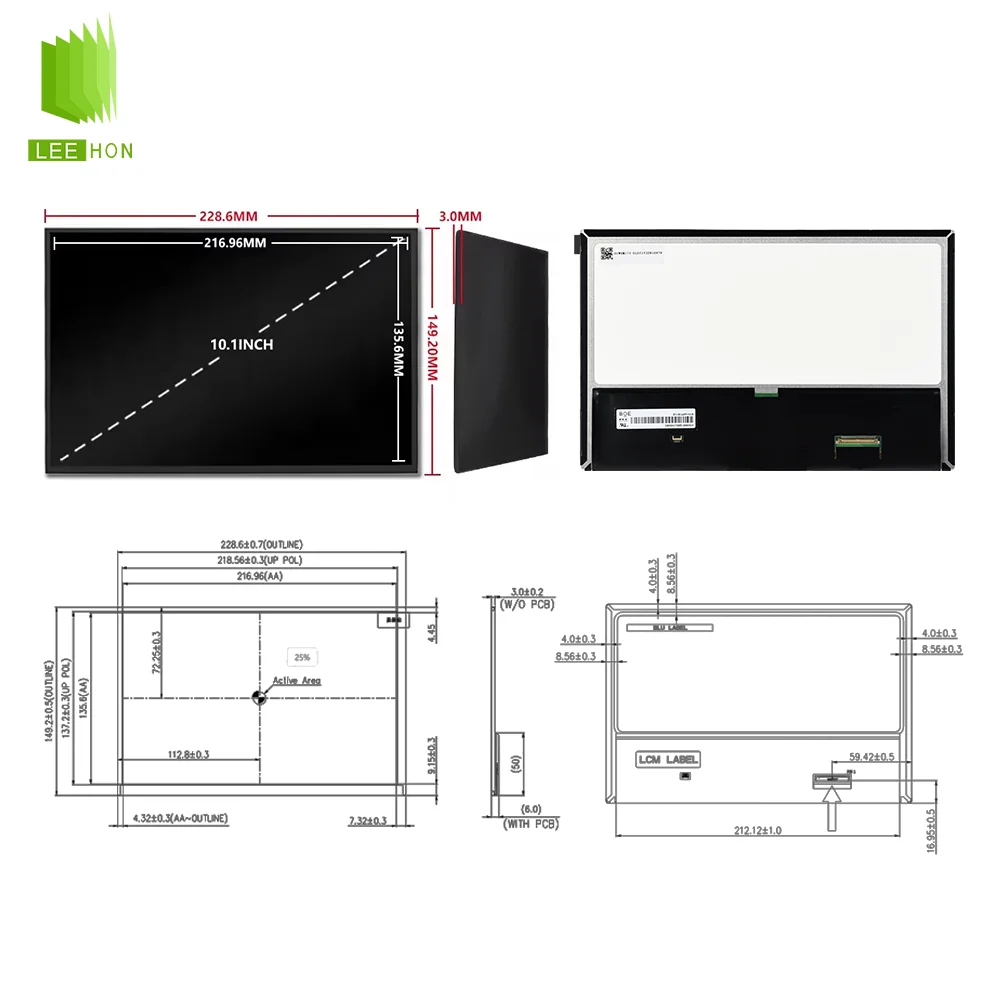

BOE Original 10.1 Inch LVDS 40 pins Patient Monitor Panel EV101WXM N10 1280x800 LCD Screen 10.1 Inch TFT LCD Module
- Category: >>>
- Supplier: Hangzhou Leehon Technology Co. Ltd.
Share on (1601272559136):
Product Overview
Description
Product Paramenters

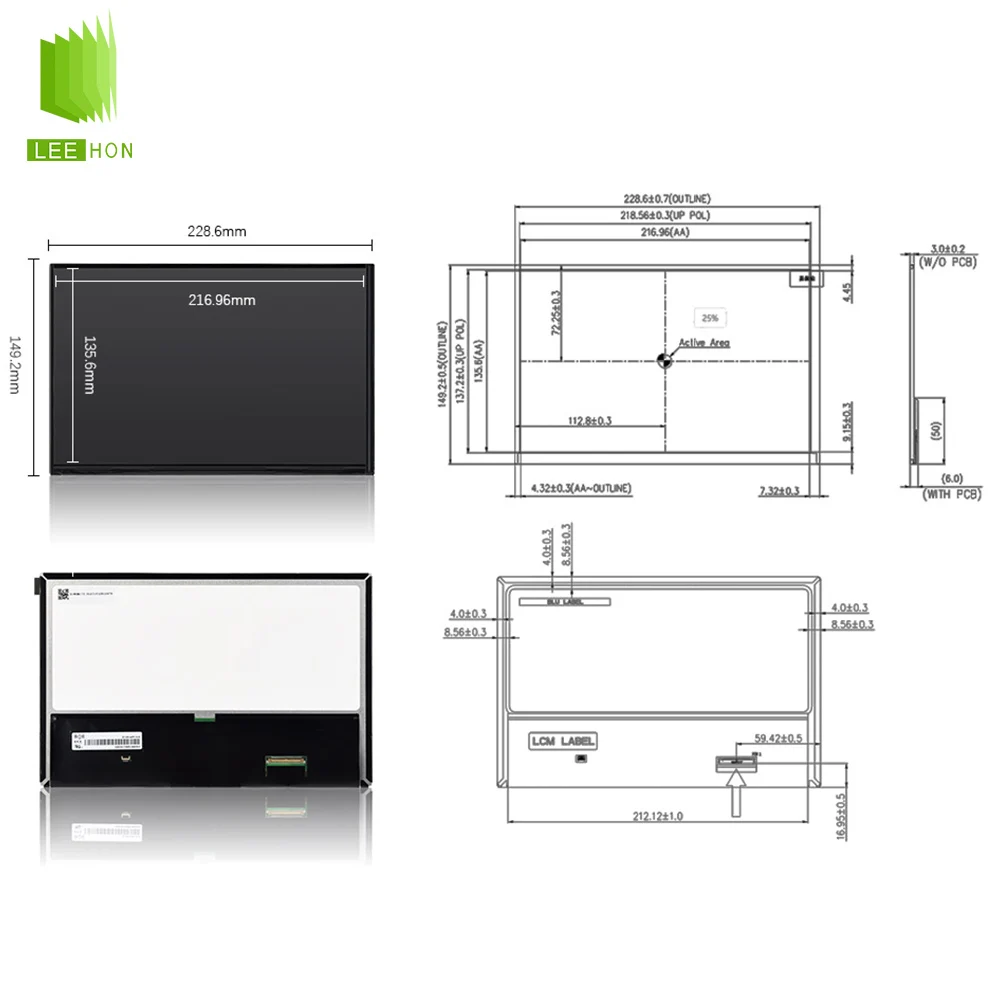

Details Images
LCD Modules Brand | BOE | Model | EV101WXM-N10 |
Power consumption | Max.4.2 watt | Pixel Arrangement | Pixels RGB stripe arrangement |
Interface | LVDS | Surface Treatment | Normal |
Brightness | 400 | Outline Thickness | 3.0/6.0(Typ./Max.)mm |
Active Area (mm) | 216.96(H)×135.6(V) mm | Aspect Ratio | 16:10(Width; High) |
Contrast | 900:1 | Pixel Pitch | 56.5(H) × RGB × 169.5(V) mm |
View Angle | Typ. 85/85/85/85 deg. | Display Orientation | Landscape Only |
Outline Dimension | 228.6(H) x 149.2(V) mm | Color Gamut | 50%Typ,Min 45%. |
Resolution | 1280(RGB)×800,WXGA | Weight | 175±20 gram ; Thin and light weight |
Work Temperature | -20~70℃ | Touch Screen | It Can be matched with capacitive and resistive touch screens |
Storage Temp | -30~80℃ | Outline Thickness | 3.0/6.0(Typ./Max.)mm |
10.1 inch TFT LCD Optical Characteristics
Display Mode | ADS,Normally black,Transmissive |
Brightness | Typ. 400, Min. 350cd/m2 |
Brightness Uniformity | 1.25 /1.33 （Typ./Max）Typ. 80% Min. 75% @9P |
Contrast | 900:1 |
Display Colors | 16.7M colors ; 6+HI-FRC |
Response Time | 30(Typ.); 35(Max.) ms |
View Angle | Typ. 85/85/85/85 deg. |
White Chroma | Wx:0.313;Wy0.329 Color Temperature6485K |
Resolution | 1280(RGB)×800,WXGA |
Work Temperature | -20~70℃ |
Storage Temp | -30~80℃ |
10.1 inch TFT LCD Lighting system
Lamp position | Side Light Source |
Type Of Light Source | WLED |
Interface ； Voltage； Current | LVDS；12+-0.5V；220/280 mA （Typ./Max） |
Light Source Life | 30K(Min.)hours |
Backlight driver | Includes LED driver |
10.1 inch TFT LCD Signal interface
Signal Categories | LVDS |
Signal Subcategory | LVDS (1 ch,8-bit) |
Panel Voltage； Current | 3.3V ; 250/330mA（Typ./Max） |
Interface Type | Terminal |
Number of interface pins | 40 pins |
Popular Size
Popular Size
Size | Resolution | Model | Interface | Brightness | Contrast | View Angle | Active Area | Work Temp |
7.0" | 1024*600 WSVGA | GV070WSM-N10 | LVDS FPC | 350 | 800:1 | 85/85/85/85 | 154.214×85.92 | -20/70 |
8.0" | 1024*768(XGA) | GT080S0M-N11-1QP0 | TTL | 250 | 500:1 | 75/75/75/75 | 162×121.5 | -20/70 |
8.0" | 1024*768(XGA) | GT080X0M-N12-1QP0 | LVDS FPC | 400 | 500:1 | 75/75/75/70 | 162.05×121.5 | -20/70 |
10.1" | 1280*800 WXGA | EV101WXM-N10 | LVDS | 400 | 900:1 | 85/85/85/85 | 216.96×135.6 | -20/70 |
10.1" | 1280*800 WXGA | EV101WXM-N80 | LVDS | 400 | 900:1 | 85/85/85/85 | 216.96×135.6 | -20/70 |
10.1" | 1920*1200 WUXGA | EV101WUM-N20 | LVDS | 600 | 900:1 | 80/80/80/80 | 216.806×135.504 | -20/70 |
10.4" | 800*600 SVGA | ET104S0M-N16（BA104S01-300） | LVDS | 350 | 800:1 | 80/80/65/75 | 211.2×158.4 | -20/70 |
12.1" | 1024*768 XGA | PV121X0M-N10/EV121X0M-N10 | LVDS | 500 | 1200:1 | 88/88/88/88 | 245.76×184.32 | -20/70 |
12.1" | 1280*800 WXGA | EV121WXM-N12/EV121WXM-N16 | LVDS | 500 | 1200:1 | 85/85/85/85 | 261.12(W)×163.2(H) mm | -20/70 |
15.0" | 1024*768 XGA | DV150X0M-N10 | LVDS | 350 | 1000:1 | 89/89/89/89 | 304.128×228.096 | -20/70 |
15.0" | 1024*768 XGA | DV150X0M-N12 | EDP | 350 | 1000:1 | 89/89/89/89 | 304.128×228.096 | -20/70 |
15.6'' | 1920*1080（FHD） | EV156FHM-N10 | EDP | 500 | 1200:1 | 89/89/89/89 | 344.16×193.59 | 0/60 |
15.6'' | 1920*1080（FHD） | EV156FHM-N11 | LVDS | 500 | 1200:1 | 89/89/89/89 | 344.16×193.59 | 0/70 |
17'' | 1024*768 XGA | DV170E0M-N10 | LVDS | 250 | 1000:1 | 89/89/89/89 | 337.92×270.336 | 0/50 |
18.5'' | 1920*1080（FHD） | GV185FHM-N10-3M30 | LVDS | 350 | 1200:1 | 85/85/85/85 | 408.96×230.04 | -30/80 |
19" | 1280*1024 SXGA | DV190E0M-N11 | LVDS | 250 | 1000:1 | 89/89/89/89 | 374.784×299.827 | 0/50 |
19" | 1280*1024 SXGA | ZV190E0M-N10 | LVDS | 450 | 1000:1 | 89/89/89/89 | 374.784×299.827 | -20/70 |
21.5'' | 1920*1080（FHD） | HR215WU1-120 | LVDS | 250 | 1000:1 | 89/89/89/89 | 476.64×268.11 | 0/50 |
21.5'' | 1920*1080（FHD） | DV215FHM-NN0 | LVDS | 500 | 1000:1 | 89/89/89/89 | 476.064×267.786 | 0/50 |
21.5'' | 1920*1080（FHD） | GV215FHM-N10 | LVDS | 350 | 1000:1 | 89/89/89/89 | 476.64×268.11 | -20/70 |
23.8'' | 1920*1080（FHD） | MV238FHM-N10 | LVDS | 250 | 1000:1 | 89/89/89/89 | 527.04×296.46 | 0/50 |
23.8'' | 1920*1080（FHD） | DV238FHM-N11 | LVDS | 550 | 1000:1 | 89/89/89/89 | 527.04×296.46 | 0/50 |
32'' | 1920*1080（FHD） | DV320FHM-NN0 | LVDS | 400 | 1200:1 | 89/89/89/89 | 698.4×392.85 | 0/50 |
