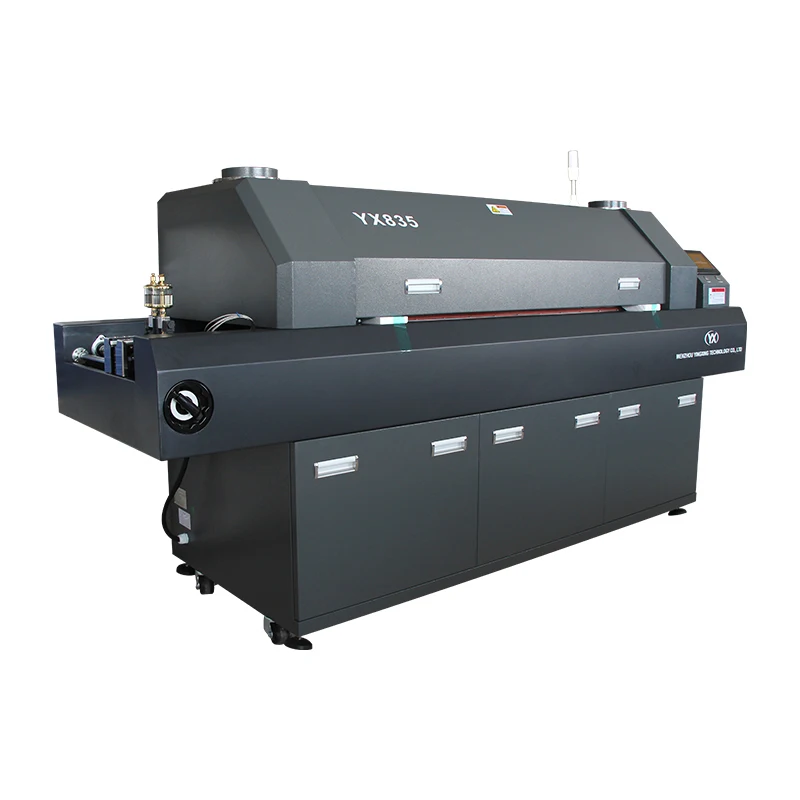

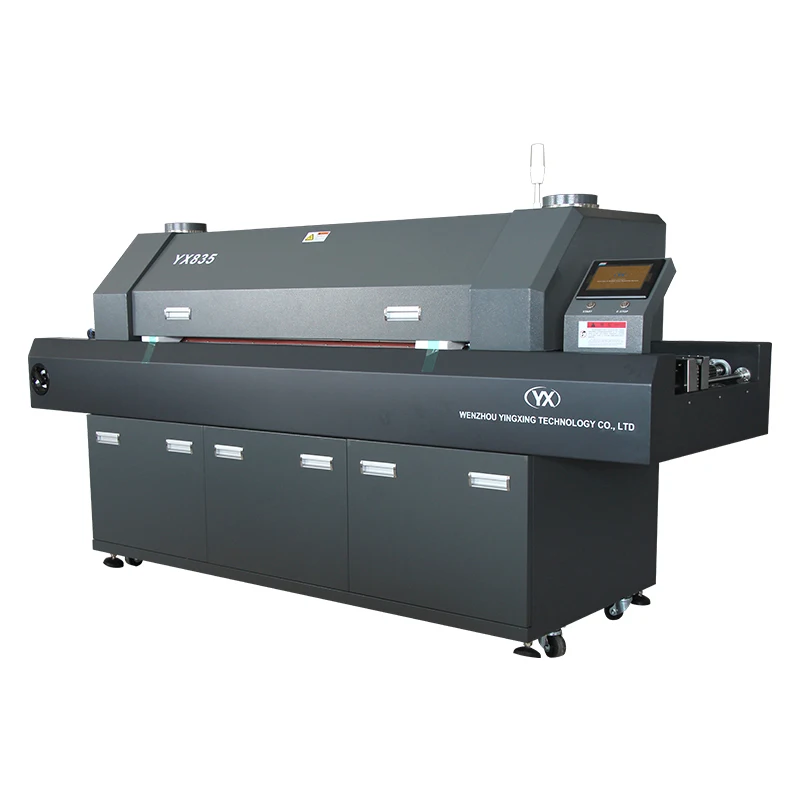

Pick and place Assembly Reflow Oven Machine YX835 with 8 Temperature Zone for SMT Production Line
Pick and place Assembly Reflow Oven Machine YX835 with 8 Temperature Zone for SMT Production Line
Pick and place Assembly Reflow Oven Machine YX835 with 8 Temperature Zone for SMT Production Line
Pick and place Assembly Reflow Oven Machine YX835 with 8 Temperature Zone for SMT Production Line
Pick and place Assembly Reflow Oven Machine YX835 with 8 Temperature Zone for SMT Production Line
Pick and place Assembly Reflow Oven Machine YX835 with 8 Temperature Zone for SMT Production Line
Pick and place Assembly Reflow Oven Machine YX835 with 8 Temperature Zone for SMT Production Line

Pick and place Assembly Reflow Oven Machine YX835 with 8 Temperature Zone for SMT Production Line

Share on (1601272577346):


Price:

Quantity:


Product Overview

Description





Product Description


Introduction
This machine adopts the M-type stainless steel finned heating pipe with corrosion resistance, high temperature resistance, long service life and high heat efficiency. Cooperating with hot air circulation system, the heat storage structure allows the heat to be fully used. The multi-layered heat insulation structure minimizes the loss of heat. The temperature is controlled by PID closed circle, with highly precise temperature control.

Part list
1.Instruction Manual * 1 PC
2.Certification * 1 PC

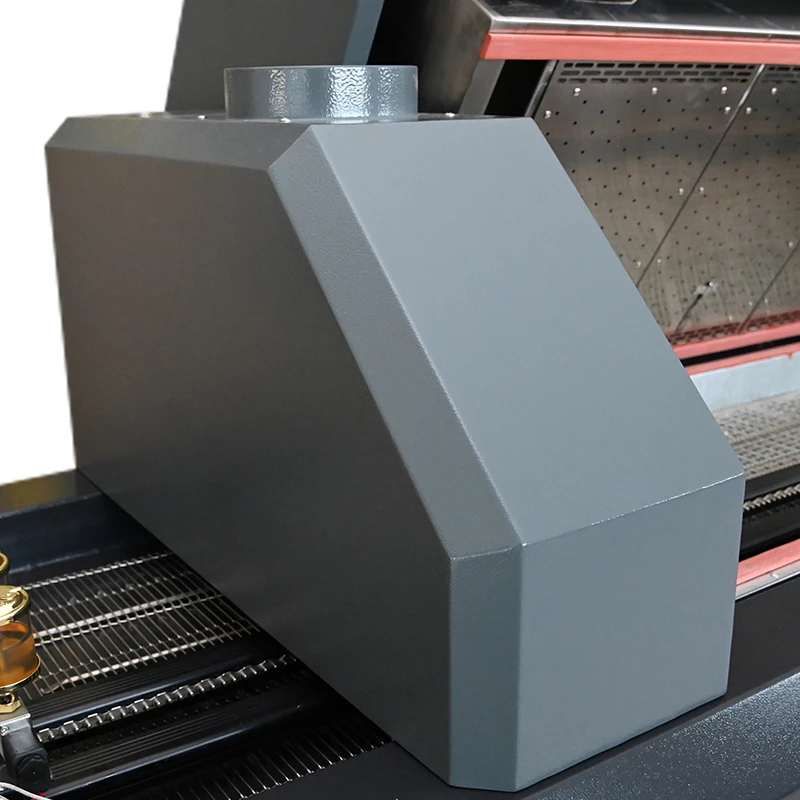

3.Exhaust Duct * 2 Units
4.Pipe Button * 2 Units
5.Temperature Profile Sensor * 1 Unit
6.Computer, Keyboard, Mouse, Displayer * 1 Unit

The YX835 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.

The YX835 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands).






Model
YX835
Heat Zones Number
8 Zone(Up4+Down4)
Heat Method
Hot Wind
Hot Wind Method
Frequency Conversion Air Supply
Cooling Zones Numbers
Three Natural Air Cooling
Length of Heating Zones
1400mm
Mesh Width
450mm
Conveyor Width
350mm
Allow PCB Width
Max.350mm
Allow PCB Length
No Limited
Allow PCB Height(Mesh)
50mm
Allow PCB Height(Conveyor)
25mm
The Height of the mesh from ground
880±20mm
The Height of the conveyor from ground
900±20mm
Transportation Speed
160-1350mm/min

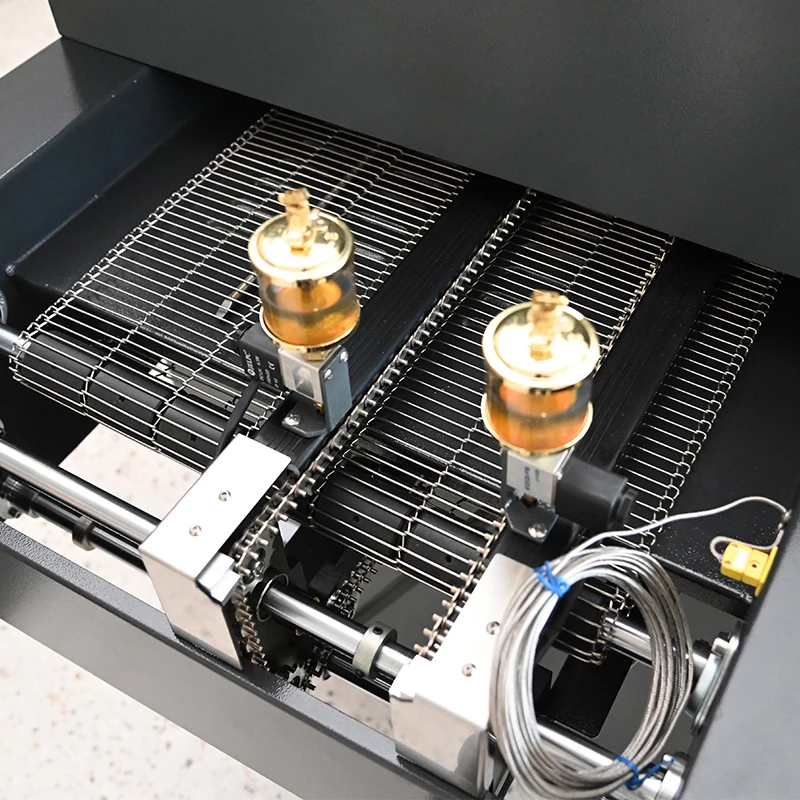

Transportation Method
Digital Display Speed Regulation
Transport Direction of Net Belt
L-R

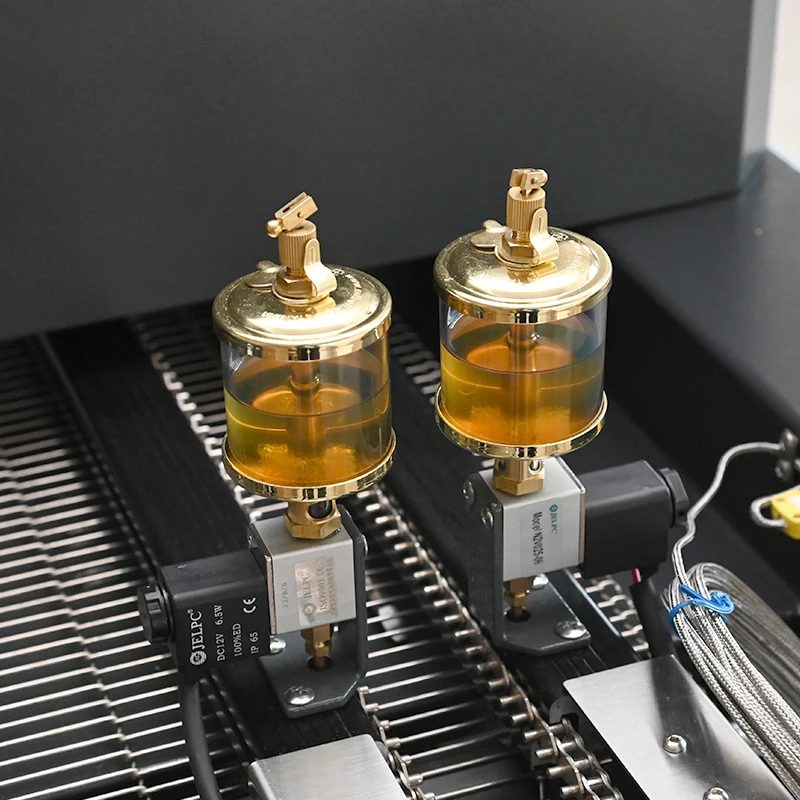

Chain Dripping
Timing Automatic Dripping
Input Power
Three-phase Rive-wire 380V±10％ 50Hz
Heating UP Time
15-20 mins
Time of Passing Through the Machine
3.5-5.5 mins
Range of Temperature Control
Indoor Temperature-400 Degrees
Method of Temperature Control
Touch Screen Comtrol (PID Close-Cycle Calculate Method)
Starting Power
15KW
Working Power
3KW
Outline Size
L2720*W820*H1360mm
Weight
450KG


Product Details






Company Information










Exhibition




Certifications




Product packaging




FAQ




Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.

Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.

Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.

Q:English version for these machines?
A:Yes
