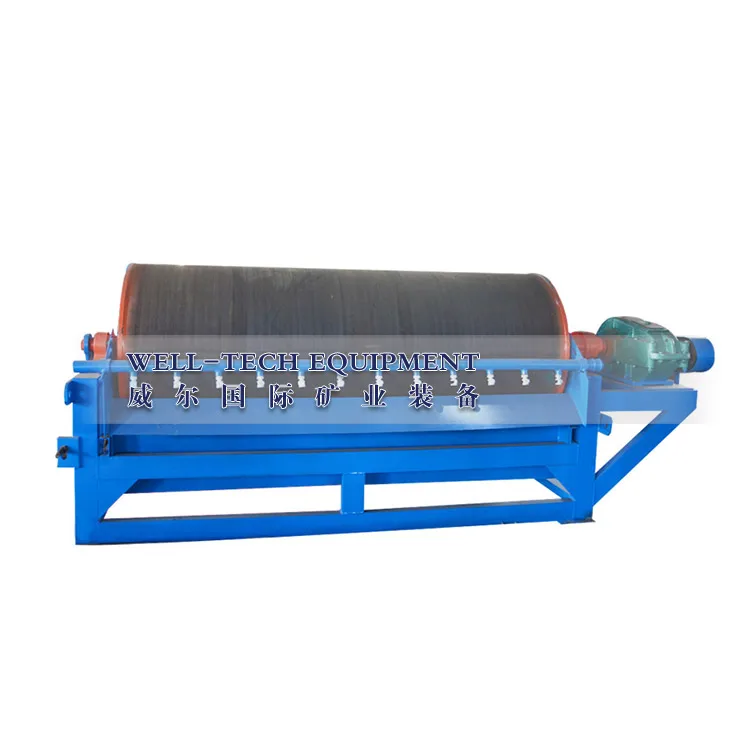

Drum separator Wet drum magnetic separator Iron removal from chromite ore
- Category: >>>
- Supplier: Jiangxi Well-Tech International Mining Equipment Co. Ltd.
Share on (1601272599006):
Product Overview
Description
Product Description
Product Description
Wet Drum Permanent Magnetic Separator is suitable for Mine, Coal preparation plant etc. use weak wet magnetic field to sort out the strong magnetic ore, or eliminating the strong magnetic minerals mixed in nonmagnetic minerals. The magnetic field of CTS(N,B) wet drum permanent magnetic separators divide into rotary and fixed. The fixed one is mainly use in weak magnetic field to separate the fine particle strong magnetic materials, or eliminating the strong magnetic materials in the nonmagnetic ores.
SPECIFICATIONS FOR CT WET MAGNETIC SEPARATOR | ||||||||||||
Model | drum size dia.*Length (mm) | Average magnetic induction on shell surface (mt) | Max.magnetic strength on shell surface(mt) | Capacity (t/h) | Power (Kw) | Weight (Kg) | ||||||
CTS(N.B)-46 | 400×600 | 130 | 160 | 1~3 | 1.1 | 600 | ||||||
CTS(N.B)-66 | 600×600 | 145 | 170 | 5~10 | 1.1 | 705 | ||||||
CTS(N.B)-69 | 600×900 | 145 | 170 | 8~15 | 1.1 | 830 | ||||||
CTS(N.B)-612 | 600×1200 | 145 | 170 | 10~20 | 2.2 | 990 | ||||||
CTS(N.B)-618 | 600×1800 | 145 | 170 | 15~30 | 2.2 | 1330 | ||||||
CTS(N.B)-712 | 700×1200 | 155 | 180 | 15~30 | 3 | 1500 | ||||||
CTS(N.B)-718 | 700×1800 | 155 | 180 | 20~45 | 3 | 2100 | ||||||
CTS(N.B)-918 | 900×1800 | 165 | 190 | 25~55 | 4 | 8900 | ||||||
CTS(N.B)-924 | 900×2400 | 165 | 190 | 35~70 | 4 | 3500 | ||||||
CTS(N.B)-1018 | 1050×1800 | 165 | 190 | 40~75 | 5.5 | 4000 | ||||||
CTS(N.B)-1024 | 1050*2400 | 240 | 280 | 52~100 | 5.5 | 5000 | ||||||
CTS(N.B)-1224 | 1200×2400 | 240 | 280 | 82~120 | 7.5 | 6200 | ||||||
Main Features
1. simple structure
2. Easy-open structure gives a convenient cleaning;
3. large handling
4. magnetic intensity: 800 to 11000 Gauss
5. easy to operate
6. The number of axial magnetic can be adjusted in accordance with material characteristics;
7. easy to maintain
8. This magnetic separator is suitable for processing various bulk materials and will not blocked for its compact structure.
9. Low power
10. Also has disaggregating function for sticky and poor-fluidity powders;
11. Stainless steel machine and full-closed operation enable an easy clean;
12. This high gradient magnetic separator has optimized magnetic circuit, which offers high intensity magnetic field for better separating effect.
13. Magnetic separator working under high temperature

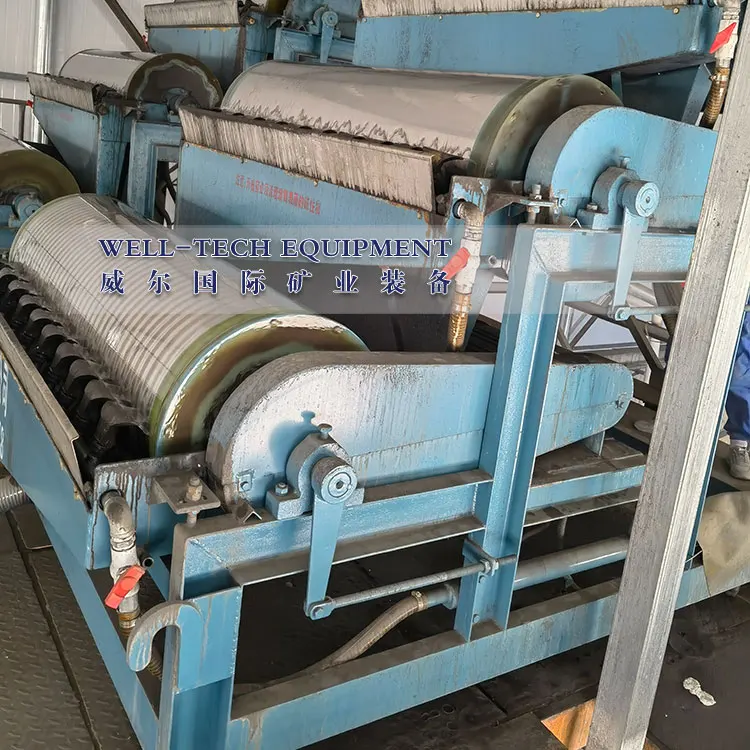

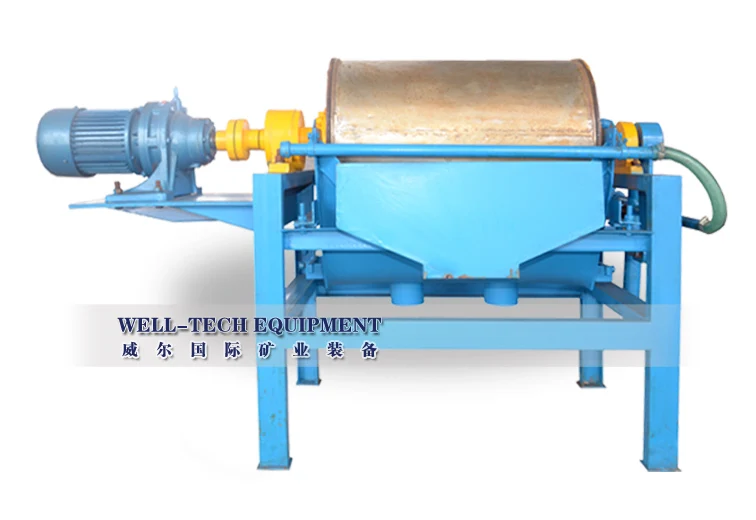

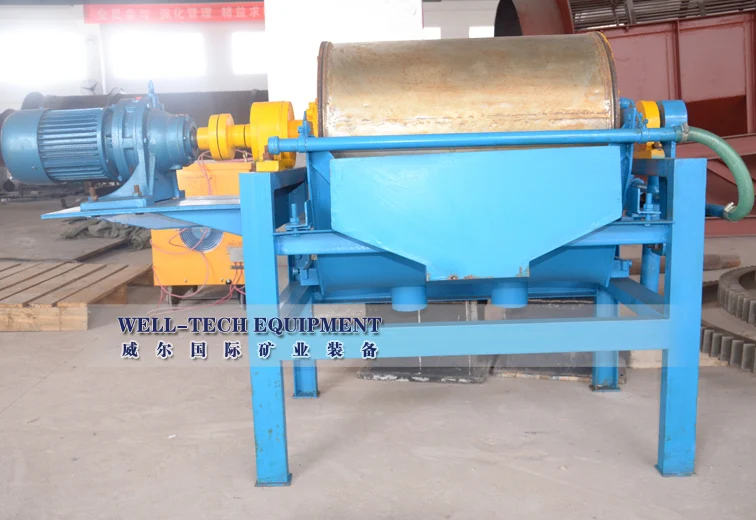

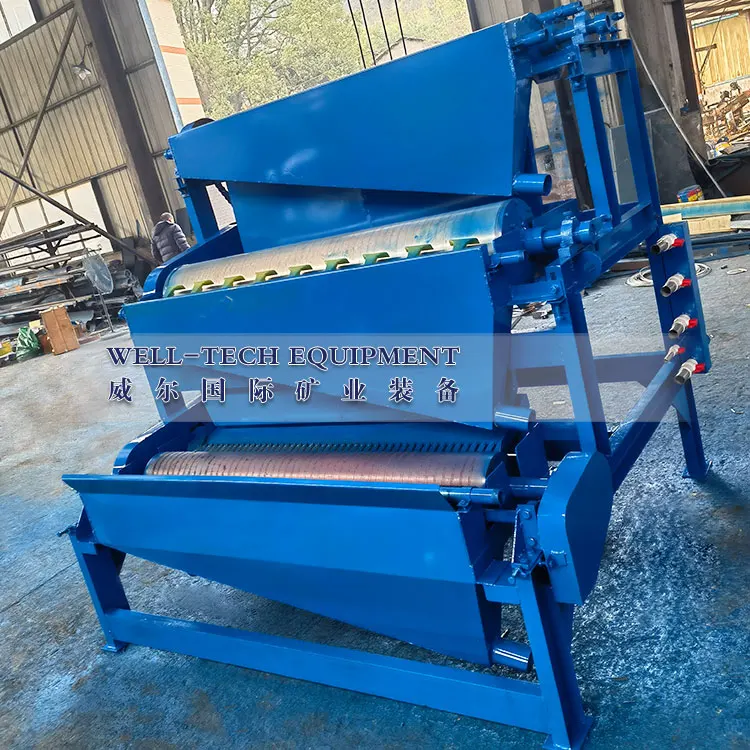

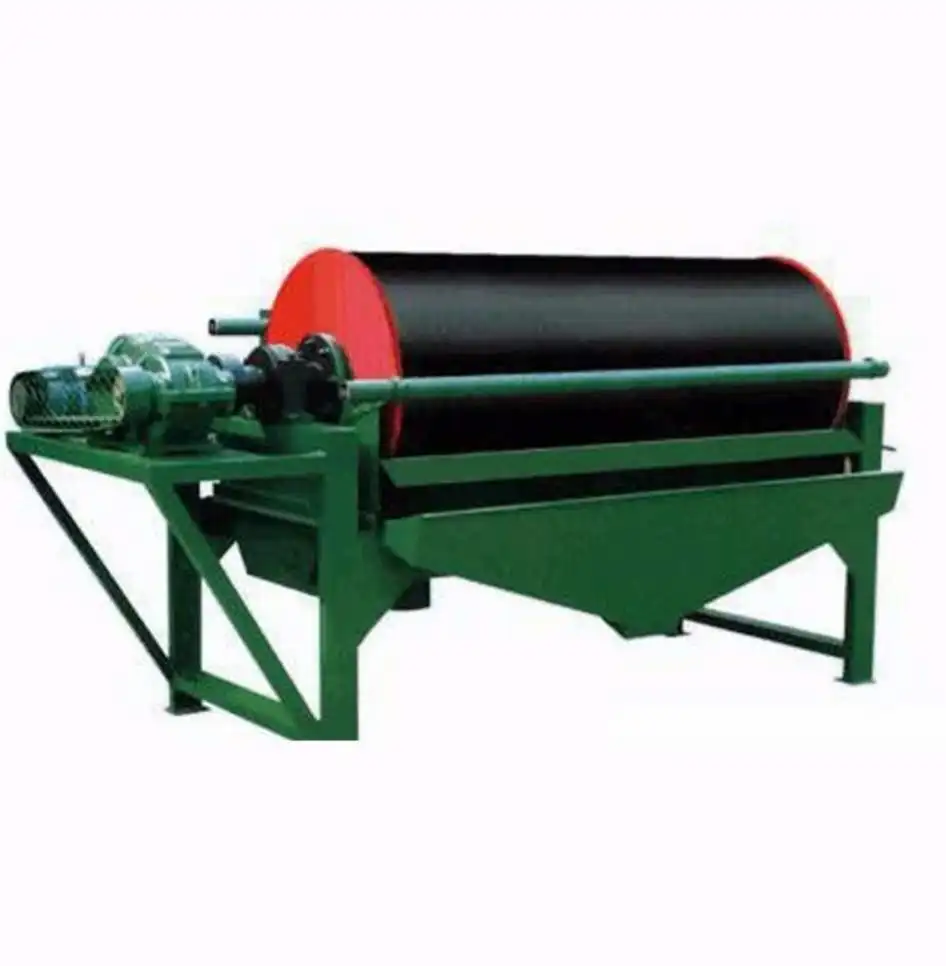

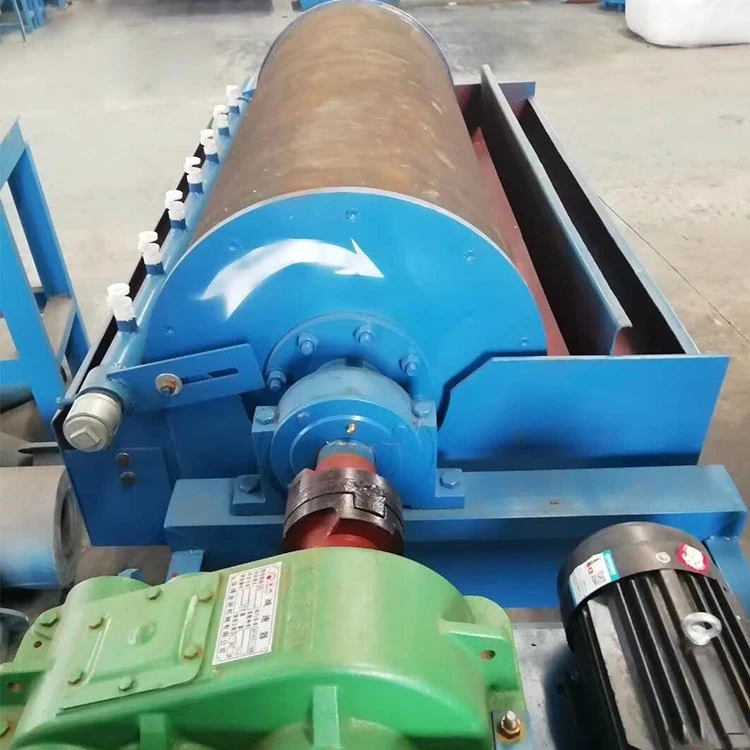

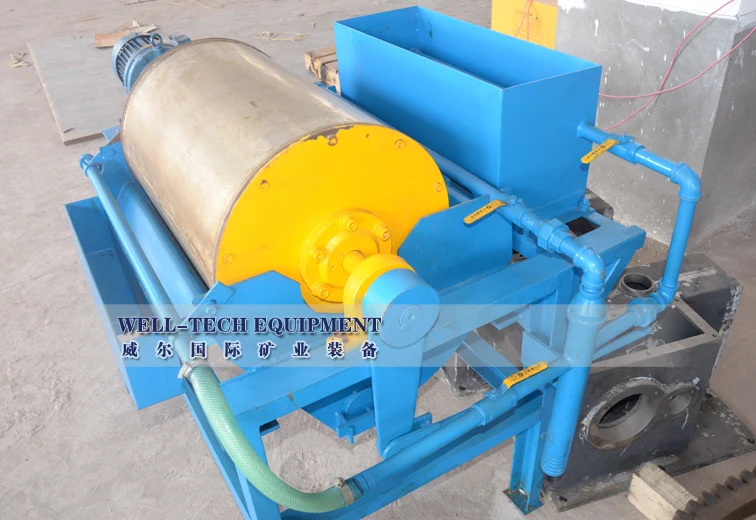

Detailed Images
Application:
Magnetic separator is ideally used to separate ferrous particles from non ferrous particles. Magnetic Separator is designated for wet magnetic separating of material with granularity below 3mm, such as magnetite, pyrrhotine, roasted ore and washingtonite. It can also be used for deironing of coal, nonmetal materials, building materials, etc.
Working princple
When the ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum, weak magnetic substance and nonmagnetic minerals are washed away by water, the absorbed magnetic minerals on the surface of drum are rotated with the drum and taken out of magnetic field area .The rotary one is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particle rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore, the ore are divide into magnetic and nonmagnetic after separation, and discharge from the own road. This machine is suitable for the roughing and cleaning of particle size in 6-0mm size.
Main features
This wet drum permanent magnetic separator can continuously feeding ores and discharge ores ,with large magnetic field intensity, high magnetic field gradient, big working clearance, higher processing ability and little magnetic flux leakage, low energy consumption, fine beneficiating results, simple structure and easy to maintain.
Different kinds of wet magnetic machine
This machine has three kinds of tank: CTB, CTS and CTN, the same kind of drum could match those three tanks, to suitable different separation work and different requirement:
l CTS is suitable for the roughing and cleaning of particle size in 6-0mm;
l CTN is suitable for the cleaning and scavenging of fine particle size in 0.6-0mm , and it is often applied to recycle heavy medium in coal;
l CTB is suitable for the roughing and cleaning of ores in size of 0.5-0mm, especially suitable for the cleaning of ores in size of 0.15-0mm.
l CTN is suitable for the cleaning and scavenging of fine particle size in 0.6-0mm , and it is often applied to recycle heavy medium in coal;
l CTB is suitable for the roughing and cleaning of ores in size of 0.5-0mm, especially suitable for the cleaning of ores in size of 0.15-0mm.
