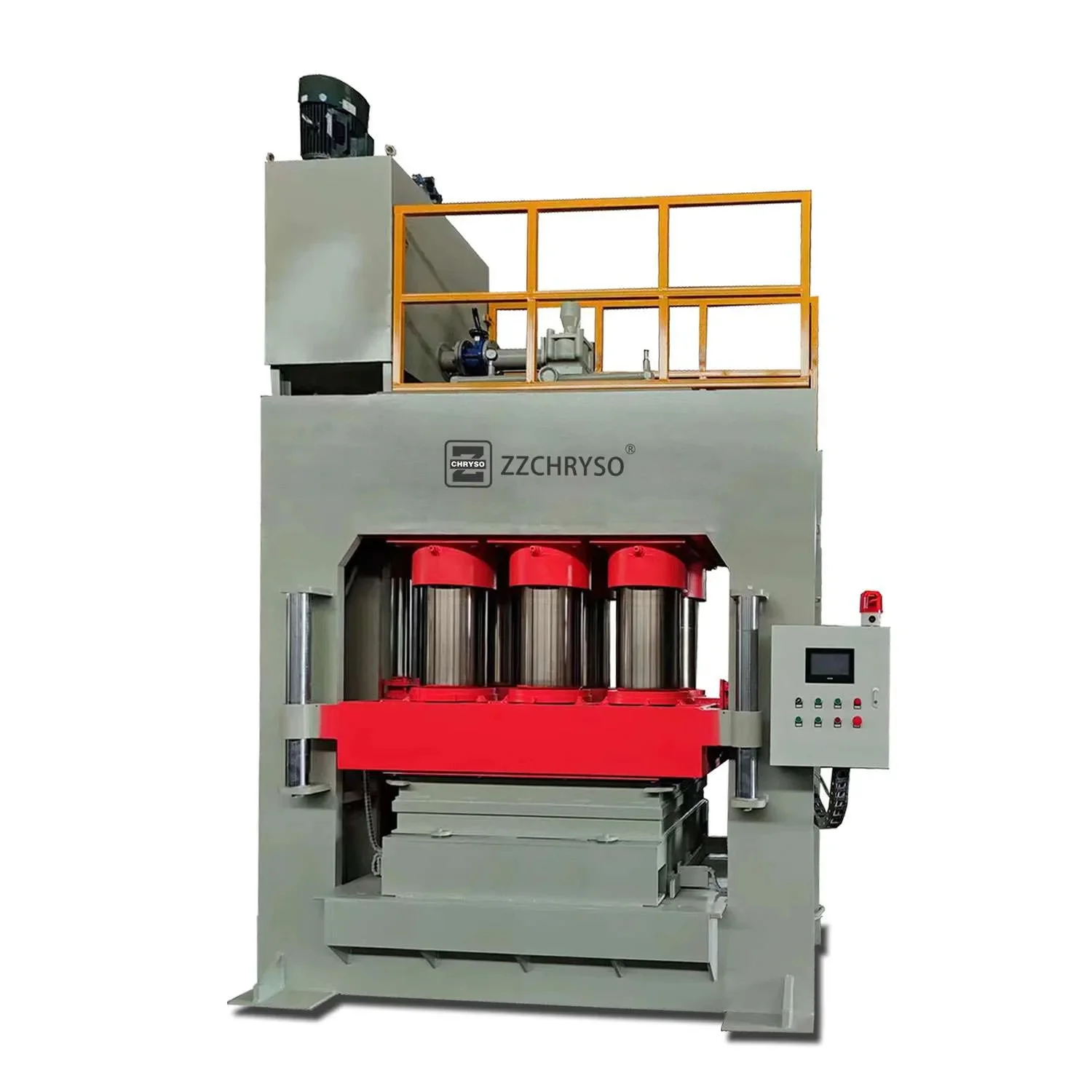

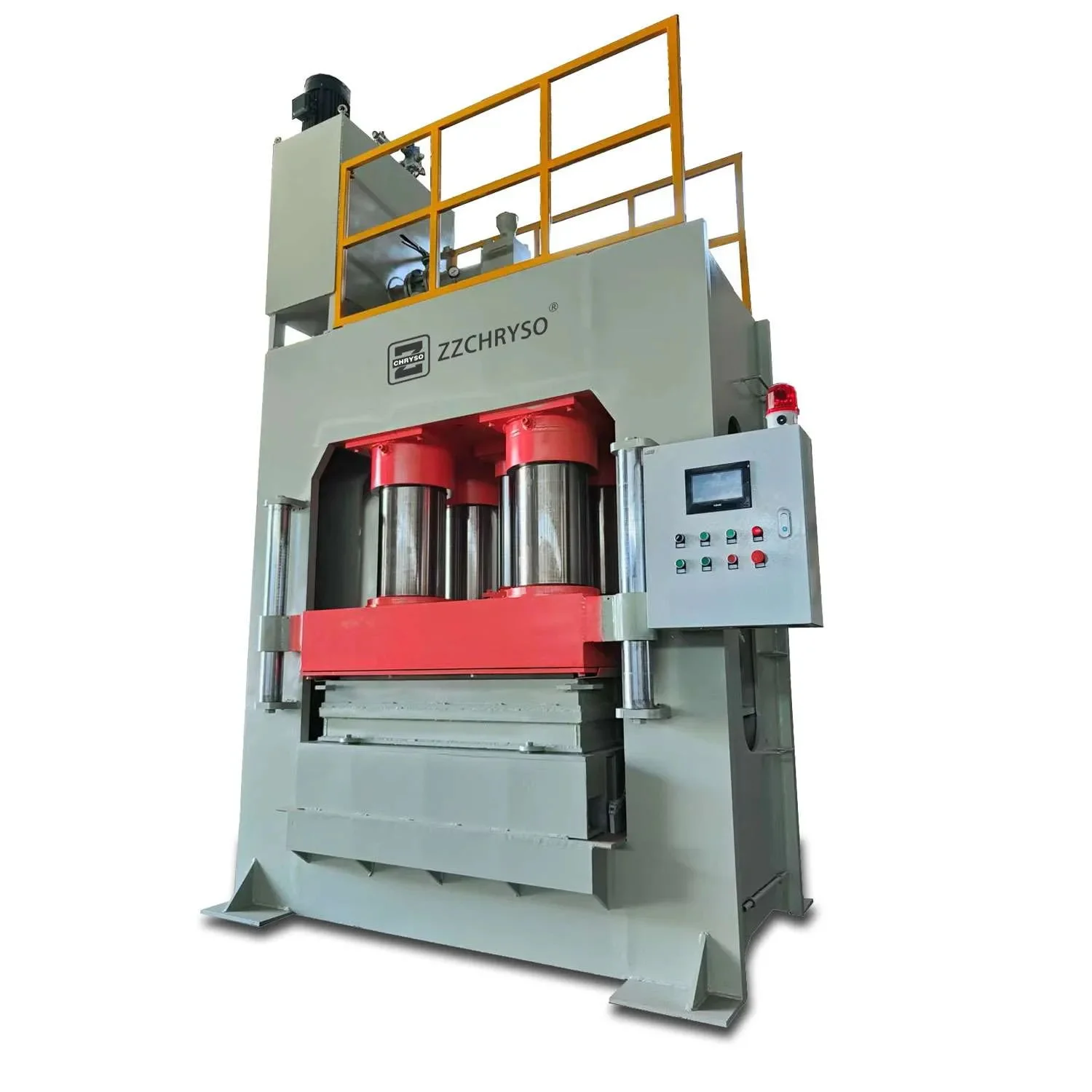

Automatic Composite Wood Block Press Machine for Euro Pallet Feet
- Category: >>>
- Supplier: Zhengzhou Chryso Machinery Equipment Co. Ltd.
Share on (1601272602147):
Product Overview
Description
Product Description

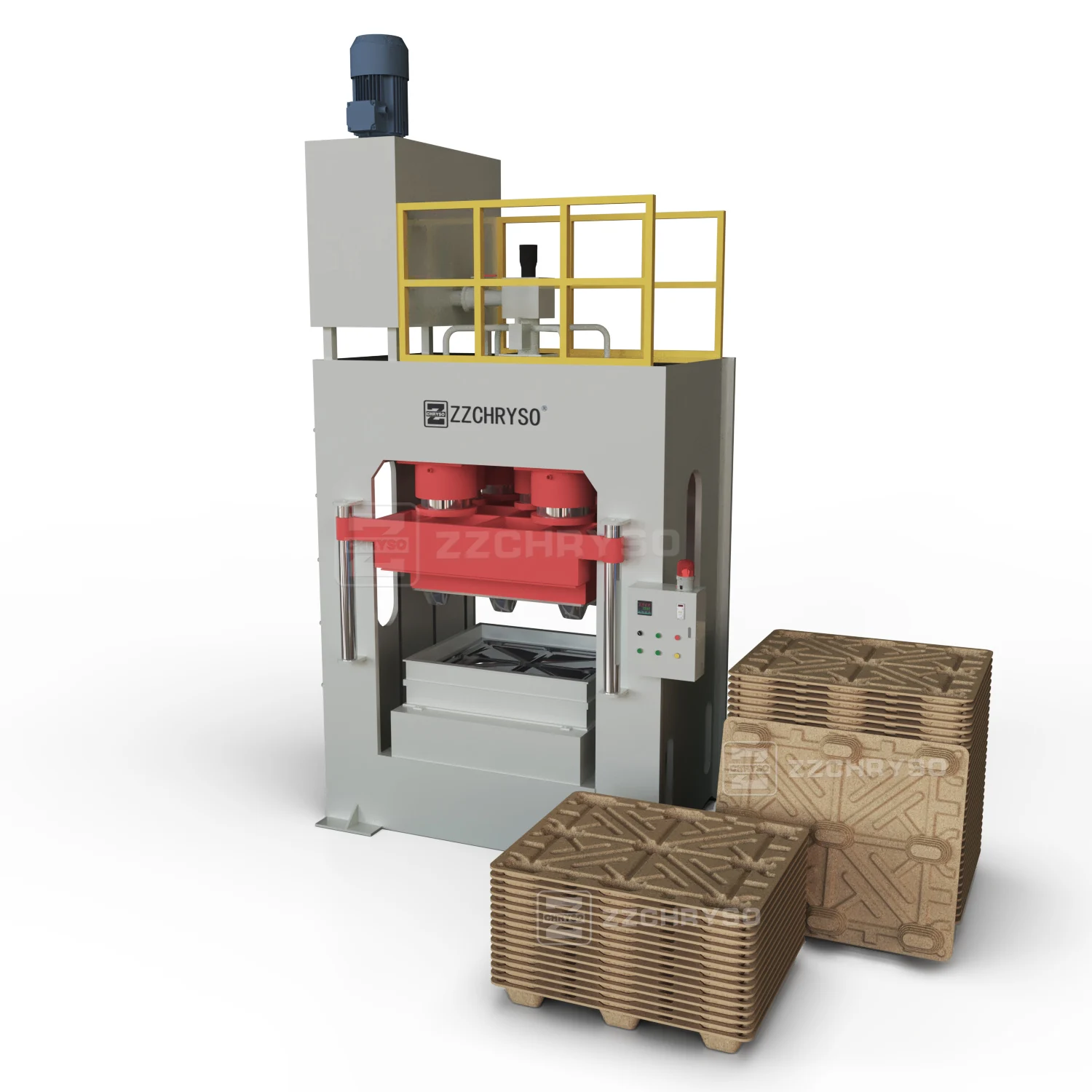

Compressed wood pallet making machine introduction:
1.The compressed wood pallet making machine is mainly used for producing the Molded pallets by use of waste wood biomass,plastic,fabric and etc.
2.The compressed wood pallet making machine has the advantages of good stability performance,high efficiency,and energy saving.Whatis more,the compressed wood pallet is fumigation free and no limit for international transportation.
3.The press machine can use both the steam and the thermal oil as heating source .
4.The pallet press machine is very convenient for installation and do not need basic positioning.
5.You can produce different wood pallet size and pallet design by changing the mold
Raw materials:
The compressed wood pallet making machine mainly use the Bamboo shavings, wood sawdust, wood shavings, scrap materials as main raw materials,and also the plastic and fabric can be used in the production according to the ratio.
Wood Pallet Hot Press Machine,Wood Pallet Machine, Wood Pallet Production Line,Hydraulic Wood Pallet Mould machine,Wood Pallet
Making Machine,Compressed Wood Pallet Forming Machine,Machine To Make Wood Pallet,Sawdust Pallet Compressed Machine,Hydraulic Wood Pallet Molding Machine,Wood Chips Sawdust Shaving Machine,sawdust recycling wood pallet machine,Molded Pallet Machine
Making Machine,Compressed Wood Pallet Forming Machine,Machine To Make Wood Pallet,Sawdust Pallet Compressed Machine,Hydraulic Wood Pallet Molding Machine,Wood Chips Sawdust Shaving Machine,sawdust recycling wood pallet machine,Molded Pallet Machine

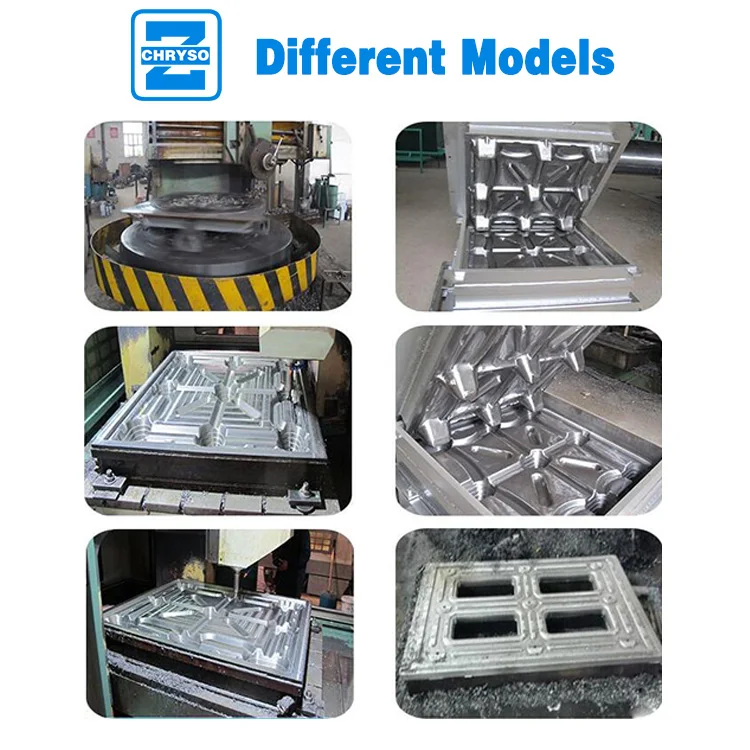

Different pallet mold design for your choice
The pallet mold is customized basis on your request and we also can provide the design for your choice.The normal pallet size is 1200*800mm,1200*1000mm and so on.Our engineer will draw pallet mold CAD for your checking.
Specification
Product Model | CRS-800 |
Design Pressure | 800 Ton or can be customized |
Main cylinder | Φ320,4 sets |
Pilot oil cylinder | Φ100,1 set |
Lift cylinder | Φ100,2 sets |
Main motor power | 7.5KW |
Cylinder press stroke | 550mm |
Production capacity | 130-160pcs per 24hours |
Pallet size | Less than 1200*1100mm or can be custoimzed |
Heating source and volume | Steam or thermal oil,0.15M3 |
Machine size | 2300*1500*4300mm |
Machine weight | 12700kg |
Weight (KG) | 12700KG |
Feature
1.Our compressed wood pallet making machine has a good structure,it use the three-way synchronous positioning,precision and balance.so the pressurize will be soon when filling ,the pressurize will be fine within 35 seconds.
2.The compressed wood pallet making machine is easy to operate,just press the work button,then the machines will complete the whole process automatically.
3.The pallet press machine needs about 450 seconds to molding a pallet .
4.The press machine can produce about 130-160 PCS pallet per 24 hours.
5.The density of the pallet is about 900kg per cubic meter.
6.The machine pressure and pallet mold size can be customized.

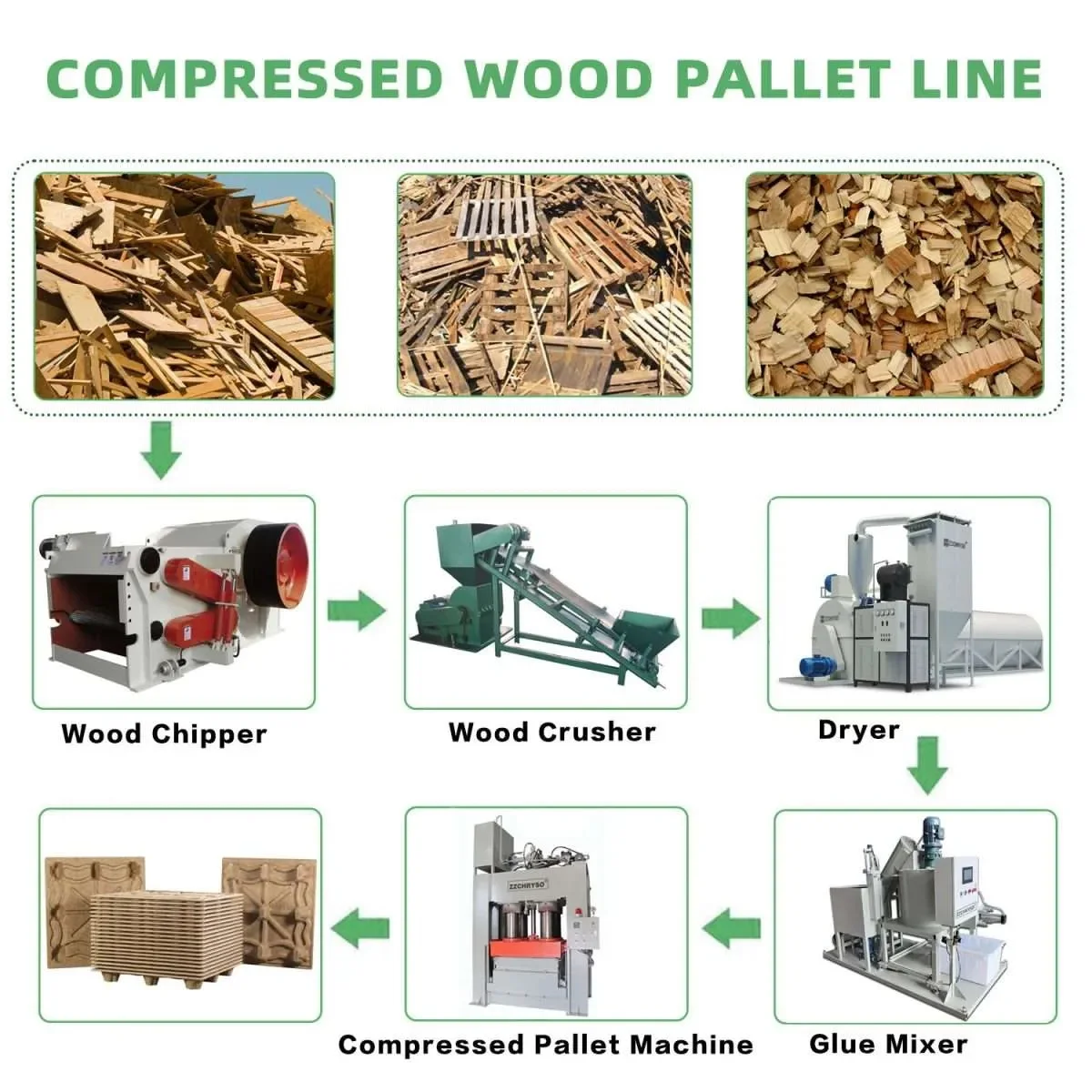

Whole Production Line
Drum dryer machine for drying raw wood sawdust
Rotaty drum dryer machine for raw material moisture 20%-40%;
Capacity: 1 ton per hour
Air flow type dryer machine for raw material 10%-15% moisture
Capacity: 800-1000kg per hour
Equip with cyclone dust collection, fan
Glue mixer machine for mixing sawdust and glue
Full auto feeding and discharge with scales
Electronic metering glue mixer
Capacity 300kg per time for mixing

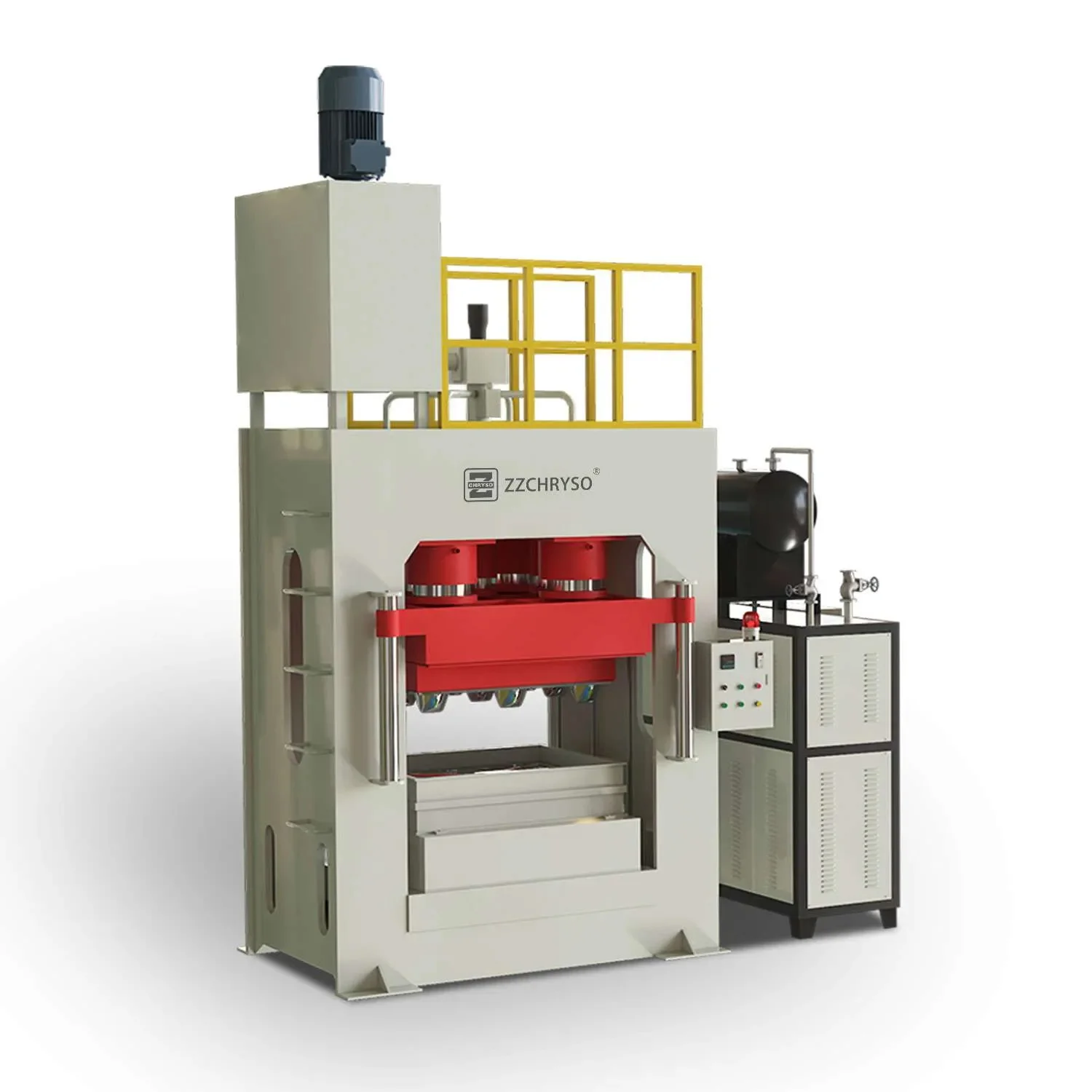

Thermal oil electric heating stove for providing heat source
Convenient heating source equipment for main pallet press machine, electric heating, thermal oil heating medium

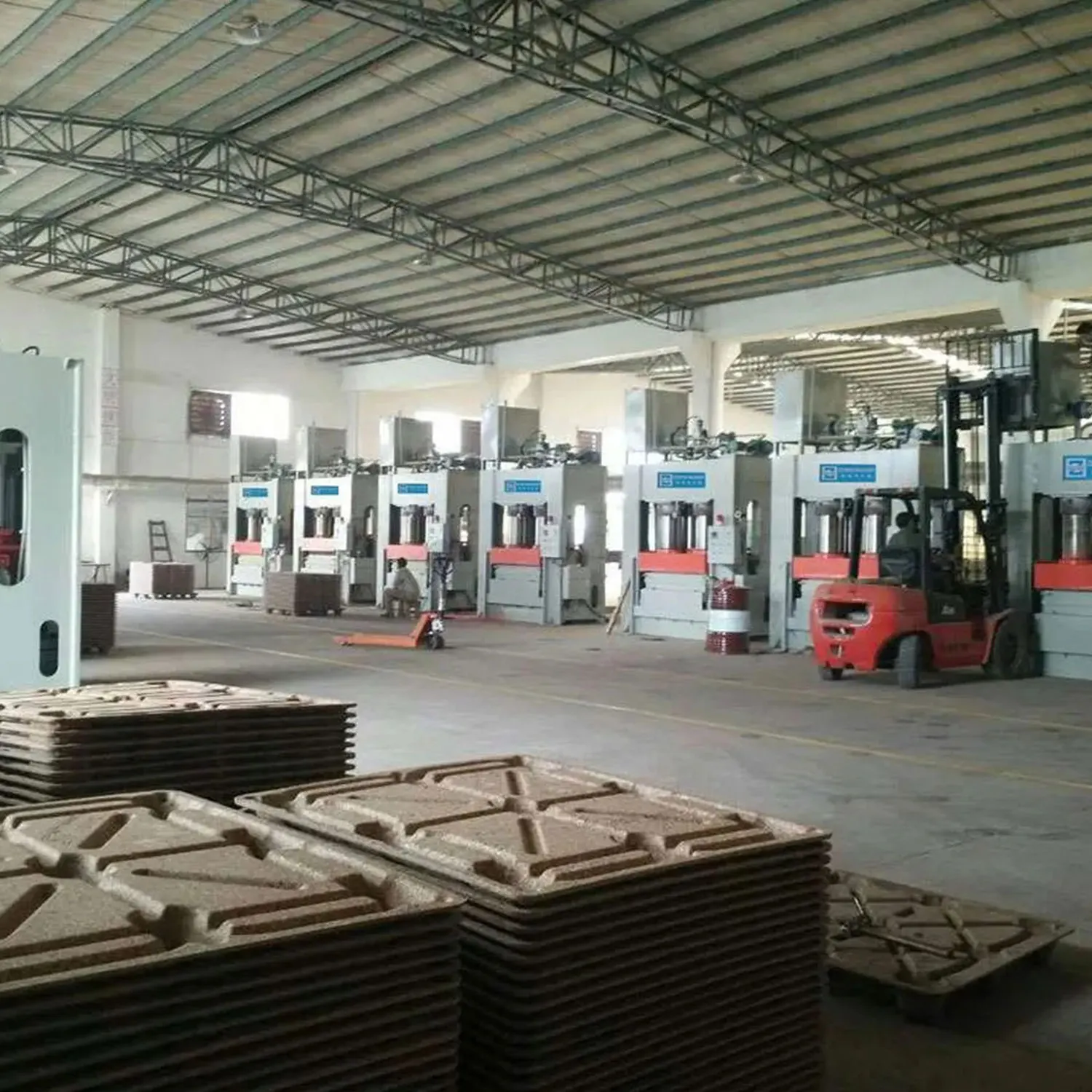

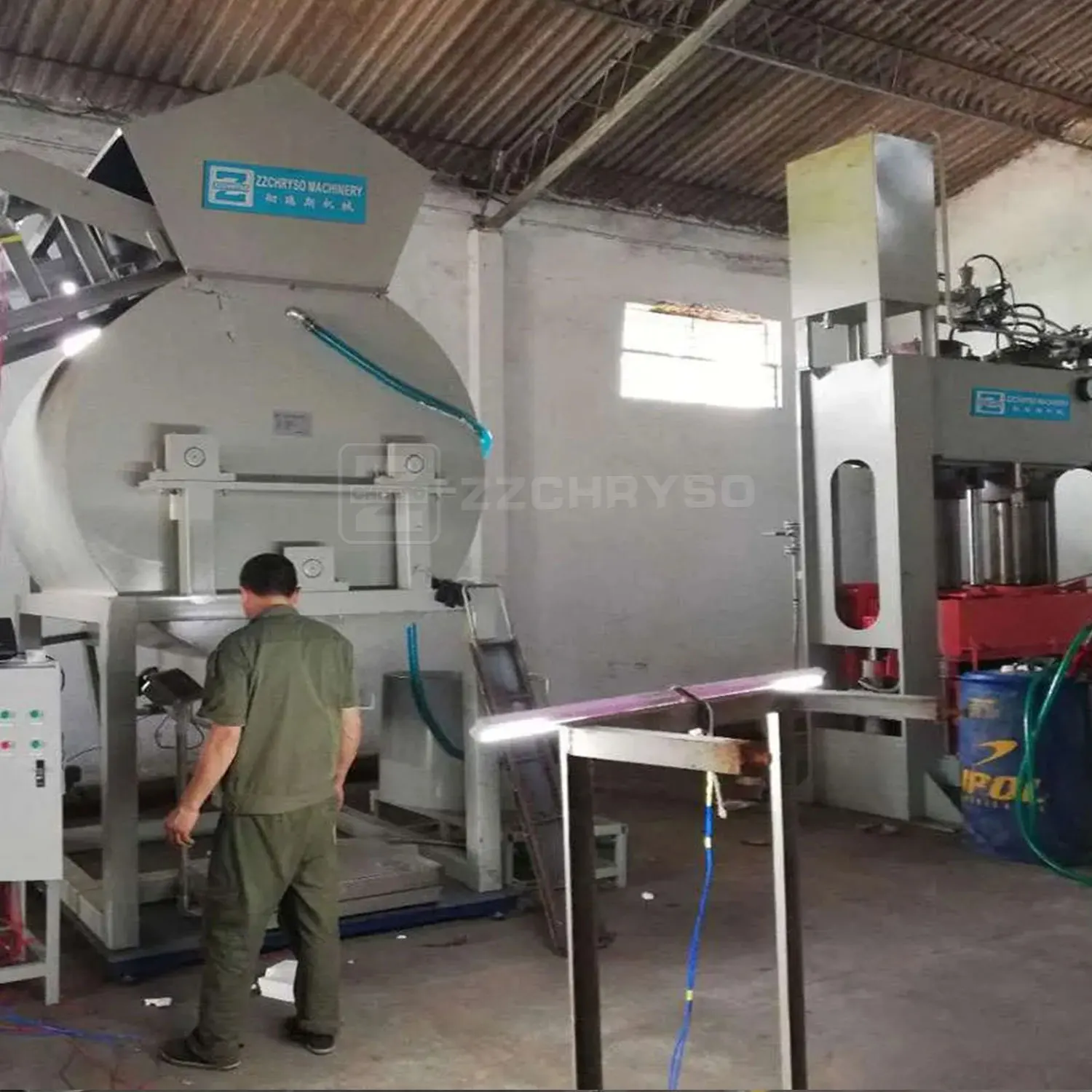

Engineering case

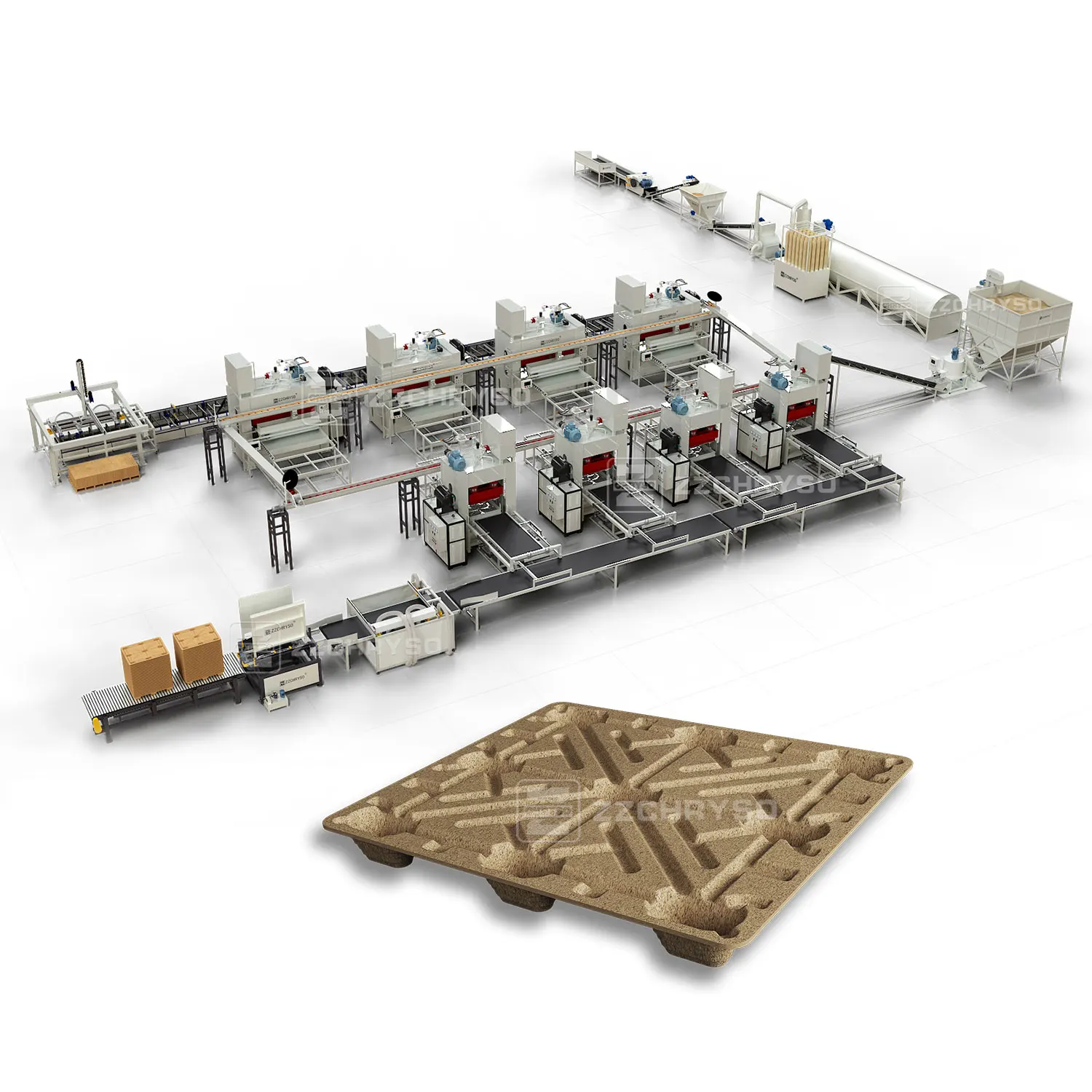

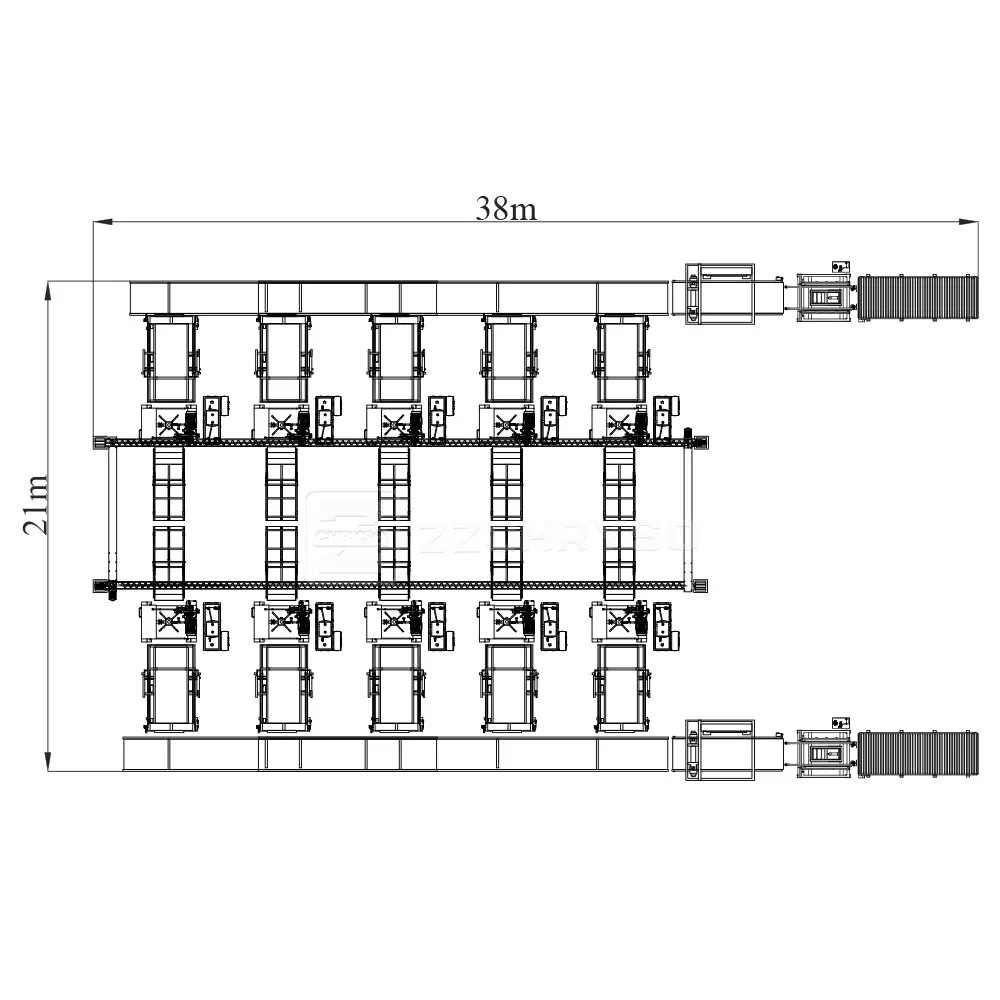

3D drawing design of pallet press line for client

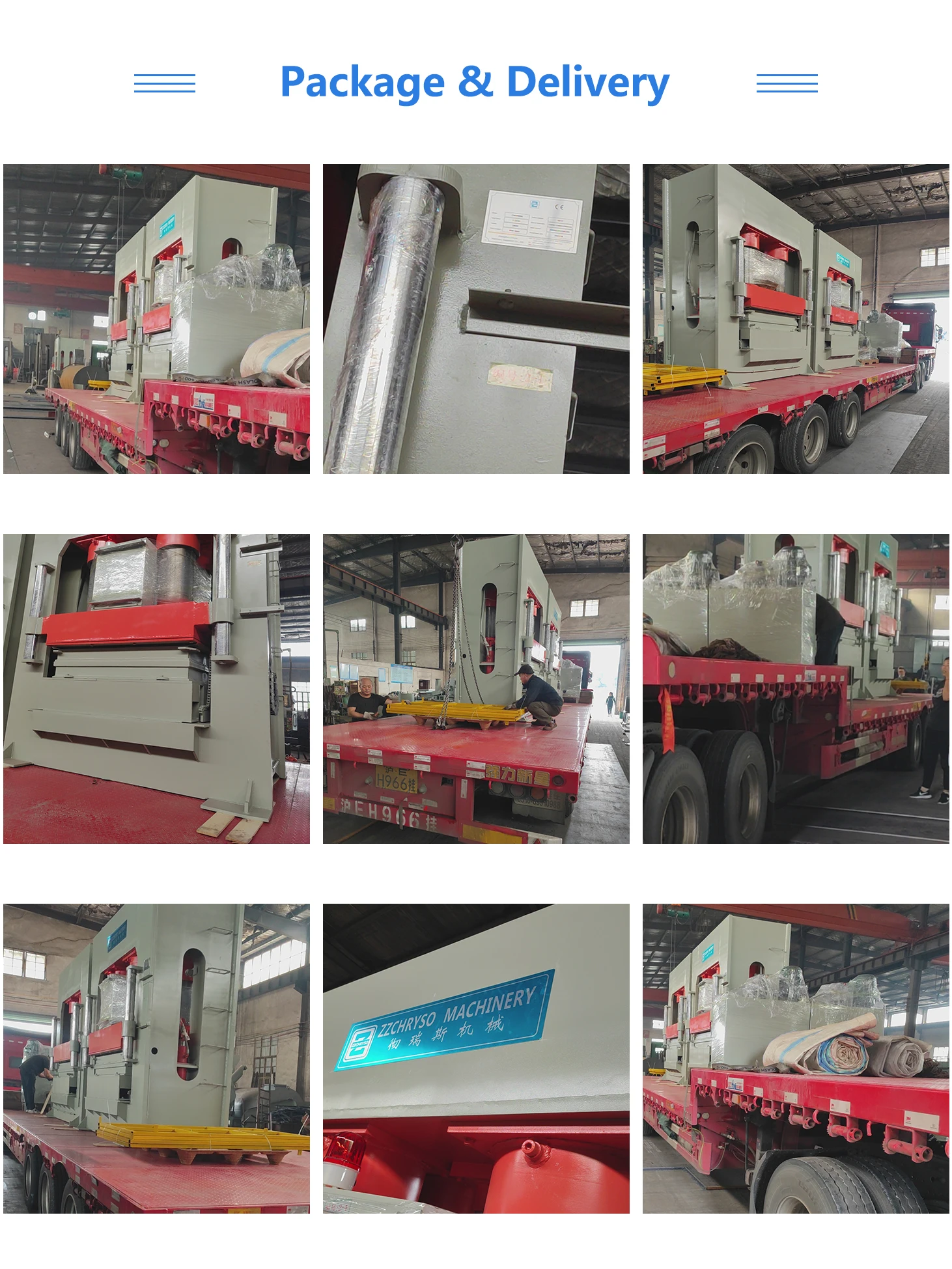

Machine package and delivery
Related products

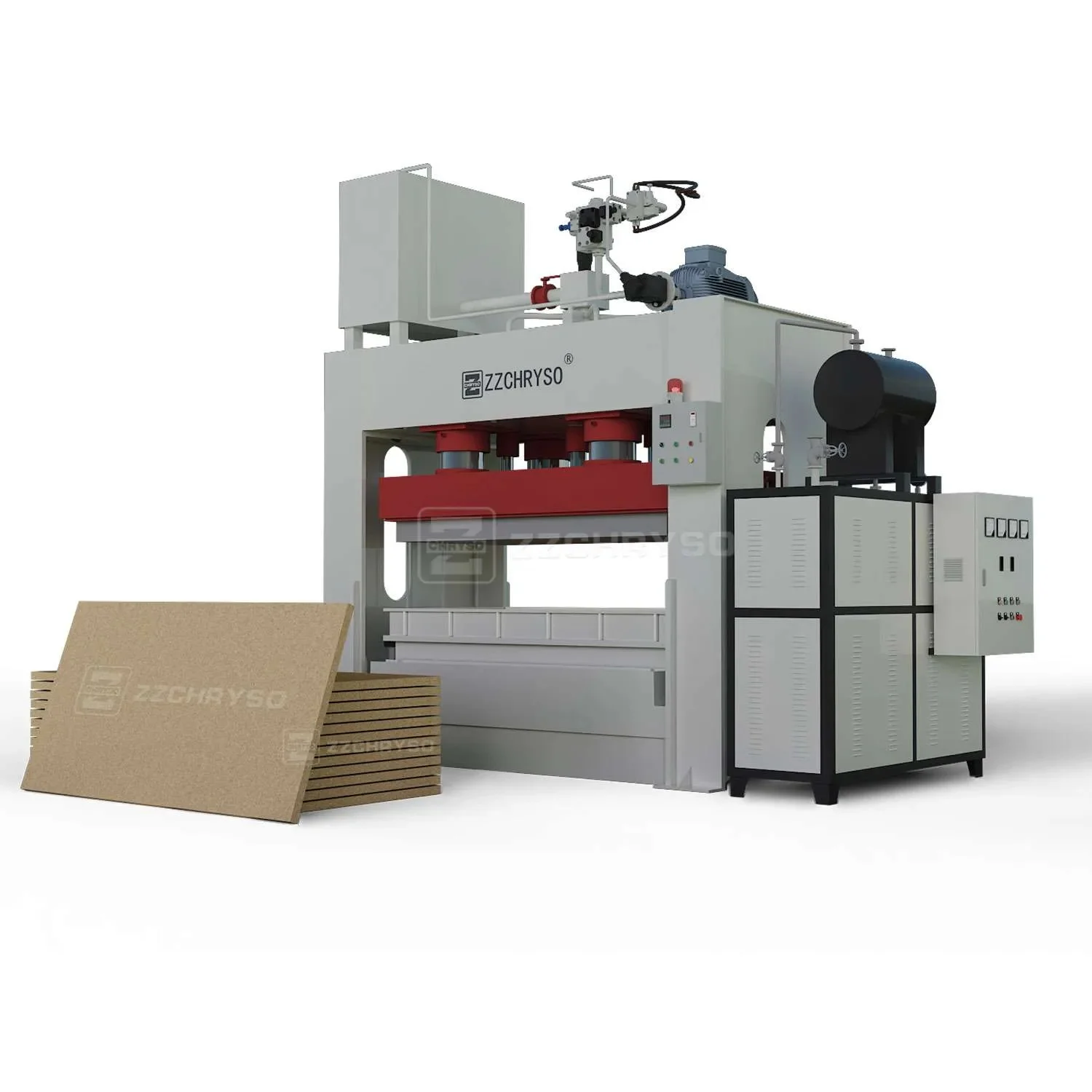

Wood wide board 1220*2440mm press machine

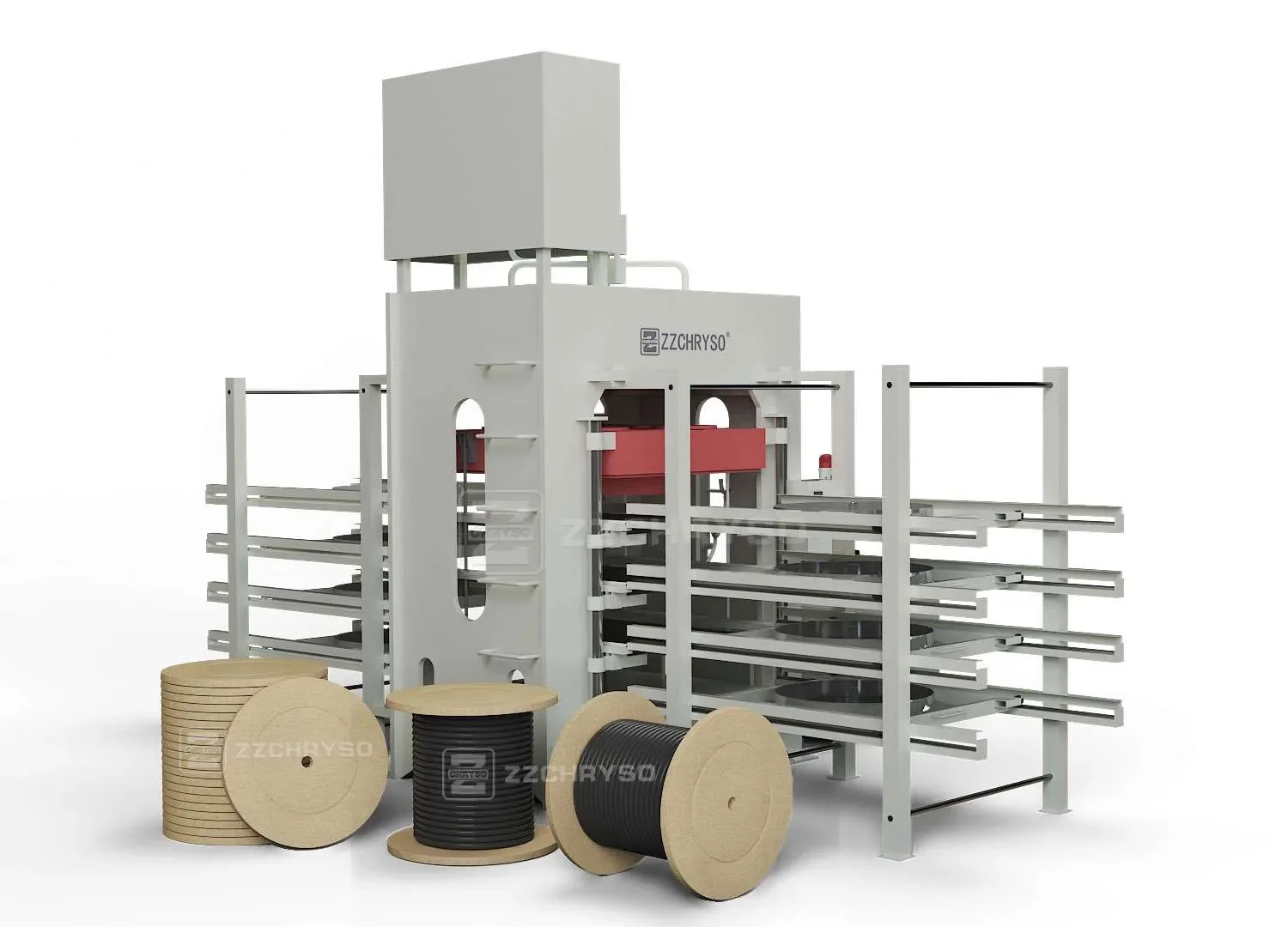

Wood cable reel hot press machine
Our Services
We provide you 7*24 online service!
*Everything you need in one place;
*Save you money with quality products;
*Our deep knowledge and experience in this field supporting your business;
*After-sales maintenance and service (delivery of spare parts, regular service, consulting);
*Conducting pre-commissioning at a customer and staff training;
*Save you money with quality products;
*Our deep knowledge and experience in this field supporting your business;
*After-sales maintenance and service (delivery of spare parts, regular service, consulting);
*Conducting pre-commissioning at a customer and staff training;
FAQ
1.How many workers are needed ?
For the wood pallet making machine ,one worker can look after one machine easily.For crusher,dryer and mixer,need one worker.Theproduction line need 2 workers per shift for 3-4 press machines.
2.How much place will needed ?
Our engineer will draw the whole production line with real dimensions for you according to your machine selection.
3.What's the heating source of the wood pallet making machine ?
We suggest you use a thermal oil boiler as the heating source.
4.How many machines do I need for this production line ?
Mainly ,there are 5 machines in this production line ,they are wood chipper,wood crusher ,wood sawdust dryer ,glue mixer ,wood pallet making machine.
5.What's the pallet size do the machine produce ?
Mainly size such as 1200*1200,1000*1200,1000*1100,800*1200mm etc and can be customized .
6.What should we do if we want to produce different size or sharp wood pallets with one machine?
We can produce different moulds according to your requirement ,and you can change it easily .
7.What's the require of the raw material ?
The best raw material is wood shavings and wood sawdust ,and it need to dry before producing wood pallets .
8.Can you send engineers to our factory ?
Yes ,we can send engineers to your factory for help you install the machines and train your workers .
9.What's the spare pares of the wood block making machine ?
We will send you a list of the spare parts ,you can buy them in your local market or from us ,both is ok.
For the wood pallet making machine ,one worker can look after one machine easily.For crusher,dryer and mixer,need one worker.Theproduction line need 2 workers per shift for 3-4 press machines.
2.How much place will needed ?
Our engineer will draw the whole production line with real dimensions for you according to your machine selection.
3.What's the heating source of the wood pallet making machine ?
We suggest you use a thermal oil boiler as the heating source.
4.How many machines do I need for this production line ?
Mainly ,there are 5 machines in this production line ,they are wood chipper,wood crusher ,wood sawdust dryer ,glue mixer ,wood pallet making machine.
5.What's the pallet size do the machine produce ?
Mainly size such as 1200*1200,1000*1200,1000*1100,800*1200mm etc and can be customized .
6.What should we do if we want to produce different size or sharp wood pallets with one machine?
We can produce different moulds according to your requirement ,and you can change it easily .
7.What's the require of the raw material ?
The best raw material is wood shavings and wood sawdust ,and it need to dry before producing wood pallets .
8.Can you send engineers to our factory ?
Yes ,we can send engineers to your factory for help you install the machines and train your workers .
9.What's the spare pares of the wood block making machine ?
We will send you a list of the spare parts ,you can buy them in your local market or from us ,both is ok.
Wood Pallet Hot Press Machine,Wood Pallet Machine, Wood Pallet Production Line,Hydraulic Wood Pallet Mould machine,Wood Pallet Making Machine,Compressed Wood Pallet Forming Machine,Machine To Make Wood Pallet,Sawdust Pallet Compressed Machine,Hydraulic Wood Pallet Molding Machine,Wood Chips Sawdust Shaving Machine,sawdust recycling wood pallet machine,Molded Pallet Machine
