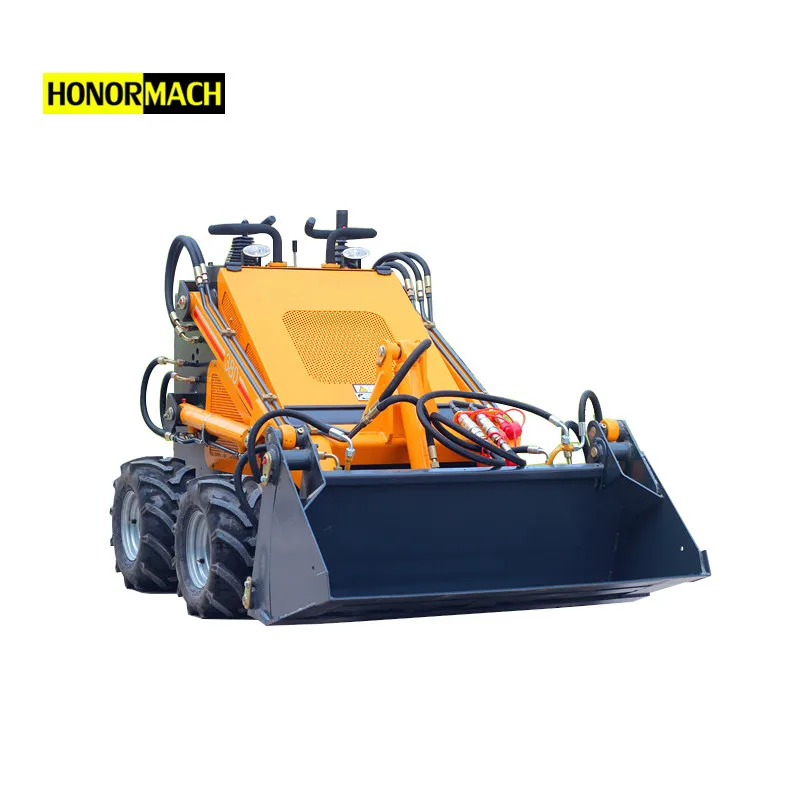

mini front Skid Steer Loader wheel hydraulic Arm
- Category: >>>
- Supplier: Jining Honor Machinery Co. Ltd.
Share on (1601272602272):
Product Overview
Description
Product Description
We have loaders with a loading weight of 165kg-200kg Skid Steer Loaderdiesel loader for different scenarios,and support customized colors and product trademarks
1. For consumers, our products are affordable, long service life, product models from 260 to 425 can meet any of your needs, support customization
2. For suppliers, we will provide you with enough profit margin, and at the same time, we will provide after-sales service for our products within 1 year.We will provide you with testing to ensure product quality before leaving the factory.
Please confirm the actual price with the staff according to the product model/load/configuration,the consultation is free.
1. For consumers, our products are affordable, long service life, product models from 260 to 425 can meet any of your needs, support customization
2. For suppliers, we will provide you with enough profit margin, and at the same time, we will provide after-sales service for our products within 1 year.We will provide you with testing to ensure product quality before leaving the factory.
Please confirm the actual price with the staff according to the product model/load/configuration,the consultation is free.
Click here to send an inquiry--->>click
Specification
Model | HML280 | HML280 | HML380 | ||||||
Engine | Rated power(KW) | 15.435KW(21HP) | 15.435KW(21HP) (Hyakutotsu) | ||||||
Calibration speed (rpm) | 3600 | 3300 (Bailitong standard configuration); 3600 (Kohler) | |||||||
Noise (Db) | ≤95 | ≤95 | |||||||
Hydraulic system | System pressure (Mpa) | 17MPa=170bar=2465psi | 17MPa=170bar=2465psi | ||||||
Lift | 3.31 | 4.27 | |||||||
Dump | 0.72 | 1.34 | |||||||
Land | 1.95 | 3.31 | |||||||
Performance tire parameter | 165 Kg (Metric) | 363.8 Lb (Imperial) | 200 Kg (62% tipping load)(Metric) | 441 Lb (Imperial) | |||||
Bucket volume | 0.12 m3 (Metric) | 4.26 ft3 (Imperial) | 0.15 m3 (Metric) | 5.33 ft3 (Imperial) | |||||
Maximum lifting force | 375 Kg (Metric) | 827 Lb (Imperial) | 375 Kg(Metric) | 827 Lb (Imperial) | |||||
Speed | 0-5.5 Km/h (Metric) | 0-3.4 mlie/h (Imperial) | 0-5.5 Km/h (Metric) | 0-3.4 mlie/h (Imperial) | |||||
Operating weight | Herringbone engineering tire | 744 Kg (Metric) | 1640.5 Lb (Imperial) | 890Kg (Metric) | 1962 Lb (Imperial) | ||||
Solid tire body | 794 Kg (Metric) | 1750.5 Lb (Imperial) | 940 Kg (Metric) | 2072 Lb (Imperial) | |||||
Ordinary tire body | 740Kg (Metric) | 1631.4 Lb (Imperial) | 886 Kg (Metric) | 1953 Lb (Imperial) | |||||
Widened tire body | 704 Kg (Metric) | 1552 Lb (Imperial) | 850 Kg (Metric) | 1874 Lb (Imperial) | |||||
Tracked car body | 855Kg (Metric) | 1884Lb (Imperial) | 1068kg (Metric) | 2355Lb (Imperial) | |||||
Tyre model | Solid tire | 16x6-8 | 16x6-8 | ||||||
Normal tire | 5.00-8 | 5.00-8 | |||||||
Widened tire | KT-302 18*9.5-8 6P/TL | KT-302 18*9.5-8 6P/TL | |||||||
Herringbone engineering tire | 18*6.5-8 | 18*6.5-8 | |||||||
Rim | Solid tire | 4.33R-8 | 4.33R-8 | ||||||
Normal tire | 3.50D | 3.50D | |||||||
Widened tire | 8*6.5 | 8*6.5 | |||||||
Product Display
A slide loader can be used in many scenarios
（The real display of attachments on the machine）
Snow Throwing
Hydraulic Breaker
Rake

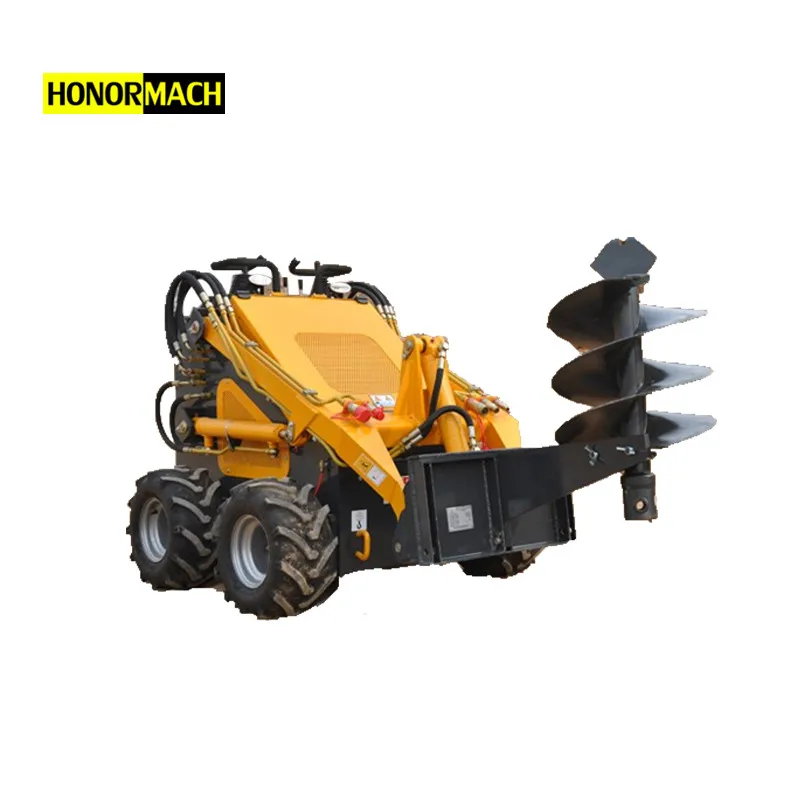

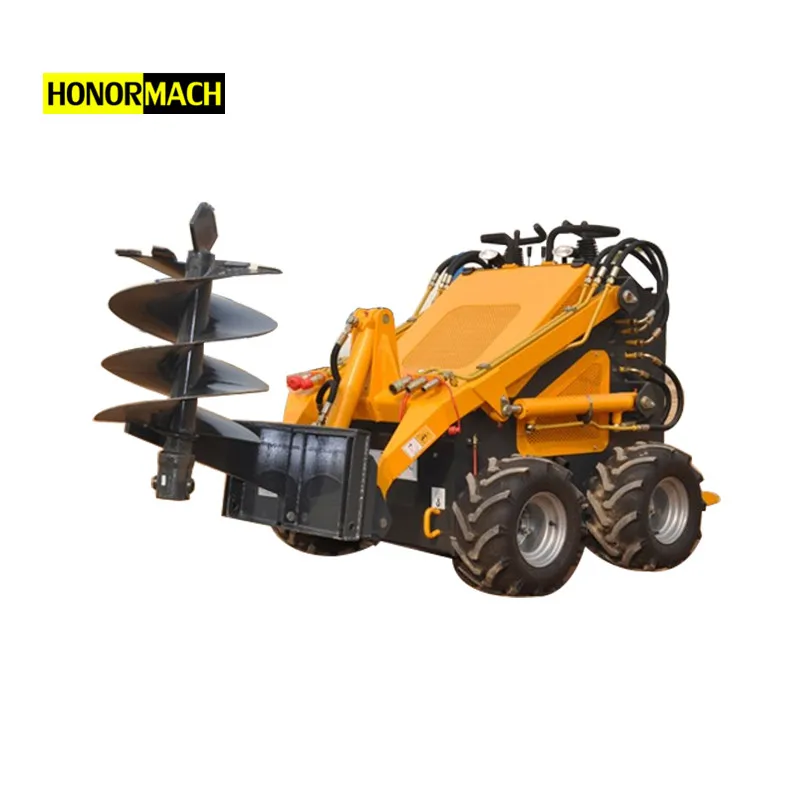

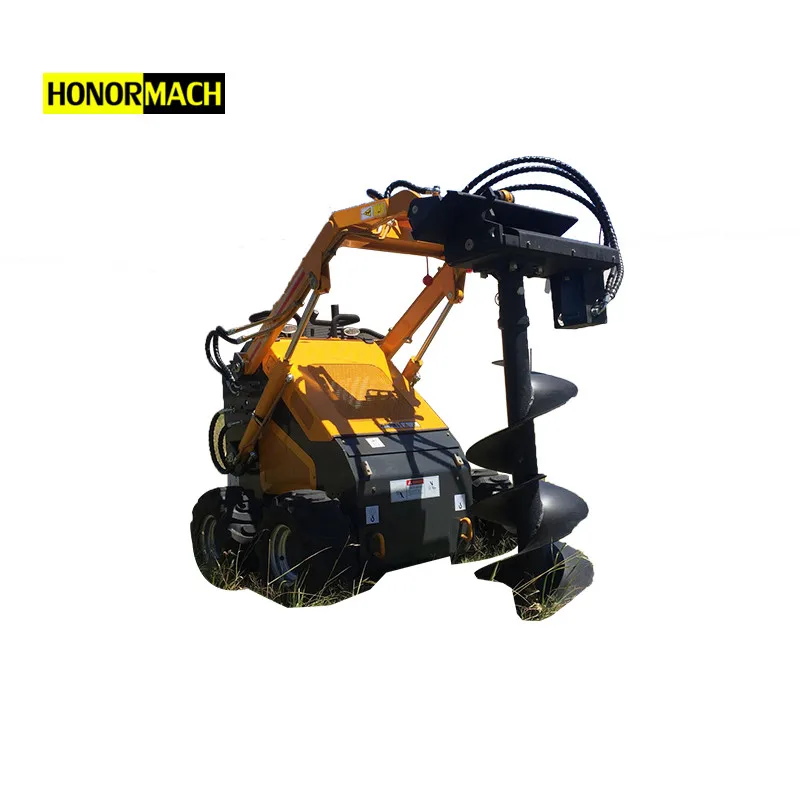

Drilling Auger

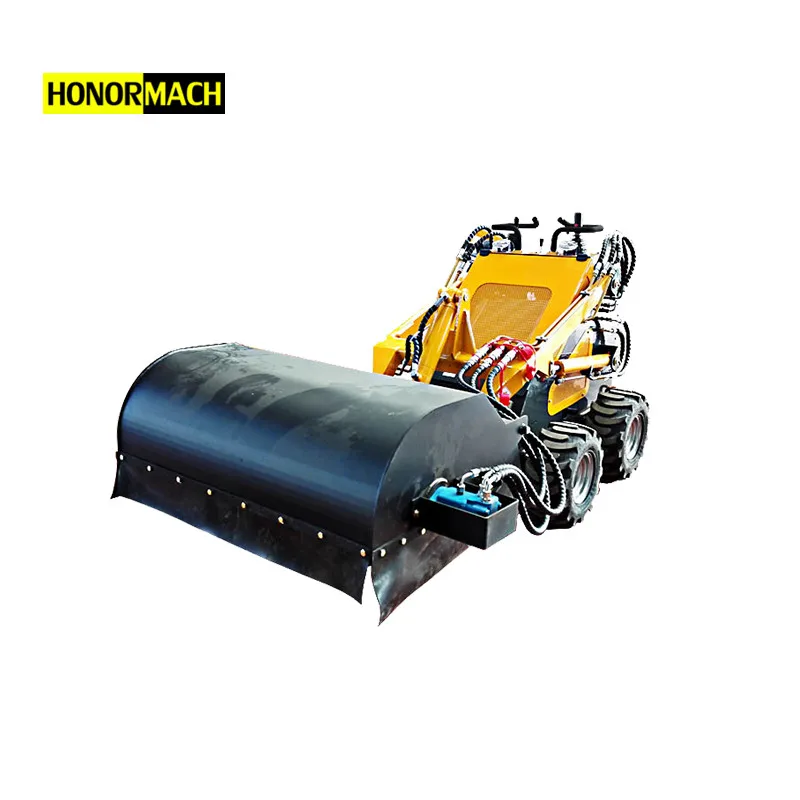

Sweeper
4 ln 1 Bucket
Product Details
ENGINE
-Bailitong
-More efficient and durable
OPERATING TABLE
-Intelligent operating platform-speed control,
-monitor fuel consumption
RUBBER TIRES(Optional TRACK TIRES)
-Good wear resistance, durable-more practical in muddy areas
LIFT CYLINDER
TOP COVER & RADIATOR
AN ACCESSORY PIN
Please contact us for more details--->Click here
Optional tire type
Rubber tires
Rubber track
Product Attachments
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Company information
Jining Honor Machinery Co., Ltd. is a Chinese machinery manufacturer, its predecessor is Shandong Machinery Fifth Factory and Lunan Hydraulic machinery Company, with more than 15 years of construction machinery and hydraulic machinery production experience, covers an area of 20 acres, building area of 9000 square meters.
Our CNC machining center, forming grinder and CNC lathe are all imported from Europe, focusing on the research and development, manufacturing and export of small and medium-sized special machinery such as construction engineering, energy development, general industry, agriculture and forestry. We provide different types of small and medium-sized machinery, including mini excavators, hydraulic balers, skip steer loaders, electric loaders, road marking machines, etc.
Our products are exported to the United States, Germany, Brazil, Canada, India, Turkey, Finland, Malaysia and other countries, with a wealth of product design, manufacturing technology and quality assurance experience, committed to providing customers with the best products and services.
CUSTOMER&WORSHOP
CERTIFICATE
Our Services
Pre-sale Service
1.Detailed pre-sale consultation，help you to chose the fit machine.
1.Detailed pre-sale consultation，help you to chose the fit machine.
2.Making the machine according to you.
3.24 hours online service.
After Service
1.One year after sale guarantee.
2.Quality problem,we'll help you sort it out.
3.Provide you with operating instructions(Operational details)
3.24 hours online service.
After Service
1.One year after sale guarantee.
2.Quality problem,we'll help you sort it out.
3.Provide you with operating instructions(Operational details)
FAQ
Q: How long is the delivery date?
A: In general, we can ship the goods within 5-20days after receiving your payment.
Q: Do you have after-sales service?
A: Yes, The component manufacturer provides a warranty of up to 12 months for the core accessories of our machines. After being identified as a non-human damaged part, we will provide you with free repair parts (excluding freight) and remote technical support during the warranty period of the parts.
Q: Can you print my brand name on it?
A: Of course, you just need to send us the picture of your brand.
Q: What’s your payment term?
A:100% payment security T/T, letter of credit, Western Union.
A: In general, we can ship the goods within 5-20days after receiving your payment.
Q: Do you have after-sales service?
A: Yes, The component manufacturer provides a warranty of up to 12 months for the core accessories of our machines. After being identified as a non-human damaged part, we will provide you with free repair parts (excluding freight) and remote technical support during the warranty period of the parts.
Q: Can you print my brand name on it?
A: Of course, you just need to send us the picture of your brand.
Q: What’s your payment term?
A:100% payment security T/T, letter of credit, Western Union.
