AI BSD Pedestrian Blind Spot Detection Ai Based Rear Parking Wireless Forklift Camera System
- Category: >>>
- Supplier: MCY Technology Limited
Share on (1601272689015):
Product Overview
Description
Products Description
Features

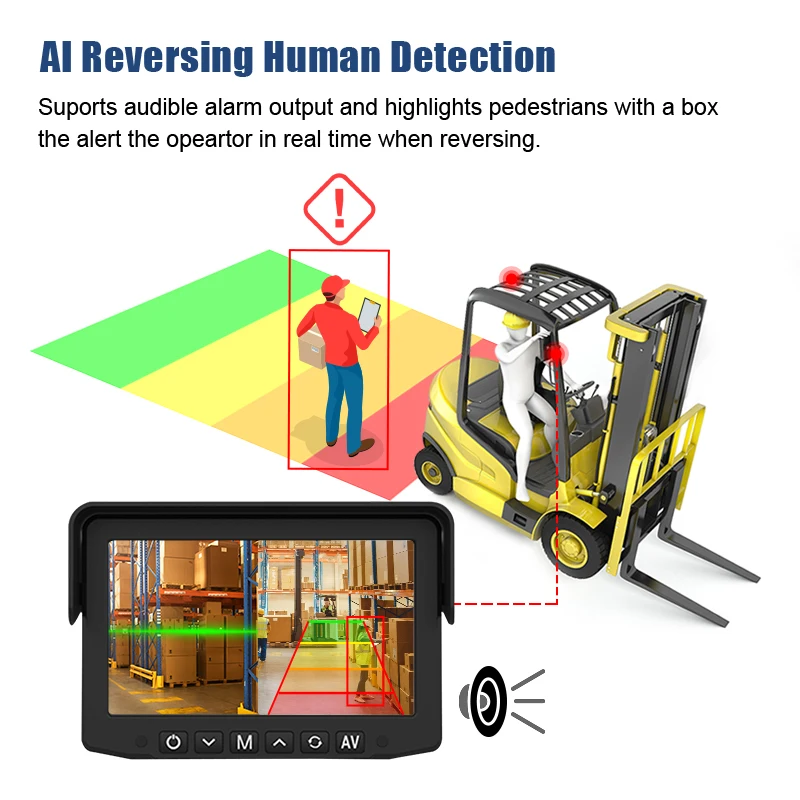

1) 7 inch LCD TFT HD display wireless monitor, support AI BSD Pedestrian blind spot detection
2) 720P wireless fork camera, IR LED, better day and night vision
2) 720P wireless fork camera, IR LED, better day and night vision
3) 720P rear camera, IR LED, IP67 waterproof
4) Laser positioning for accurate handling goods
5) Support wide operating voltage range: 12-24 V DC

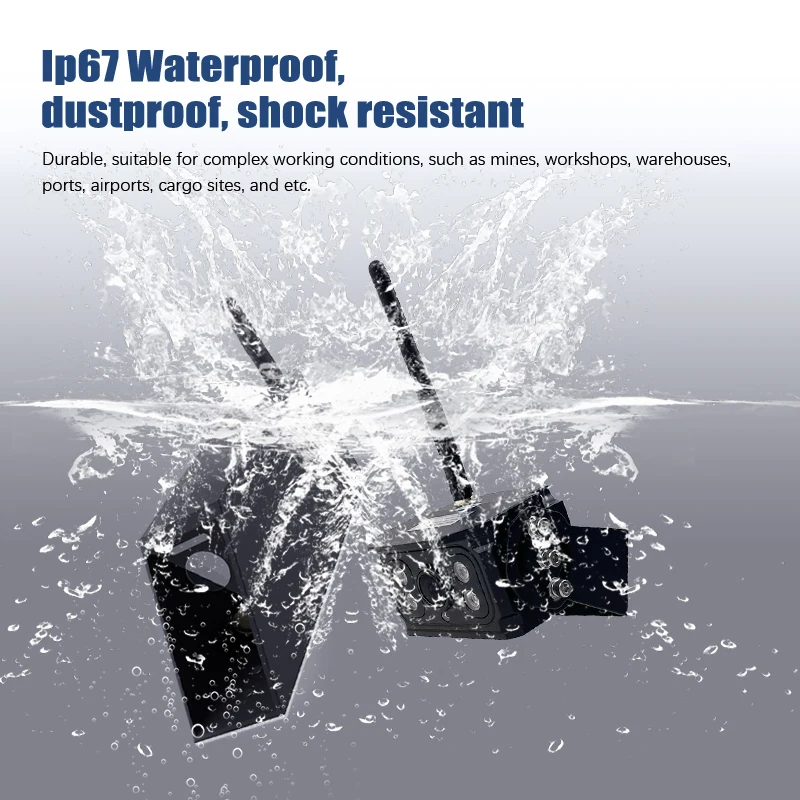

6) IP67 waterproof design for working well in all adverse weather conditions
7) Operating Temperature: -20℃~+70℃, for stable performance in low and high temperature
8) Magnetic base for easy and quick installation, mount without drilling holes
8) Automatic pairing with no interference
10) Rechargeable battery for camera power input

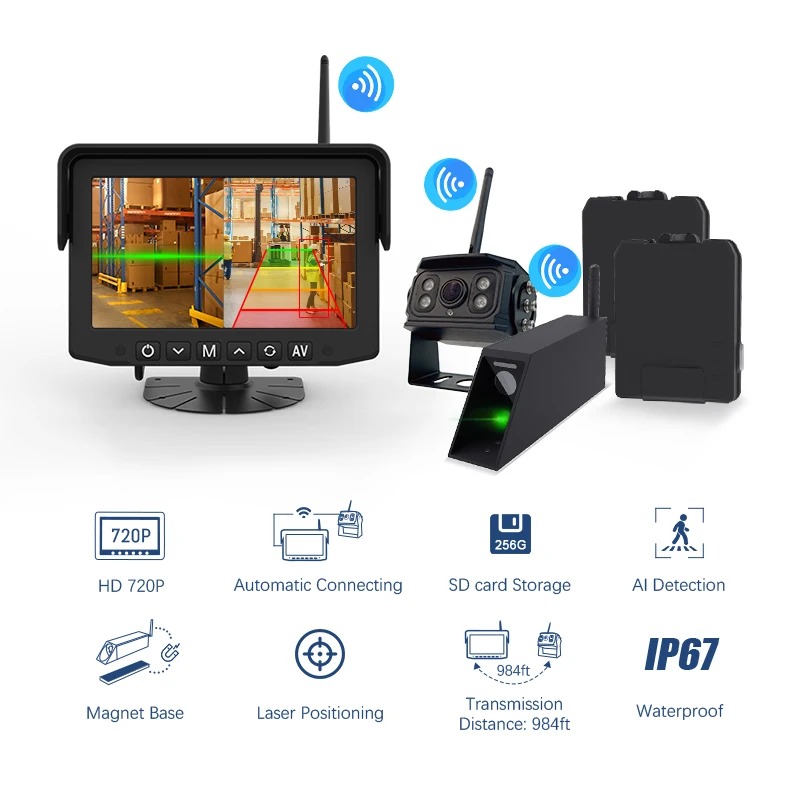

>> System Kit: 1* 7 inch wireless monitor, 1* wireless fork camera, 1*rear camera, 2*rechargeable battery
5) Support wide operating voltage range: 12-24 V DC
6) IP67 waterproof design for working well in all adverse weather conditions
7) Operating Temperature: -20℃~+70℃, for stable performance in low and high temperature
8) Magnetic base for easy and quick installation, mount without drilling holes
8) Automatic pairing with no interference
10) Rechargeable battery for camera power input
>> System Kit: 1* 7 inch wireless monitor, 1* wireless fork camera, 1*rear camera, 2*rechargeable battery
**Note: Please kindly contact MCY for more information before starting order.
7 inch TFT Wireless Monitor | ||
Model | TF78 | |
Screen Size | 7 inch 16:9 | |
Resolution | 1024*3(RGB)*600 | |
Contrast | 800:1 | |
Brightness | 500 cd/m2 | |
View Angle | U/D: 85, R/L: 85 | |
Channel | 1-4 channels | |
Receiving Sensitivity | 23dbm | |
Video Compression | H.264/H.265 | |
12Latency | 120ms | |
Transmitting Distance | 300m in open space | |
Power Supply | DC10-32V | |
Power Consumption | Max.6w | |
Wireless Fork Camera | ||
Effective Pixels | 1280*720 pixels | |
Frame Rate | 25fps/30fps | |
Video Format | H.264/H.265 | |

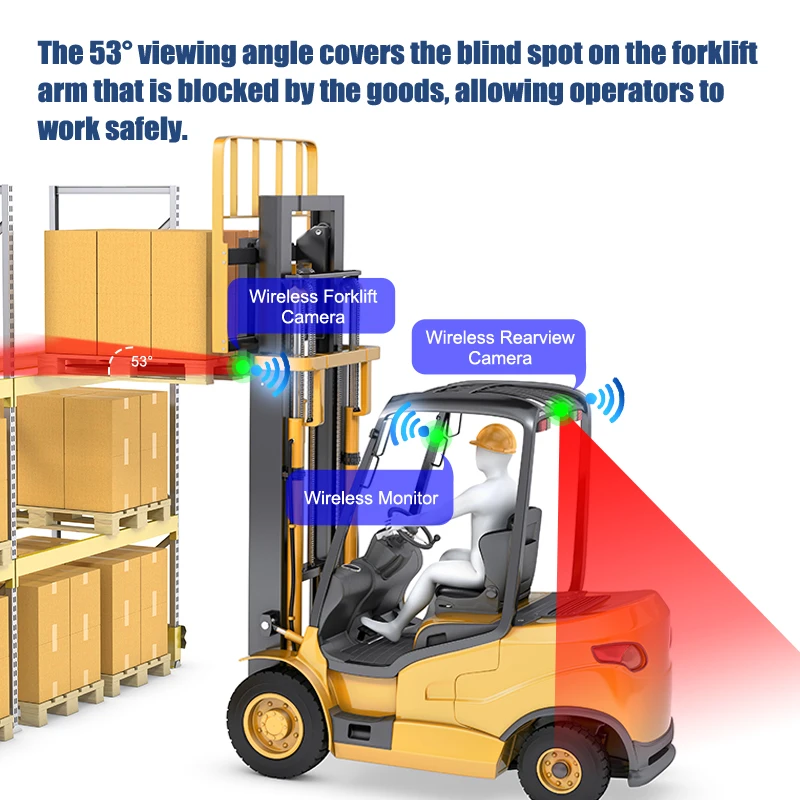

View Angle | 53 degree | |
Night Vision Distance | 5-10m | |
Wireless Rear Camera | ||
Effective Pixels | 1280*720 pixels | |
Frame Rate | 25fps/30fps | |
Video Format | H.264/H.265 | |
Frequency | 2412 ~ 2484MHz | |
Receiving Sensitivity | --90dBm@4MHZ | |
Working Temperature | -30~+70℃, RH90% | |
Storage Temperature | -30~+80℃, RH90 | |
Power Consumption | Max.1.6W | |
