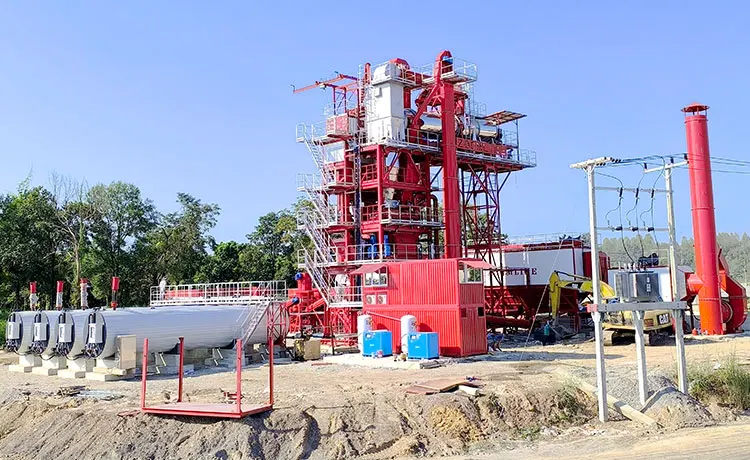

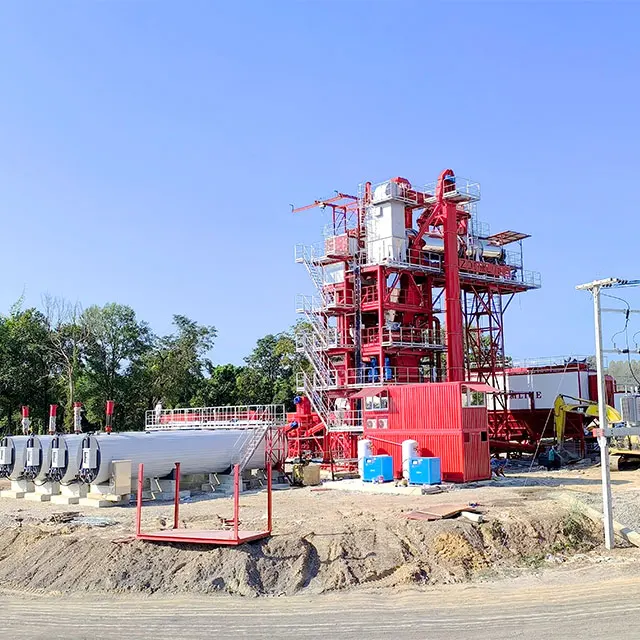

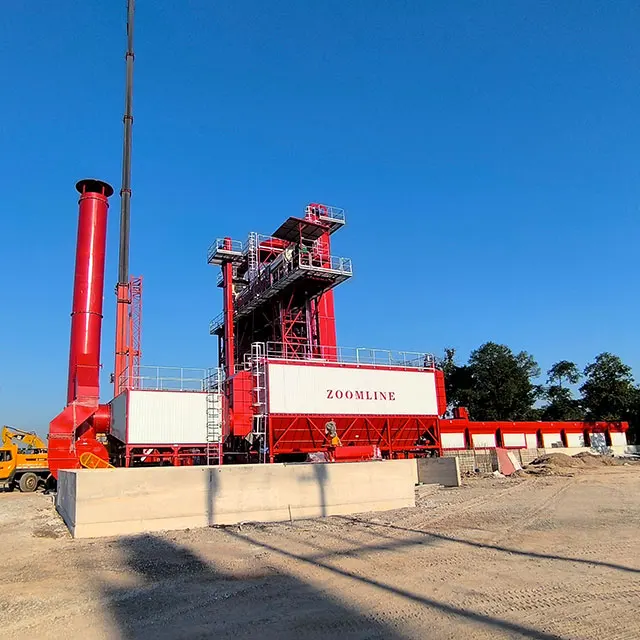

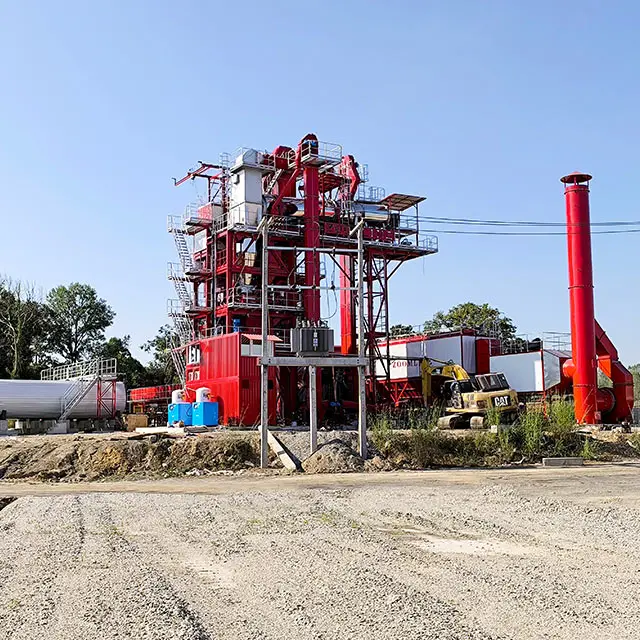

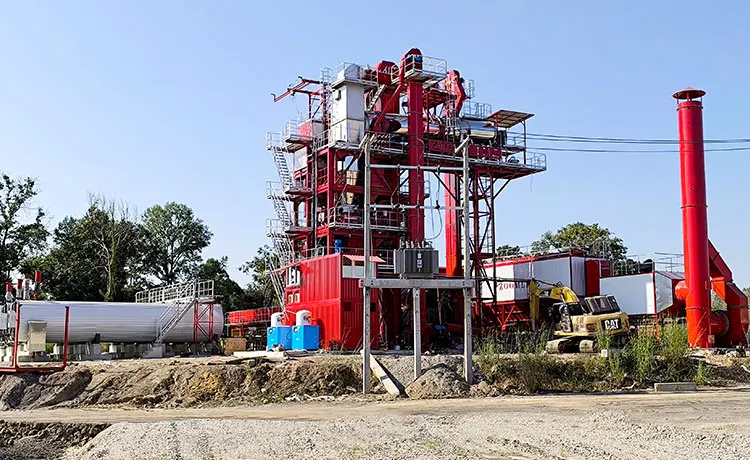

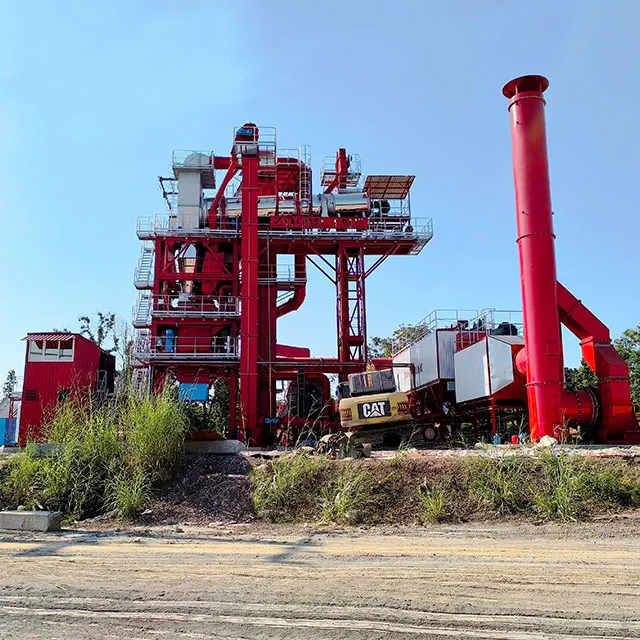

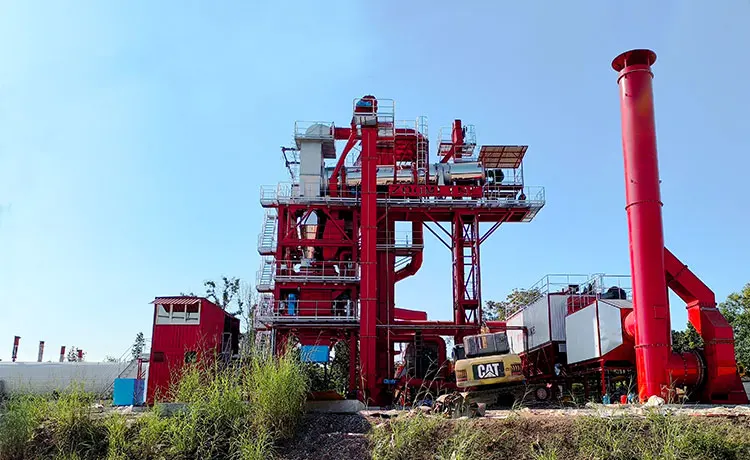

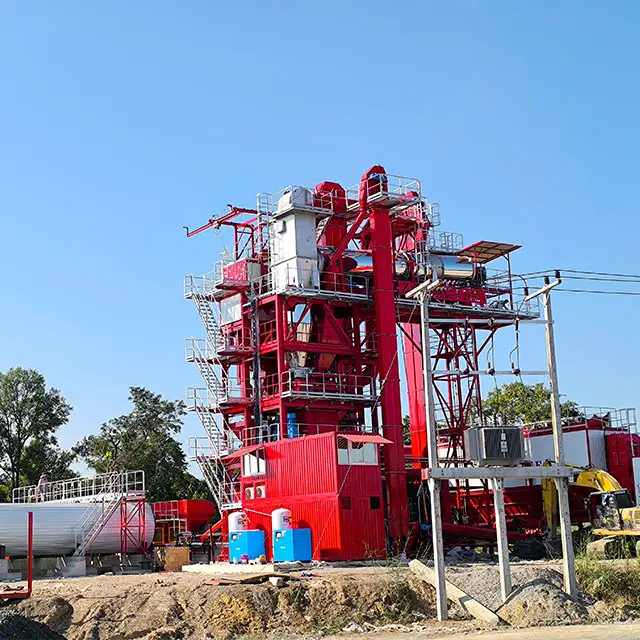

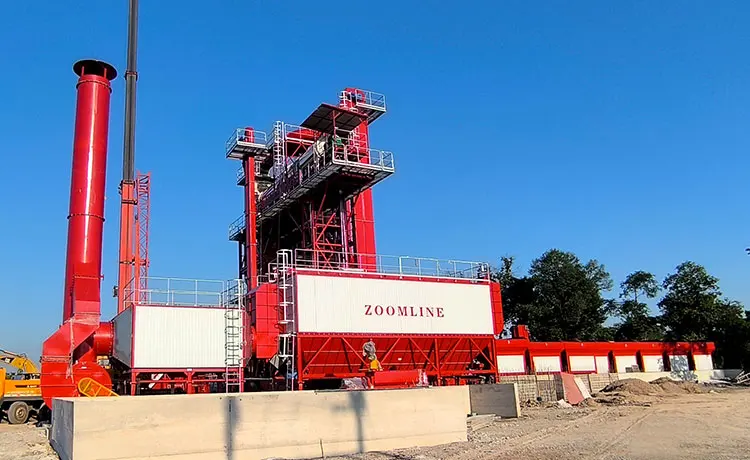

160 & 80tph Recycled asphalt batch mix plant

On the basis of many years of experience in construction experience and absorbed advanced experience at home and abroad, ZOOMLINE Asphalt Recycling Mixing Plant(RAP)series has solved the big problem of adhesion which the asphalt regenerated material in the recycling operation for the normal additional asphalt though independent innovation research and development. It can keep the normal production of the asphalt mixing plant and add a certain proportion of asphalt recovery to stir in the mixing cylinder with aggregate, so as to increasing output and reduce the cost of production in operation.
In order to achieve this goal, the capacity of the mixing cylinder in Asphalt plant is increased and the bag dust collector is equipped to meet the heat regeneration equipment. The configuration of the integral Recycling asphalt plant in ZOOMLINE machinery is diversified, in which a separate mixing tank for recycled bitumen and regenerant can be added to the main recycling building according to customer requirements.

Main components of 60-16TPH asphalt mixing plant:

Asphalt mixing plant mainly including cold feed systems, drying system, burning system, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, bitumen supply system, powder supply system, dust removal system, finished product storage bin, control system and other parts.

Cold Aggregate Feeding Bin

- Feeding control by frequency converter, automatic control to make feeding smoothly
- With alarming device for material shortage
- Adopt seamless belt, long service life

Drying Drum & Burning System

- Exclusive design of material blade, improve heating efficiency 30% than conventional design, energy saving
- Body and material blade adopt boiler iron, long service life
- 50mm thickness heat insulation layer, low heat loss
- “Butterfly” elastic connection plate design, avoid elastic cracking
- Italy EBICO oil/gas/coal burner: high combustion efficiency, saving energy and low emission
- HONEYWELL temperature control system, safe and easy operation

Mixing Tower

- Improved vibration and amplitude to optimize impact on the available screen
- All our screens have the largest screening area in their class
- The best combination of vibrating direction & screen box dip angle, ensure ratio and screening efficiency
- Adopt long arms and short shaft, and shallow structure, more compact
- Large sliding gate structure, discharge asphalt mixture speedy
- Mixing blade and scale board adopt wear-resistant alloy iron, long service life
- Bidirectional mixing blades, mix in 3D spaces, high mixing efficiency

Bitumen Storage & Heating System

- Electric/diesel/gas/coal powered heating type as optional for convenience of users
- QINGTIAN bitumen gear pump, long service life and low failure rate
- Integrated modular design, easy to transport

Dust Collecting System

- Gravity primary dust collector collecting and recycling bigger fine, saving consumption
- Bag house secondary dust collector control emission be lower than 20mg/Nm3, eco-friendly
- USA Dopont NOMEX filter bags, high temperature resistance and long service life
- Smart control of pulse dust removal system, removing dust clearly
- High temperature alarming and automatic cold air value unit, ensure safety of bags
- Dust humidification mixing machine to avoid dust flying

Control System

- Adopt Switzerland METTLER TELEDO weighing modular accurate weighing
- Adopt Germany FESTO cylinder & magnetic valve, long service life and low failure rate
- Germany SIEMENS electrical element, working stably
- Japan ORMON PLC and touch screen, with multi-language display, easy operation and control

The main accessories of asphalt mixing plant:

Technical parameters of ZAP-S series asphalt mixing plant:

& Technical parameters of asphalt recycling machine &

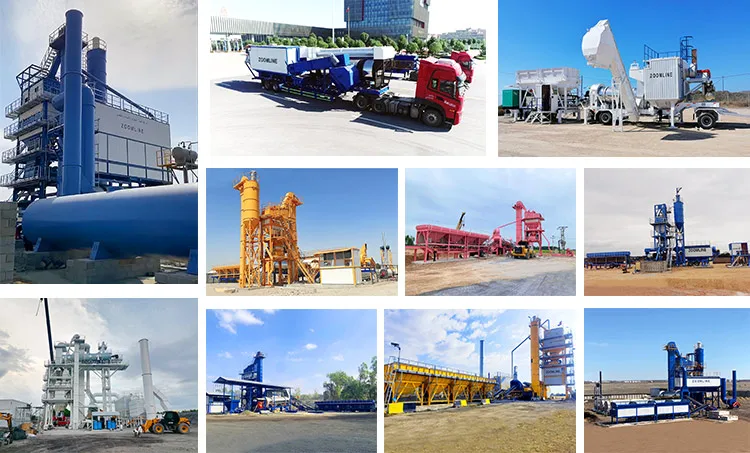

Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Uzbekistan, Kyrgyzstan, Egypt, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.

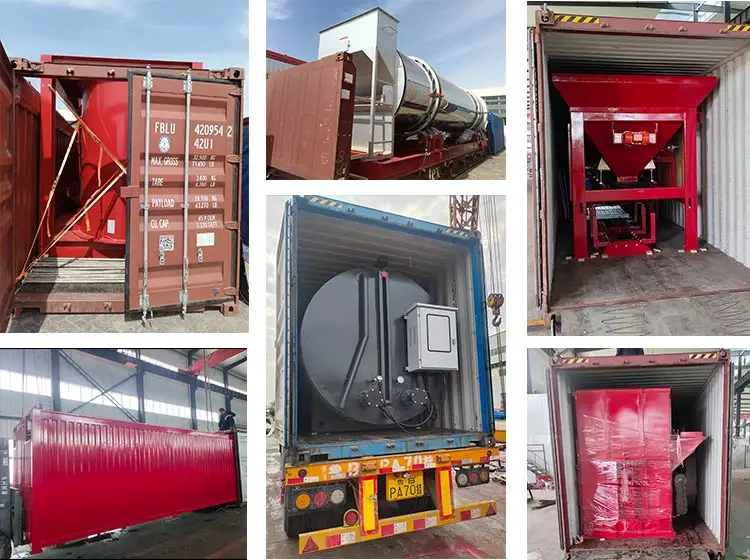

1.The whole asphalt mixing plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
2.All the components of this asphalt plant can be put into the container, can greatly reduce transport cost.

Our professional after-sales services team could provide timely and reliable service for any of our customers who need support.

1. Professional technical team, to provide users with equipment selection, layout program design, construction programs and other consultation services.

2. Technical guidance during equipment operation, PLC with remote monitoring, large capacity recipe storage,special needs customization.

3. Equipment installation, commissioning, training technical support. Provide a full range of technical training on operation, maintenance for users and equipment manager, to provide multiple technical advice.

4. The equipment upgrades, relocation technical support in the future. To provide seamless equipment technology upgrades,perfect and efficient removal plan.
