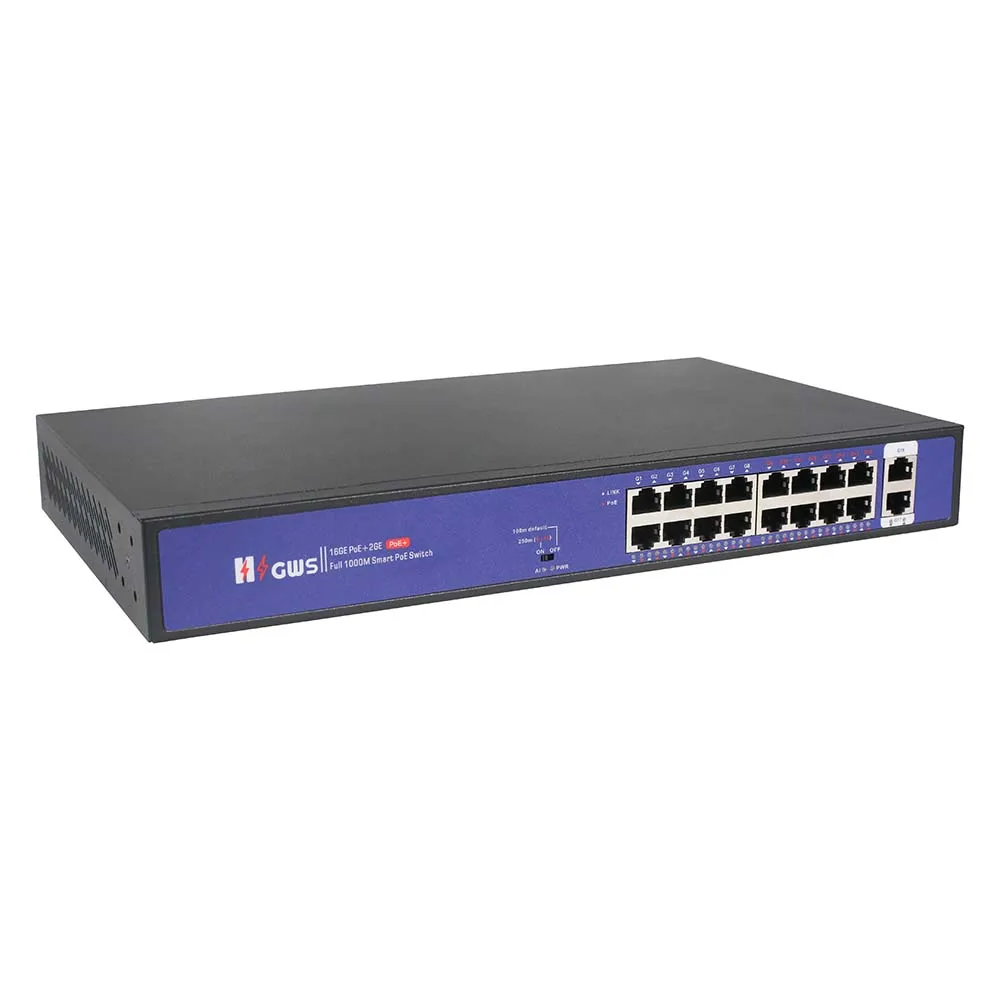

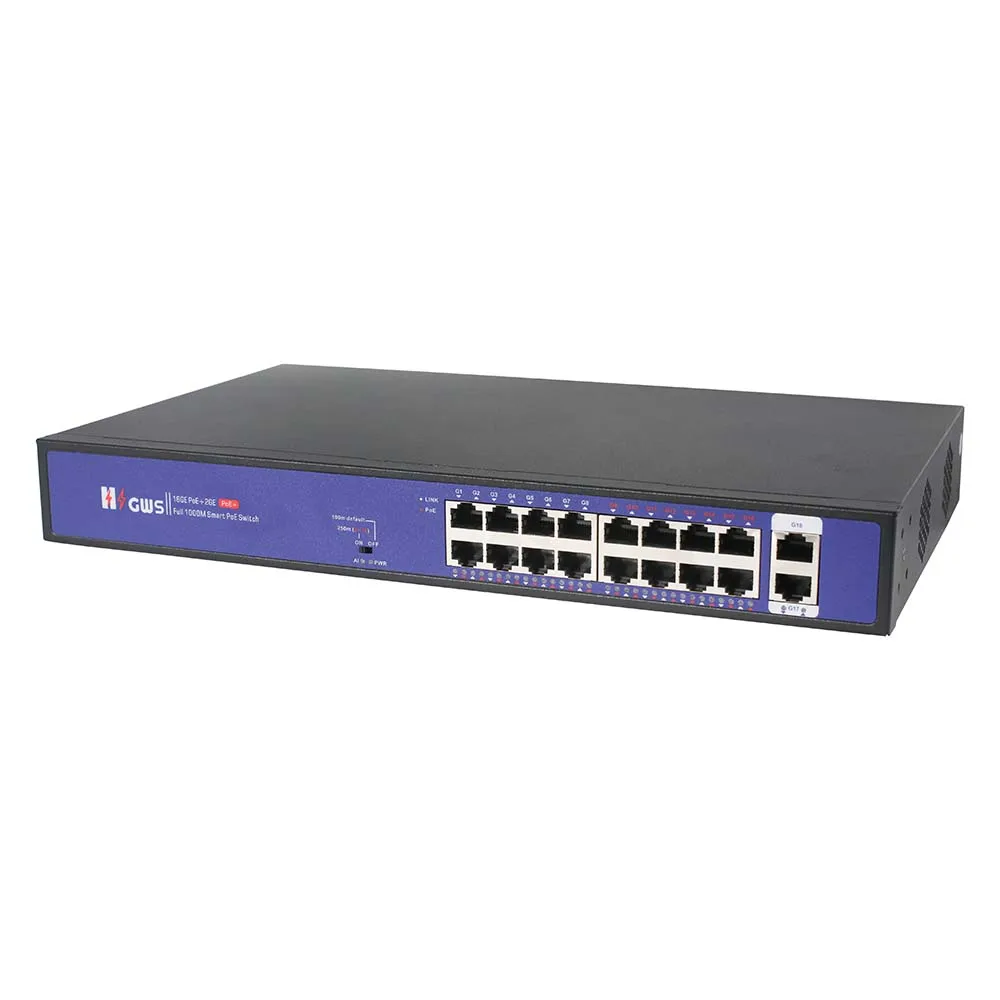

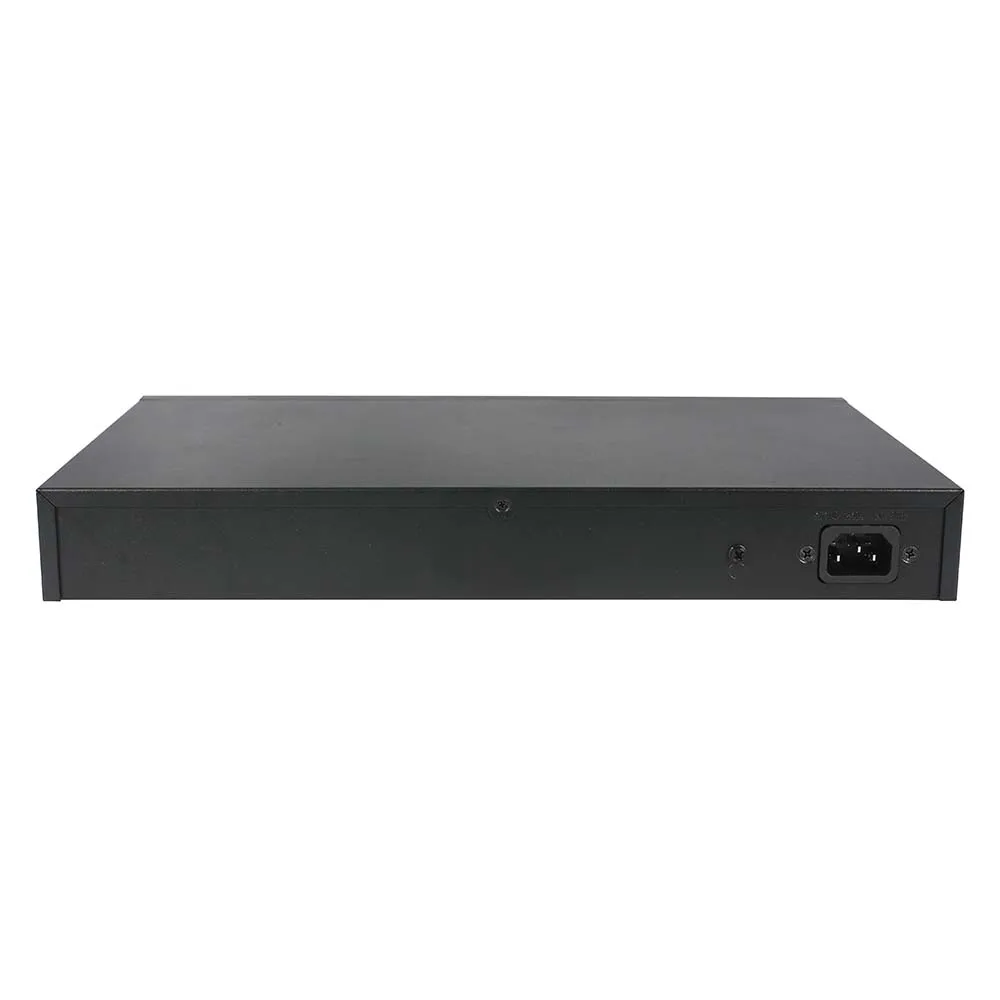

10/100/1000M 16 Ports POE Switch 250m long distance Supported Standard POE Ethernet Switch
10/100/1000M 16 Ports POE Switch 250m long distance Supported Standard POE Ethernet Switch
10/100/1000M 16 Ports POE Switch 250m long distance Supported Standard POE Ethernet Switch
10/100/1000M 16 Ports POE Switch 250m long distance Supported Standard POE Ethernet Switch
10/100/1000M 16 Ports POE Switch 250m long distance Supported Standard POE Ethernet Switch
10/100/1000M 16 Ports POE Switch 250m long distance Supported Standard POE Ethernet Switch
10/100/1000M 16 Ports POE Switch 250m long distance Supported Standard POE Ethernet Switch

10/100/1000M 16 Ports POE Switch 250m long distance Supported Standard POE Ethernet Switch

Share on (1601272697199):


Price:$44.13 - $51.74

Quantity:


Product Overview

Description



Product Description




Specification


Model
GWS-3016PSD
GWS-3024PSD
Interface Characteristics
Fixed Port
16*10/100/1000Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
24*10/100/1000Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port
Port 1-16/1-24 can support 10/100/1000Base-T(X) and 17-18/25-26 can support 100/1000Base-T(X) automatic detection,
full/half-duplex MDI/MDI-X auto-sensing
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
Functional Switch
E: long-distance function (Default: OFF, Use:ON), After opening, ports 9-16/17-24 support 10M/250m long distance + POE watchdog
Chip Parameter
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-X,IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Switching Capacity
36Gbps (Non-blocking)
52Gbps (Non-blocking)
Forwarding
Rate@64byte
26.78Mpps
38.69Mpps
MAC
16K
16K
Buffer Memory
4M
Jumbo Frame
10K
LED Indicator
Power: PWR (Green), Network: Link (Green), PoE: PoE (Green), Functional switch: EXTEND (Green)
PoE & Power Supply
PoE Port
Port 1 to 16 @ IEEE802.3af/at
Port 1 to 24 @ IEEE802.3af/at
Power Supply Pin
1/2(+) 3/6(-)
Max Power Per Port
30W, IEEE802.3af/at
Total PWR / Input Voltage
160W/ (AC100-240V)
250W/ (AC100-240V)
Power Consumption
Standby <5W, Full load <160W
Standby <5W, Full load <250W
Power Supply
Built-in power supply, AC100~240V 50-60Hz 3A
Built-in power supply, AC100~240V 50-60Hz 4.8A
Physical Parameter
Operation TEMP / Humidity
-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+75°C, 5%~95% RH Non condensing

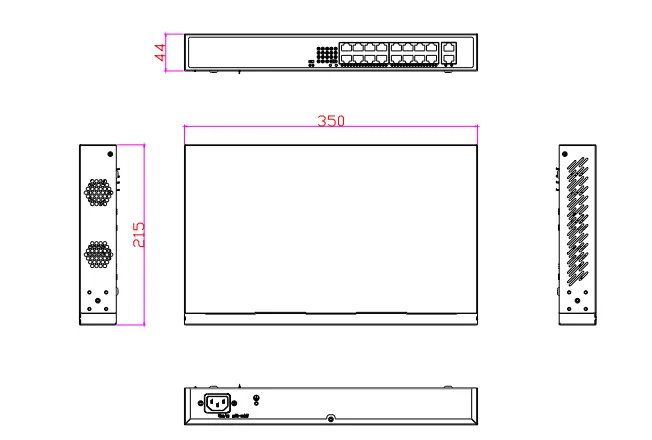

Dimension (L*W*H)
350*215*44mm
350*215*44mm
Net /Gross Weight
<1.75kg / <2.2kg
<2.0kg / <2.5kg
Installation
Desktop, Rack-mounted
Certification & Warranty
Lightning Protection
Lightning protection: 4KV 8/20us, Protection level: IP30
Certification
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty
1 year, lifelong maintenance.


Packing List


Packing List
CONTENT
QTY
UNIT
18-port Full Gigabit PoE Switch
1
SET
AC Power Line
1
PC
User Guide
1
PC
Warranty Card
1
PC
