Product Overview
Description
Product Description
1. Refining pot
Stirring speed 0~100r/min, arbitrary speed adjustment; temperature range <200 degrees Celsius; material is Q235B or 304 stainless steel; oil refining working temperature 30~90 degrees Celsius, stirring speed 30 or 60r/min. Used for dephosphorization, deacidification and water washing of oil products. The heating medium is electric heating tube or heat transfer oil or steam, and the working pressure is normal pressure.
2. Decolorization pot
Stirring speed 60r/min, temperature range <200 degrees Celsius; material is Q235B or 304 stainless steel; oil decolorization working temperature 105-110 degrees Celsius, stirring speed 60r/min. Used for dehydration and decolorization of dephosphorized and deacidified oil products, the heating medium is electric heating tube or heat transfer oil or steam, and the working environment is negative pressure vacuum
3. Deodorization pot
Temperature range <300 degrees Celsius, material is 304 stainless steel, oil deodorization temperature is 240~270 degrees Celsius, used for deodorization of decolorized oil, heating medium is electric heating tube or heat transfer oil or steam, working environment is negative pressure vacuum.
Stirring speed 0~100r/min, arbitrary speed adjustment; temperature range <200 degrees Celsius; material is Q235B or 304 stainless steel; oil refining working temperature 30~90 degrees Celsius, stirring speed 30 or 60r/min. Used for dephosphorization, deacidification and water washing of oil products. The heating medium is electric heating tube or heat transfer oil or steam, and the working pressure is normal pressure.
2. Decolorization pot
Stirring speed 60r/min, temperature range <200 degrees Celsius; material is Q235B or 304 stainless steel; oil decolorization working temperature 105-110 degrees Celsius, stirring speed 60r/min. Used for dehydration and decolorization of dephosphorized and deacidified oil products, the heating medium is electric heating tube or heat transfer oil or steam, and the working environment is negative pressure vacuum
3. Deodorization pot
Temperature range <300 degrees Celsius, material is 304 stainless steel, oil deodorization temperature is 240~270 degrees Celsius, used for deodorization of decolorized oil, heating medium is electric heating tube or heat transfer oil or steam, working environment is negative pressure vacuum.
Different Models
Technical Indicators
Model | Output | Parameter | Power composition |
JL-600 | 0.5TPD | φ600*1200 | XLD3-23-1.5-4/8 |
JL-700 | 0.8TPD | φ700*1300 | XLD3-23-1.5-4/8 |
JL-800 | 1TPD | φ800*1500 | XLD3-23-1.5-4/8 |
JL-1000 | 2TPD | φ1000*2000 | XLD3-23-2.2-4/8 |
JL-1200 | 3TPD | φ1200*2350 | XLD3-23-2.2-4/8 |
JL-1500 | 5 TPD | φ1500*2800 | XLD3-23-4-4/8 |
JL-1800 | 10TPD | φ1800*3250 | XLD3-23-4-4/8 |

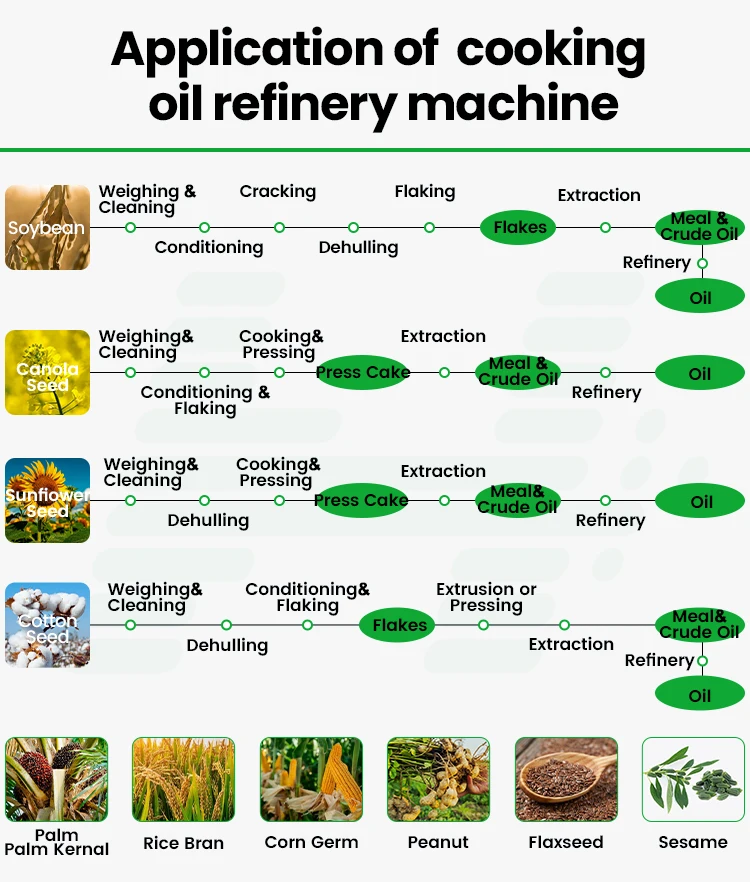

Application
What Can We Do for You
We focus on supplying one-stop engineering service covering general layout plan, process design, R&D, equipment manufacturing, automatic control system, data integration, installation, supervision, commissioning, training and etc.
Our custom solutions come from a deep understanding of your needs, and we have the capability to complete each project from the design of the initial concept to manufacturing, installation, commissioning and delivery.
Our custom solutions come from a deep understanding of your needs, and we have the capability to complete each project from the design of the initial concept to manufacturing, installation, commissioning and delivery.
About Us
Henan Oil Press Machinery Co., Ltd. is a professional company integrating R&D, design, equipment manufacturing and installation, engineering contracting, technical services and international trade. The company's business involves oilseed preparation, refining, extraction,Hydrogenation,Interesterification, as well as the pressing, refining and fractionation of palm oil and palm kernel oil.
The company has passed the ISO9001: 2000 quality management system certification and has a number of invention patents.
Customer Visits
Henan Oil Press Machinery Co., Ltd. regards quality as life, adheres to integrity, mutual benefit and common prosperity, and carries things with virtue; in accordance with the current high-standard production process, to ensure product quality and service quality.
Welcome global users to discuss cooperation.
FAQ
Q1. How to choose refining equipment?
A1: You can provide information such as planned daily output, common oilseeds, crude oil indicators, and refined oil indicators, and we will have professional engineers to design a solution suitable for you. For novices, we have a one-to-one project team to connect with you and provide a one-stop solution based on your national standards & international standards.
Q2. How to use refining equipment?
A2: We will be equipped with operation manuals & maintenance manuals, and provide remote online support. If you need, we can send technicians to the site to provide technical support.
Q3. Can you come to install the equipment?
A3: Yes, we provide equipment installation & commissioning services. Engineers can be dispatched on-site for guidance or engineering teams can be dispatched to install & debug on site according to your requirements.
Q4. What if the equipment fails and needs repair?
A4: We provide a 1-year warranty and free spare parts during the warranty period. If the equipment fails, we will provide a solution within 24 hours. If the online support cannot solve the problem, we will send engineers to solve it on site within 72 hours.
Q5. How long will it take to deliver?
A5: We have a standardized manufacturing plant, and the delivery cycle and quality are very well guaranteed. We will schedule production according to the time of signing the contract. Small equipment will meet the delivery conditions within 30 days, equipment with a daily output of 10-30 tons will meet the delivery conditions within 45 days, equipment with a daily output of 30-100 tons will meet the delivery conditions within 60 days, and equipment above 100 tons will be completed on schedule according to the contract requirements.
A1: You can provide information such as planned daily output, common oilseeds, crude oil indicators, and refined oil indicators, and we will have professional engineers to design a solution suitable for you. For novices, we have a one-to-one project team to connect with you and provide a one-stop solution based on your national standards & international standards.
Q2. How to use refining equipment?
A2: We will be equipped with operation manuals & maintenance manuals, and provide remote online support. If you need, we can send technicians to the site to provide technical support.
Q3. Can you come to install the equipment?
A3: Yes, we provide equipment installation & commissioning services. Engineers can be dispatched on-site for guidance or engineering teams can be dispatched to install & debug on site according to your requirements.
Q4. What if the equipment fails and needs repair?
A4: We provide a 1-year warranty and free spare parts during the warranty period. If the equipment fails, we will provide a solution within 24 hours. If the online support cannot solve the problem, we will send engineers to solve it on site within 72 hours.
Q5. How long will it take to deliver?
A5: We have a standardized manufacturing plant, and the delivery cycle and quality are very well guaranteed. We will schedule production according to the time of signing the contract. Small equipment will meet the delivery conditions within 30 days, equipment with a daily output of 10-30 tons will meet the delivery conditions within 45 days, equipment with a daily output of 30-100 tons will meet the delivery conditions within 60 days, and equipment above 100 tons will be completed on schedule according to the contract requirements.
