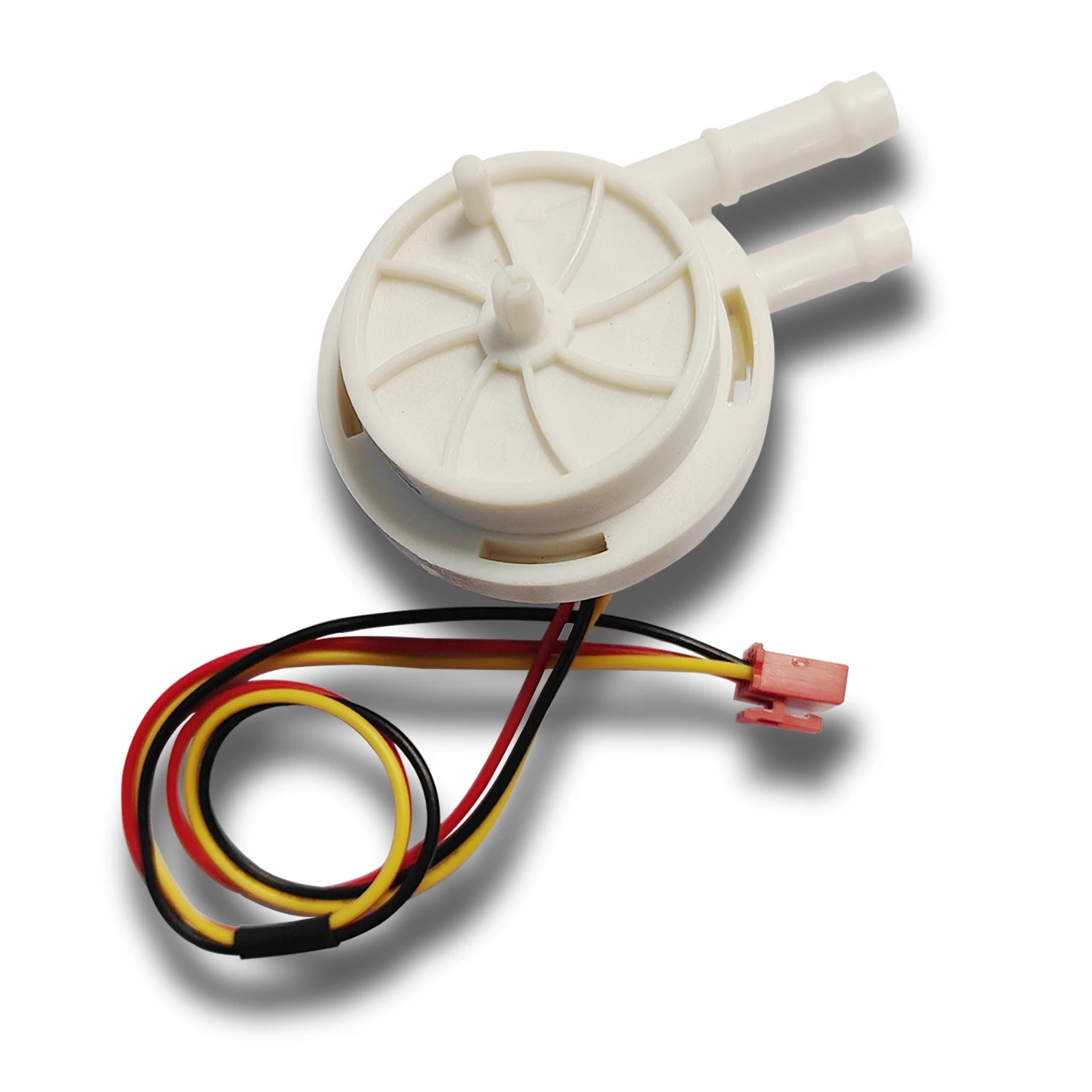

Food Grade Home Industrial Application Coffee Maker Water Dispenser Hall Flow Sensor Water Flow Switch
- Category: >>>
- Supplier: Shenzhen Zhanhua Sensing Technology Co. Ltd.
Share on (1601272805135):
Product Overview
Description
Our Advantages
Customized Support | OEM, ODM, OBM |
Advantages | Quick Connection Plug and Play |
Application
Use | Home, industrial, commercial, farm application to measure water flow rate. It is installed in various coffee machines, water dispensers, beer machine, cocktail machine, fogging sprayers, pet drinking fountains, and water inlets of electrolyzer to detect the in coming water flow. |

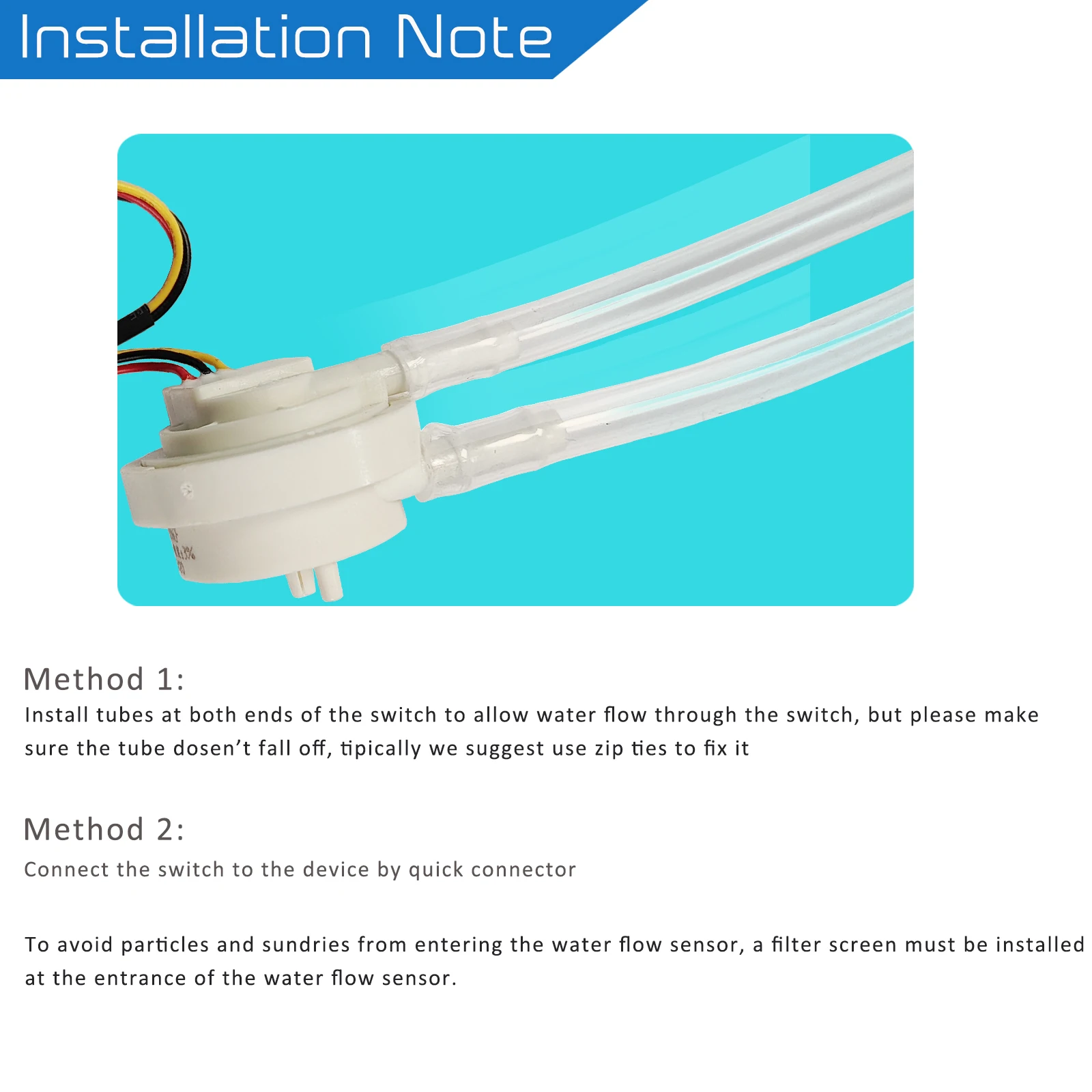

Installation Instructions
Mounting Type | Plug-and-play，Any direction, horizontal, vertical, or inclined More details looking forward to consultation |
Specification
Material | PBT Plastic Food Grade |
Working Voltage | DC 3-24 V |
Flow Range | 0.1-1.2L/min |
Pressure Performance | Less Than 1.2 MPa |
Water Temperature | Less than 60 ℃ |

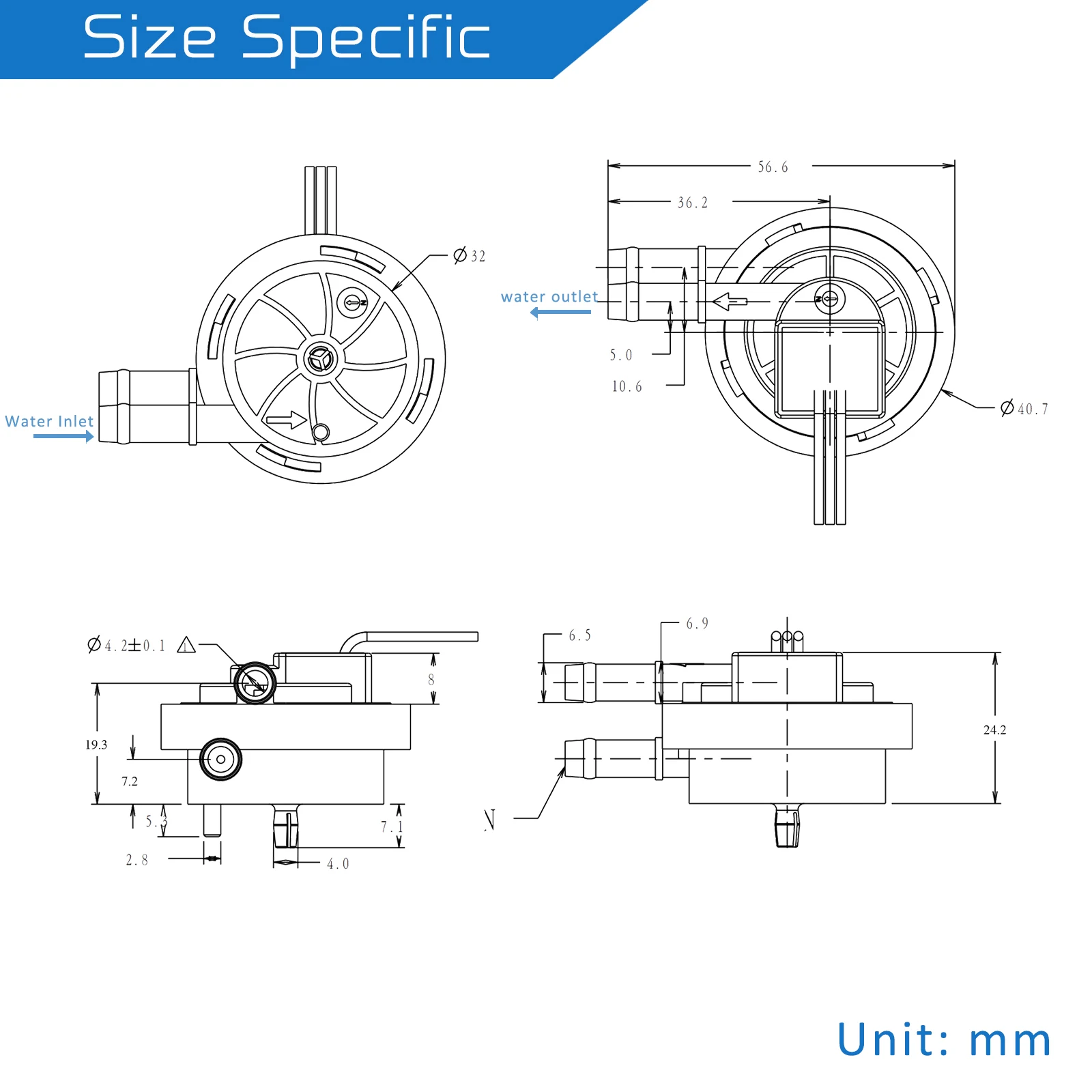

Size | OD 6.35MM |
Theory | Hall Effect |
Output | Pulse Signal |

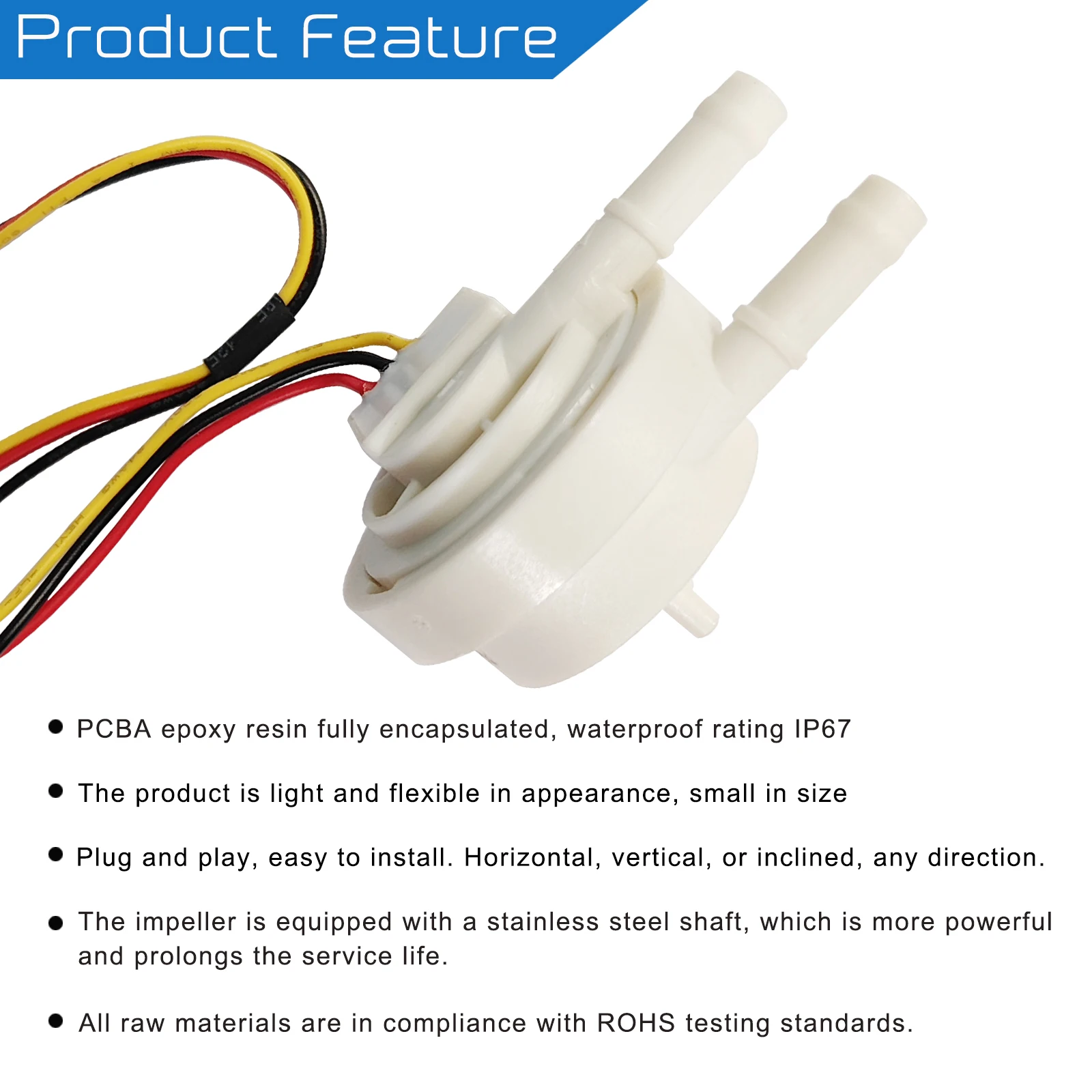

Product Feature
The product is light and flexible in appearance, small in size, plug and play, easy to install.
The impeller is equipped with a stainless steel shaft, which is more powerful and prolongs the service life.
The sealing ring adopts an upper and lower stress structure to prevent leakage.
The hall elements are imported and isolated from water to prevent water ingress.
All raw materials are in compliance with Rohs testing standards.
Using Instruction
In order to prevent particles and debris from entering the sensor, a filter must be installed at the sensor inlet.
The water flow sensor should be installed inside the equipment or indoor, do not be exposed to long periods of time in the outdoors or humid and high temperature environment, the water flow sensor must be installed to avoid the vibration and shaking of the environment and the application, so as not to affect the sensor's measurement accuracy.
When magnetic materials or materials that exert a magnetic force on the sensor are in close proximity to the sensor, its characteristics may change

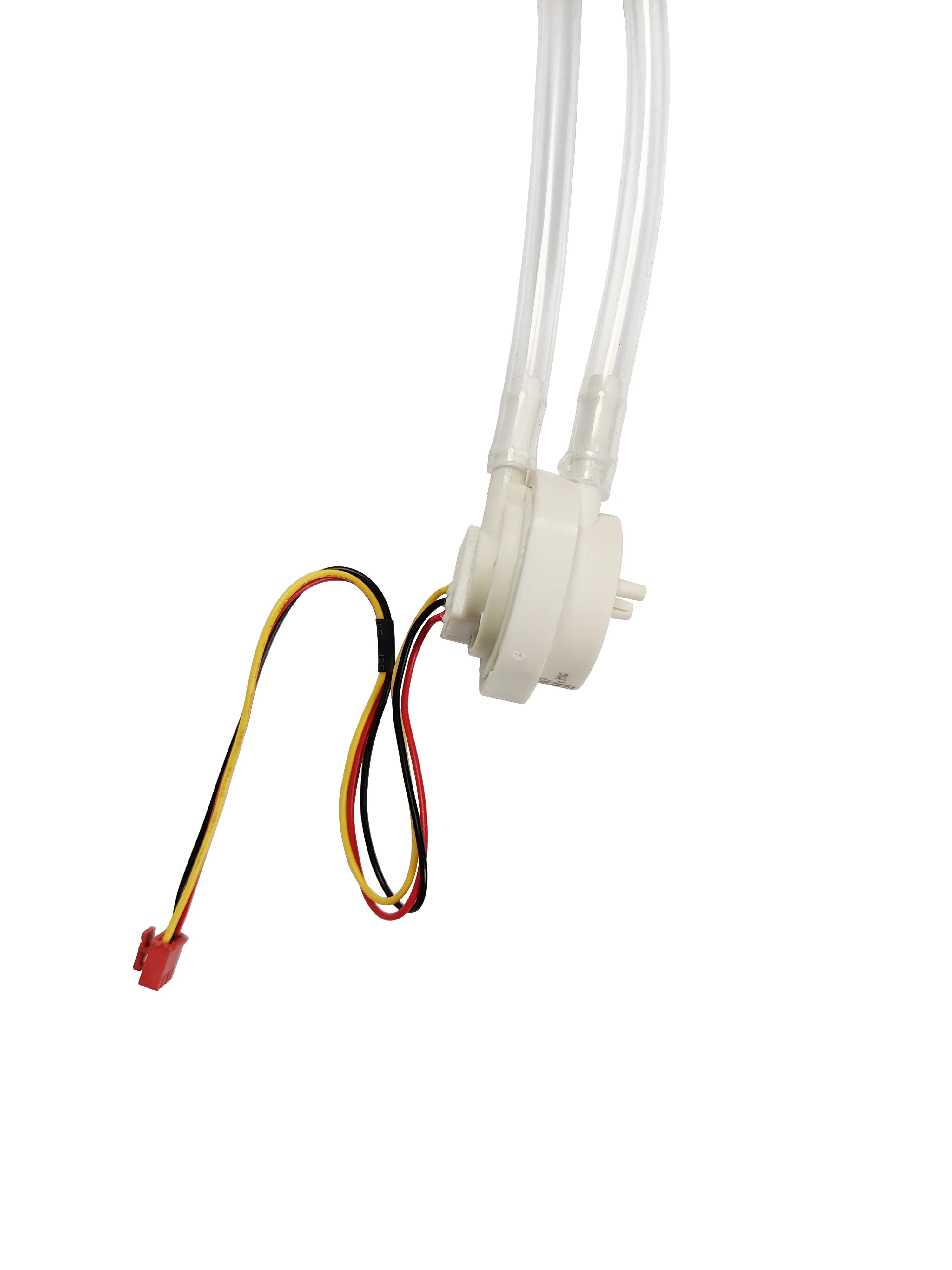

Straight inlet and outlet
PBT Plastic Food Grade
Can be used on food or medical device
Red line for VCC
Black cable for GND,
Yellow cable for Signal

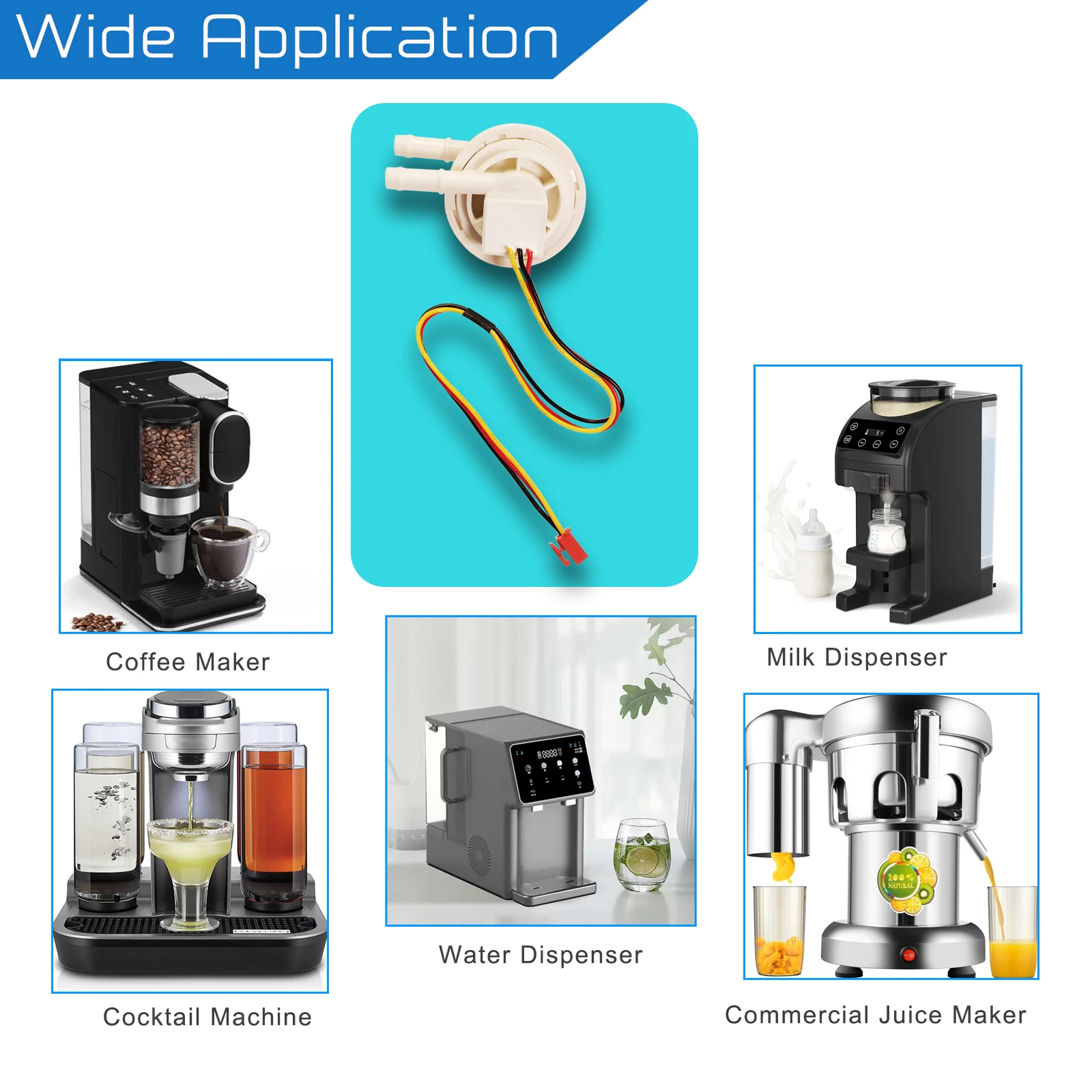

Wide Application
Home Industrial Commercial Medical Smart Device Application
Maker our life more convenience
The operating performance will be better if a flow sensor match with a level sensor

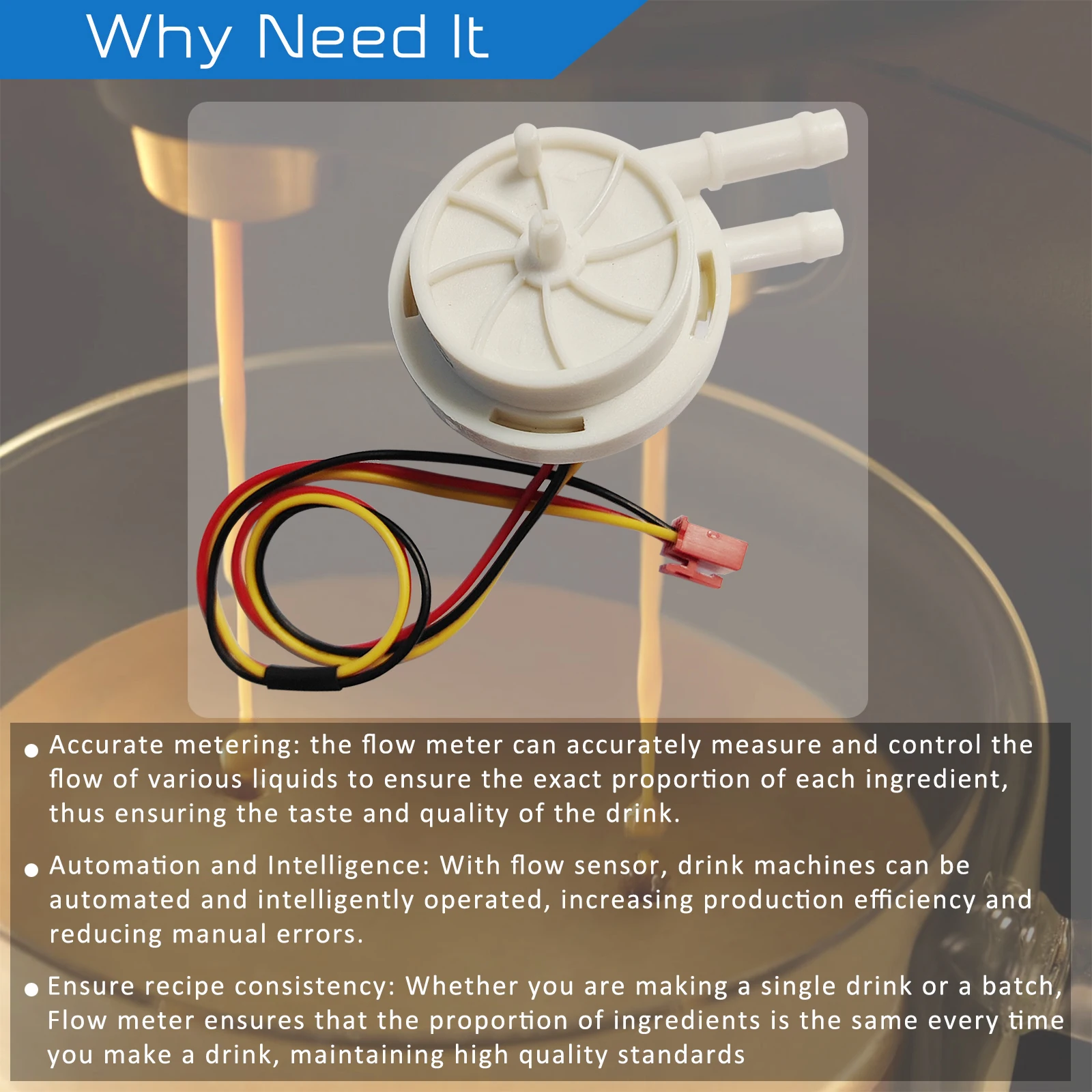

The flow meter will be able to measure accurately for better taste or for plants to get more accurate water, and the sensor can control the water level accurately to prevent lack of water from causing the equipment to dry out.
Smart Plant Water System
Coffee Machine
Dishwasher
Fish TanK
Humidifer
Cocktail Machine
Juice Maker
Baby Formula Dispenser Machine
Tea Maker
Company Profile
Zhanhua Sensor Technology Co., Ltd. is a factory enterprise specializing in producing various sensors, brand is zenvansz, zhanhua sensor has a strong R&D team, committed to establishing a production system that integrates production, sales, and service, achieving the overall scale of product development and production.
The product is sold worldwide. The main products include liquid level gauges, photoelectric liquid level sensors, non-contact induction sensors, ultrasonic liquid level controllers, turbidity sensors, distance detection sensors, liquid flow meters, infrared sensors, septic tank alarms, and oil level sensors
SHIPPING
lf the quantity of order is not very big,we could send them to you by express delivery, such as TNT,DHL,UPSOR EMS etc.
lf order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.
Q1. What is your lead time?
A: Stock: 7-15 days in general. No stock: 15-21 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q2. How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) All raw material we used are non-toxic, environmental-friendly;
2) Skillful workers pay great attention to each details in handling the producing and packing processes;
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) All raw material we used are non-toxic, environmental-friendly;
2) Skillful workers pay great attention to each details in handling the producing and packing processes;
Q3. What are your terms of delivery?
A: We can accept EXW, FOB, etc. You can choose one which is the most convenient for you.
A: We can accept EXW, FOB, etc. You can choose one which is the most convenient for you.
Q4. What is the payment way?
A: TT, L/C, West Union, Online Bank Payment.
A: TT, L/C, West Union, Online Bank Payment.
Q5. Can the product be customized?
A: Yes, the cable length can be customized. We are a professional OEM and ODM factory. You can tell us your requirements and we will help you achieve them.
A: Yes, the cable length can be customized. We are a professional OEM and ODM factory. You can tell us your requirements and we will help you achieve them.
Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
