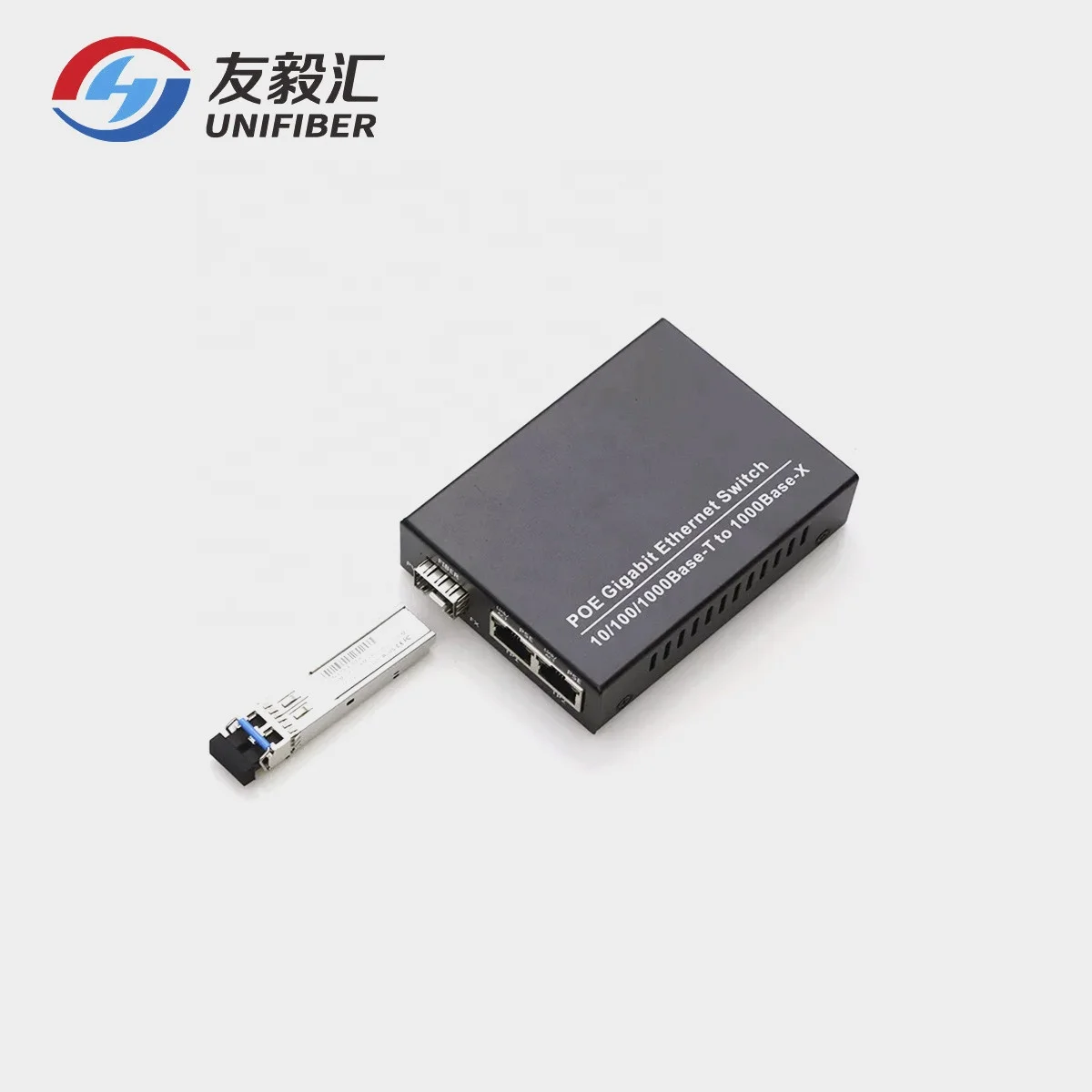

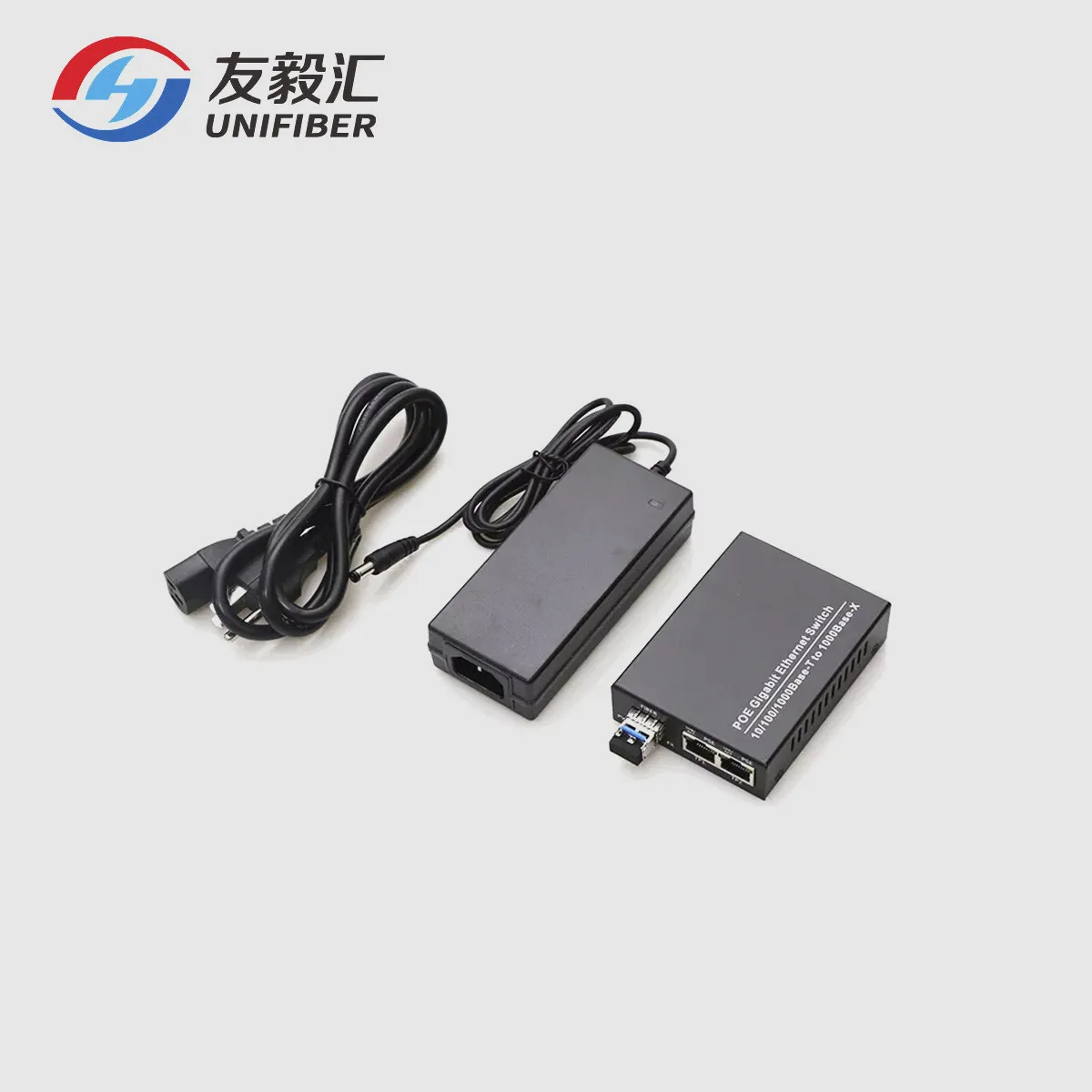

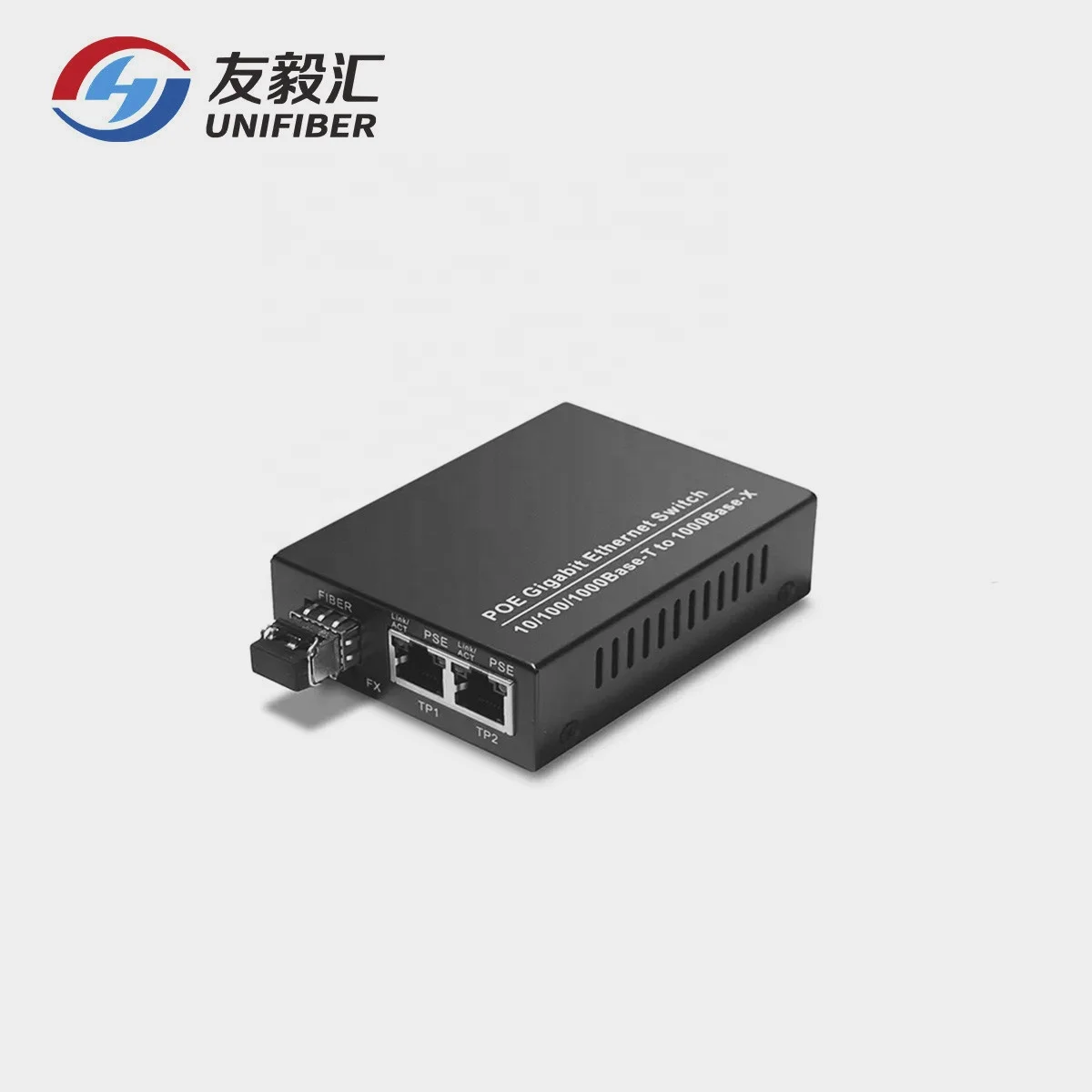

10/100/1000M High Speed POE Fiber To RJ45 Ethernet Media Converter With 1.25G SFP

10/100/1000M High Speed POE Fiber To RJ45 Ethernet Media Converter With 1.25G SFP

Category: >>>
Supplier: Shenzhen Unifiber Technology Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

10/100/1000M adaptive fiber media converter through 100Base-TX or 1000Base-TX to 100Base-FX photoelectric conversion between the traditional 100M Ethernet or 1000M Fast Ethernet through the Fast Ethernet fiber optic link extended to 120 km range, to meet the long-distance, high-speed , High-bandwidth fast Ethernet working group user needs, the product performance is stable and reliable,designed to meet the Ethernet standards, and anti-lightning protection measures, especially for telecommunications, mobile, China Unicom, safe city, radio and television, railway, military, financial securities, customs, civil aviation, maritime transport, electricity, water conservancy and oil fields and other broadband data network and require high reliability data transmission or the formation of IP data transmission network area, it is the best application equipment for broadband campus network，intelligent broadband district fiber to the floor , Fiber to the home and video surveillance .

Features

Extend network distances up to 160km
onduct 10/100/1000/2500/10000 Ethernet Rate Conversion
SC, LC and ST fiber connector options
SX, FX, LX, EX, ZX, BX fiber support
Multimode and single mode fiber
10BaseT, Fast Ethernet Gigabit and 10G to fiber
Advanced Features : Link Pass-Through, Far-End Fault, Auto-MDIX, Fiber Fault Alert, Loopback
Manage via SNMP, CLI- Telnet/SSH, Internet Browser
PoE Media Converters provide PoE PSE power injection over UTP Ethernet
SFP Media Converters with pluggable fiber optic ports for use with MSA compliant SFPs.
Managed Media Converters with extensive security and network integration features
Industrial Temperature Media Converters for equipment in -40C to +75C operating temperatures

Application

A fiber media converter is a simple networking device that makes it possible to connect two dissimilar media types such as twisted pair with fiber optic cabling.
Used in interconnecting fiber optic cabling-based systems with existing copper-based, structured cabling systems.
Used in metropolitan area network (MAN) access and data transport services to enterprise customers.

Specification

Standard Protocol

IEEE 802.3, IEEE 802.3u, IEEE 802.3d,
IEEE 802.3x, IEEE 802.3Q

Band Width

RJ 45 Port

10/100/1000M

Optical Port

1.25G

Operation Mode

Full /Half duplex mode,with auto-negotiation capability

Connectors

UTP
