Competitive Price Tanvi Heating Vent Filter for Air Filtration
- Category: >>>
- Supplier: Hangzhou Tanvi Filtering Equipment Co. Ltd.
Share on (1601272807879):
Product Overview
Description

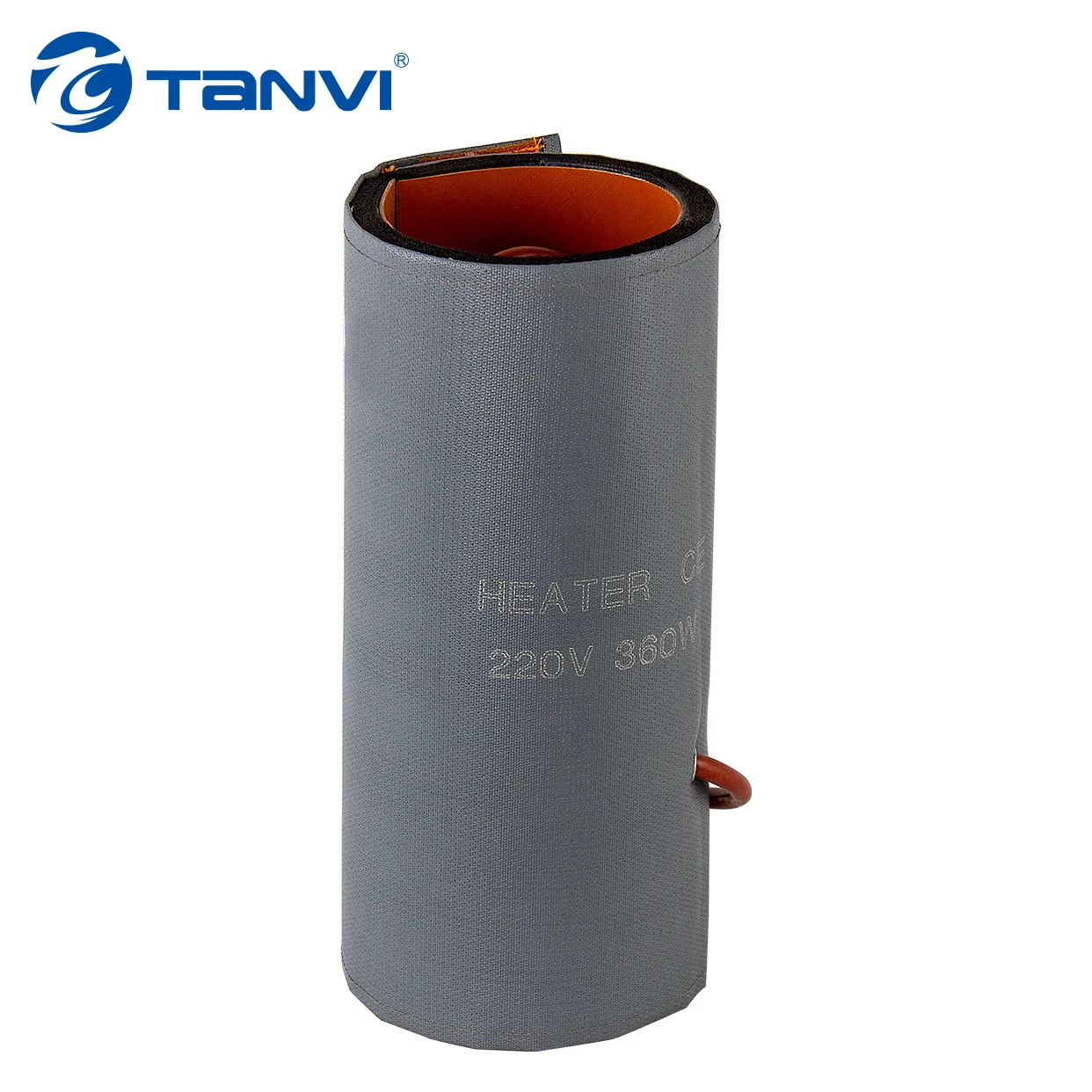

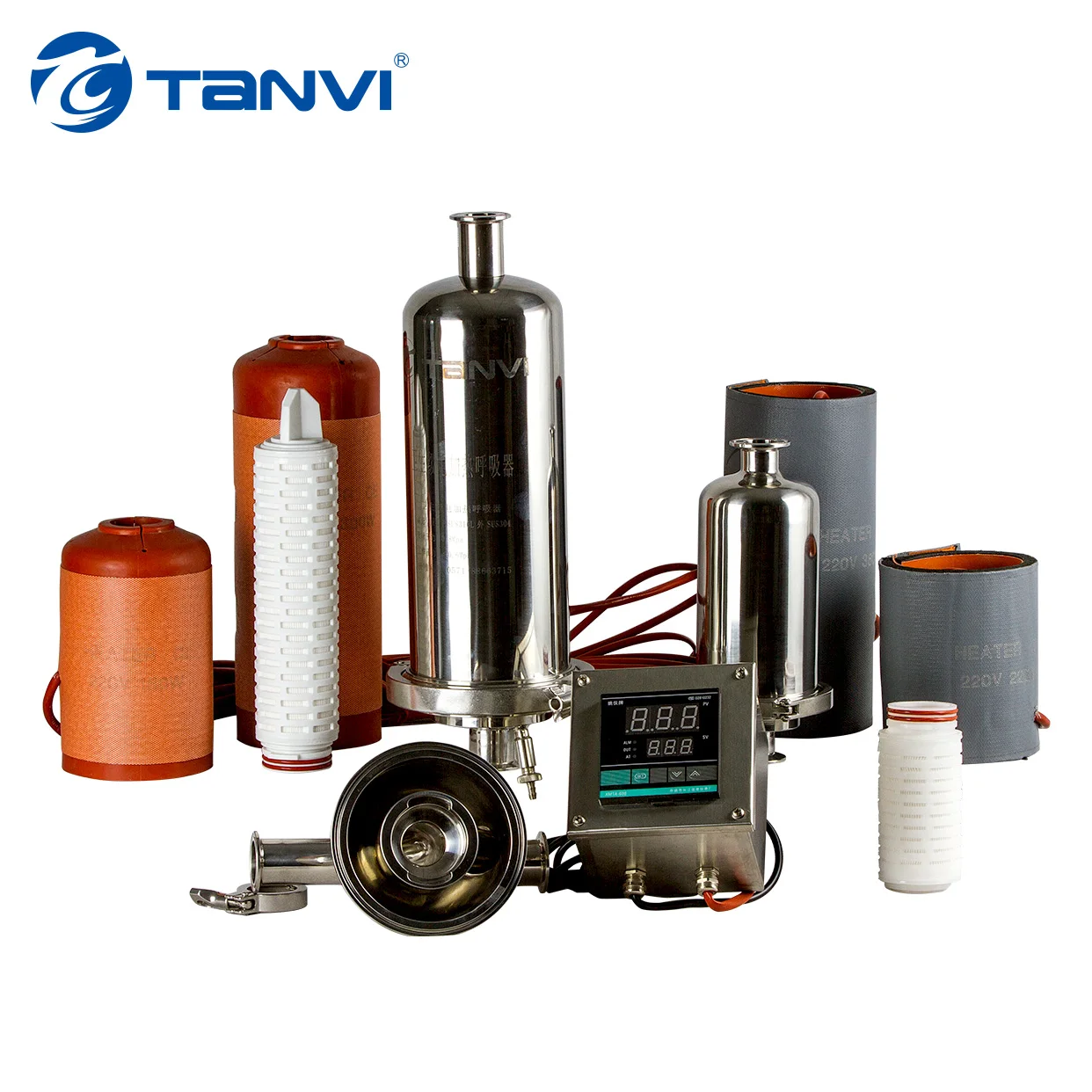

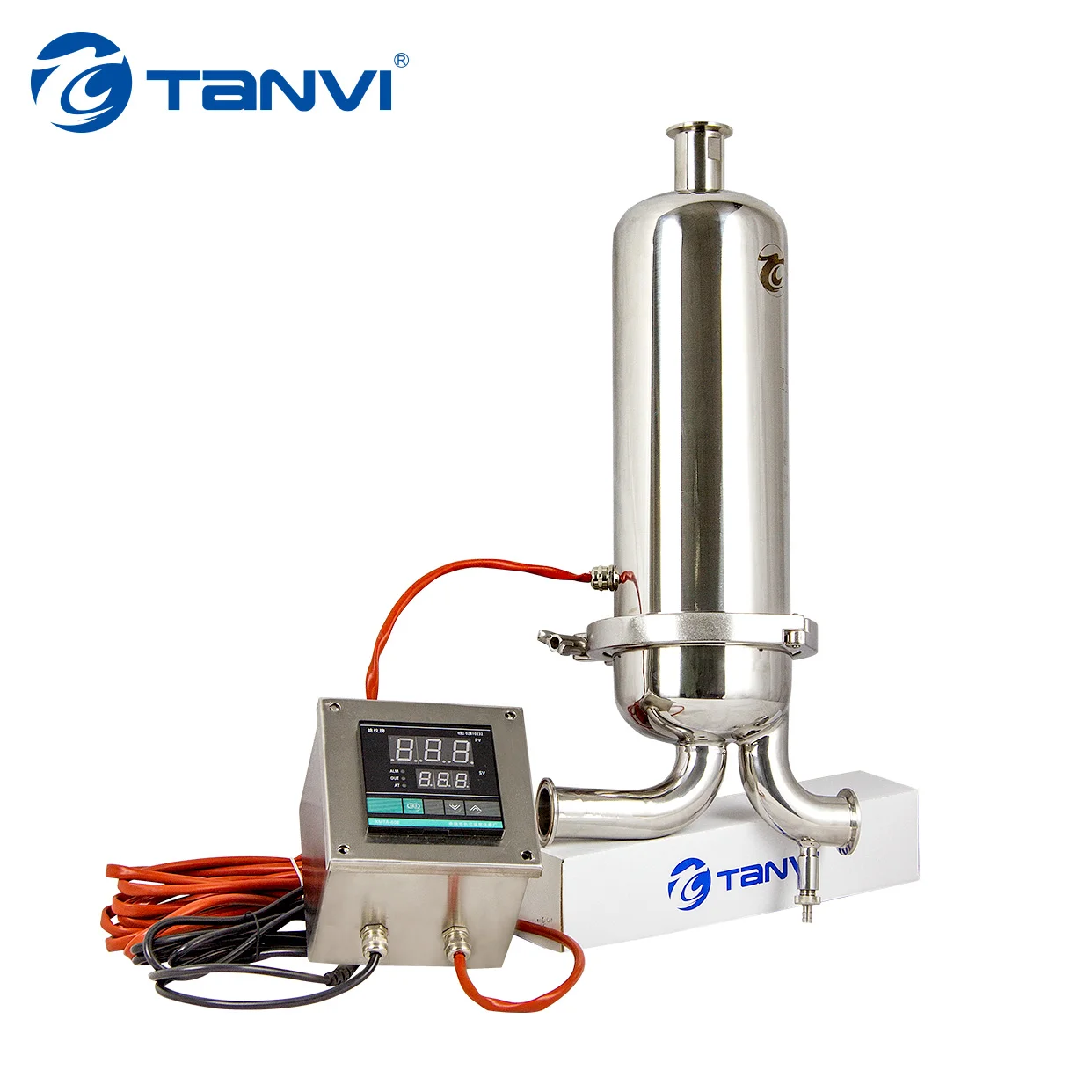

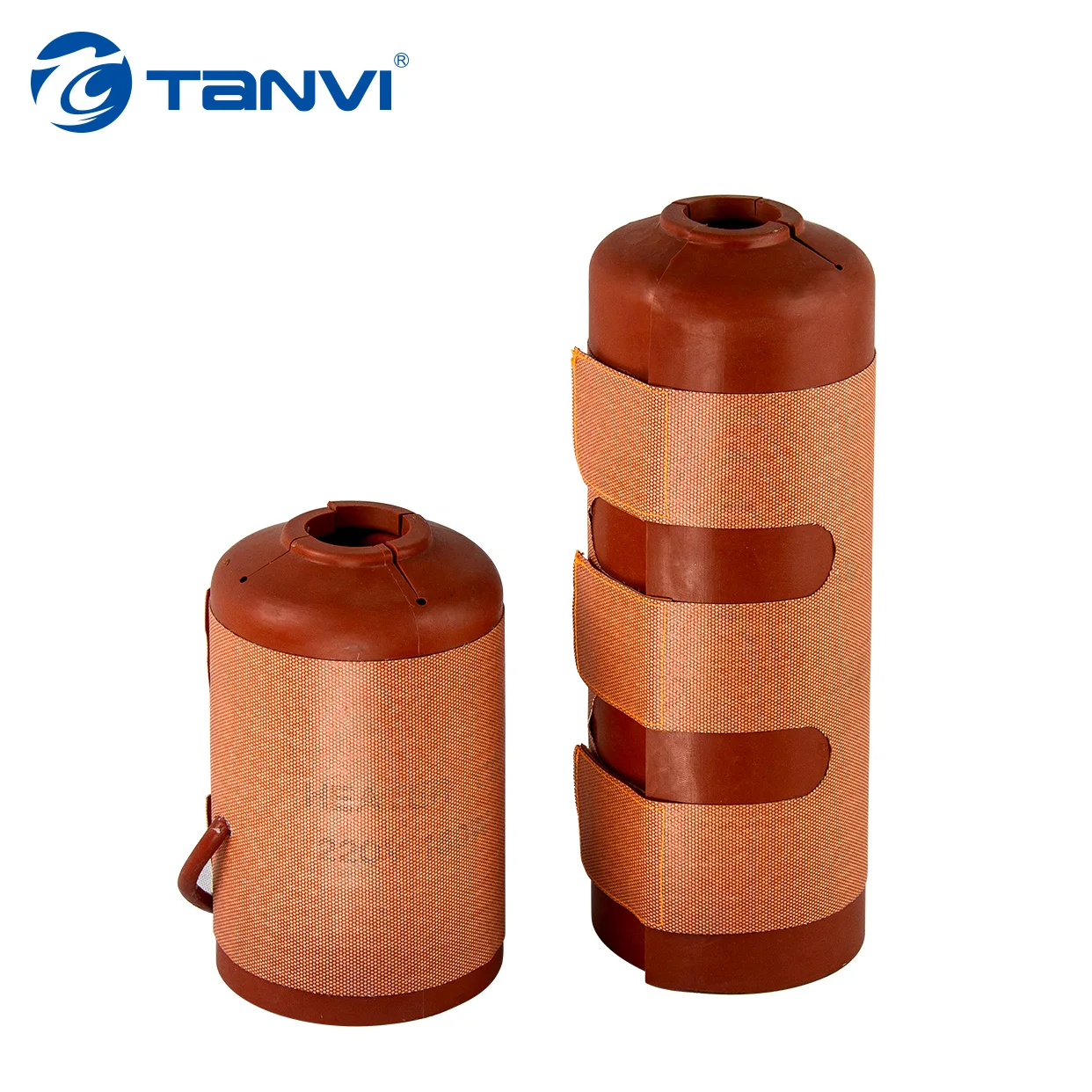

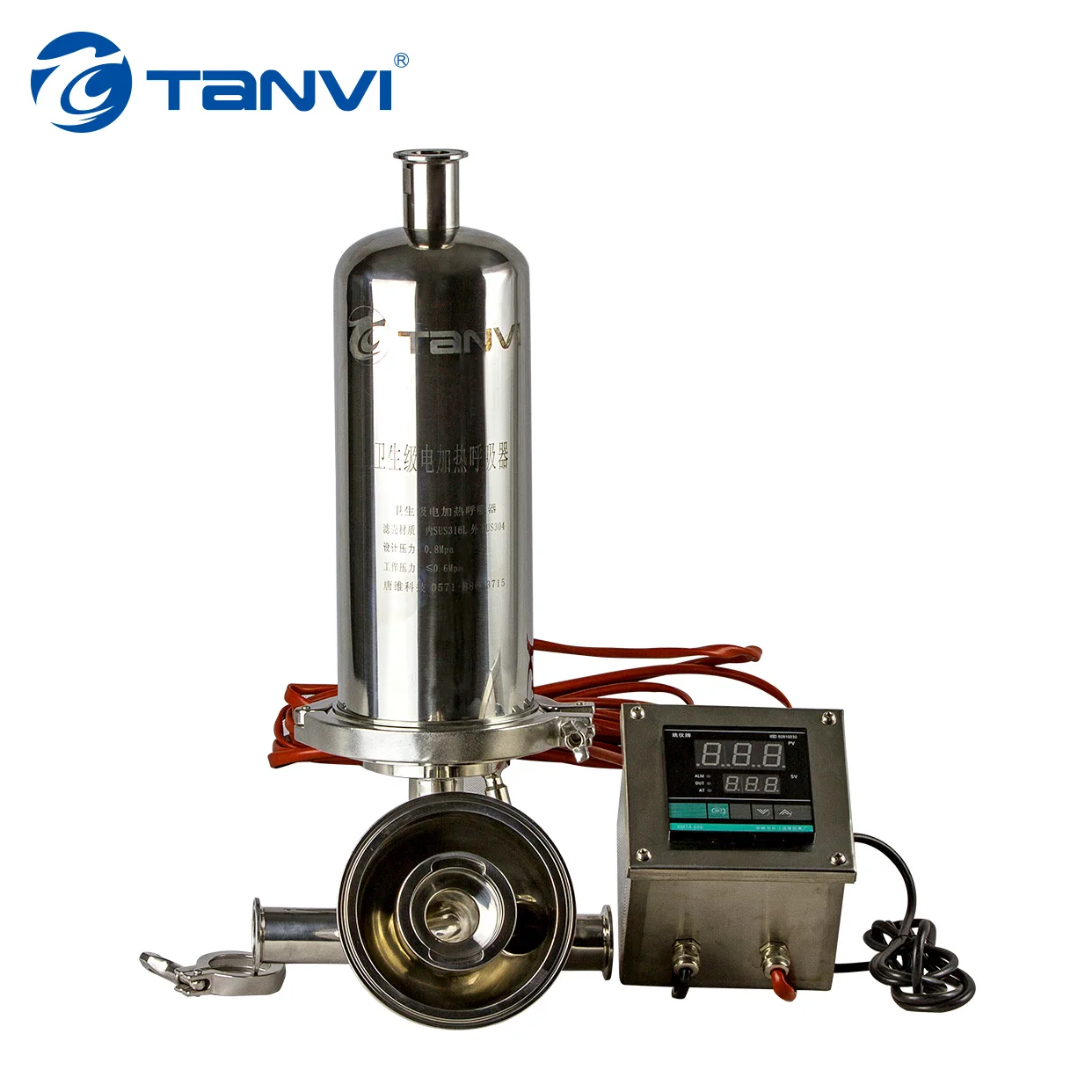

Tanvi series electric heating vent filter is designed based on GMP requirements. The product consists of stainless steel filter housing, thermal insulation heating jacket, stainless steel outer cover and temperature control box. It is mainly used to prevent the accumulation of condensed water and microbial growth in the filtration of gas and air. It is widely used in air filtration and purification in water injection systems in biological products, pharmaceuticals, fermentation and other industries, as well as vent filters reconstruction of storage tanks and containers.
Specification
TBSB10MS
Insulating Material |
| Silicone |
Lenth |
| 342mm |
Inner diameter |
| 100mm |
Thickness |
| 8mm |
Nominal voltage |
| 220V |
Nominal power |
| 300W |
Withstand test voltage |
| 1.5KV |
Insulation resistance |
| >500MΩ |
Working environment temperature |
| -60℃~250℃ |
Operating temperature |
| 0~150℃ |
Temperature controller indication |
| Heating—red number |
Temperature set |
| Green led |
Sensor |
| K-type thermocouple or PT10 |
Applications
Pharmaceutical Process Fluids Fermentation Product Recovery Water for Injection
Filtration and Purification Processes Skidded Systems Tanks and Vessels
Filtration and Purification Processes Skidded Systems Tanks and Vessels
Order Guide
Model number | Lenth | Inner Diameter | Nominal voltage | Nominal power |
TBSB05MS | 205mm | 100mm | 220V | 150W |
TBSB10MS | 342mm | 100mm | 220V | 300W |
