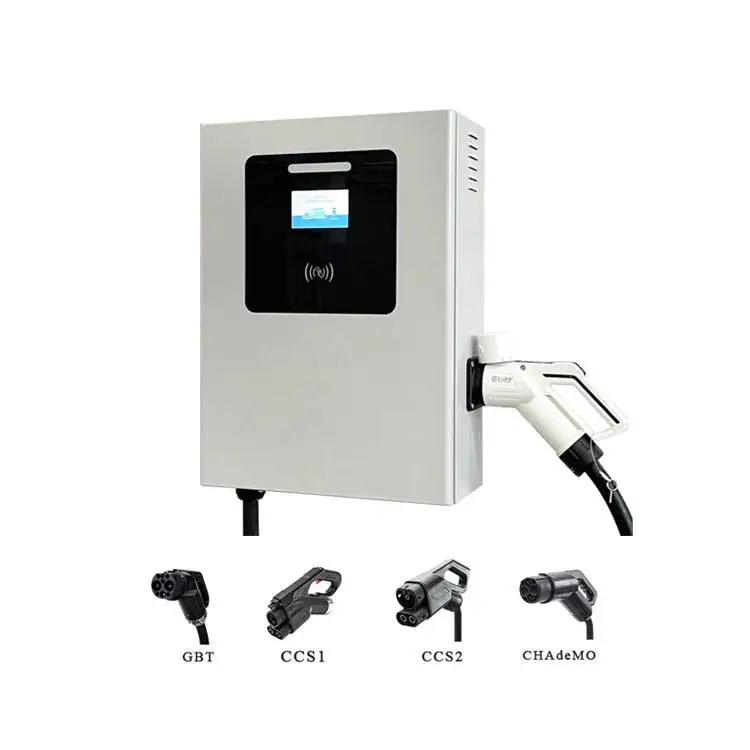

Wall Mounted DC EV Charger High Quality Charging for commercial car with OCPP1.6J New Energy EV charger
- Category: >>>
- Supplier: Zhejiang Champion New Energy Co. Ltd.
Share on (1601272830735):
Product Overview
Description
Recommend Products
Product Description

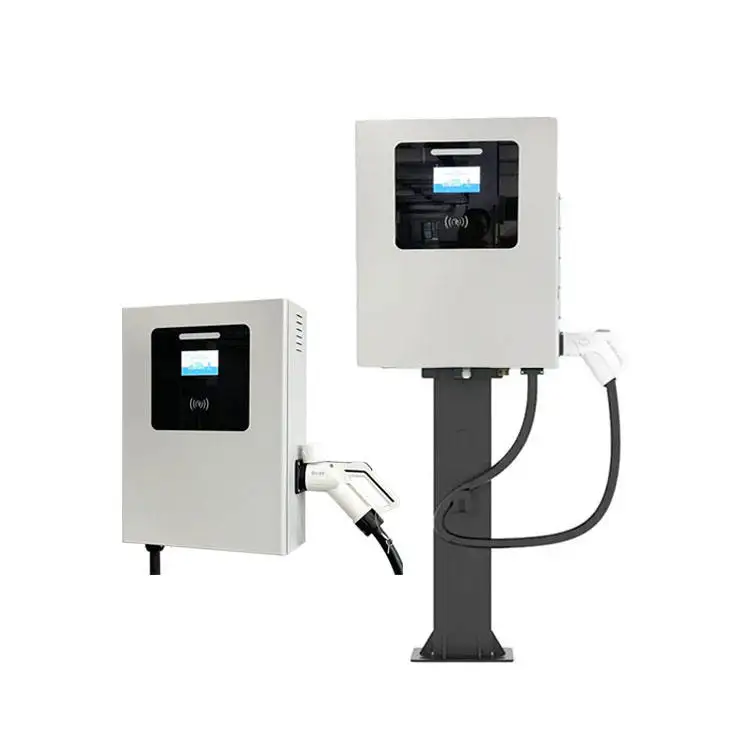

7KW/15KW/20KW/30KW Fast DC EV Charger Pile Wall Mounted EV Fast Charging Station with OCPP1.6J
Product Parameters
Product Parameters | ||||||||
Model | FCS07750E/A/J | FCS15750E/A/J | FCS20750E/A/J | FCS30750E/A/J | ||||
Input characteristics | ||||||||
Voltage range | AC90-265V | AC265-475V | AC265-475V | AC265-475V | ||||
Working Frequency | 45-66HZ | |||||||
Efficiency | ≥95% | |||||||
Input Current | 32A | 30A | 40A | 50A | ||||
Output characteristics | ||||||||
Output Power | 7KW | 15KW | 20KW | 30KW | ||||
Voltage range | 200-750VDC | |||||||
Max Current | 20A | 25A/33A | 33A/60A | 50A/100A | ||||
Operating temperature | -20℃-50℃ | |||||||
Storage temperature | -40℃-70℃ | |||||||
Altitude | 2000M | |||||||
Dimensions and protection | ||||||||
size(mm) | 545*380*170mm | 645*454*170mm | ||||||
weight | 20 KG | 30KG | 35KG | 45KG | ||||

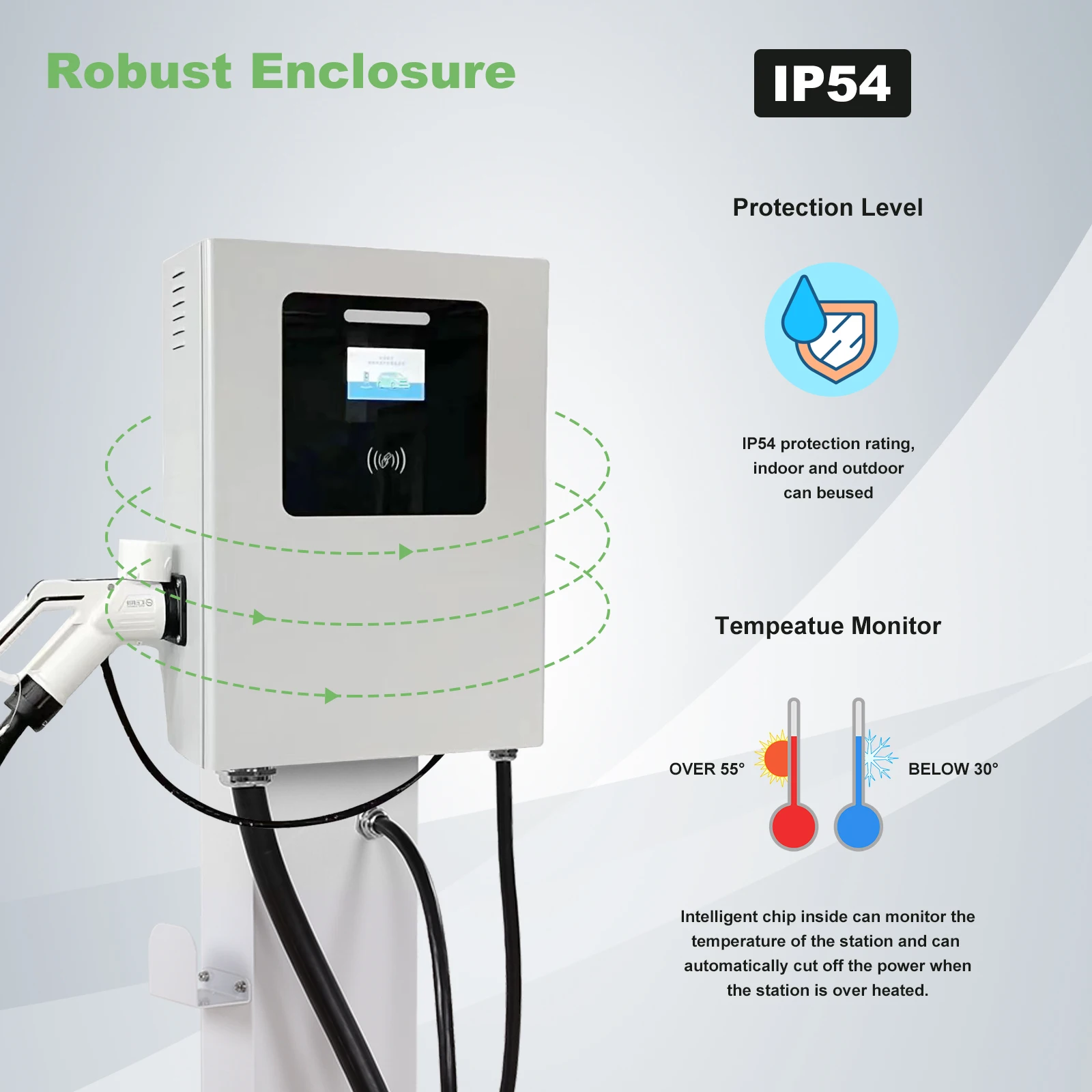

IP Level | IP54 | |||||||
Others | ||||||||

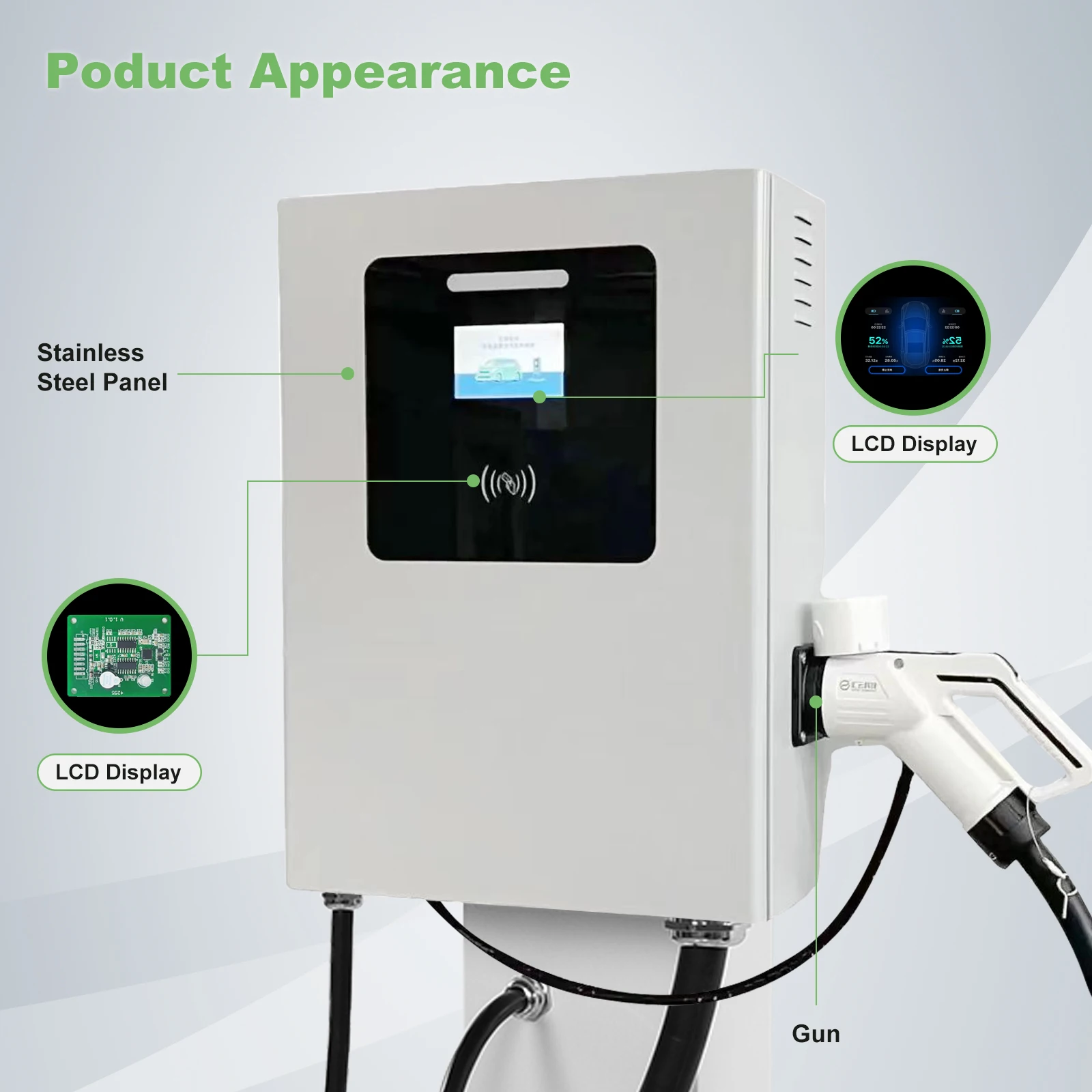

Human Machine Interface | 4.3inch color touch screen | |||||||
Protective function | Lightning protection, overload, short circuit over temperature, leakage, emergency stop protection, etc. | |||||||

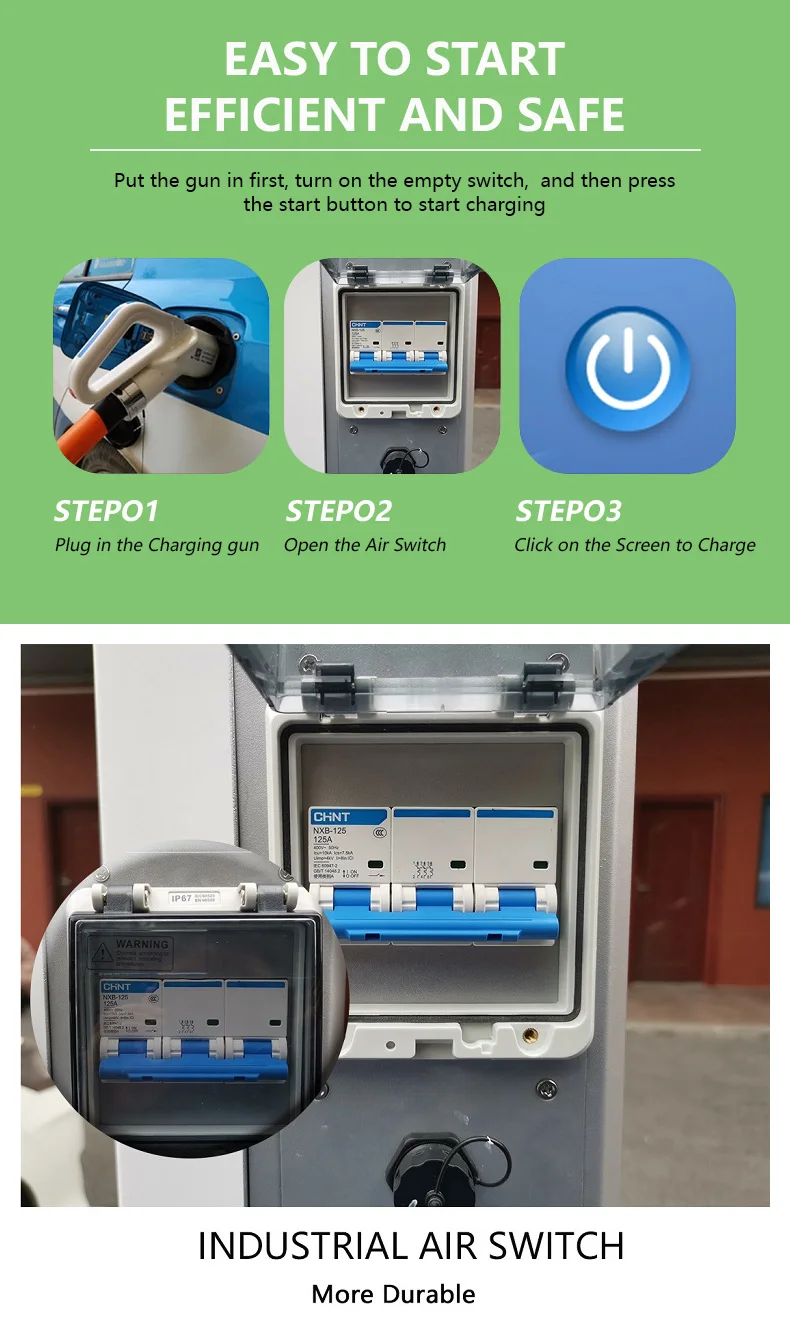

Charging options | Plug and play, timing, appointment, payment, etc. | |||||||
Communication protocol | GBT27930 / CHADEMO 20 DIN 70121,0CPP 1.6 (SON ),SO 15118 | |||||||
DC EV Charging, we also support 30KW,60KW,120KW,180KW,240KW.
One port charging gun and double charging gun.

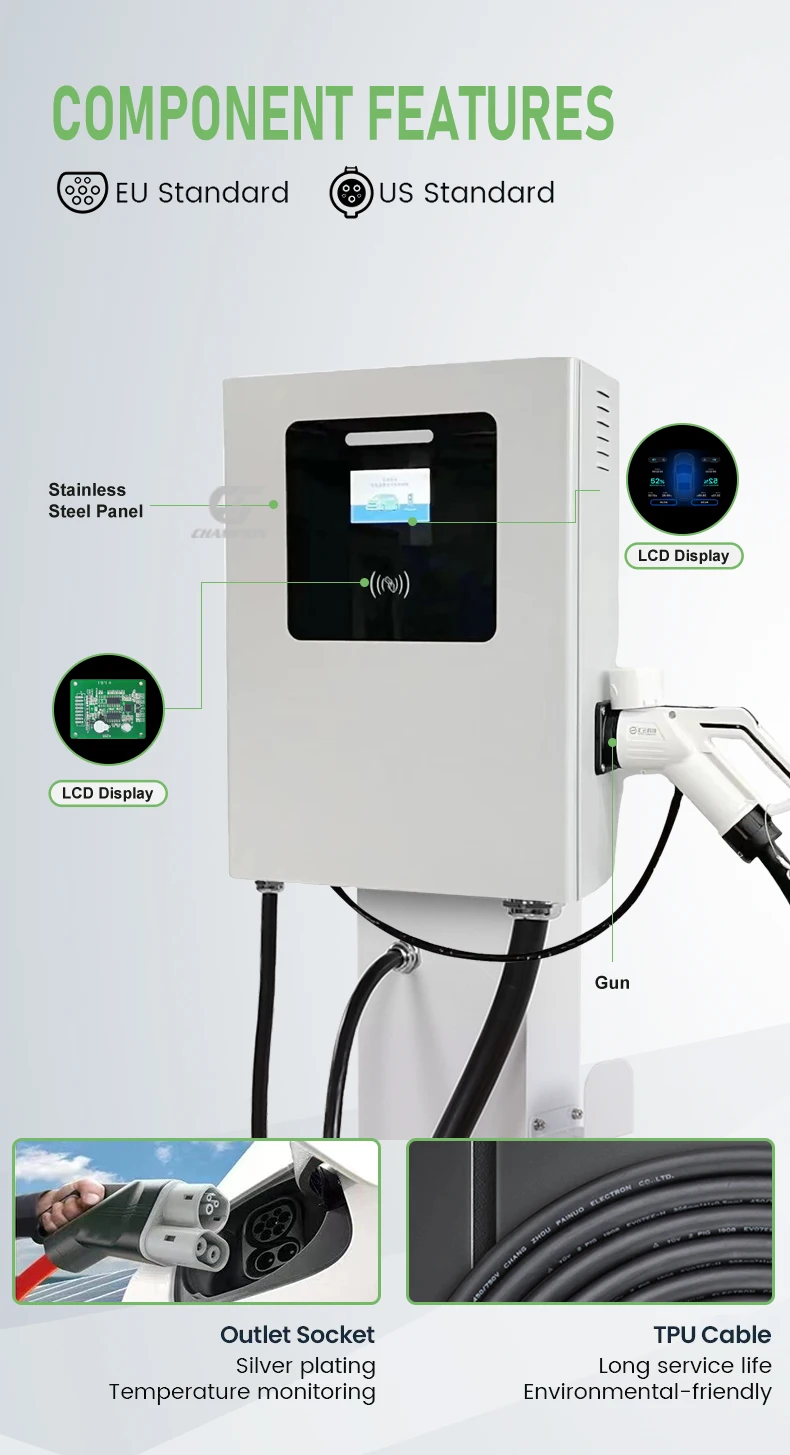

Products Details

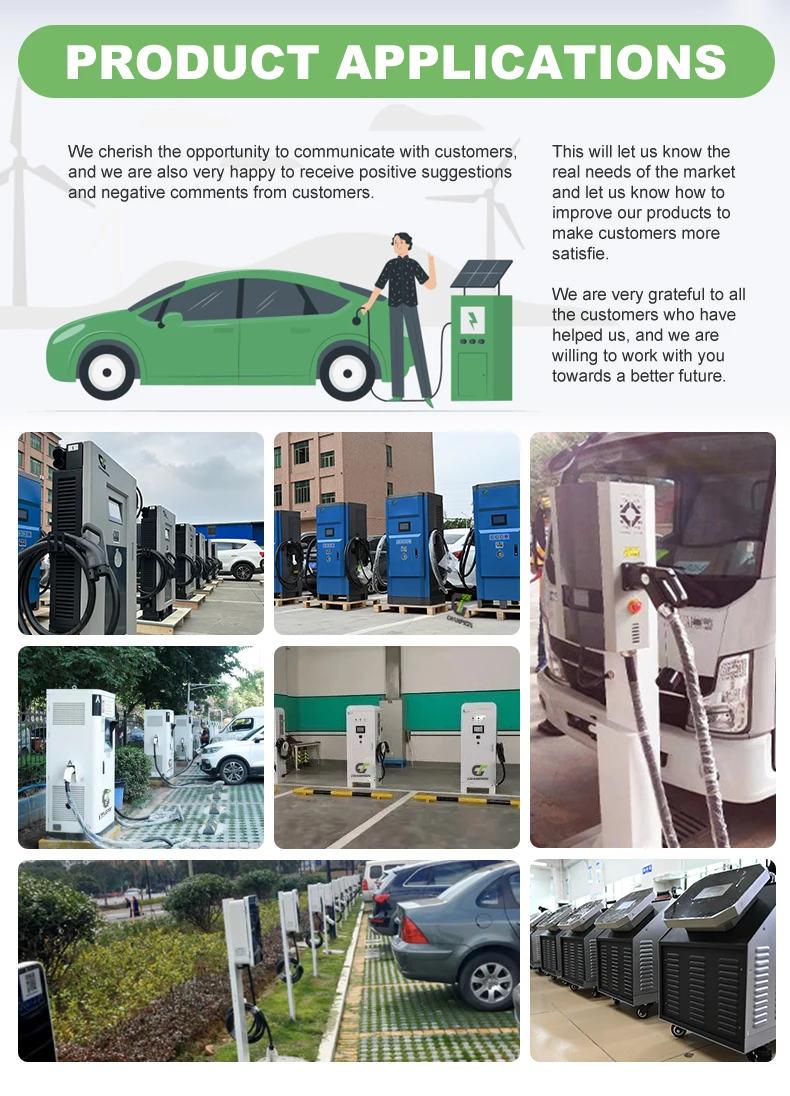

The Charging piles are widely used in Residential, Wokeplace Business, Gas Station, High-speed Service Station, Parking Lot, Household.
Our EV car chargers have been sold to over 40 countries , such as Germany, India, USA, Canada, Netherlands, Switzerland, India, Slovakia, Bolivia, Argentina, Netherlands, Switzerland etc.
Company Profile
Production & Certifications
Packing & Delivery
FAQ
1:Why choose us?
A:We are professional EV charger manufacturer. We own mastered core R&D capabilities such as intelligent control, Internet of Things, rough data, artificial intelligence, and has been recognized by national high-tech enterprises and has more than 100 patented technologies.
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4:Can I order some samples? How long will ship to my address?
A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.
5.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
6.Can I have a discount price and better service?
A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome contact Now!
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4:Can I order some samples? How long will ship to my address?
A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.
5.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
6.Can I have a discount price and better service?
A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome contact Now!
