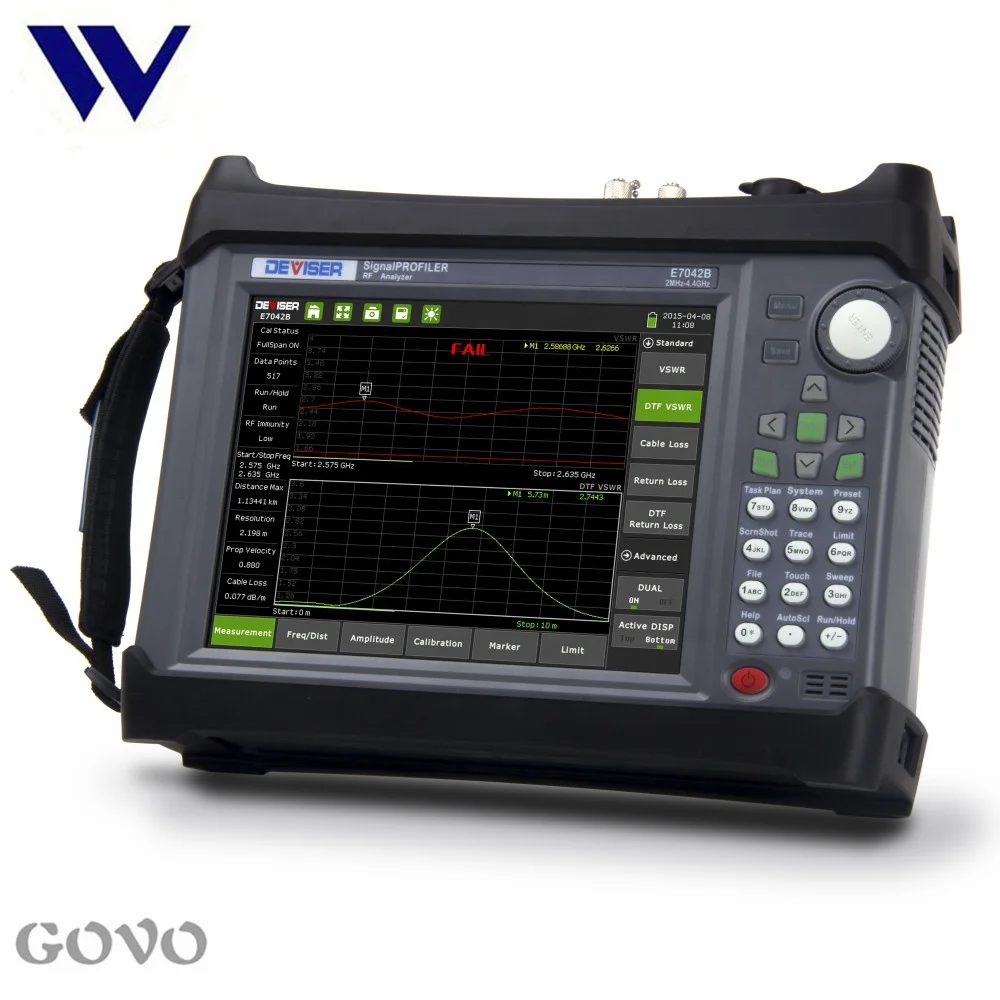

DEVISER 8.4 inch screen SignalPROFILER E7042B Spectrum Analyzer 2MHz~4GHz RF Analyzer
Product Description
T
he E7042B SignalPROFILER combines the power and functionality of cable and antenna system analysis, fiber inspection, spectrum analysis, cellular signal demodulation, interference analysis, signal coverage mapping and RF/Optical power measurements in a single instrument.
Main Features
• RF, fiber and wireless signal quality testing – in a single instrument
• Perform traditional RF feedline tests, inspect fiber connectors with auto pass/fall results and measure RF/Optical power
• Perform comprehensive spectrum and signal analysis for complete site profile and monitoring of signal environment
• Test MIMO 4x4 antenna performance
• Detect signal degradation and system performance over time with trace overlay
• Handheld, lightweight, field-proven design withstands harsh environments and lighting conditions
Standard Measurements & Applications
(Cable & Antenna Analysis)

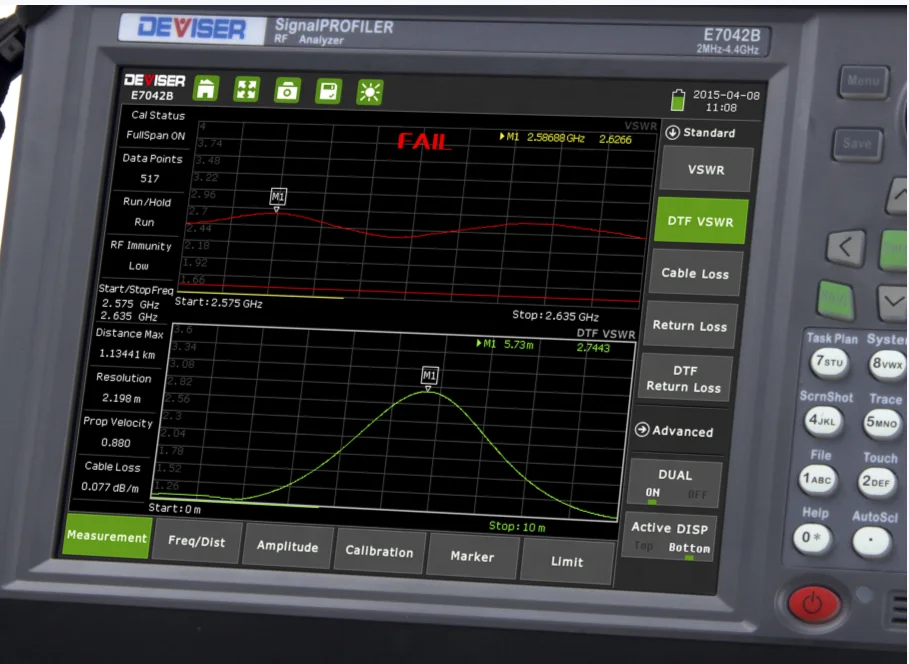

• Reflection – Return Loss or VSWR
• Fault Location – DFT/RL or DTF/VSWR
• Cable Loss
• 1-Port Phase
• Smith Chart
• FiberScope Fiber Connector Inspection (DML-OPI)
• Optical Power Meter (DML-OPM)
• Visual Fault Location (DML-VFL)
Standard Measurements & Applications
(Spectrum Analysis)
• Spectrum Analysis
• Channel Power
• Occupied Bandwidth (OBW)
• Adjacent Channel Leakage Ratio (ACLR)
• Field Strength
• AM/FM
Optional Measurement Modes
• High Precision Power Meter (DML-015)
• Interference Analysis (DML-110)
• Coverage Mapping (DML-120)
• Transmission Measurement (DML-025)
• GPS Receiver (DML-999)
Specification
General Specifications:
Connectors
| RF In | Type N, female, 50Ω |
RF In Damage | +30 dBm, +50 VDC | |
Connectivity
| USB host | Type A, 1-Port (connect flash drive for data transfer) |
USB client | 5-pin mini-B (connect to PC for data transfer) | |
LAN | 10M/100M LAN Port | |
Display | Type / Size | TFT LCD / 8.4” (800 x 600) |
Data Storage
| Internal | 1 GB, > 2000 saved measurement files |
External | Limited by size of USB flash drive | |
Battery
| Type | Li-Ion, 11.1V, 5.2AH |
Operation | > 6.0 hours, continuous; 8.0 hrs, idle (CA mode) > 4.0 hours, continuous; 8.0 hrs, idle (SA mode) | |
Environmental conditions
| Operating Temperature | -10°C to + 55 °C |
Storage Temperature | -40 °C to + 75 °C | |
Shock | Mil-PRF-28800F Class 2 | |
EMC | European EMC | IEC/EN 61326-1:2006 |
AC Power
| AC Adapter Output | 15-19 VDC |
AC Adapter Input | 100 – 240 VAC, 50-60 Hz | |
Size & Weight
| Size | 258 mm x 173 mm x 74 mm(10.2 in x 6.8 in x 2.9 in) |
Weight | 3 kg (6.6 lbs) |
Specifications: Cable Analyzer
Model | E7042B | |
Frequency | Frequency Range | 2 MHz – 4 GHz |
Resolution | 1 kHz | |
Measurement Speed | Reflection DTF | < 0.8 mS/point < 1 mS/point |
Data Points | 130, 259, 517, 1033, 2065 | |
Measurement Accuracy | Corrected Directivity | 42dB (typical, after standard OSL calibration) 38dB (typical, after eCAL calibration) |
Output Power | 0 dBm (Nominal) | |
Interference Immunity | On-channel | +20 dBm @ >1 MHz of carrier frequency |
Off-channel | +10 dBm within ± 10 kHz of carrier frequency | |
Measurements | Return Loss | 0 to 60dB (resolution 0.01 dB) |
VSWR | 1:1 to 65:1 (resolution 0.01) | |
Cable Loss | 0 to 30dB (resolution: 0.01 dB) | |
DTF Range | (Distance) 1500 meters (4921 feet) | |
Connectors (Reflection/RF Out) | RF Out | Type N, female, 50Ω |
RF Out Damage Level | 25 dBm, ± 50 VDC peak | |
Impedance | 50Ω | |
Specifications: Optical Measurements
Specifications:Spectrum Analyzer
Specifications: RF Power Meter

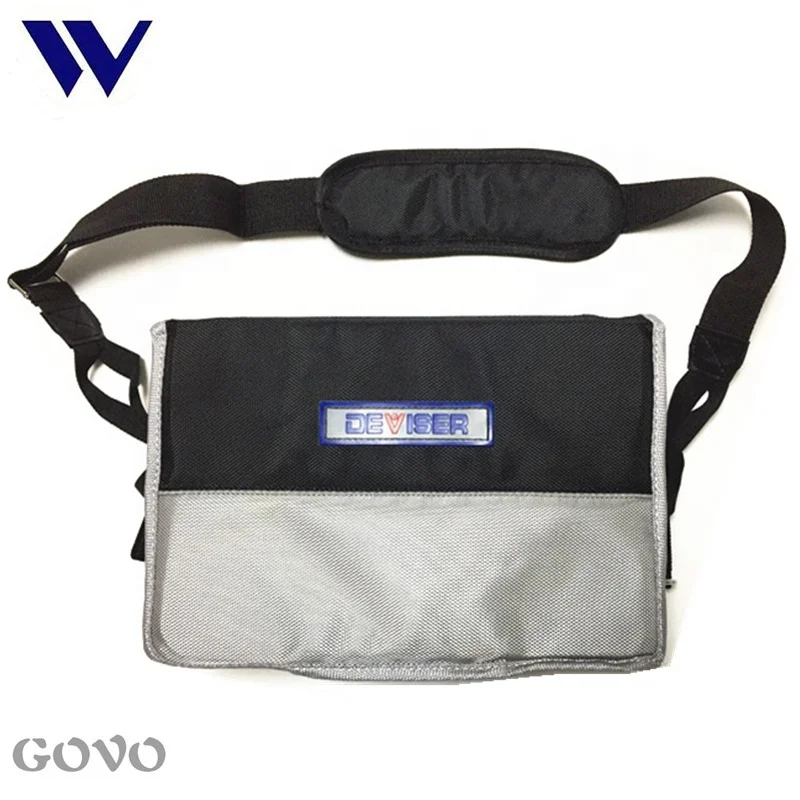

Optional accessories :
