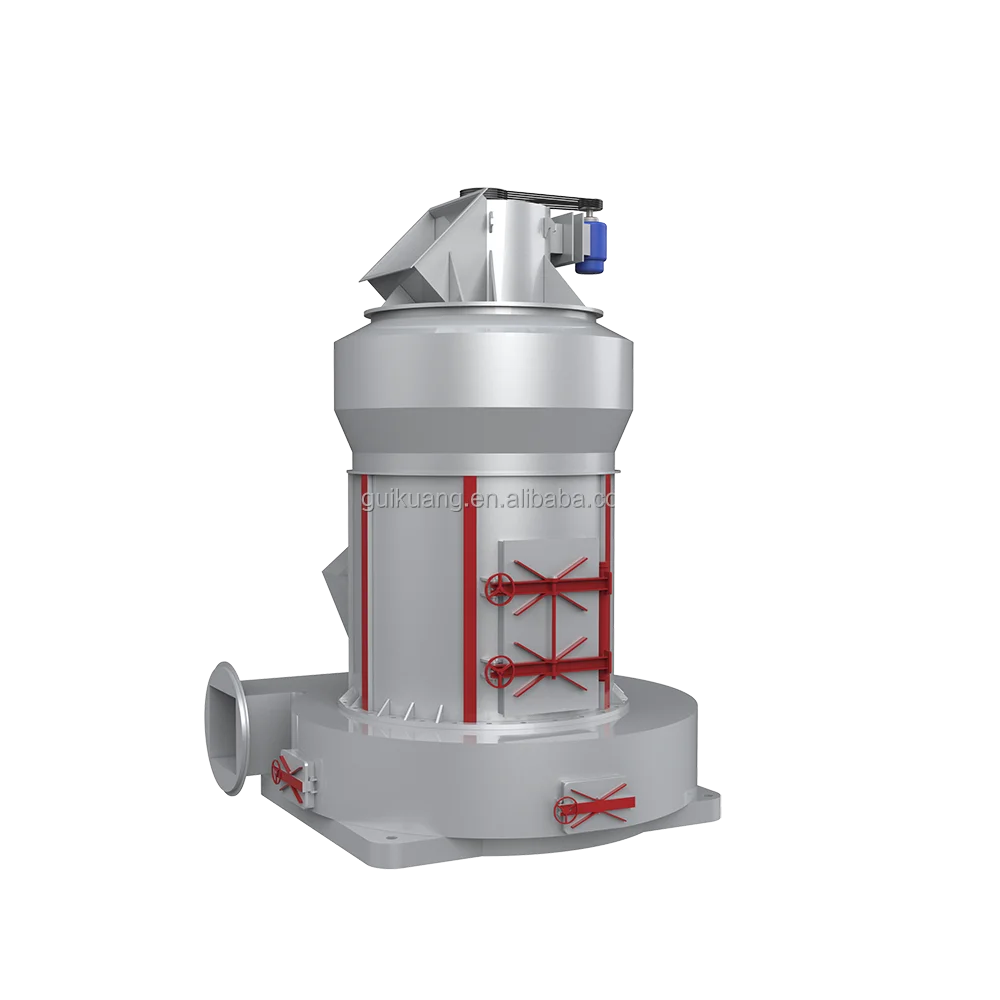

GK series New Pendulum Grinding Mill






Raymond Mill


Since Guilin Mining Machinery Factory was build in 1973, GK new pendulum grinding mill have been our company continuously developing improved products after the introduction of American techniques. As the origin of the early powder equipment manufacturers, Guikuang brand pendulum mill series win praises from customers with good quality at home and abroad.

The find powder size can be adjusted from 80 to 325 mesh and is mainly used in chemical industry such as grinding glass, rubber, pesticides, enamel, paint, phosphate fertilizer, paper, with Moh's hardness less than seven grades following humidity below 6% and non-flammable and non-explosive materials such as: talc, barite, calcite, limestone, manganese ore, iron ore soil, chrome ore, quartz, gypsum, bentonite, etc.

According to user demand GK series of new pendulum mill, can be improved into powder sand integrated machine, with a variety of performance,to improve the added value of products.








Technical Features



1. Main machine integrated damping optimization design, reduce vibration.

2. The main machine breaks the traditional structure, innovation optimization

design, high overall strength, good rigidity, reliable operation, grinding

efficiencygreatly improves.

3. The main machine reducer is a new type of heavy-duty reducer, which is resistant to earthquake and has good stability.

4. Fan valve electric or pneumatic control.

5. Adopt integral fan, easy installation and maintenance.

6. More stable operation, high output, low noise, energy saving, environmental protection.

7. Intelligent Control: One key start, arbitrary adjustment, one key stop,

failure warning.







Model comparison




















































































































Technical Parameters of Pendulum Mill
ModelMaximum Feeding
Size(mm)		Particle Size Of
The Finished
Product(mm)		Overall Dimensions
(Length*Width*Height)mm
(not include dust collector)		Capacity
(t/h)		Power(kW)
Main MachineFanClassifier
4R322020 0.045~0.0186950×4570×8295   1~645 4515
GK128020 8400×5650×82001.5~1055 55 15
5R4128208660×6050×9250 2~15 909022
GK150020 8700×5500×92503~18110 110 22
GK1620A30 9670×5570×10550 5~2216013230
GK170030 9670×5570×105506~28185 160 37
GK185030 10455×6830×9815 6.5~3020020037
GK192030 13312×7690×98157.5~33220 200 45
GK215030 11080×7600×11150  10~40250  25045
GK250035 11480×7730×1125011.5~50280 280 45
Note:The output in the table is mainly limestone,and the output varies with dfferent raw materials,different ore belts,and different densities
