150kva Pole Mounted Transformer,100kva 75kva 25kva 37.5kva 50kva 10kva Single Phase Transformer Price
- Category: >>>
- Supplier: ATTRACTEK PTE LTD
Share on (1601272844296):
Product Overview
Description
Attractek Advantages
1. Certifications
Attractek is a professional transformer manufacturer and supplier. Various international standards can be customized for your transformer, such as: IEEE/ANSI, CSA, AS/NZS, IEC, EN 60076, GOST, etc.Attractek produces transformers with UL/CUL, CSA, CESI etc certifications.
2. Transformer Quality
Attractek has a very serious quality control system, strictly controlling every detail from transformer design to raw material
procurement, assembly, testing, packaging and delivery.
procurement, assembly, testing, packaging and delivery.
UL third-party agency regularly inspects the manufacturing process of Attractek transformers. This ensures Attractek maintains high quality standards even after its products have completed initial UL testing.
3. After Sales Service
a. Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, Attractek's after-sales team will solve it promptly and quickly;
b. Local after-sales installation service team. Whether you are in North America, South America or other regions, Attractek's local team can provide you with professional transformer installation, commissioning, maintenance and other services;
c. Attractek provides remote video guidance for transformer installation;

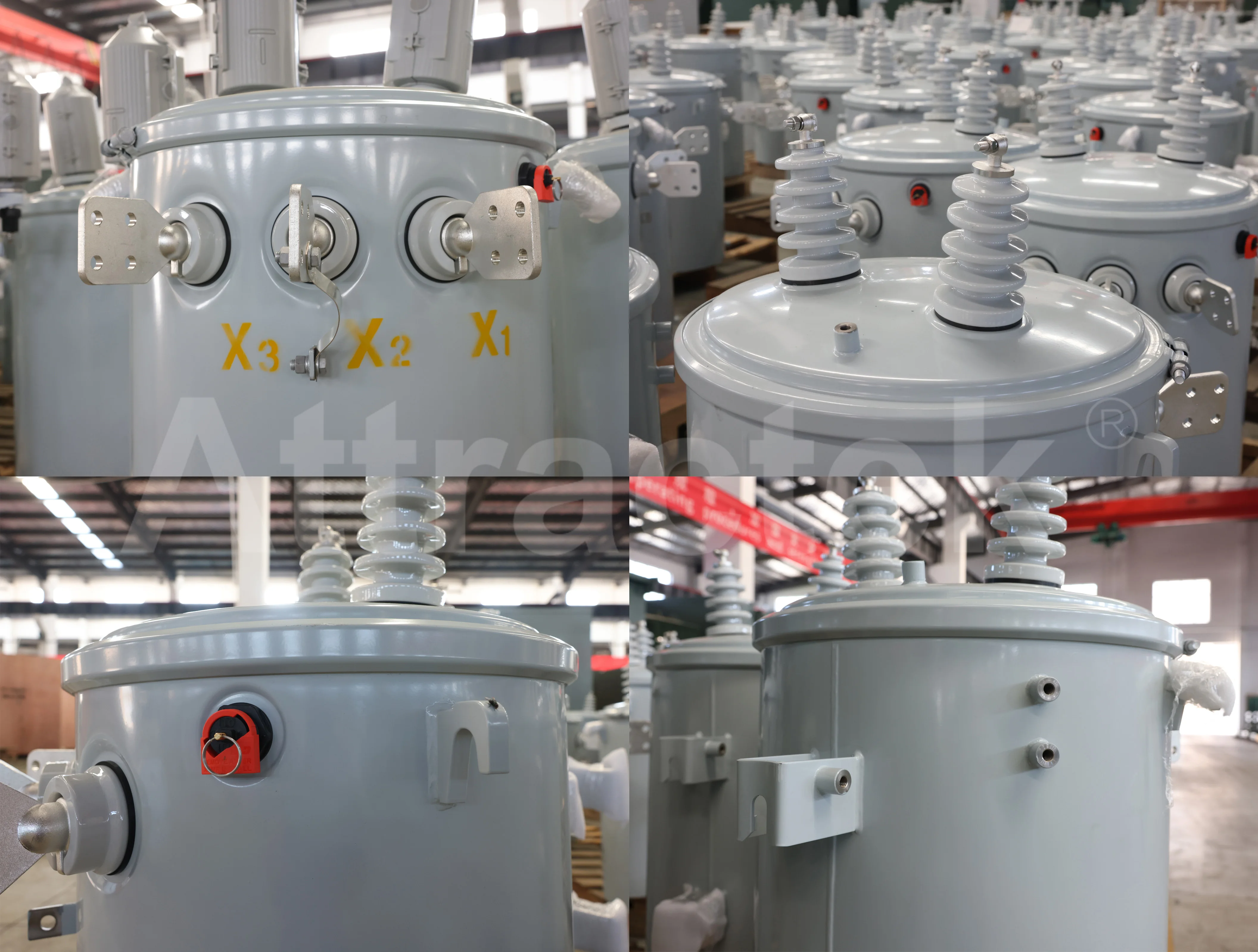

Transformer Detail

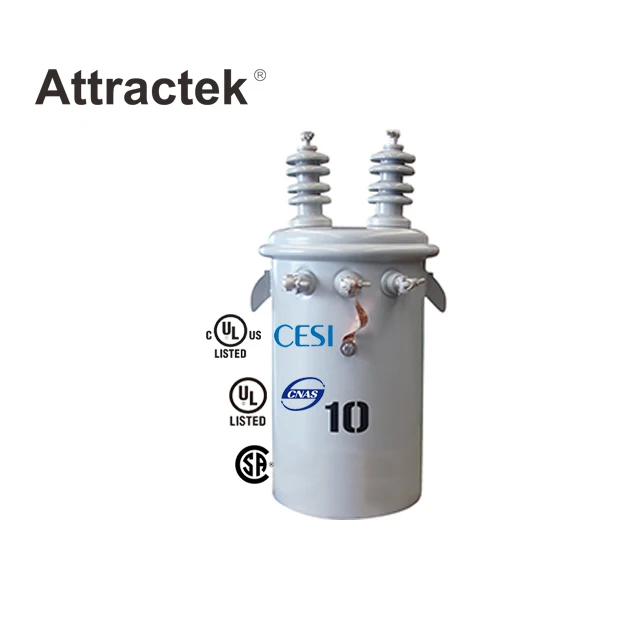

Single Phase pole mounted Transformer
Attractek's single phase pole-mounted transformers are made in power ratings up to 333 kVA.High voltage up to 34.5 kV.
Attractek's single phase pole-mounted transformers are designed and tested in accordance with standards including ANSI/CSA, IEEE c.57, and IEC60076 as applicable.
Single-phase cylinders are usually mounted directly on wooden or concrete poles for multi-scenario applications such as residential overhead distribution loads and light commercial loads, and are usually divided into conventional and CSP types
Attractek's single phase pole-mounted transformers are designed and tested in accordance with standards including ANSI/CSA, IEEE c.57, and IEC60076 as applicable.
Single-phase cylinders are usually mounted directly on wooden or concrete poles for multi-scenario applications such as residential overhead distribution loads and light commercial loads, and are usually divided into conventional and CSP types
Conventional Type Transformer
The transformer is cylinder sealing structure.Each one is fixed with grounding devices,hooks,supporting lugs which conforms to ANSI standard,and one or two high voltage bushing on the cover,low voltage bushing on the wall of the tank and eyebolt, connecting terminals.The tap changer should be adjusted basing on the instruction after the power off.
CSP Type Transformer
This type of transformer is CSP type, can self-protection in lightning, short circuit, and can protect the overcircuit and
distribution lines from power failure due to its own fault. Features are: one or two high-voltage bushings on the box cover as well as fuses, one or two lightning arresters installed on the side wall, the top of the arrester is close to the high-voltage bushings and connected to the bushings by copper tape.
distribution lines from power failure due to its own fault. Features are: one or two high-voltage bushings on the box cover as well as fuses, one or two lightning arresters installed on the side wall, the top of the arrester is close to the high-voltage bushings and connected to the bushings by copper tape.
Standard Feature
■Quality System ISO 9001 certified.
■Paint system meeting or exceeding the performance of the IEEEC57.12.28 Standard including the salt spray test.
■Lifting lugs meeting all of the requirements of the CSA C2.1-06 and CSA C2.2-06 Standard
■Computer aided design for mechanical & electrical calculations (C.A.D.).
■Core and coils designed for an optimum Total Ownership Cost (TOC).
■Low voltage leads with embossed markings on all units with 3 L V bushings for easy reading and permanent identification on selected ratings.
■Provision for surge arrester bracket,bracket available as an option.
■Lifting lugs meeting all of the requirements of the CSA C2.1-06 and CSA C2.2-06 Standard
■Computer aided design for mechanical & electrical calculations (C.A.D.).
■Core and coils designed for an optimum Total Ownership Cost (TOC).
■Low voltage leads with embossed markings on all units with 3 L V bushings for easy reading and permanent identification on selected ratings.
■Provision for surge arrester bracket,bracket available as an option.
■"Low-high-low"windings for increased short circuit stren-gth,efficiency and thermal strength
■Cover or sidewall mounted high voltage bushing(s)as required.
■Wound core with step-lap joints for increased efficiency and lower noise levels.
■Dual voltage designed to meet BIL and short circuit requirements on both connections.
■Automatic self-resealing pressure relief valve.
■Low voltage spade or clamp type(basket)terminals as required.
■Multiple cover clamps to ensure proper sealing and to minimize water retention on the cover edge.
■Cover or sidewall mounted high voltage bushing(s)as required.
■Wound core with step-lap joints for increased efficiency and lower noise levels.
■Dual voltage designed to meet BIL and short circuit requirements on both connections.
■Automatic self-resealing pressure relief valve.
■Low voltage spade or clamp type(basket)terminals as required.
■Multiple cover clamps to ensure proper sealing and to minimize water retention on the cover edge.
Option Accessories
Technical Specification
Single Phase Pole Mounted Transformer | ||||||||
Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |||||
No-load Loss (W) | On-load Loss (W) | |||||||
10 | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others | 120/240V 480Y/ 277V 600Y/ 347V | 36 | 120 | ||||
15 | 50 | 195 | ||||||
25 | 80 | 290 | ||||||
37.5 | 105 | 360 | ||||||
50 | 135 | 500 | ||||||
75 | 190 | 650 | ||||||
100 | 210 | 850 | ||||||
167 | 350 | 1410 | ||||||
333 | - | - | ||||||
Packing & Delivery
Wooden Case
As shown in the picture above, Attractek transformers are packed in wooden case. Put the transformer on a solid wooden pallet for fixing, and protect it with wooden boards on the top and around. Such wooden case packaging ensures that the transformer will avoid damage caused by impact during transportation.
Wooden Pallets
The package shown in the picture above is wooden pallet package. This packaging method of transformers is usually used for full container transportation by sea. After wrapping the transformer with plastic film (moisture and scratch protection), fix it on the log pallet. Attractek can also do packing according to your request.

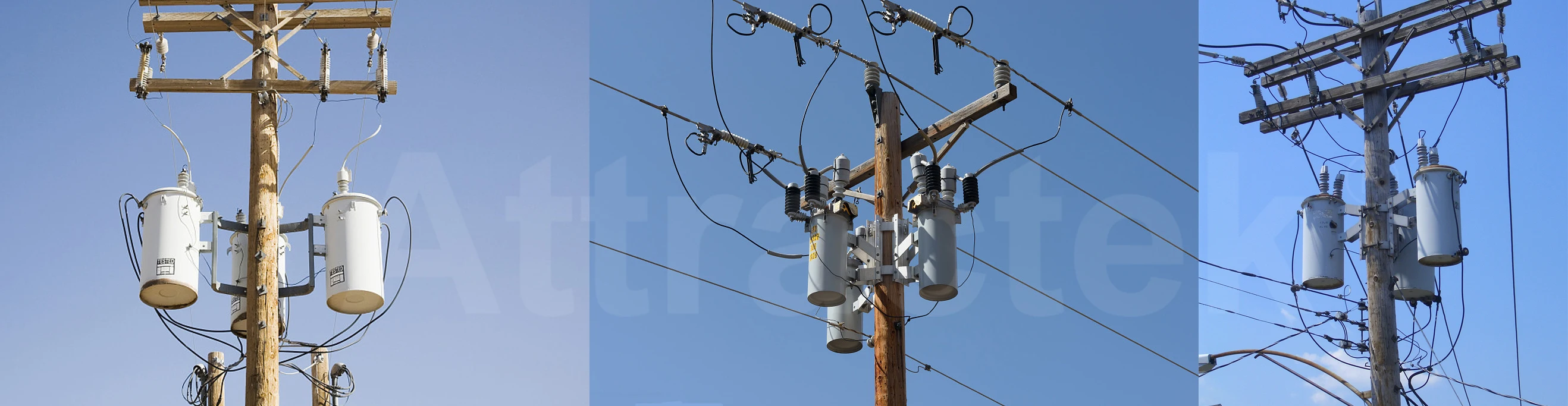

Applications

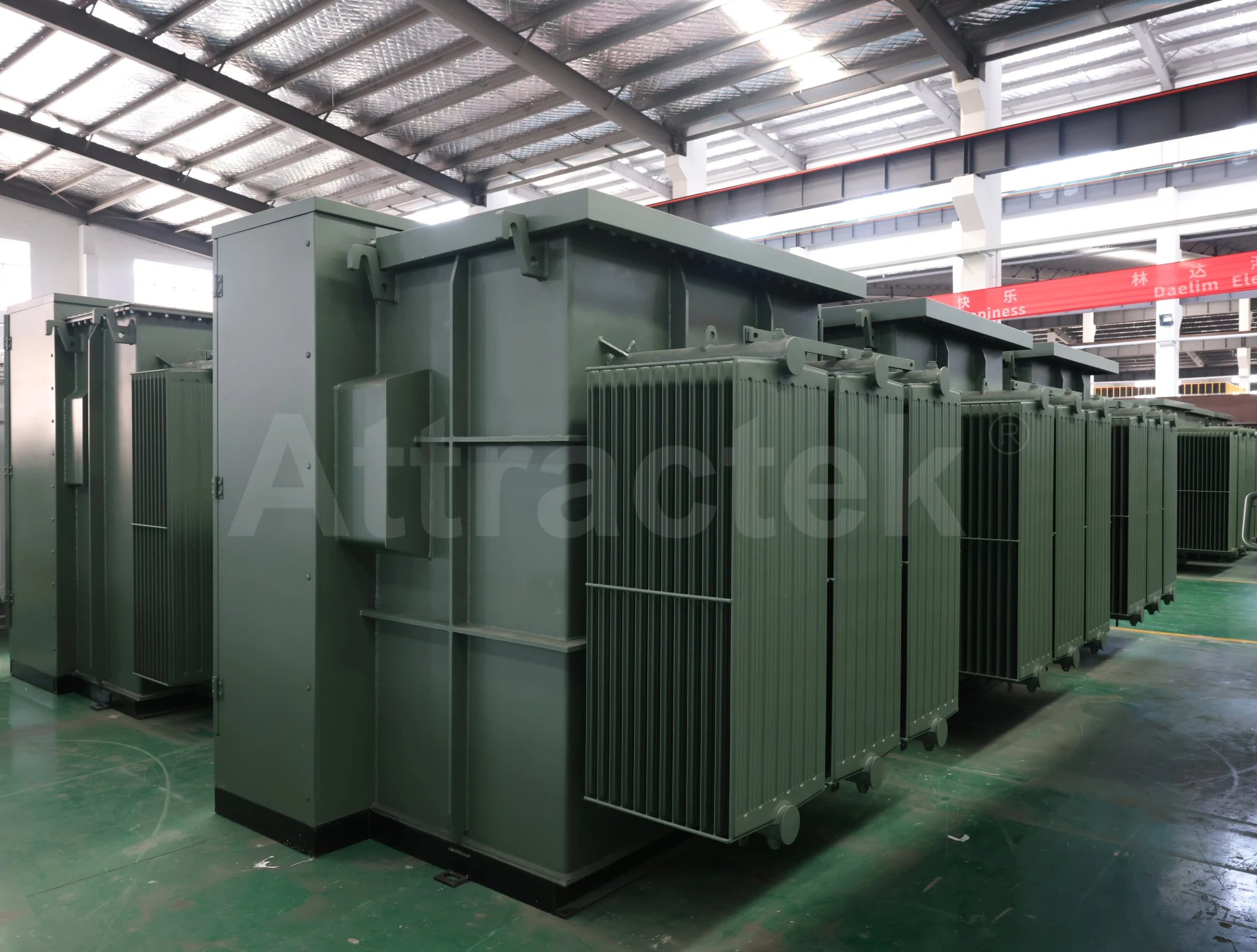

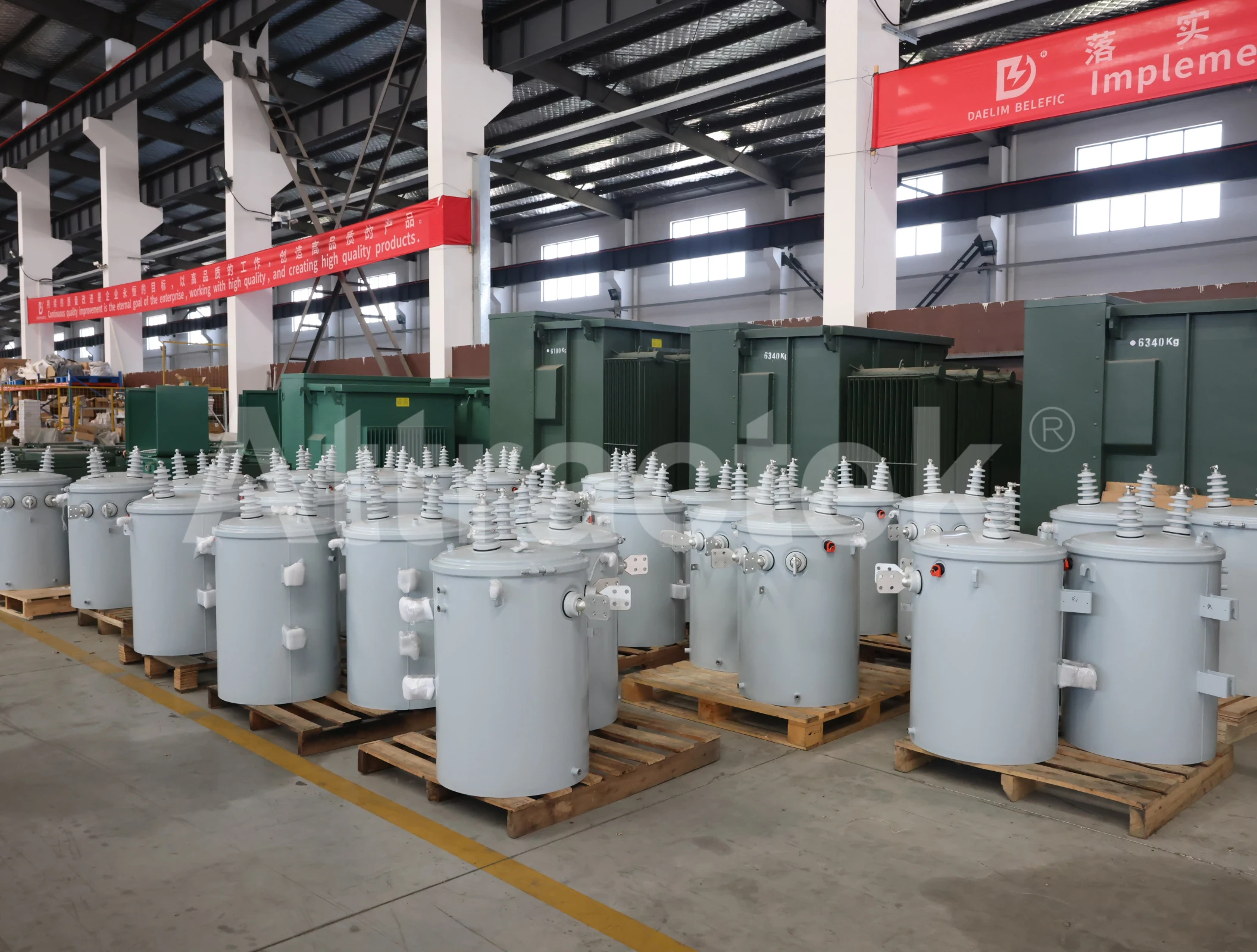

Factory Profile
Attractek Transformer is the top transformer supplier in China. The factory is located in Jiangsu Province, covering an area of 60,000 square meters. With more than 20 years of transformer export experience, the professional technical team can meet your requirements for all technical standards; the professional marketing team will quickly and efficiently promote your transformer project, saving you more time and economic costs. Various international certifications of transformers to ensure product quality, safety and reliability. The practical application of Dailymag Transformer in nearly a hundred countries will make you more confident in Dailymag Transformer. Dailymag Transformer will be your good choice.
