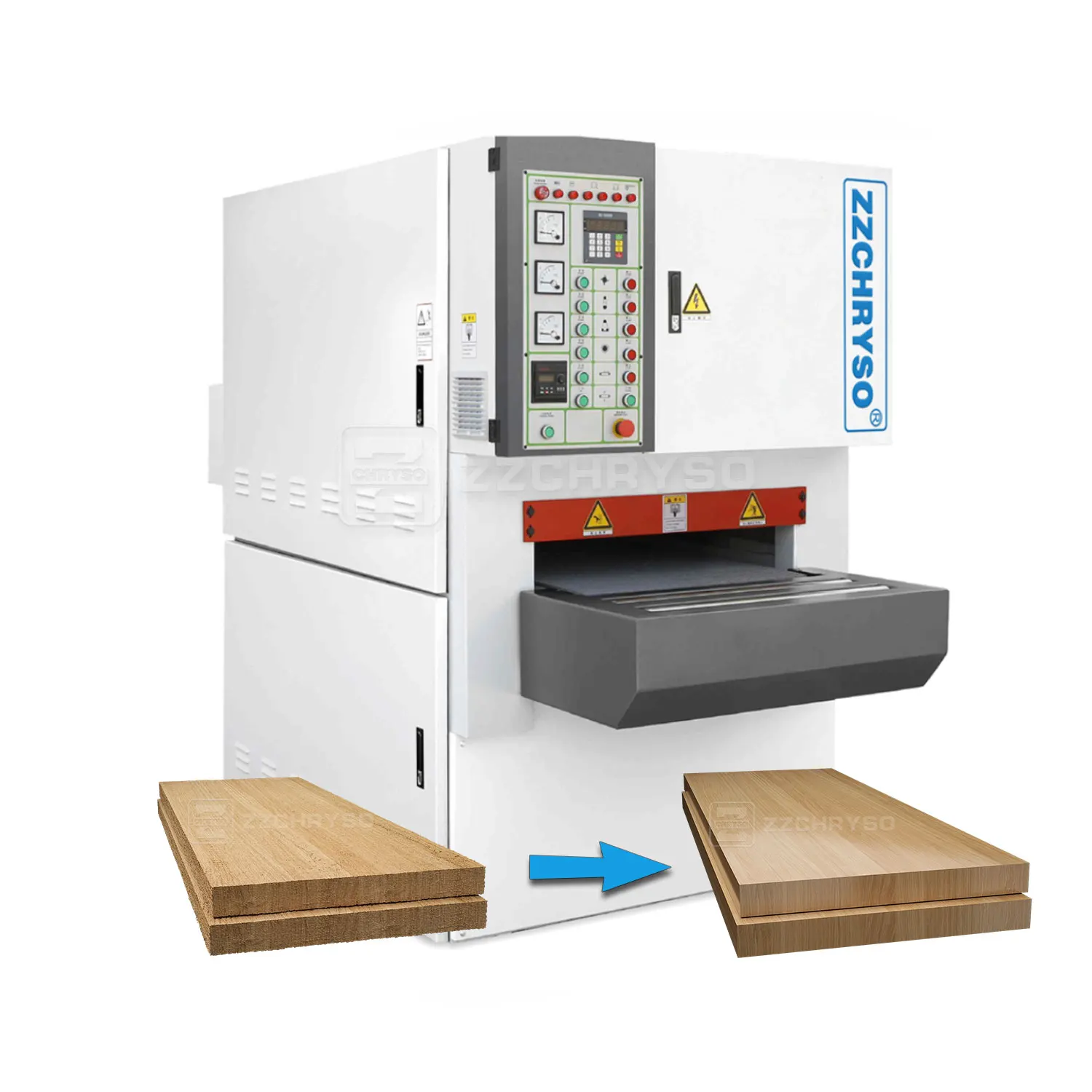

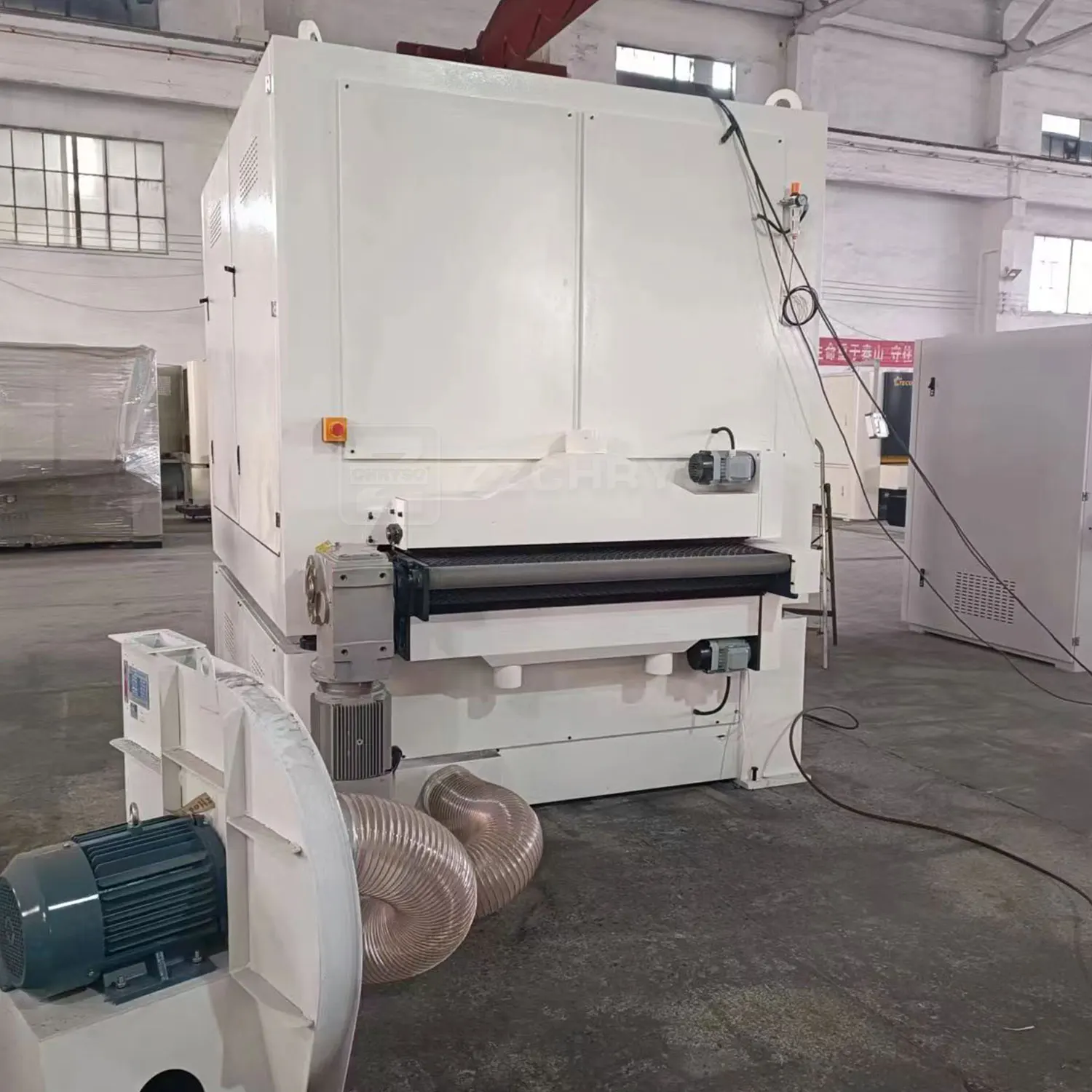

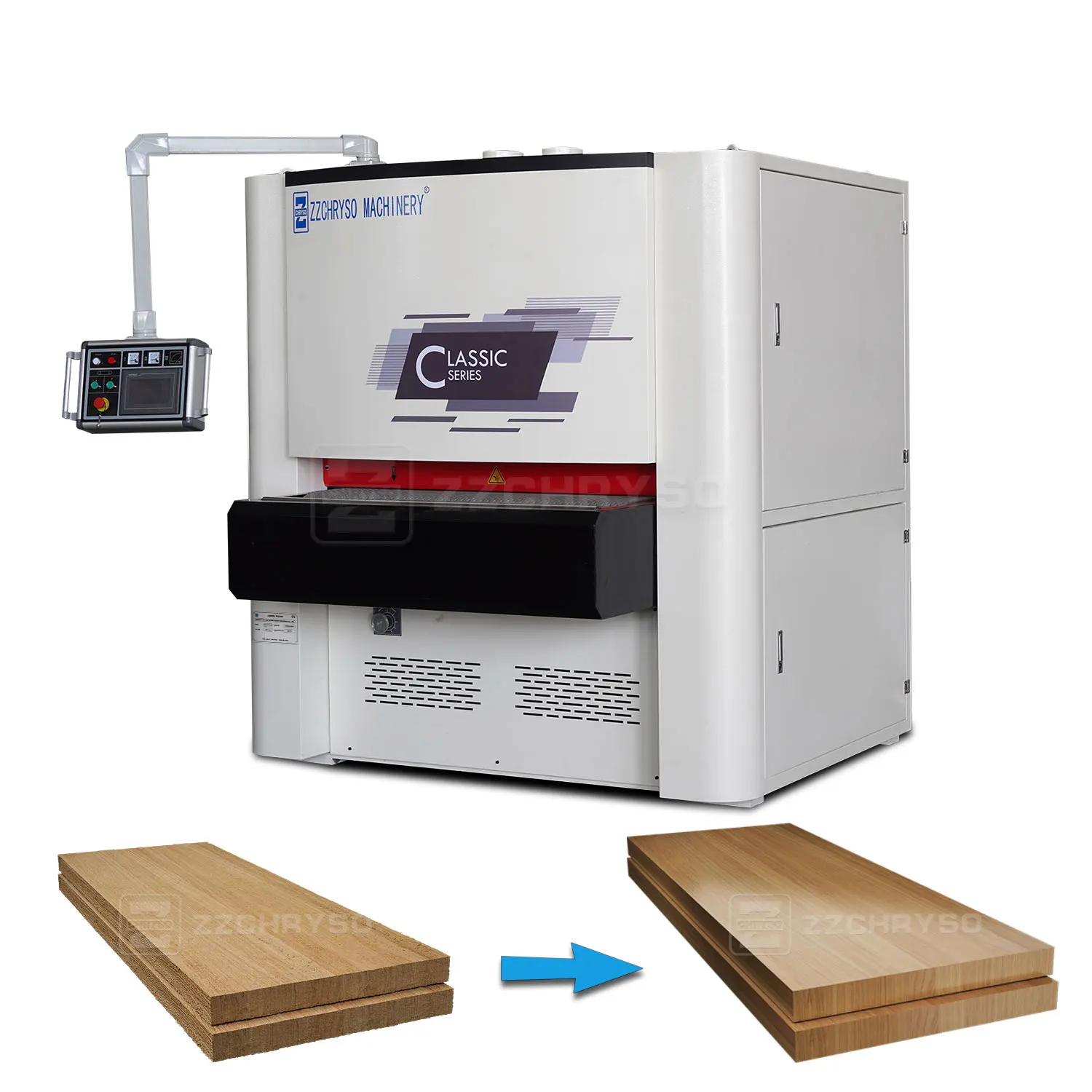

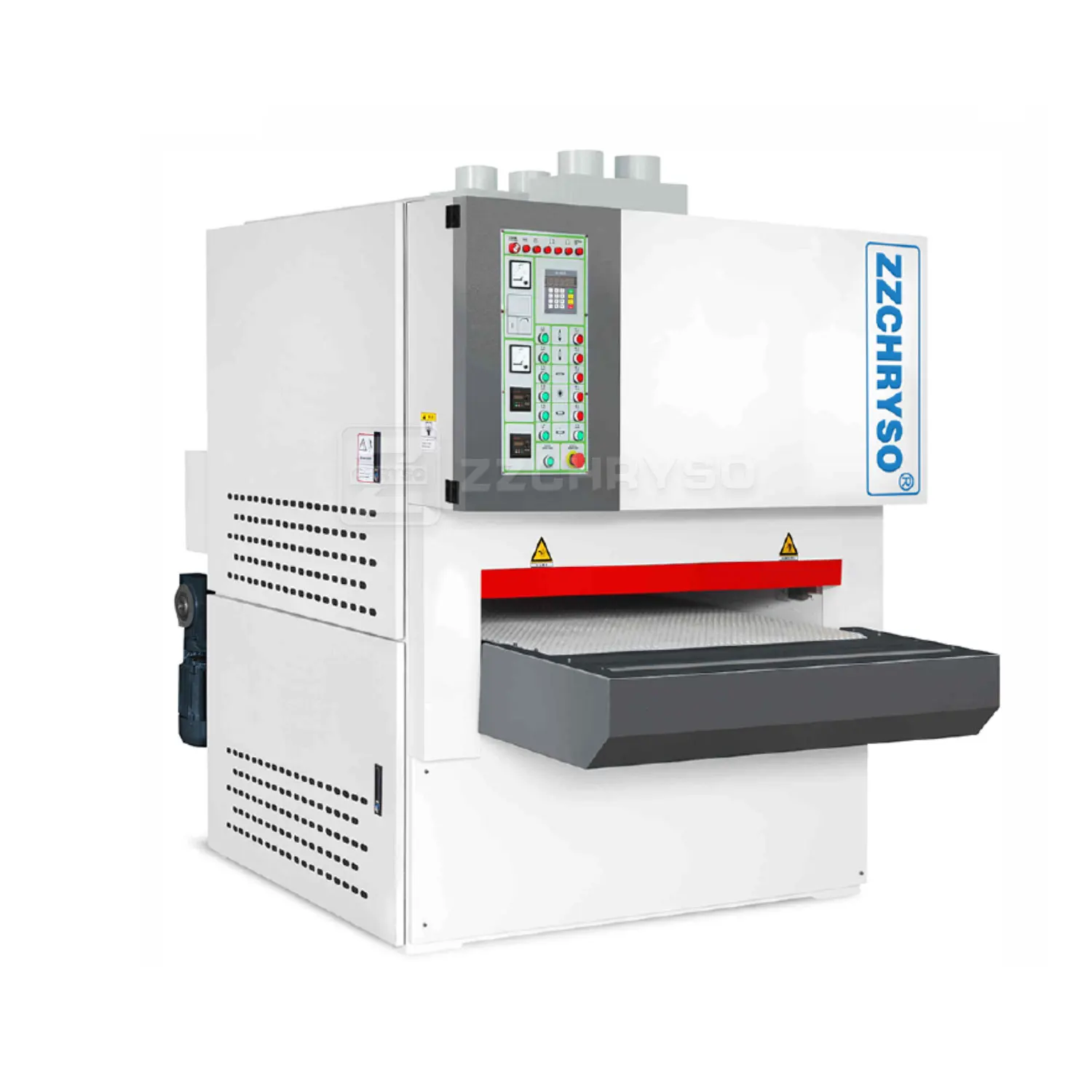

Woodworking Solid Wood 1300mm Planer and Sander Machine for Furniture Woodworking Planing and Sanding Machine for Vietnam Market
- Category: >>>
- Supplier: Zhengzhou Chryso Machinery Equipment Co. Ltd.
Share on (1601272863891):
Product Overview
Description
wood sanding machine polishing Wooden Door Laminating sand board woodworking machine
Application
Woodworking sanding machine
Sanding machine is suitable for rough and fine sanding, grinding and polishing of all kinds of solid wood, MDF, veneer and other materials, conventional wood lines and planks, such as regular surfaces, special-shaped surfaces, and plain surface. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
It can be realized by the combination of different components and different abrasives.
It is an ideal equipment for the production of special-shaped sanding such as doors, windows, cabinets, and furniture. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
d
Product Description
Solid Wood Furniture Cabinet MDF Polish Sanding Machine
1.Planer sanding machine
Planer roller and sanding combining rollers, planning firstly and then sanding, effective and saving energy.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
The planer roller fixed with air pressing facility, Anti-rebound pressing roller and system, it can prevent rebounding of the material and denting.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
The planning blade densely distributed at spiral type, it's good for high volume planning with high smoothness,efficiency and precision. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
Model | SK-R-RP650 | SK-R-RP1000 | SK-R-RP1300 |
Working Thickness(mm) | 1-100 | 2-100 | 2100 |
Shortest Processing Length(mm) | 440 | 440 | 480 |
Planer motor power(kw) | 7.5 | 11 | 22 |
First sand frame motor power(kw) | 7.5(11) | 11(22) | 22(30) |
Second sand frame motor power(kw) | 7.5 | 11 | 22 |
Transmission motor power(kw) (frequency control of motor speed) | 1.5 | 2.2 | 4 |
Dust collector brush motor power(kw) | 0.37 | 0.37 | 0.37 |
Lift motor power(kw) | 0.37 | 0.37 | 0.37 |
Planer knife line speed(m/s) | 36 | 36 | 36 |
Sanding belt size(mm) | 1900*660 | 2200*1020 | 2200x1320 |
Line speed of first sanding frame(m/s) | 22 | 22 | 22 |
Line speed of second sanding frame(m/s) | 18 | 18 | 18 |
Working pressure(mpa) | 0.55 | 0.6 | 0.6-0.8 |
Vacuum air volume(m3/h) | 8000 | 12000 | 15000 |
2.Upper float sanding machine for UV production

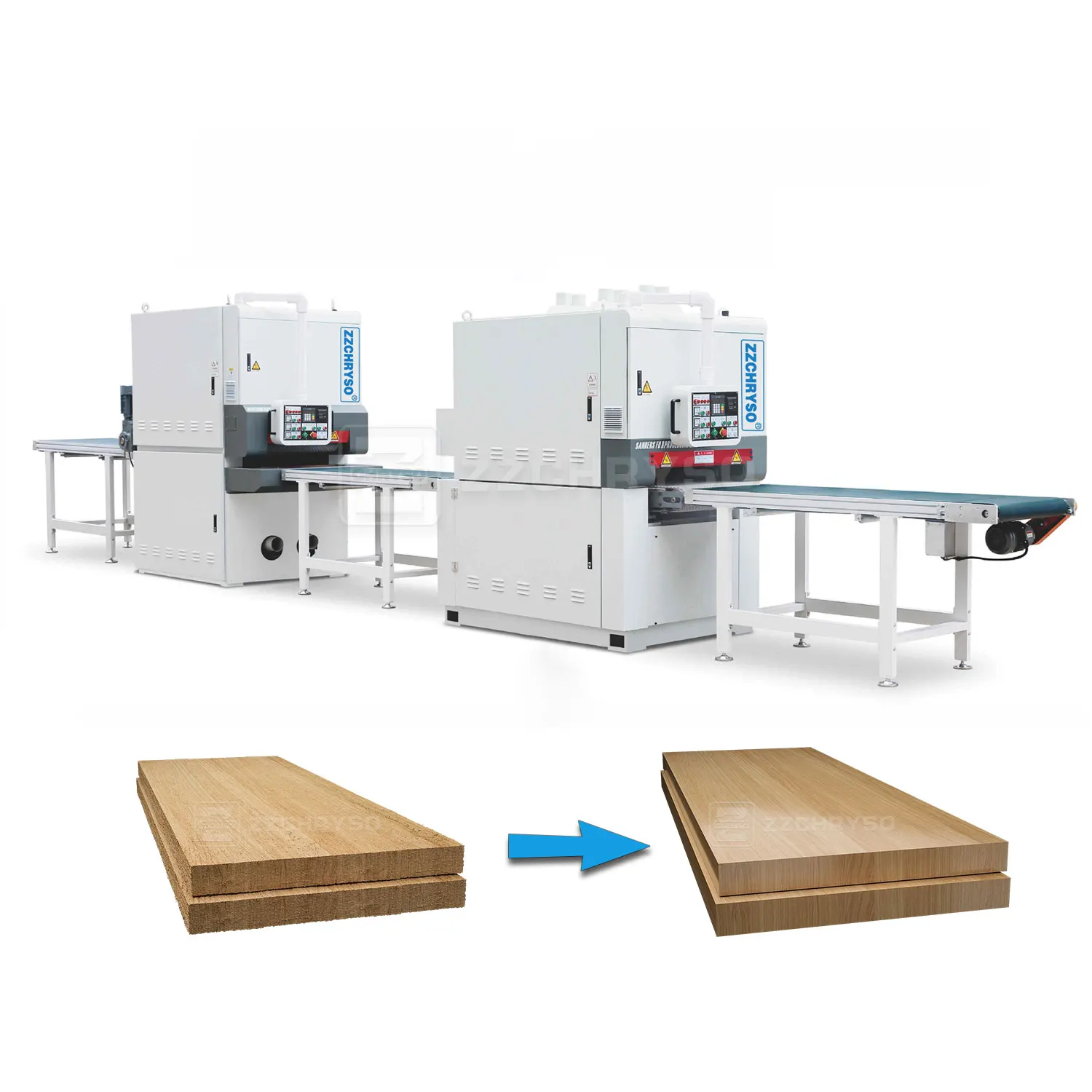

Upper floated Sander is the sanding machine can work together with other woodworking machines in production line ,and it can fit with any machines to combination production line.
lt can improve production efficiency. The sanding roller adopts frequency control, can meet all demand of sanding process. The sanding belt with clean device to clean the belt ,increase the service life of belt ,improve the sanding quality. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding

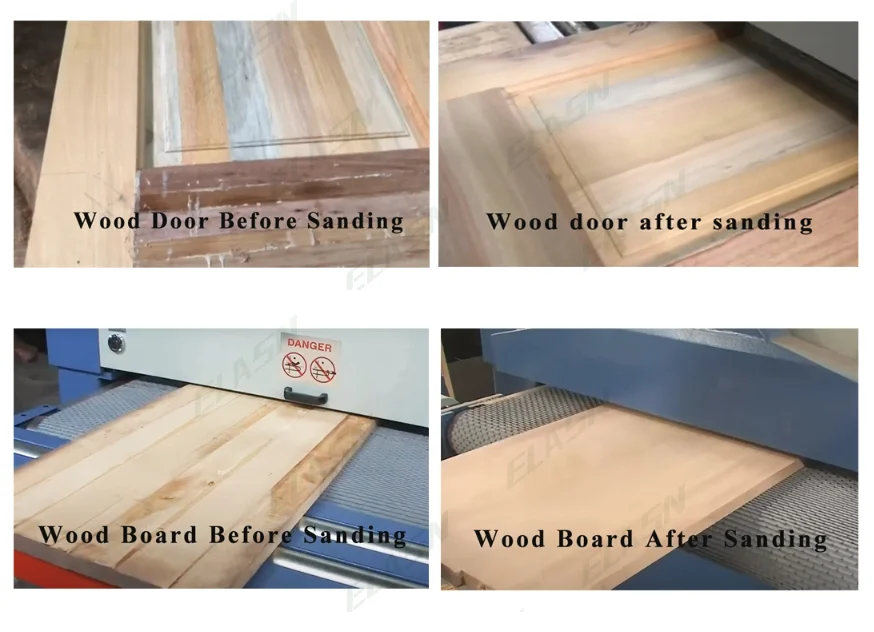

Furniture before sanding

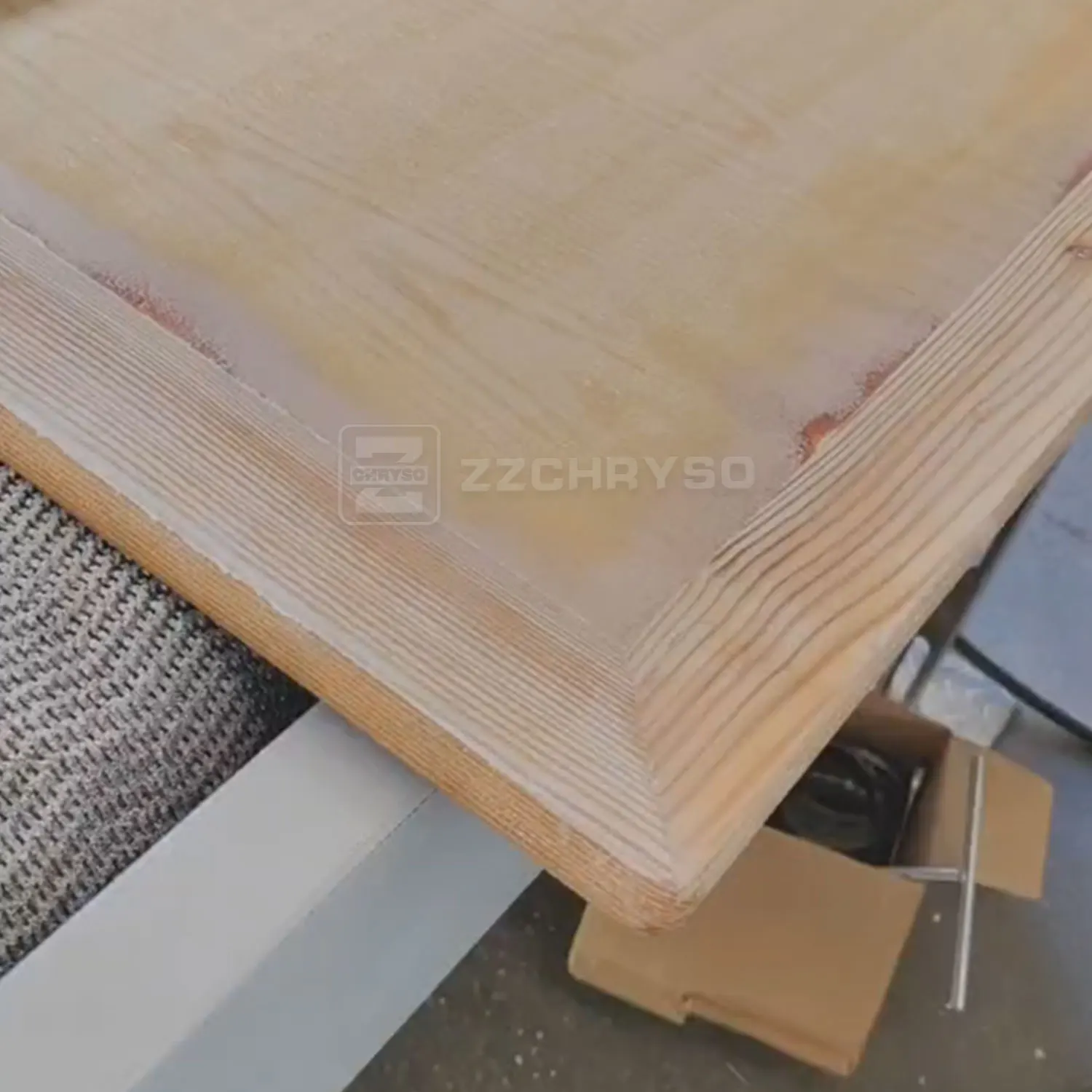

Furniture after sanding
Model | SFR-RD650 | SFR-RD1000 | SFR-RD1300 |
Processing Thickness(mm) | 2-150 | 2-150 | 2-100 |
Shortest Processing Length(mm) | 280 | 320 | 380 |
First sand frame motor power(kw) | 5.5 | 7.5(11) | 15(18.5) |
Second sand frame motor power(kw) | 5.5 | 7.5(11) | 11(15) |
Transmission motor power(kw) (frequency control of motor speed) | 1.5 | 1.5 | 2.2 |
Dust collector brush motor power(kw) | 0.37 | 0.37 | 0.37 |
Lift motor power(kw) | 0.75 | 0.75 | 0.75 |
Sanding belt size(mm) | 1900*660 | 2200*1020 | 2620x1320 |
Line speed of sanding frame(m/s) | 3-12 | 3-12 | 3-12 |
Working pressure(mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Vacuum air volume(m3/h) | 3500 | 5000 | 8000 |
3.Veneer laminating sanding machine
Veneer laminating sanding machine is mainly used for panel thickness plain before laminating and precise sanding after veneer laminating;MDF precise sanding
Eccentric enlarged rubber roller, high precision.Eccentrically lift up and down, convenient and simple.
Complete frame structure with higher stability, reduce vibration.
Vacuum absorption cooperates with pressing facility to solve the problem of thin panel sanded to broken because of laminating deformation. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
ln case of failure (lack of pneumatic pressure, abrasive belt brake, emergency brake),conveyor table drop down automatic to protect work piece free from being damaged.
Double eccentric rollers precision construction ,easy adjustment.Pressing construction ensure the boards stable during the panning.

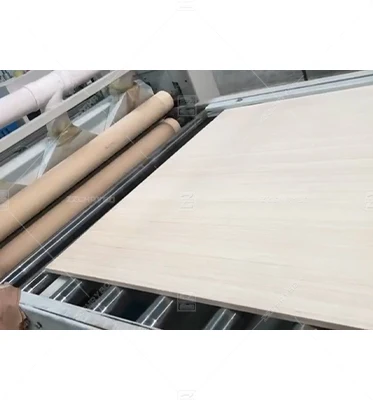

Raw material wood wood veneer
Raw material wood wood veneer
Model | SR-RM1300 |
Processing Thickness(mm) | 1-100 |
Shortest Processing Length(mm) | 380 |
First sand frame motor power(kw) | 30(37) |
Second sand frame motor power(kw) | 18.5 |
Transmission motor power(kw) (frequency control of motor speed) | 3(4) |
Dust collector brush motor power(kw) | 0.37 |
Lift motor power(kw) | 0.37 |
Sanding belt size(mm) | 2200x1320 |
Working pressure(mpa) | 0.6-0.8 |
Vacuum air volume(m3/h) | 15000 |

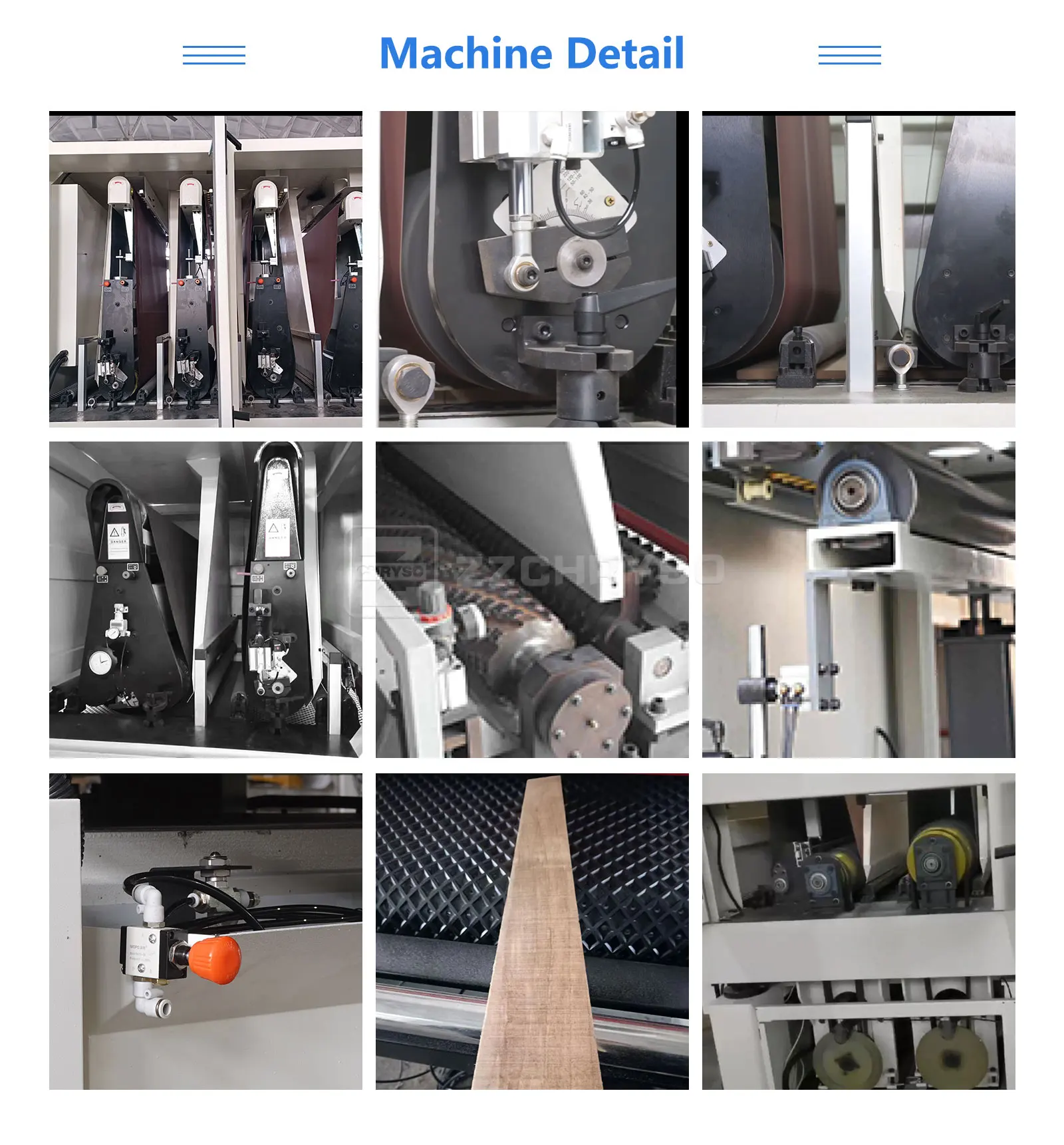

Details Images
America Banner Sensor
Adopts America Banner Sensor to control the swing and off tracking of sanding belt.
Vacuum absorption device (Optional)
Equipped for sanding all kinds of rotary cut solid wood veneer and slicing veneer.
German Rexroth frequency conversion
The conveyor belt adopts German Rexroth frequency conversion adjustment, which is easy to operate.
Thickness gauge controlled by buttons
The thickness gauge is controlled by buttons, with high precision and easy operation.
Enlarged rubber thickness-fixing roller
Enlarged rubber thickness-fixing roller, high machining accuracy, convenient, simple adjustment and lifting of eccentric shaft, reasonable layout and easy operation.
Schneider electric components
The contactor adopts the French Schneider brand with high stability, the main motor is equipped with overload protection.
Advantages

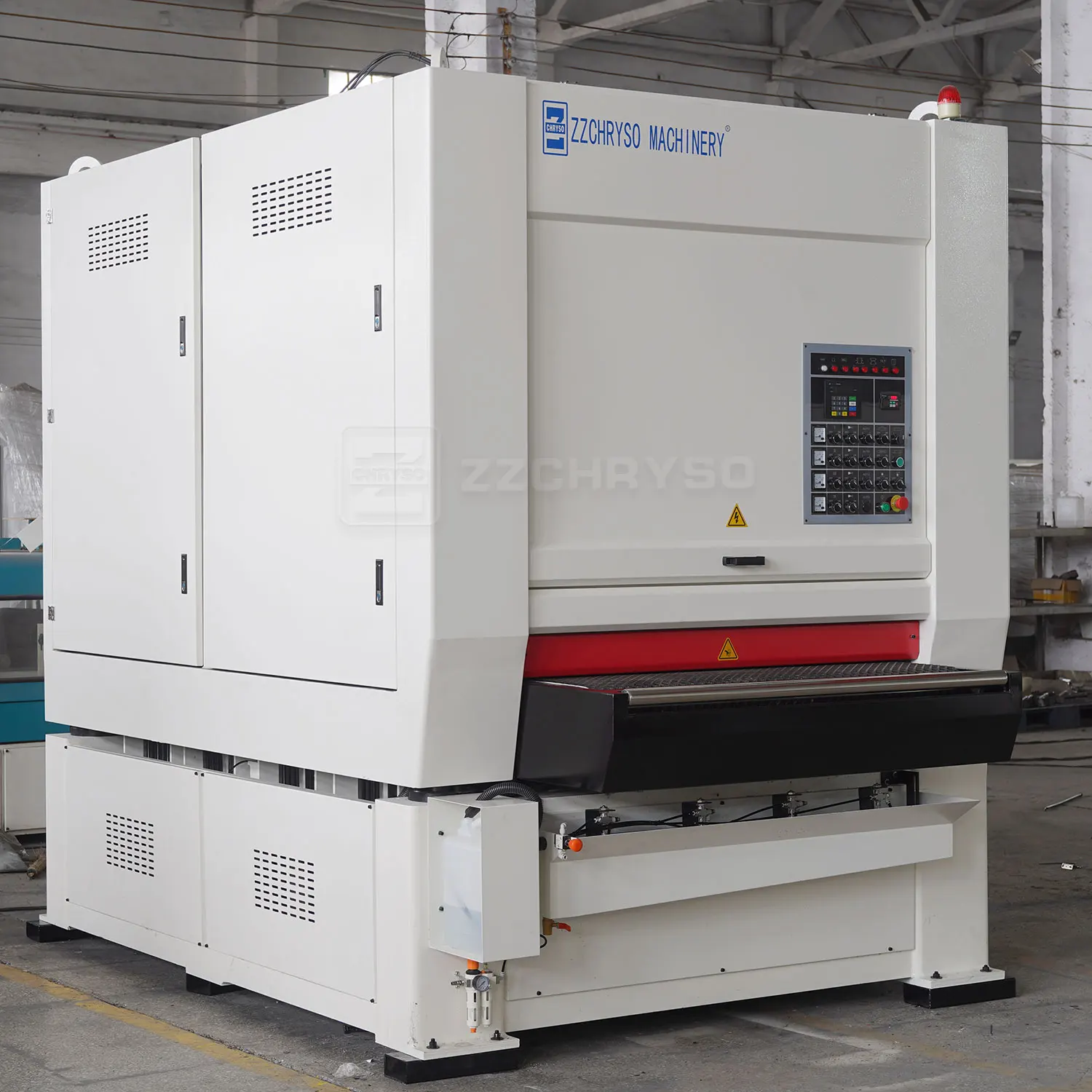

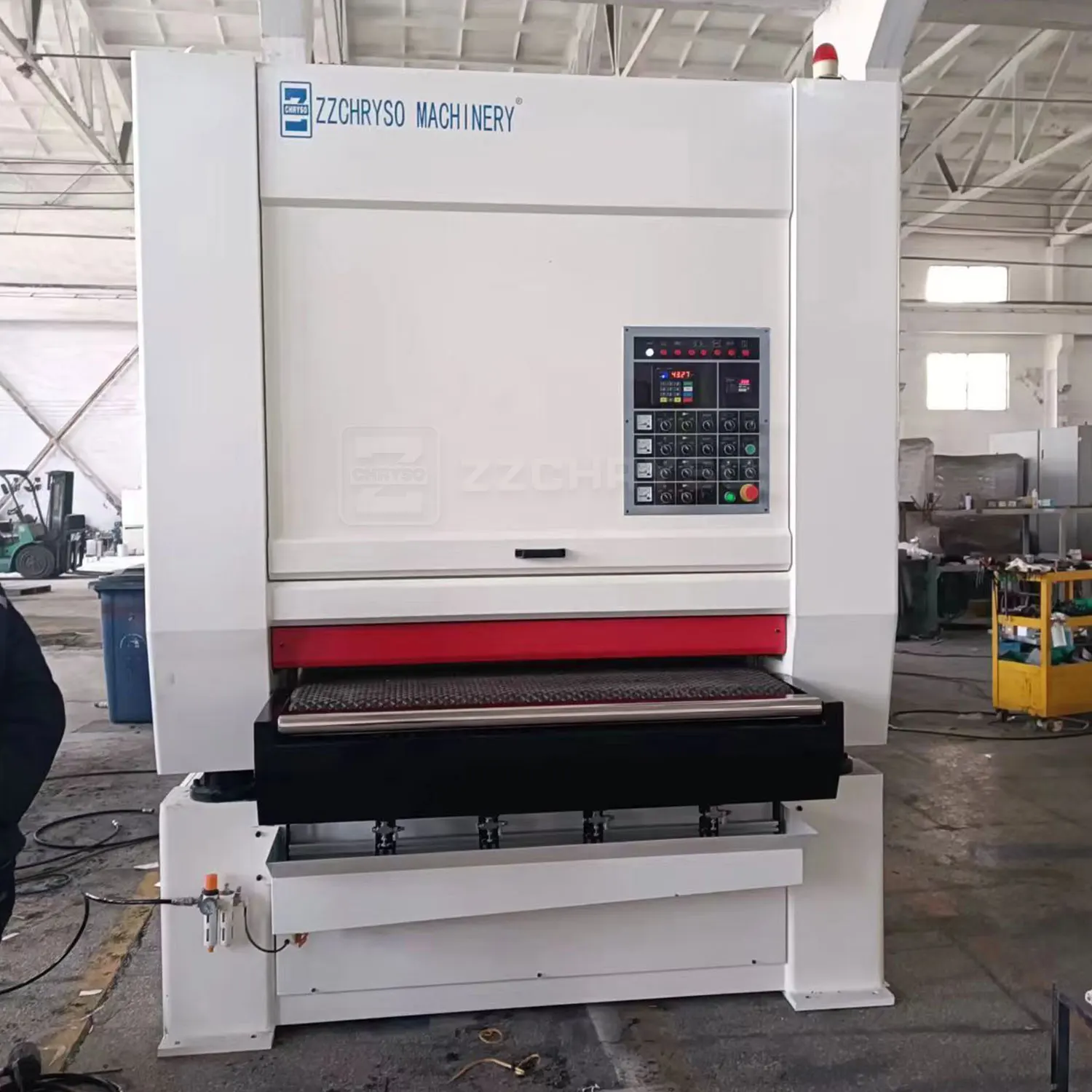

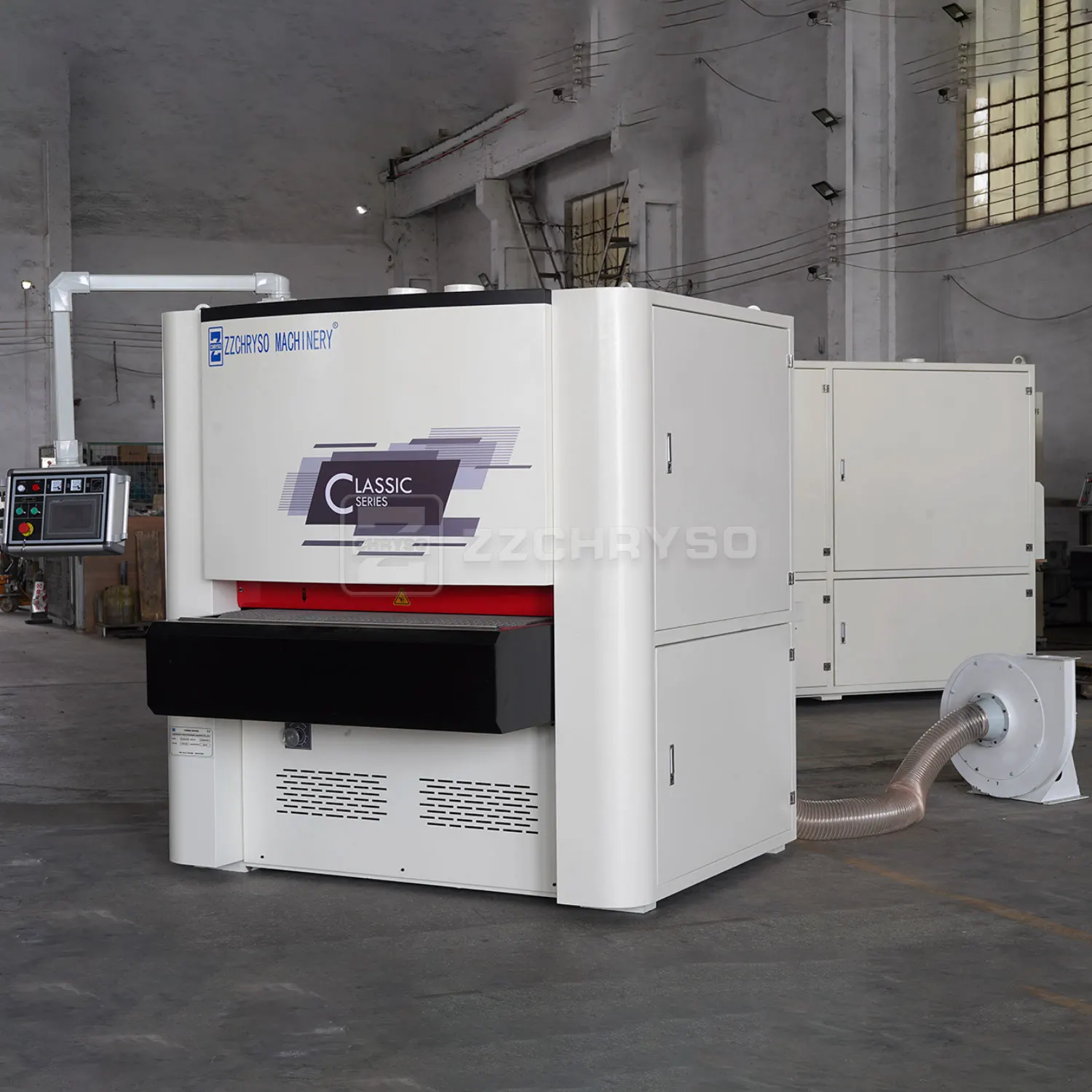

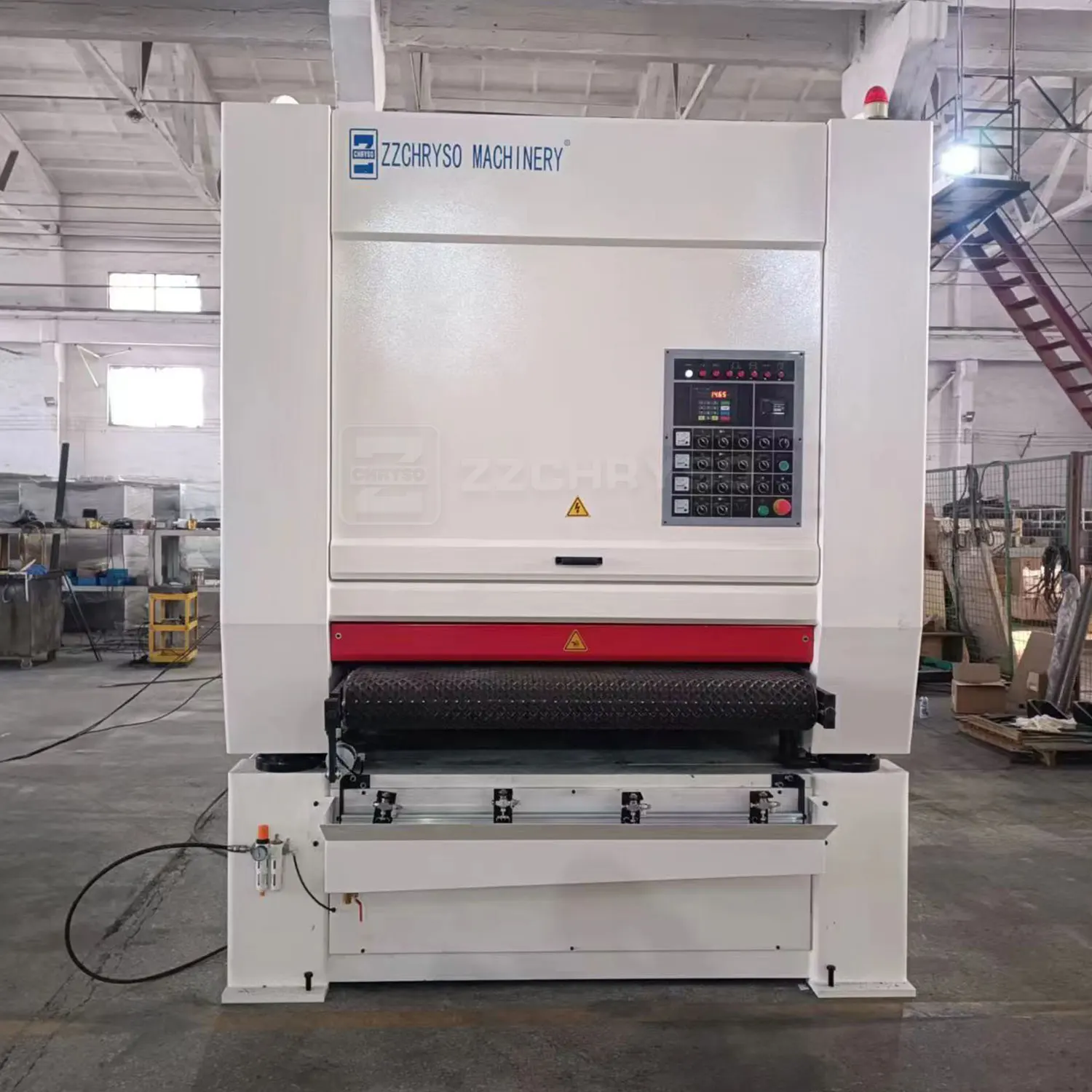

1000/1300mm wide belt sanding machine
1. The thickness of the work piece adopts a microcomputer button-type thickness display, which is accurate and stable. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
2. The belt swing is controlled by air pressure, and the swing is stable and even.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
3. The front and rear double emergency stop buttons can control the rapid braking of the equipment (wire resistance braking). Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
4. It is equipped with a fault display (the belt deviation from left and right, insufficient air pressure, front and rear emergency buttons), which is convenient for the basic fault judgment of the equipment.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
5. The automatic lowering protection device is adopted for emergency stop of failure, which will not sand grooves on the board surface due to shutdown.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
6. The conveyor belt uses a small square rubber belt, which is 2-3 times more wear-resistant than other brands. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
7. The line speed of the conveyor belt is controlled by the German Rexroth inverter, which can be adjusted according to the sand products to improve the sand cutting quality.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
8. Germany Pepperl+Fuchs photoelectric control belt swing and belt deviation.
9. The first group of sand racks adopts rubber rollers with a diameter of 300mm and 45°; the second group of sand racks adopts rubber rollers with a diameter of 300mm and 25°, which are more precise and delicate. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
10. The lifting and lowering of the conveying bed adopts the T-shaped screw technology with high precision. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
11. The pressing device adopts 7cm rubber pressing roller to make the feeding more stable and smooth.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
12. The main bearing of the equipment adopts Japanese brands
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
13. The electric components brand selected for the equipment is Schneider.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
3. The front and rear double emergency stop buttons can control the rapid braking of the equipment (wire resistance braking). Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
4. It is equipped with a fault display (the belt deviation from left and right, insufficient air pressure, front and rear emergency buttons), which is convenient for the basic fault judgment of the equipment.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
5. The automatic lowering protection device is adopted for emergency stop of failure, which will not sand grooves on the board surface due to shutdown.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
6. The conveyor belt uses a small square rubber belt, which is 2-3 times more wear-resistant than other brands. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
7. The line speed of the conveyor belt is controlled by the German Rexroth inverter, which can be adjusted according to the sand products to improve the sand cutting quality.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
8. Germany Pepperl+Fuchs photoelectric control belt swing and belt deviation.
9. The first group of sand racks adopts rubber rollers with a diameter of 300mm and 45°; the second group of sand racks adopts rubber rollers with a diameter of 300mm and 25°, which are more precise and delicate. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
10. The lifting and lowering of the conveying bed adopts the T-shaped screw technology with high precision. Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
11. The pressing device adopts 7cm rubber pressing roller to make the feeding more stable and smooth.
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
12. The main bearing of the equipment adopts Japanese brands
Automatic Wide Belt Planer Sander Machine Wood Veneer Sanding
13. The electric components brand selected for the equipment is Schneider.
Related Product

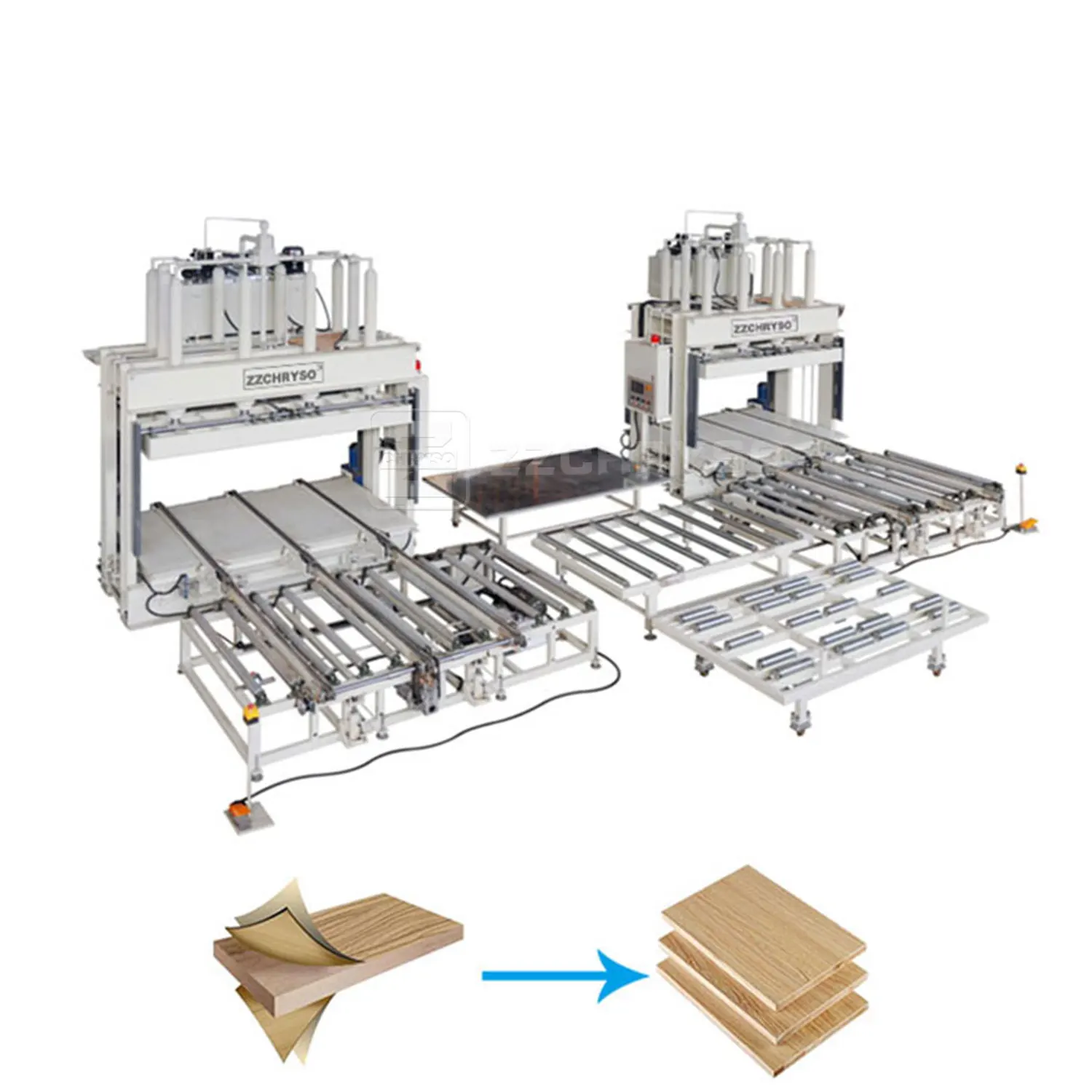

Wood door veneer hot press machine

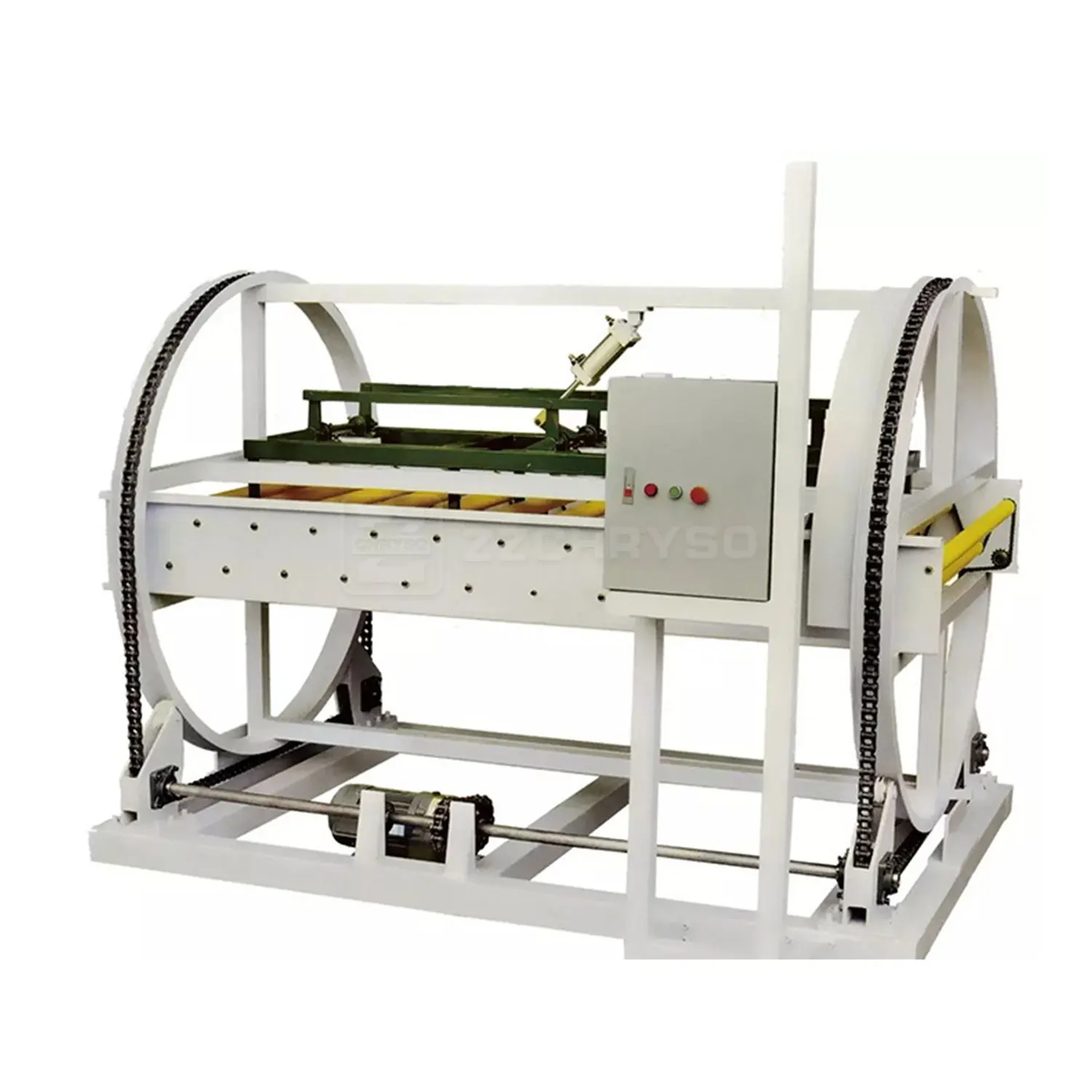

Turning machine
