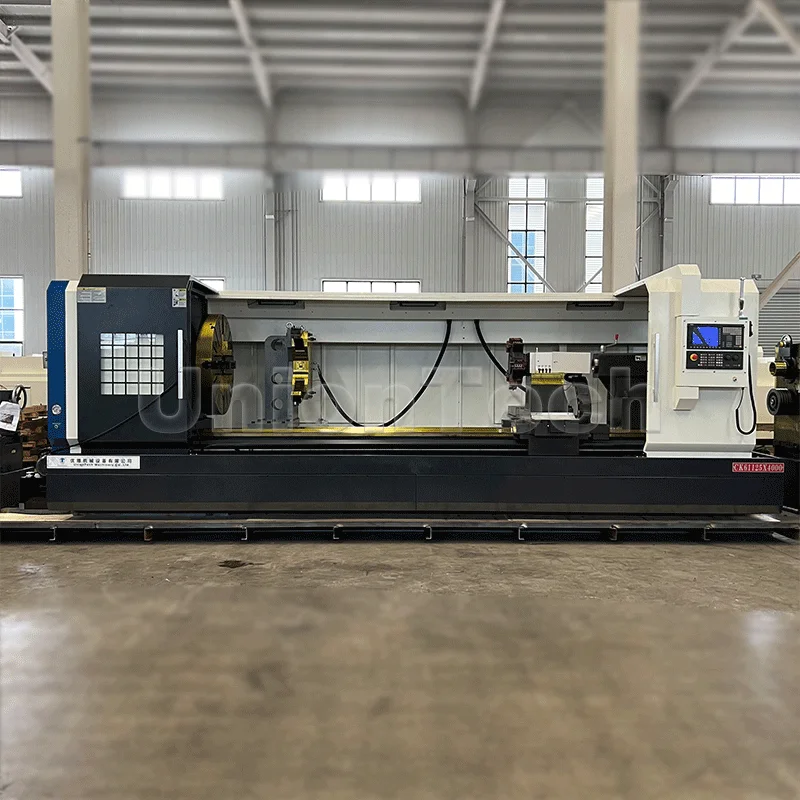

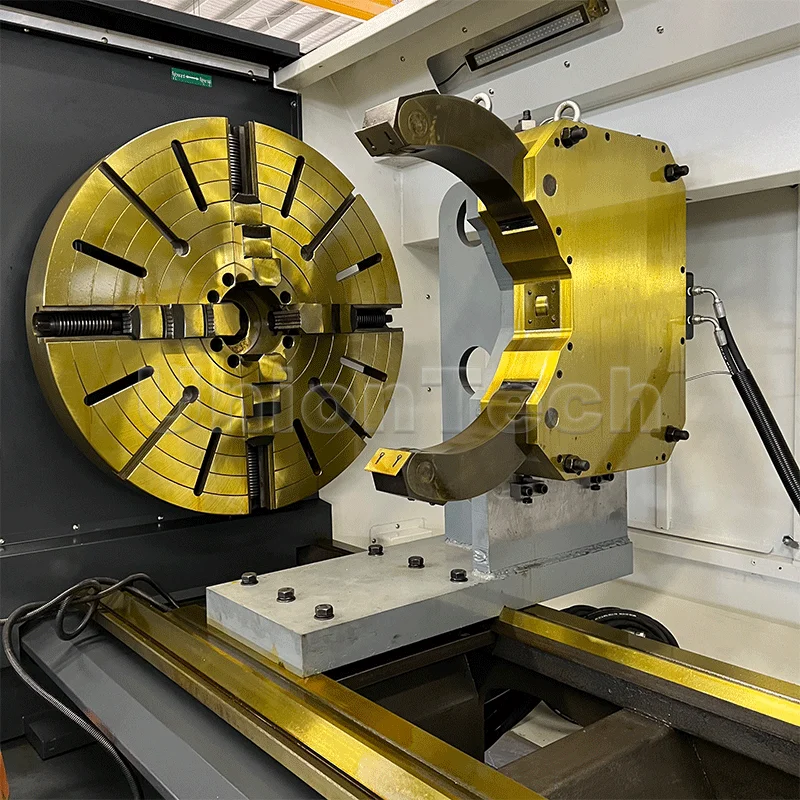

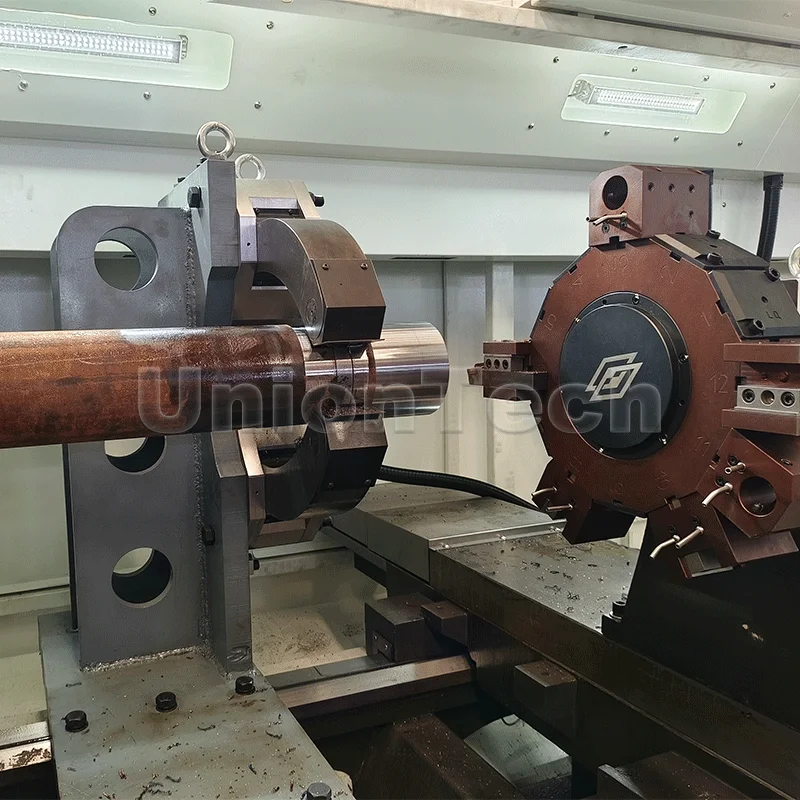

CK61125 cnc big lathe machine steady rest with SIEMENS controller
- Category: >>>
- Supplier: Jinan Uniontech Machinery Co. Ltd.
Share on (1601272903608):
Product Overview
Description
CK61125 cnc big lathe machine steady rest with SIEMENS controller
Item | Unit | CK61125X4000 cnc lathe machine | |
capability | Max.swing diameter of the bed | mm | Φ1250 |
Maximum rotary diameter of drag plate | mm | Ф880 | |
Maximum cutting diameter | mm | Φ1250 | |
Maximum machining length | mm | 1000/1500/2000/3000/4000 | |
Effective machining length | mm | 850/1350/1850/2850/3850 | |
Maximum X/Z axis travel | mm | 2000 | |
X/Z axis minimum displacement unit | mm | 0.001 | |
Chuck | 1000 4-station | ||
Spindle through-hole diameter | mm | Ф105/130 | |
Number of spindle stages | High and low speed 8 speeds Variable speed in gear | ||
Spindle speed limit | Rpm | 2.5-6.5/4-11.5/9.5-26/23-63 30-85/53-150/125-350/300-835 | |
Main motor power (inverter) | Kw | 15kw | |
Frequency converter | Kw | 15kw | |
X/Z axis | N.m | 10/15 | |
X/Z axis rapid traverse speed | M/min | 4/6 | |
Toolholder type | 4-tation | ||
Toolholder size | mm | 40*40 | |
Repeatable positioning accuracy of tool holder | mm | ≤0.004 | |
Tailstock sleeve diameter | mm | Φ100 | |
Tailstock sleeve stroke | mm | 300 | |
Taper hole of tailstock center | 8# | ||
Net weight of machine | Kg | 6500/7000/8000 | |
Power requirement (power/current) | Kw/A | 20kW/30A | |
Width of bed guideway | Mm | 755 |

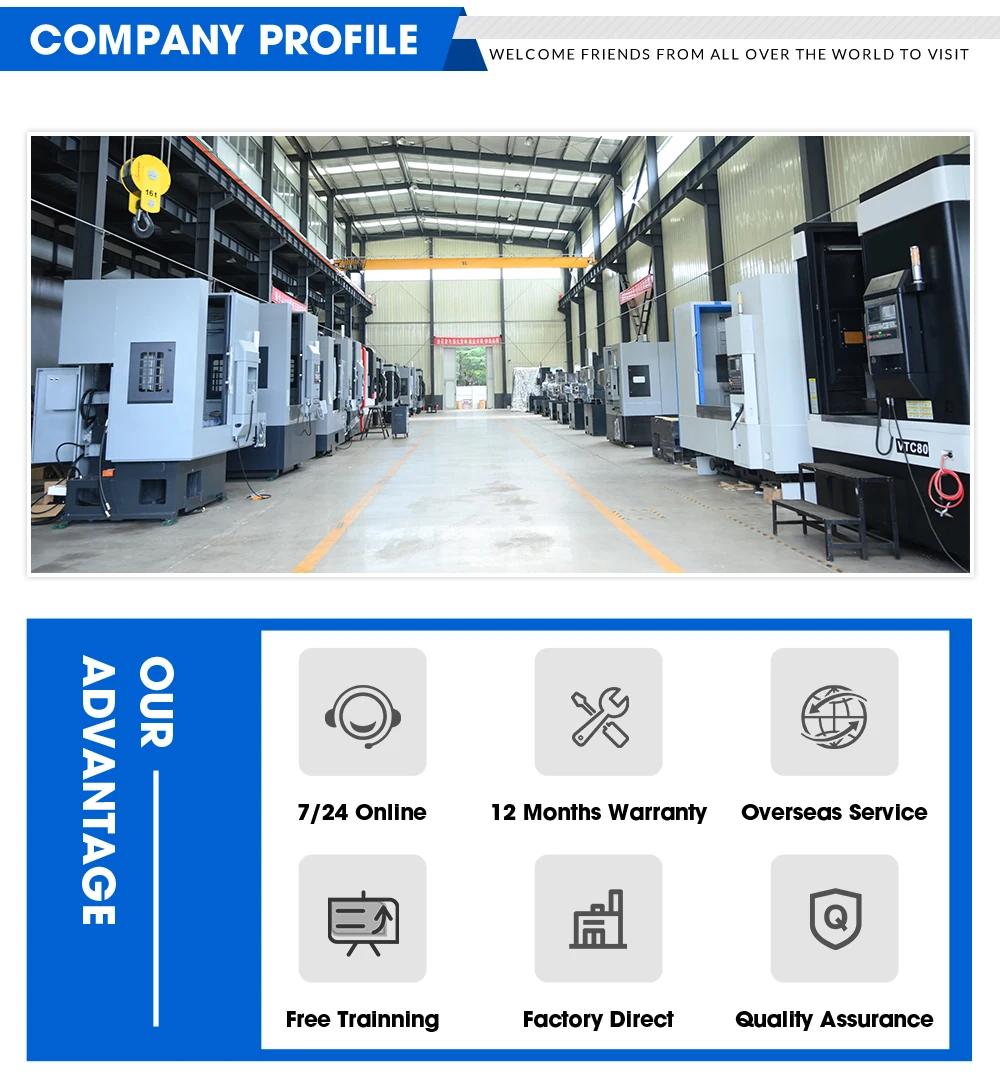

UnionTech Machinery Co., Ltd. is a comprehensive technology enterprise specializing in the development, manufacturing, sales, and service of CNC machine tools. The company has a professional technical team dedicated to the field of CNC machine tool manufacturing, which has set a new banner in the CNC machine tool industry with over ten years of technical experience. There are currently five mainstream product series: vertical machining center series, horizontal machining center series, CNC lathe, and gantry machining center series. The high-speed machining center machine in the vertical machining center series is our company's re promoted product. This series of machine tools has the characteristics of high speed, high rigidity, high performance, and high efficiency, and has quickly become the preferred machine tool equipment for industries such as communication, consumer electronics, automotive, and aerospace companies.
UnionTech Machinery Co., Ltd. is based and means on precision machining, precision testing, and precision assembly, persistently pursuing high-end technology, highend market, and high-efficiency goals, closely following the forefront of industry technology, high standards, high starting points, and strict requirements.
1. Your products look similar, but the prices are different. What's the difference?
-The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The better configuration, the higher prices. If you want to get an exact quotation, please contact customer service.
2. Can your offer customized service?
-Yes, we can. Please provide the specification for the machine you need, and tell us your requirements.
3.With so many machine tools, how to choose one that suits me?
-Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc.
we will recommend the suitable model for you according to the products you need to process.
4. Is your machine tool 3-axis, 4-axis or 5-axis?
-We have 3-5 axis machine tools, we need to know the size you need for 4th/ 5th rotary table, NC controller ,motor brand and models, so that we can offer the quotation to you.
-The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The better configuration, the higher prices. If you want to get an exact quotation, please contact customer service.
2. Can your offer customized service?
-Yes, we can. Please provide the specification for the machine you need, and tell us your requirements.
3.With so many machine tools, how to choose one that suits me?
-Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc.
we will recommend the suitable model for you according to the products you need to process.
4. Is your machine tool 3-axis, 4-axis or 5-axis?
-We have 3-5 axis machine tools, we need to know the size you need for 4th/ 5th rotary table, NC controller ,motor brand and models, so that we can offer the quotation to you.
