Product Overview
Description

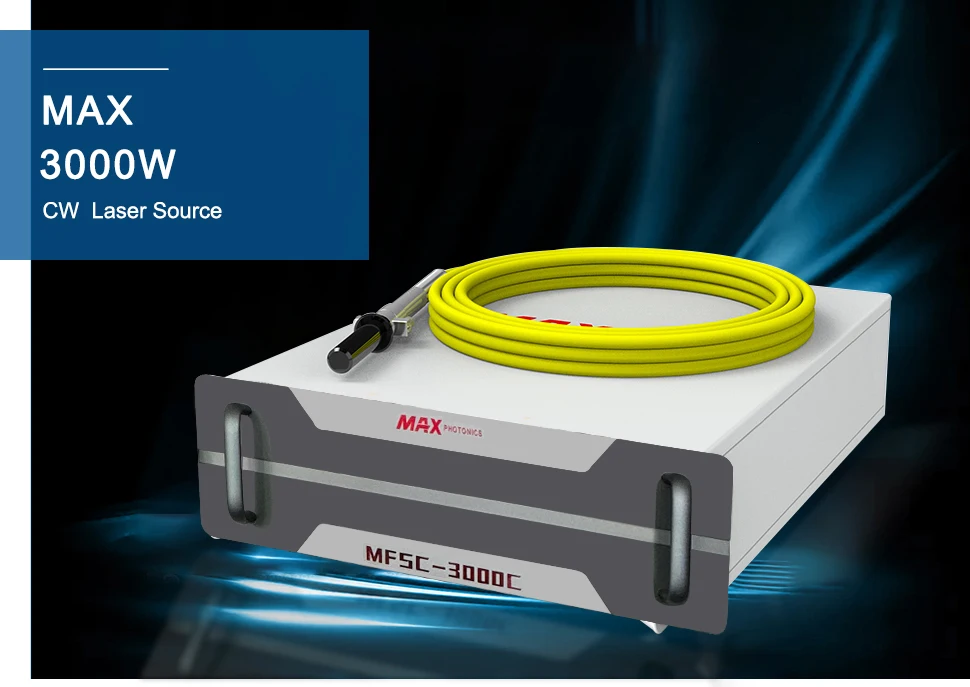

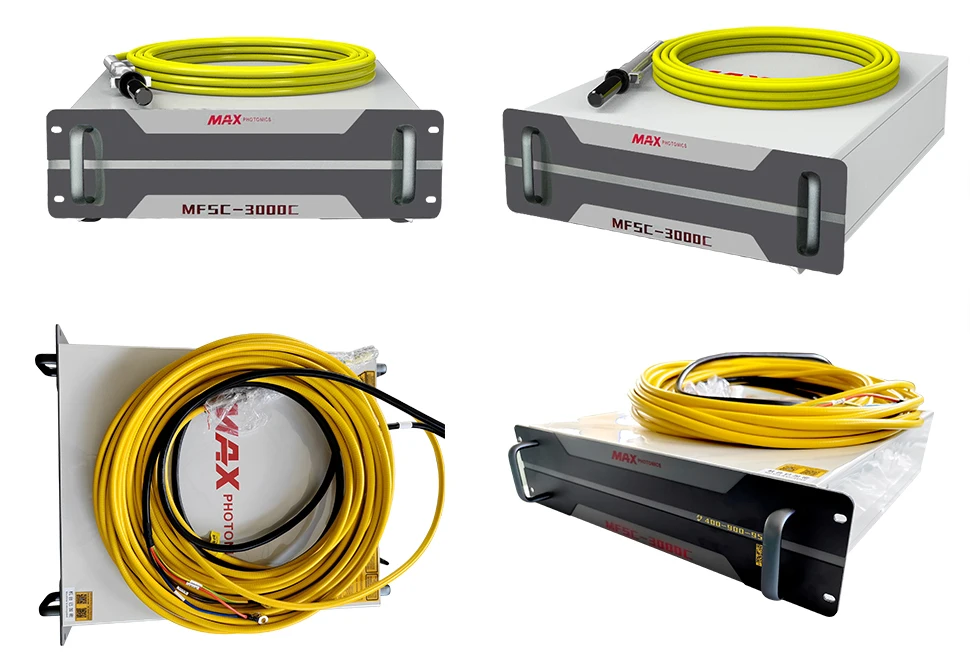

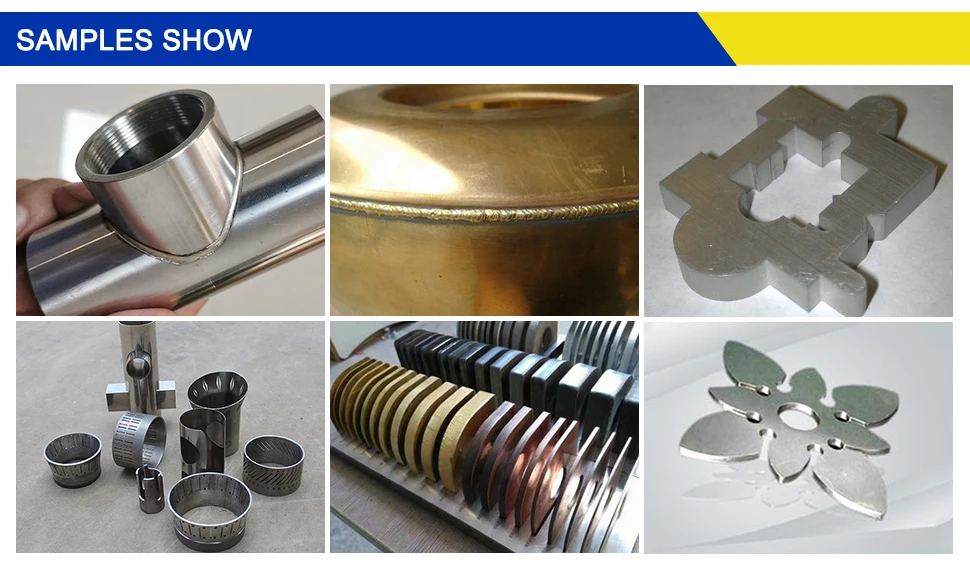

New generation 3000C Single Module CW Fiber Laser, which combine with high power, light weight, high quality beam quality and high light conversion efficiency. It is used for quick cutting, high frequency cutting and smooth surface cutting of carbon steel, stainless steel, brass and aluminum. It can meet the requirements of precision machining, 3C product welding and high- reflective material cutting.
Models | MFSC-3000X |
Nominal Power | 3000W |
Mode of Operation | CW/Modulated |
Polarization | Random |
Power Tunability | 10 to 100% |
Wavelength | 1080 ± 10 nm |
Power Stability | ±1 % |
Modulation Frequency | ≤5 KHz |
Preview Red Light Power | 200 μW |
Interface | QBH (LOC) |
Length | 20m standard, other lengths optional |
Diameter | 50(100/200) μm |
Bending Radius | 200 mm |
Supply Voltage | 400VAC (-15% to +10%) 3-phase |
Operating Temperature | +10 to +40℃ |
Storage Temperature | -10 to +60℃ |
Humidity | 10 to 85% |
Cooling Method | Water Cooling |
Cooling Medium | Distilled water/ Glycol Antifreeze |
Dimension | 83*65*31 CM (L*W*H) |
Weight | 41.5KG |
1. High power output.
2. Fully sealed design.
3. More stable processing.
Up to 6KW Output From CW Single Module Series.
Excellent Material Processing Performance.
Compact Design, Maintenance Free.
Smaller Size with Higher Stability.
Q1：What's cutting material?
A1：For different metals cutting, such as carbon steel, stainless steel, aluminum, etc.
Q2: What's lead time?
A2: lead time: within 3 working days after receive payment.

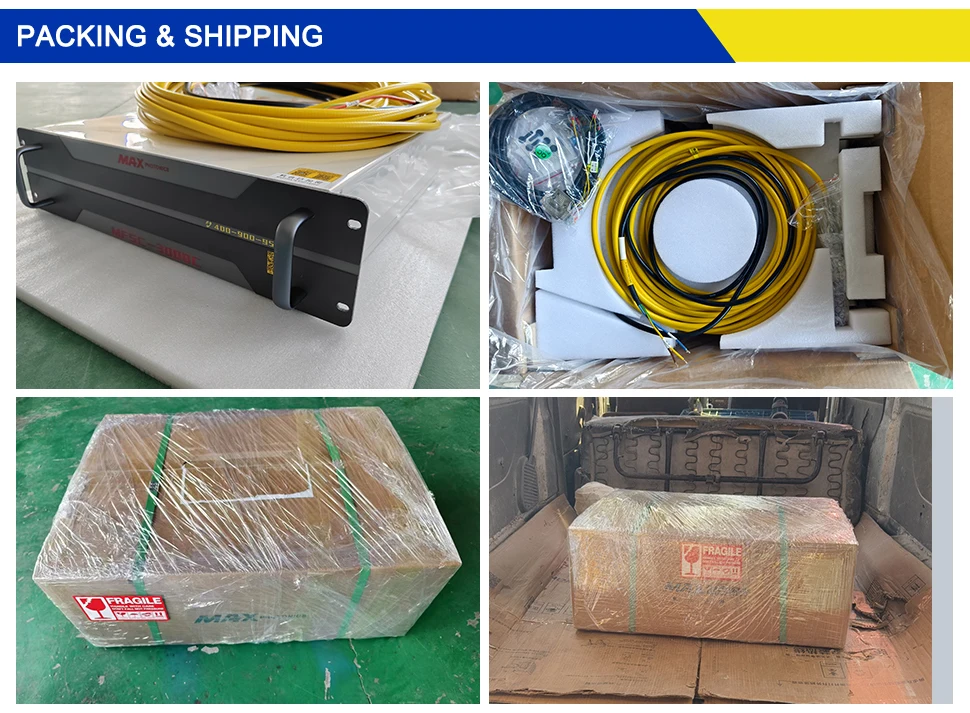

Q3: What's packing method?
A3: packed in plywood case
Q4: What's payment terms?
A4: TT, and payment of credit insurance order.
Q5: Can you provide cutting parameters and manual of MAX 3000w?
A5: Yes, we can send cutting parameters and manual to you. So, if you need, please contact us freely.
Q6: How is your warranty?
A6: We provide two years warranty. We also provide free technical support and installation guide.
Q7: Do you have other parts for fiber laser cutting machine assembly?
A7: We are trustworthy fiber laser cutting parts supplier. We supply all parts for fiber laser cutting machine, such as laser cutting head, fiber laser cutting control system, chiller, laser protective lens, nozzle, ceramic rings, etc.
Q8: What's your advantage?
A8: We provide free technical support and full laser solutions. Our price is wholesale price.
A1：For different metals cutting, such as carbon steel, stainless steel, aluminum, etc.
Q2: What's lead time?
A2: lead time: within 3 working days after receive payment.
Q3: What's packing method?
A3: packed in plywood case
Q4: What's payment terms?
A4: TT, and payment of credit insurance order.
Q5: Can you provide cutting parameters and manual of MAX 3000w?
A5: Yes, we can send cutting parameters and manual to you. So, if you need, please contact us freely.
Q6: How is your warranty?
A6: We provide two years warranty. We also provide free technical support and installation guide.
Q7: Do you have other parts for fiber laser cutting machine assembly?
A7: We are trustworthy fiber laser cutting parts supplier. We supply all parts for fiber laser cutting machine, such as laser cutting head, fiber laser cutting control system, chiller, laser protective lens, nozzle, ceramic rings, etc.
Q8: What's your advantage?
A8: We provide free technical support and full laser solutions. Our price is wholesale price.
