DEVISER 8.4 inch screen Wireless SignalPROFILER E7042B Spectrum Analyzer 2MHz-6.1GHz RF Analyzer with VNA
Product Description

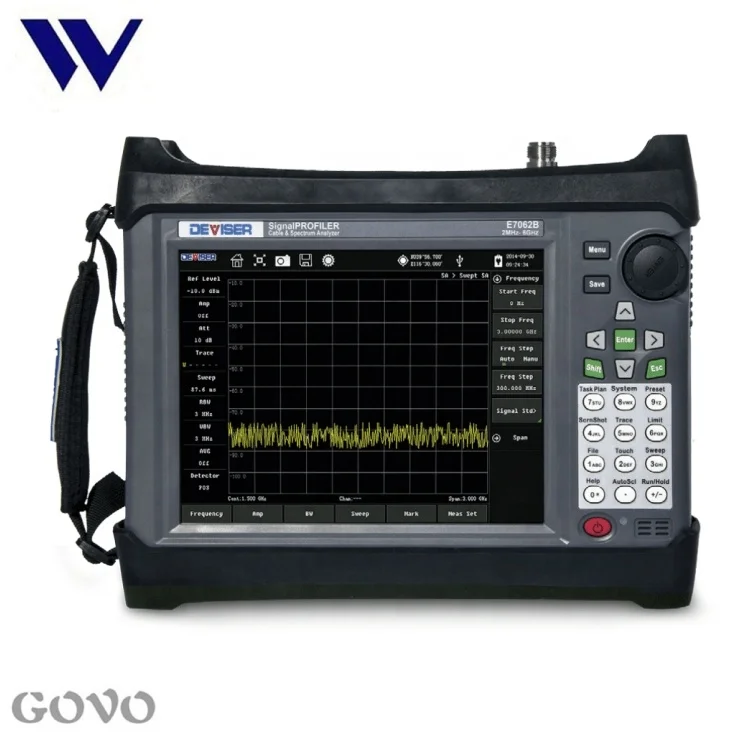

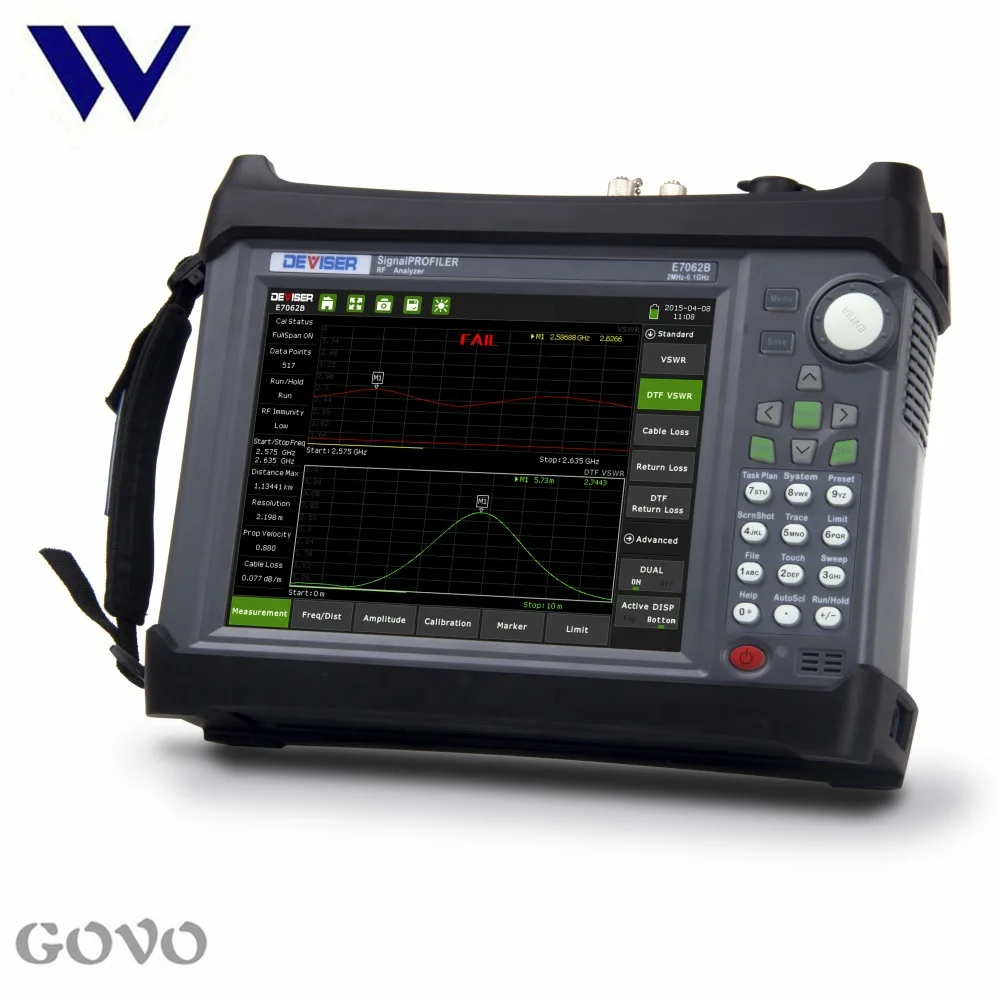

The E7062B SignalPROFILER combines the power and functionality of cable and antenna system analysis, fiber inspection, spectrum analysis, cellular signal demodulation, interference analysis, signal coverage mapping and RF/Optical power measurements in a single instrument.
Main Features
• RF, fiber and wireless signal quality testing – in a single instrument
• Perform traditional RF feedline tests, inspect fiber connectors with auto pass/fall results and measure RF/Optical power
• Perform comprehensive spectrum and signal analysis for complete site profile and monitoring of signal environment
• Test MIMO 4x4 antenna performance
• Detect signal degradation and system performance over time with trace overlay
• Handheld, lightweight, field-proven design withstands harsh environments and lighting conditions
Standard Measurements & Applications
(Cable & Antenna Analysis)

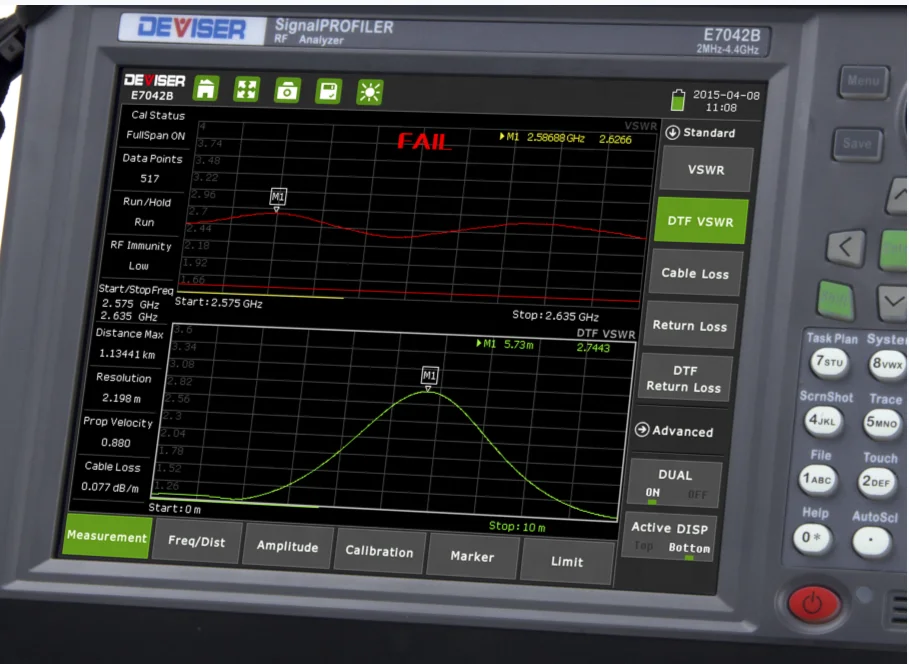

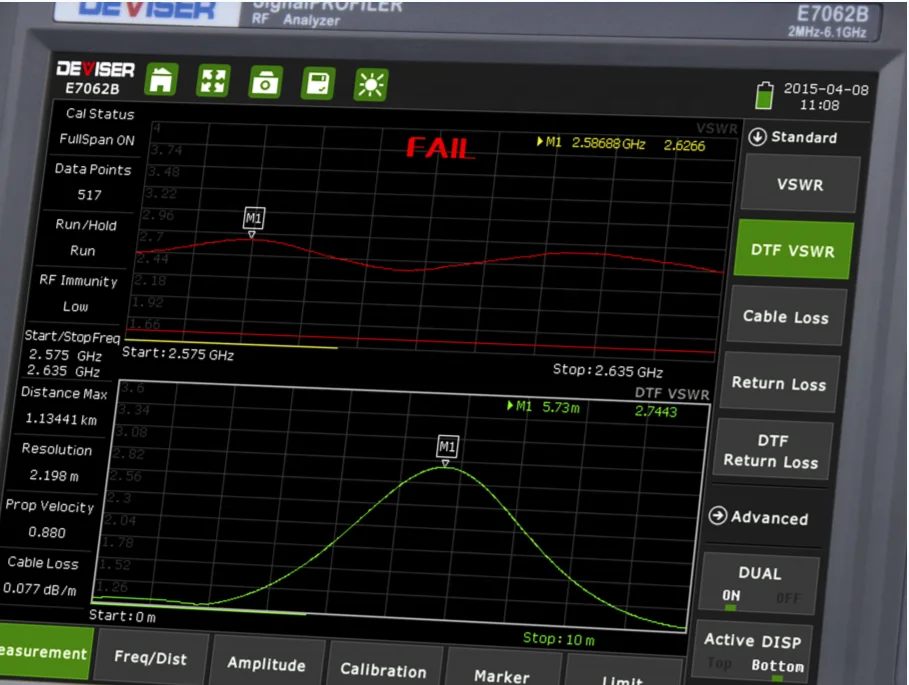

• Reflection – Return Loss or VSWR
• Fault Location – DFT/RL or DTF/VSWR
• Cable Loss
• 1-Port Phase
• Smith Chart
• FiberScope Fiber Connector Inspection (DML-OPI)
• Optical Power Meter (DML-OPM)
• Visual Fault Location (DML-VFL)
Standard Measurements & Applications
(Spectrum Analysis)
• Spectrum Analysis
• Channel Power
• Occupied Bandwidth (OBW)
• Adjacent Channel Leakage Ratio (ACLR)
• Field Strength
• AM/FM
Optional Measurement Modes
• High Precision Power Meter (DML-015)
• Interference Analysis (DML-110)
• Coverage Mapping (DML-120)
• Transmission Measurement (DML-025)
• GPS Receiver (DML-999)
Specification
General Specifications:
Connectors
| RF In | Type N, female, 50Ω |
RF In Damage | +30 dBm, +50 VDC | |
Connectivity
| USB host | Type A, 1-Port (connect flash drive for data transfer) |
USB client | 5-pin mini-B (connect to PC for data transfer) | |
LAN | 10M/100M LAN Port | |
Display | Type / Size | TFT LCD / 8.4” (800 x 600) |
Data Storage
| Internal | 1 GB, > 2000 saved measurement files |
External | Limited by size of USB flash drive | |
Battery
| Type | Li-Ion, 11.1V, 5.2AH |
Operation | > 6.0 hours, continuous; 8.0 hrs, idle (CA mode) > 4.0 hours, continuous; 8.0 hrs, idle (SA mode) | |
Environmental conditions
| Operating Temperature | -10°C to + 55 °C |
Storage Temperature | -40 °C to + 75 °C | |
Shock | Mil-PRF-28800F Class 2 | |
EMC | European EMC | IEC/EN 61326-1:2006 |
AC Power
| AC Adapter Output | 15-19 VDC |
AC Adapter Input | 100 – 240 VAC, 50-60 Hz | |
Size & Weight
| Size | 258 mm x 173 mm x 74 mm(10.2 in x 6.8 in x 2.9 in) |
Weight | 3 kg (6.6 lbs) |
Specifications: Cable Analyzer
Model | E7062B | |
Frequency | Frequency Range | 2 MHz – 6.1 GHz |
Resolution | 1 kHz | |
Measurement Speed | Reflection DTF | < 0.8 mS/point < 1 mS/point |
Data Points | 130, 259, 517, 1033, 2065 | |
Measurement Accuracy | Corrected Directivity | 42dB (typical, after standard OSL calibration) 38dB (typical, after eCAL calibration) |
Output Power | 0 dBm (Nominal) | |
Interference Immunity | On-channel | +20 dBm @ >1 MHz of carrier frequency |
Off-channel | +10 dBm within ± 10 kHz of carrier frequency | |
Measurements | Return Loss | 0 to 60dB (resolution 0.01 dB) |
VSWR | 1:1 to 65:1 (resolution 0.01) | |
Cable Loss | 0 to 30dB (resolution: 0.01 dB) | |
DTF Range | (Distance) 1500 meters (4921 feet) | |
Connectors (Reflection/RF Out) | RF Out | Type N, female, 50Ω |
RF Out Damage Level | 25 dBm, ± 50 VDC peak | |
Impedance | 50Ω | |

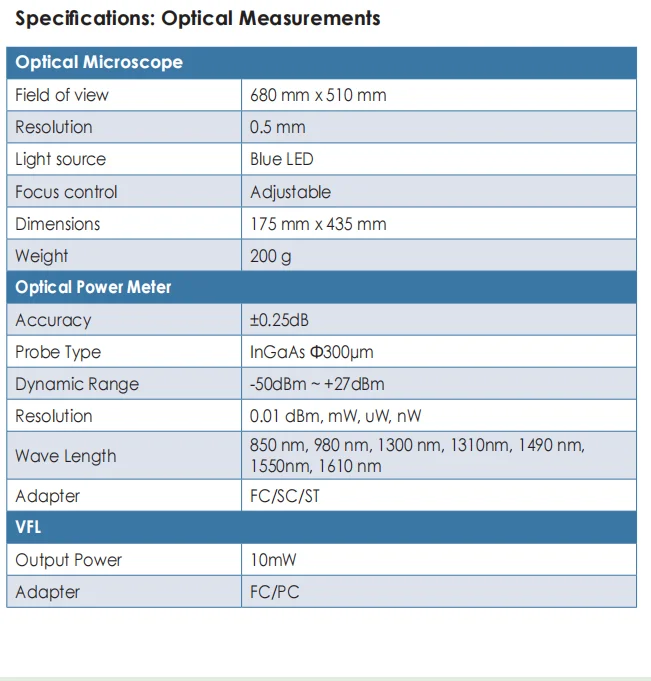

Specifications: Optical Measurements

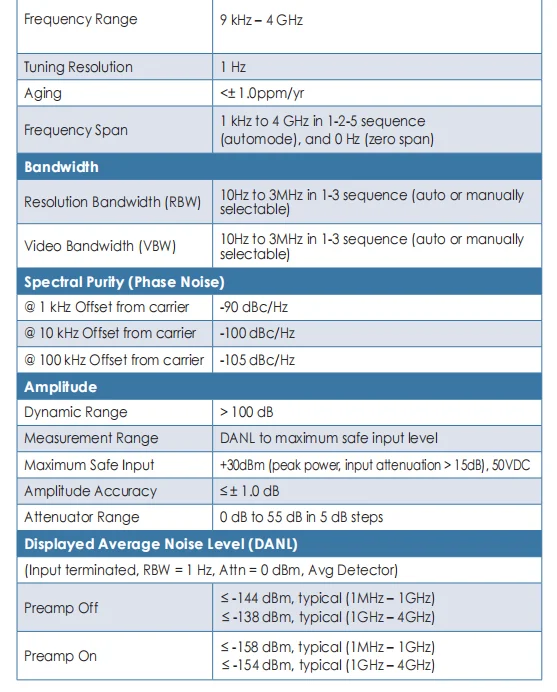

Specifications:Spectrum Analyzer

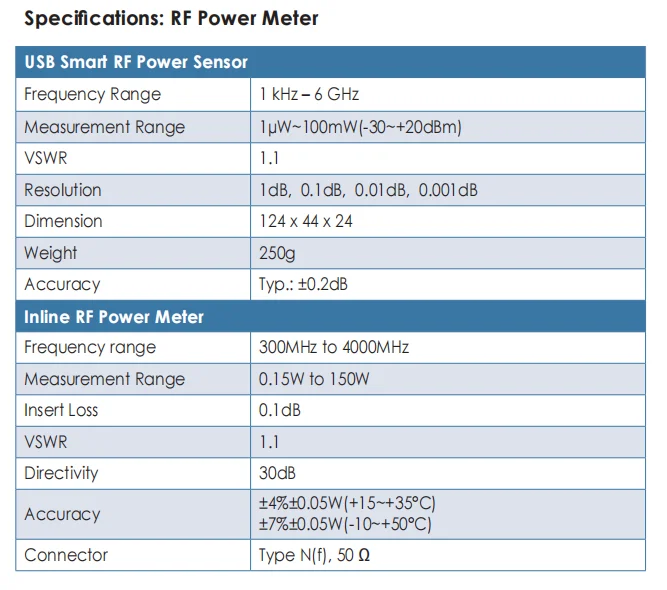

Specifications: RF Power Meter

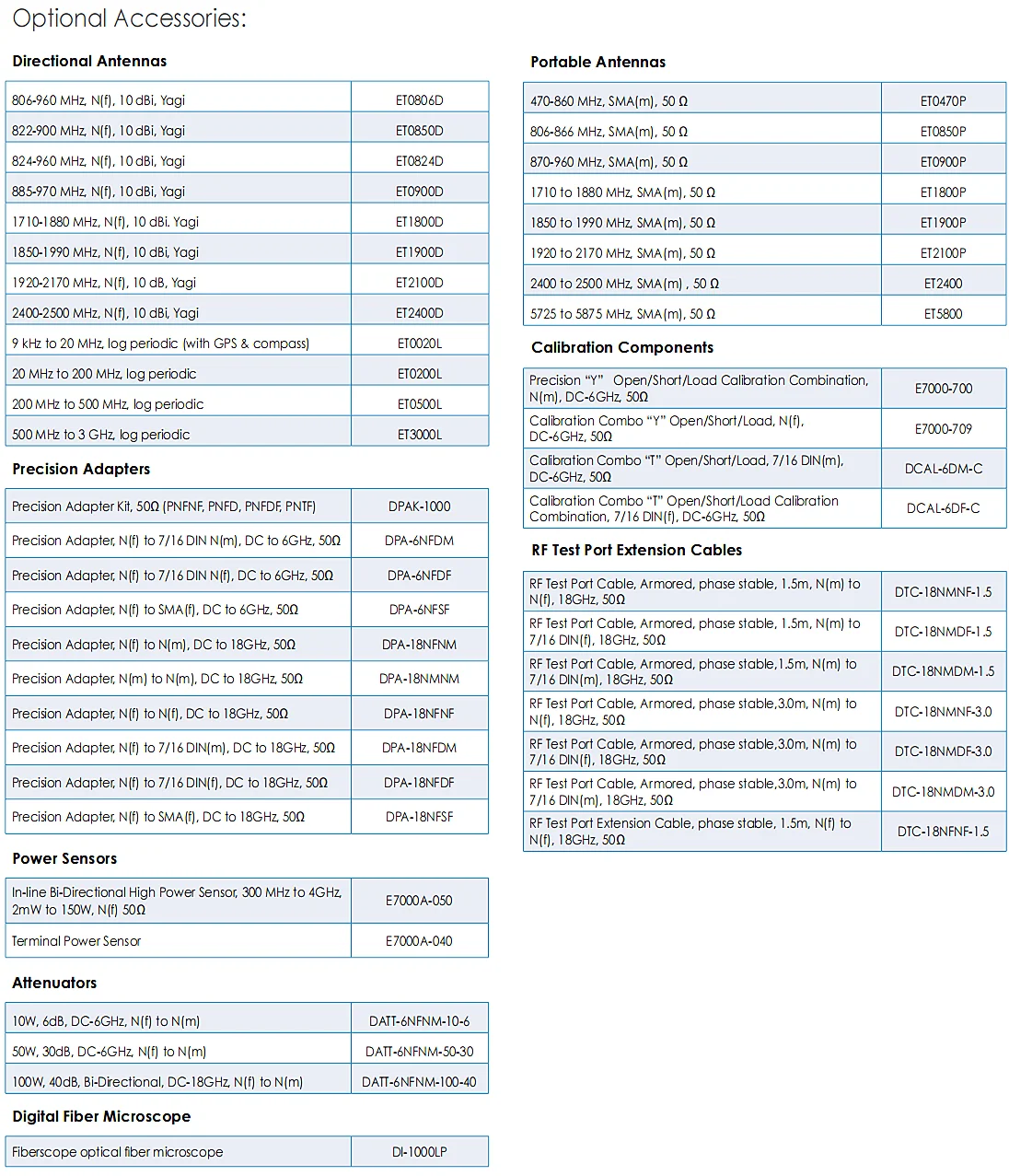

Optional accessories :
