Product Overview

Description

 fully automatic C Z  Roof Channel/ Purlin

Roll Forming Machine Factory Price



     maquina acanaladora para fabricar planchas de zinc maquina para hacer calaminas

china manufacturer

  1. the advantage of the   c purlin cold forming machine

The C purline formed by this C purline forming machine has many advantages: well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conviently installation.

2. Technical parameters of the  c purlin cold forming machine

Technical parameters:
1	Name of commodity & specification			C80-300 purline roll forming machine
2	Main motor power			18.5kw, 3 phase
3	Hydraulic motor power			15kw
4	Hydraulic Pressure			18-20MPa
5	Voltage			380V /3phase/ 50 HZ (or as your requirement)
6	Control System			PLC Delta Inverter
7	Main Frame			400mm H-Beam
8	Backboard Thickness			20mm
9	Chain Size			27mm
10	Feeding Material			color steel coils
11	Feeding Thickness			1.5-3.2mm
12	Feeding Width			Max. 500mm
13	Effective width			80-300mm
14	Productivity			12-14m/min
15	Roll Station			16
16	Roller Diameter			95mm
17	Roller material			45# steel
18	Cutter material			Cr12 , quenched
19	Cr-Plating Size			0.05mm
20	Overall Size			8500*1000*1500mm
21	Total Weight			6T
22	Components			Manual Uncoiler-------------------1 set
				Guiding Platform------------------1 set
				Coil Strip Leveler------------------1 set
				Main Machine of Roll Forming------1 set
				Electric-Motor---------------------1 set
				Hole-Punch Device--------1 set
				Cutting Device--------------------1 set
				Hydraulic Station------------------1 set
				PLC Control-----------------------1 set
				Supporter Table-------------------1 set
23	Workflow			Manual decoiling-feeding and guiding-roll forming-punching-cut to length-run out table
24	Package			nude in the container
25	Minimum order quantity			1 set
26	Payment terms			T/T(40% T/T pay in advance, the remaining 60% pay before ship)
27	Delivery time			30 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.

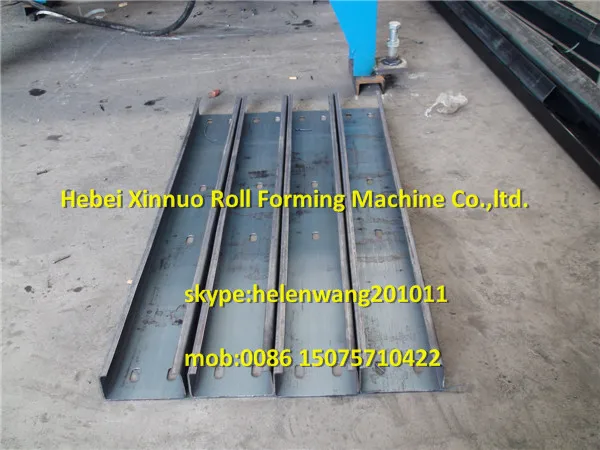

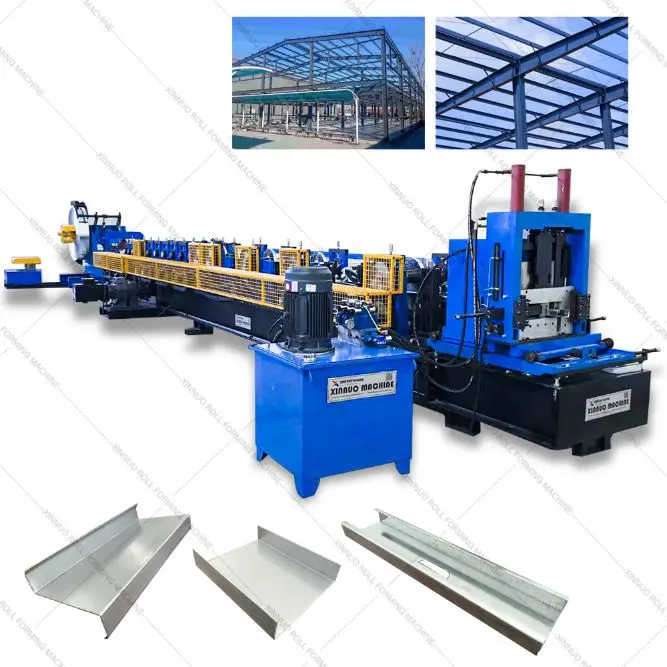

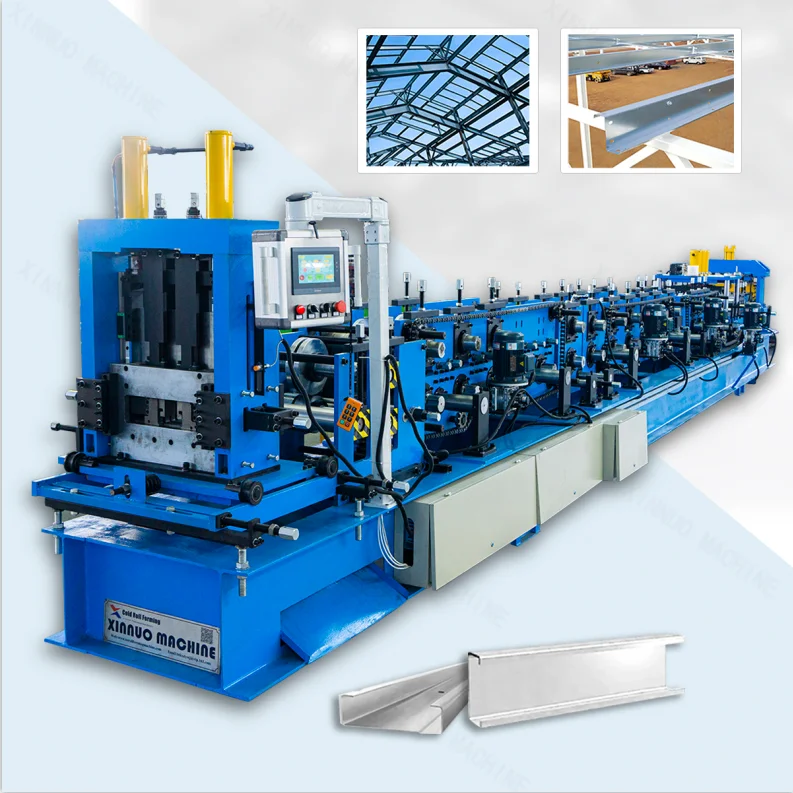

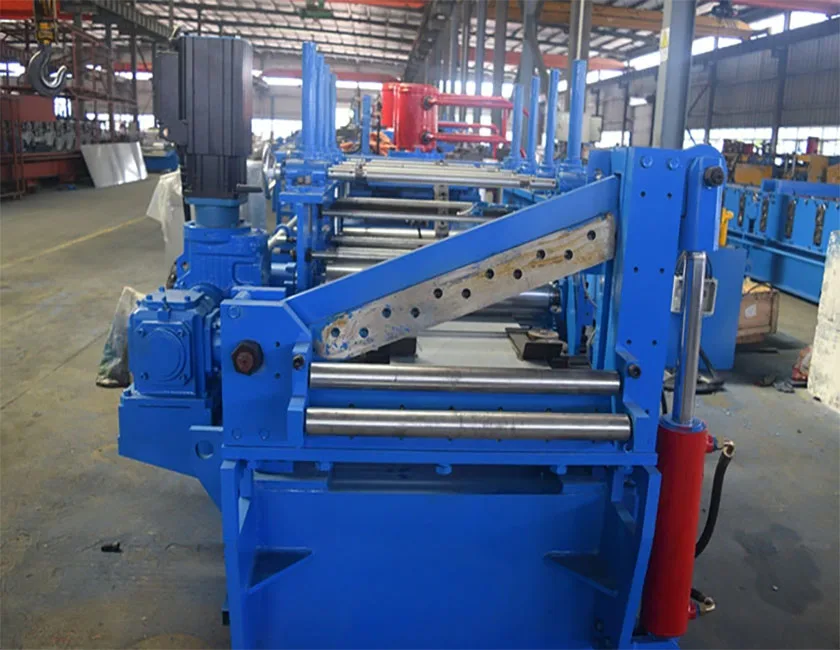

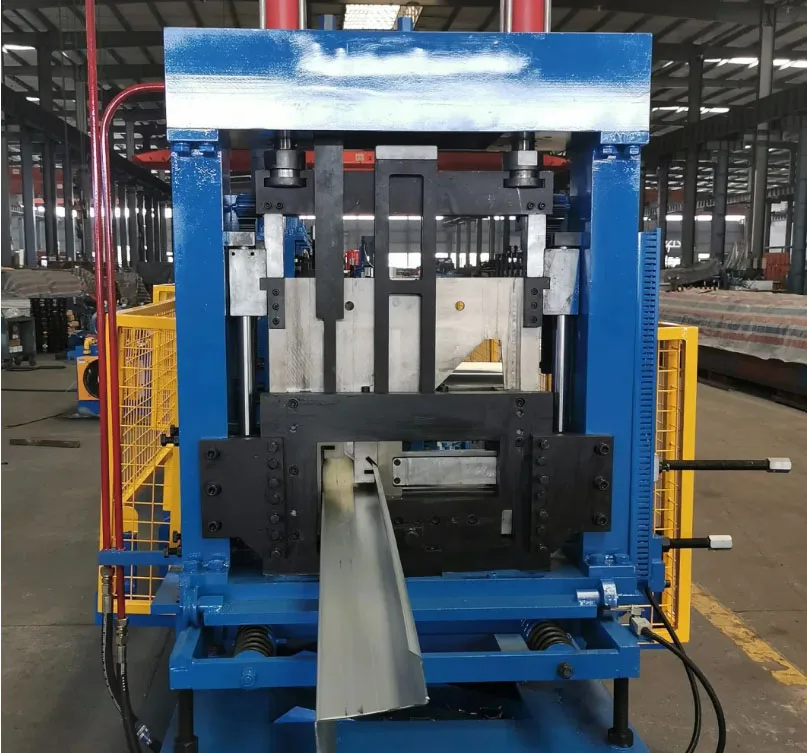

3.The picture of the fully automatic  c z purlin steel section machine

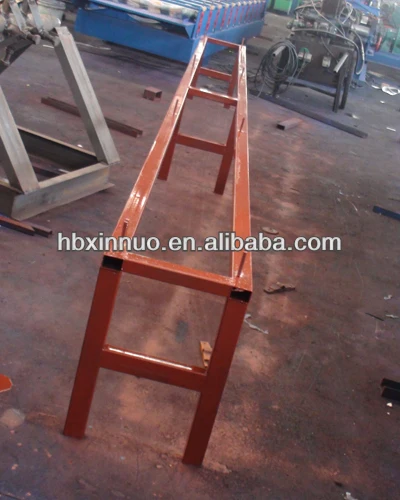

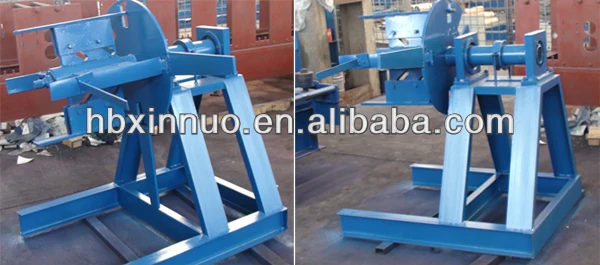

4. the pictures of the spare parts of the fly-saw c purlin roll forming machine

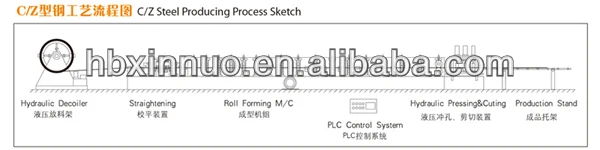

5. The flowing chat of the c purlin roll forming machine

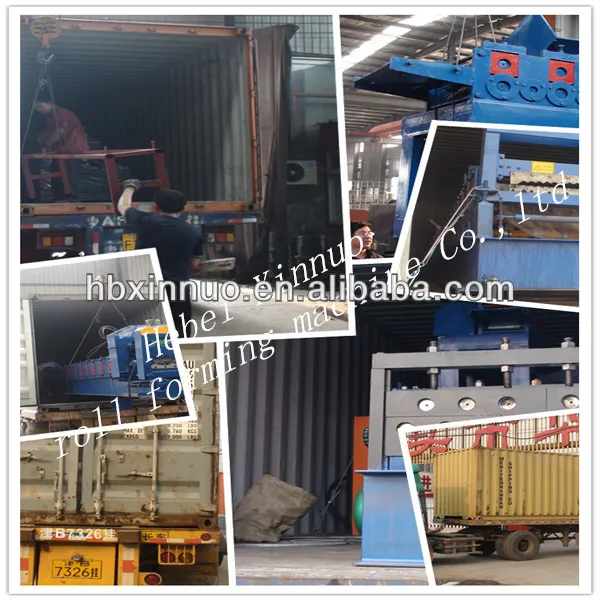

Packaging Details:	simple plastic film protection, loaded in container independently;  We also can do the packaging according to Customers'need.
Delivery Detail:	30 days after receipt of advance payment









         Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional

roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z

 shape purline machines, highway guardrail roll forming machine lines, sandwich panel production

 lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe

machines, gutter machines, etc.



       High quality with favorable price and good service is our advantages. Besides the products in the

 website we also provide customized orders. We will provide diversified designs and professional services.

      Our products have been exported to Uganda, Bolivia, Russia, Slovenia,Turkmenistan etc.

Customers are all satisfied with our products and service.
       In china there is an old saying “seeing is believing”.If it is convenient for you ,you are warmly

welcome to visit our factory and cooperate with us on the basis of long-term mutual benefits.









1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the doposit or L/C---then OK







2:How to visit our company:



Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.



Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.



If any questions,you can call me mobile phone at any times:0086-15075710422





3:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
