100w Fiber Laser Marking Machine For Metal Manufacturer Split Fiber Laser Marking Machine
- Category: >>>
- Supplier: Shandong Pratt Cnc Machinery Co. Ltd.
Share on (1601272938522):
Product Overview
Description
Hot Selling
Product Description

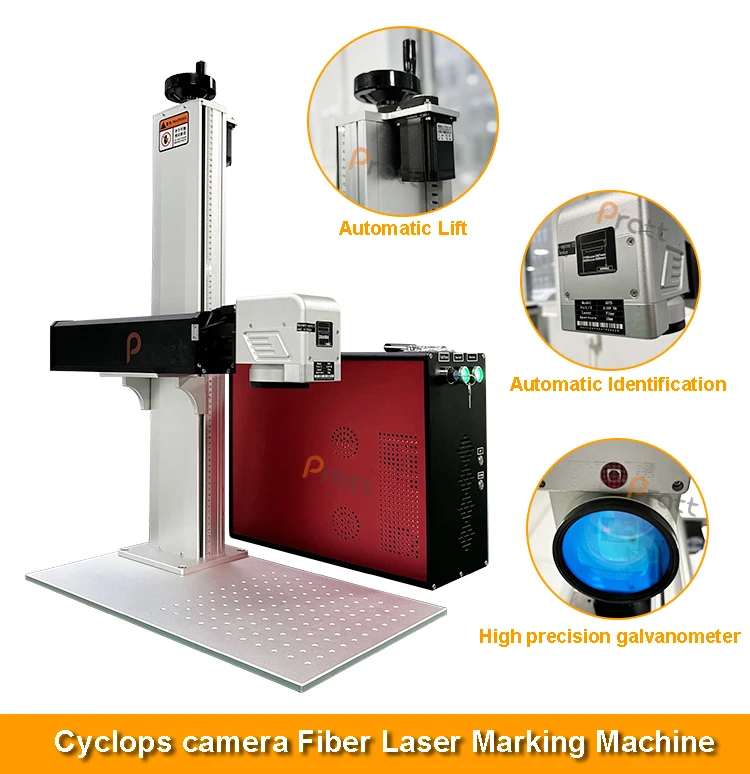

Fiber Laser Marking Machine with Cyclops Camera System
for Intelligent Mark Positioning
What is Cyclops Camera laser marking machine
First, make a template for the product and save it as a standard template.
Then the ultra-high-definition scanning camera takes pictures of the product during processing and shows the image on operation screen.
By computer comparison and positioning, the product can be processed accurately after adjustment.
Features of Cyclops Camera System
The Cyclops camera is placed on the marking head and looks at the whole area of the marking table below the head. The image from the camera can be displayed on controlling software in the computer.
Cyclops system has the same view area as the the marking area and camera view area.
The Cyclops camera can be calibrated with the same coordinate system of scan head and camera.
Scope of application
Marking on parts of various materials, such as electronic communication products, instruments, precision parts, hardware tools, daily necessities, food packaging, etc.
The marking content can be the product model, production date, serial number, trademark pattern, barcode and QR code, etc.
Details

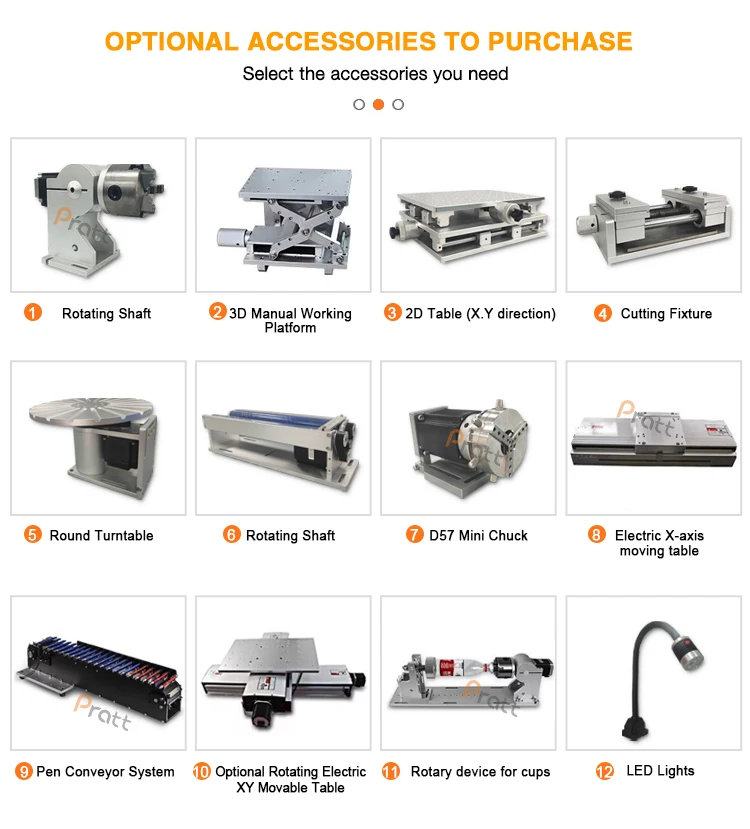

OPTIONAL ACCESSORIES TO PURCHASE
1. Rotating Shaft\t
2. 3D Manual Working\t
3. 2D Table (XY direction)\t
4. Cutting Fixture Platform
5. Round Turntable\t
6. Rotating Shaft\t
7. D57 Mini Chuck\t
8. Electric X-axis moving table
9. Pen Conveyor System\t
10. Optional Rotating Electric XY Movable Table\t
11. Rotary device for cups\t
12. LED Lights\t
Product Paramenters
Fiber Laser Marking Machine with Cyclops Camera System | ||||||||
Laser types | Fiber laser source | |||||||
Laser power | 30w | 30W | 50W | 100W | ||||
Laser wavelength | 1064nm | |||||||
Standard marking area | 110 x 110mm | |||||||
Optional marking area | 175x175mm, 200x200mm, 300x300mm | |||||||
Working speed | 7000mm/s | |||||||
Positioning accuracy | ±0.01mm | |||||||
Scan speed of cyclops | 5000mm/s | |||||||
Control system | BJJCZ | |||||||
Cooling system | Air cooling | |||||||
Power supply | AC220V ± 5% 50/60HZ / AC110V, 60HZ | |||||||
Format supported | AI , BMP, PLT, DXF, DST , PCX, JPG etc. | |||||||
Optional collocation | Rotary attachment | |||||||
Gross power | 500W | 1000W | ||||||
Working temperature | 0-40℃ | |||||||

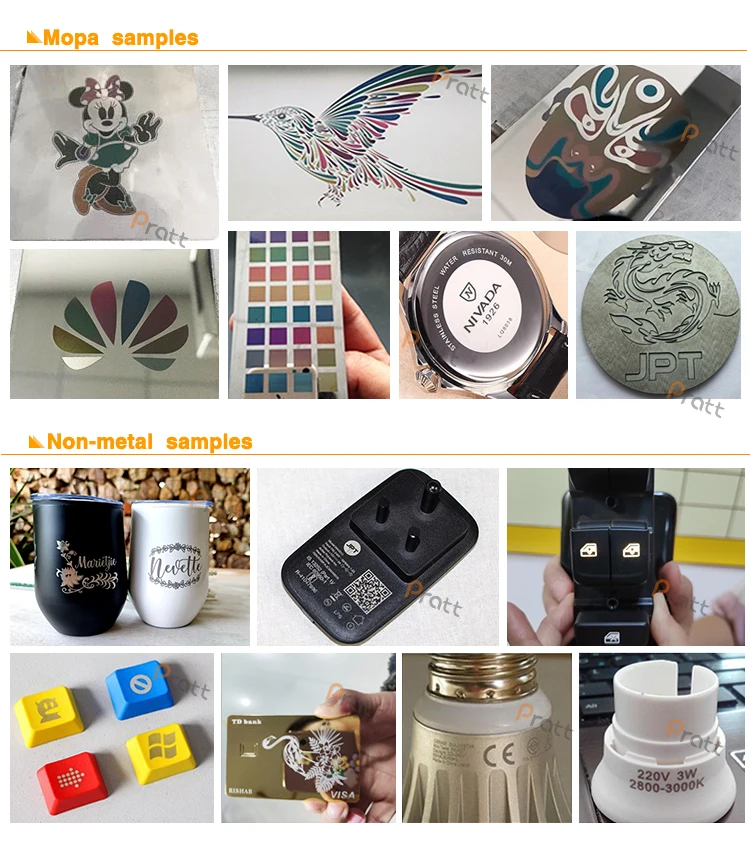

Sample

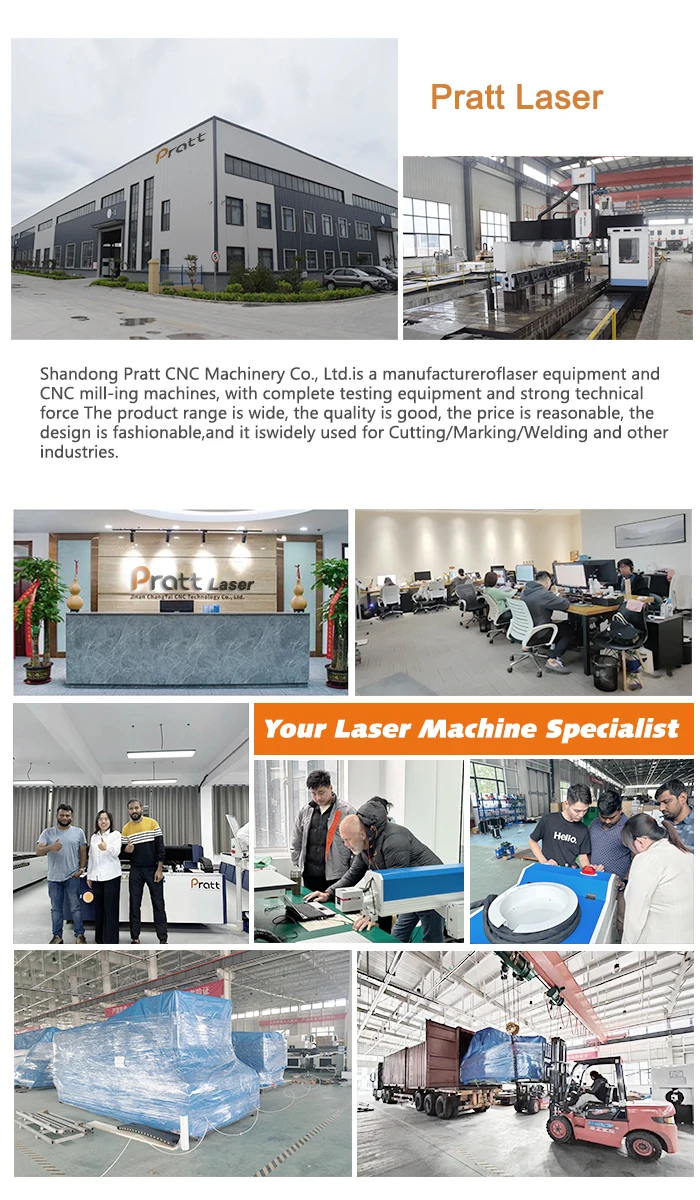

Company Information
PRATT CNC is one professional manufacturer for laser machines. We has a strict and systematic quality control for each procedure, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature treatment, the structure will not deform after long-term use.
PRATT will update and innovate regularly. PRATT owns Experienced R&D department and sales department, which can provide OEM & ODM service and professional suggestions to our customers.
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature treatment, the structure will not deform after long-term use.
PRATT will update and innovate regularly. PRATT owns Experienced R&D department and sales department, which can provide OEM & ODM service and professional suggestions to our customers.
Why Choose Us
1.How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
How big working area you need?
2.How long can delivery the machine ?
Common machine can be delivered within 7-10 days. Customade machine need 15-45 days.
3.If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
4.If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
How big working area you need?
2.How long can delivery the machine ?
Common machine can be delivered within 7-10 days. Customade machine need 15-45 days.
3.If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
4.If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.
