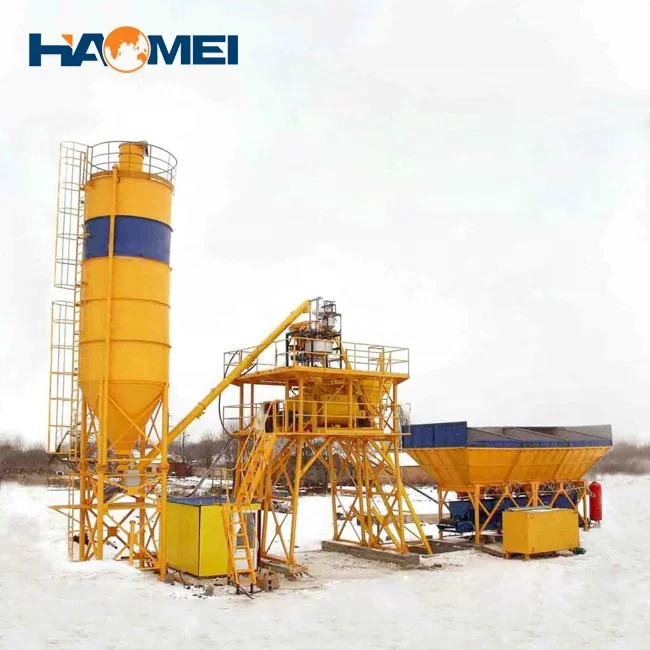

Hot Selling Small Concrete Batching Plant with Dust Collector Sicoma Concrete Mixer Mozambique
- Category: >>>
- Supplier: Zhengzhou Haomei Machinery Equipment Co. Ltd.
Share on (1601272959271):
Product Overview
Description
Product Description
Main Parameters of Concrete batching mixing plants for sale Australia
Type | HZS25 | HZS35 | HZS50 | HZS75 | |
Theoretical production capacity(m3/h) | 25 | 35 | 50 | 75 | |
Concrete mixer | Type | JS500 | JS750 | JS1000 | JS1500 |
Power(KW) | 24.75 | 38.6 | 51 | 65.5 | |
Discharging capacity(L) | 500 | 750 | 1000 | 1500 | |
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 | |
Aggregate Bin volume(m3) | 3.2 | 7.3 | 8.3 | 12 | |
Weighing Accuracy | Aggregate (KG) | 1500Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4500Kg ±2% |
Cement(KG) | 300Kg ±1% | 450Kg ±1% | 600Kg ±1% | 1500Kg ±1% | |
Fly ash(KG) |
|
| 400Kg ±1% | 600Kg ±1% | |
Water (KG) | 200Kg ±1% | 200Kg ±1% | 400Kg ±1% | 600Kg ±1% | |
Additive(KG) |
| 30Kg ±1% | 50Kg ±1% | 50Kg ±1% | |
Total power(KW) | 45Kw | 60Kw | 115Kw | 110KW | |
Discharging height(M) | 3.8 m | 3.8 m | 3.8 m | 3.8m | |
Gross weight(T) | 7.7 | 15 | 40 | 50 | |
Type | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | ||
Theoretical production(m3/h) | 60 | 90 | 120 | 180 | 240 | ||
Concrete mixer | Type | JS1000 | JS1500 | MAO3000/2000 | MAO4500/3000 | MAO6000/4000 | |
Power(KW) | 18.5 | 65.5 | 74 | 110 | 150 | ||
Discharging capacity(L) | 1000 | 1500 | 2000 | 3000 | 4000 | ||
Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80 | 150 | 150 | ||
Aggregate Bin volume(m3) | 8.38 | 12 | 20 | 30 | 40 | ||
Belt conveying Capacity(t/h) | 300 | 450 | 550 | 650 | 900 | ||
Weighing Accuracy | Aggregate (KG) | 3000Kg ±2% | 3000Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4200Kg ±2% | |
Cement(KG) | 1500Kg ±1% | 1500Kg ±1% | 1200Kg ±1% | 1800Kg ±1% | 2200Kg ±1% | ||
Fly ash(KG) | 600Kg ±1% | 900Kg ±1% | 400Kg ±1% | 500Kg ±1% | 800Kg ±1% | ||
Water (KG) | 600Kg ±1% | 600Kg ±1% | 500Kg ±1% | 800Kg ±1% | 1000Kg ±1% | ||
Additive(KG) | 50Kg ±1% | 50Kg ±1% | 50Kg ±1% | 80Kg ±1% | 80Kg ±1% | ||
Total power(KW) |
| 120Kw | 165Kw | 130Kw | 170KW | 220KW | |
Discharging height(M) |
| 3.8 m | 4.1 m | 4.1m | 4.1m | 4.1m | |
With excellent mixing effects and large capacity, the concrete batching and mixing plant is the best choice for concrete manufacturers who have the high quality and consistency of the final concrete products. As an industry leader in concrete mixing plants suppliers, the provision of coal-fired ready mix concrete mixing batching plant from China manufactuers is known for its durability, index effectiveness and ability.
As a more than 10-year manufacturer of Concrete batching mixing plants for sale Australia, Haomei machinery is good at the actual needs of customers, to provide solutions. Our engineers will continue to keep in close contact with customers and take the available space and equipment into consideration to provide the best possible design. Because we know that only according to the actual requirements of customers can achieve maximum profit and minimize the cost of custom design.
Components of Concrete batching mixing plants for sale Australia
1. Aggregate Batching System
Aggregate batching system in the Concrete batching mixing plants for sale Australia, including the total supply system, weighing system and electrical control system. The feed device is driven by a belt. The batching system is controlled by the sensor.

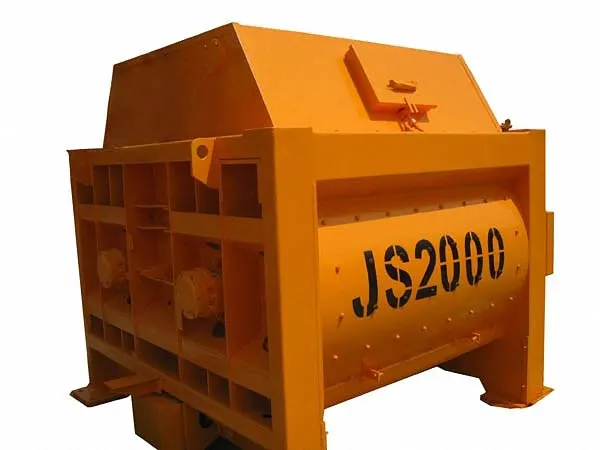

2. Mixing System
Concrete batching mixing plants for sale Australia is usually equipped with JS series of twin shaft batch mixer as the main mixer. Twin shaft concrete mixer is a compulsory concrete mixer, and has a stronger mixing effect than the self-falling concrete mixer higher mixing efficiency. It can be used to mix hard and dry concrete and lightweight aggregate concrete.
3. Cement Silo
As a professional manufacturer of cement warehouses, Haomei is supplied in both bolted and welded storage bins in various capacities and sizes. Using a special design to rush the cement silo can minimize the transportation costs.
4. Control System
The PLC programmable controller can control the production process with high reliability and stability. It can control the unloading ingredients, mixing and automatic control of the whole process of the concrete. Moreover, It also can dynamic display the process of weighing and discharging.
5. Screw Conveyor
LSY screw conveyor is full with a screw inside, and the screw can continually convey materiel.The equipment adopts originated patent feed port, it is easy to install.
Advantages of Concrete batching mixing plants for sale Australia
1. Quick and uniform mixing of high quality concrete
2. Weighing precision proves to be higher than as required by China national standards
3. Computer control system with functions of automatic adjustment, remote sense and alarming
4. Core components are of top quality international electronic brands which guarantee stable operation of the plant.
5. The concrete mixer are twin shaft compulsive with high wear-resistant linings and advanced blades. The mixing drum is more durable, supported by reasonable blade-arm layout and advanced lubrication design.
6. Convenient and quick site transition based on modular design
7. Adaptable to conveying of varied raw materials and different local conditions
8. Safe and comfortable operation environment, and the plant is environmentally friendly and energy efficient.
Company Information
Haomei machinery equipment co.,ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality mobile concrete mixer, concrete mixer, Concrete batching mixing plants for sale Australia, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS"to cooperate with clients from all over the world.Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches. We have over 1000 technical workers and 80 engineers equipped with advanced producing and inspecting machines with strict management.
Factory
Our Services
Pre-sale service
Learn customer’s demand and introduce the best sutiable products for customer..
offer technical service to customer before installment.
offer euipment operation, repairing, and maintenance traning to customer
During sale service
Supervising the whole process of production and shipment to make sure customer get our product in time and good condition..
Offer all the necessary technical data to customer.
After sale service
offering inatlllment, debugging, and repairing service after customer receiving our products.
offering work-site training.
Packaging & Shipping
HZS60 Concrete Batching Plant can be used in the following industries:
FAQ
Why dose the customs choose our HAOMEI concrete batching plant?
Specialize on manufacturing only .
Commitment to serving clients as their solution partner.
Continuous R&D activities to assist haomei in maintaining its leadership in the industry.
What's the quality of your concrete batching plant ?
Rest assured that our products has got ISO,CE certificated.We have the professional team for the products' study and development.
When do you deliver the HZS60 concrete batching plant ?
20 days after the deposit.
What's the tade terms for this concrete batching plant?
FOB,CIF.
Our customer are from many countries , such as Egypt , Malaysia , Dubai , Uzbekistan . Not only did they bought the high quality products but also the good after-sale service. What’s more ,HZS60 concrete Batching plant is on sale and I believe you will not miss this chance.
