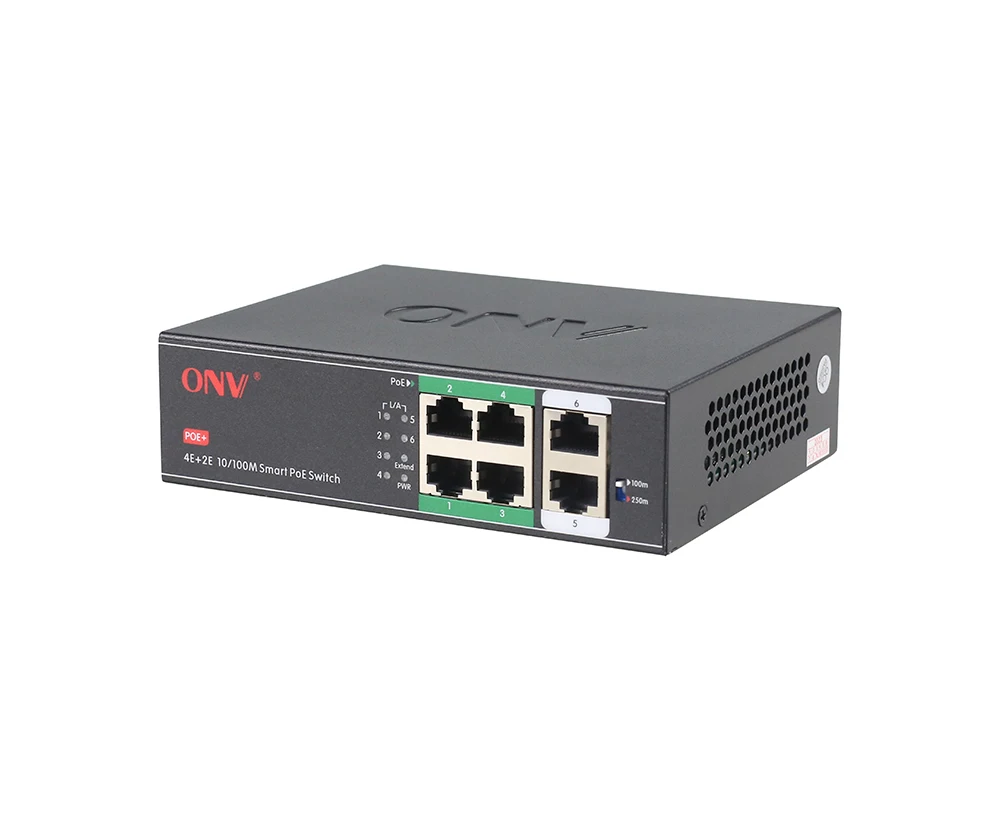

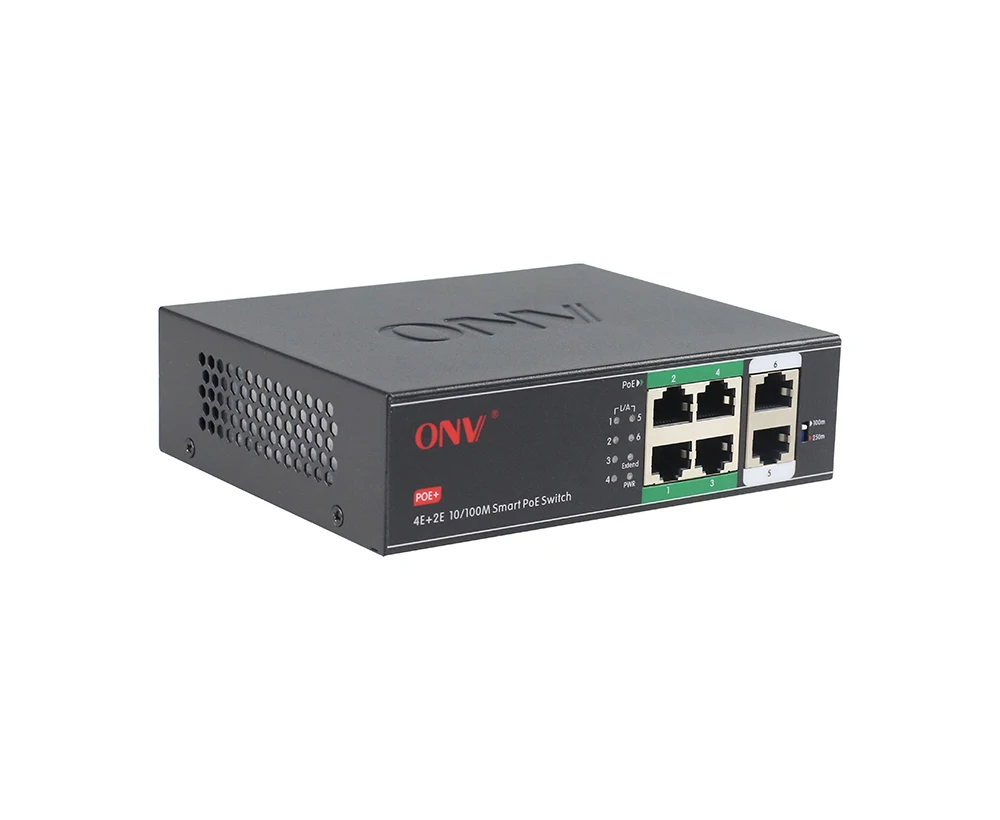

Factory OEM ODM 250m long distance 6 port 10/100M PoE Switch H1064PL for ip camera
Factory OEM ODM 250m long distance 6-port 10/100M PoE Switch H1064PL for ip camera
Factory OEM ODM 250m long distance 6-port 10/100M PoE Switch H1064PL for ip camera
Factory OEM ODM 250m long distance 6-port 10/100M PoE Switch H1064PL for ip camera
Factory OEM ODM 250m long distance 6-port 10/100M PoE Switch H1064PL for ip camera

Factory OEM ODM 250m long distance 6 port 10/100M PoE Switch H1064PL for ip camera

Share on (1601272967714):


Price:$11.60 - $13.50

Quantity:


Product Overview

Description



ONV-H1064PL


The ONV-H1064PL series is an unmanaged PoE switch independently developed by ONV. It has 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 3-6 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 65W.




10/100Mbps Access ,Dual RJ45 Ports Uplink

  —   6*10/100Base-TX RJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

  —   Support non-blocking wire-speed forwarding.

  —   Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.



Intelligent PoE Power Supply

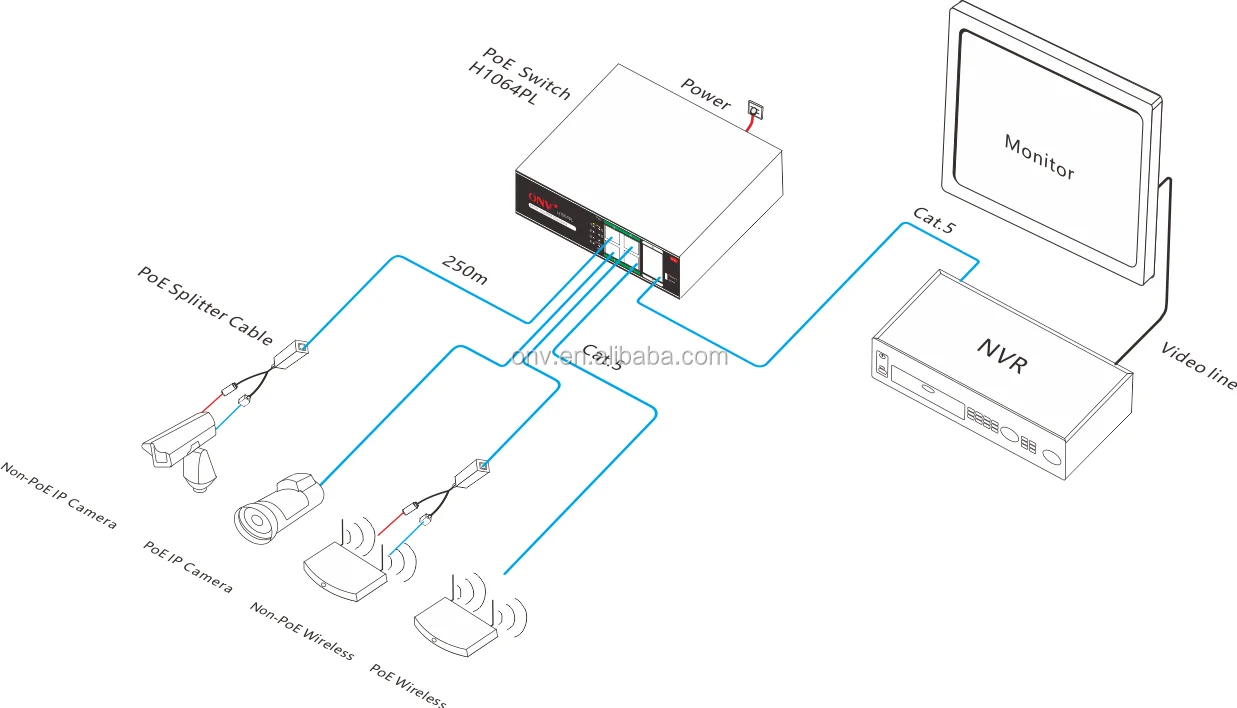

 —    4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

 —    IEEE 802.3af/at PoE standard, without damaging non-PoE devices..



Innovative Function

—  Long-distance file: When turned on, the rate of port 3-6 is reduced to 10M. Using the existing

twisted-pair cable, the limit of 100 meters of twisted-pair transmission can be exceeded, and the

transmission distance can reach up to 250 meters; on the other hand, Can solve the problem of             poor  transmission due to aging of the line.

—  Video Surveillance Mode: Opens with long-distance switches. Ports 3-6 are isolated from each other

but communicate with ports 1-2 to prevent DHCP conflicts, optimize port cache utilization, and

reduce broadcast storms.





Stable and Reliable

  —   Low power consumption, galvanized steel casing, no fan.

  —   Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

  —   CCC,CE, FCC, RoHS.

  —   Plug and play, no configuration, simple and convenient.

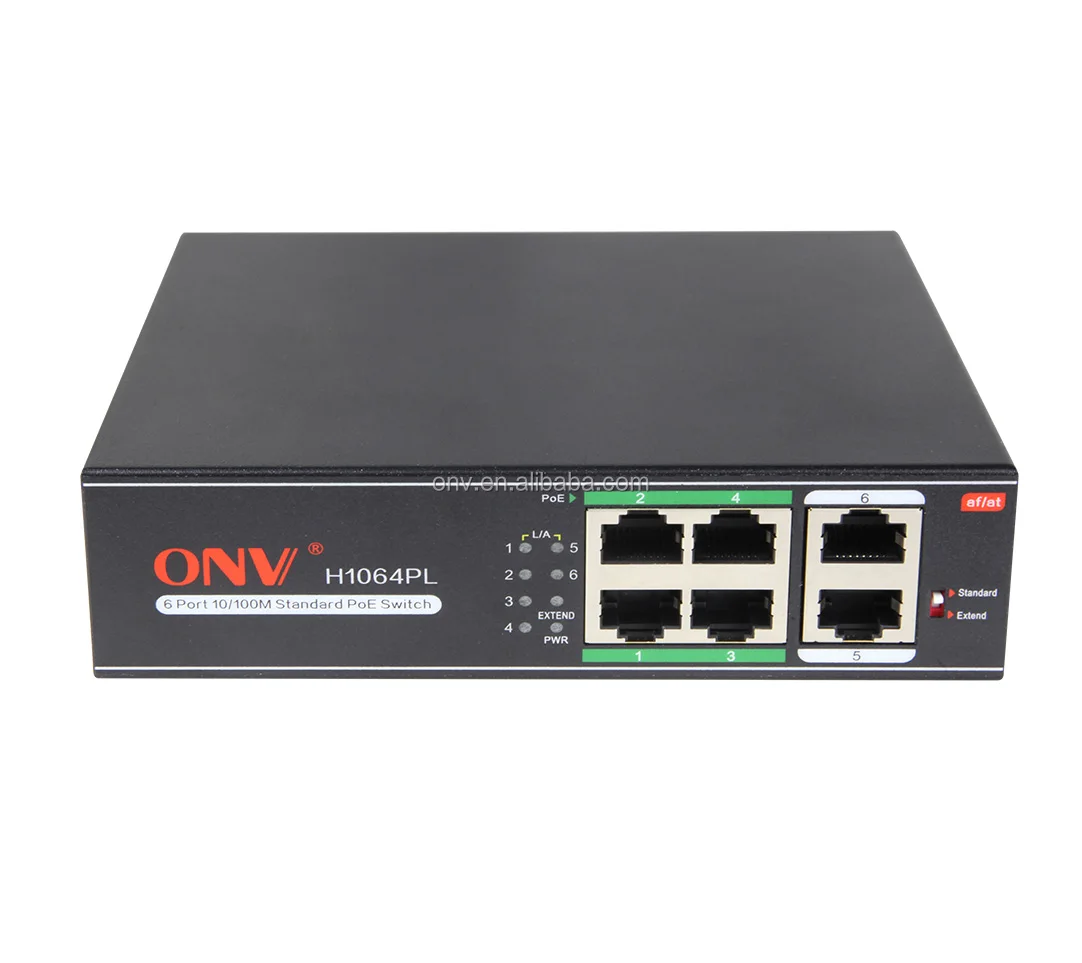

  —   The user-friendly panel, it can show the device status through the LED indicator of PWR,Link,PoE.





Model
ONV-H1064PL
ONV-POE31064PL-at
Interface Characteristics
Fixed Port
4*10/100Base-TX PoE ports (Data/Power)

2*10/100Base-TX Uplink RJ45 ports (Data)

Ethernet Port
Port 1-6 can support 10/100Base-TX automatic detection, full/half Duplex MDI/MDI-X adaptive
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)
Functional Switch
1*(Extender+CCTV)
After opening, port 17-24 support

10M/250 meters long distance

transmission.
Note: When the switch status changes, the PoE switch must be restarted for the
switch function to take effect.
Chip Parameter
Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX; IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Switching Capacity
1.6Gbps
Forwarding
Rate@64byte
0.89Mpps
6.55Mpps
Mac
1K
Buffer Memory
68K
LED Indicator
Power: PWR (green); Network: Link（yellow）; POE :PoE (green)

Functional switch : EXTEND (green)
PoE & Power
PoE Port
Port 3 to 6 IEEE802.3af/at @ POE
Port 1 to Port 24 IEEE802.3af/at @ POE
Power Supply Pin
Default: 1/2 (+), 3/6 (-) ; Optional 4/5(+), 7/8(-)
Max Power Per Port
30W; IEEE802.3af/at
Total PWR / Input Voltage
65W/ 52VDC
110W/52VDC

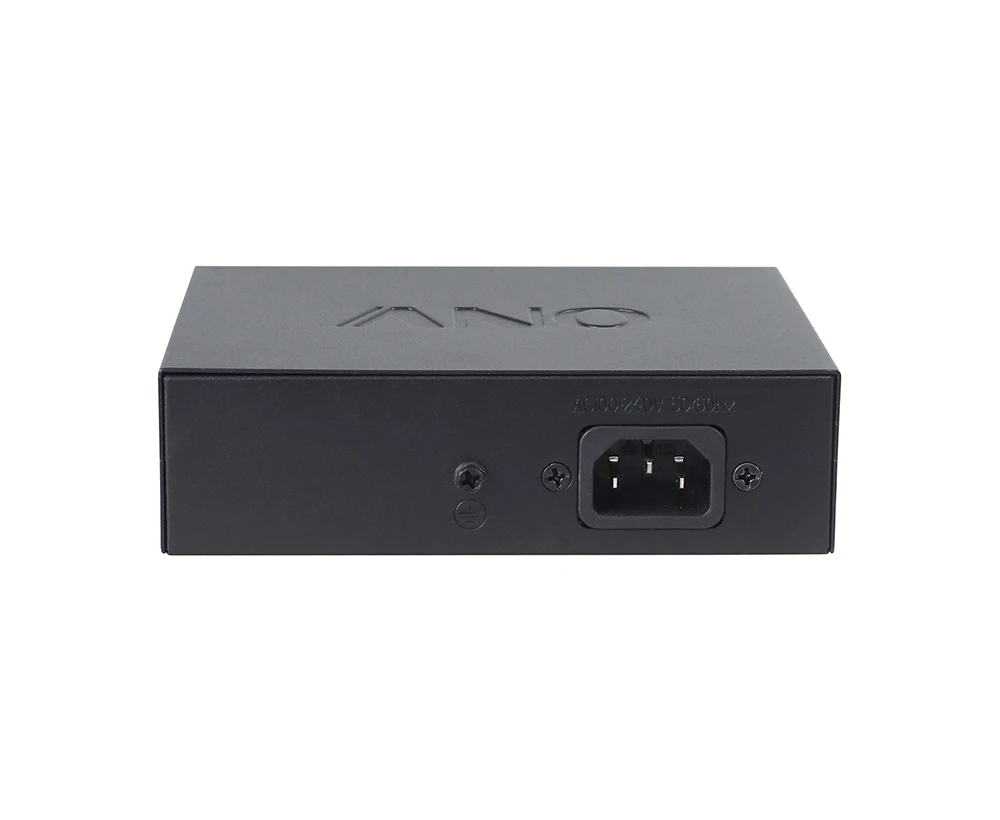

Power Supply
External power adaptor
AC100~240V 50-60Hz 1A
External power adaptor
AC100~240V 50-60Hz 2.2A
Power Consumption
Standby<4W, Full load<65W
Standby<5W, Full load<110W
Physical Parameter
Operation TEMP / Humidity
-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+75°C;5%~95% RH Non condensing

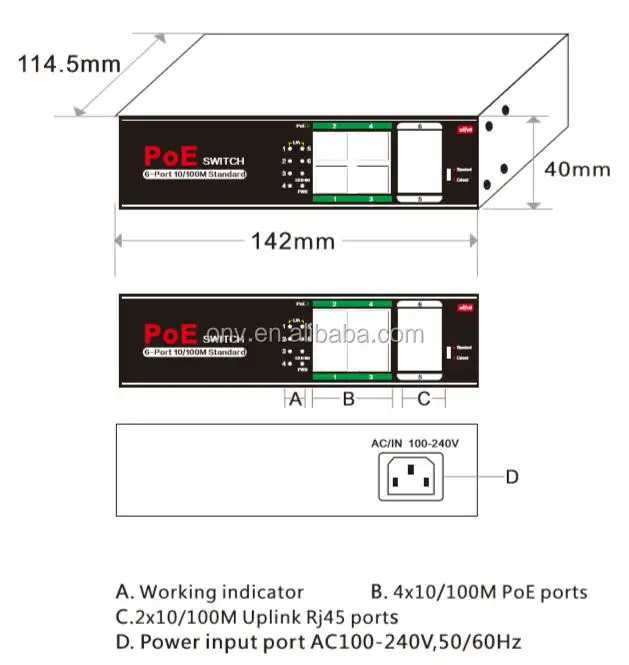

Dimension (L*W*H)
118*89*28mm
330*204*44mm
Net /Gross Weight
<0.4kg / <0.9kg
<0.6kg / <1.2kg
Installation
Desktop, Wall-mounted
Certification & Warranty
Lightning protection
Lightning protection: 4KV 8/20us; Protection level: IP30
Certification
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty
1 years, lifelong maintenance.












Model
Description
ONV-H1064PL
Unmanaged PoE switch with 4*10/100M PoE ports +2*10/100M uplink RJ45 ports , Port 3-6 can support IEEE802.3af/at PoE standard. Adjust function switch, 3-6 port VLAN isolation or 10M/250m long distance transmission, external 65W power supply. external 65W power supply.




PACKING LIST
CONTENT
QTY
UNIT
6-port 10/100Mbps PoE switch
1
SET
AC Power Cable and Power Adapter
1
PC
Mounting Kits(Hanging Ear)
1
SET
User Guide
1
PC
Warranty Card
1
PC
