10KW Solar Complete System with Hybrid Inverter and 48V lithium battery Off grid Solar Energy System with Mono Half cut Panels
- Category: >>>
- Supplier: Shenzhen Suns Energy Co. Limited.
Share on (1601272994485):
Product Overview
Description

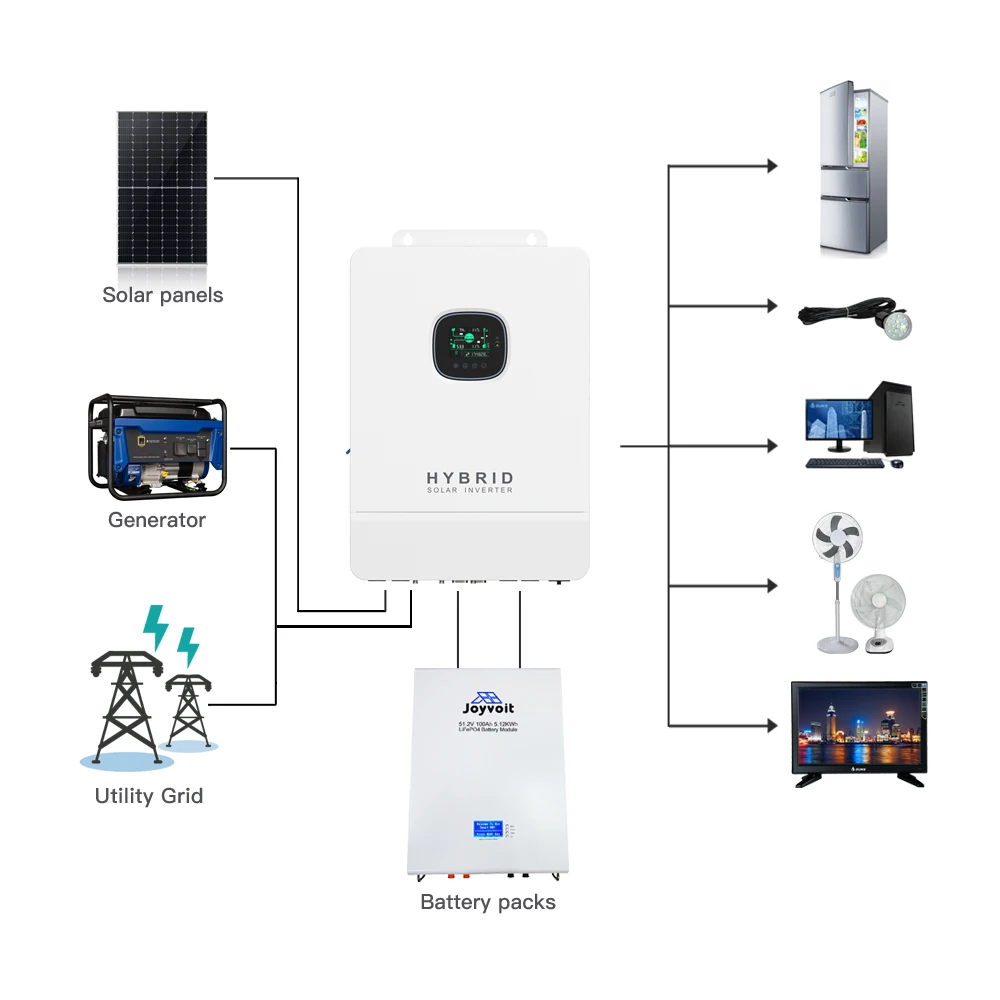

Off Grid Hybrid Solar Inverter System 10KWh

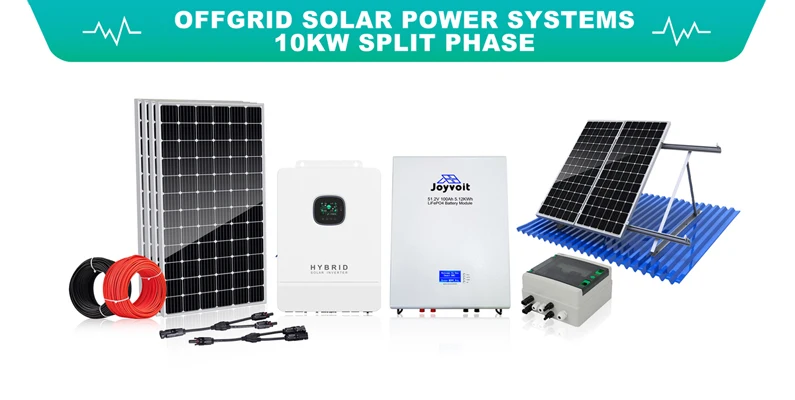

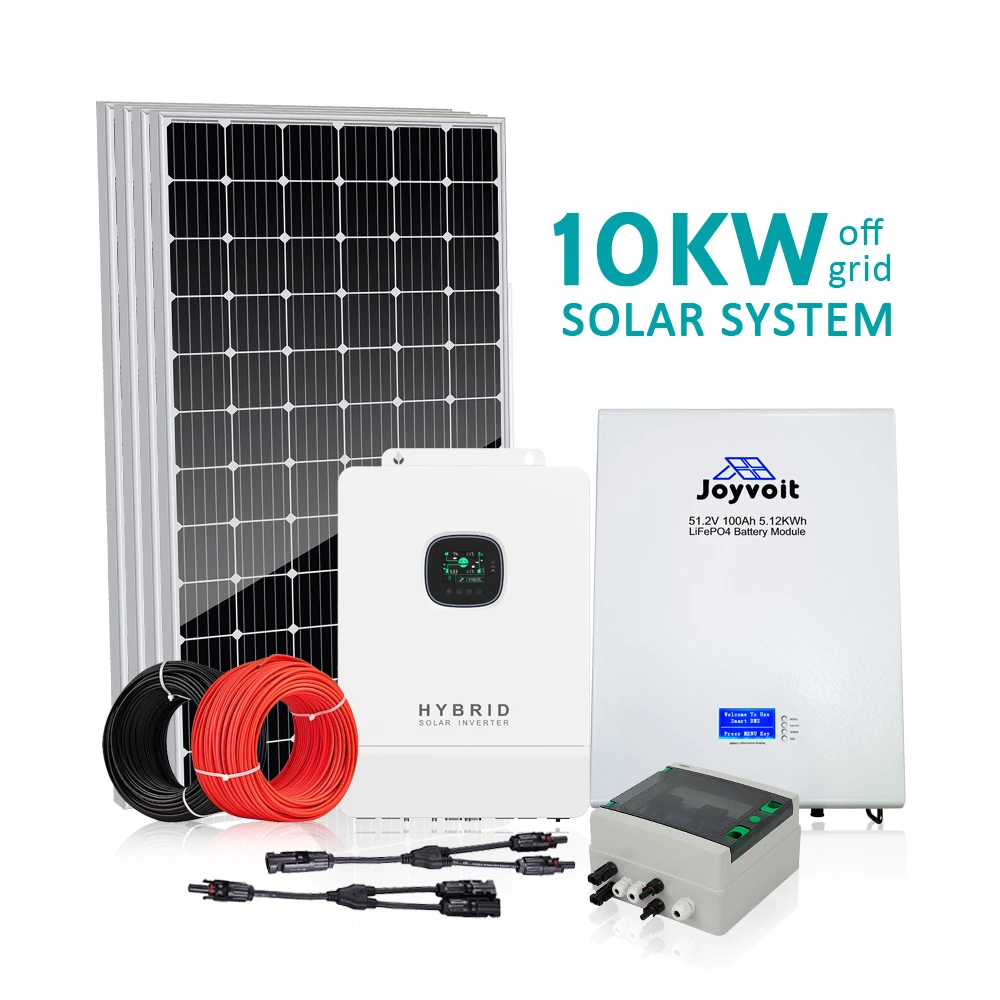

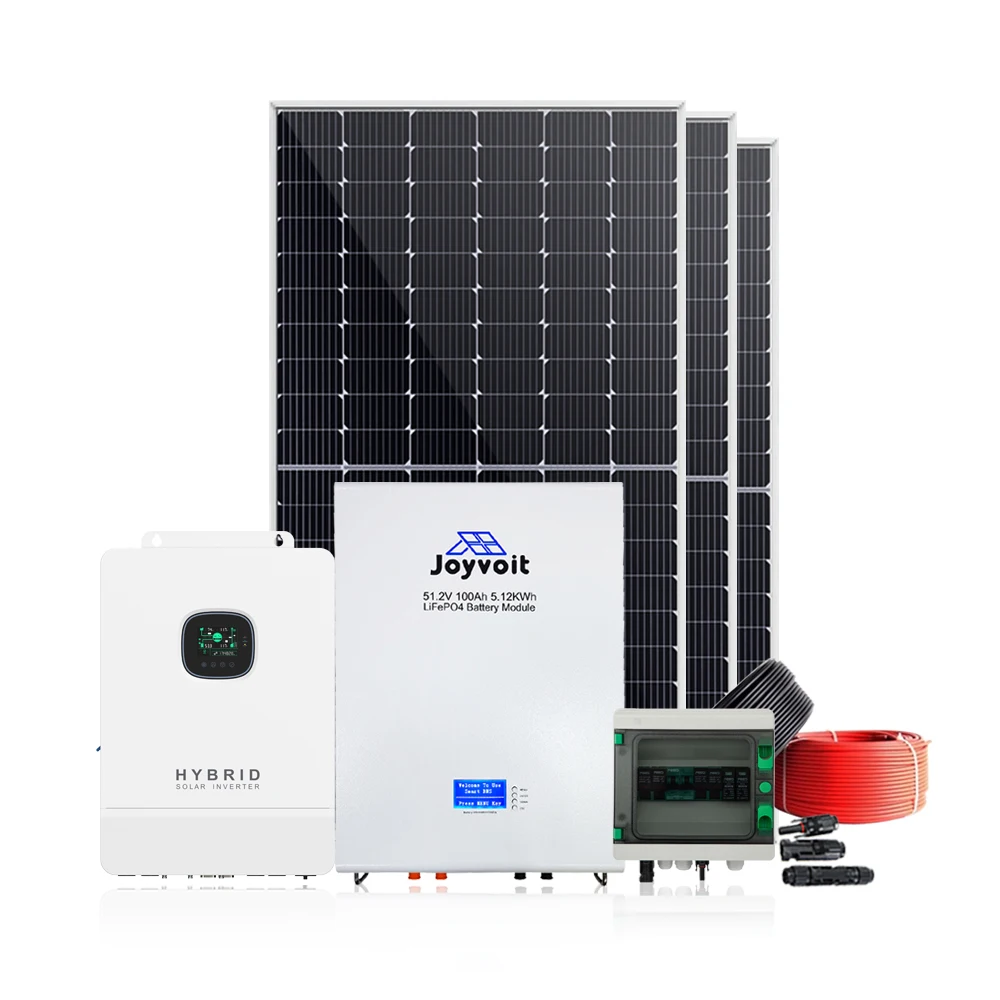

Roof mounting 10KW Solar Complete System with Hybrid Inverter and 48V lithium battery Off-grid Solar Energy System with Mono Half-cut Panels
S/N | Parts | Model & description | JV OF10KWHS | Certificate |

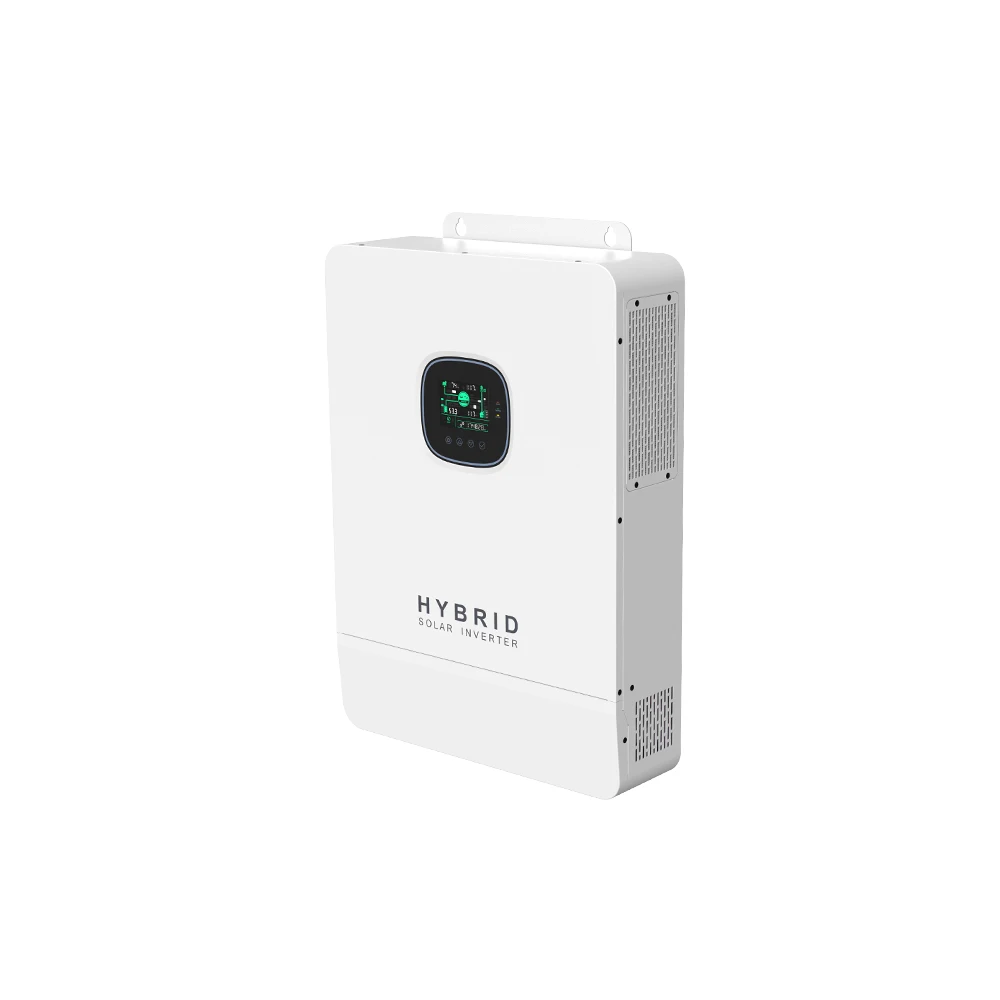

1 | Single phase hybrid inverter, high frequency | Model: 10KW Input：48VDC AC Output：120/240V, split phase, 10KW with mppt controller （5500W + 5500W PV max, 125-425VDc) AC charger 70A Option: Wifi/GPRS | 10KW | Safety: IEC62109-1, IEC62109-2,UL1741 RoHs: Yes EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B |
2 | Solar panels | Model:SS550M, 550W, Mono Type Vmp:41.96V Imp: 13.11A; Voc：49.9V； Isc：14A； size:2278*1134*35mm N.W.: 28.6KGS | 8.8KW (16*550W) | TUV(IEC61215), IEC61730 |
3 | LiFePO4 battery pack (Wall type or Rack) | Model:48V 100AH(5.12KWh) Rated Voltage：51.2V Rated Capacity：100AH Net Weight：46 kg DOD depth：100% | 20.48kwh (4*5.12kwh) | CE, TUV(IEC62619), ROHS, CN38.3 |
4 | PV Combiner box | OPTION: DC 550V DC Fuse DC MCB 2P 550V DC SPD 2P 600V, MC4 connector, din rail, IP65 | TUV(EN 60947-2:2017) | |
5 | PV mounting bracket | Customized, Anti-erosion Aluminum Alloy for rooftop or ground mounting | 1 SET | |
6 | Cables | Model:PV-1*6mm2 Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature：-40℃-90℃ | 200 meters | TUV(EN50618:2014) |
7 | PV waterproof connector | Model:MC4 Rated Voltage: 1500V DC Rated Current: 40A IP Rate: IP68 | TUV（IEC62852), EN62852:2015 |
FAQ
Q1: Why choose our company?
A: Our company had set up at 2010, have 14 years experience in off grid solar field. In addition, we use alibaba platform
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
A: Our company had set up at 2010, have 14 years experience in off grid solar field. In addition, we use alibaba platform
for 13 years as supplier.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
