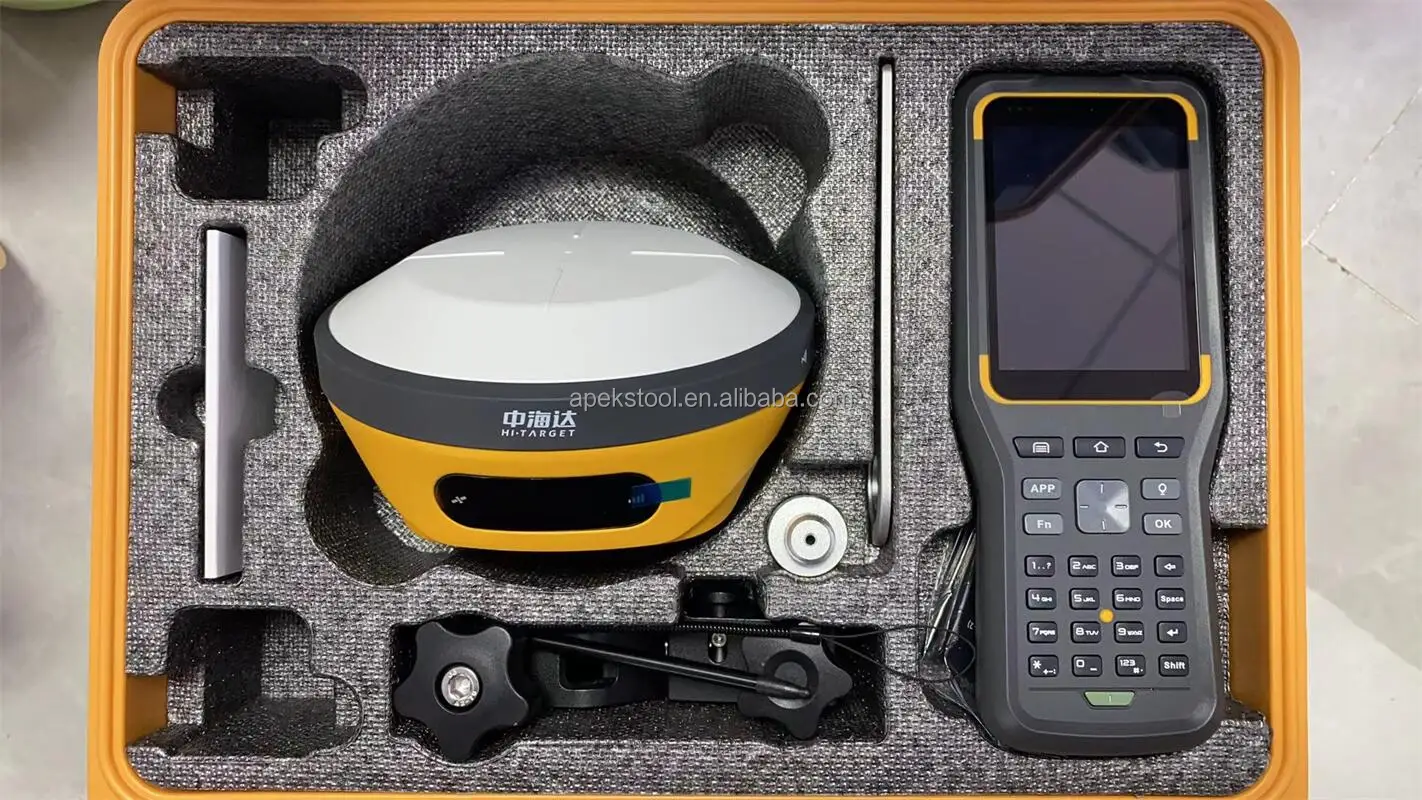

High Quality Oled Display Imu 1408 Channel Unicore Surveying And Mapping Instruments V96 Hi-target Gnss Rtk Gps Irtk4
V96 is a new high-end GNSS receiver of HI-TARGET brand. It is a new generation of measurement engine, supports star station differential, built-in 4G full Netcom communication and multi-protocol radio. It adopts a new design, magnesium alloy structure, Linux 3.2.0 operating system, built-in HD OLED display and capacitive touch screen is an extreme, intelligent and lightweight measurement GNSS receiver.
Specification
Hi-Target A New Generation Intelligent GNSS RTK Price Systems V96 GPS Receiver | ||||
Channels | 660 | |||
BDS | B1,B2,B3 | |||
GPS | L1, L2, L5 | |||
GLONASS | L1, L2 | |||
SBAS | YES | |||
GALILEO | E1, E5a, E5b | |||
Global correction service | Hi-RTP (optional) | |||
Static and Fast Static GNSS Surveying | Horizontal | 2.5mm+0.5ppm RMS | ||
Vertical | 5mm+0.5ppm RMS | |||
RTK | Horizontal | 8mm+1ppm RMS | ||
Vertical | 15mm+0.5ppm RMS | |||
Initialization time | Typically < 8seconds | |||
Initialization reliability | Typically > 99.9% | |||
DGPS | Horizontal | 25cm+1ppm RMS | ||
Vertical | 50cm+1ppm RMS | |||
SBAS | 0.50m Horizontal, 0.85m Vertical | |||
I/O Interface | 1 xBluetooth, NFC ,1 x standard USB2.0 port ,1 x TNC antenna connector,1 x Type C serial port ,1 x DC power input (5-pin) ,1 x MicroSD card port | |||
Internal UHF radio | RK/RK radio , 0.5W/1W/2W adjustable , 410-470MHZ | |||
Protocal | HI-TARGET，TRIMTALK450S，TRIMMARKⅢ， TRANSEOT，SOUTH | |||
External radio | HDL460A full protocal radio , 10-30W adjustable , 403-473MHz | |||
Protocal | HI-TARGET，TRIMTALK450S，TRIMMARKⅢ， TRANSEOT，SOUTH，CHC，SATEL | |||
IMU tilt survey | 0-60 ° | |||
Display | OLED color display, 0.94'' | |||
Battery | built-in li-ion battery , 6800mAh /7.4V, Rtk working time is 10hours | |||
Dimensions | Φ156mmx77mm, ≤1.2kg with battery | |||
