Eitai Oem Odm Bluetooth Ip65 Home Sun Power Lithium Lifepo4 Batteries 10Kw 48V Solar Battery 200Ah With Inverter 10Kw
- Category: >>>
- Supplier: Eitai (Xiamen) New Energy Technology Co. Ltd.
Share on (1601273033281):
Product Overview
Description
Products Description
Datesheet | ELECUBE-5K | WALV-10K | |
Battery Type | LiFePO4 | ||
Nominal Capacity | 100Ah | 200Ah | |
Nominal Voltage | 51.2V | 51.2V | |
Total Energy | 5.12KWh | 10.24KWh | |
Depth of Discharge（90%DOD） | 4.608KWh | 9.216KW.h | |
Maximum Charging Voltage | 57.9V | ||
End of Voltage | 46.4 | ||
Nominal charging current | 100A (60s) | 100A | |
Continuous discharging current | 50A | 100A | |
Maximum Charging Current | 100A (60s) | 100A | |
Continuous charging current | 50A | 100A | |
Working/Store Humidity | ≤95%rh | ||
Working Altitude | ≤2000m | ||

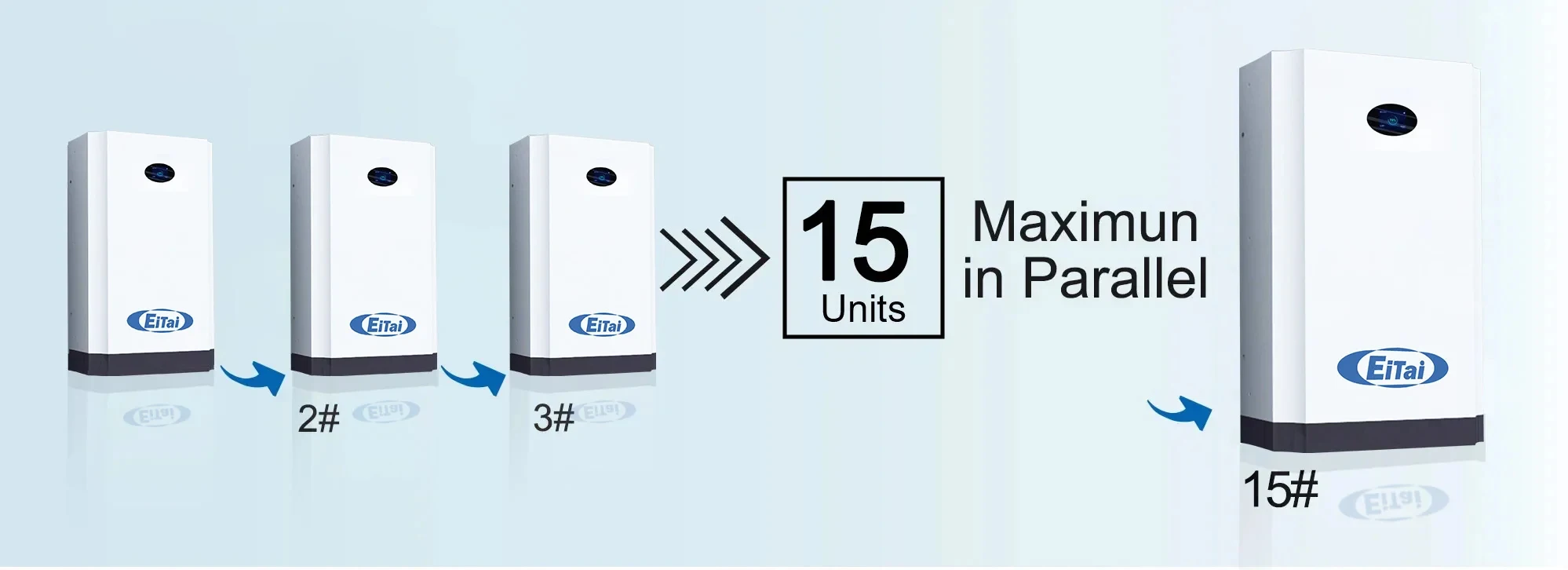

Maximum number of Paralle | 15pcs | ||
Protection Level | IP65 | ||
Net Weight | 58KG | 90KG | |

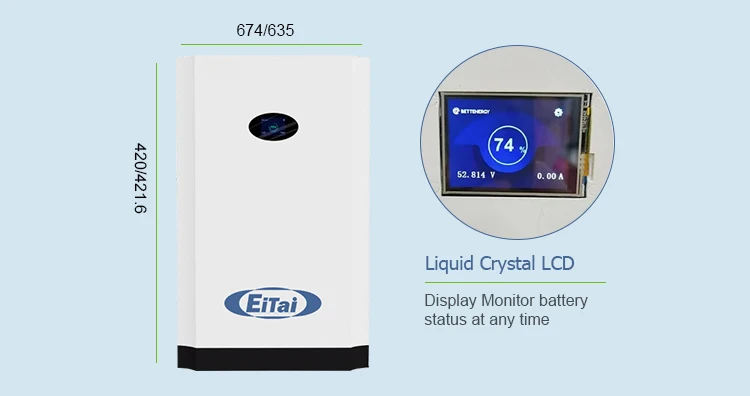

Dimensions (mm) | 420*674*173 | 421.6*635*259 | |
Product Certificate | CE, IEC62619, MSDS,ROHS, UN38.3 | CE, IEC62619, CB, MSDS,ROHS, UN38.3, JIS C 8715 | |
Circle Life | ≥6000times, 25℃/0.5C | ||
Communication Port | CAN, RS485, RS232 | ||
Operating temperature | 0℃ ~ 60℃ | ||
Storage temperature | ≤25℃，12monthes; | ||
≤35℃，6monthes; | |||
≤45℃，3monthes | ≤45℃，3monthes | ||
Technical Parameter

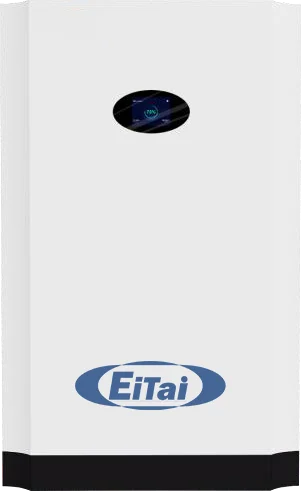

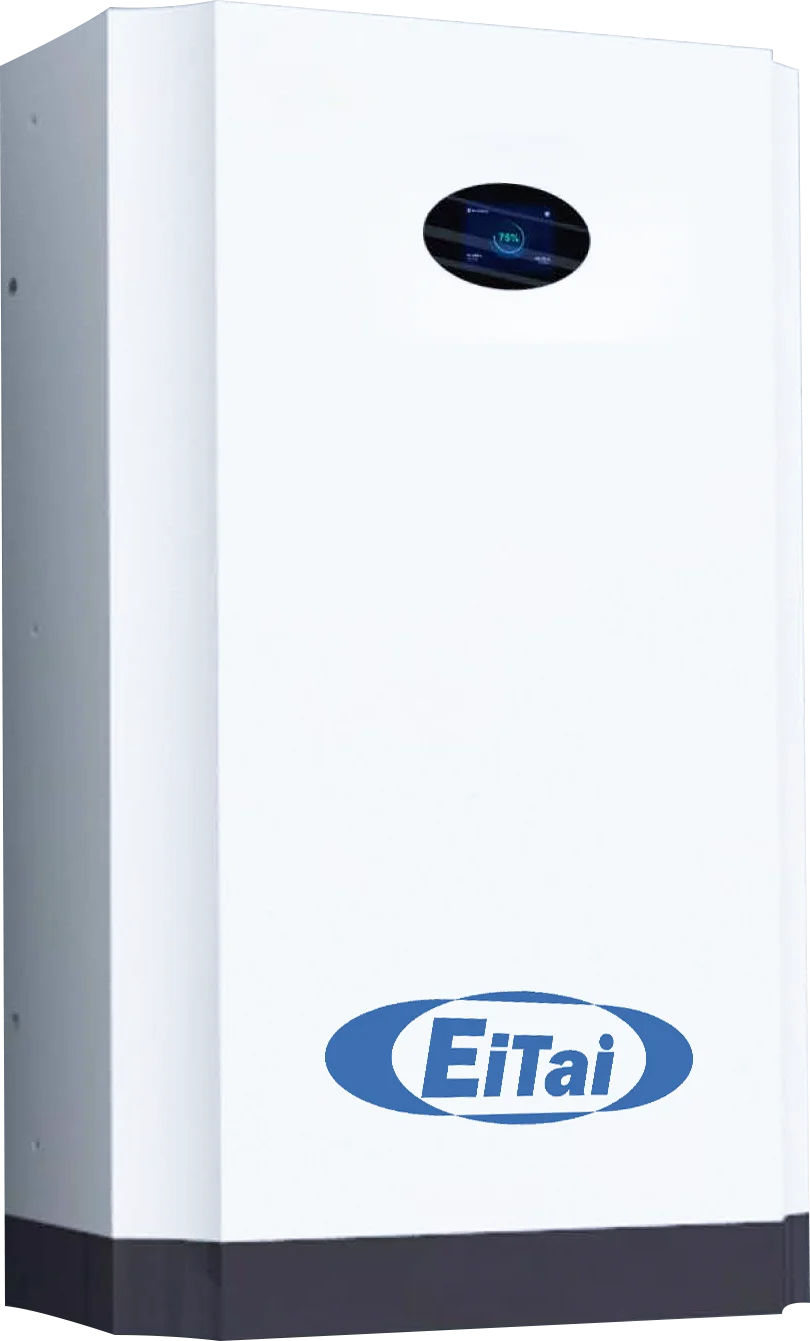

EITAI Powerwall Lithium battery has compact design, LCD screen, convenient setting buttons,and cables&accessories ready for installation.
To welcome the world cooperation we accept OEM with your logo design!
To welcome the world cooperation we accept OEM with your logo design!

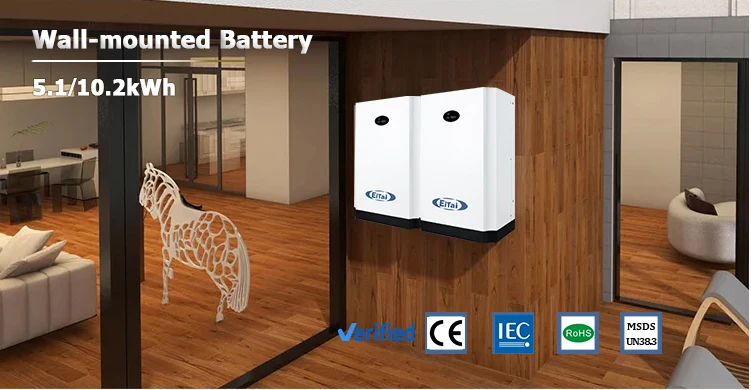

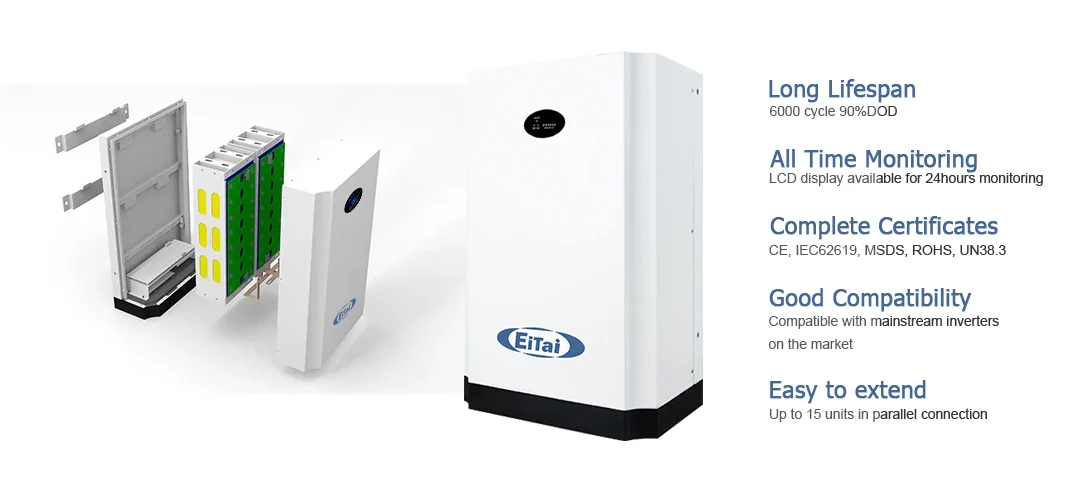

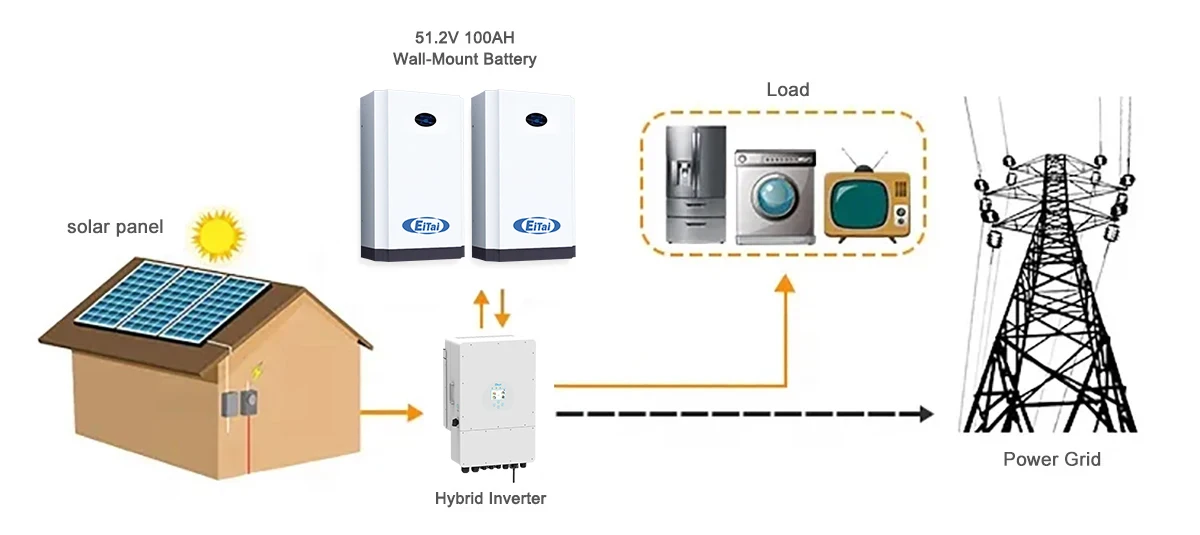

EITAI Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times
deep cycle, up to 90% DOD and phosphate battery Cell, EITAI Powerwall has won global approval!
deep cycle, up to 90% DOD and phosphate battery Cell, EITAI Powerwall has won global approval!

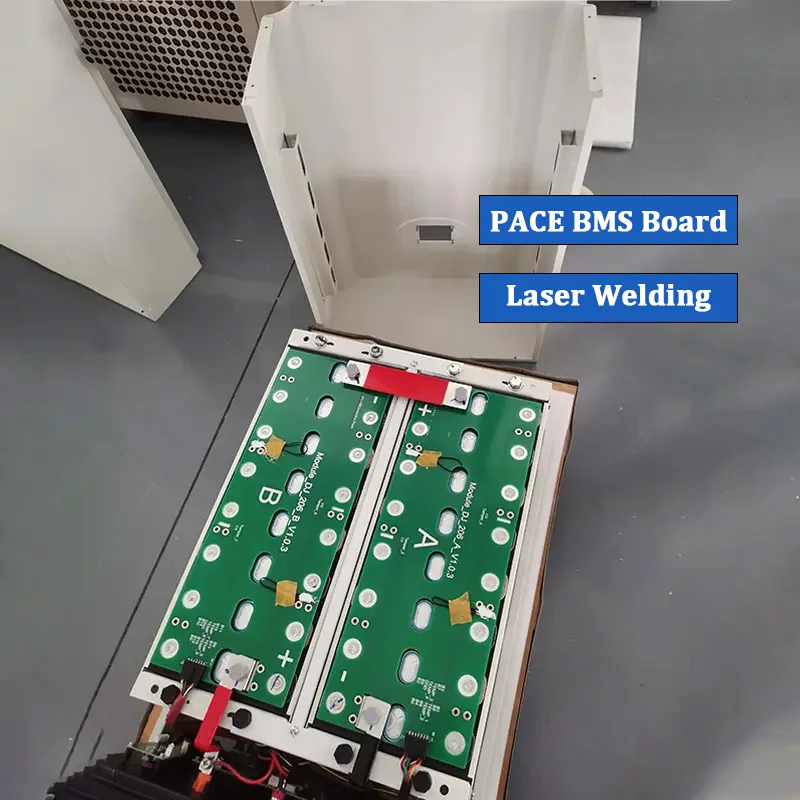

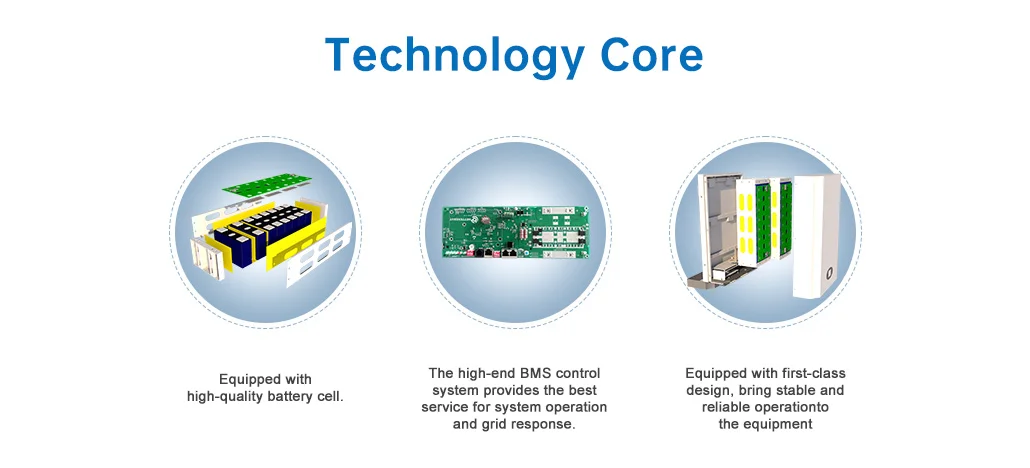

LFP technology plus smart BMS, Multi-active protection function provides you the ultra safe from cells, modules to the whole
system
system

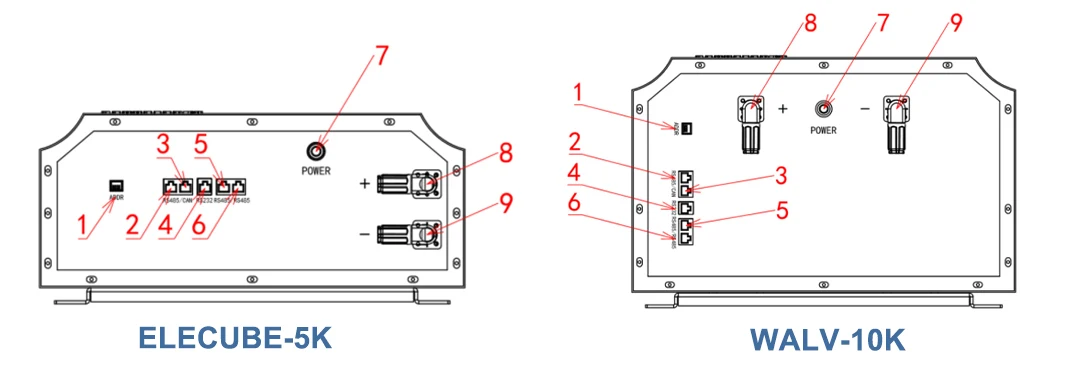

Product Details
No. | Name | No. | Name |
1 | ADDR Dial Address | 5 | RS485 |
2 | RS485 | 6 | RS485 |
3 | CAN | 7 | Switch Power Button |
4 | RS232 | 8 | Power Positive / Power Negative |
Related products

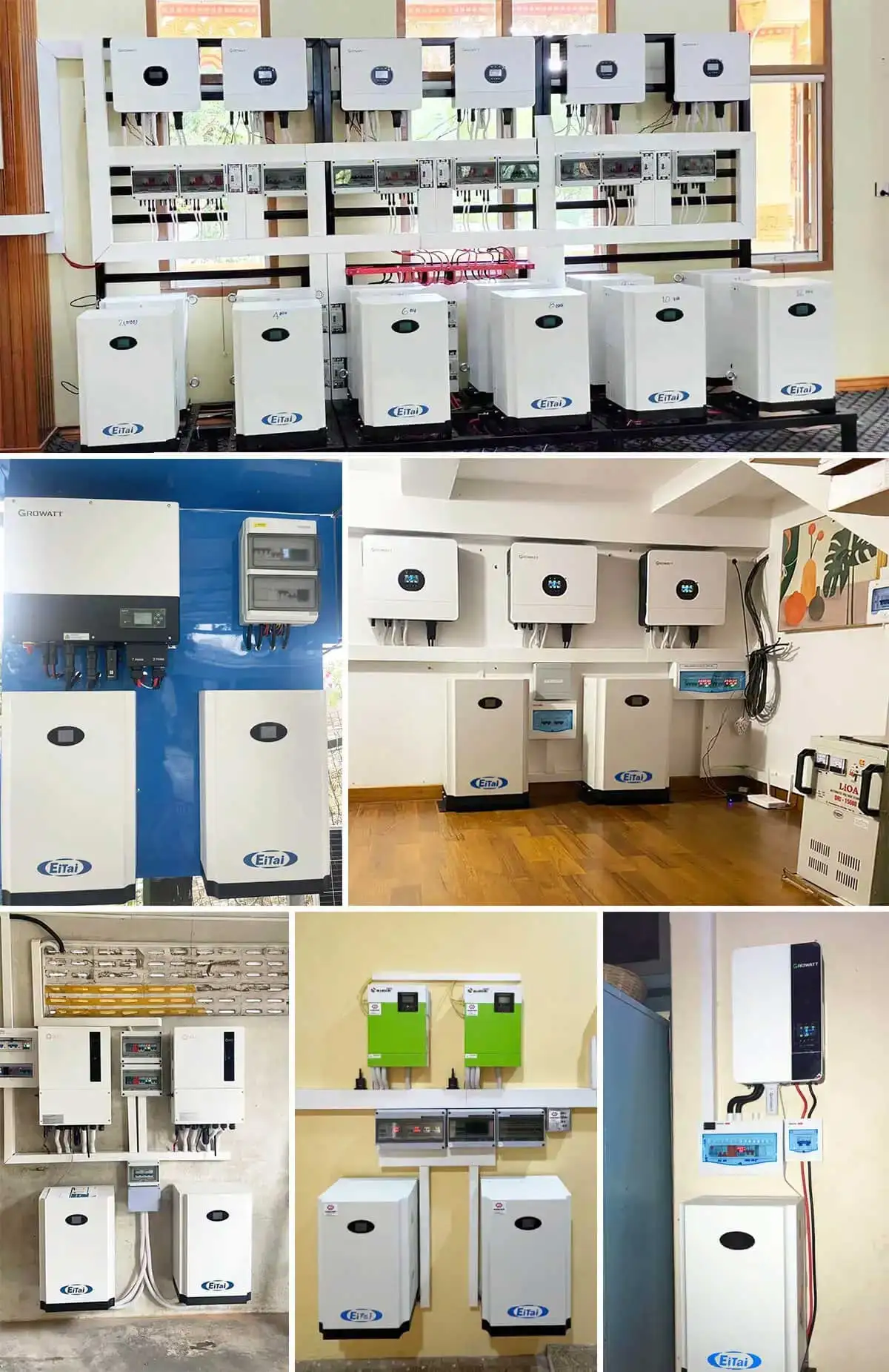

Project Cases
Wall-Mounted Home Energy Storage 51.2V 100Ah Wall Power Solar Battery Lifepo4 Lithium Ion 48V 200Ah Price For Solar System
Company Profile
Get Free Quote Now
FAQ
Q1. Is the freight on the website accurate?
A: Please contact us before you order,different countries,different order weight,
different freight. Please contact us in time, we will provide you with the best shipping way and accurate freight.
Q2. The delivery time set on your system is 15 days, do I really need to wait so long?
A: No, if it is not a customized order, we usually send it out within 3 working days.
Q3.Is this product safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance.
Q4.How to confirm the high quality of the product you sent me?
A: Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
Q5. The battery is so heavy, will it damaged easily on the road?
A: This is also a matter of great concerm to us. After long-term improvement and verification, our packaging is now very safe and
reliable. When youopen the package, you will definitely feel our sincerity.
Q6. Is it OK to print my logo or color on the product?
-Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
different freight. Please contact us in time, we will provide you with the best shipping way and accurate freight.
Q2. The delivery time set on your system is 15 days, do I really need to wait so long?
A: No, if it is not a customized order, we usually send it out within 3 working days.
Q3.Is this product safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance.
Q4.How to confirm the high quality of the product you sent me?
A: Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
Q5. The battery is so heavy, will it damaged easily on the road?
A: This is also a matter of great concerm to us. After long-term improvement and verification, our packaging is now very safe and
reliable. When youopen the package, you will definitely feel our sincerity.
Q6. Is it OK to print my logo or color on the product?
-Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
