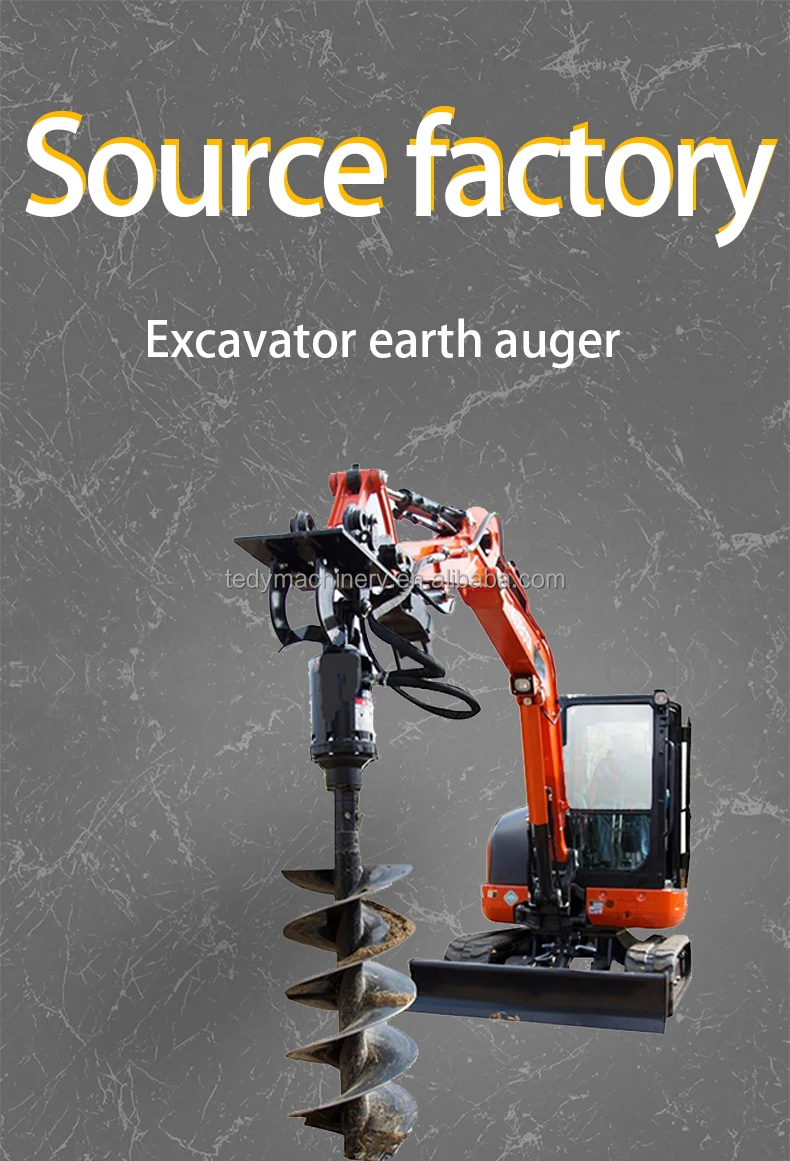

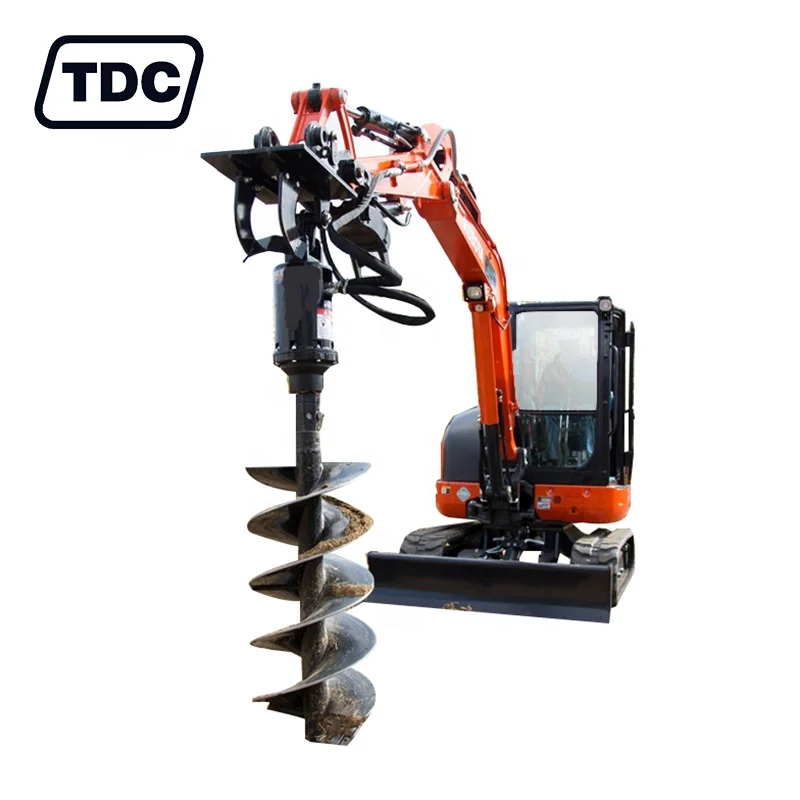

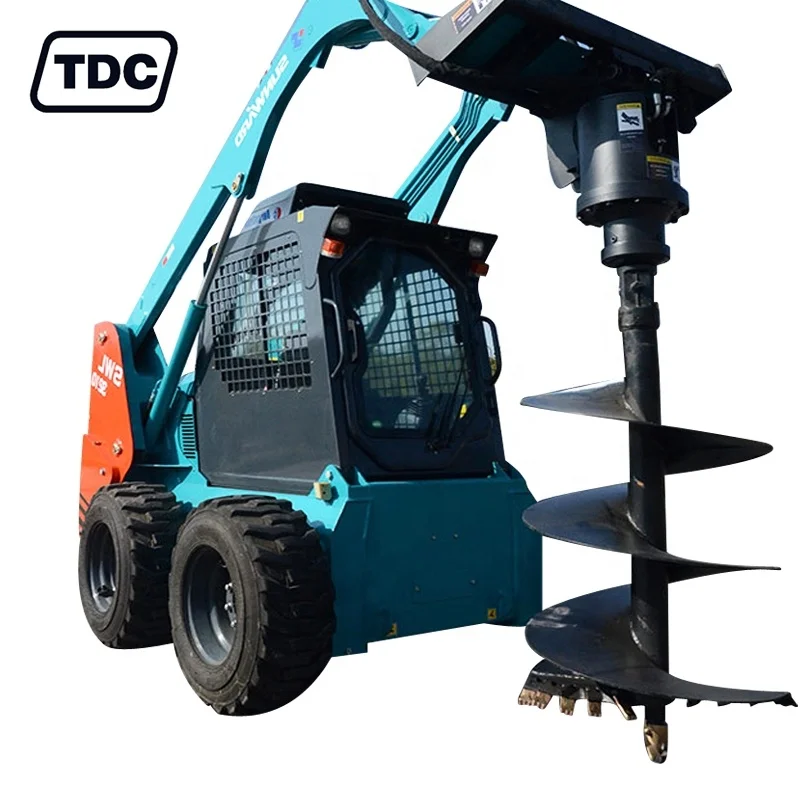

Hot Sale 2000 4000Nm Torque Hydraulic Post Hole Digger Earth Drilling Auger for 3.5 Ton Excavator

Product Overview

Description



Item	TD200	TD400	TD700	TD800	TD1200	TD1500	TD2000	TD2500
Suitableexcavator(T)	1.5-3	2.5-4.5	4.5-6	5-8	13-17	15-17	15-20	17-30
Torque(MAX)(Nm)	2510	3670	7300	7661	12300	15160	19200	24920
Pressure(Bar)	60-238	80-238	80-238	80-238	80-238	80-238	80-238	80-238
Flow(Lpm)	20-70	30-75	50-115	50-115	70-150	80-170	80-170	80-230
Outputpindia(mm)	65round	65round	75square	75square	75square	75square	75square	75square
Powerheaddia(mm)	200	200	270	270	290	290	290	292
Powerheadweight(kg)	55	60	151	152	155	171	192	271



Auger drill machine features:

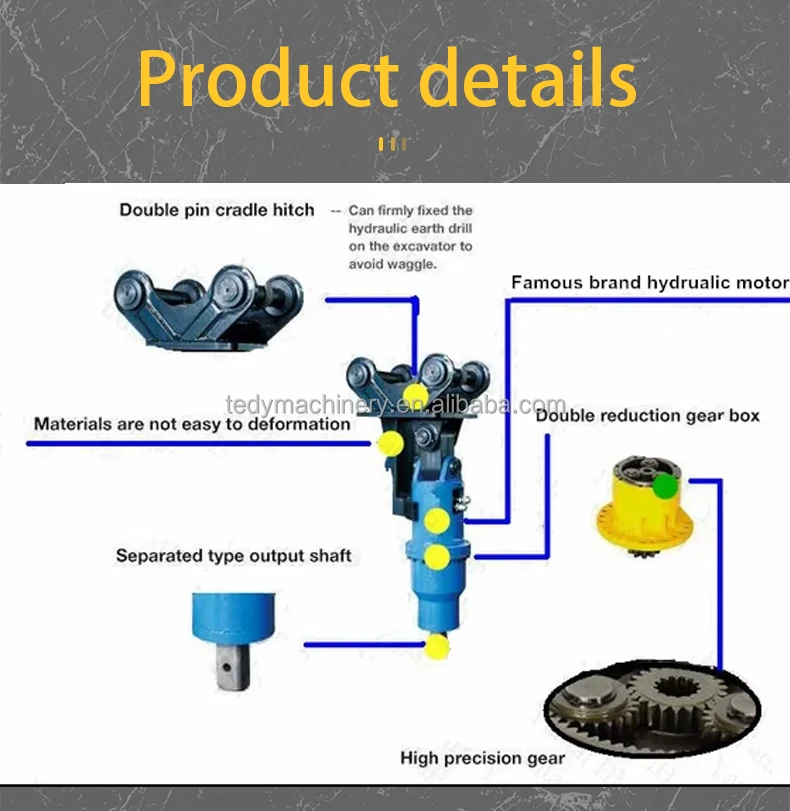

Auger drilling machine is a kind of hole drilling auger machine, including double pin hitch, power head (including motor, gear box, input shaft, output shaft), auger drilling rod and bit. Pin hitch is equipped with slide way and reduction gearbox which can slide along the slide way. The reduction gearbox is connected with input shaft and output shaft. The input shaft is connected with hydraulic motor, and the output shaft is connected with drilling rod which is connected with drill bit.

A. The auger drilling machine can improve the efficiency highly;

B. The reduction gearbox slides along the pin hitch and can guarantee the drill machine verticality;

C. The drill rod is auger rod and when it drills into the earth, the earth material can be returned to the ground;



D. The output shaft is hollow shaft, and the above can be connected with the cement injection to inject cement.
