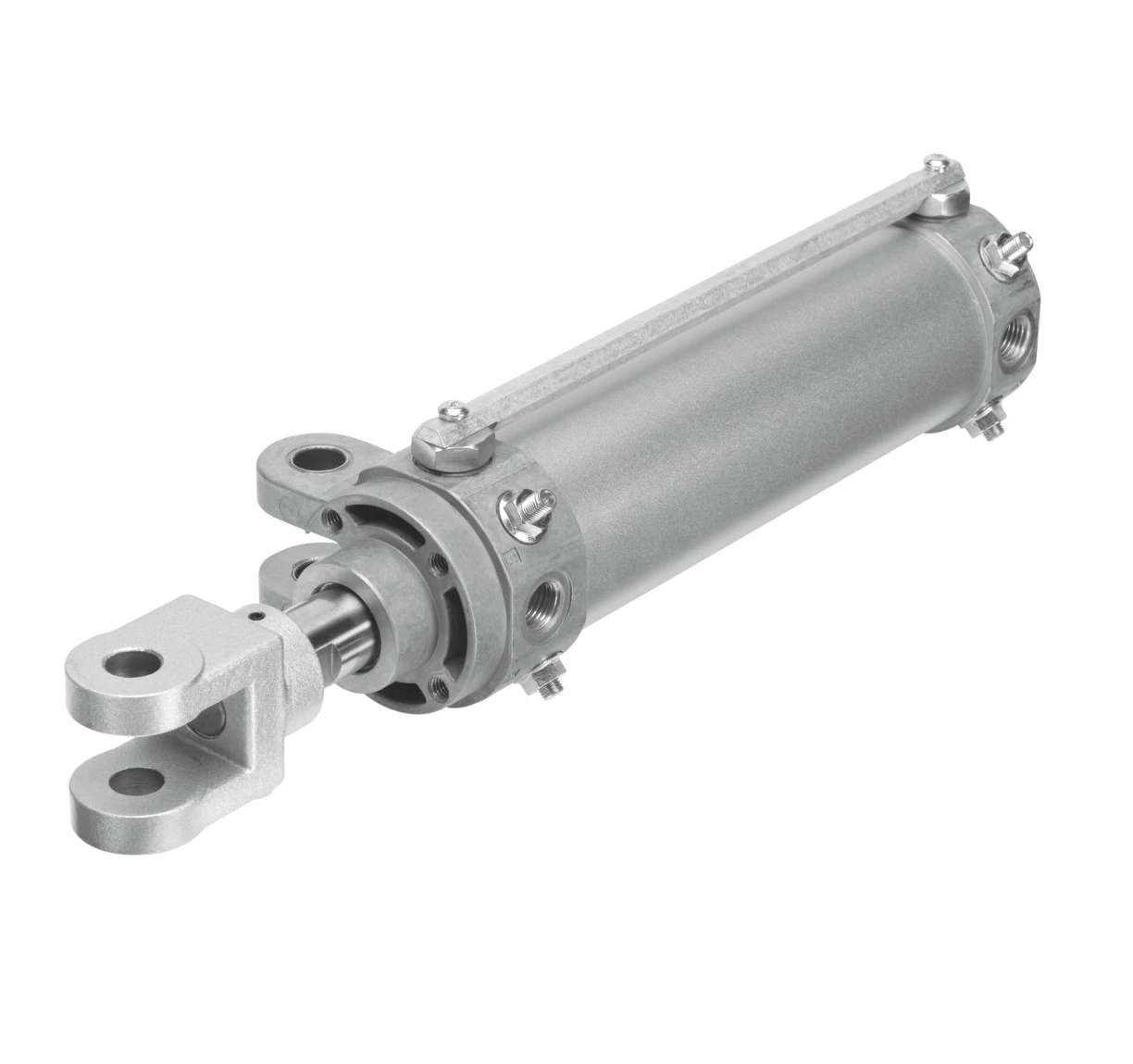

Hinge cylinder for Festo DWB 63 100 Y A 549580
- Category: >>>
- Supplier: Shenzhen Haokun Automation Co. Ltd.
Share on (1601273059989):
Product Overview
Description
DWB-63-100-Y-A
549580
Products Description
Model Numbers: | DWB-63-100-Y-A 549580 |
Stroke: | 100 mm |
Piston diameter: | 63mm |
Buffering: | Pneumatic buffering,Both ends are adjustable |
Piston rod thread: | M16x1.5 |
Mounting position: | Optional |
Position Detection: | By proximity switch |
Working pressure: | 1 bar ... 10 bar |
Working mode: | Double action |
Ambient temperature: | -10 °C ... 60 °C |
Installation: | Through the trunnion mount on the bearing end cover With accessories |
Pneumatic interface: | Rc1/4 |
Seal material: | NBR |
Piston rod material: | tempered steel, hard chromium plating |
Cylinder material: | refined aluminum alloy, anodic oxidation treatment |
Lead time
Quantity (pieces) | 1 - 1 | > 1 |
Lead time (days) | 15 | To be negotiated |
Please note that we sell the entire series of our brand products and can order specific pieces. Due to the numerous product models, not all are uploaded immediately. If you can provide the specific product model, our customer service can provide you with a quotation first. The price of the target product is not the actual price, please contact us for a new quotation, thank you !
