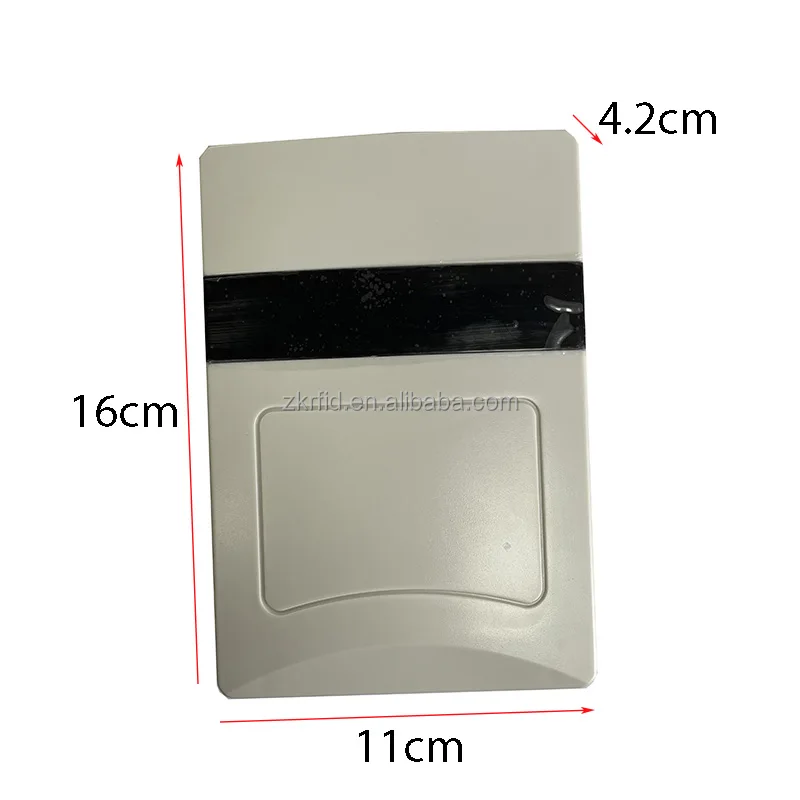

23dBm USB/RS232/IP port Desktop UHF RFID Reader Writer Reading Distance up to 1meter for access control system
- Category: >>>
- Supplier: Shenzhen ZKHY Technology Co. Ltd.
Share on (1601273067666):
Product Overview
Description
Products Description

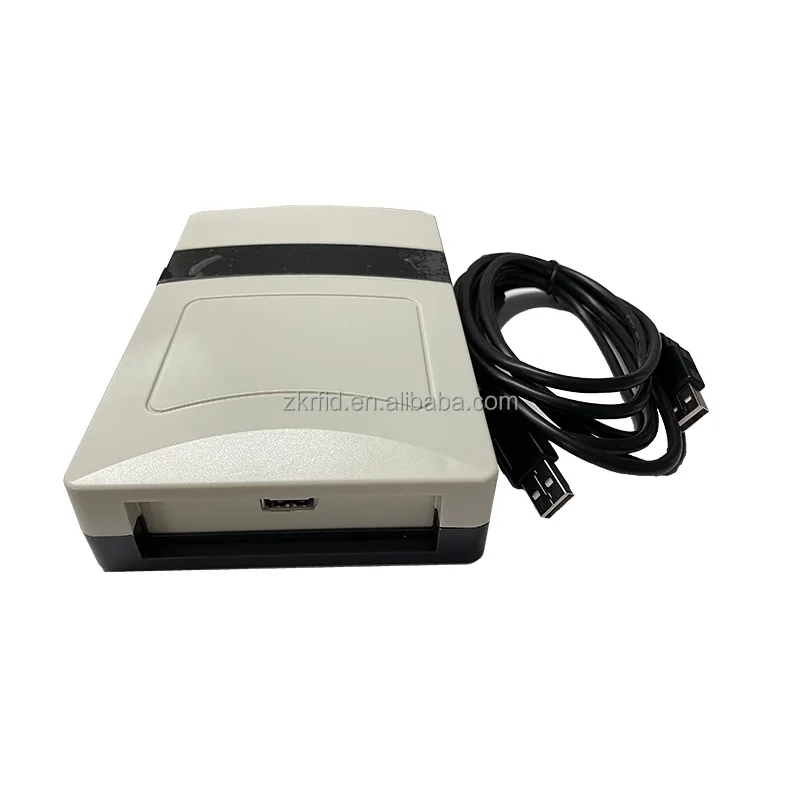

23dBm USB/RS232/IP port Desktop UHF RFID Reader Writer Reading Distance up to 1meter for access control system
ZK-RFID107A is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;
l 902~928MHz or 865-868MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 23dbm(adjustable);
l Reading distance up to 1 meter;

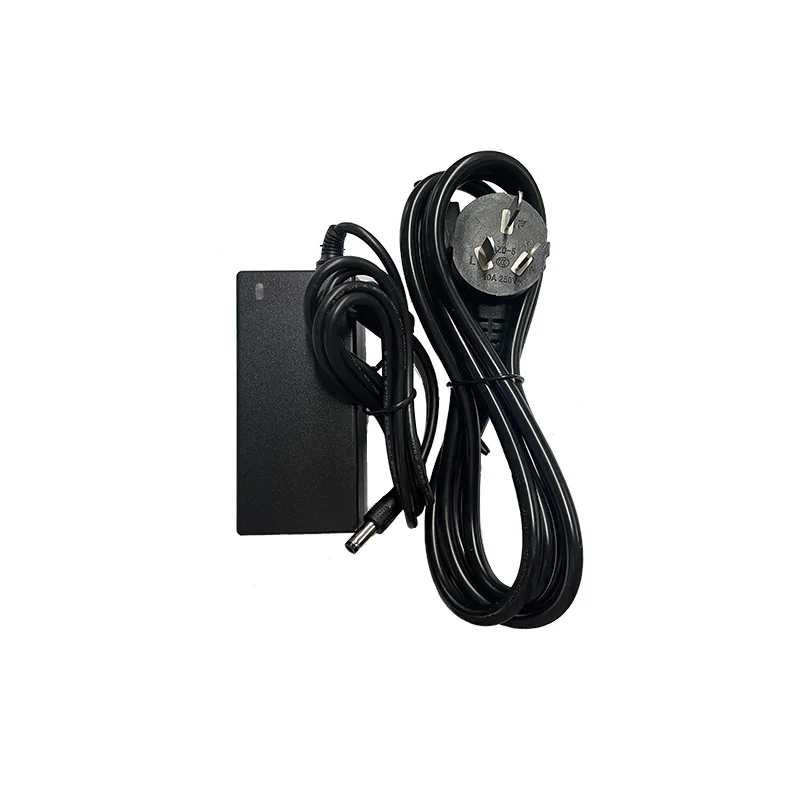

l Low power dissipation with single +9V DC power supply;

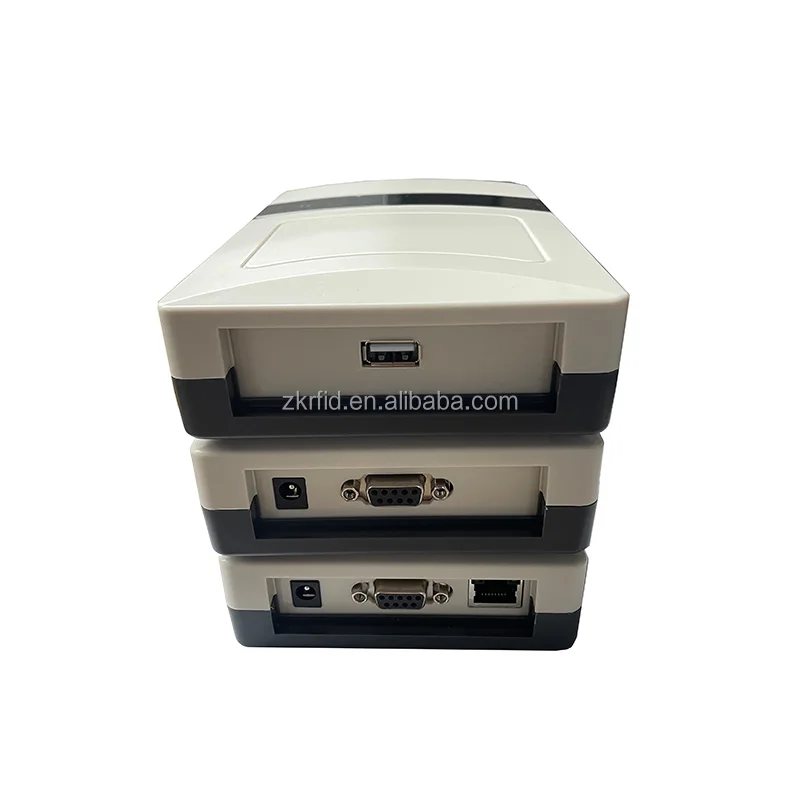

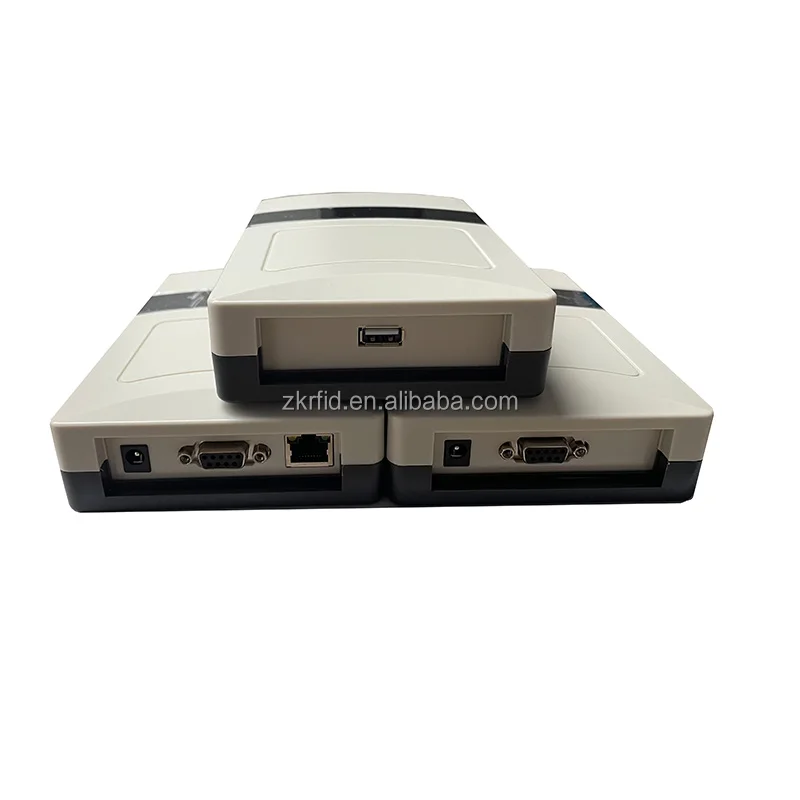

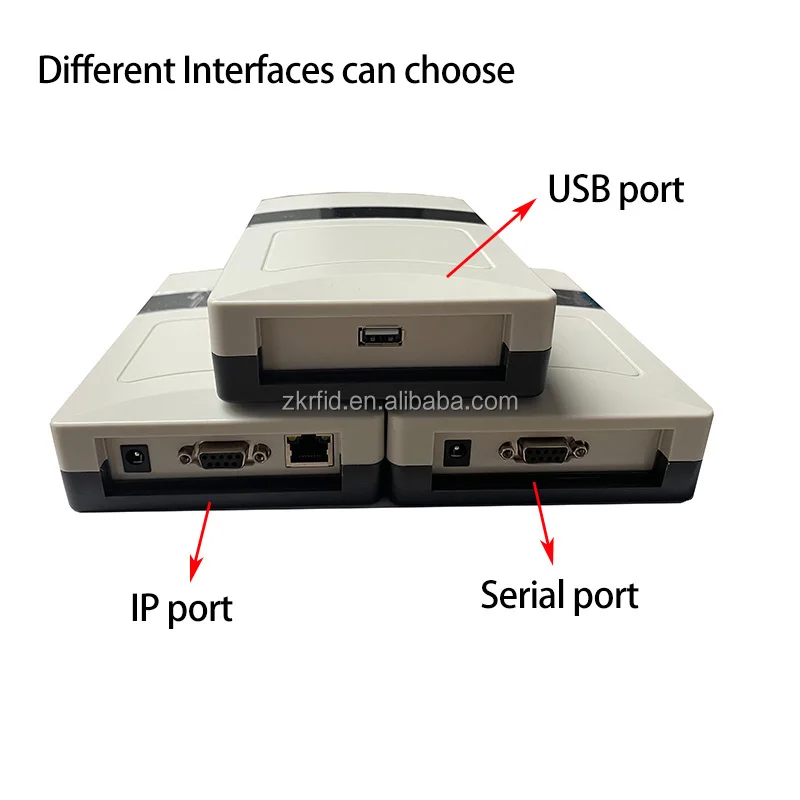

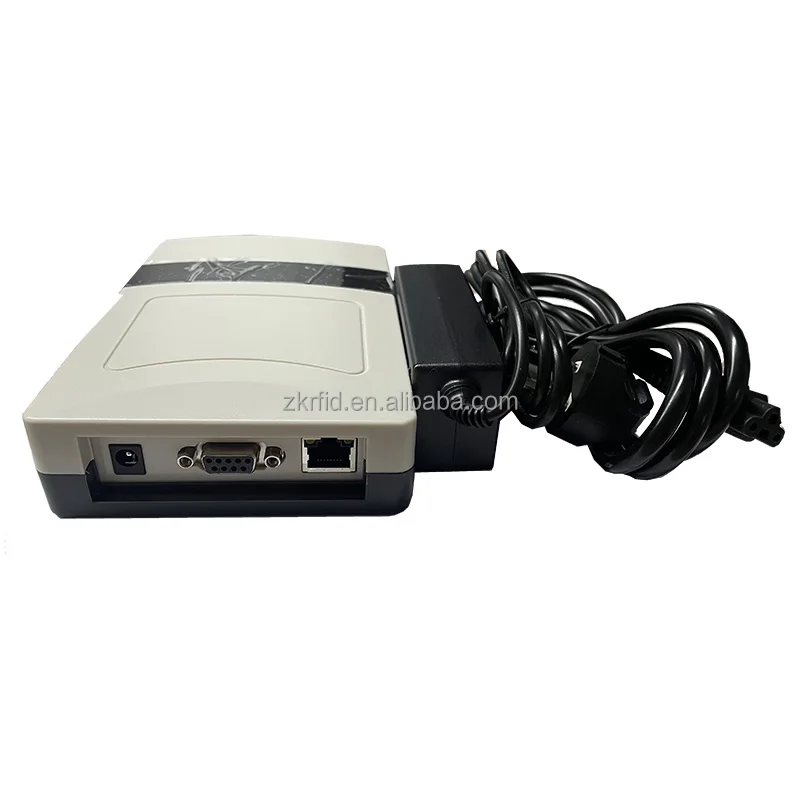

l Support RS232, USB and TCP/IP interface;
l Output format and parameters configurable;

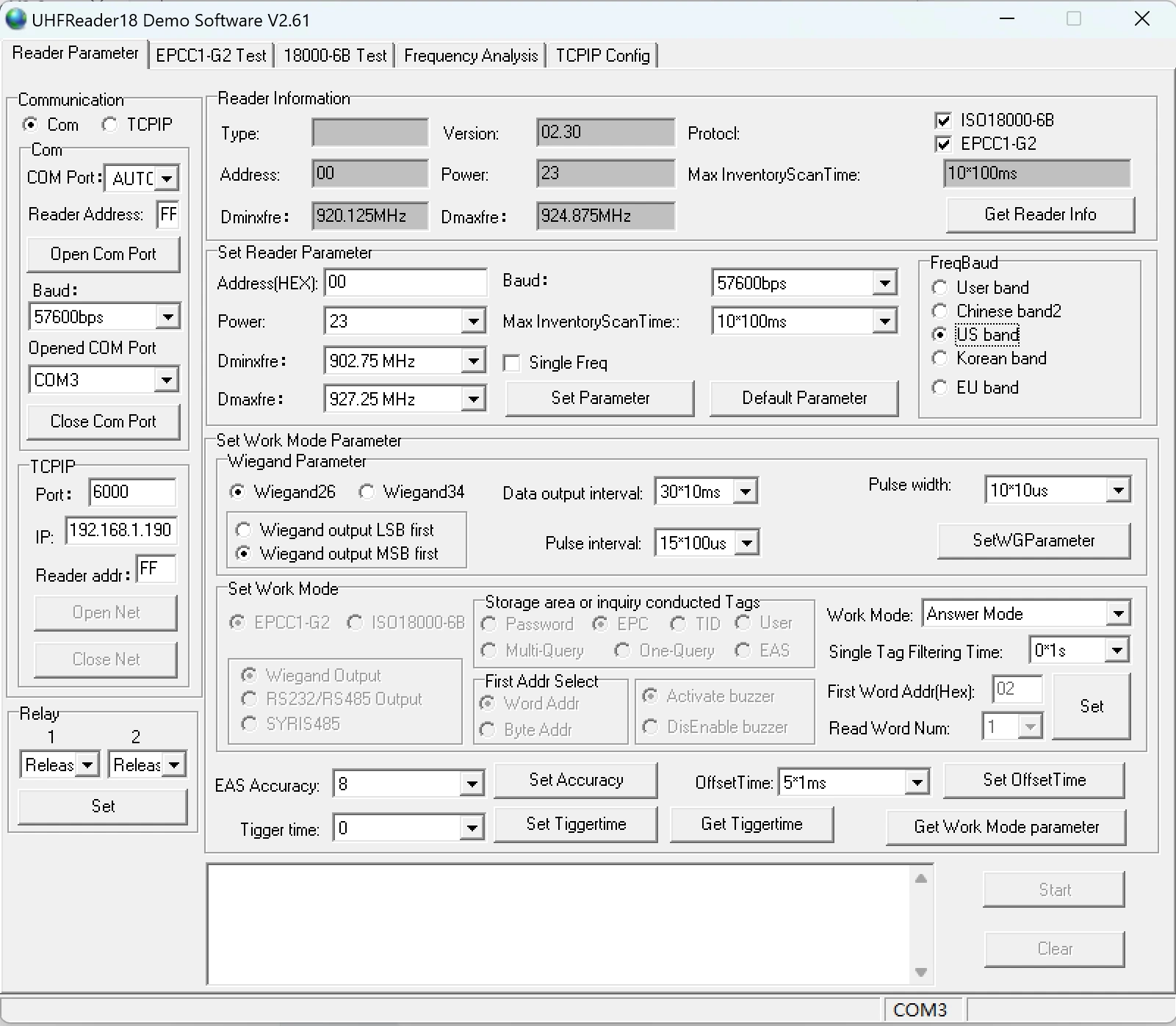

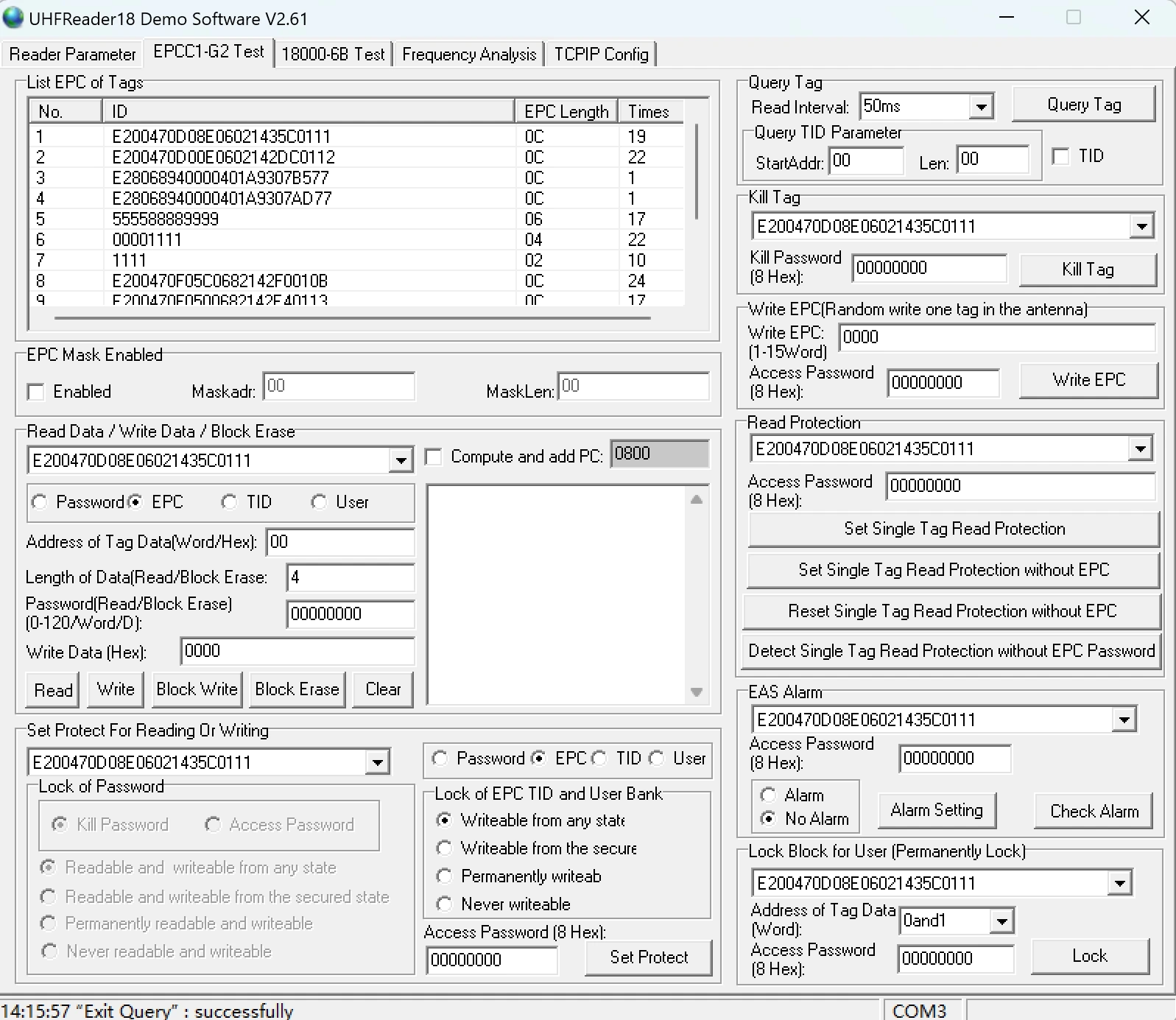

l Provide SDK and demo software to facilitate further development
l Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;
l 902~928MHz or 865-868MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 23dbm(adjustable);
l Reading distance up to 1 meter;
l Low power dissipation with single +9V DC power supply;
l Support RS232, USB and TCP/IP interface;
l Output format and parameters configurable;
l Provide SDK and demo software to facilitate further development
CHARACTERISTICS
* Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+60 | ℃ |
Storage Temp. | TSTR | -20~+80 | ℃ |
* Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified
Under TA＝25℃，VCC＝+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 6 | 9 | 12 | V |
Current Dissipation | IC | 400 | 700 | mA | |
Frequency | FREQ | 902 | 928 | MHz | |
Effective Distance | Dis | 0 | 200 | 300 | mm |
* Effective distance depends on protocol, tag and environment.
Company Information
Shenzhen ZKHY RFID Technology Co.,Ltd is committed to RFID (Radio Frequency Identification Devices)
products development and exploitation production and distribution. With 150 workers and more than 20 sales. After 11 years of development, our company not only has the domestic leading RFID core technology, but also has independent intellectual property rights of RFID. At the same time, our company can provide complete solution and timely after-sale service for project. Based on special idea in design and function, the main technical indexes of ZKHY RFID products has achieved or exceeded world level.
products development and exploitation production and distribution. With 150 workers and more than 20 sales. After 11 years of development, our company not only has the domestic leading RFID core technology, but also has independent intellectual property rights of RFID. At the same time, our company can provide complete solution and timely after-sale service for project. Based on special idea in design and function, the main technical indexes of ZKHY RFID products has achieved or exceeded world level.

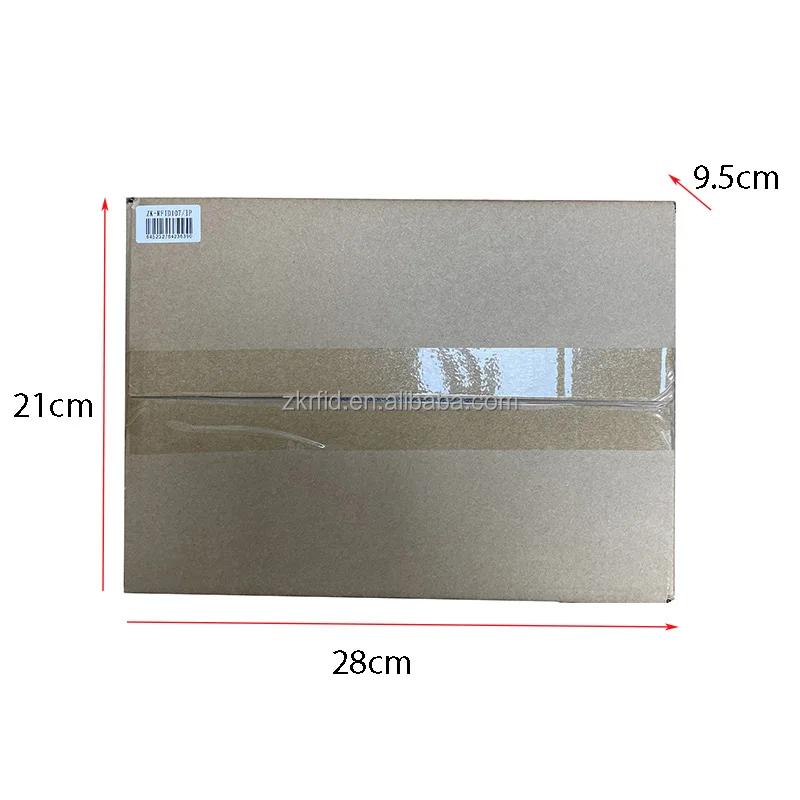

Packing &Delivery
