Product Overview
Description
For customized products, please refer to the actual quotation.
Magnetic Encoder Model | MA45 series |
Dimension | 45mm |
Number of detent | Continuous rotation |
Working temperature | -10℃～105℃ |
Rotational life | 1,000,000 cycles Min |
Switch operating life | 1000 hours Min |
Input voltage | 5V |
MA45 Hollow Rotary Magnetic Absolute Encoder Main Specifications
Dimensions | 45mm | ||||||
Number of detent | Continuous rotation | ||||||
Output resolution | Single turn 17B, multi-turn 16B | ||||||
Working temperature | -10℃～105℃ | ||||||
Input voltage | 5V | ||||||
Communication interface | RS485 | ||||||
Communication protocol | Tamagawa | ||||||
Absolute positioning accuracy | ±0.1°;(After Calibration ) | ||||||
Temperature Drift Coefficient | ± 0.1°/ ℃ | ||||||
Rotation life | 1,000,000 cycles Min | ||||||
Electrical life | 1000 hours Min | ||||||
Applications | Mainly suitable for control and detection of displacement, speed, position, and other aspects in the field of rotational servo industrial control. | ||||||
Product features | High precision, high safety performance, rotary servo industrial encoder. | ||||||

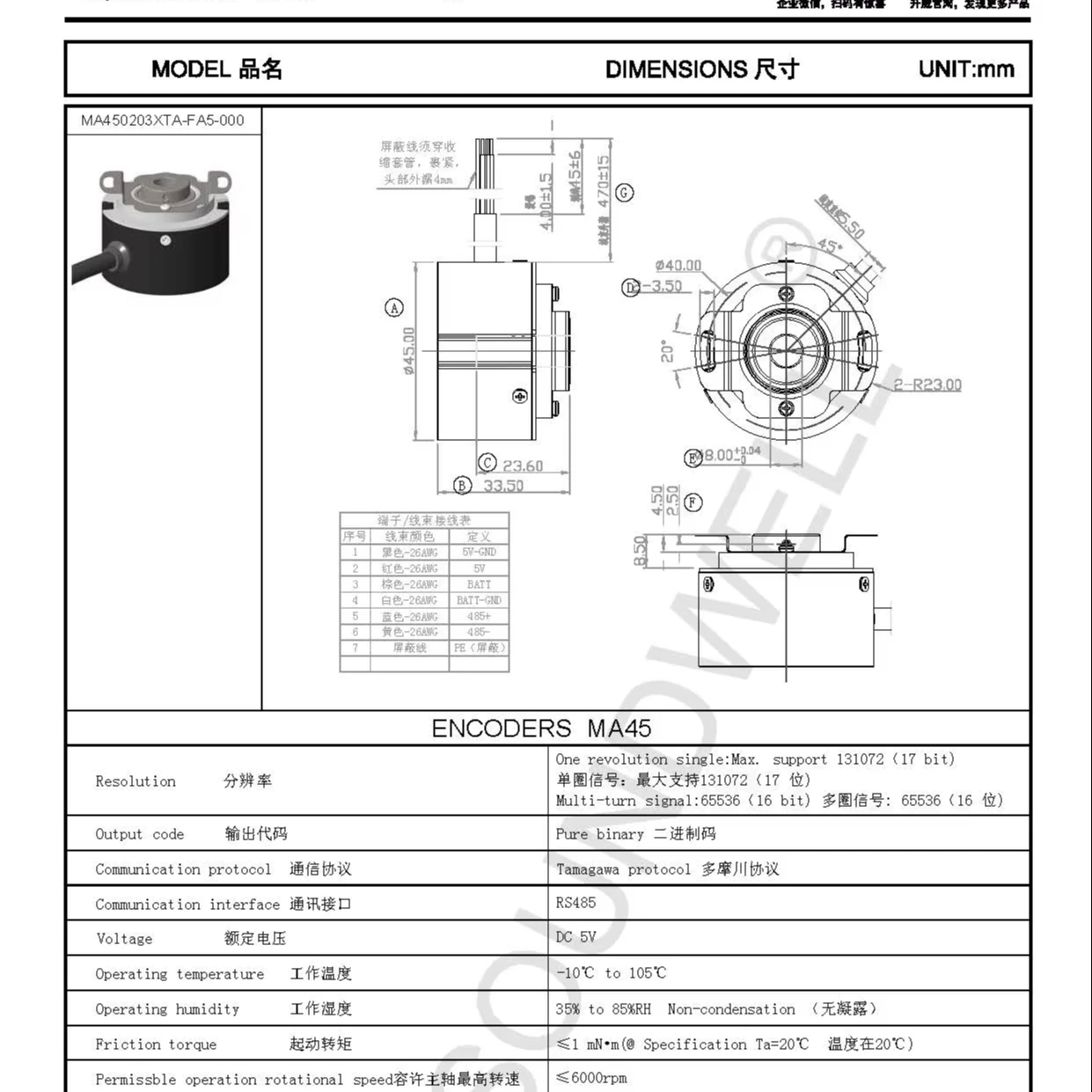

MA45 Hollow Rotary Magnetic Absolute Encoder Specifications
One、MECHANICAL CHARACTERISTIC
1. Friction torque: ≤1 mN•m (@ Specification Ta=20℃ The temperature is 20℃）
2. Permissble operation rotational speed: ≤6000rpm
3. Moment of inertia: ≤0.68 kg•mm²
4. Allowable shaft load: Radial: 140N Max, Axial: 70N Max.
Two、ELECTRICAL CHARACTERISTIC
1. Insulation resistance: DC100V, more than 50MΩ
2. Dielectric voltage: 1 Minute at AC 500V
3. Resolution: Single turn signal: Max. support 131072（17 bit); Multi-turn signal: 65536（16 bit)
4. ESD test: Air discharge: ±4KV, Contact discharge :±2KV
Three、ENDURANCE CHARACTERISTIC
1. Mechanical life: 1,000,000 cycles Min
2. Electrical life:1000 hours Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
