3.6*9mm 650nm0.5mw Laser Module Ultra small Size Laser Light Calibrated Laser
- Category: >>>
- Supplier: Changchun Realpoo Photoelectric Co. Ltd.Changchun Ltd.
Share on (1601273098360):
Product Overview
Description
Product Overview
Product series: Laser
Type: Laser module
Product certification: in line with RoHS standards
Accessory type: Laser head
Model: S4565005D
Size: Ø 3.6x9mm (other sizes can be customized)
Material:Copper (all metal shell)
Type: Laser module
Product certification: in line with RoHS standards
Accessory type: Laser head
Model: S4565005D
Size: Ø 3.6x9mm (other sizes can be customized)
Material:Copper (all metal shell)
FEATURES AT A GLANCE
Surface treatment/color:Bronze shell
Output wavelength: 650nm ± 10nm
Exit pupil power:<0.5mW (other powers can be customized)
Range:<20 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Circuit control | APC line |
2 | Working current | I<25mA |
3 | Working temperature | -10C~+50C |
4 | Storage temperature | -20 '℃~+70C |
5 | Service life | Continuous output/usage>10000 hours |
PRODUCT CONFIGURATION
SIMILAR PRODUCTS
Spot shape and size:
Point light, ellipsoid (can be adjusted according to the distance requested by the customer for the best effect)
Focusing method: adjustable focus or fixed focus (optional, default to adjustable focus)

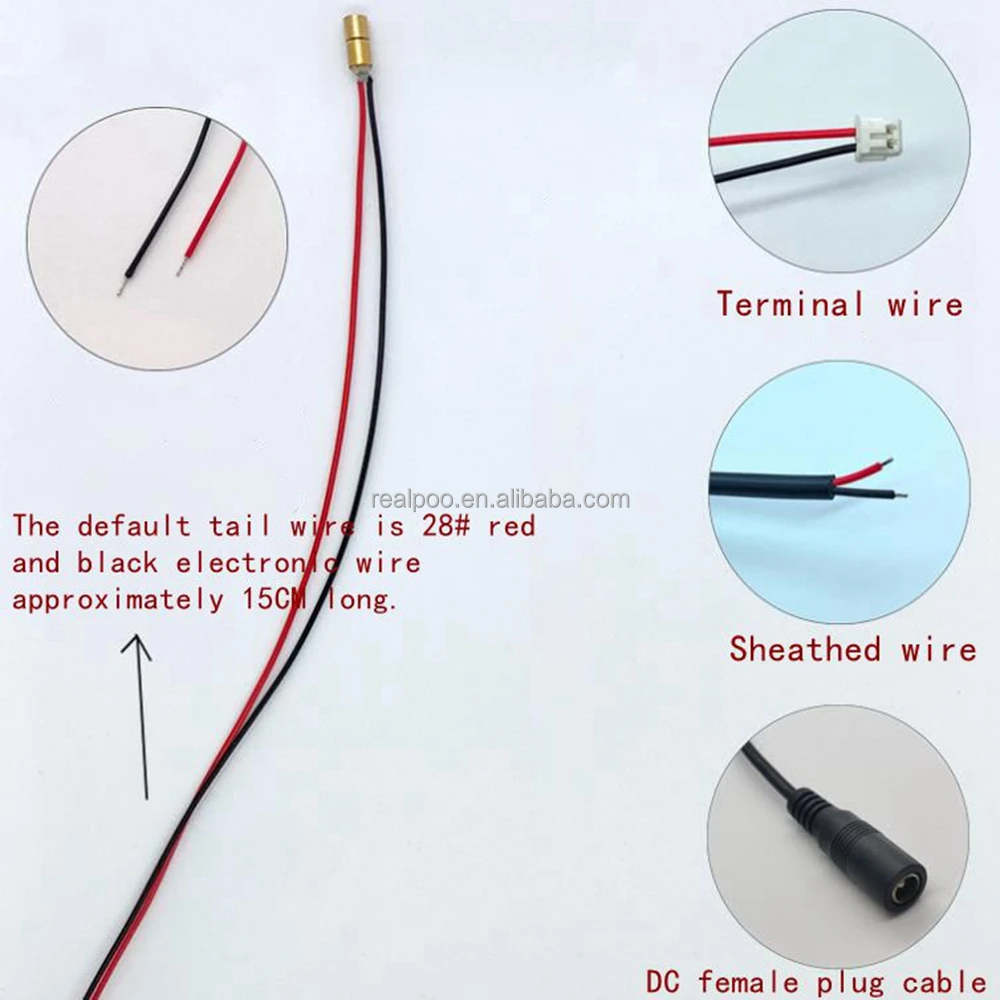

Tail wire: 28 # red and black electronic wire about 15cm long (together with the power adapter, equipped with a 1-meter-long DC female plug wire)
Security level: CLASS II
Point light, ellipsoid (can be adjusted according to the distance requested by the customer for the best effect)
Focusing method: adjustable focus or fixed focus (optional, default to adjustable focus)
Tail wire: 28 # red and black electronic wire about 15cm long (together with the power adapter, equipped with a 1-meter-long DC female plug wire)
Security level: CLASS II

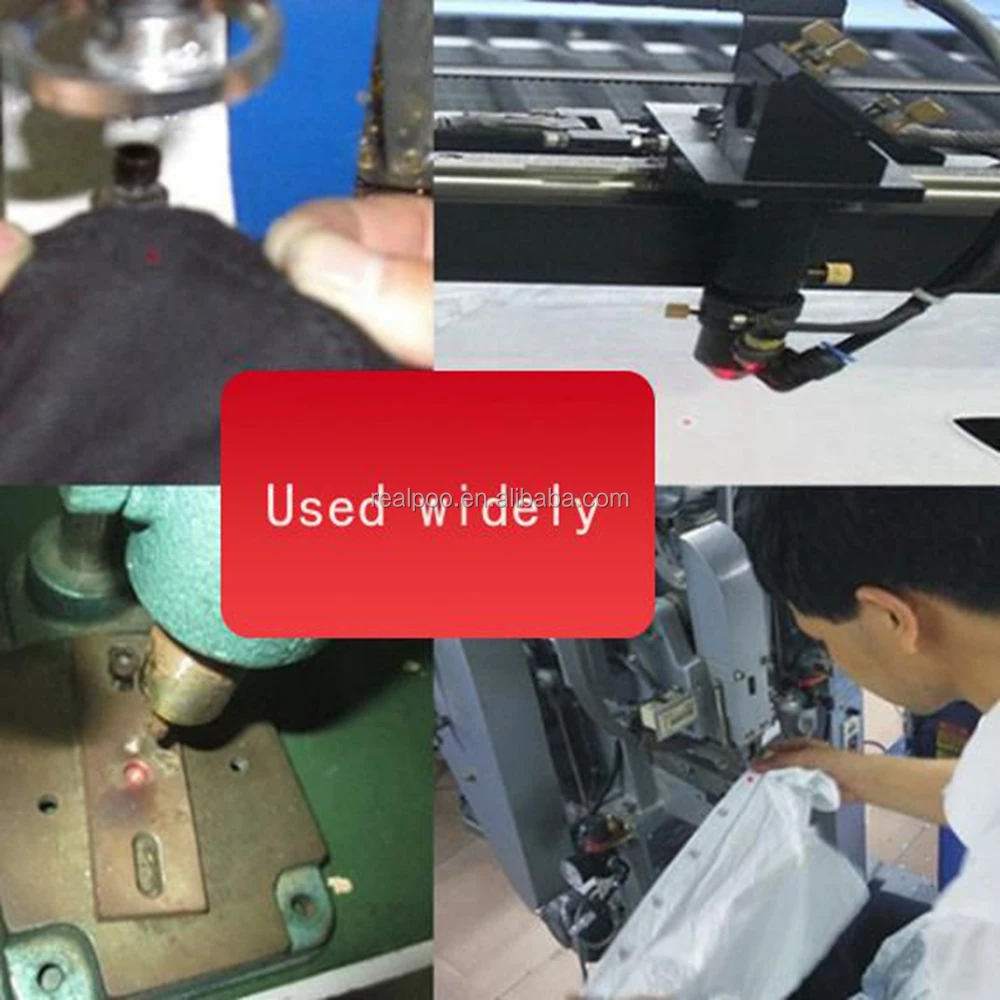

Used widely.
Usage: Can be used in industrial laser positioning, sights, laser flashlights, instrument equipment, medical equipment (health
protection devices), military, counterfeit identification and security, stage lighting, tools, USB drives, mobile phones,
projection teaching flip pens, temperature measuring (distance measuring) instruments, leveling instruments, marking instruments,
level rulers, electronic production enthusiasts, indoor and outdoor decoration and other products.
D3.6*9mm other models Outpower : 0.3mw 0.5mw 1mw 10mw
projection teaching flip pens, temperature measuring (distance measuring) instruments, leveling instruments, marking instruments,
level rulers, electronic production enthusiasts, indoor and outdoor decoration and other products.
D3.6*9mm other models Outpower : 0.3mw 0.5mw 1mw 10mw
