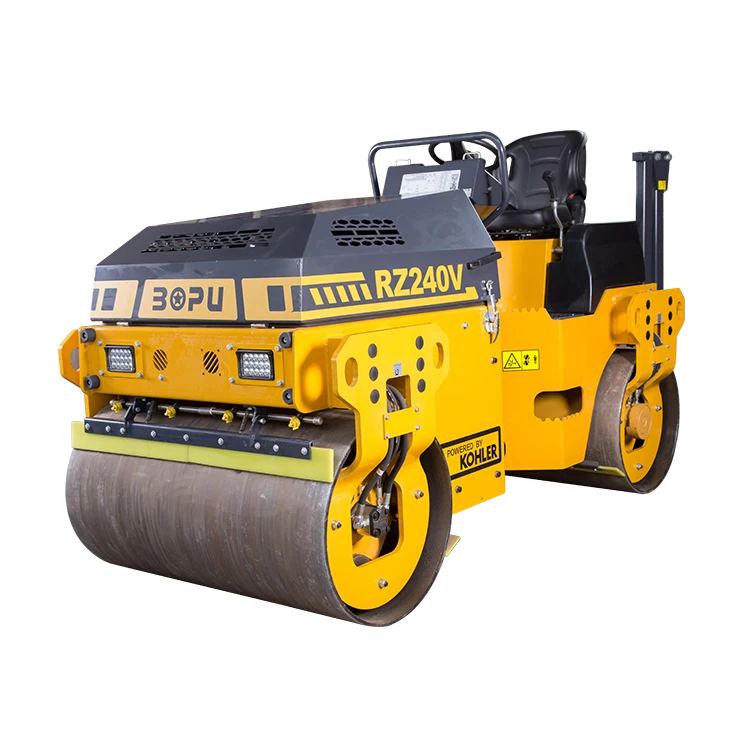

3 Ton Ride On Double Drum Hydraulic Compactor Oil Tank Volume 40l Water cool Engine Road Rollers With KOHLER KDW1404
3 Ton Ride On Double Drum Hydraulic Compactor Oil Tank Volume 40l Water-cool Engine Road Rollers With KOHLER KDW1404
3 Ton Ride On Double Drum Hydraulic Compactor Oil Tank Volume 40l Water-cool Engine Road Rollers With KOHLER KDW1404
3 Ton Ride On Double Drum Hydraulic Compactor Oil Tank Volume 40l Water-cool Engine Road Rollers With KOHLER KDW1404
3 Ton Ride On Double Drum Hydraulic Compactor Oil Tank Volume 40l Water-cool Engine Road Rollers With KOHLER KDW1404
3 Ton Ride On Double Drum Hydraulic Compactor Oil Tank Volume 40l Water-cool Engine Road Rollers With KOHLER KDW1404
3 Ton Ride On Double Drum Hydraulic Compactor Oil Tank Volume 40l Water-cool Engine Road Rollers With KOHLER KDW1404

3 Ton Ride On Double Drum Hydraulic Compactor Oil Tank Volume 40l Water cool Engine Road Rollers With KOHLER KDW1404

Share on (1601273135573):


Price:$18,600.00

Quantity:


Product Overview

Description





Details Images


Model
RZ240V
Weight
3600kg
Max.Working Weight
3900kg
Triction
Rated Speed
9KM/H
Vertical Pendulum Angle
±7°
Gradeability
40% (no vibration)
Compacting
Centrifugal Force
32KN
Static Line Force
154/161 N/cm
Vibration Frequency
60Hz
Water Tank Capacity
200L
Engine
Manufacturer
KOHLER KDW1404
Type
Water-Cool Engine
Rated Power
21.7kW
Oil Capacity
40L
Hydraulic System
Hydraulic Pump
Poclain
Hydraulic Motor
Poclain
Emergency Braking/Stop
Emergency Button
Measurement
Whole Machine Size
2745 x 1430 x 2650mm
Packing Size
2745 x 1430 x 2650mm
Drum Size
1300 x 675mm

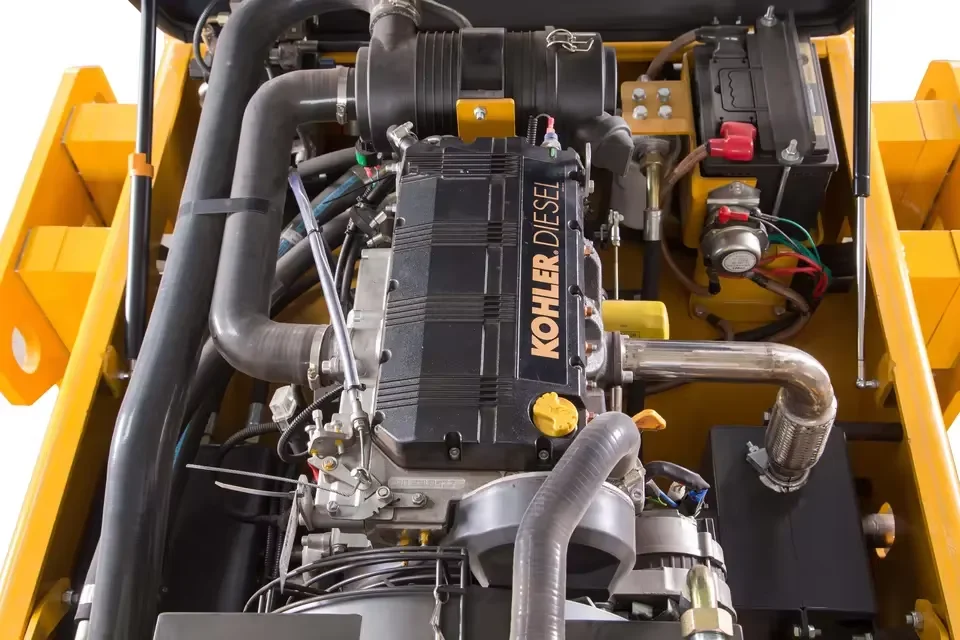

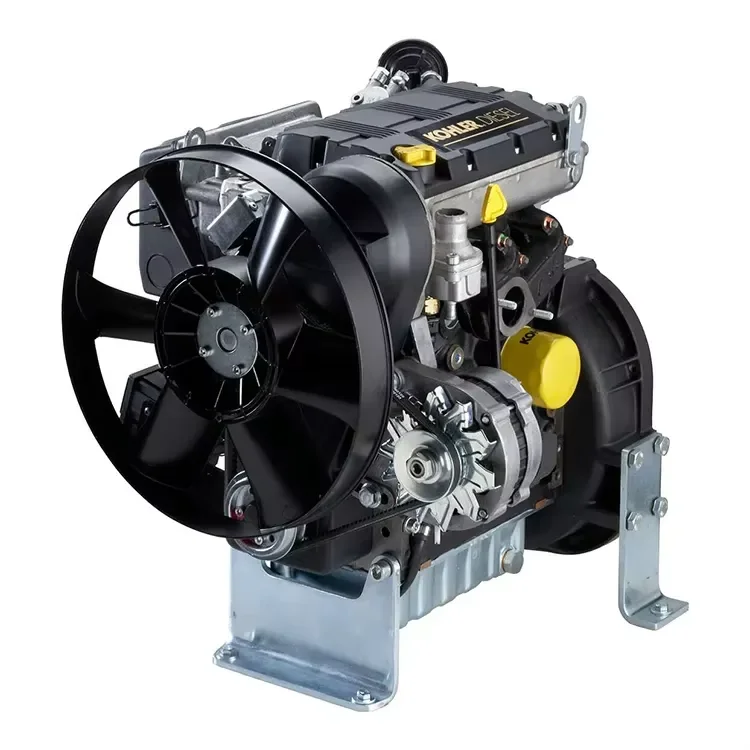

KOHLER KDW1404
Adopting Kohler water-cooled engine with superior performance and certain advantages High power and high efficiency.

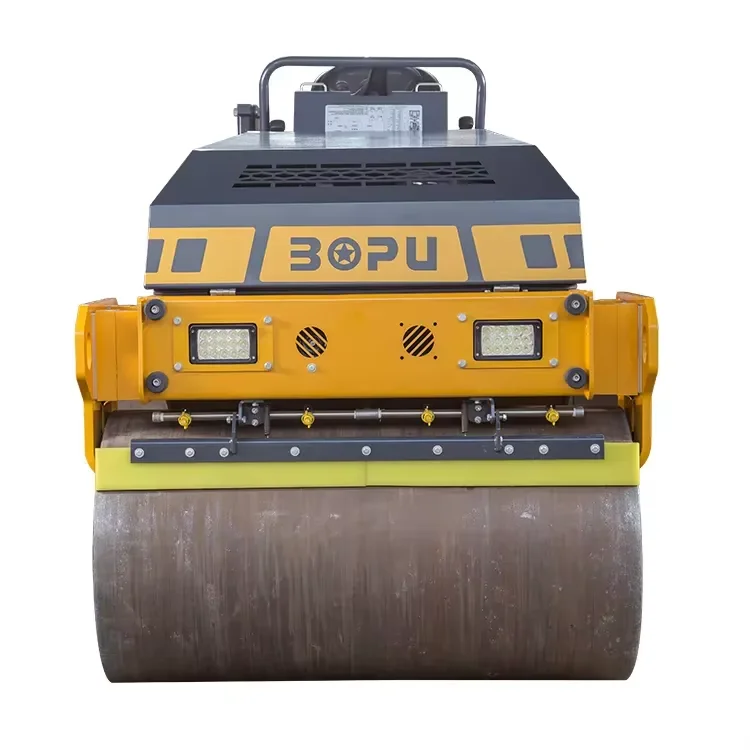

Scraper
Road roller equipped with scraper device can keep the wheel clean when the roller is equipped with the roller.

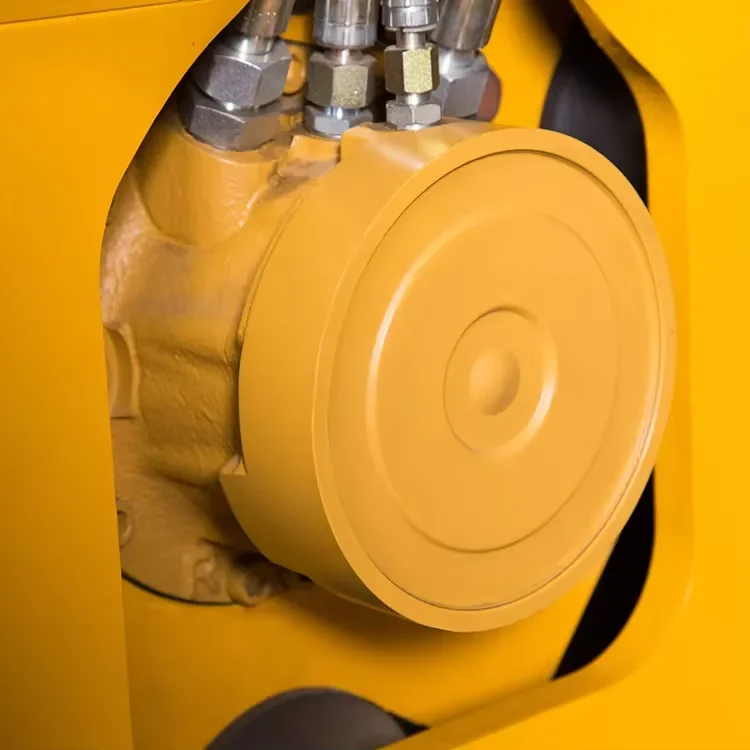

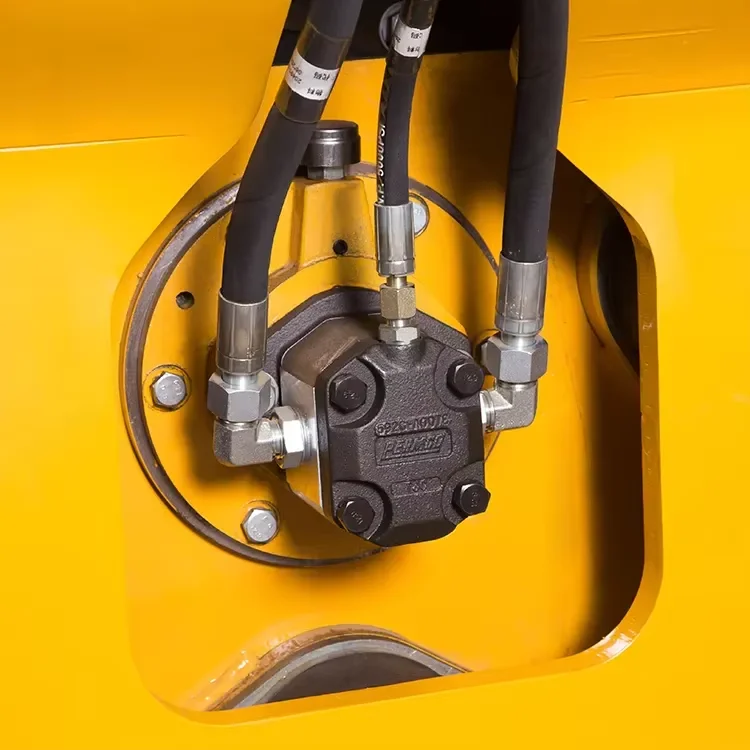

Hydraulic Motor
Imported hydraulic system, convenient operation, high efficiency and long service life.


Spray-coated treated
The surface is sprayed with plastic, with strong anti-rust ability and beautiful appearance.
Climbing ability 40%
High frequency vibration, strong compaction ability, compact structure and small welt distance.
Driver's seat
The driving roller has strong power, saving time and effort, and it is safer with emergency braking.




Recommend Products






Road Roller : It can be used for compacting soil, asphalt roads, sidewalks, bridges and culverts, parking lots, sports grounds and narrow-site compaction operations. Vertical vibration, high excitation force and high compaction efficiency are the ideal equipment for roads, streets and squares built by highways and municipal departments.
