Product Overview
Description

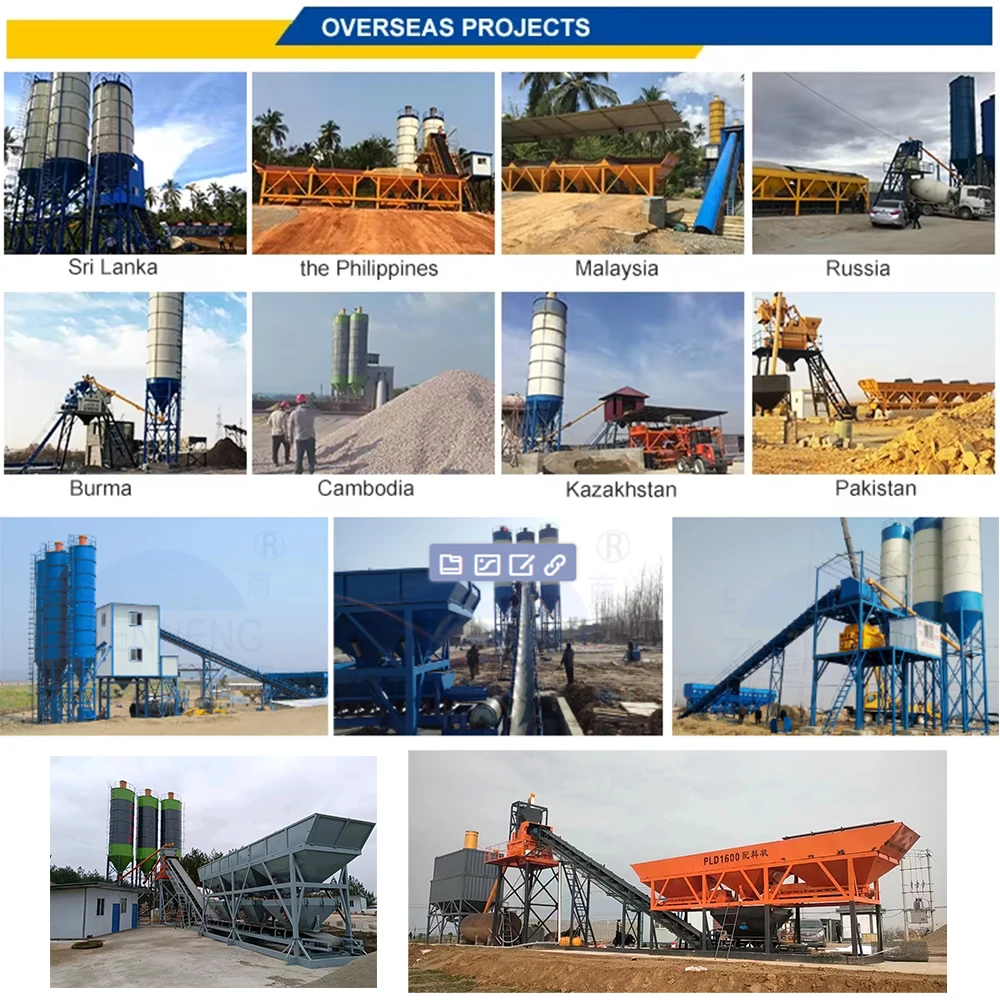

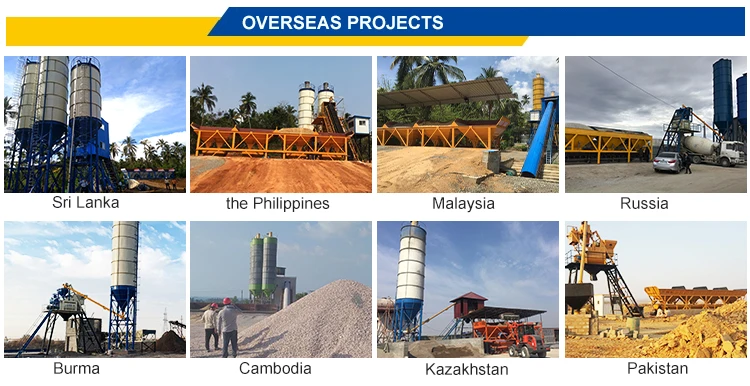

Overseas Projects
Product Description

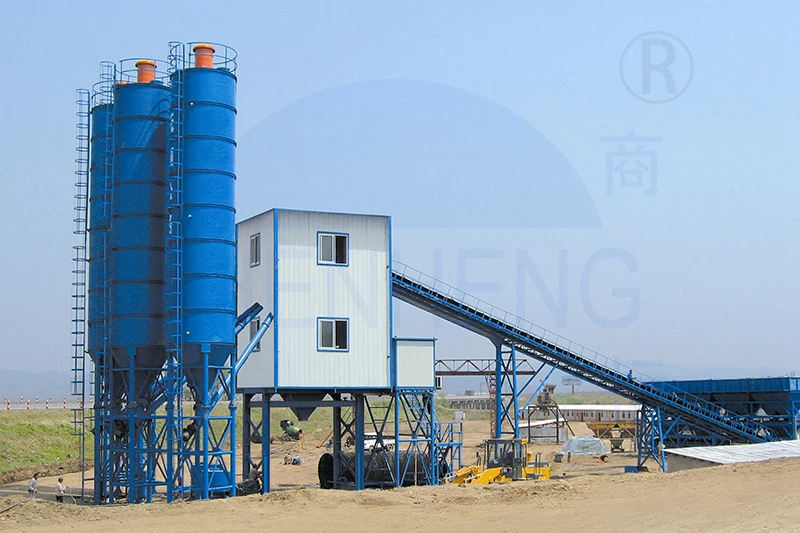

Stationary Concrete Batching Plant
Stationary concrete batching plant is widely used for large and medium-sized construction work and infrastructure projects, such as commercial and residential properties, road construction, commercial concrete supply, etc. It is an ideal choice for the production of high-quality concrete with a large amount of demand.
Stationary concrete batching plant is composed of aggregate batching system, aggregate convey system, batching system, mixing system, electrical control system, water supply system, air supply system, additive supply system, cement conveyor belt and cement silo. It suits to building site and merchandise concrete produce.

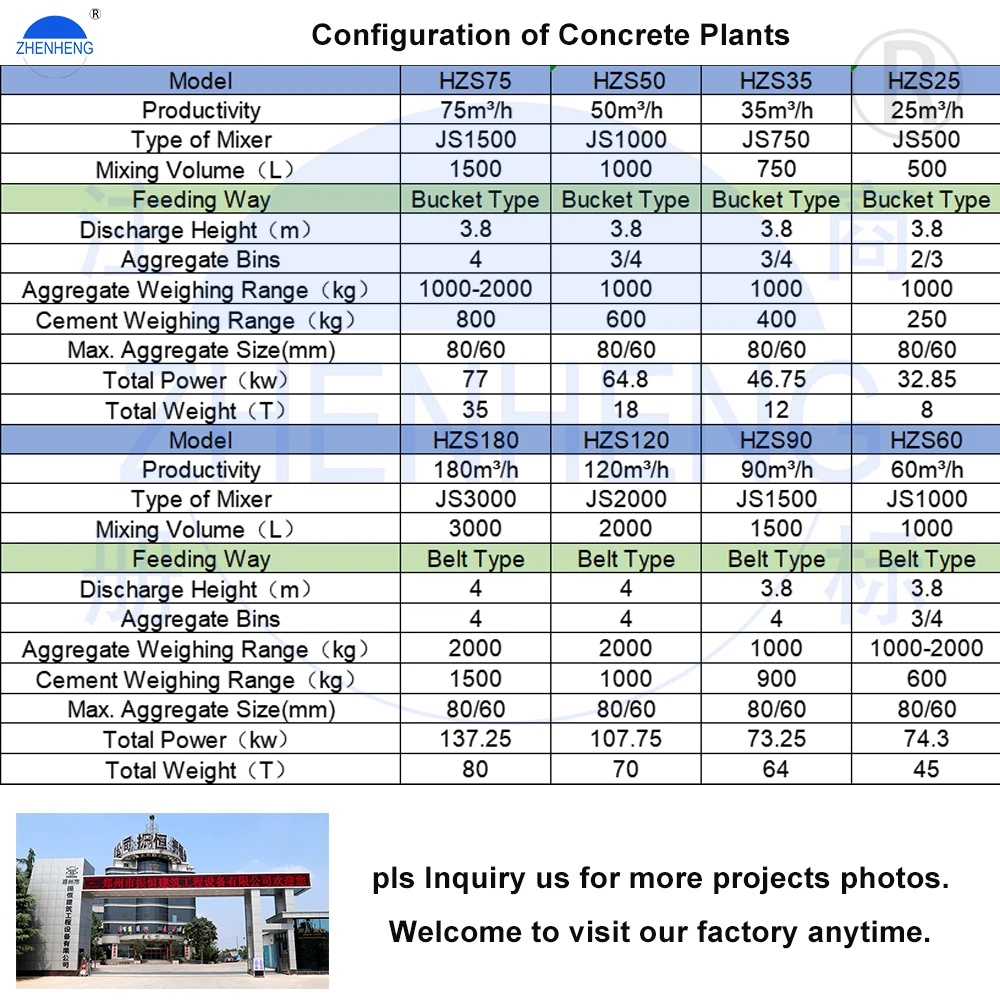

According to the aggregate feeding method, the stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of the Skip hoist type concrete batching plant can be 25/35/50/75 m3/h, and the capacity of belt conveyor type concrete batching plant can be 60/90/120/180/240 m3/h.
Stationary concrete batching plant is composed of aggregate batching system, aggregate convey system, batching system, mixing system, electrical control system, water supply system, air supply system, additive supply system, cement conveyor belt and cement silo. It suits to building site and merchandise concrete produce.
According to the aggregate feeding method, the stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of the Skip hoist type concrete batching plant can be 25/35/50/75 m3/h, and the capacity of belt conveyor type concrete batching plant can be 60/90/120/180/240 m3/h.
1. Small footprint, flexible installation, and convenient movement.
2. The small bucket hoist concrete plant has low motor power, light load and short track, and does not require high production efficiency. Generally, the elevator motor is directly started, and the limit switch is used to control the lifting and stopping.
3. The upper and lower parts of the lifting hopper are equipped with emergency stop buttons. When working in the field, the motor is better protected in the high temperature season.
Model | HZS50 |
Productivity | 50m3/hr |
Mixer Type | JS1000 |
Aggregate Number | 4 |
Maximum Aggregate Size | 60/80mm |
Unloading Height | 3.8m |
Aggregate weighing range | 0-2000kg |
Cement weighing range | 0-500kg |
Water weighing range | 0-250kg |
Additive weighing range | 0-30kg |
Fly ash weighing range | 0-200kg |
Dimension | 14*13*13m |
Cement Silo | 100T*2 |

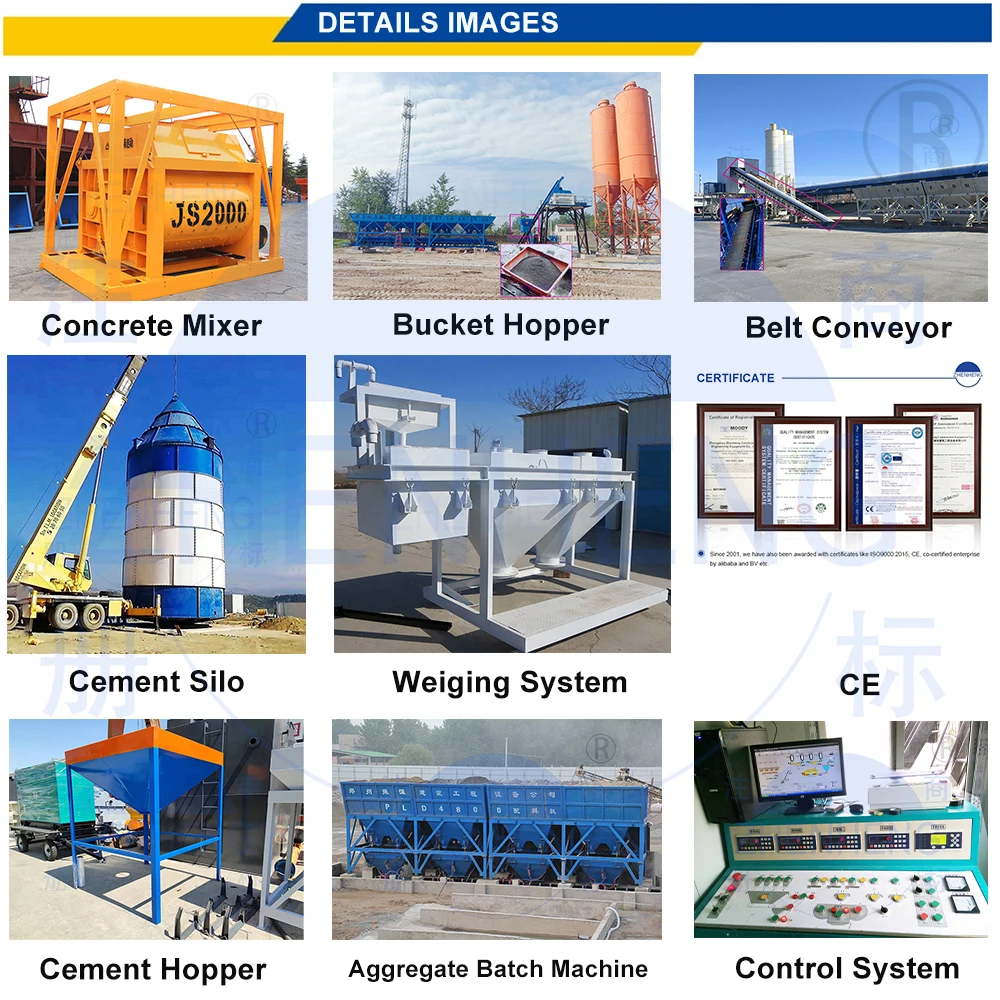

Detailed Images
Double Horizontal Shaft Concrete Mixer
1. Mix concrete of different strengths
2. suitable for small and medium large projects
3. also suitable for commercial concrete
Aggregate Batch Machine
1.The machine in the picture is used in HZS180
2. Bucket type, belt type; 2-4bins; for your choice;

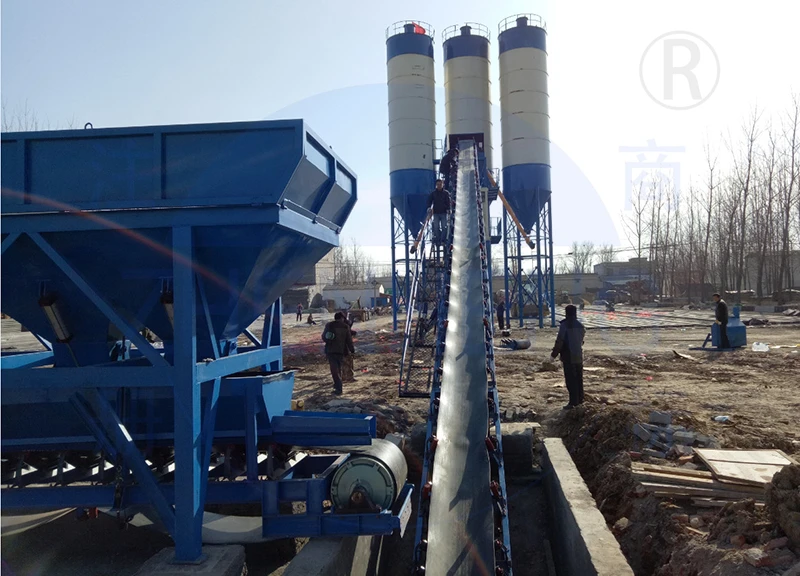

Belt Conveyor
Efficient loading
Bucket Hopper
Cover a small area
Weighing System
Cement, water, additive, fly ash weigh
Cement Hopper
Cement hopper is a nice choice for a small or simple concrete plant.
Control System
1. Fully automatic or semi-automatic
2. Russian, English, Spanish Language
3. Online afterservice in 1 hour
3. Online afterservice in 1 hour
Cement Silo
1. Vertical cement silo: Bolted type and welded type
2. Horizontal cement silo
3. 50t, 100t,150t, 200t, or customized
3. 50t, 100t,150t, 200t, or customized

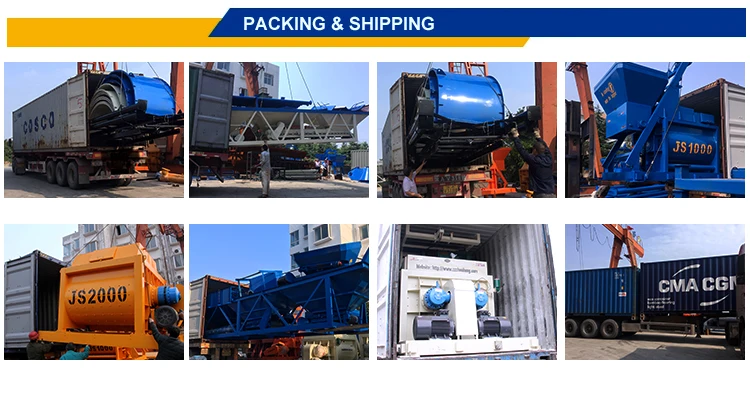

Packing&Shipping
Product Recommend
Company Profile
Interernational Sales Team
Engineers Team
QC Assistant
Exhibitions&Projects
FAQ
Q: How is the quality of your products?
A: our machines are manufactured strictly according to national and intemational standards, and we take a test each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving time and
absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Service and Payment Terms?
A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
