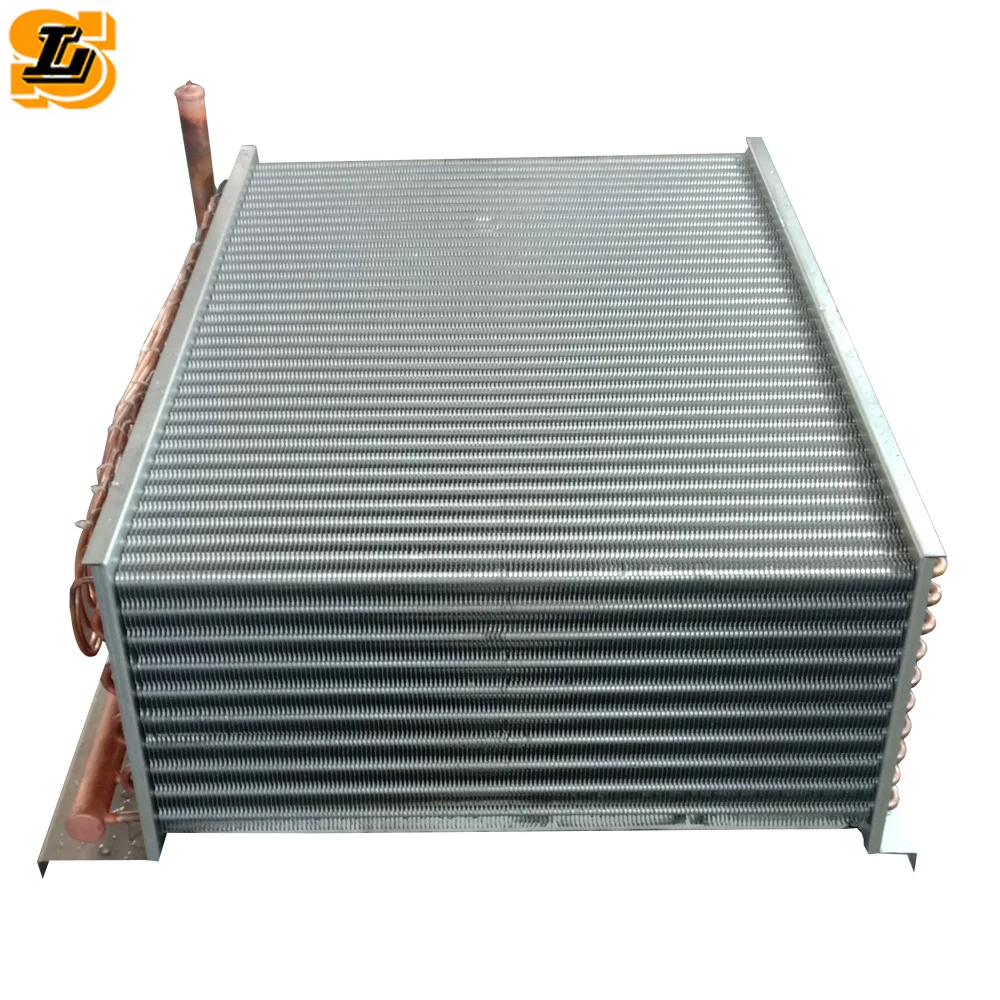

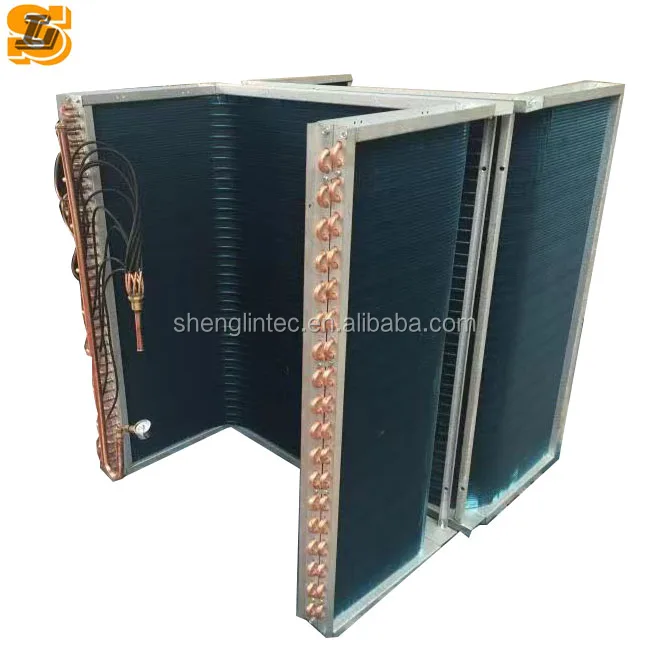

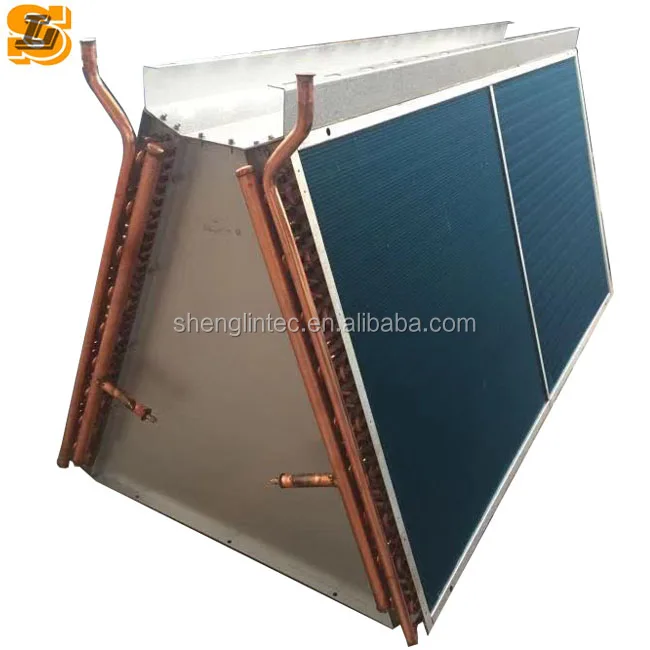

Shanghai shenglin high quality ice machine square evaporator
- Category: >>>
- Supplier: Shanghai Shenglin M&e Technology Co. Ltd.
Share on (1601273160773):
Product Overview
Description
Product Overview
Tube Fin Heat Exchanger
As a compact heat exchanger, the tube-fin heat exchanger has a wide range of applications in the refrigeration industry.
With the technological development of the air-conditioning and refrigeration industry, and the further strict control of environmental protection regulations, the requirements for the heat exchange performance of the heat exchange unit itself are more stringent to make up for the low performance of the alternative refrigerant.
Therefore, the heat exchanger structure (types of heat exchange tubes and fins) and the related heat exchanger forming process are important factors that affect the heat transfer performance, and are of great significance for improving the overall heat transfer performance of the heat exchanger.
With the technological development of the air-conditioning and refrigeration industry, and the further strict control of environmental protection regulations, the requirements for the heat exchange performance of the heat exchange unit itself are more stringent to make up for the low performance of the alternative refrigerant.
Therefore, the heat exchanger structure (types of heat exchange tubes and fins) and the related heat exchanger forming process are important factors that affect the heat transfer performance, and are of great significance for improving the overall heat transfer performance of the heat exchanger.
FEATURES AT A GLANCE
Product name | Condenser, evaporator, heat exchanger | ||||
Materials | Copper tube aluminum fin, galvanized plate | ||||
Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm | ||||
Aluminum fin | Hydroponic fin or bare fin | ||||
Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin | ||||
Fin space | 1.8--5.8mm | ||||
Pitch of holes and rows | 19.05*12.7mm; 25.5*22mm; 25*21.65mm; 31.75*27.5mm; 38.1*33mm, ect. | ||||
Application refrigerant | R417A/R407C/R404A//R410A/R134A, ect. | ||||
Feature | epoxy coating, electrophoresis, sandblasting | ||||
Pictures of Different Materials
Stainless Steel Tube Copper Fin
Copper Tube Aluminum Fin
Copper Tube Copper Fin
Aluminum Tube Fin Epoxy Coated
Aluminum Tube Aluminum Fin
Copper Tube Hydrophilic Aluminum Fin
Pictures of Different Uses
Salt Water Evaporator
Laser System Heat Exchanger
High Corrosion Resistant Eproxy Resin Coated Evaporator
Dehumidifier Heat Exchanger
Water Dispenser Evaporator
Household AC Ecaporator
Heat Pump Evaporator
Cold Dryer Condenser
Cassette Chilled Water Fan Coil
PRODUCT SPECIFICATIONS
Our Advantages:
1) Professional manufacturer, ROHS, BV, SGS, CE2) Three- step Quality control. Inspect the raw material, unfinished products and finished products.
3) Experienced technical staff. We have senior engineers and technicians more than 20 people with many years of experiences.
4) More than 10 years experiences of manufacturing. Cooperate with many famous brands: Midea, Gree, TCL, LG, Samsung, Hitachi, Panasonic etc.
5) Our products can be customized. We can produce for clients according to the sample or drawings.
6) Very competitive price with high quality products and perfect delivery date.
Raw material | Copper tube: OD 8mm; Wall thickness:0.6-1.0mm; Fin thickness: 0.13-0.2mm | ||||
Application | Refrigeration Parts, Air Conditioning, Freezers, Industrial Refrigeration, etc. | ||||
Structure | Tube-Fin heat exchanger, Condenser, Evaporator | ||||
Key process | Prepare the Material→Starving Tube and Shaping→Inserting Fins and Enlarging Tube → Leakage Test→Keeping Pressure→Packing | ||||
Performance | (1) Surface treated with powder coating to prevent corrosion (2) Inner cleanness can meet the requirement of R134a and CFC cooling system (3) Can satisfy the cooling capability requirements of the designed refrigerator, air conditioning, freezers, Industrial refrigeration, etc. | ||||
Fin Type | Copper Tube O.D. (mm) | Row Space (mm) | Hole Space (mm) | Fin Thickness (mm) | Fin Space (mm) | ||||||||
Flat fin | Sine wave with blade fin | Smooth sine wave fin | Window fin | Sesamoid fin | |||||||||
A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / | ||||
B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / | ||||
C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / | ||||
D | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / | ||||
E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / | ||||
E | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | ||||
F | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / | ||||
G | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | ||||
H | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / | ||||
I | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 | ||||
J | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / | ||||
K | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / | ||||
Item | Cooling coil Type | Operation medium | Operation pressure (MPa) | Application |
1 | Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin | Cold/hot water | ≤1.6 | combined air handling unit, fan coil, air conditioning devices |
2 | Φ18/Φ20 Steel pipe winding with steel sheet | Steam | ≤0.2 | combined air handling unit, fan coil, air conditioning devices |
3 | Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin | Brine | ≤1.6 | heat transfer in cold storage and all kinds of low temperature systems |
4 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin | Ethylene glycol | ≤1.6 | energy recovery, low temperature system devices |
5 | Φ16 Copper tube with aluminum fin | Ice mud | ≤1.6 | dry operation condition, fresh air dehumidification systems |
6 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin | R22 | ≤1.9 | industry and commerce air conditioning system |
7 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin | R407C | ≤1.9 | industry and commerce air conditioning system |
8 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin | R134a | ≤3.1 | vehicle, vessel, transportation devices |
Parameters Table to fill
If you are not quite familiar with the technical datas and don`t know what do you need, please fill in the following table as possible. Then we can help to save time and effort.
Heat exchanger(water in it) | Notes: | ||||
Heat transfer | KW | ||||
Inlet air temperature (dry bulb) | °C | ||||
Outlet air temperature (wet bulb) | °C | ||||
Inlet water temperature | °C | ||||
Outlet water temperature | °C | ||||
Any requirements about mounting space? | |||||
