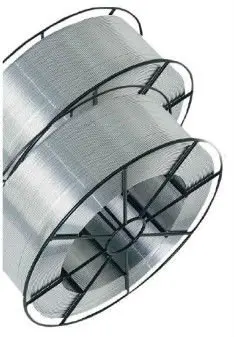

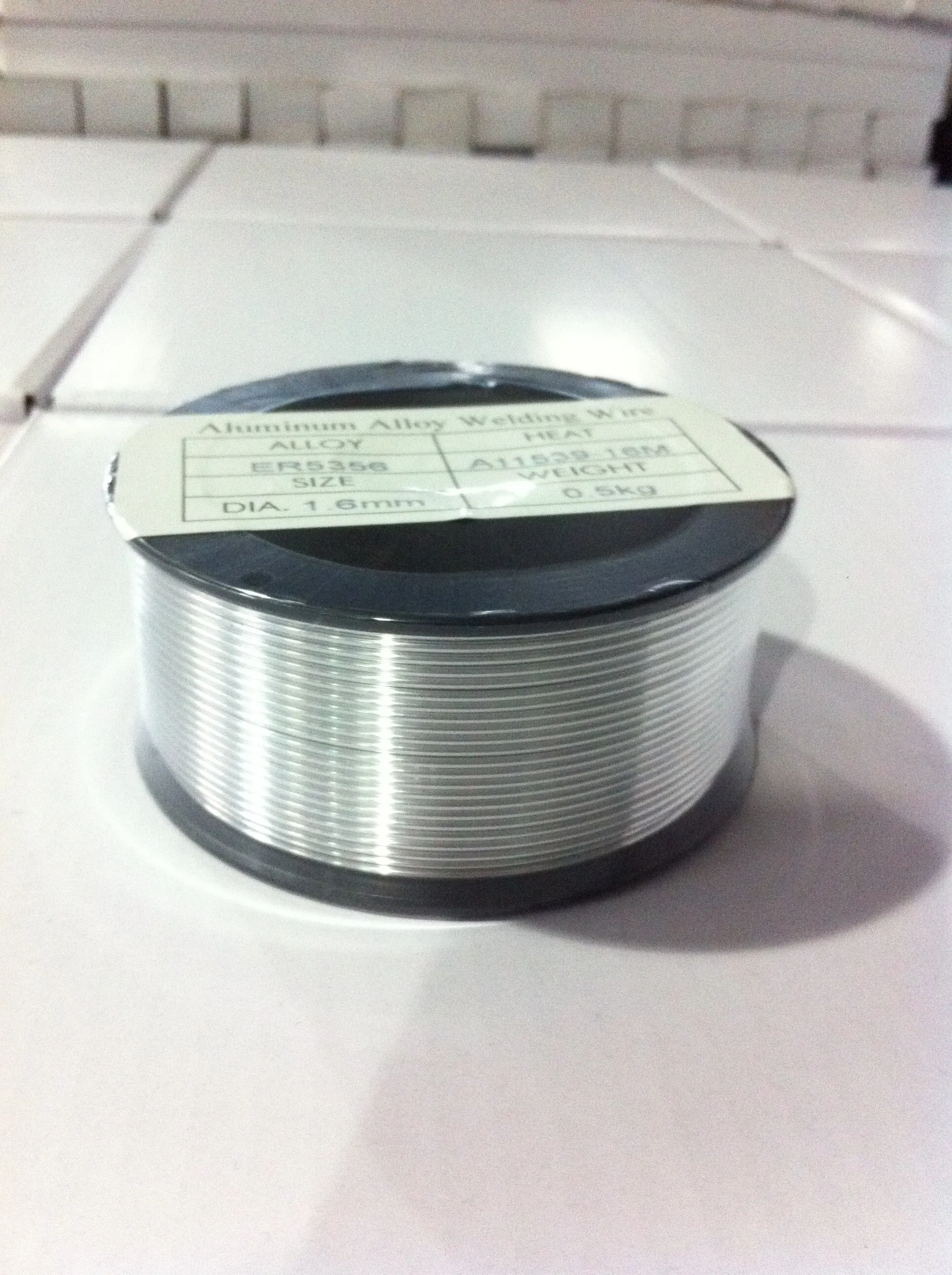

1.0mm 0.5KG er5356 MIG aluminum alloy welding rod ER4043 Aluminum Welding Wire
- Category: >>>
- Supplier: Shijiazhuang Shiqiao Electric Welding Material Co. Ltd.
Share on (1601273190294):
Product Overview
Description
Product Overview
Aluminum alloy WELDING WIRE Tig &Mig wire AWS ER4043 ER5356
WELDING WIRE Description
ER4043 is for welding heat-treatable base alloys and more specifically 6xxx series alloy. It can also be used for jointing wrought to
cast materials. It can be used to weld various grades of aluminum base metals like automotive components such as frame and drive
shafts, bicycle frames, ship, chemistry equipment, mould furnitures,vessel, containers, etc
ER5356 is aluminum magnesium alloy welding wire, which is used to weld aluminum magnesium alloy with high magnesium content. The
welding wire has high strength, good malleability and excellent seawater corrosion resistance. It is used for welding aluminum
alloy in shipbuilding, offshore platform, railway locomotive and automobile manufacturing industry.

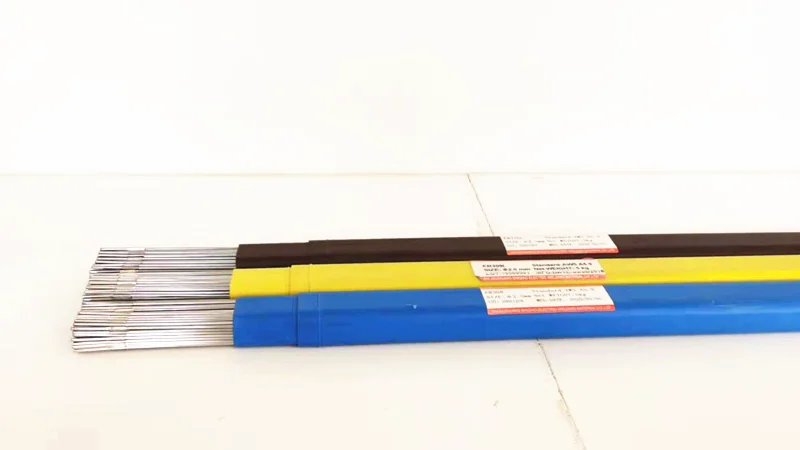

TIG rod:
Diameter(mm): 1.6mm-5.0mm
Length: 1000mm
Package type:5kg/box
cast materials. It can be used to weld various grades of aluminum base metals like automotive components such as frame and drive
shafts, bicycle frames, ship, chemistry equipment, mould furnitures,vessel, containers, etc
ER5356 is aluminum magnesium alloy welding wire, which is used to weld aluminum magnesium alloy with high magnesium content. The
welding wire has high strength, good malleability and excellent seawater corrosion resistance. It is used for welding aluminum
alloy in shipbuilding, offshore platform, railway locomotive and automobile manufacturing industry.
CONFORMANCE:

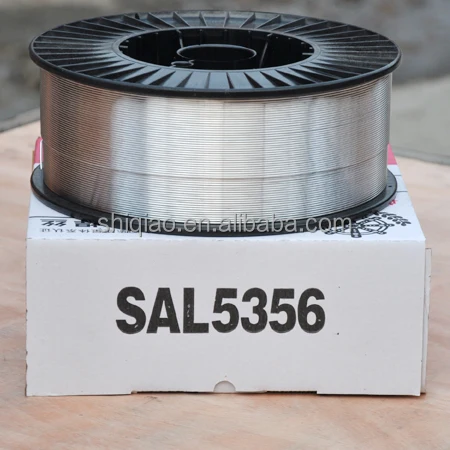

Accord with GB / T10858 SAl 5356
AWS A5.10 ER5356
ISO 18273-S-Al5356 [AlMg5Cr (A)]
Accord with GB / T10858 SAl 4043
AWS A5.10 ER4043
ISO 18273-S Al 4043 [AlSi5]
Package type: 7kg/spool or 6kg/spool; 2kg/spool;0.5kg/spool
Accord with GB / T10858 SAl 5356
AWS A5.10 ER5356
ISO 18273-S-Al5356 [AlMg5Cr (A)]
Accord with GB / T10858 SAl 4043
AWS A5.10 ER4043
ISO 18273-S Al 4043 [AlSi5]
SIZES &PACKING:

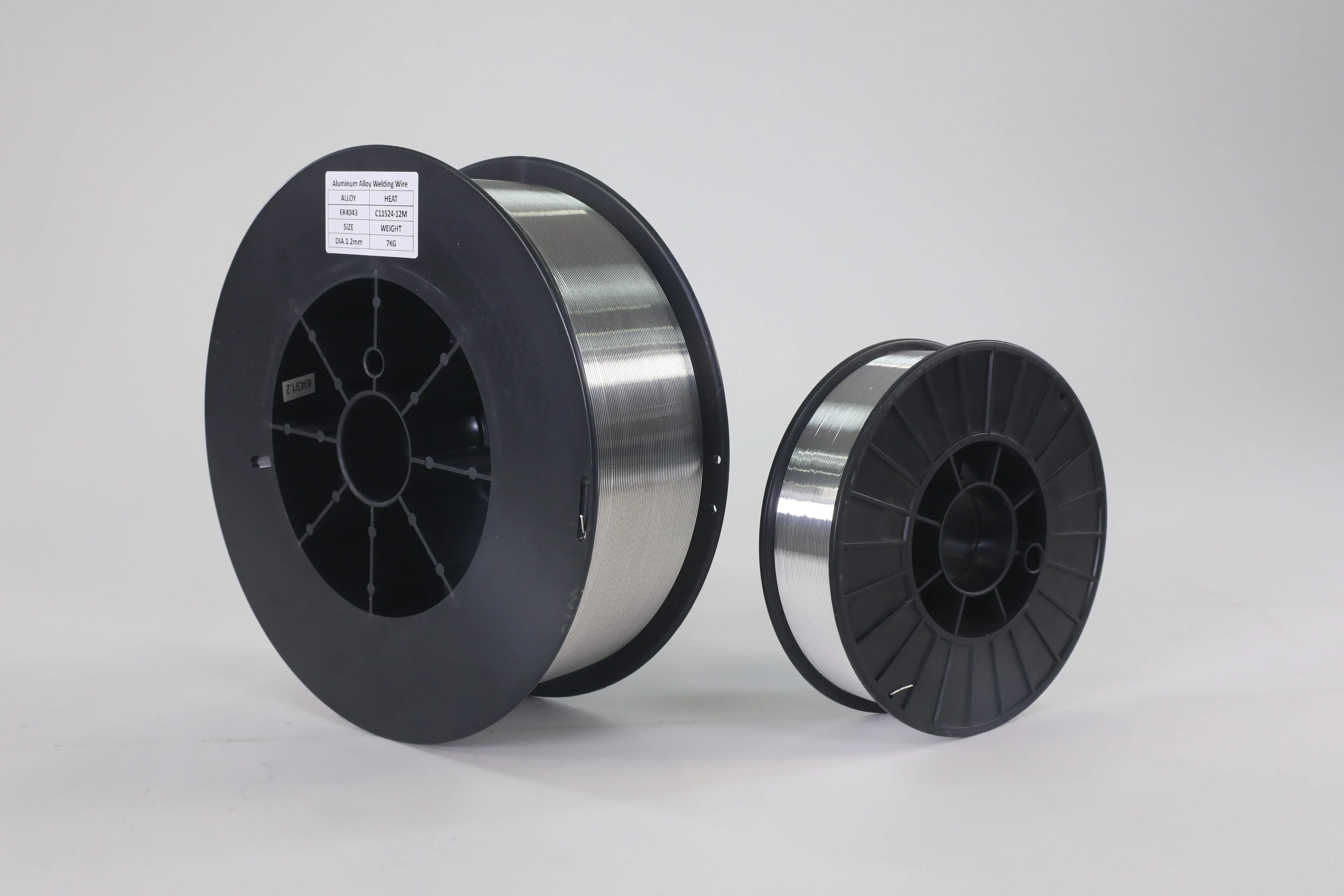

MIG wire:
Diameter(mm): 0.8mm-1.6mmPackage type: 7kg/spool or 6kg/spool; 2kg/spool;0.5kg/spool
TIG rod:
Diameter(mm): 1.6mm-5.0mm
Length: 1000mm
Package type:5kg/box
0.5ton/pallet; 1ton per pallet
FEATURES AT A GLANCE
ADVANTAGE :
1.Little Spatter
2. Excellent welding process
3. Very good for machinable
4. Both AC and DC applicable
5. no need to preheat, good crack resistibility and process-ability
6. Manufactured under a quality system certified to ISO 9001 requirements
1.Little Spatter
2. Excellent welding process
3. Very good for machinable
4. Both AC and DC applicable
5. no need to preheat, good crack resistibility and process-ability
6. Manufactured under a quality system certified to ISO 9001 requirements

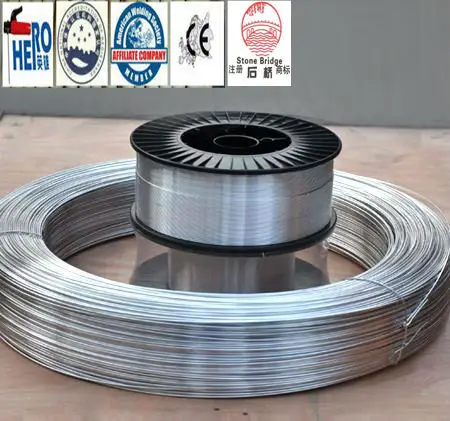

Aluminum welding wire
aluminum welding wire ER4043
Aluminum welding wire ER5356

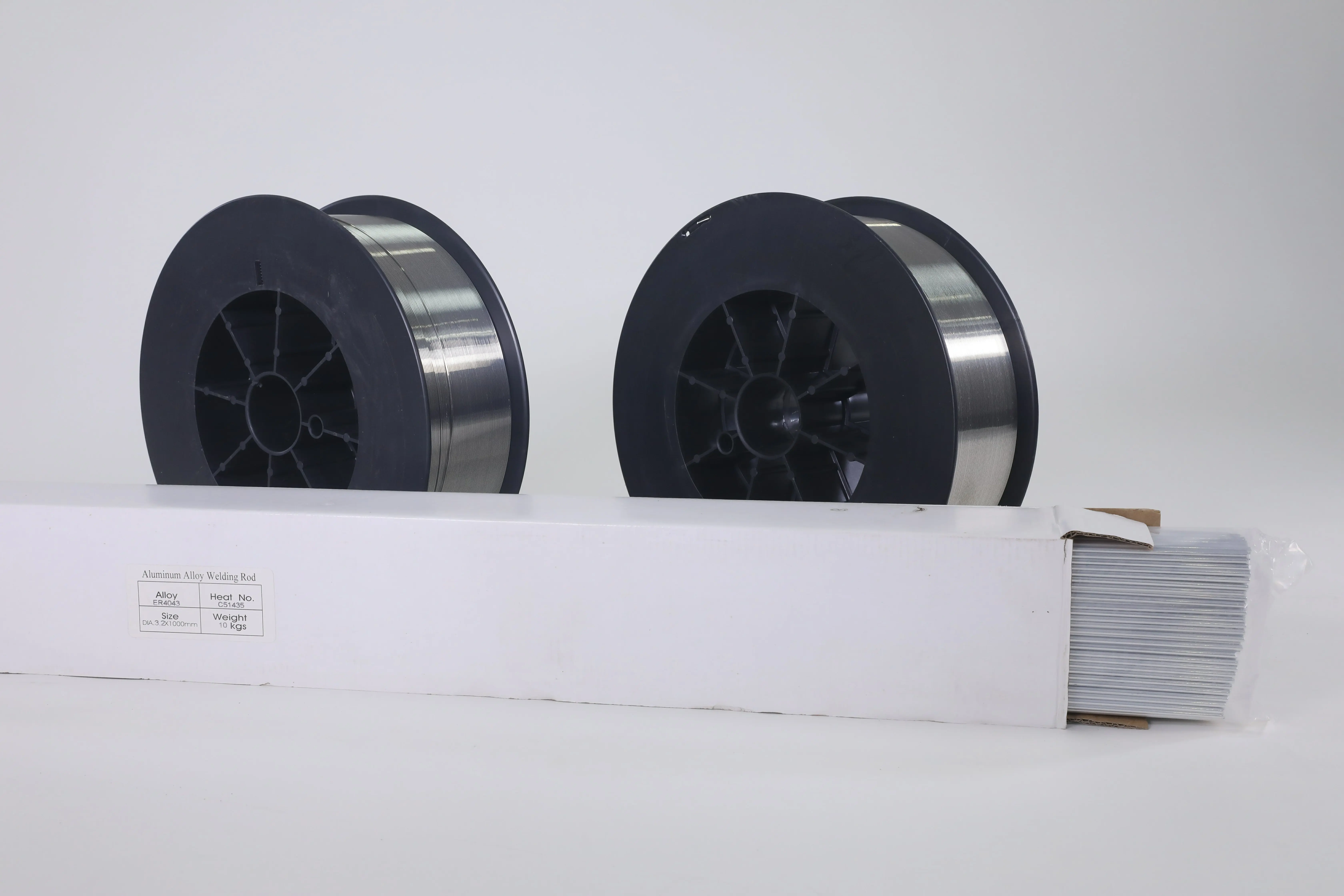

PRODUCT CONFIGURATION
Tig aluminum welding wire
Mig wire for aluminum wire
7kg/spool mig aluminum wire
SALES AND SERVICE NETWORK
Successful Project
Project in Brazil
Project in Malaysia
Project in Russia
FAQ
ATTENTION:
1. Before welding, the oxide, oil stain, moisture and other impurities on the welding joint and welding wire must be removed.
2. During welding, the base plate can be used to hold the molten metal to ensure the formation of the weld.
3. When oxyacetylene gas welding, aluminum gas welding flux must be used together.
1. Before welding, the oxide, oil stain, moisture and other impurities on the welding joint and welding wire must be removed.
2. During welding, the base plate can be used to hold the molten metal to ensure the formation of the weld.
3. When oxyacetylene gas welding, aluminum gas welding flux must be used together.
Mechanical Properties of All Weld Deposited Metal | ||||||||
Tension Test of Deposited Metal (Mpa) | Yield Strength RPo.2(MPa) | Elongation rate A(%) | Protection Gas | |||||
ER4043 | 150 | 110 | 14 | 100%Ar、 75%Ar+25%He、50%Ar+50%He | ||||
ER5356 | 260 | 140 | 19 | 100%Ar、 75%Ar+25%He、50%Ar+50%He | ||||
