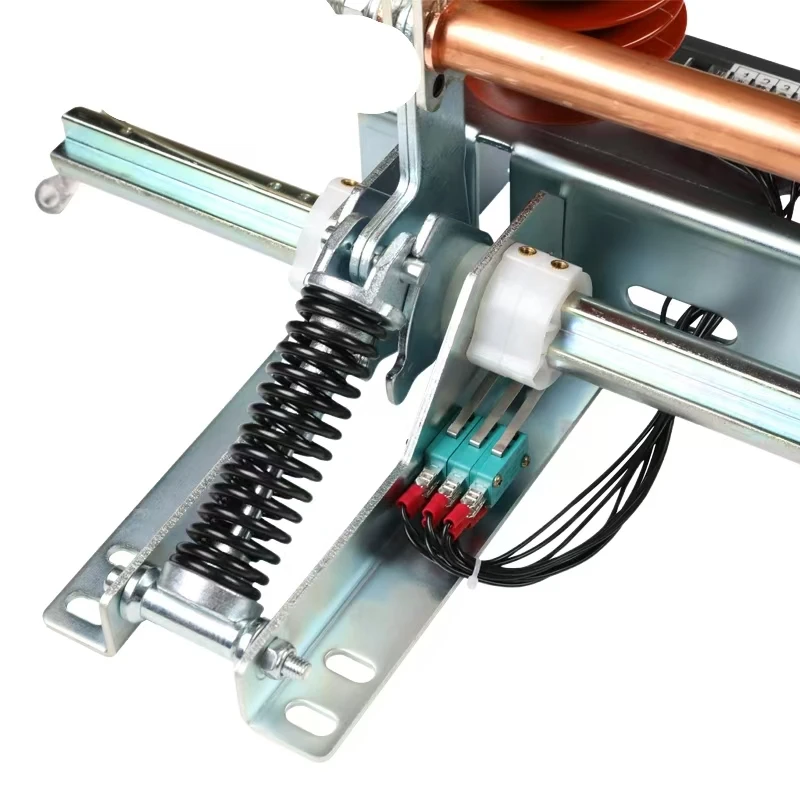

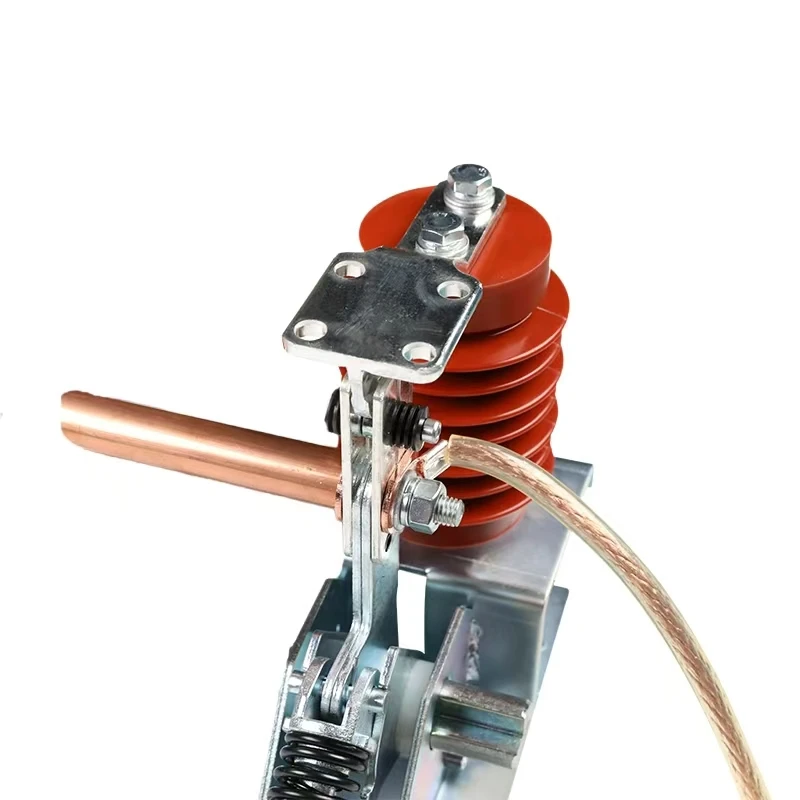

CNKEEYA HV electrical isolate switch JN15 40.5 indoor high voltage grounding switch 40.5KV
- Category: >>>
- Supplier: Zhejiang Hanya Electric Appliance Co. Ltd.
Share on (1601273208151):
Product Overview
Description
Product Description

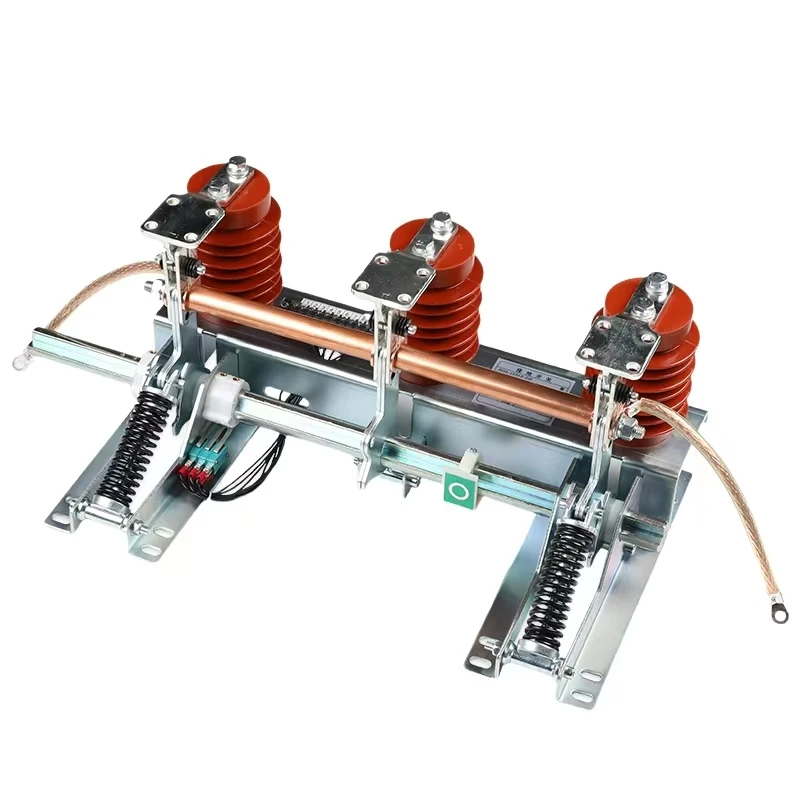

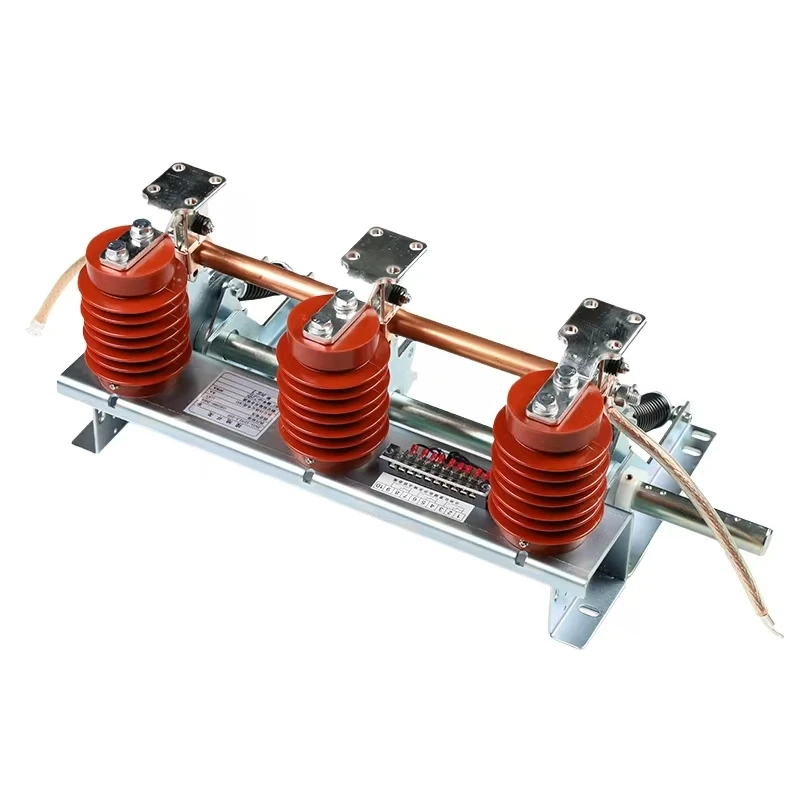

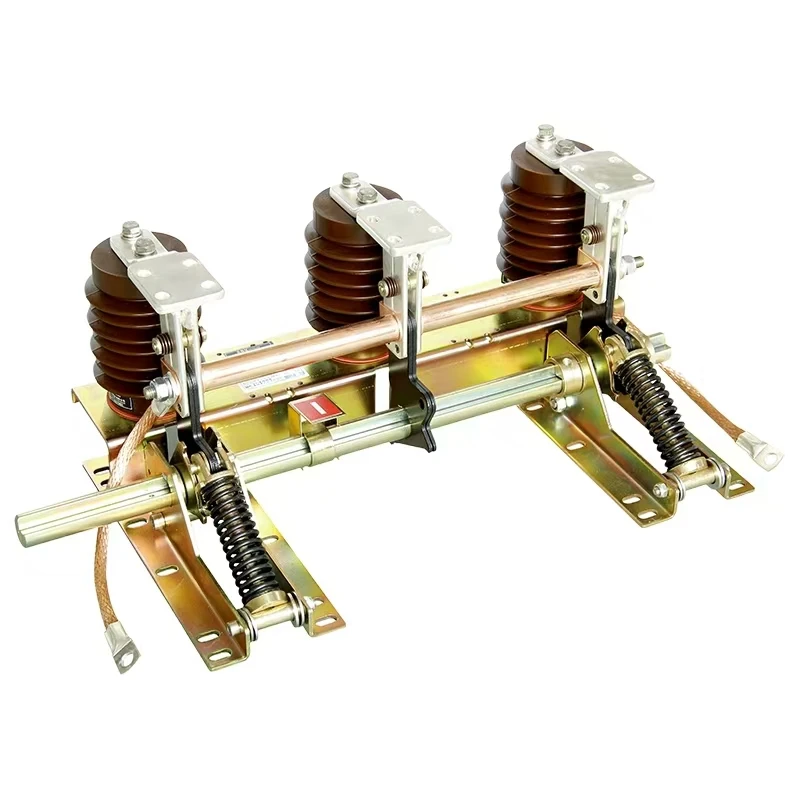

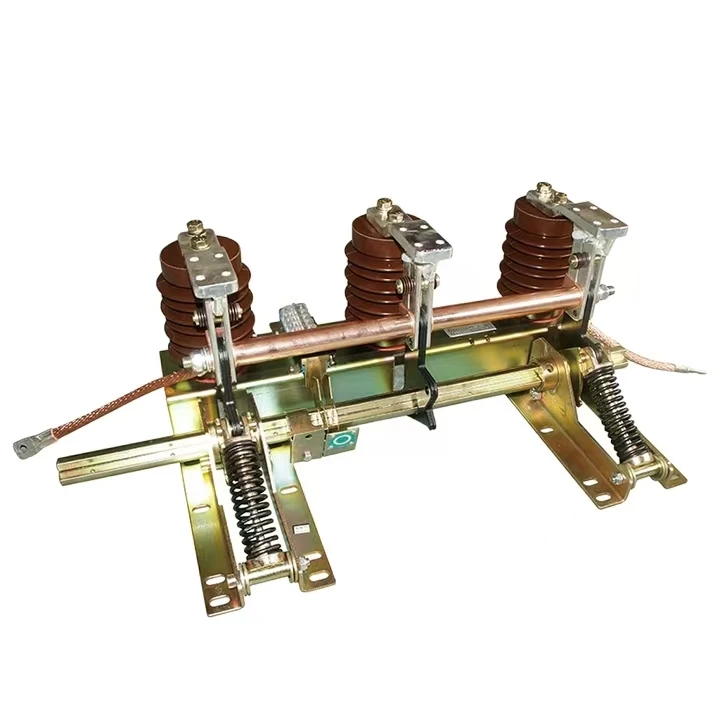

JN15 indoor high-voltage grounding switch is suitable for use in indoor 3-12KV three-phase AC 50 (60) Hz power systems and various types of high-voltage switchgear. It can also be used as grounding for high-voltage electrical equipment maintenance. The grounding switch has a simple and compact structure, light weight, flexible operation, easy installation, and good dynamic and thermal stability.
1. Model No.JN15-12/31.5 HV earthing switch 2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3.Application: KYN61-40.5 HV switchgear and various types MV&HV switchgear
4. Main function: Used for earthing protection
5. Central distance between poles: 210,275,according to your request.
Specification
item | value |
Place of Origin | China |
Province | Zhejiang |
Brand Name | CNKEEYA |
Type | Fuse switch disconnector |
Number of Pole | 3 |
Rated Voltage | 24 |
Product name | grounding switch disconnector |
Model | JN15-24 / 31.5 |
application | high voltage |
short-circuit making current | 31.5KA |
Max. Voltage | 40.5KV |
Max. Current | 3150A |
Colour | Red |
