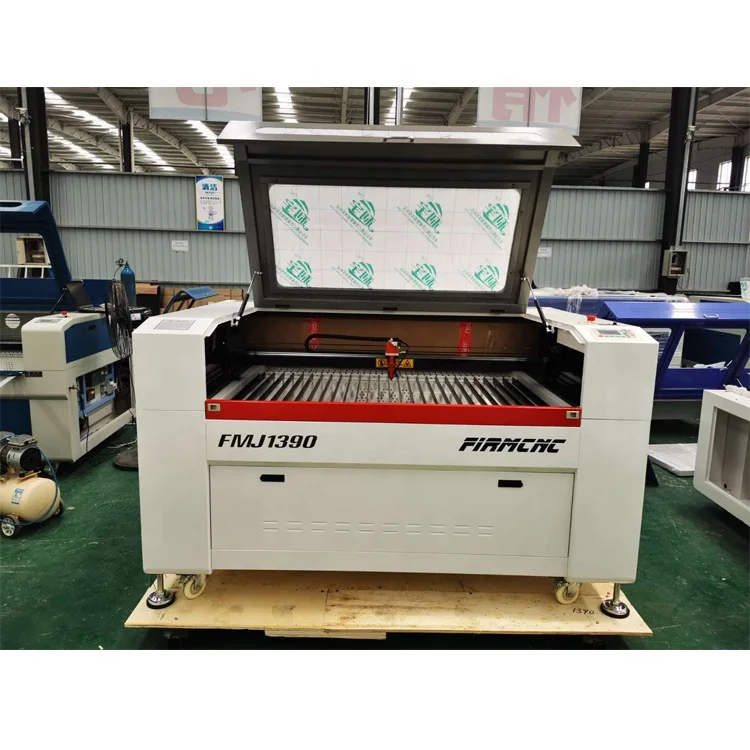

New ruida co2 laser machine 1390 1410 100w 130w co2 laser engraving cutting machine for Acrylic Wood Leather MDF Plywood
- Category: >>>
- Supplier: Jinan Frimcnc Equipment Co. Ltd.
Share on (1601273210545):
Product Overview
Description
Product Description
New design type, have warn light and air gun.
FIRMCNC Brand laser engraver cutter machine is based on various types of customer requirements, combined with our many years of equipment production experience, the use of a variety of advanced technology and special design, to achieve the perfect unity of the two functions of sculpture and cutting.
The co2 laser engraving cutting machine runs fast with simple operation and low cost; Theengraving effect is good, no burr on the cutting edge, no secondary grinding, less cutting waste, carving depth of the best laser engraving machines can be adjusted independently and with high precision.
FIRMCNC Brand laser engraver cutter machine is based on various types of customer requirements, combined with our many years of equipment production experience, the use of a variety of advanced technology and special design, to achieve the perfect unity of the two functions of sculpture and cutting.
The co2 laser engraving cutting machine runs fast with simple operation and low cost; Theengraving effect is good, no burr on the cutting edge, no secondary grinding, less cutting waste, carving depth of the best laser engraving machines can be adjusted independently and with high precision.
FIRMCNC CO2 laser machine main feature:
1. High-speed inner slide: the cutting speed of this laser engraver cutter machine is very fast, greatly improving work efficiency.
2. Convenient operation interface: Advanced LCD screen, the laser engraver cutter machine supports PC and USB2.0 ports, DSP offline control system, the user interface is good, easy and simple.
3. Cover protection: sealed chassis design of the co2 laser engraving cutting machine to ensure the safety of processing environment, a unique cover protection design to ensure that operators open the laser engraver cutter machine cover, the laser power supply to suspend work, to protect the safety of the operator.
4. Visualization working path: The laser is invisible light, in order to let the operator more specifically process the concrete place, the industrial laser engraving machine adopts the red light indication method to realize the precise positioning of the laser beam.
5. Optional electric lifting platform: up and down to adjust the working height of thebest laser engraving machines, to meet the processing requirements of different thickness of the object. At the same time optional knife working table of the co2 laser engraving cutting machine is suitable for different processing materials.
6. Drawer ladder design: it is easy for the best laser engraving machines to collect and obtain the cutting object.
1. High-speed inner slide: the cutting speed of this laser engraver cutter machine is very fast, greatly improving work efficiency.
2. Convenient operation interface: Advanced LCD screen, the laser engraver cutter machine supports PC and USB2.0 ports, DSP offline control system, the user interface is good, easy and simple.
3. Cover protection: sealed chassis design of the co2 laser engraving cutting machine to ensure the safety of processing environment, a unique cover protection design to ensure that operators open the laser engraver cutter machine cover, the laser power supply to suspend work, to protect the safety of the operator.
4. Visualization working path: The laser is invisible light, in order to let the operator more specifically process the concrete place, the industrial laser engraving machine adopts the red light indication method to realize the precise positioning of the laser beam.
5. Optional electric lifting platform: up and down to adjust the working height of thebest laser engraving machines, to meet the processing requirements of different thickness of the object. At the same time optional knife working table of the co2 laser engraving cutting machine is suitable for different processing materials.
6. Drawer ladder design: it is easy for the best laser engraving machines to collect and obtain the cutting object.
Specification
Model &Name | FMJ9060 | FMJ1390 | FMJ1610 | FMJ1325 | |||
Brand | FIRMCNC | FIRMCNC | |||||
Working Area | 900* 600mm | 1300* 900mm | 1600* 1000mm | 2500* 1300mm | |||
Laser type | Co2 sealed laser tube | ||||||
Laser power | 60w/80w/90w/100w/130w/160w/180w/280w/300w | ||||||
Table Platform | Blade table (Optional : Honeycomb table) | ||||||
Control system | RDC6445G conrol sytem | ||||||
Transmission Way | Shanghai Fulong Belt(Optional TBI ball screw) | ||||||
Guide rails | Taiwan Hiwin linear square guide rail | ||||||
Lens and Mirrors | Singapore Lens and mirrors | ||||||
Cooling method | Circulating-water-cooling and protection system | ||||||
Engraving Speed | 0-64000mm/min | ||||||
Cutting Speed | 0-36000mm/min | ||||||
Resetting positioning accuracy | ≤±0.01mm | ||||||
Industrial Chiller Rotary system Up-down table Auto focus system | |||||||
Laser tube working lifetime | RECI:8000h-10000h ; 10 months warranty (Counted from the date of produced). | ||||||
Auxiliary devices | Exhaust fan, smoke pipe, air pump | ||||||
Advantages of CO2 laser engraving cutting machine:
1. Leadshine step motor on XY axis. It improves the precision and speed.
2. Split machine cabinet. The upper half part of the machine can enter a door with a width of 800mm.
3. Up and down distance of Z axis is 300mm
4. Combined laser beam path(you can adjust the laser according to the red dot path.)
5. The thickness of the feed material from front to back and from left to right can be up to 80mm.
6. Warm light,air gun.
2. Split machine cabinet. The upper half part of the machine can enter a door with a width of 800mm.
3. Up and down distance of Z axis is 300mm
4. Combined laser beam path(you can adjust the laser according to the red dot path.)
5. The thickness of the feed material from front to back and from left to right can be up to 80mm.
6. Warm light,air gun.
Application of CO2 laser engraving cutting machine:
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
After sale service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & Delivery
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Recommend Products
FAQ
1.Can you recommend a laser machine to me ?
Yes, In order to give you a suitable laser machine,pls tell me your working area ? processing materials ? engraving or cutting ? if cutting, what's the max cutting thickness ? Then perfect suitable machine will be recommend.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service until you can operation the machine.
If you want to purchase wood cnc router machine, please feel free to contact me.
Yes, In order to give you a suitable laser machine,pls tell me your working area ? processing materials ? engraving or cutting ? if cutting, what's the max cutting thickness ? Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service until you can operation the machine.
If you want to purchase wood cnc router machine, please feel free to contact me.
